china supplier zhongshan manufacturer electric switch 3 speed push button fan switch
- Category: Fan Parts >>>
- Supplier: Zhongshan,Baiqiao,Electrical,Industry,Company,Limited
Share on:
Product Overview
Description

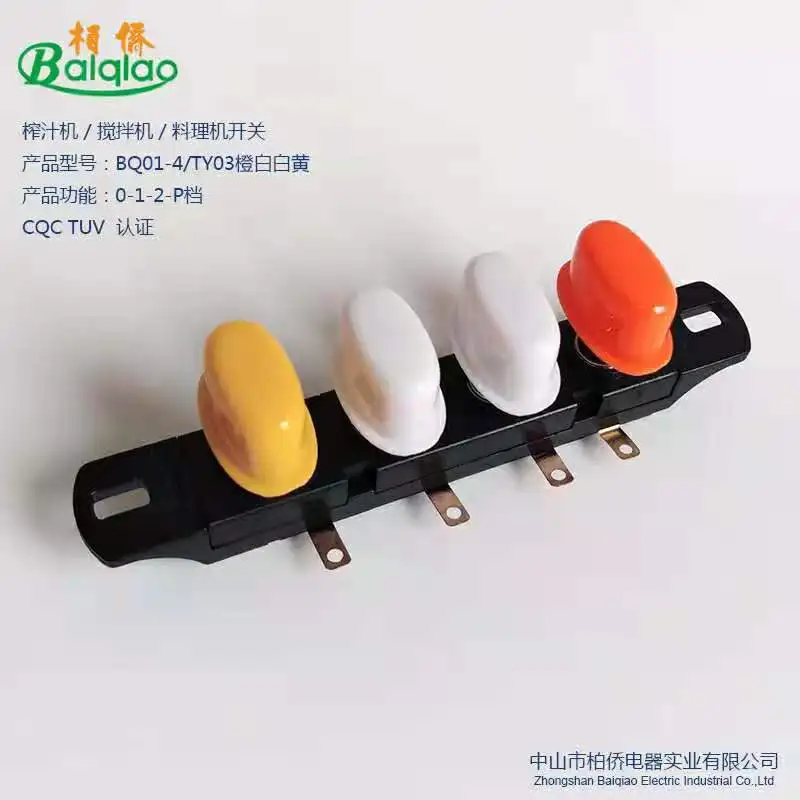

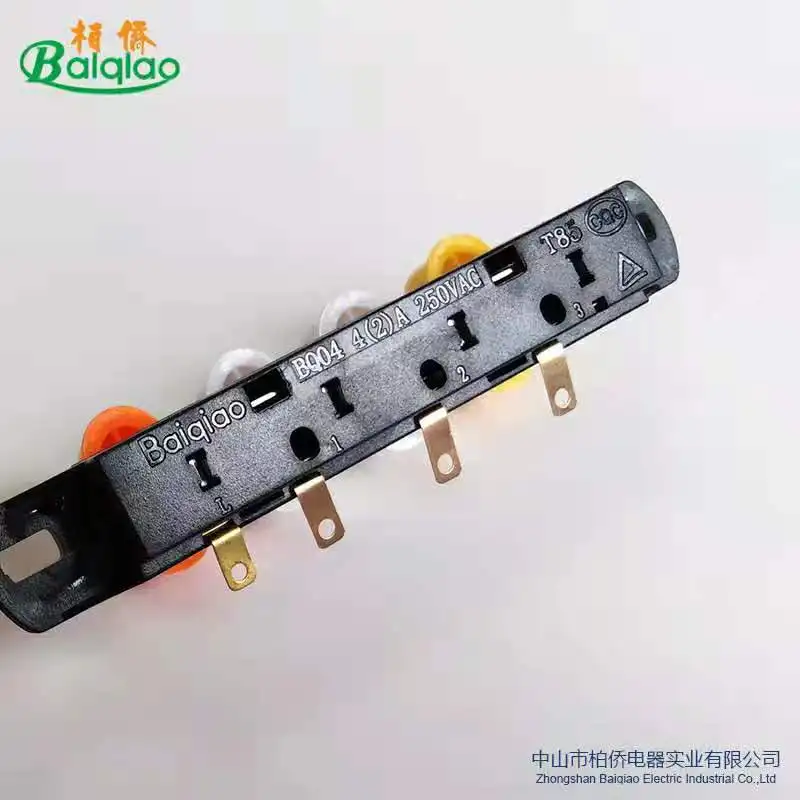

china supplier zhongshan manufacturer electric switch 3 speed push button fan switch
Product Description
| Electrical Rating | 1A250V AC, 4A250V AC |

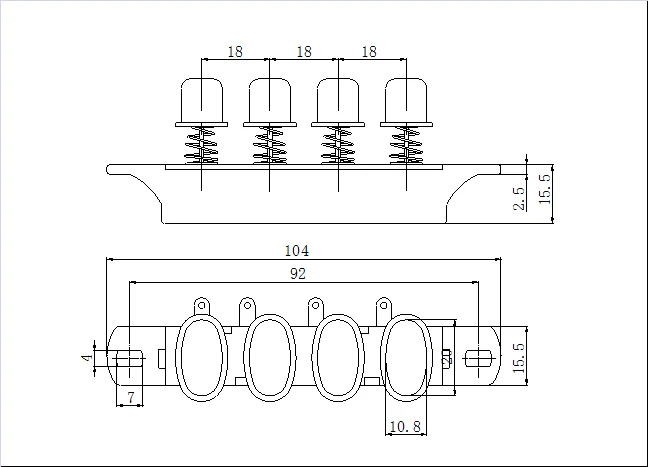

| Button distance | 18mm |
| Temp(C) | 80°C |
| Circuit/ Functions | OFF L1 L2 L3 montary or off L1 L2 momentary |
| Wiring specifications | 22-18AWG UL1015 |
| The keyboard distance | 18mm |
| materials | PC V0 ABS spring copper |
| Wire Connect | Soldering wires or Inserting wires (without terminals outside) |
| life time | 10000cycles |
| used | table fan, standing fan,wall fan blender,toaster,hot-heated equipment.and all kinds of home appliance etc. |
| Items | Standard |
| Rated voltage & Rated Current | 1A/4A,125V/250V |
| Contact Resistance | 30mΩ maximum |
| Insulation Resistance | 500VDC, 50mΩ |
| Compression Resistances | 1500VAC/3000Vac, 1Min |
| Operating Temperature | T85°C |
| Electrical Life | 10000 Cycles |
| Certificate | CB, CQC, TUV |
| Wire Connect | Soldering Wire |
| Circuit/Function | OFF L1 L2 L3 or off L1 L2 momentary |
Product highlights:
- Main Material adopts Fire Resistance PLASTIC, it makes our life more safer.
- Long electrical life and high reliability, simply operation.
- 10 years working experience on developping and producting, OEM/ODM are acceptable.
- Quality Commiteted for you
The Switch Apply for:
----Electric blenders, juicers, mixer grinder, licuadoras, meat grinder, fan, oven, heater, food processors, Toaster, air cooler and all kinds of home appliances ect.
Customers also consider:
Company Information
Zhongshan Baiqiao Electrical Industry Co.,ltd was found in 2010, with a professional development and producing household appliances switches and other plastic accessories, the factory has own injection workshop, mould workshop, testing house and 4 production line.
The switch includes keyboard switch, rotary switch, micro switch and rocker switch ect.
With more years working experience and stronger R&D team, we are confident to try all our efforts to provide you with the best service and develop business cooperation with you to reach a win-win situation.
Please feel free to contact us for more information about our company and products.
