Product Overview
Description
Product Description

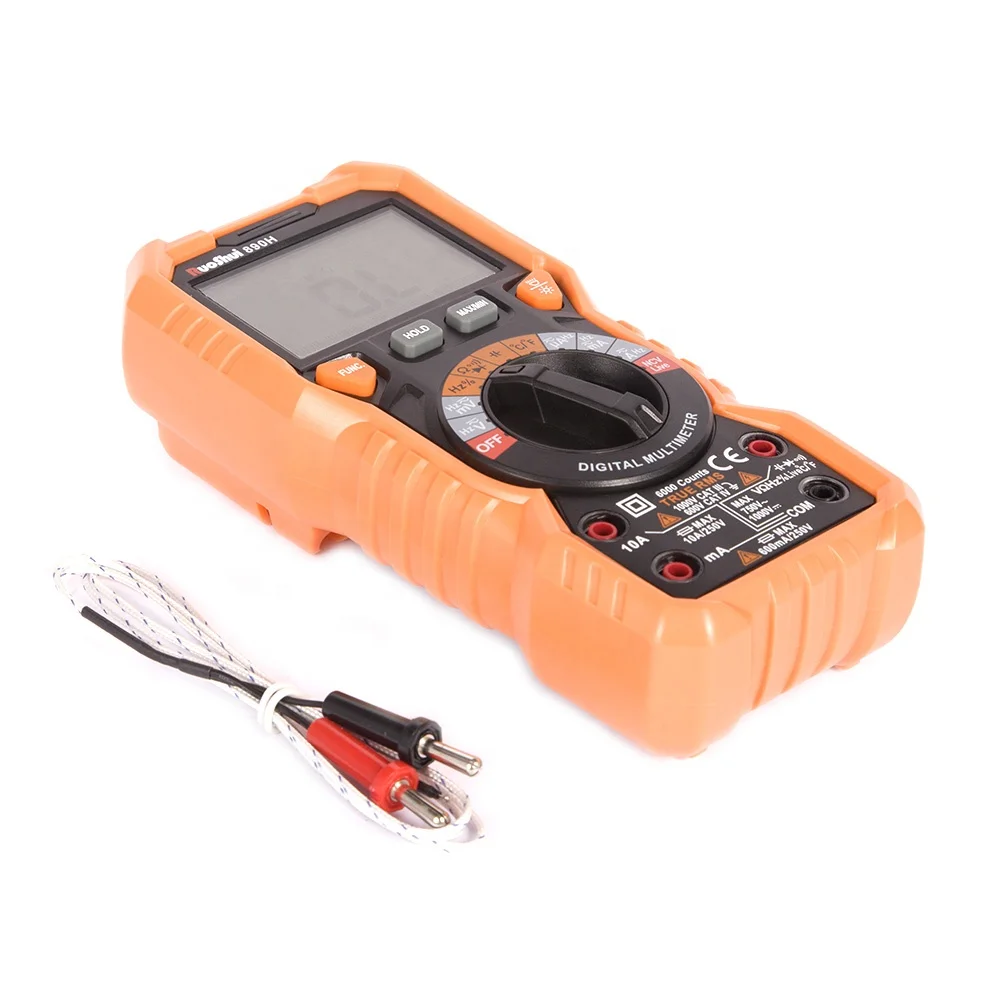

Victor 890H+ 6000 Counts CAT III 1000V Auto Range Digital Multimeter For Sale multimeter digital Multimetro

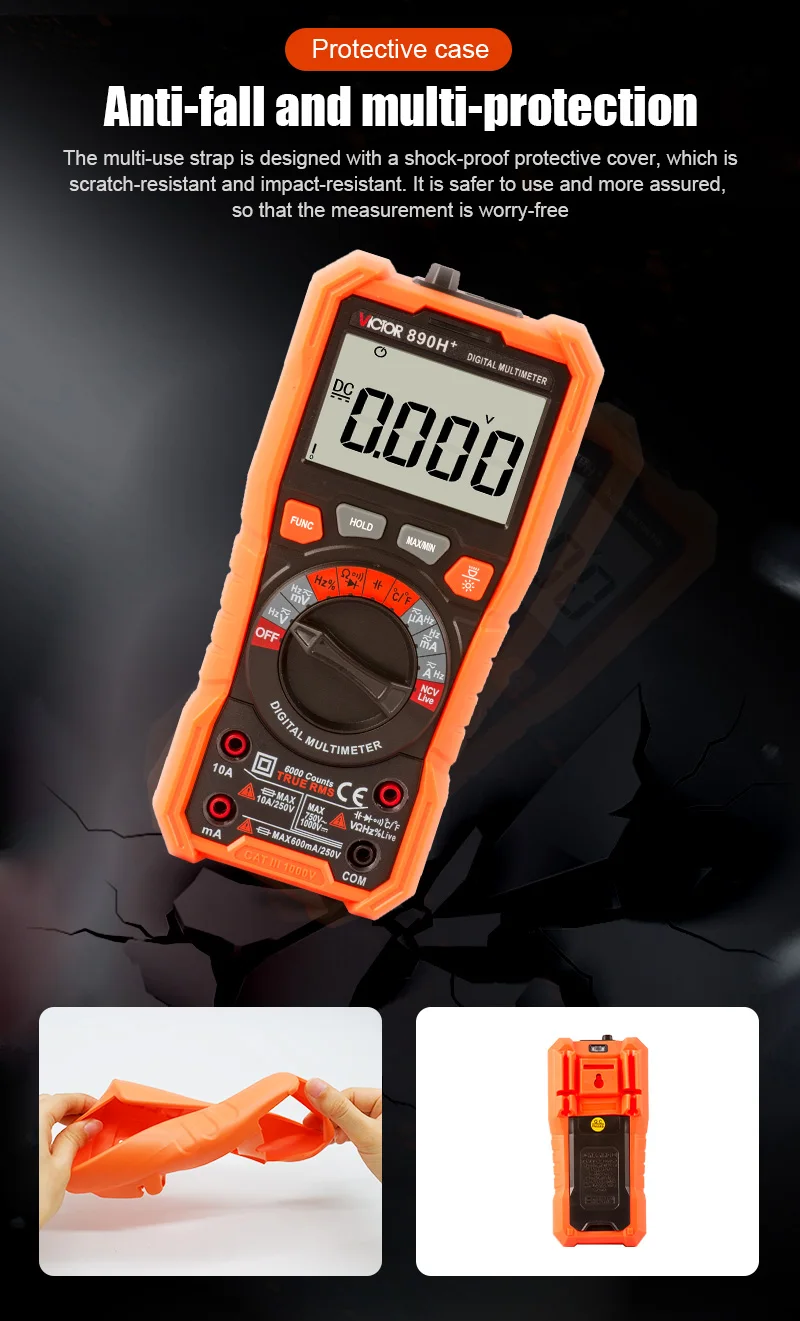

890 series of digital Multimeters are rugged, reliable and accurate, it offers Common basic electrical measurements plus temperature, frequency and duty cycle, battery test, Easy to use with one hand, even with all kinds of indication for wrong operation, the 890 series offers everything you need.
Excellent tool Ideal for lab, factory and family!

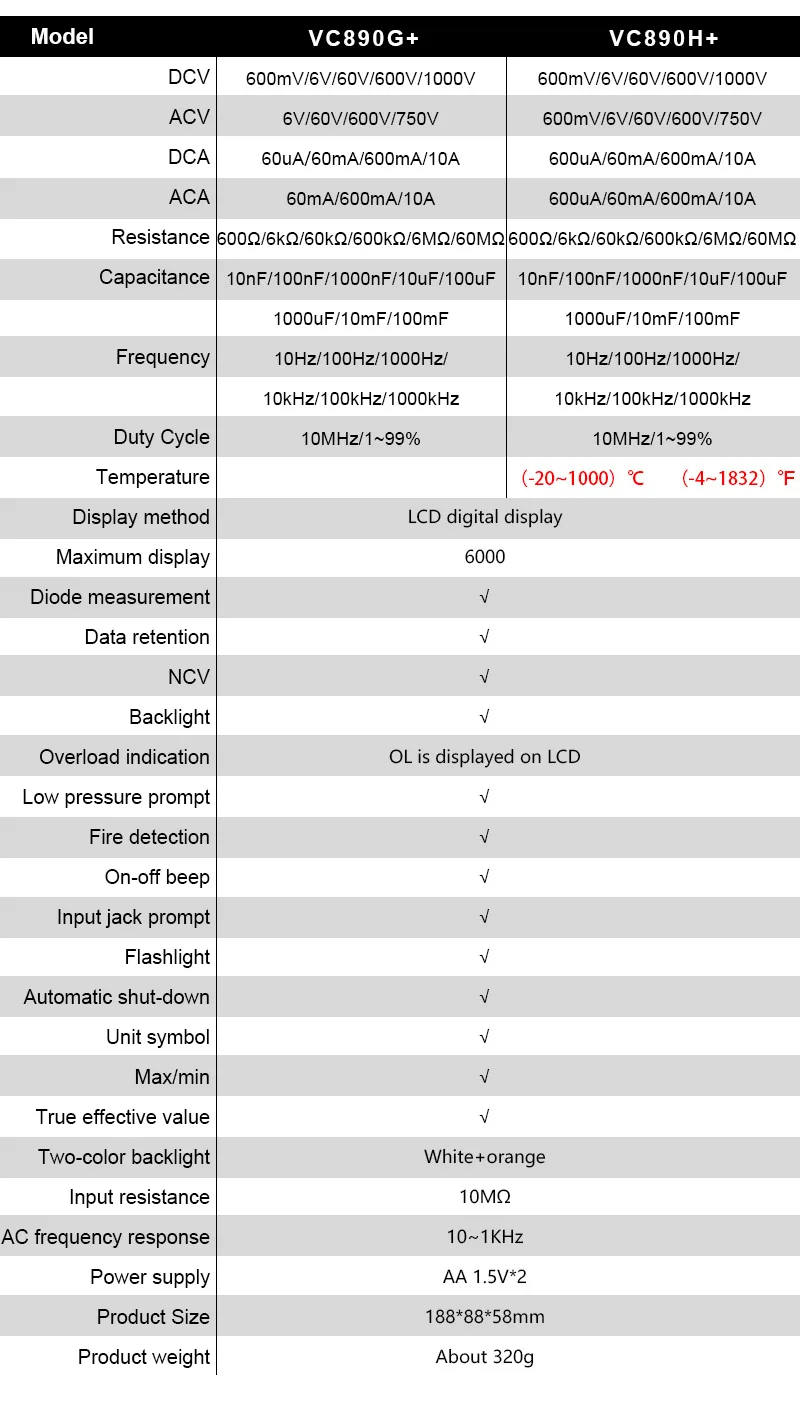

Specification:
Basic Functions | Range | Accuracy | ||||
890H+ | 890G+ | |||||
DCV | 600mV/6V/60V/600V/1000V | ±(0.5%+3) | ±(0.5%+3) | |||
ACV | 600mV/6V/60V/600V/750V | ±(0.8%+5) | — | |||
6V/60V/600V/750V | — | ±(0.8%+5) | ||||
DCA | 600μA/6000μA/60mA/600mA/10A | ±(1.2%+3) | — | |||
60μA/60mA/600mA/10A | — | ±(1.2%+3) | ||||
ACA | 600μA/6000μA/60mA/600mA/10A | ±(1.5%+3) | — | |||
60mA/600mA/10A | — | ±(1.5%+3) | ||||
Resistance | 600Ω/6kΩ/60kΩ/600kΩ | ±(1.0%+3) | ±(1.0%+3) | |||
6MΩ/60MΩ | ±(1.5%+3) | ±(1.5%+3) | ||||
Capacitance | 10nF/100nF/1000nF/10μF/100μF/1000μF | ±(4.0%+5) | ±(4.0%+5) | |||
10mF/100mF | ±(5.0%+5) | ±(5.0%+5) | ||||
Frequency | 10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz | ±(1.0%+3) | ±(1.0%+3) | |||
10MHz | ±(3.0%+3) | ±(3.0%+3) | ||||
Duty Cycle | 1~99% | ±(3.0%+3) | ±(3.0%+3) | |||
Temperature | -20℃~1000℃ / -4℉~ 1832℉ | ±(1.0%+2) | — | |||
Battery test | 1.5V/9V Battery | — | √ | |||

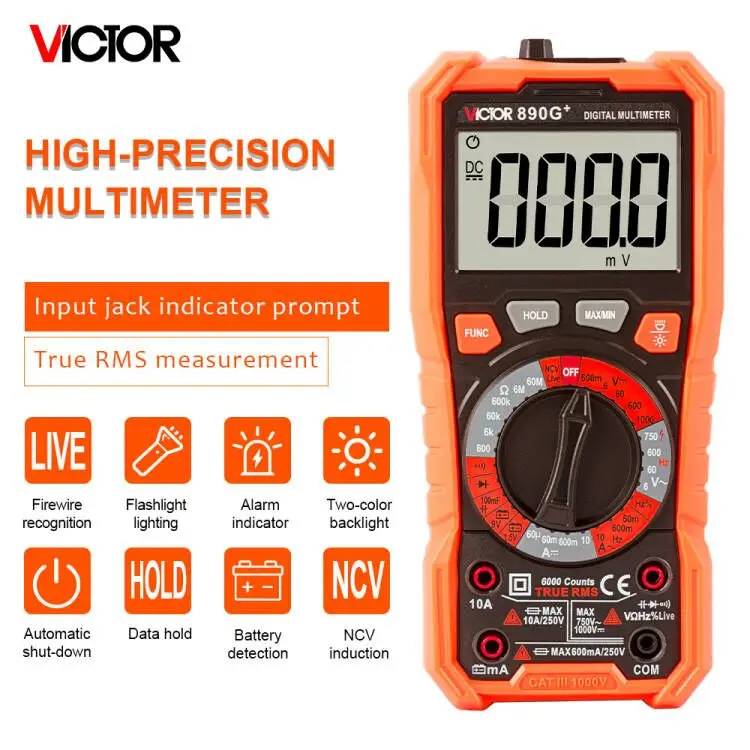

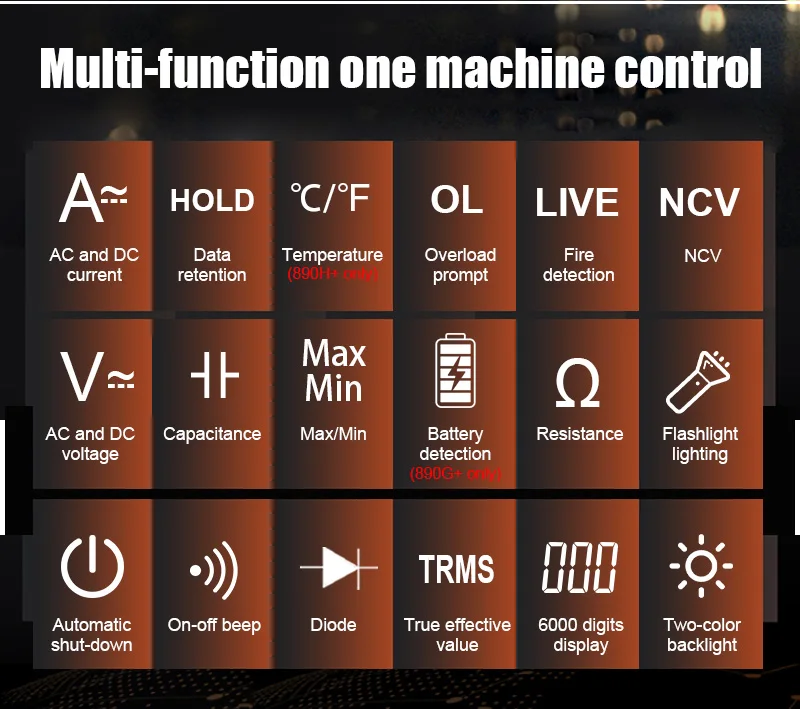

Features | ||||||
True RMS | √ | √ | ||||

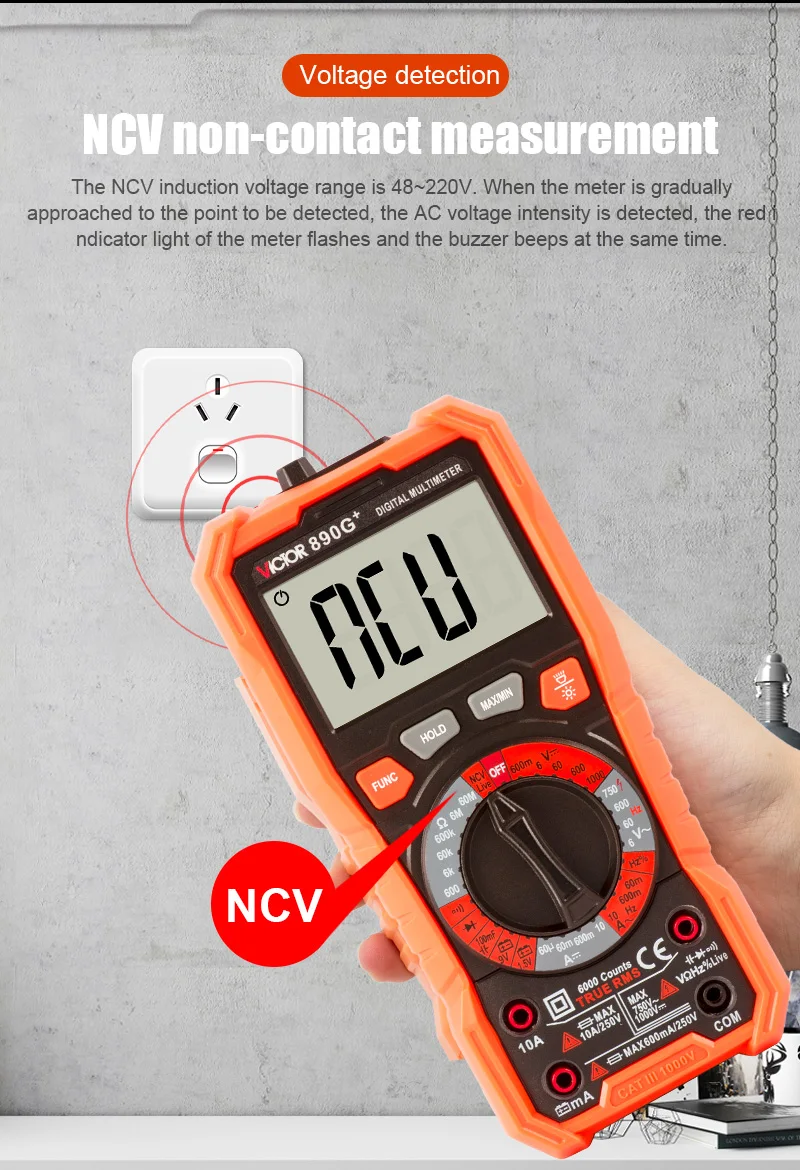

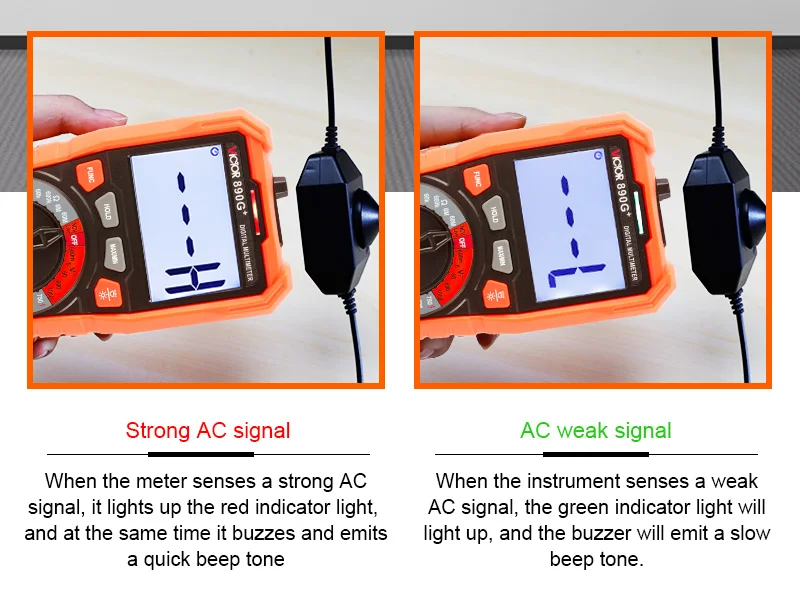

NCV test | √ | √ | ||||

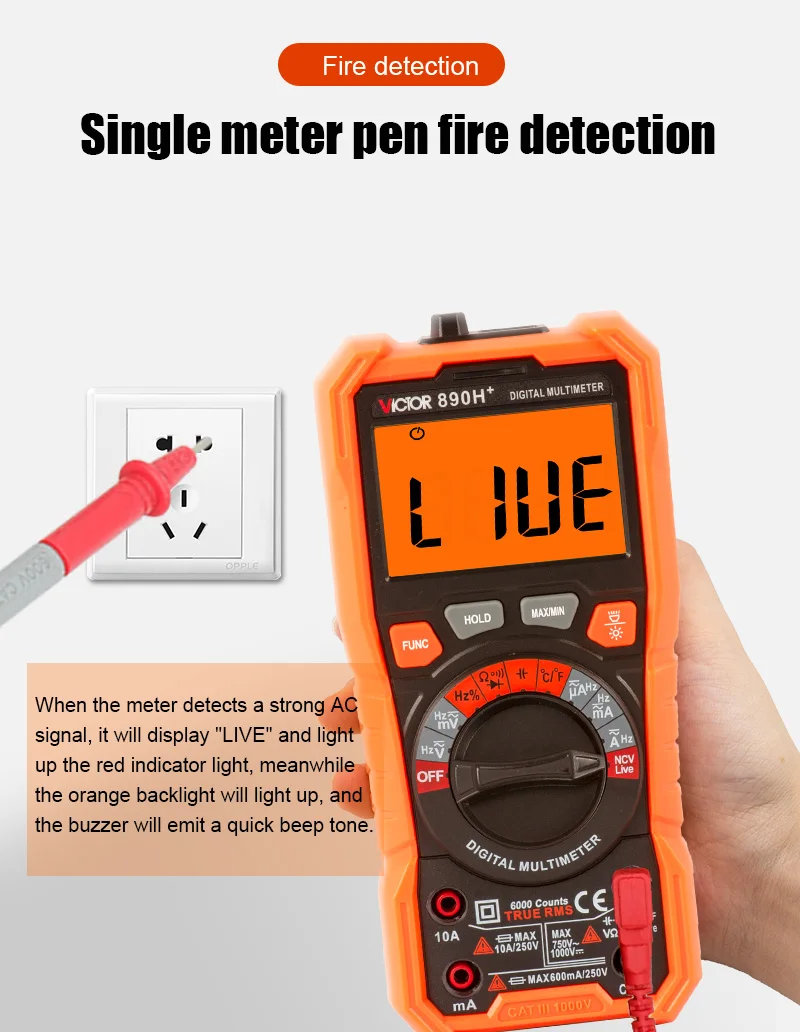

Live wire test | √ | √ | ||||

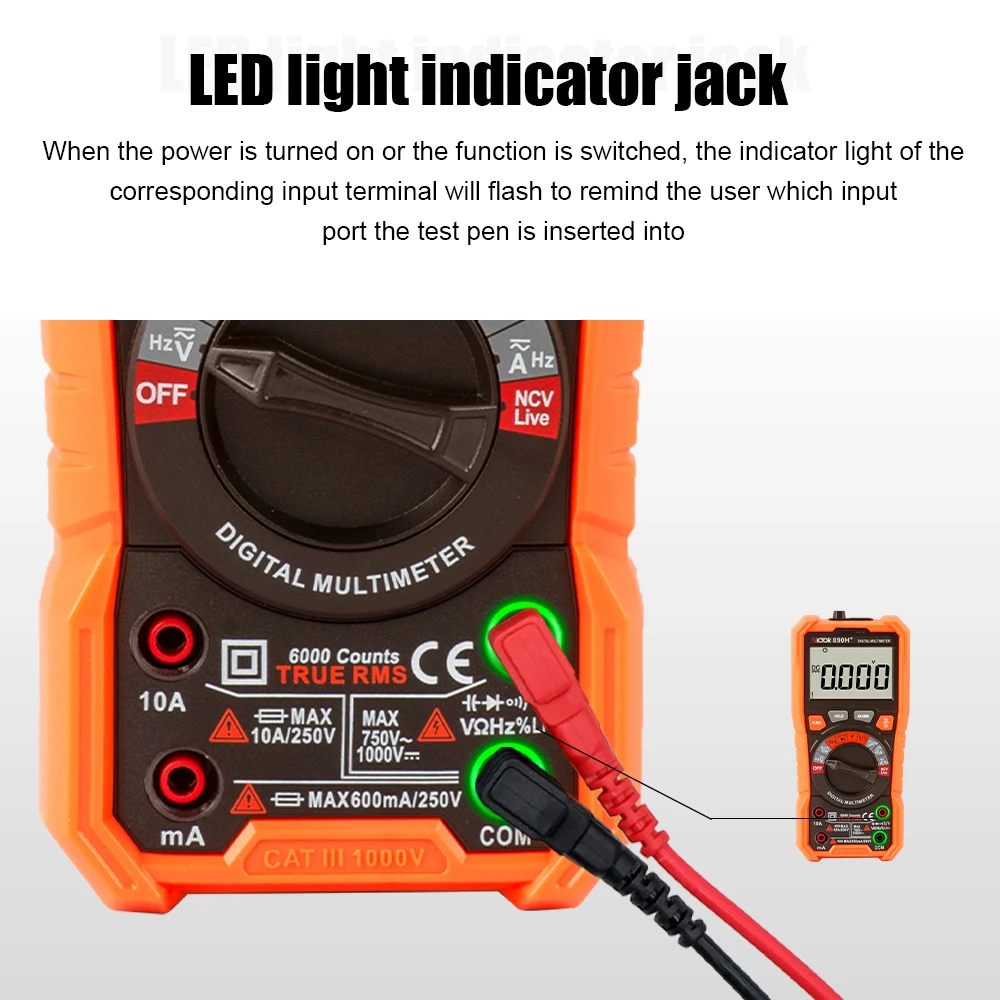

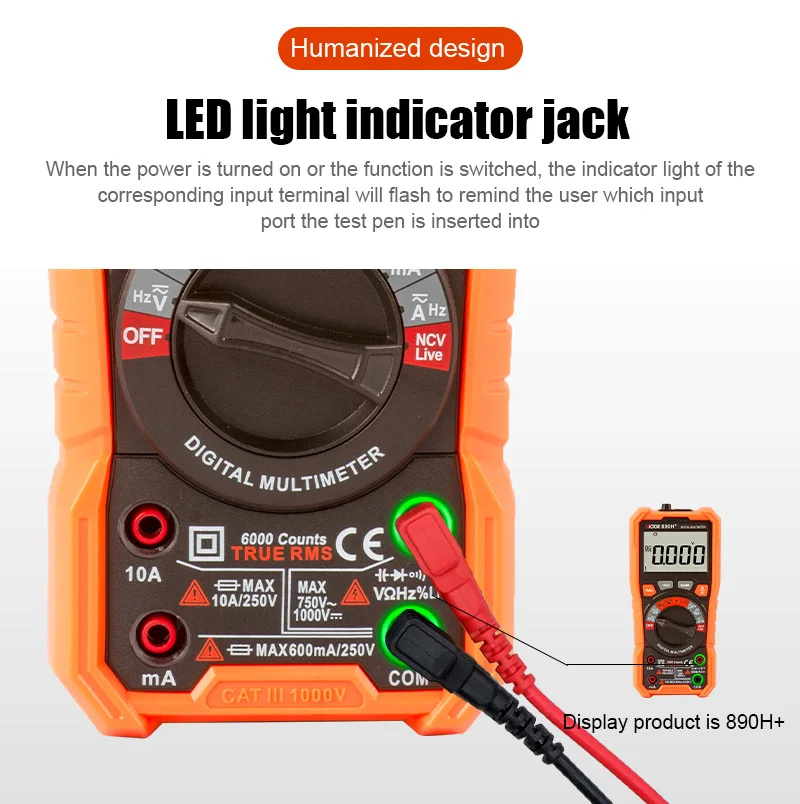

Input terminal LED Indication | √ | √ | ||||
High voltage LED Indication | √ | √ | ||||
Diode & Continuity test | √ | √ | ||||
Low battery indication | √ | √ | ||||

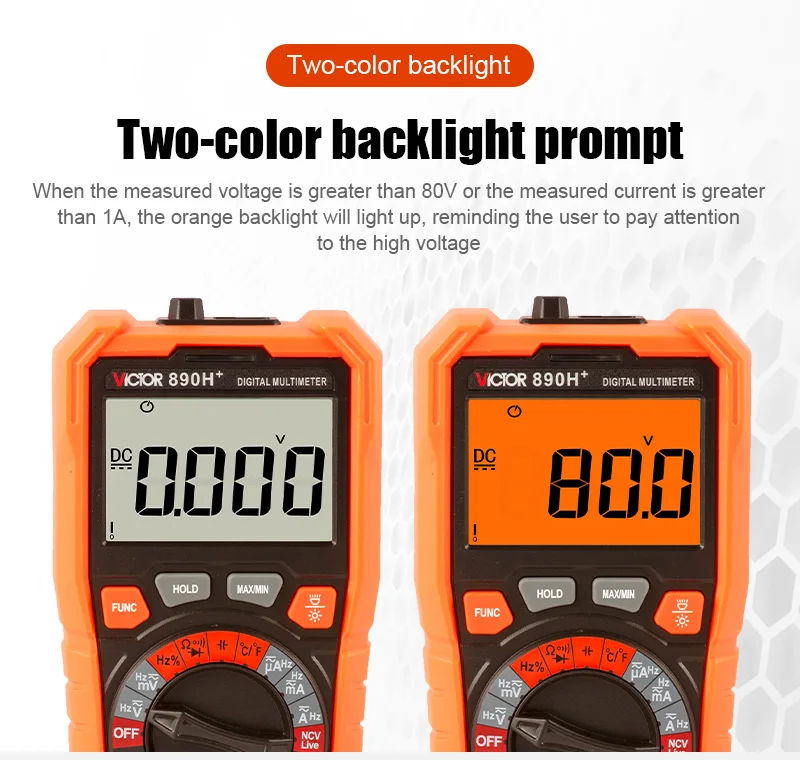

Backlight | √ | √ | ||||

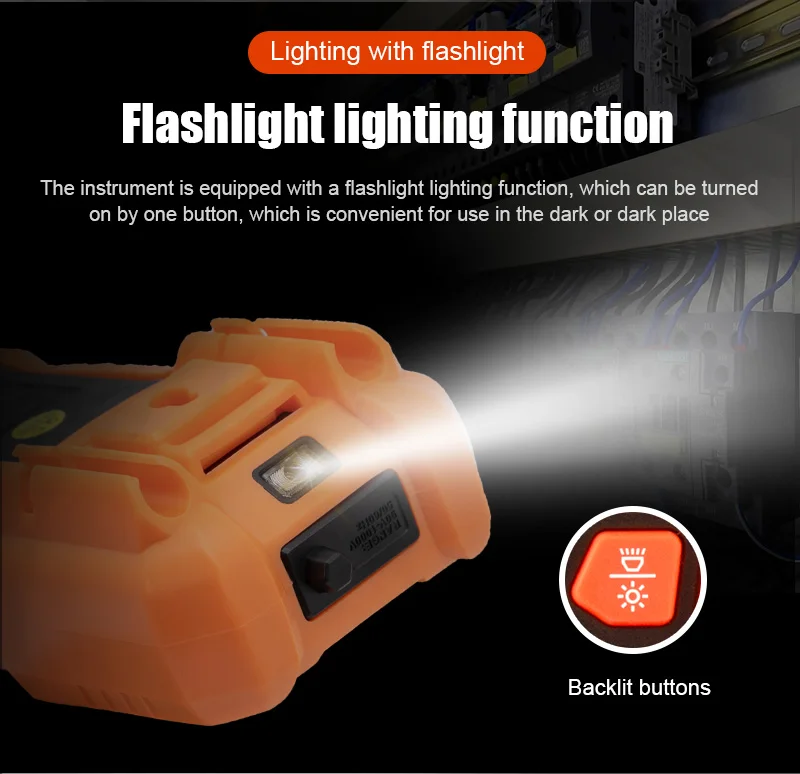

Flashlight | √ | √ | ||||

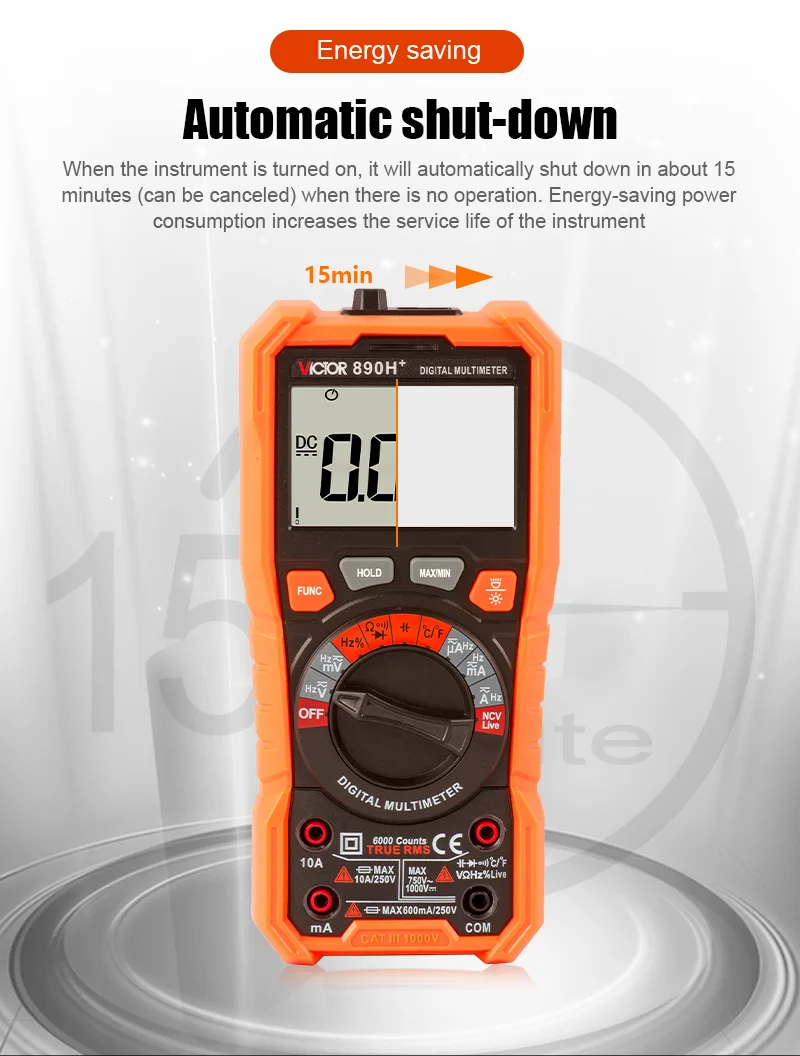

Auto power off | √ | √ | ||||
Data Hold / Max./Min. value | √ | √ | ||||

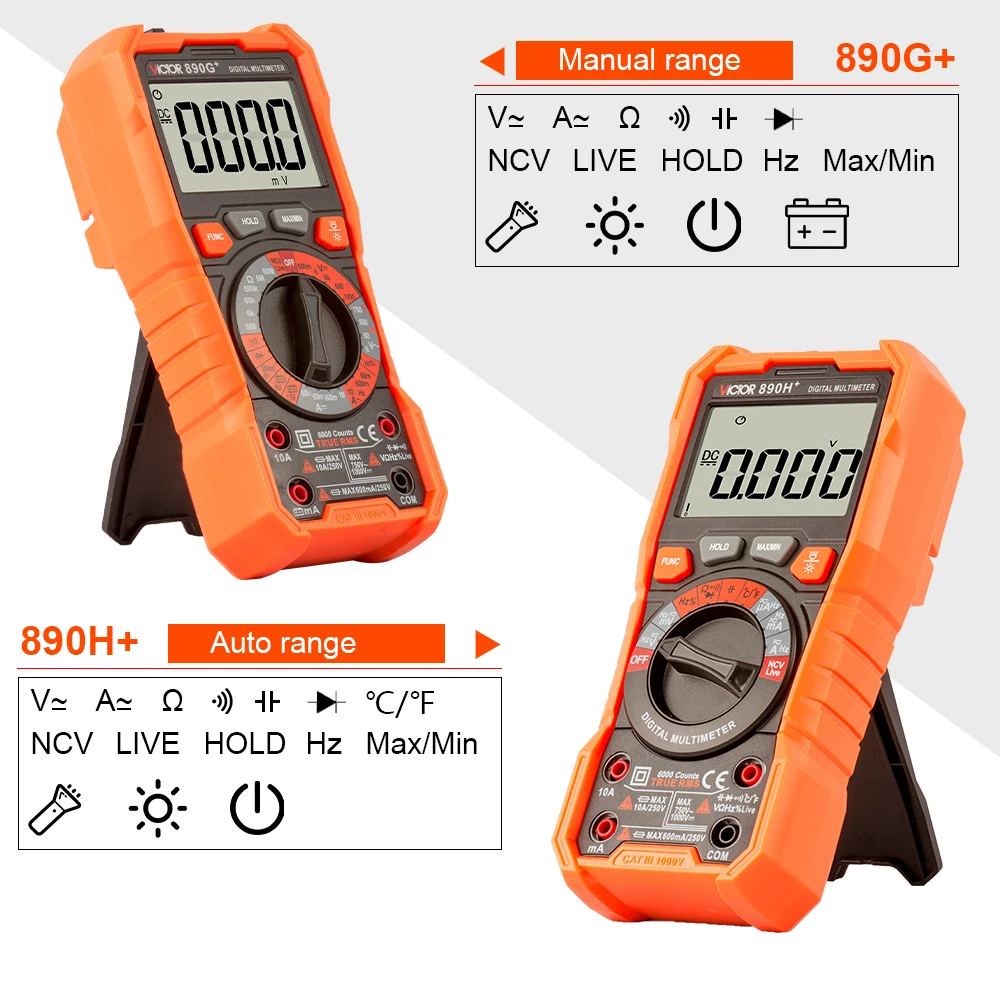

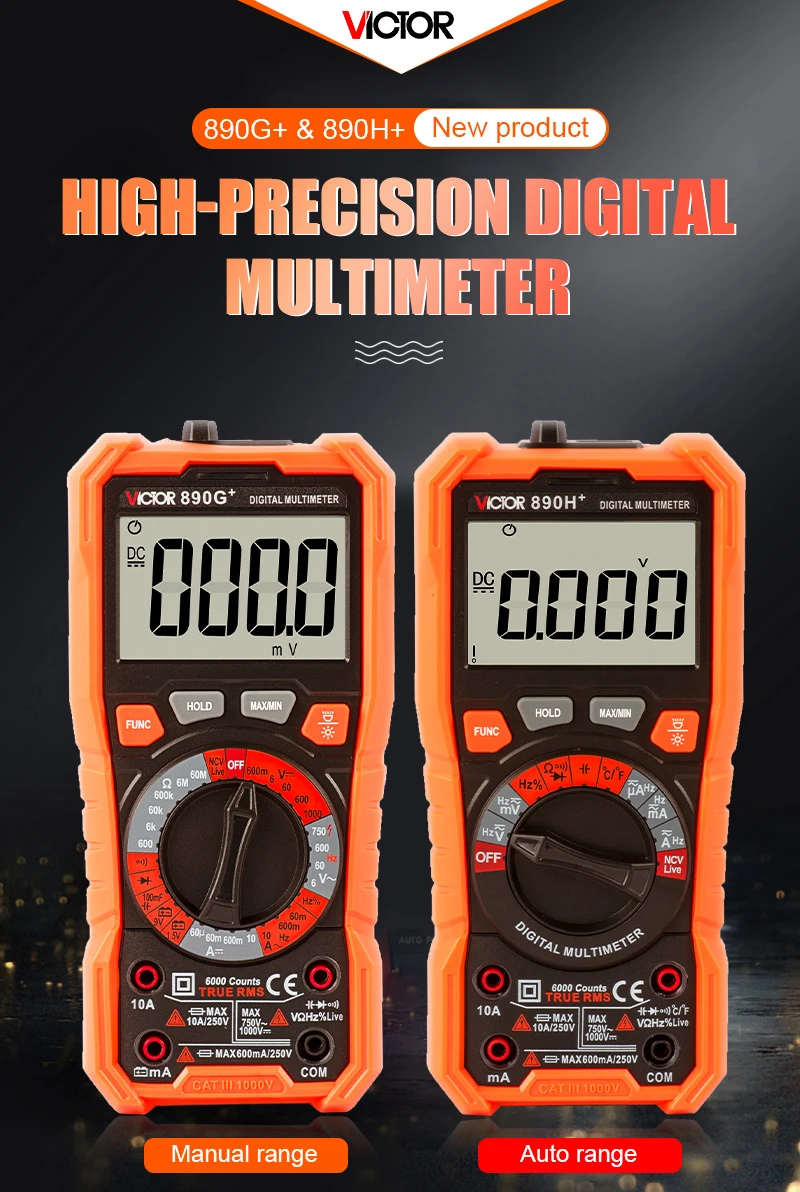

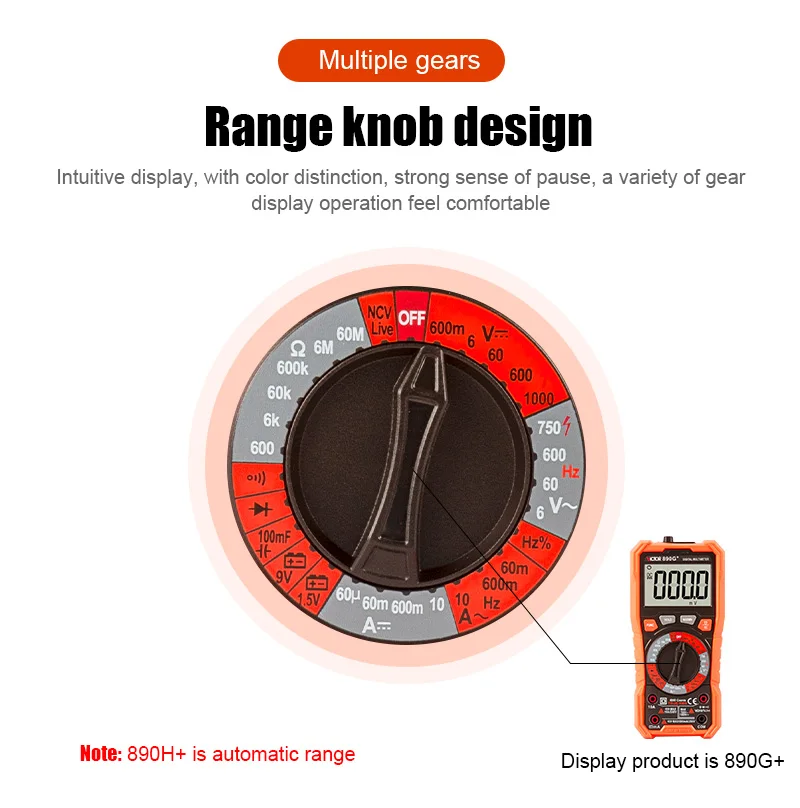

Operation method | auto | manual | ||||

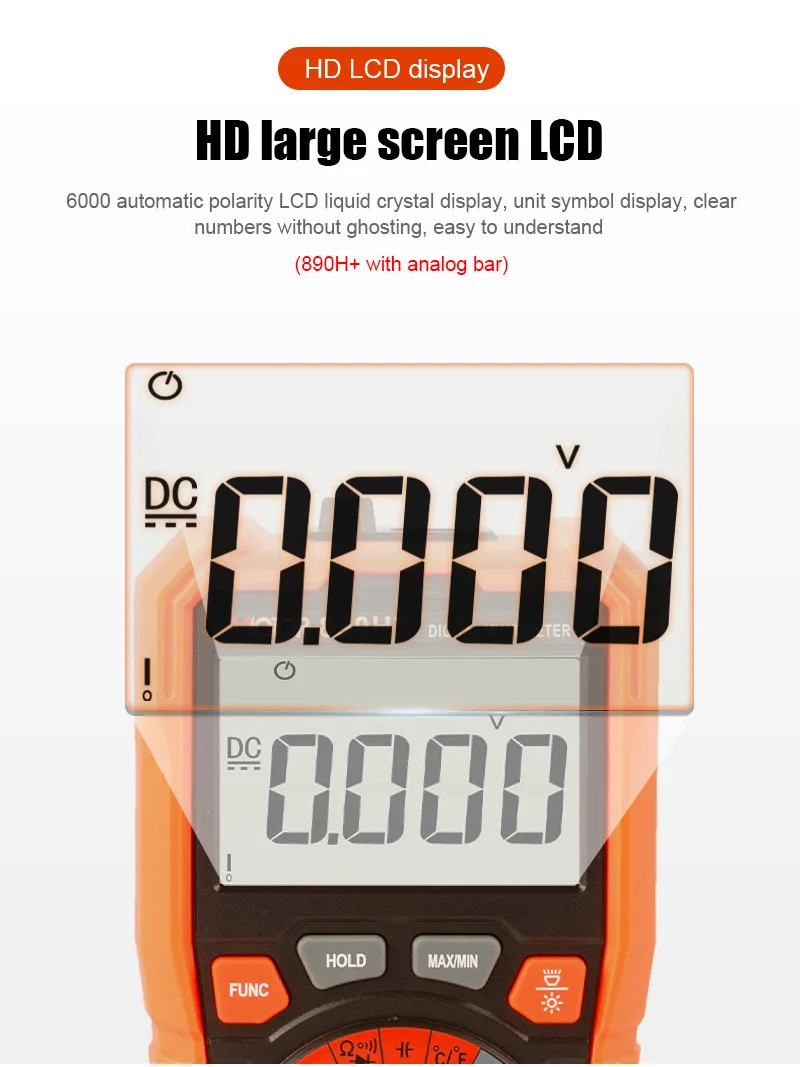

Display | 6000counts | 6000counts | ||||
General Information | ||||||

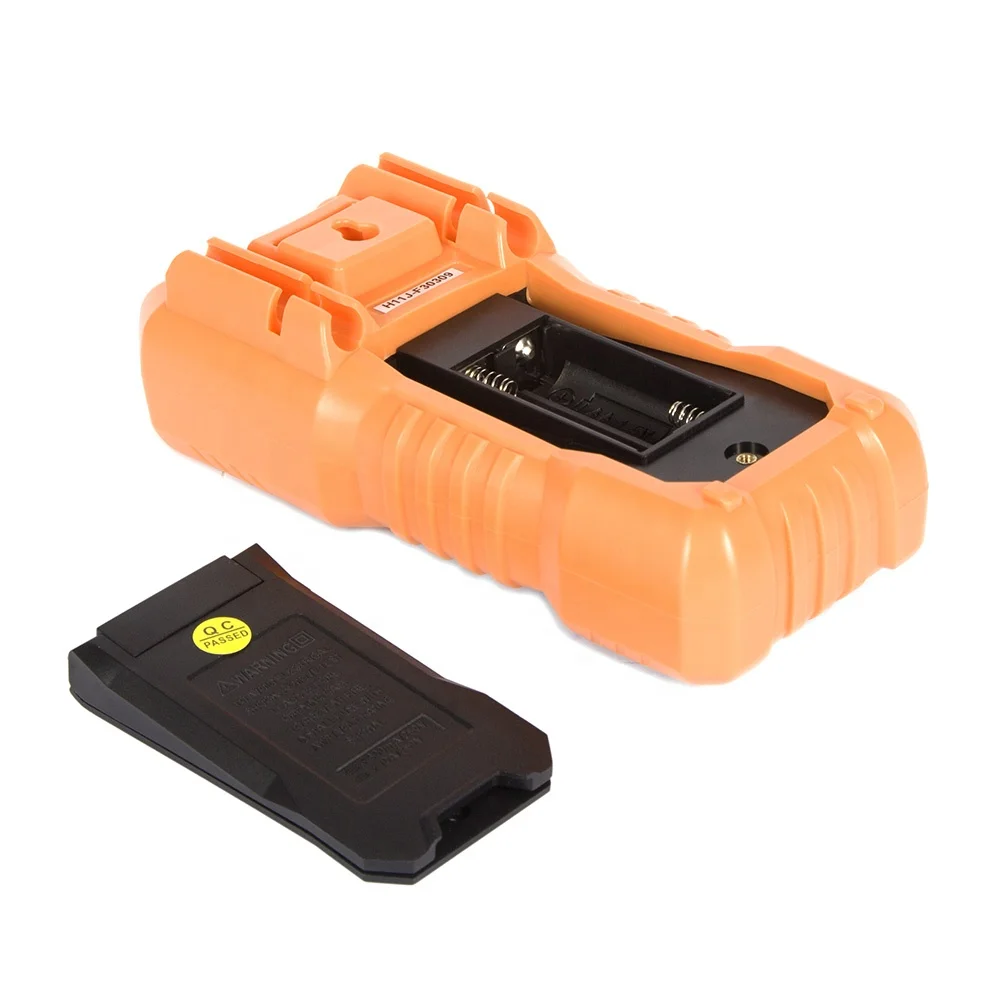

Power Supply | Battery 2*1.5V AA | |||||

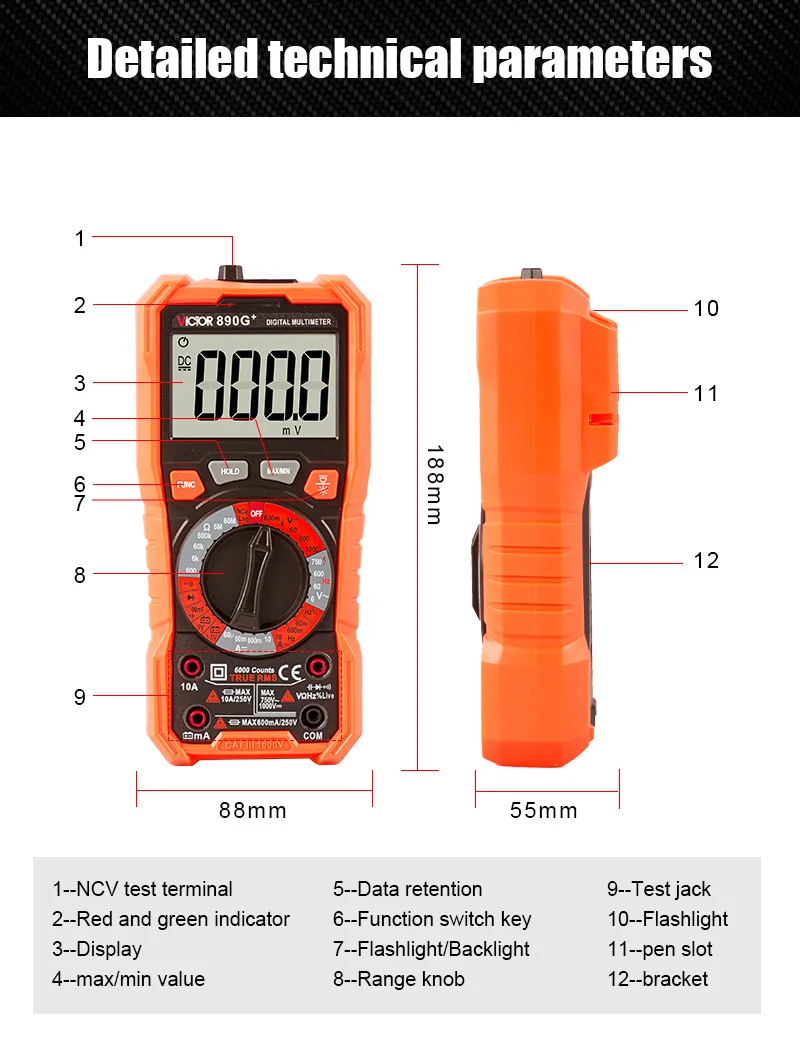

Product Size | 186cmx88cmx54cm | |||||
Product Weight | 320g | |||||

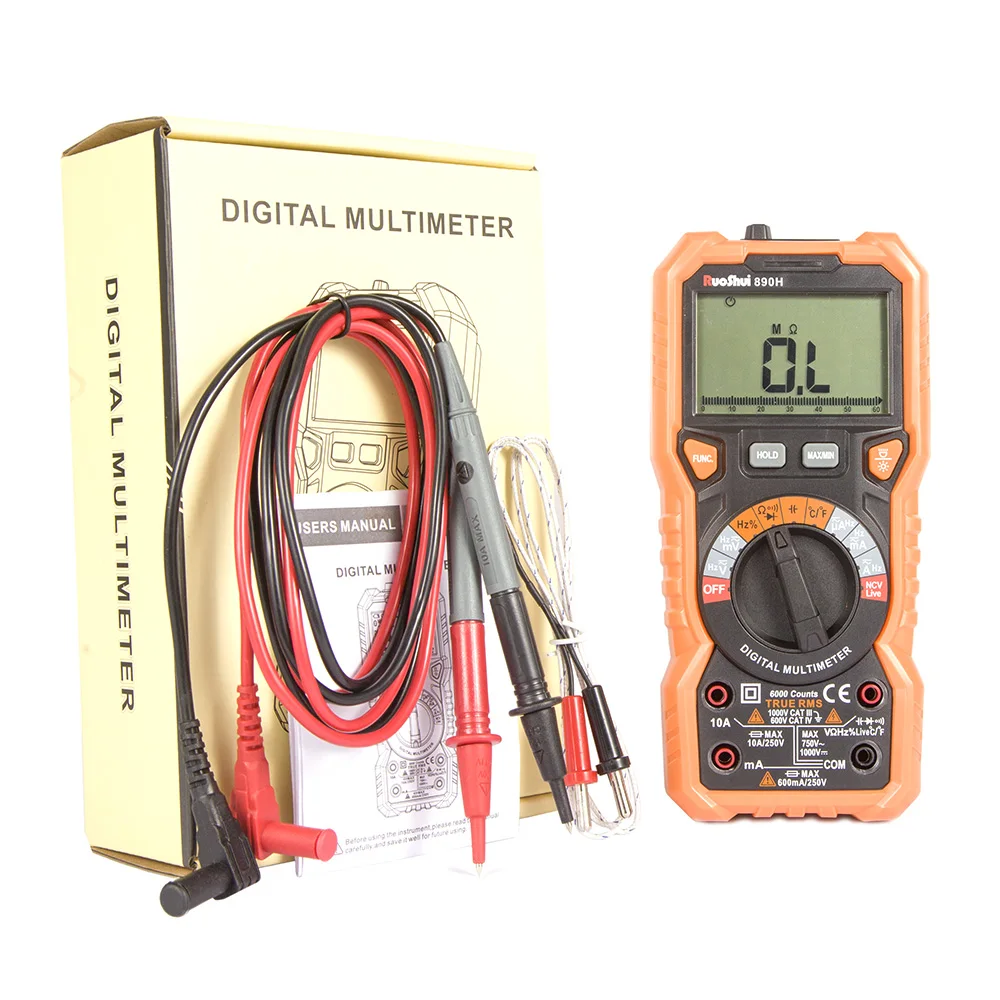

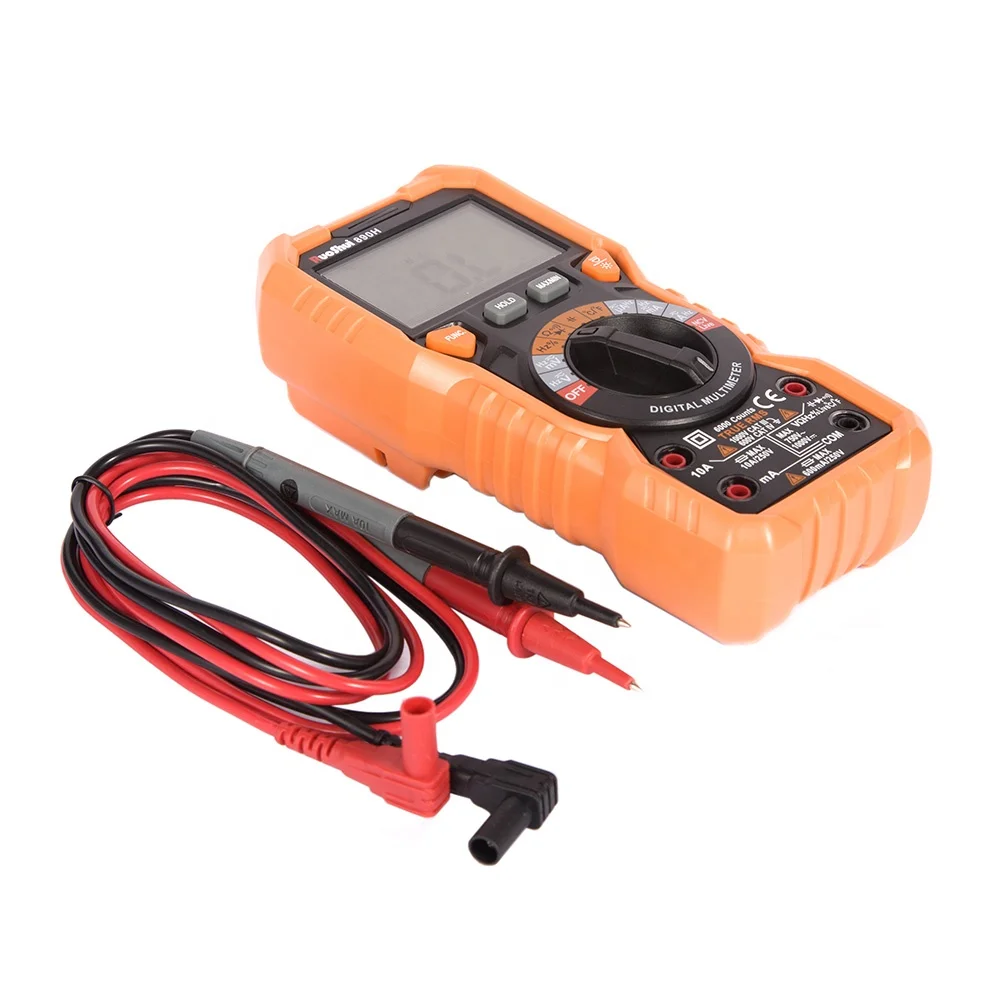

Standard Accessories | Test leads, User manual, Temp. probe (only for 890H), | |||||
Detailed Images
