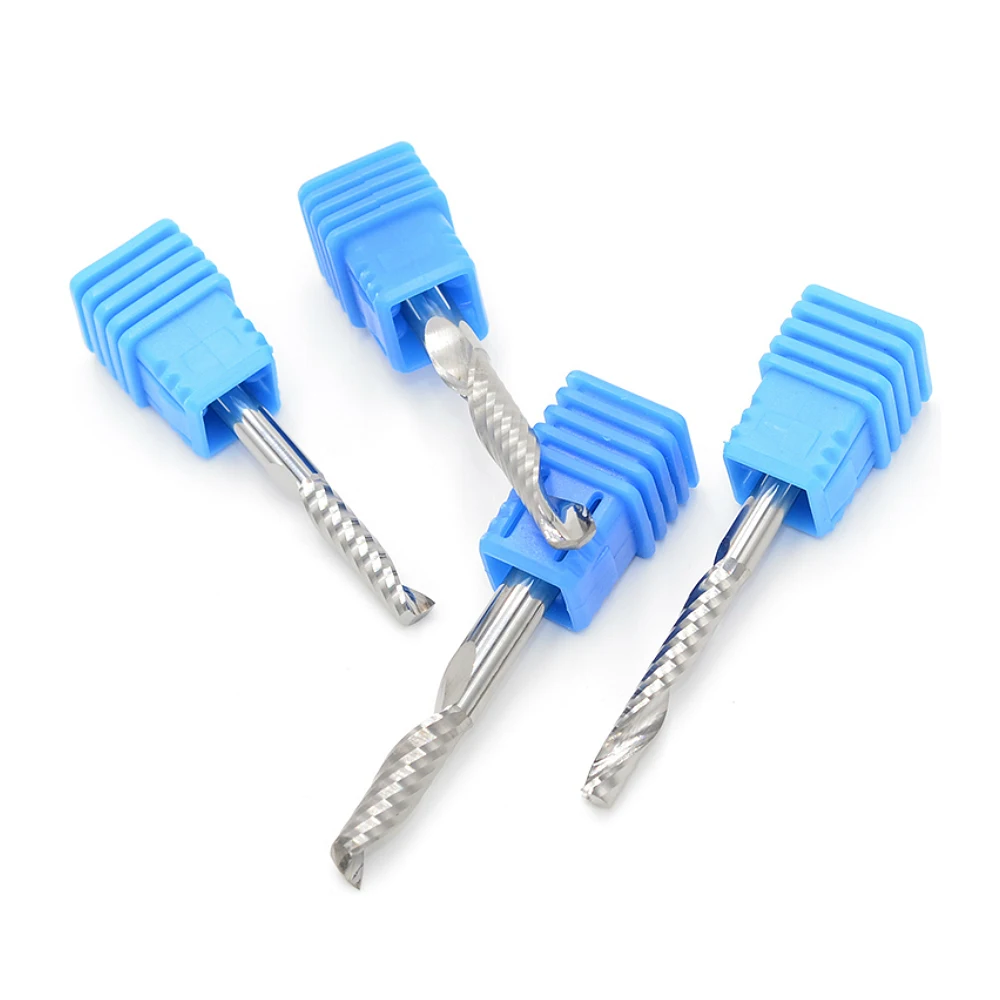

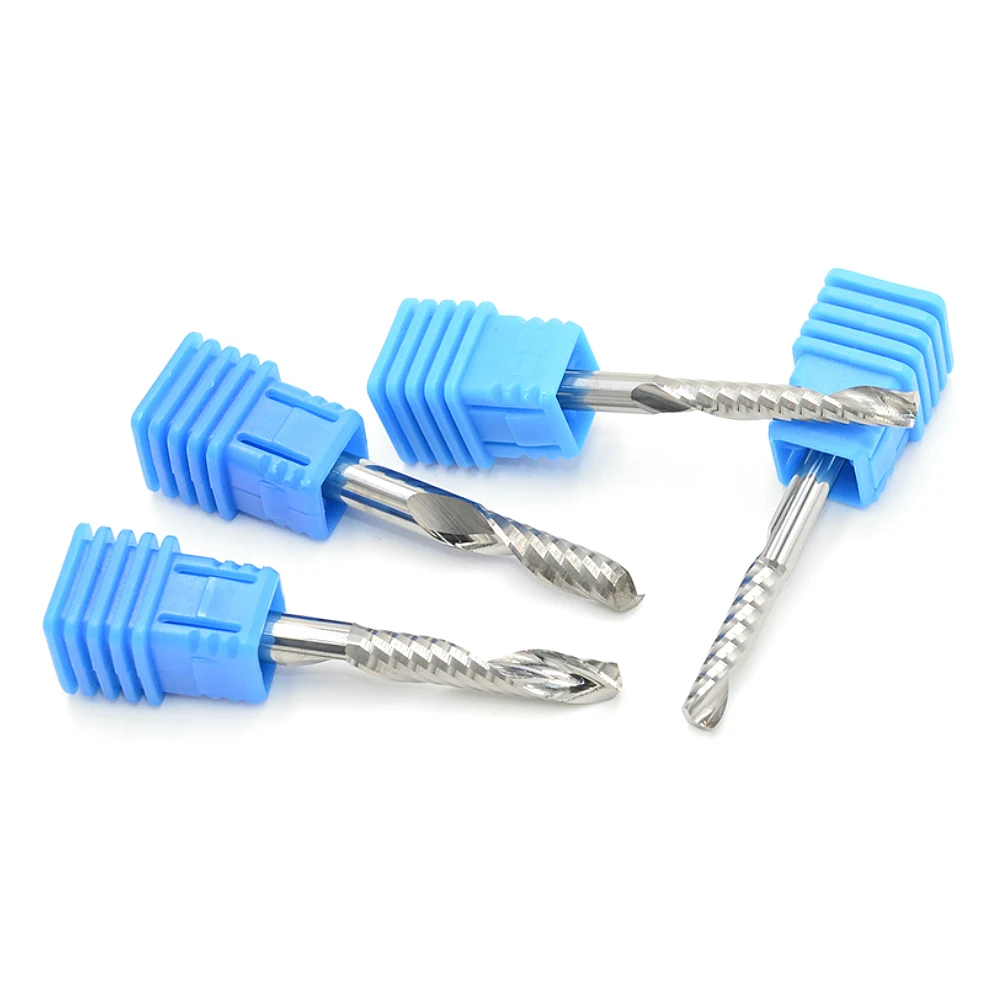

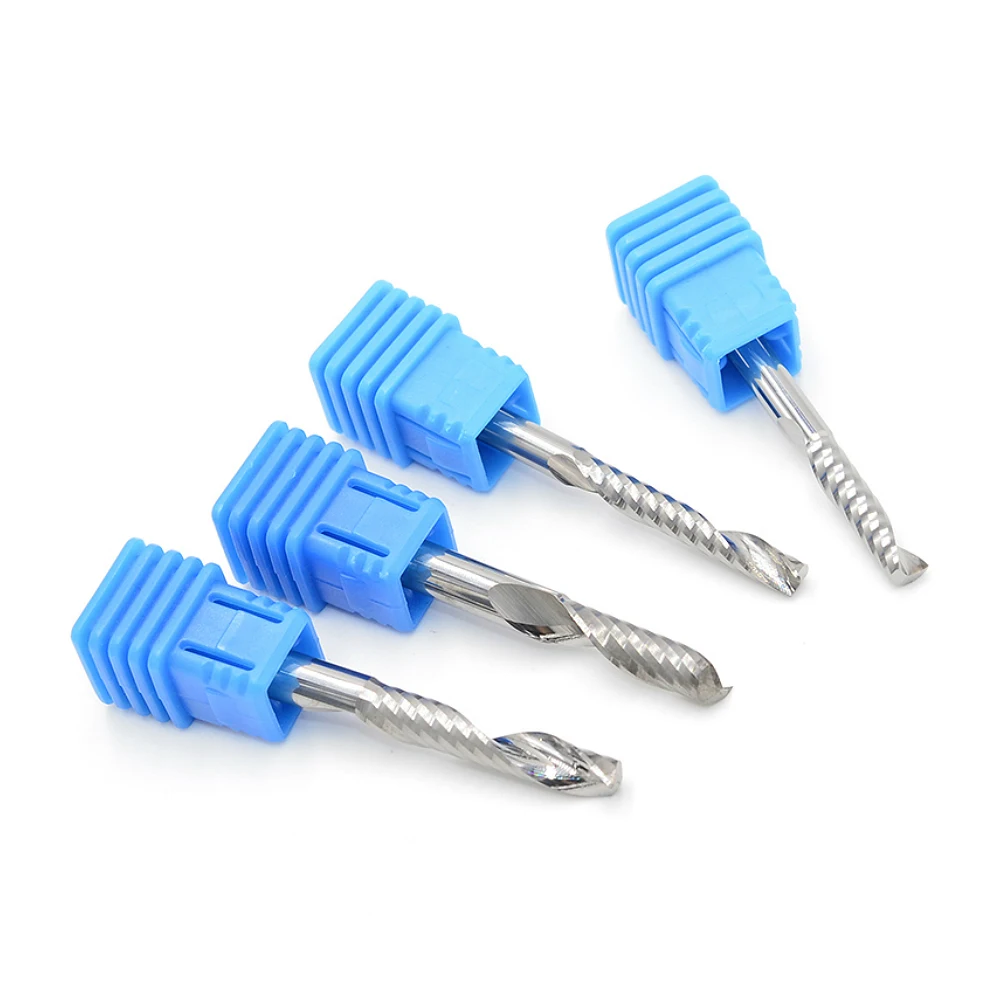

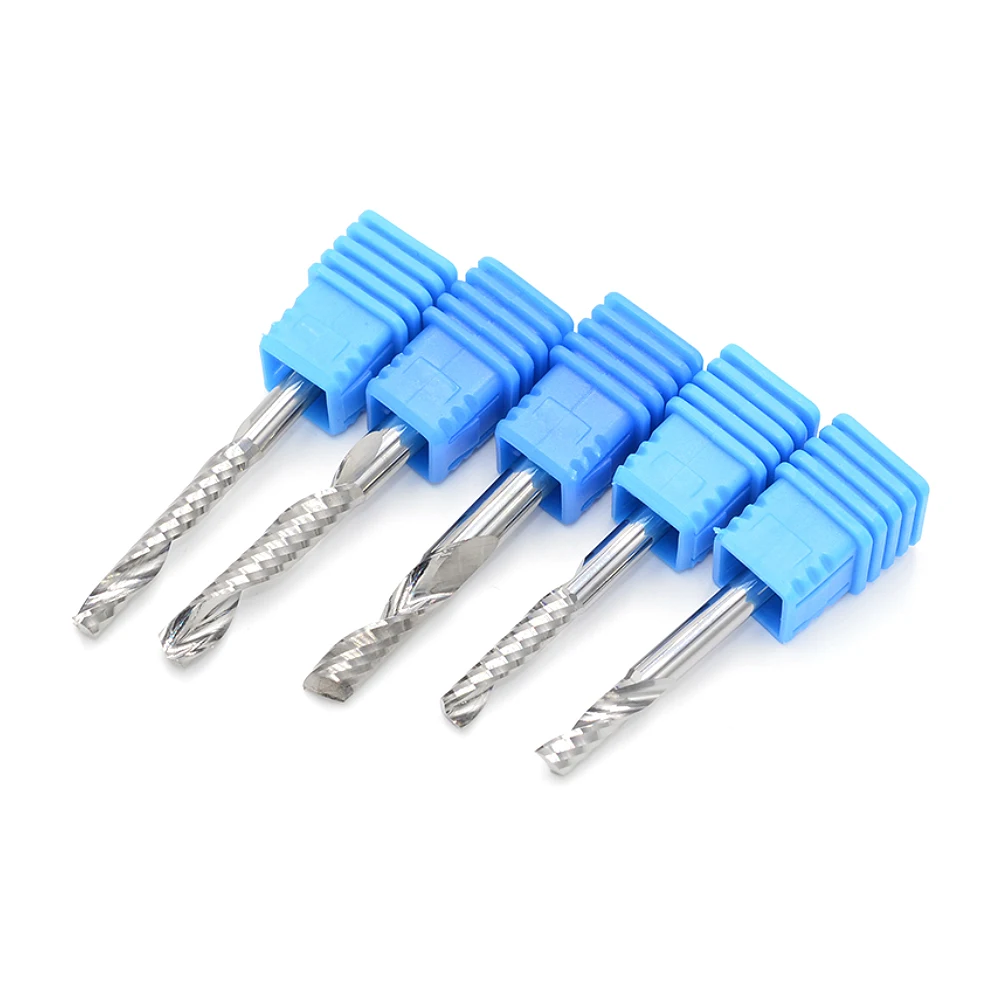

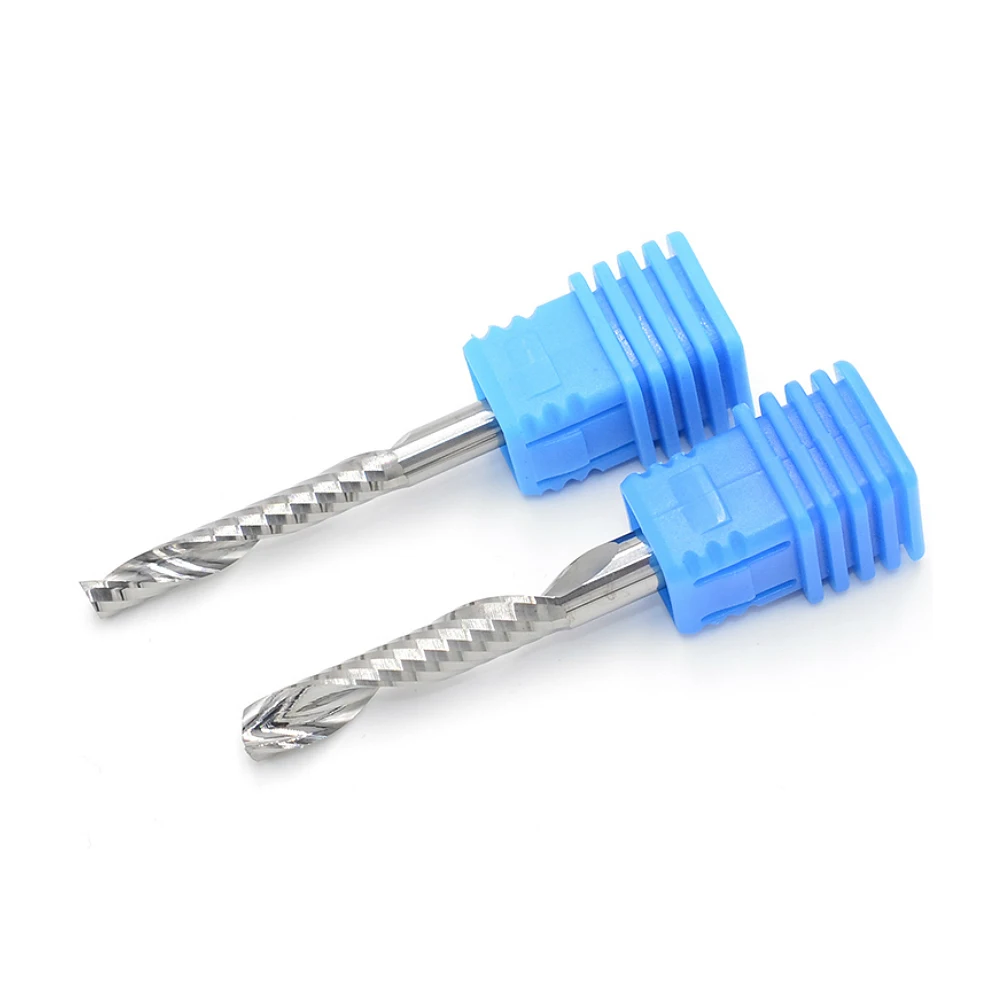

4mm Shank one Flute Spiral Cutter router bit CNC end mill For MDF carbide milling cutter tugster steel router bits for wood

Share on (1600292960733):


Price:

Quantity:


Product Overview

Description









Product Description


1. Specifications:

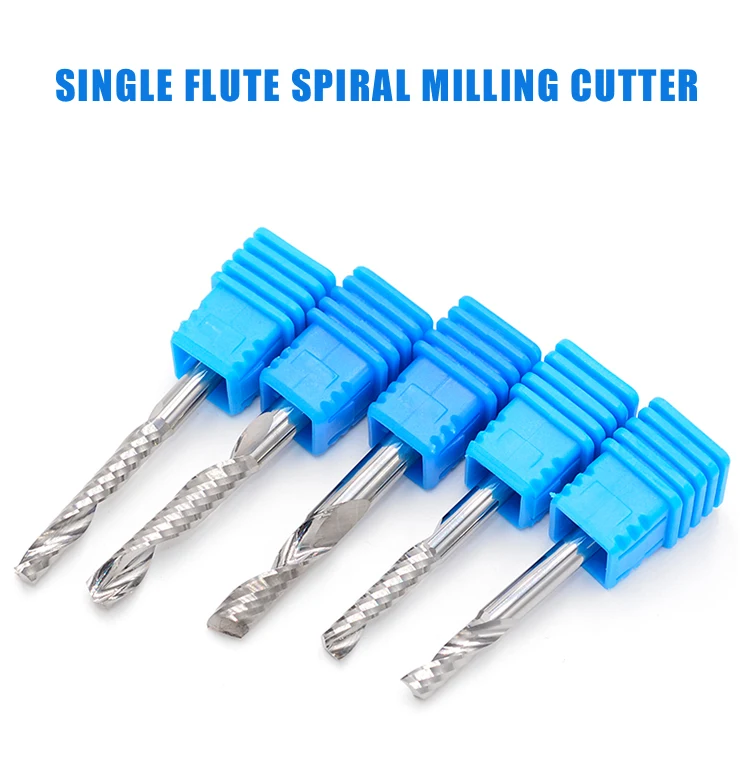

(1). End Mills Tools Types: 1 Flute Spiral Router Bit for Acrylic;
(2). Shank: 4mm ;
(3). Cutting Edge Diameter:4mm ;
(4). Cutting Length: 12-32mm ;
(5). Overall Length: 45-60mm ;

2. Production Materials:
Made of high quality imported tungsten steel solid carbide;

3. Suitable Materials:
(1) PVC, acrylic, organic board, crystal board;
(2) Wood, red wood, solid wood, MDF;
(3) Resin, composite board, plastic;
(4) Metal: aluminum sheet, etc.

4. Applied to:
(1). Cutting, carving, milling, grooving, etc;
(2). Advertising machine, wood CNC router, cnc machining center, etc;

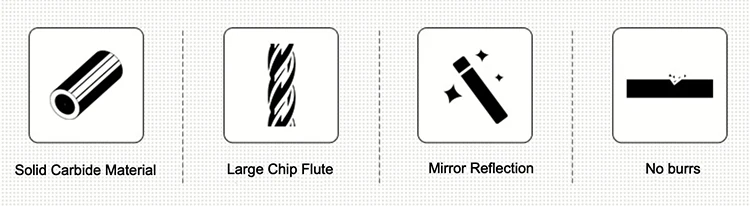

5. Features:
(1) With superior tungsten steel solid carbide materials;
(2) High precision grinding by imported machine tools, fine polishing processing, special process technology!
(3) Sharp cutting edge, smooth chip removal;
(4) Endurable and wear resisting;
(5) Without sticking, smokeless, high efficiency;

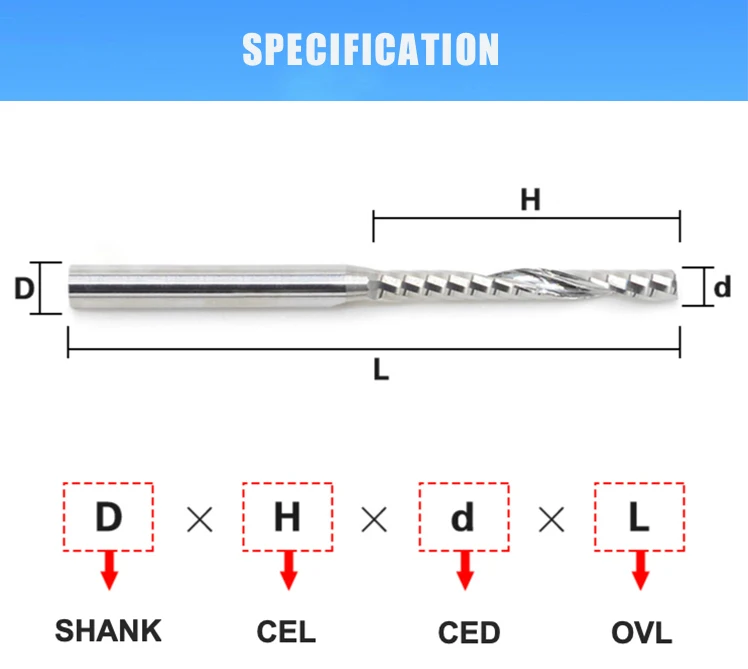

MODEL NO.
SIZE
SHANK(mm)
CED(mm)
CEL(mm)
OVL(mm)
SU1LX412
4*12
4
4
12
45
SU1LX415
4*15
4
4
15
45
SU1LX417
4*17
4
4
17
45
SU1LX422
4*22
4
4
22
45
SU1LX425
4*25
4
4
25
50
SU1LX428
4*28
4
4
28
50
SU1LX432
4*32
4
4
32
60
SU1LX517
5*17
5
5
17
50
SU1LX522
5*22
5
5
22
50
