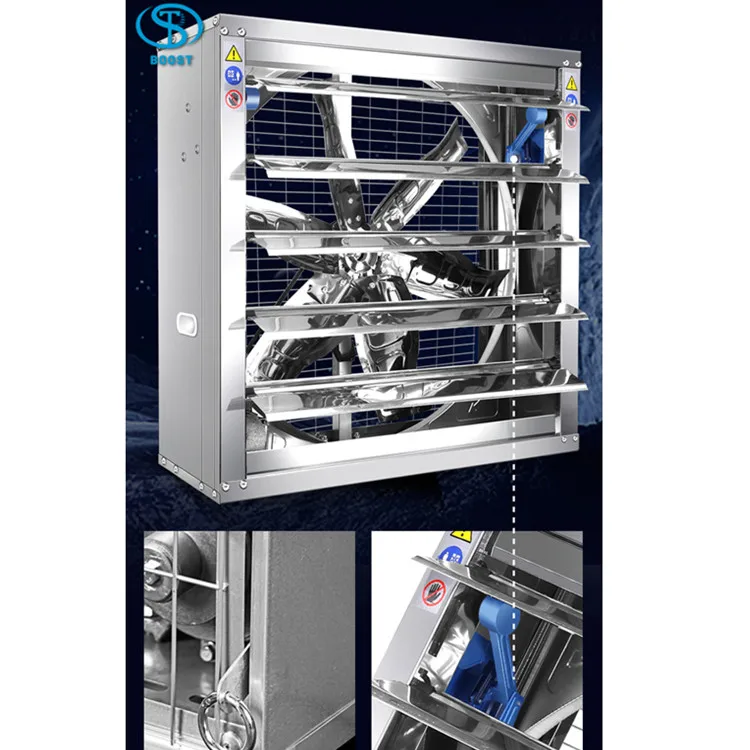

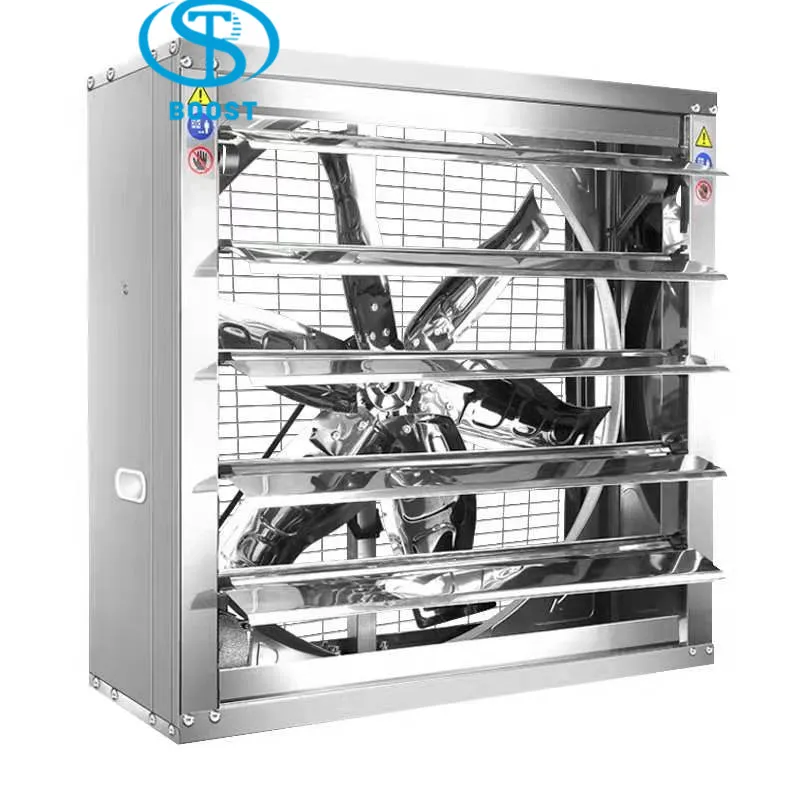

50 Inch Industrial Workshop Exhaust Fan/Poultry Farm Air Cooling Fans
- Category: >>>
- Supplier: Qingzhou Boost Temperature Control Equipment Co. Ltd.
Share on (1600293201641):
Product Overview
Description

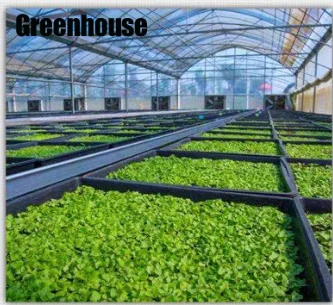

Boost is a professional company engaged in the design and development of air fluid mechanics and temperature control equipment.Boost exhaust fan widely used in agriculture,flowers,animal husbandry,poultry house,greenhouse,factory workshop.
Model | Drive | Blades Diameter(mm) | Blades Rotational Speed(rpm) | Motor Rotational Speed (rpm) | Air flow m³/hr | Input power (W) | Noise(db) |
BST300 | Drive | 200 | 1400 | 1400 | 1000 | 120 | ＜70 |
BST400 | Drive | 300 | 1400 | 1400 | 2000 | 180 | ＜70 |
BST480 | Diect | 380 | 1400 | 1400 | 3000 | 180 | ＜70 |
BST600 | Direct | 500 (20inch) | 1400 | 1400 | 5700 | 370 | ＜70 |
BST800 | Belt | 710 (28inch) | 660 | 1400 | 18000 | 370 | ＜65 |
BST900 | Belt | 750 (30inch) | 630 | 1400 | 22000 | 370 | ＜65 |
BST1000 | Belt | 900 (36inch) | 610 | 1400 | 25000 | 750 | ＜65 |
BST1100 | Belt | 1000 (40inch) | 600 | 1400 | 32500 | 750 | ＜65 |
BST1220 | Belt | 1100 (44inch) | 460 | 1400 | 38000 | 750 | ＜64 |
BST1380 | Belt | 1270 (50inch) | 458 | 1400 | 44000 | 1100 | ＜64 |
BST1530 | Belt | 1400 (56inch) | 325 | 1400 | 55800 | 1500 | ＜64 |
Model | BST1380 |
Input Power | 1100W |
Motor rpm | 1400 rpm |
Air flow | 44000m3/h |
Rated power | 380v/220V/Customized |
Size | 1380*1380*400mm |
Opening Device | Swung drop hammer system |
50 Inch Industrial Workshop Exhaust Fan/Poultry Farm Air Cooling Fans

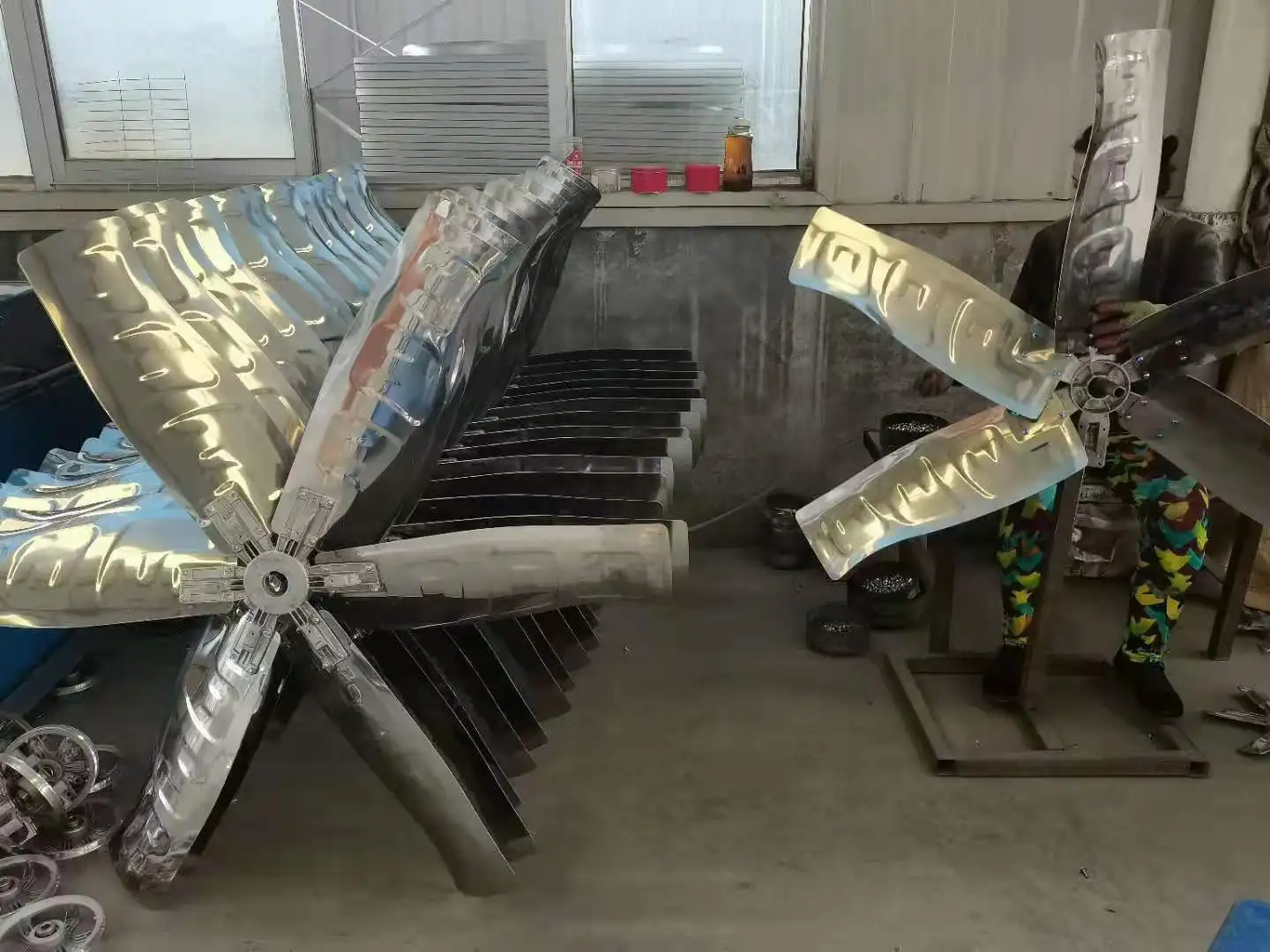

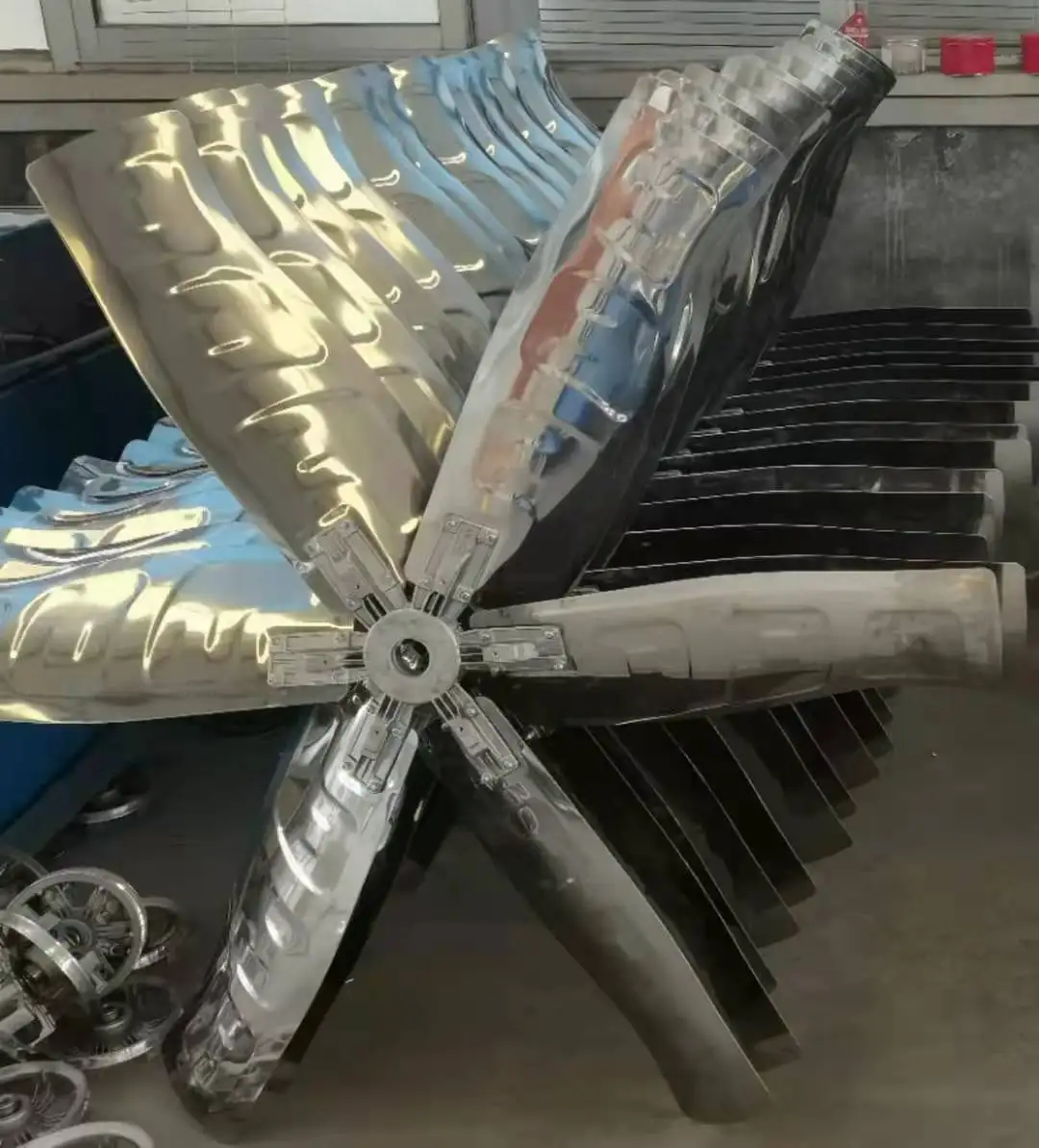

Blade:
*Blade is made of Krupp stainless steel by punch forming,,no broken,no dust,attractive and durable.
*Special blades shape design ensure large air volume,no deformation,no broken,keep air volume same all the way.
50 Inch Industrial Workshop Exhaust Fan/Poultry Farm Air Cooling Fans

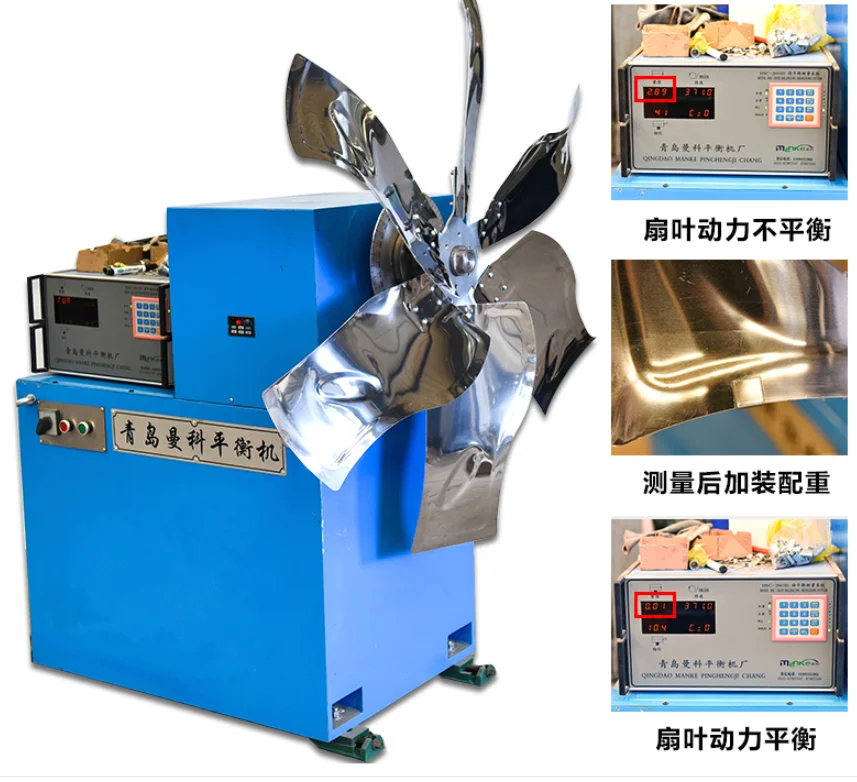

Fan blades are adjusted by Intalligent dynamic-balance tester, the weight tolerance of each blade is controlled within 1g.
Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability.
Ensure the fan smooth running,lower vibration,less noise,increase stability.
50 Inch Industrial Workshop Exhaust Fan/Poultry Farm Air Cooling Fans
Motor:
*Both Chinese famous motor and Siemens motor are available.
*Motor voltage and frequency could be customized.
*Chinese famous motor,special design for fan,the first one put forward the phase lack protection device which could power off when shortage of electricity.
*Motor protection grade IP55,insulation Class:Grade F
50 Inch Industrial Workshop Exhaust Fan/Poultry Farm Air Cooling Fans

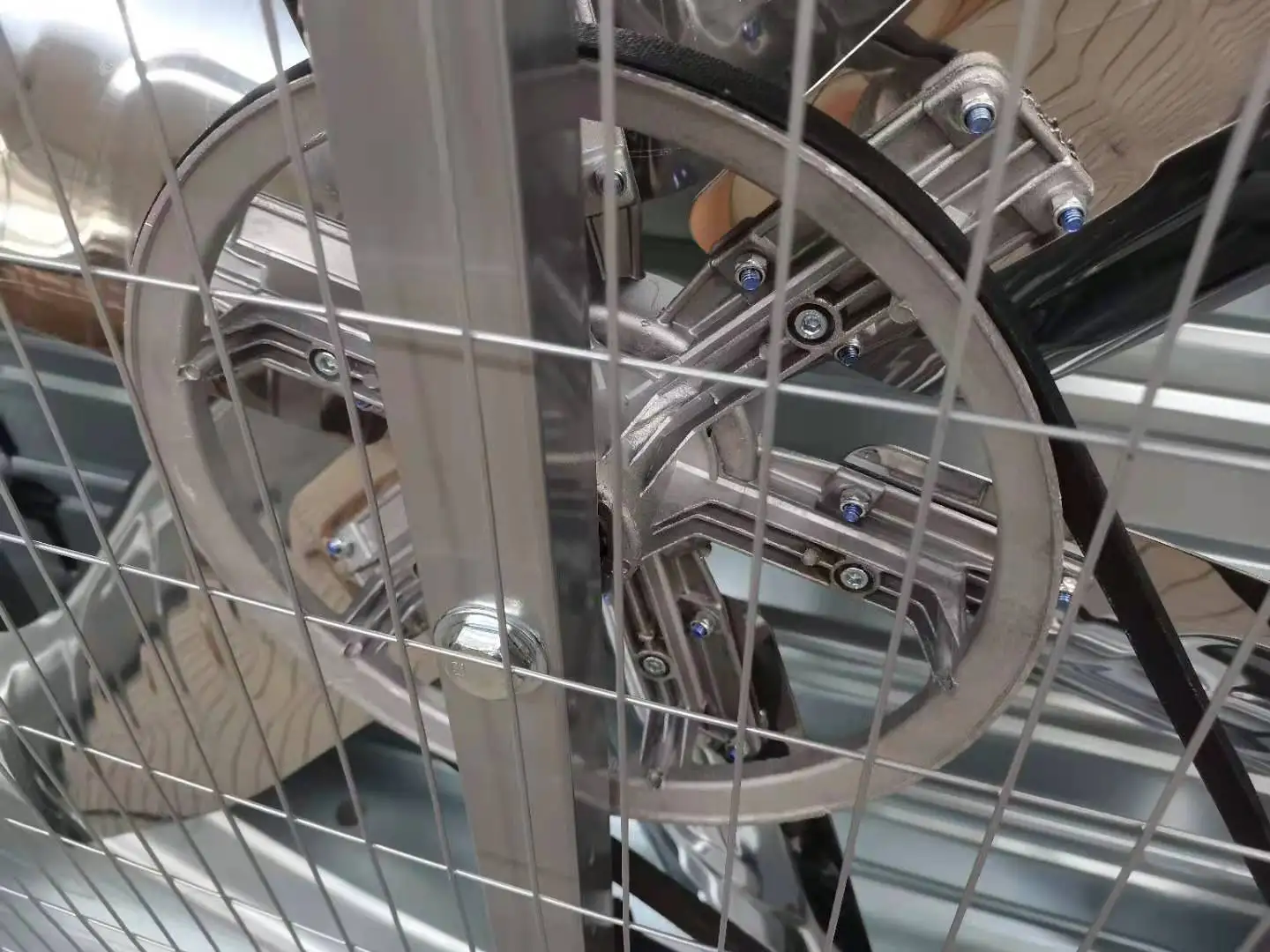

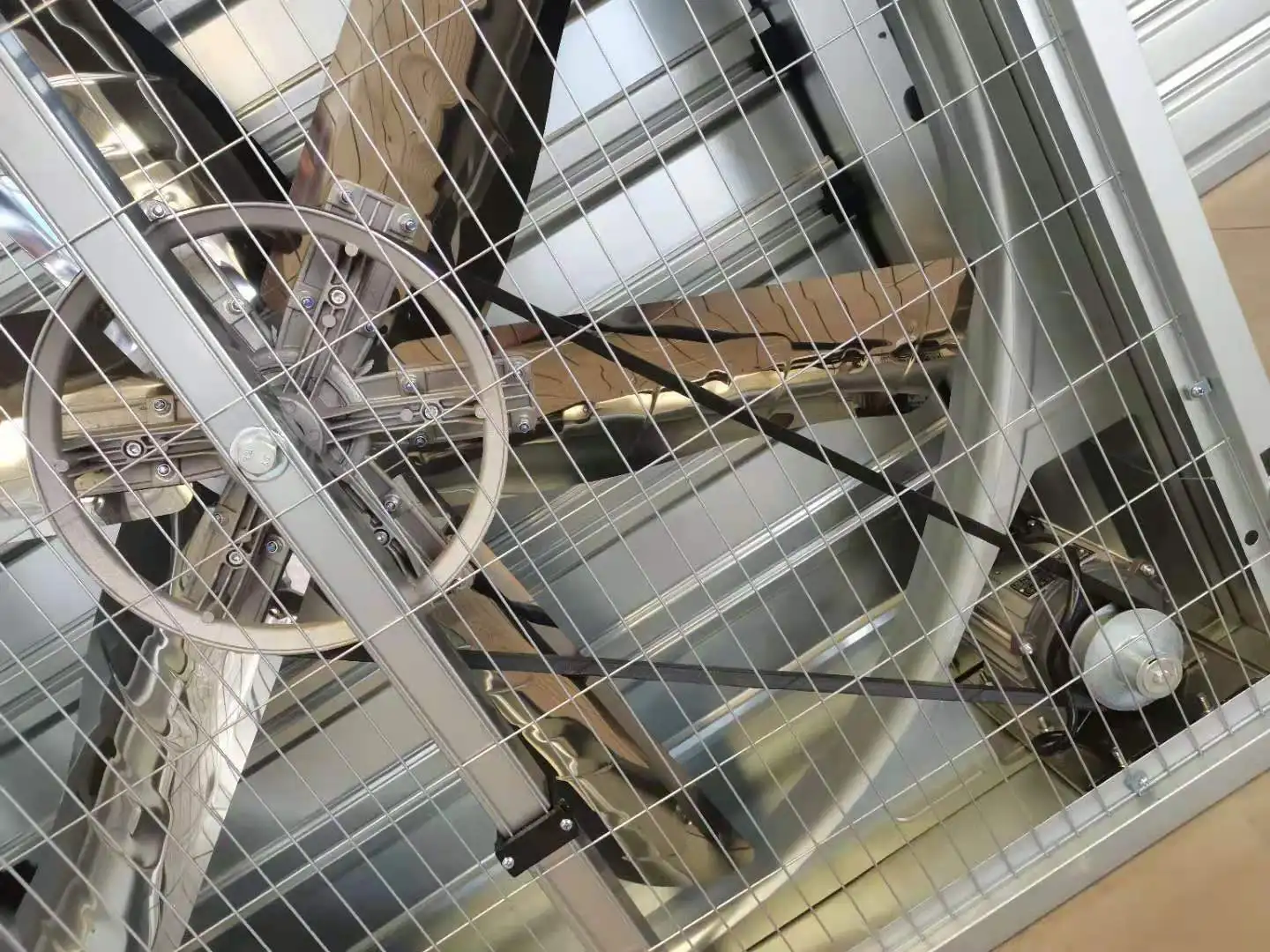

Fan belt pulley:
*Fan belt pulley is made of high strength aluminum-magnesium alloy by die-casting which reduces the weight of blade impeller complete,high corrosion resistance
*The special three ribbed pulley design eliminates internal stress and improves its own rigidity and stability without breaking.
50 Inch Industrial Workshop Exhaust Fan/Poultry Farm Air Cooling Fans
*.Material: High quality Nylon PA66
*Guide Rod: 304 stainless steel with special material outside, high strength, no rust, reduce friction.
*Rivet: 304 stainless steel , wear-resisting, no rust.
Advantage:
1.No electricity ventilation,Pull ring for assistance the Heavy Hammer

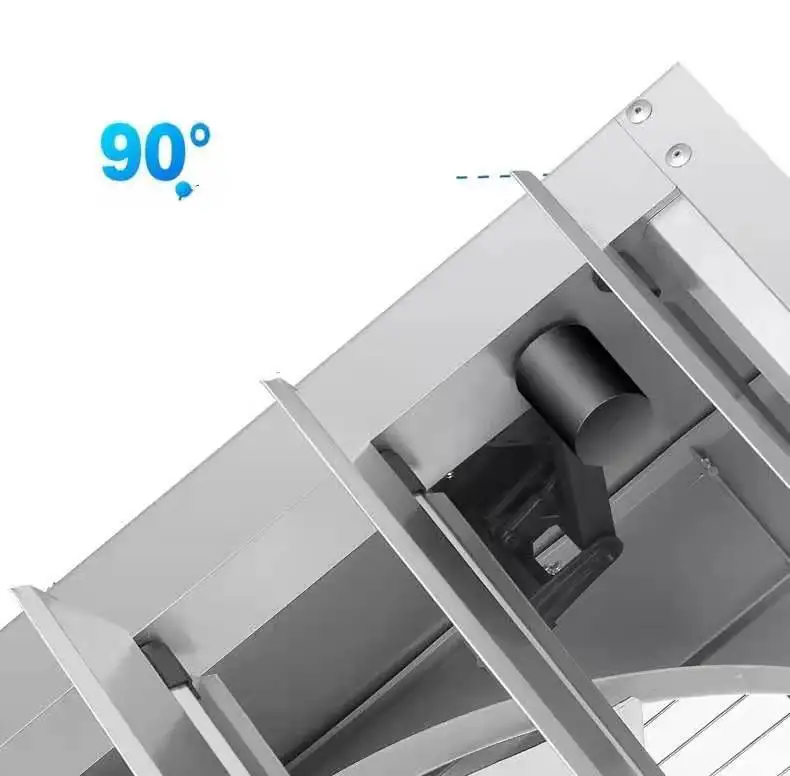

2.It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.
50 Inch Industrial Workshop Exhaust Fan/Poultry Farm Air Cooling Fans
BeltUse abroad belts,making sure long service life,free to maintain.
50 Inch Industrial Workshop Exhaust Fan/Poultry Farm Air Cooling Fans
Frame:
Farm adopts Hot Galvanized sheet with zinc thickness of 275g/m2,which extremely improve its anti-corrosion performance ,

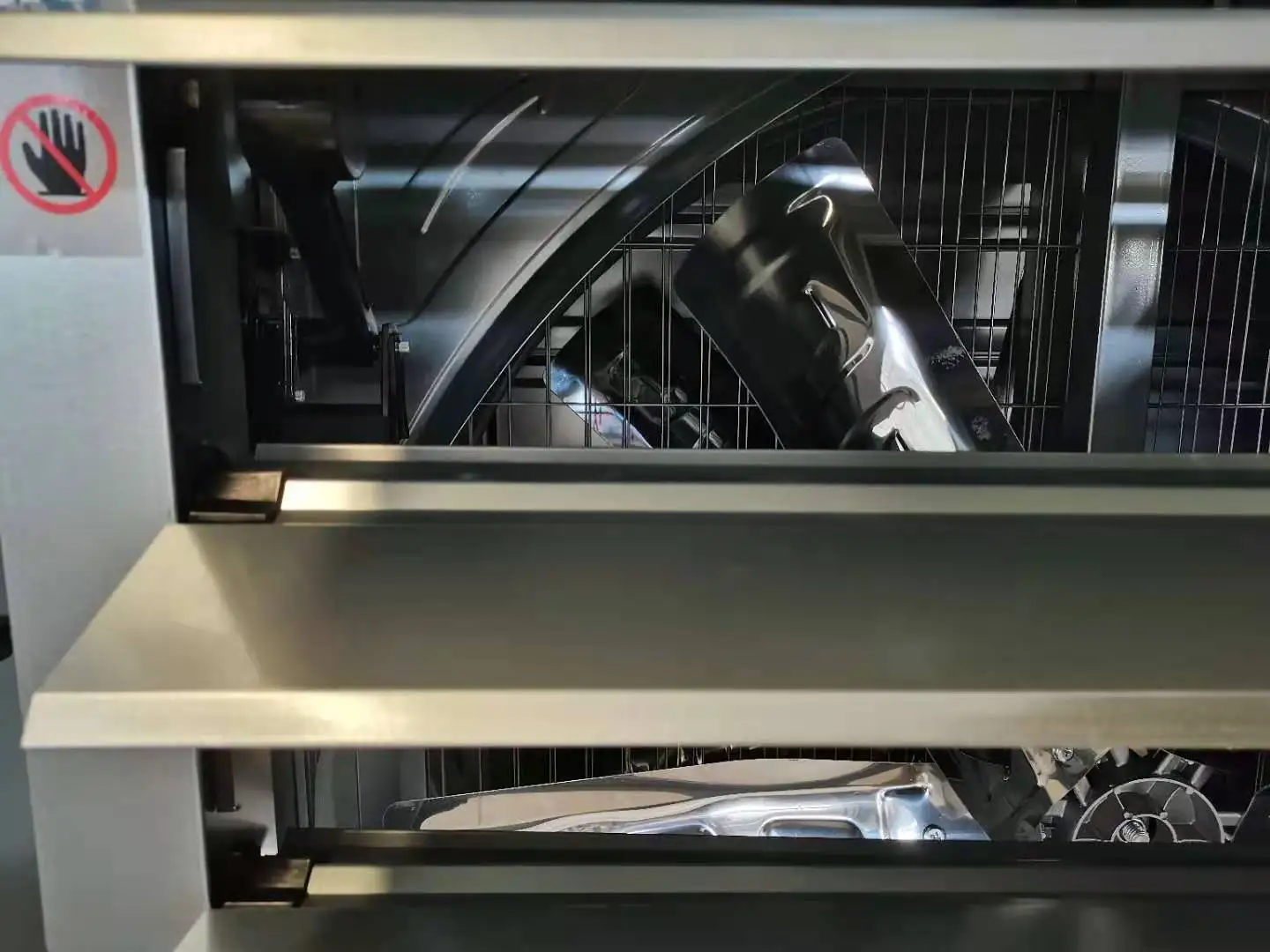

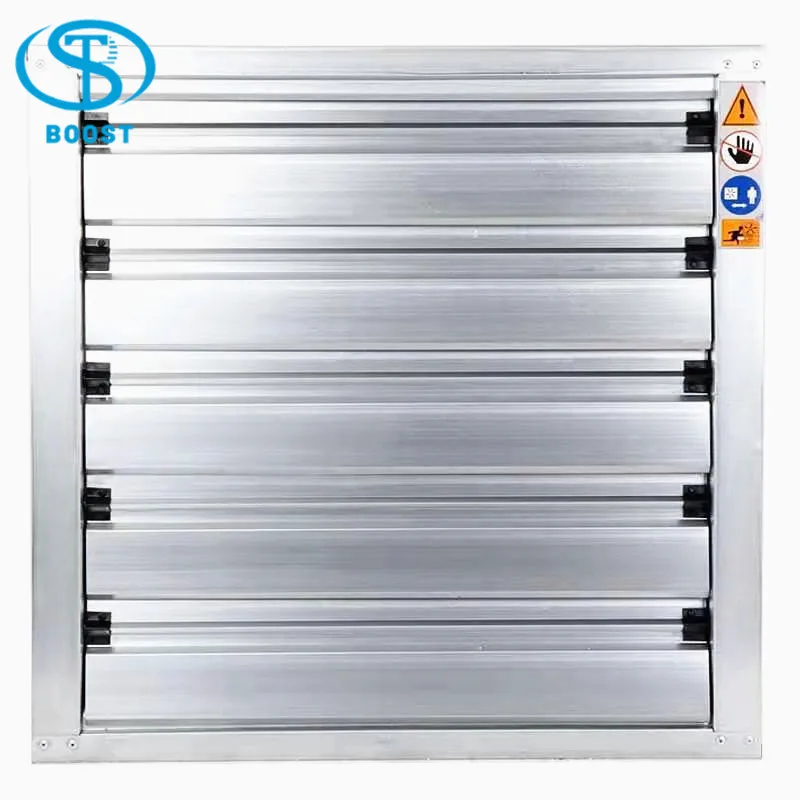

shutters:
shutters fixed parts are made of high quality nylon which ensure long service life,open flexibly.Shutters are made of galvanized sheet with thickness of 0.8mm and 1.5mm,ensure shutters no deformation,running stable
50 Inch Industrial Workshop Exhaust Fan/Poultry Farm Air Cooling Fans

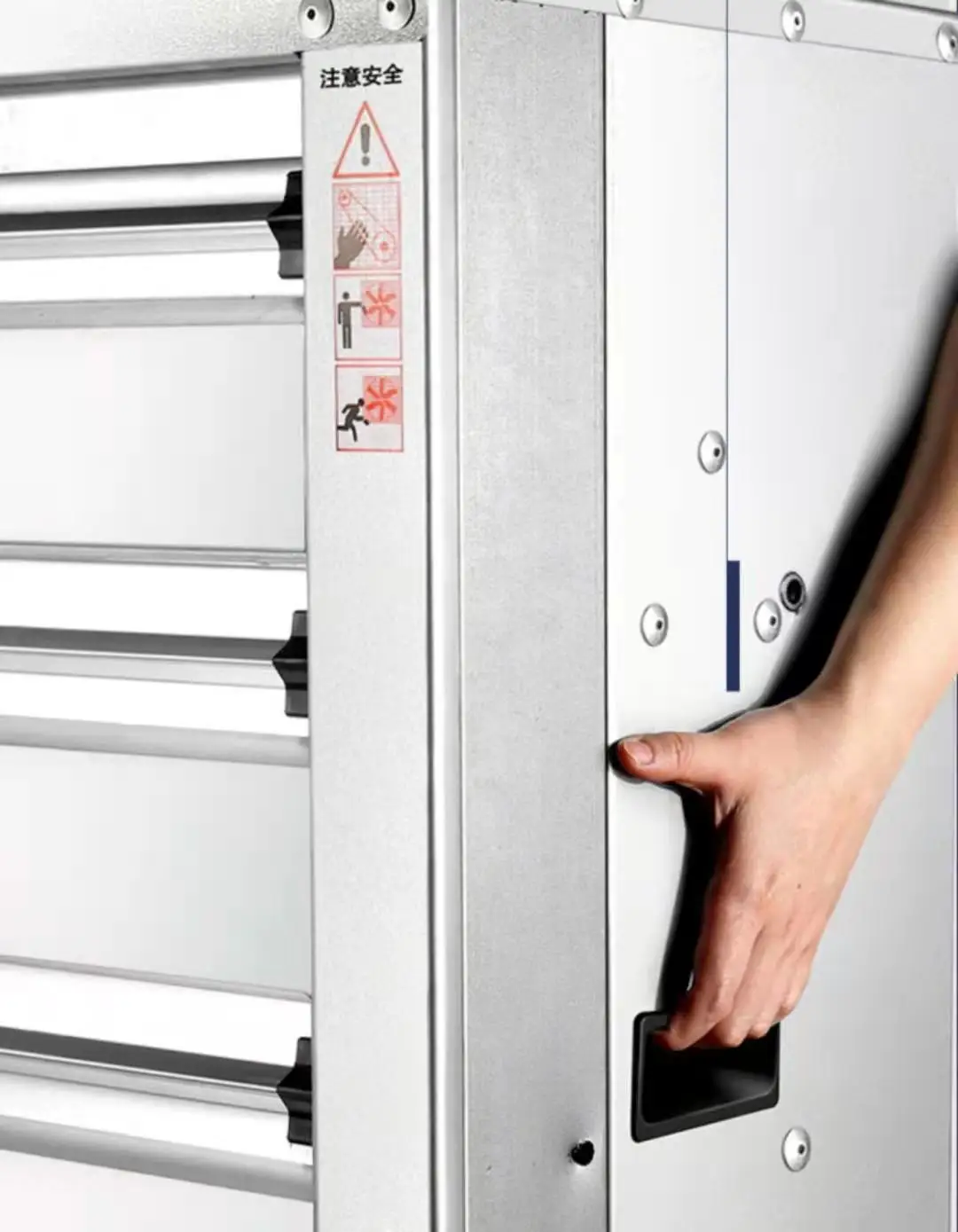

More humanized design
Easy to move
Not to be broken
Not to be broken

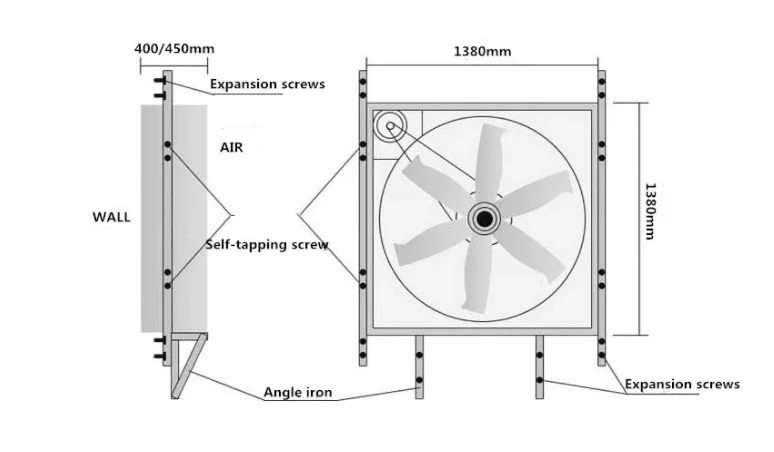

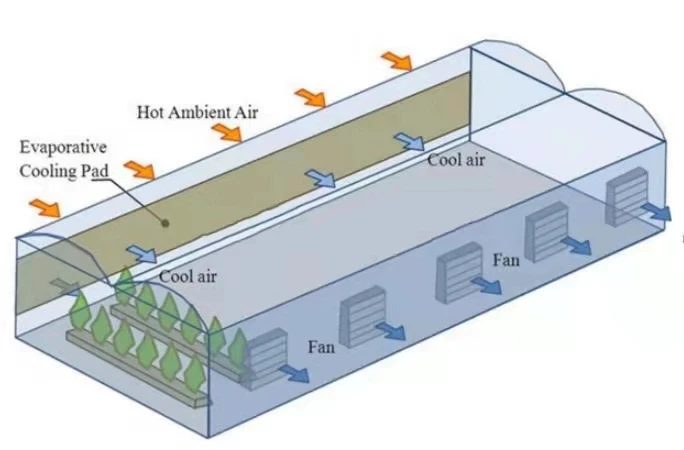

How To Install
Details Images

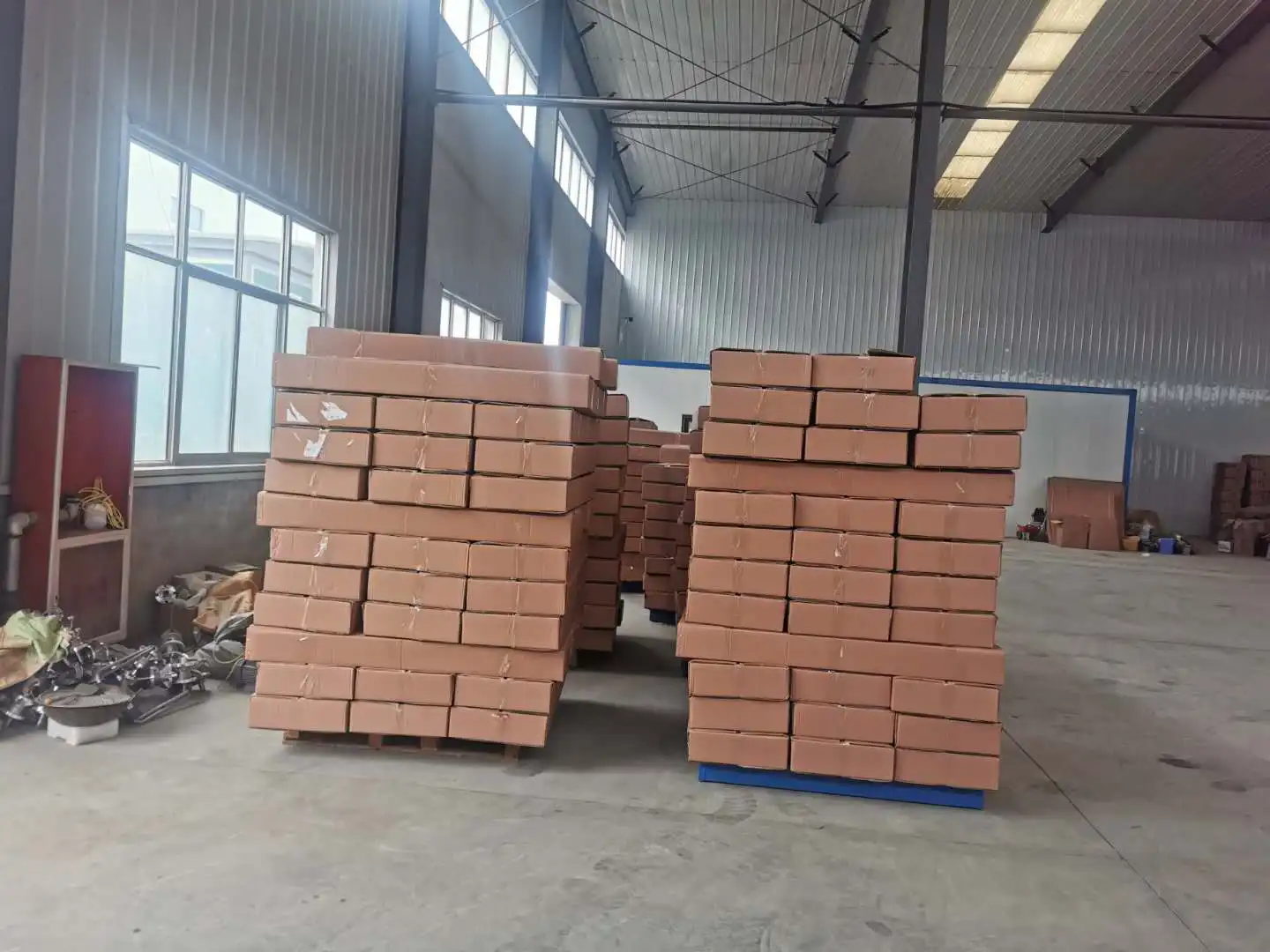

Packing & Delivery

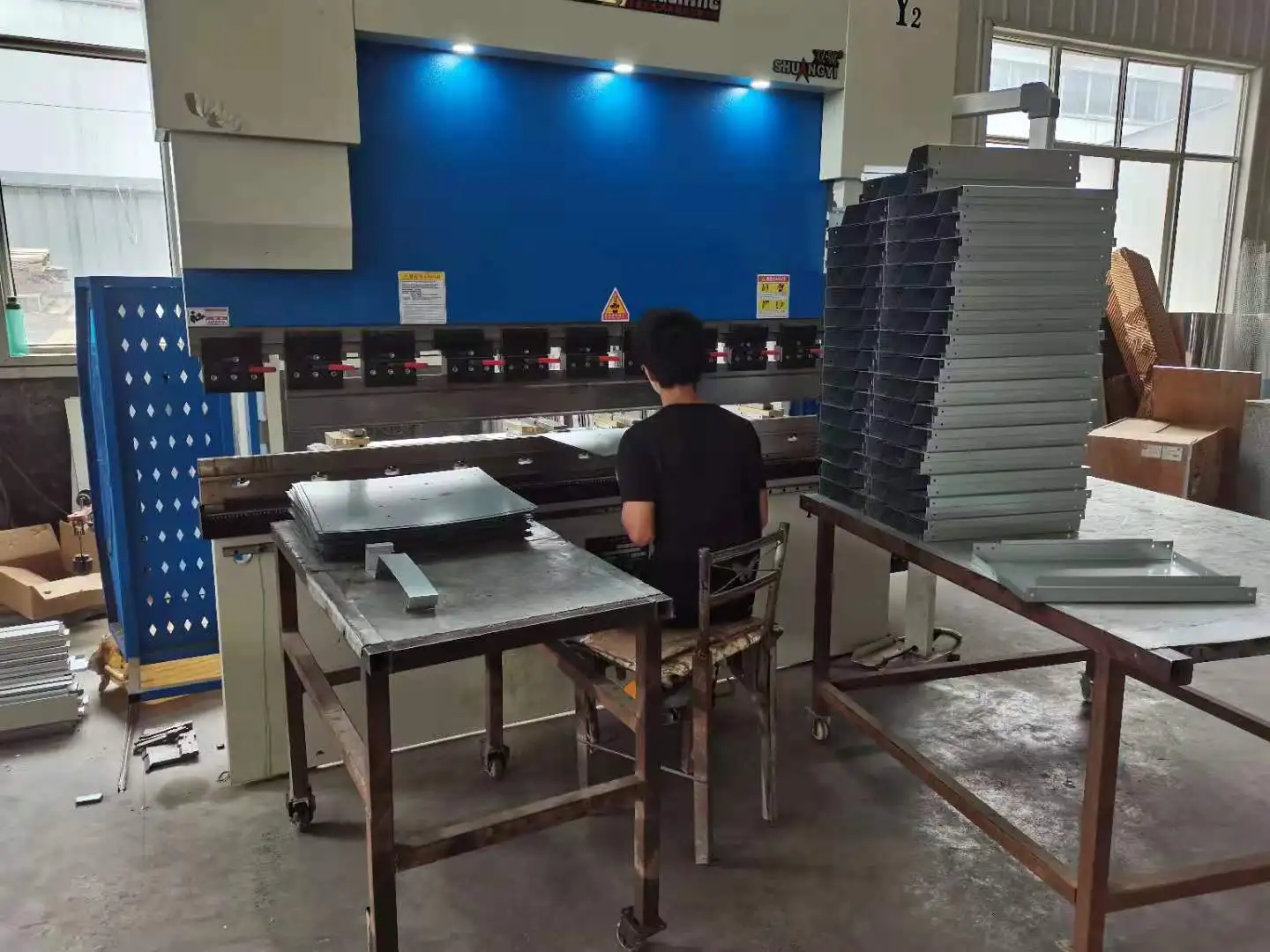

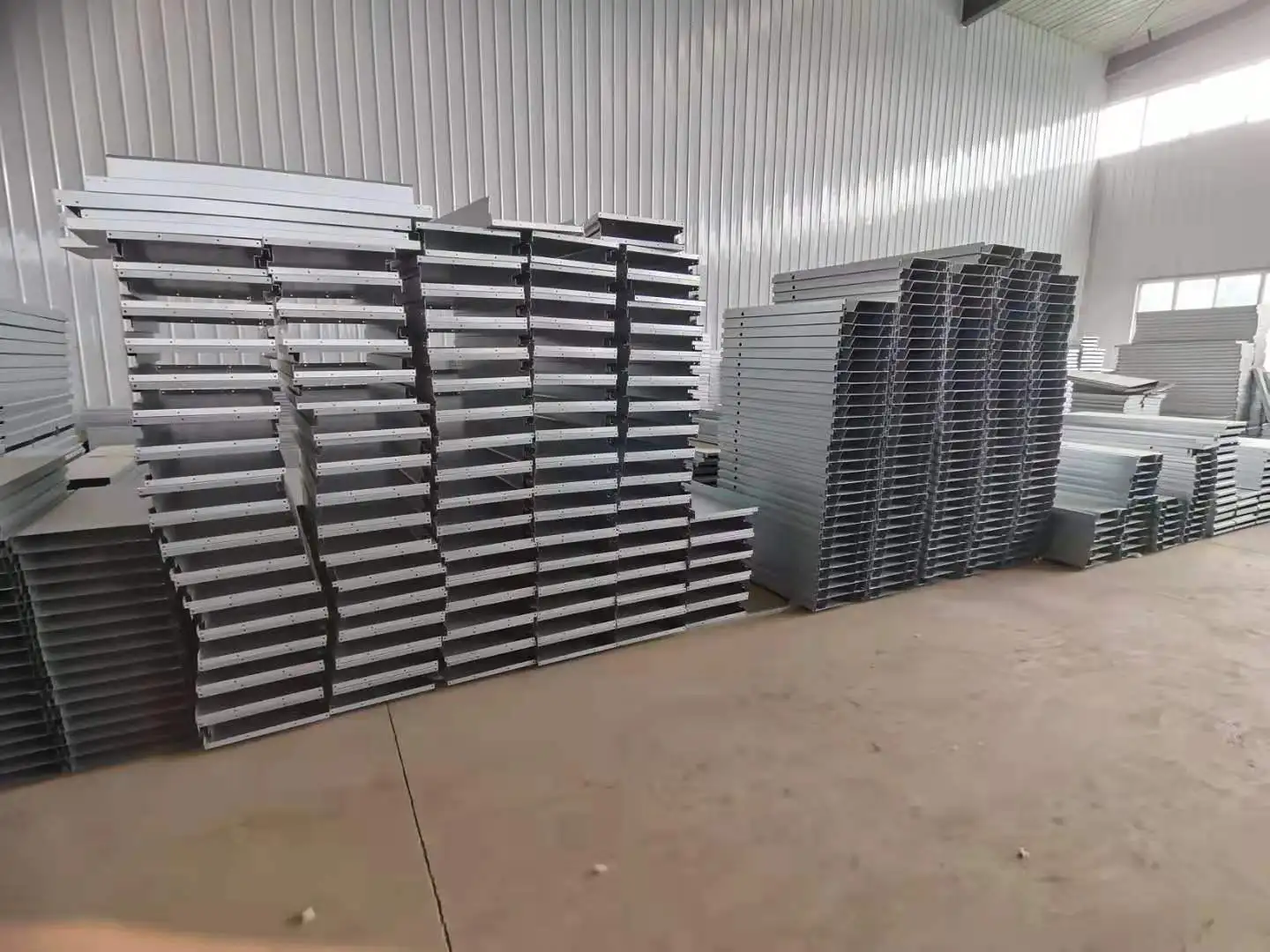

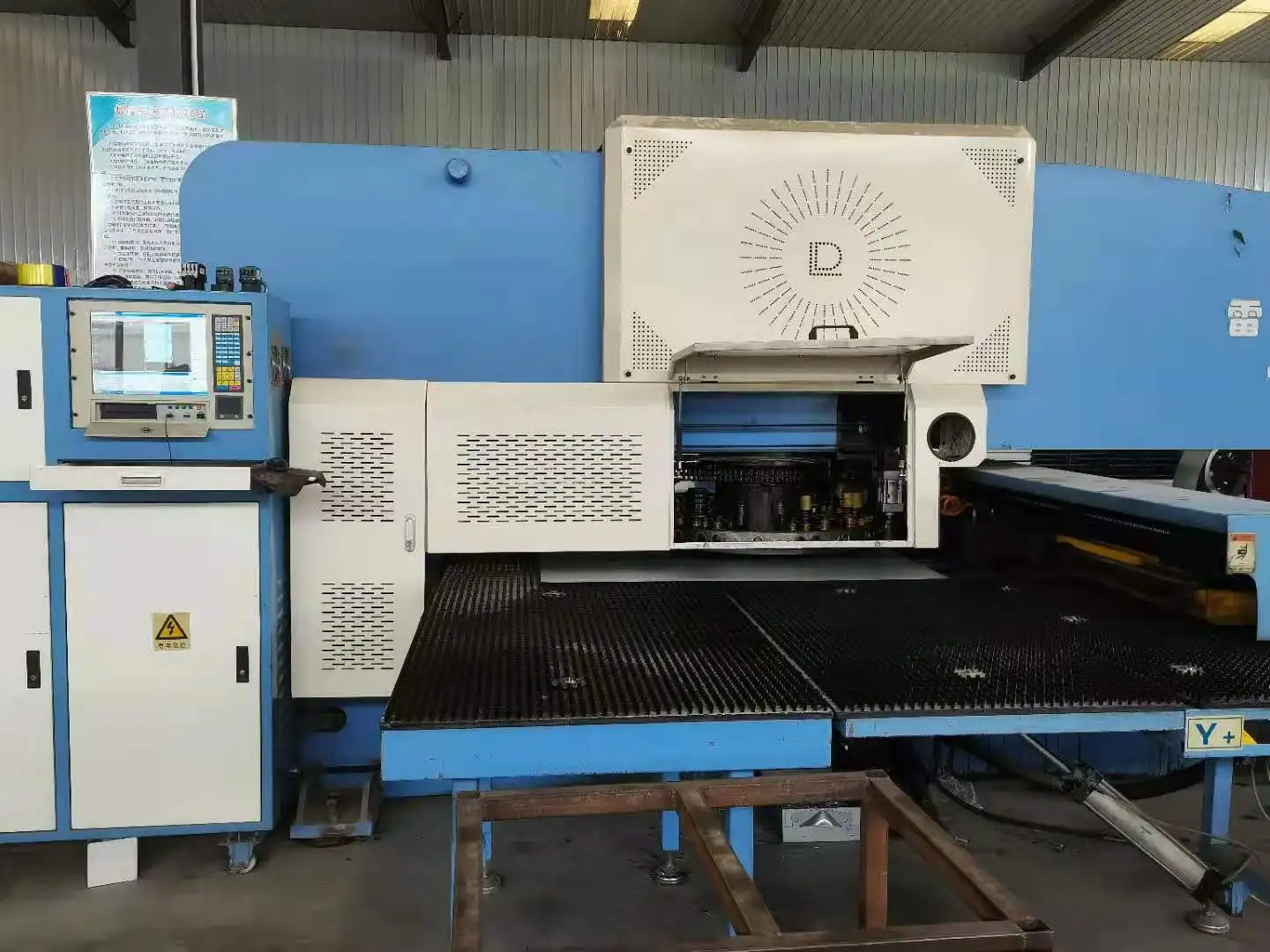

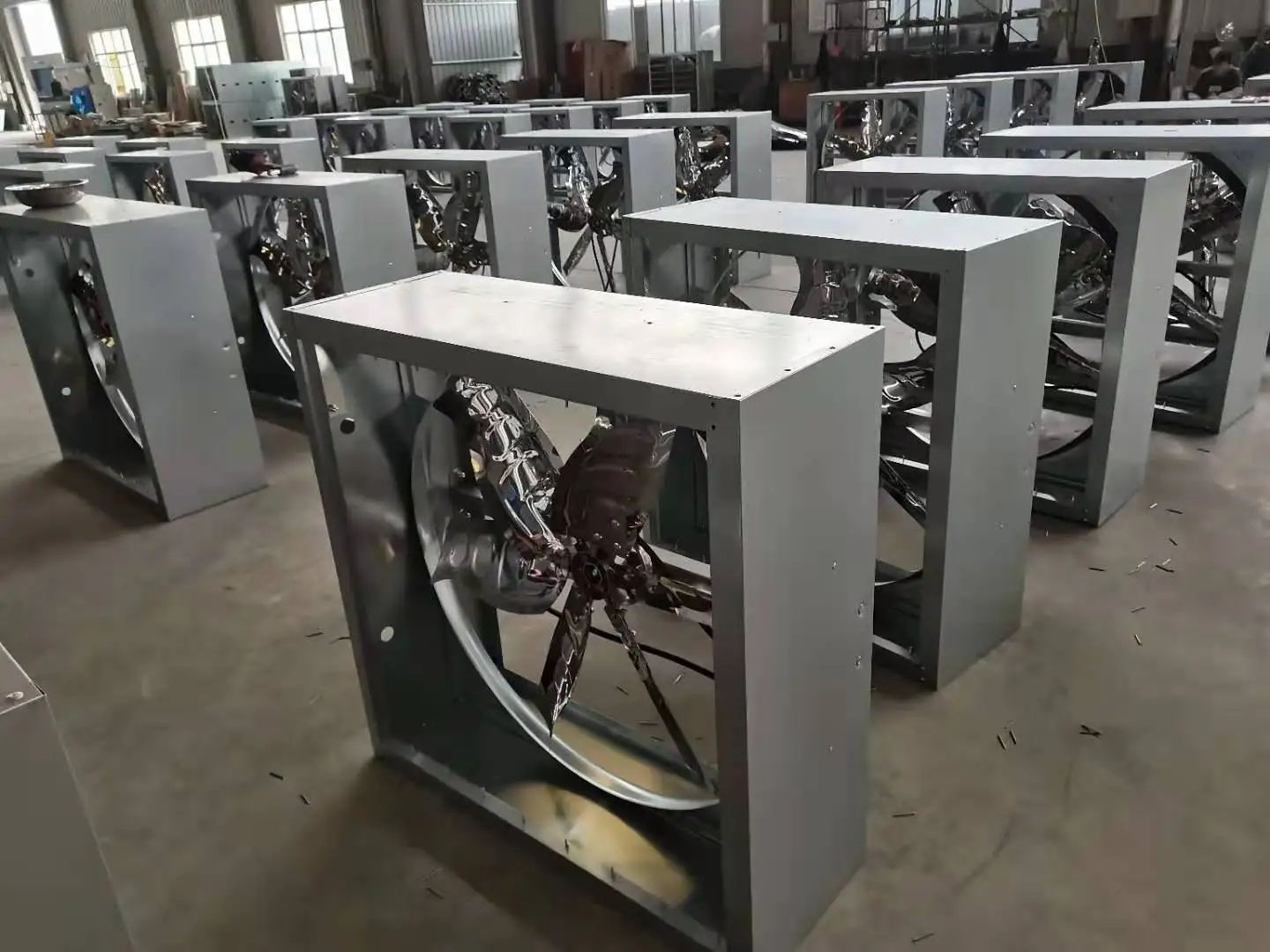

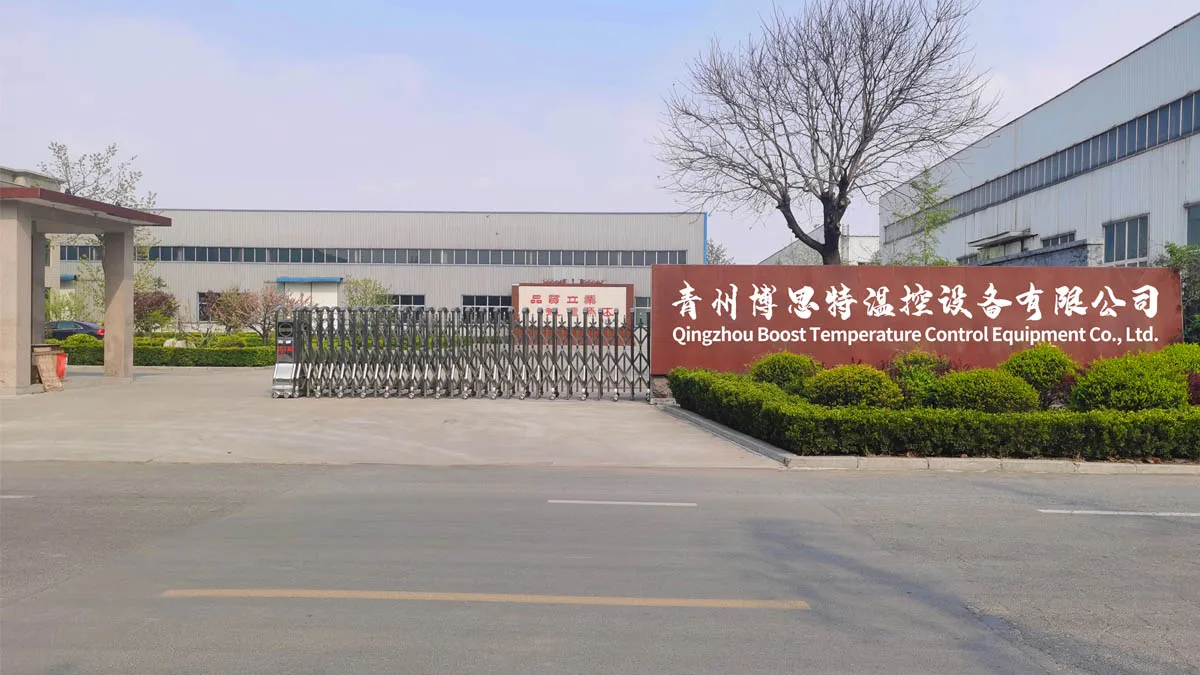

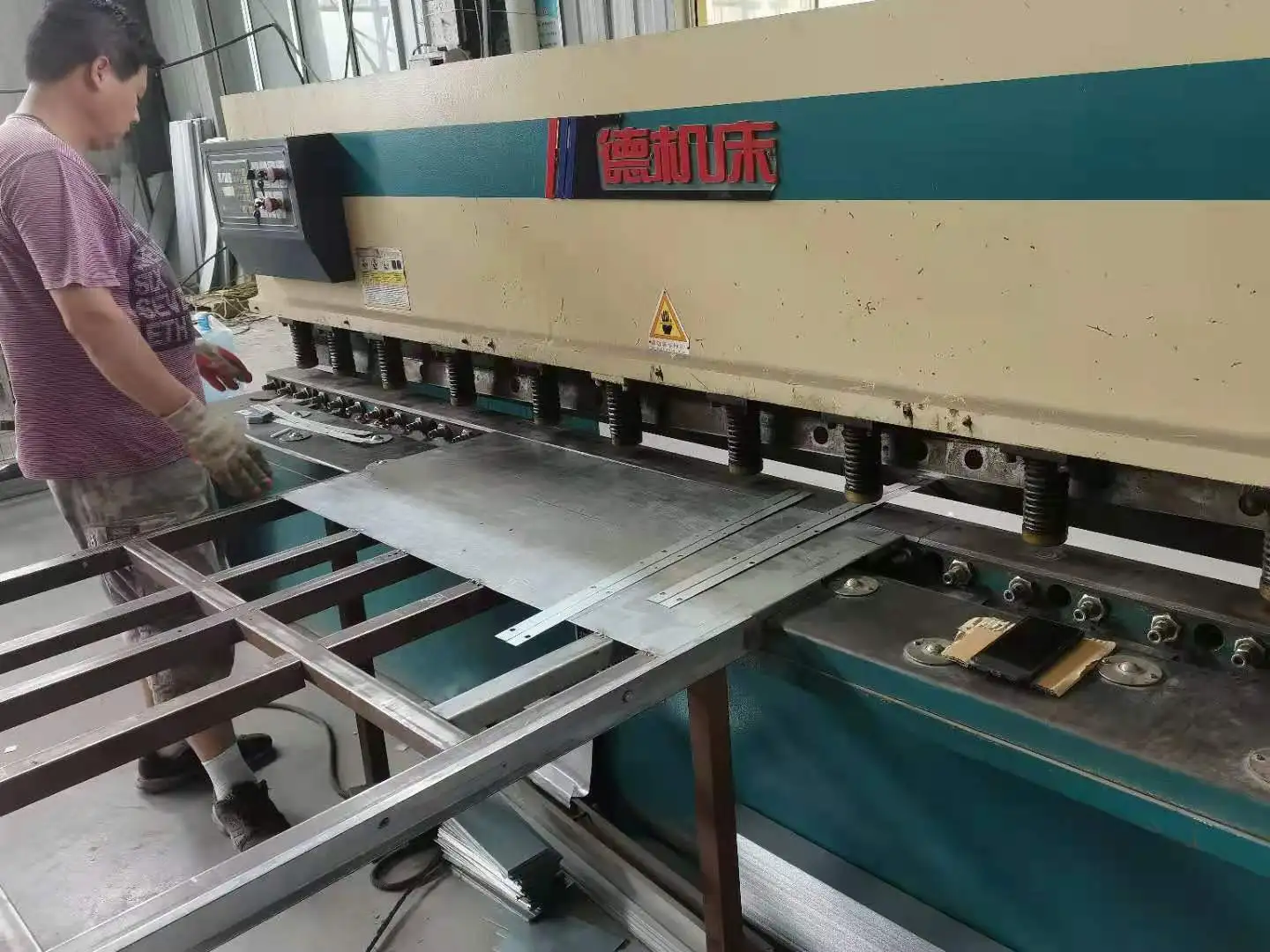

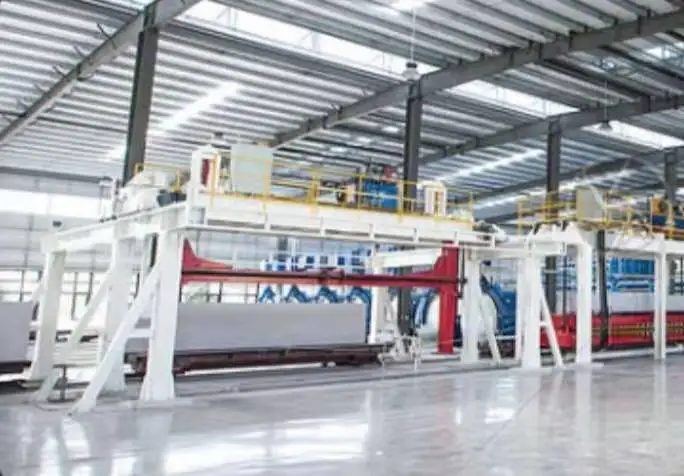

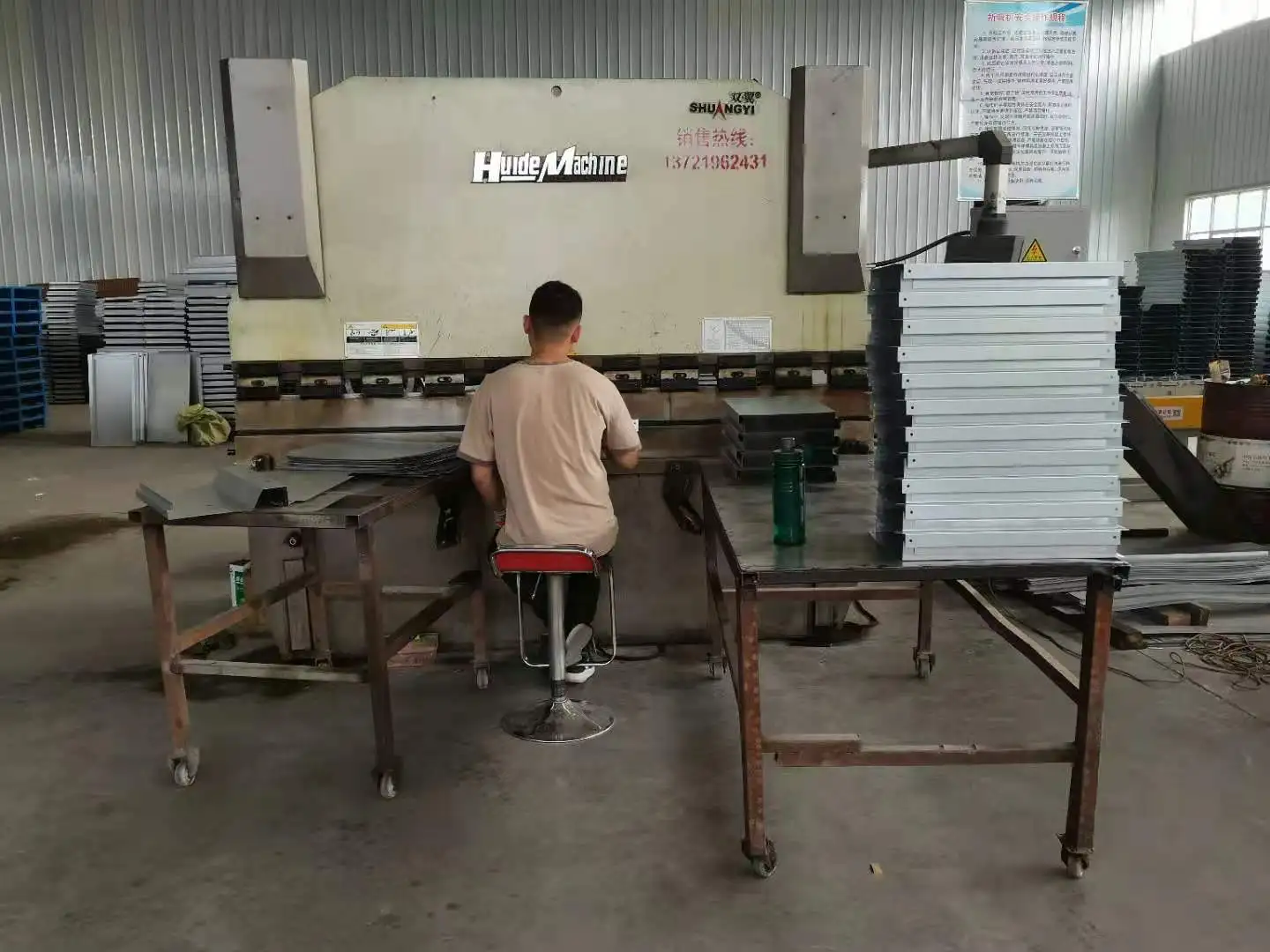

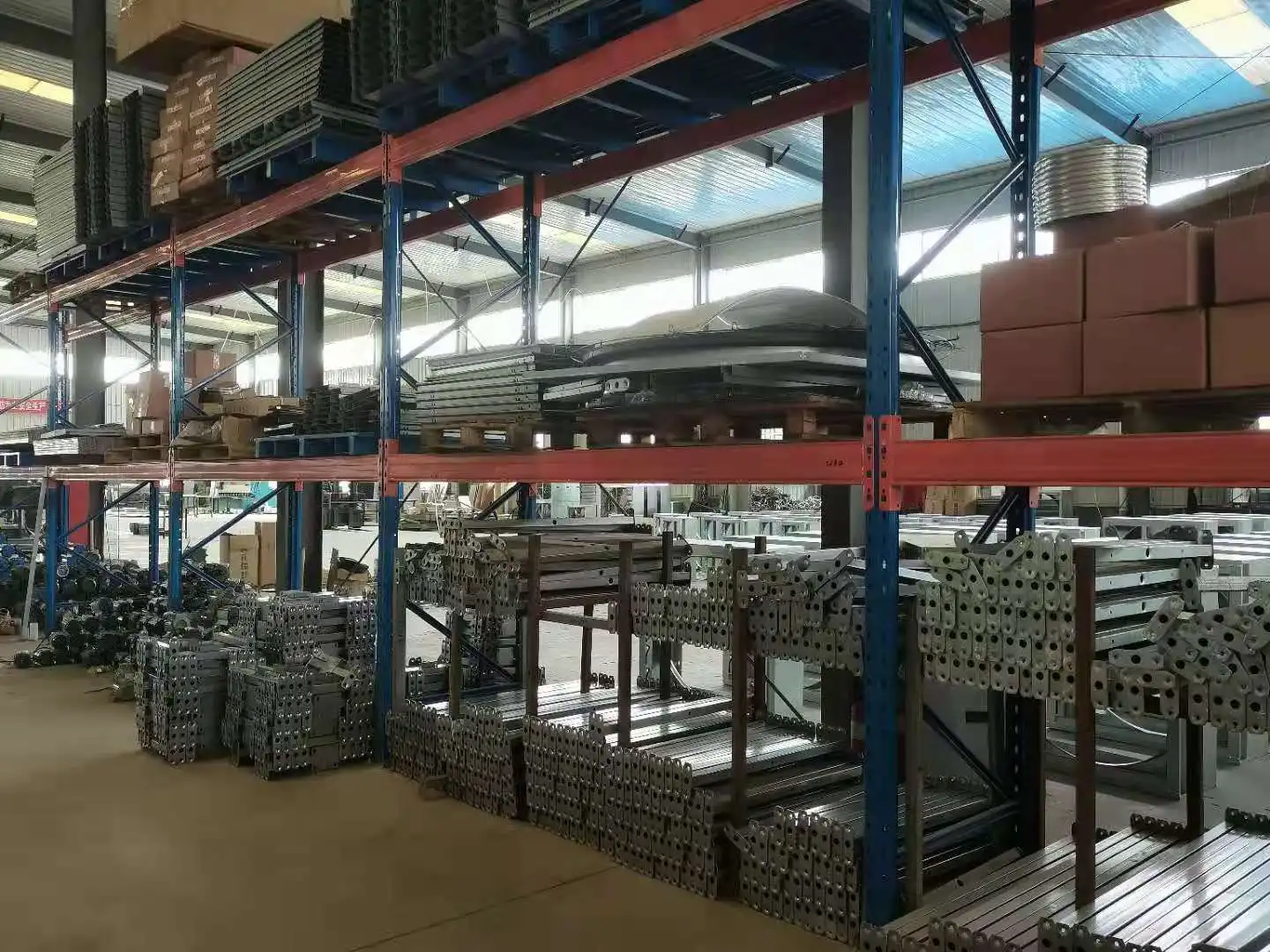

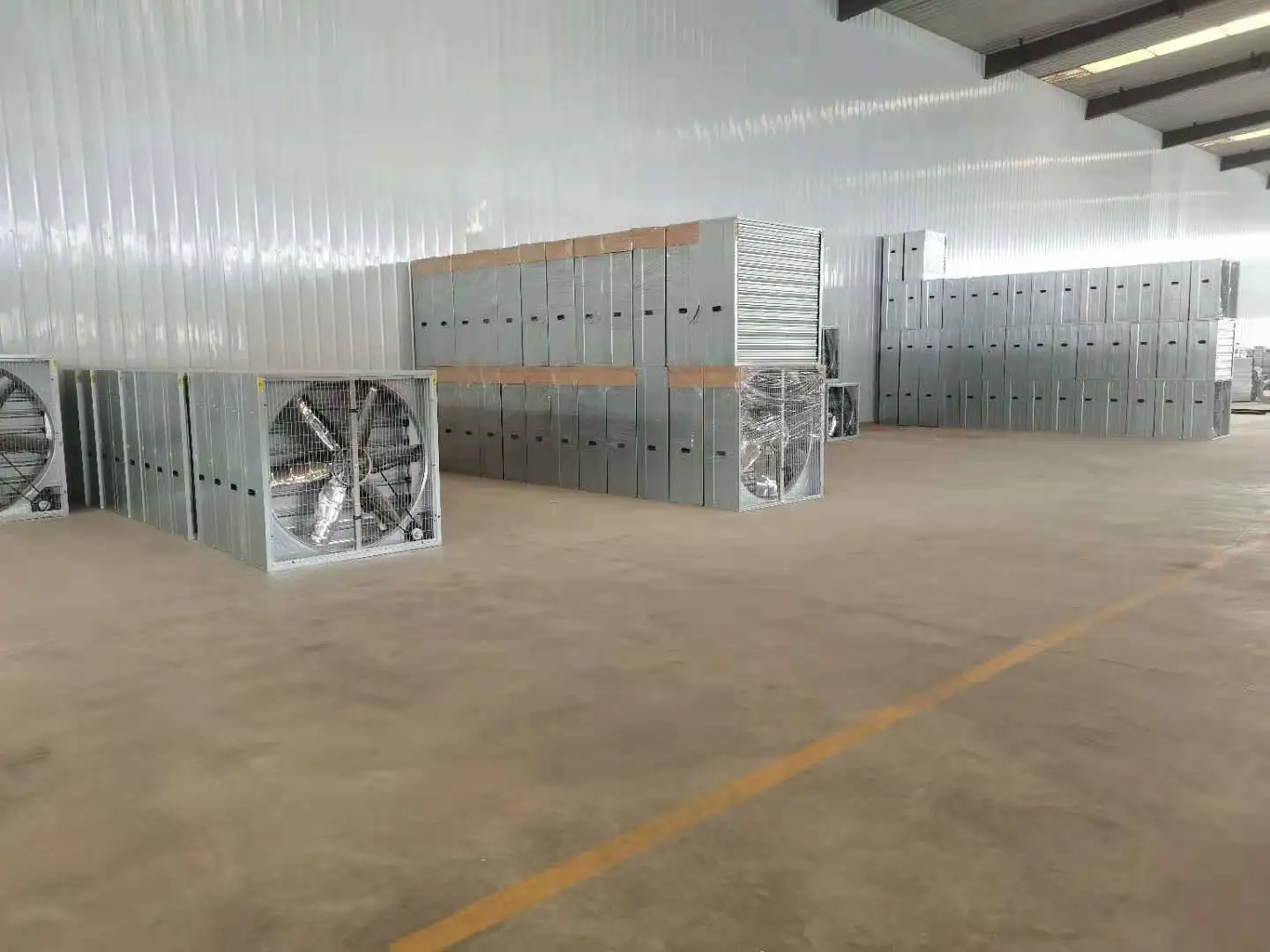

Factory&Workshop
Why choose BOOST?
BOOST factory is a professional company engaged in the design and development of air fluid mechanics and temperature control equipment.It has long cooperated with Shanghai Jiaotong University,China Agricultural University,,Huazhong University of Technology,etc.In cooperation with universities,a research institute integrating production,learning and research has been established
We have strong design and research capabilities and experienced production workers. Our products are exported to manycountries around the word.
