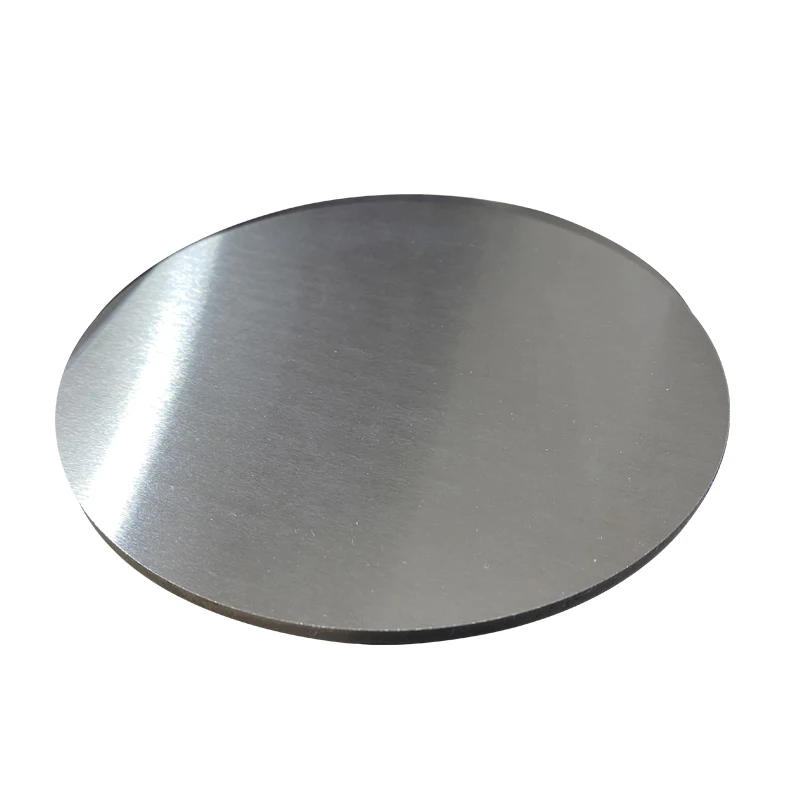

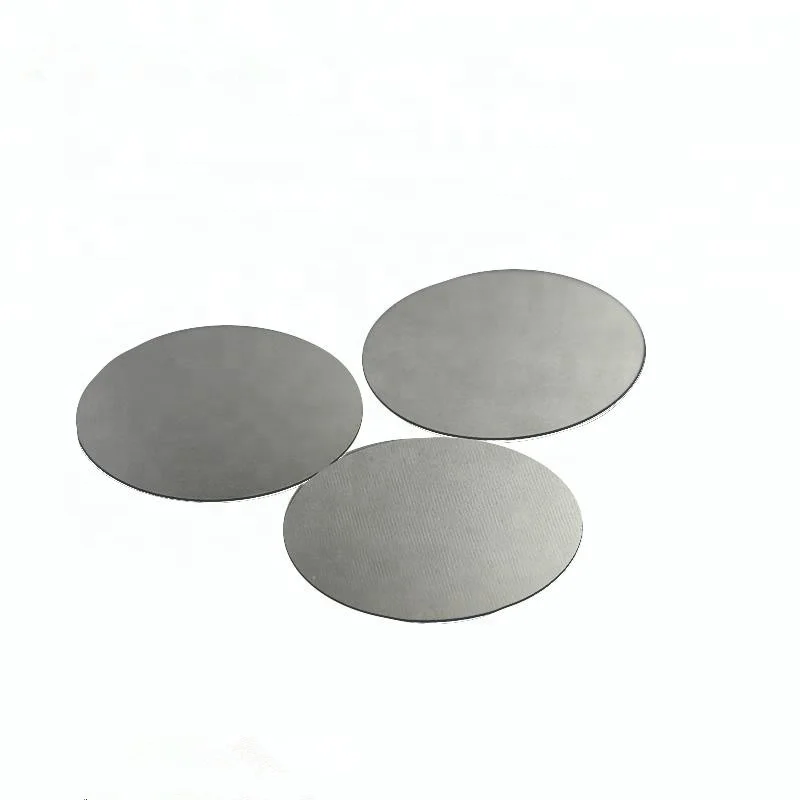

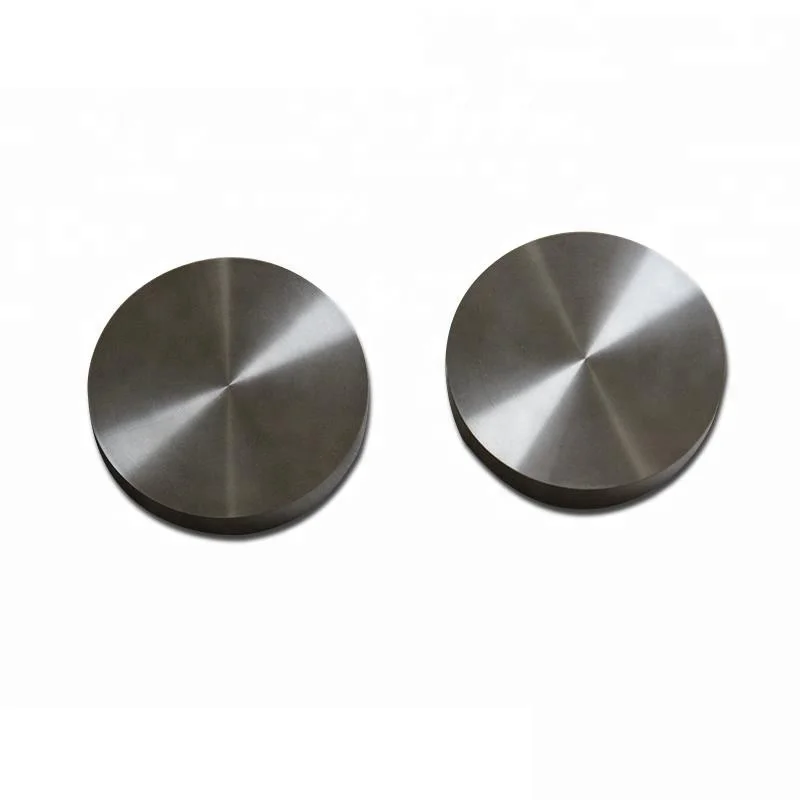

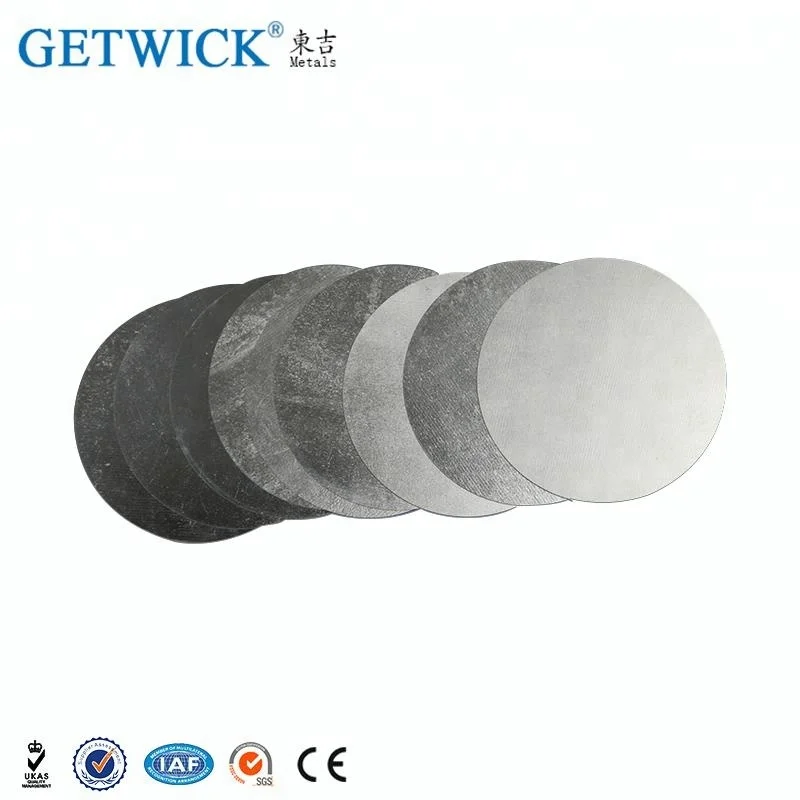

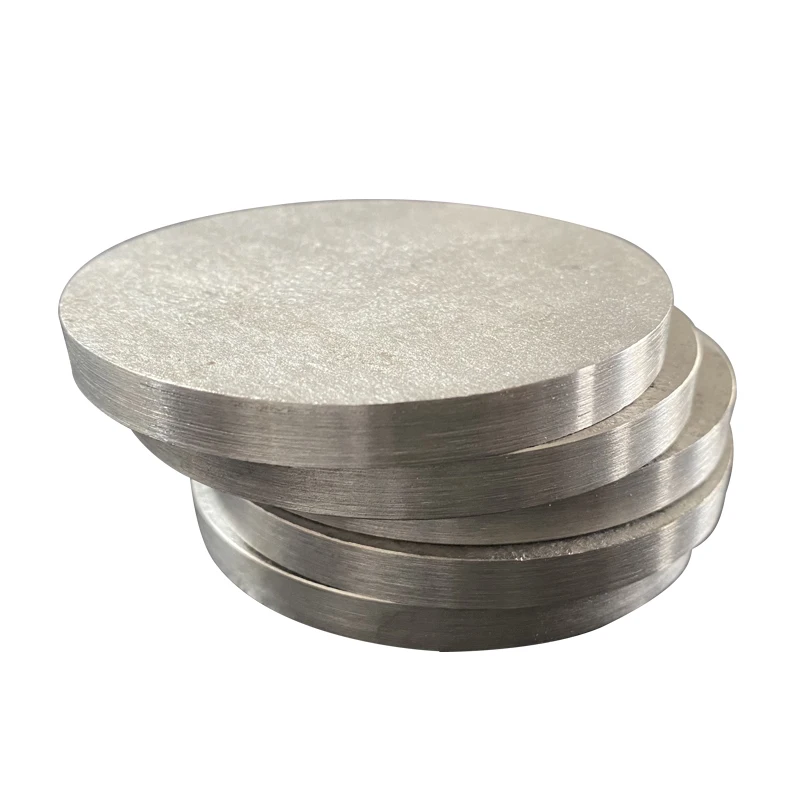

99.95% 10mm round tungsten plate tungsten alloy circular sheet price

Product Overview

Description

99.95% 10mm round tungsten plate tungsten alloy circular sheet price

1.Applications:
      *  For producing electric light source parts,components of electric vacuum;

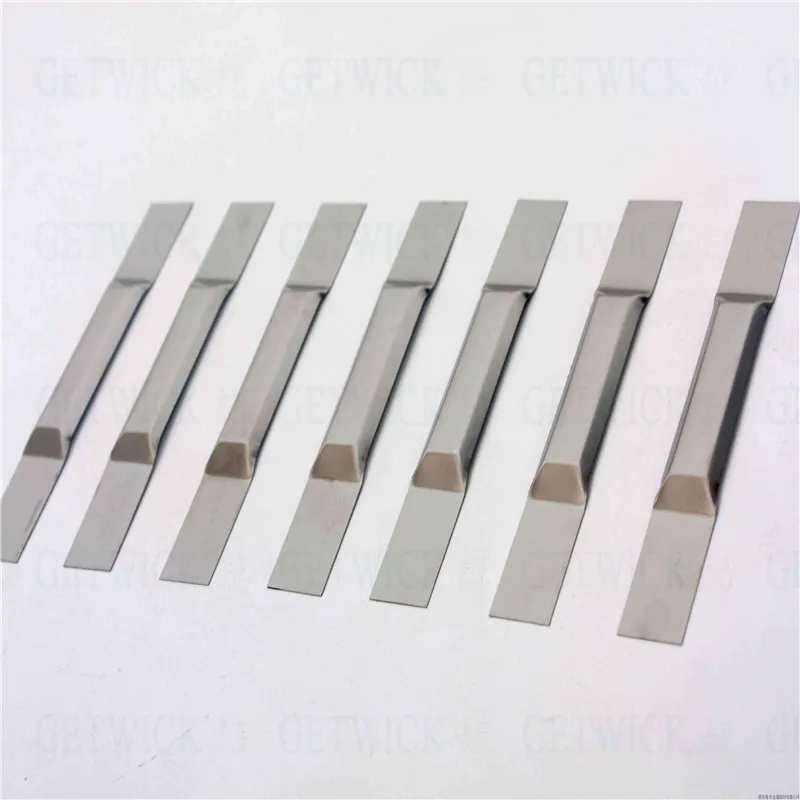

      *  For producing W-boats,heat shield and heat bodies in high temperature furnace.
2.Size: 0.3mm( Thickness ) x 50~450mm( Width ) x 100~1000mm( Length )
3.Purity: 99.95%,
4.Standard: ASTM B760 or  GB3875-83
5.ASTM B760 as follows:
Chemical    composition
element Max  Tolerance
C 0.01 ±0.002
O 0.01 10%
N 0.01 +0.0005
Fe 0.01 +0.001
Ni 0.01 +0.01
Si 0.01 +0.01
6.Thickness Tolerance
Standard Width  inch (mm) Standard Thickness inch(mm) Thickness Tolerance inch (mm)
≤12(305) 0.005-0.010 (0.13-0.25) ±0.001(±0.0254)
  >0.010-0.020 (0.25-0.51) ±0.002(±0.0508)
  >0.20(0.51) ±10%
>12-24(305-610) >0.010-0.025(0.25-0.64) ±0.0025(±0.0635)
  >0.025(0.64) ±10%

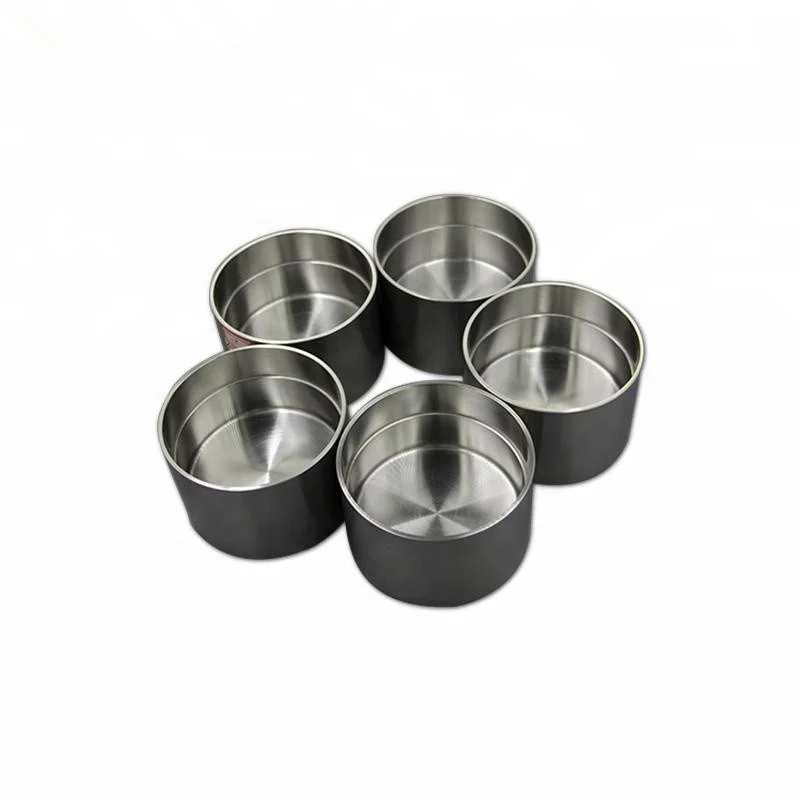

7.Our products is available in a wide range of forms including nut, screw ,ring ,wire, foil, sheet,rod, strip, plate,
tube, alloys according to Standard ASTM AMS ASME MIL DMS JIS GB, etc.

Tungsten Plate/Sheet /Foil
Thickness(min) mm	Width(max) mm	Length(max) mm
0.05	150	500
0.06~0.09	250	500
0.1	300	500
0.12	320	550
0.15	350	600
0.2~0.6	400	600
0.7~0.9	400	800
1~2	450	800
2~10	450	600
10~15	450	500
15~25	300	500
