Product Overview
Description
Product Paramenters
Solar Water Heater | Diameter of outer Tank | Specification for Solar Vacuum Tube | Capacity | Collector Area | ||||||
Qty. of | Diameter of | Length of | Tank | Whole System | ||||||
WDF-1800/58-15 | Ø 460mm | 15 | Ø 58mm | 1.8M | 112L | 150L | 1.89 M2 | |||
WDF-1800/58-18 | Ø 460mm | 18 | Ø 58mm | 1.8M | 135L | 180L | 2.27M2 | |||
WDF-1800/58-20 | Ø 460mm | 20 | Ø 58mm | 1.8M | 150L | 200L | 2.52M2 | |||
WDF-1800/58-24 | Ø 460mm | 24 | Ø 58mm | 1.8M | 178L | 240L | 3.03M2 | |||
WDF-1800/58-30 | Ø 460mm | 30 | Ø 58mm | 1.8M | 235L | 300L | 3.78M2 | |||
Technical data:
1.Outer tank: Galvanized steel/Stainless steel 201; thickness 0.4MM; Diameter 460MM.;
2. Inner tank: SUS304-2B, thickness 0.5MM, Diameter, 360MM; Argon arc welding;
3.Insulation: 50MM Polyurethane Foaming; Density: 40KG/CBM;
4.Bracket:Galvanized steel/Stainless steel 201, thickness 1.2-1.5MM; Angle as your requirement;
2. Inner tank: SUS304-2B, thickness 0.5MM, Diameter, 360MM; Argon arc welding;
3.Insulation: 50MM Polyurethane Foaming; Density: 40KG/CBM;
4.Bracket:Galvanized steel/Stainless steel 201, thickness 1.2-1.5MM; Angle as your requirement;
5.Vacuum tube：High borosilicate glass, three layers coating vacuum tube;

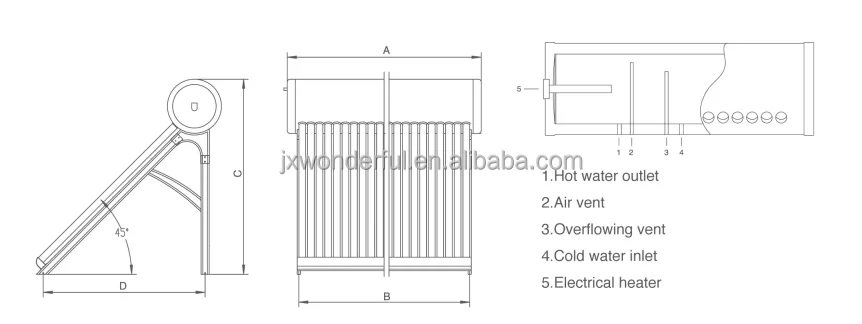

5.Structure of tank:5 holes for : Air -vent, Inlet, Outlet, Drain Pipe, Heat Element;
5.Structure of tank:5 holes for : Air -vent, Inlet, Outlet, Drain Pipe, Heat Element;
7the angle of bracket can be modified according to customer’ requirement;
7. the Tank Capacity( Length and Diameter ) can be modified according to customers’ requirement;
9.the Assistant Tank, Heating element, Mg Rod, Reflector and Controller can be provided.
9.the Assistant Tank, Heating element, Mg Rod, Reflector and Controller can be provided.
