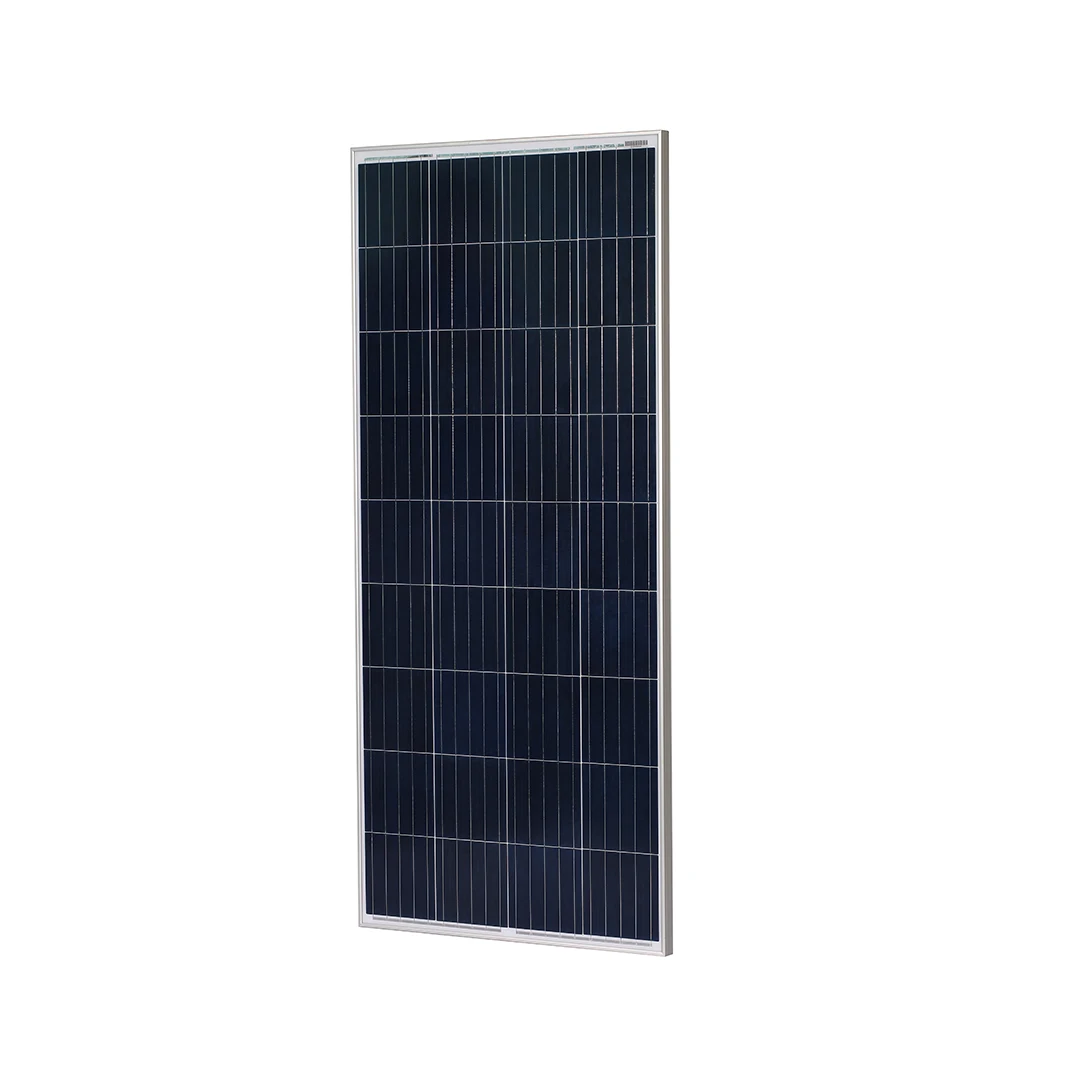

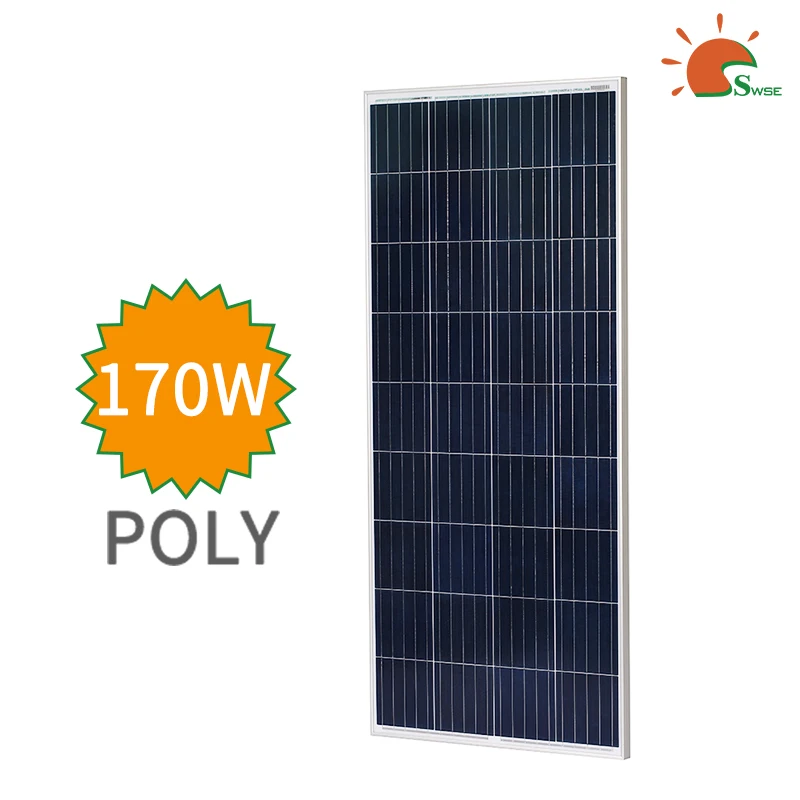

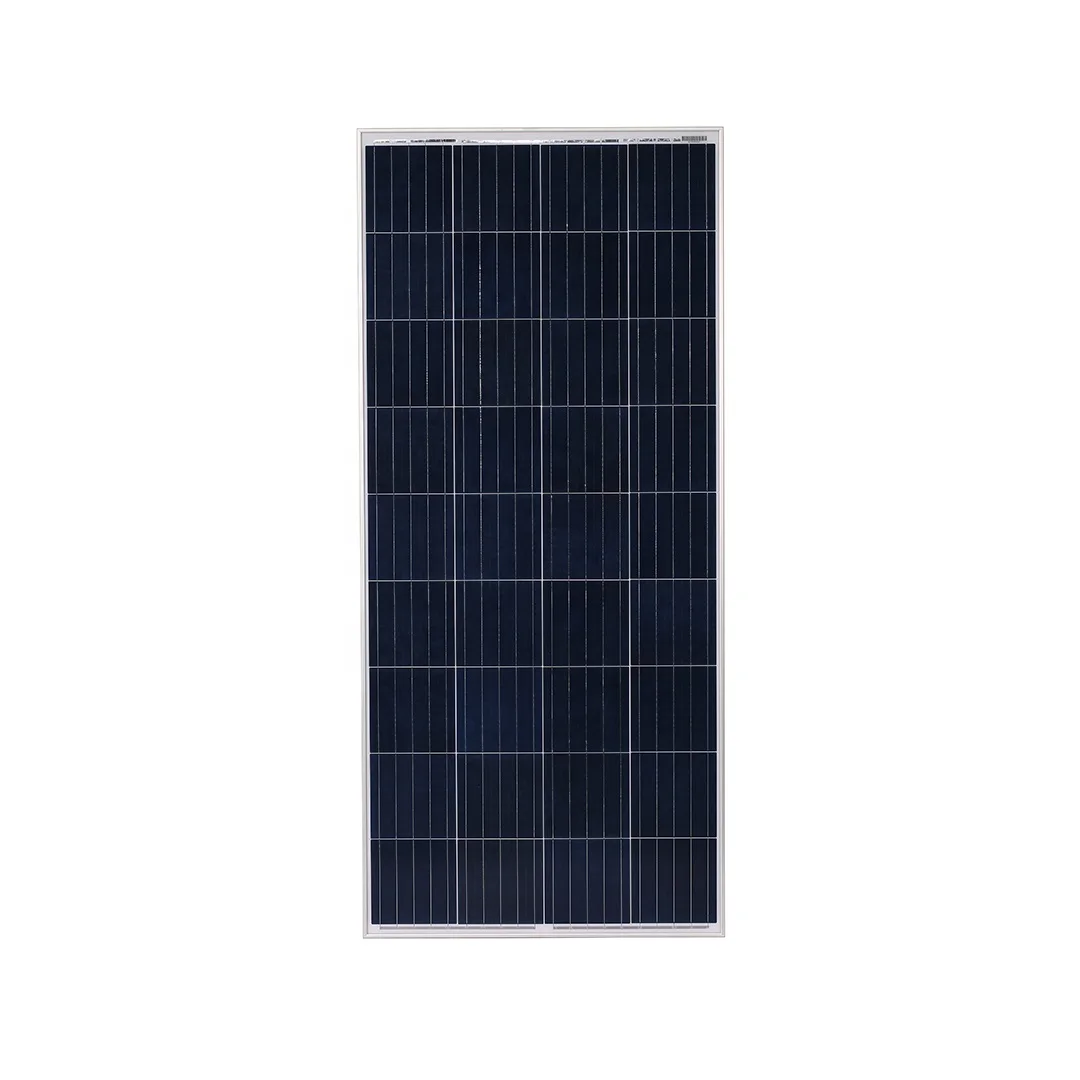

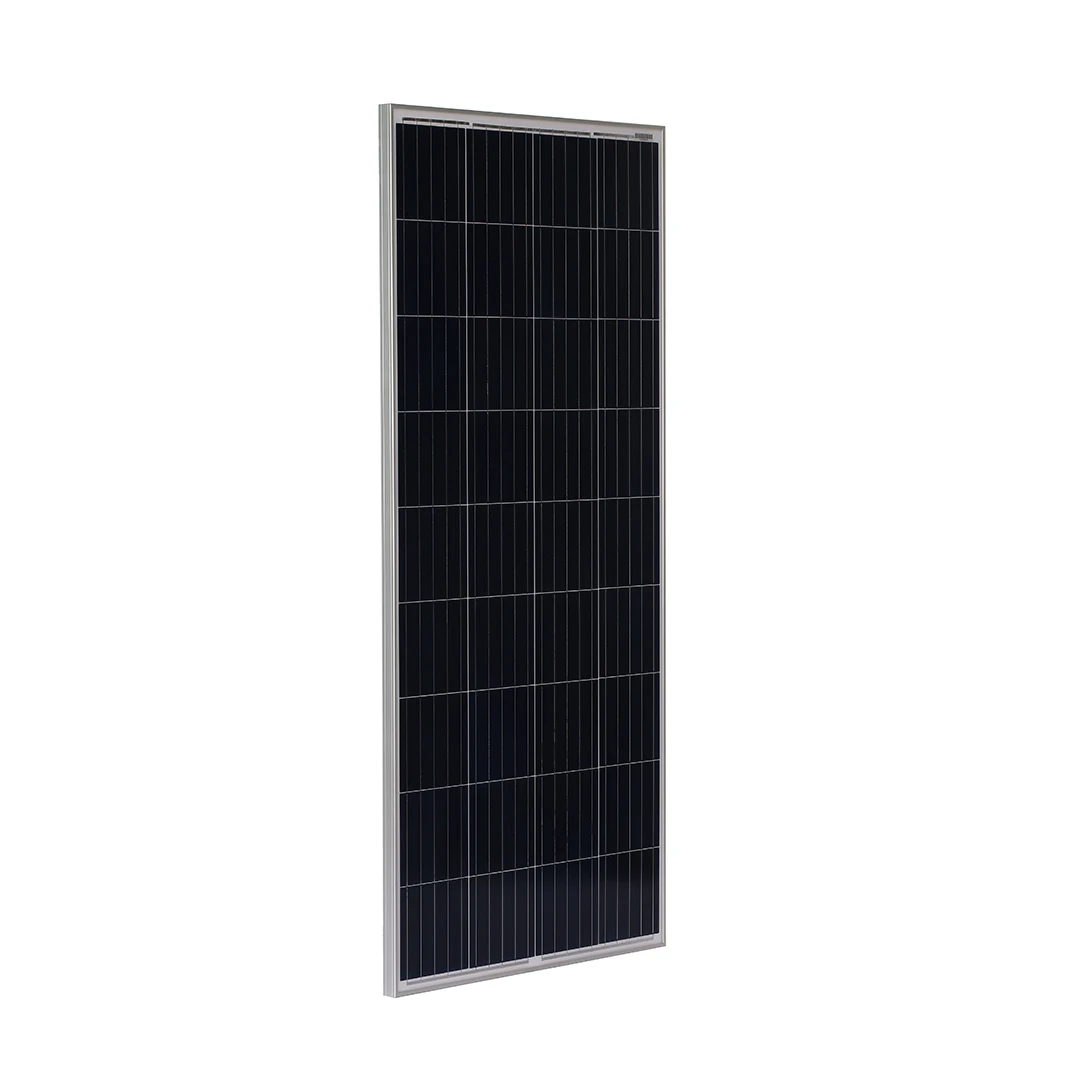

Hot Sale Poly 5bb Solar Panels Cheap Buy 170w Solar Panels Sudan
- Category: >>>
- Supplier: Dongguan Sunworth Solar Energy Co. Ltd.
Share on (1600293299667):
Product Overview
Description
Hot Sale Poly 5bb Solar Panels Cheap Buy 170w Solar Panels Sudan
Model No. |
| SW170P |
Maximum Power (Pmax) |
| 170W |
Max-power Voltage (Vmp) |
| 19.29V |
Max-power Current (Imp) |
| 8.82A |
Open-circuit Voltage (Voc) |
| 23.76V |
Short-circuit Current (Isc) |
| 9.21A |
Module Efficiency |
| 17.27% |
Operating Temperature | -40℃~+85℃ |
Maximum System Voltage | 600Vdc |
Maximum Series Fuse Rating | 10A |
Power Tolerance | ±3% |
Operating Temperature | -40℃~+85℃ |
Maximum System Voltage | 300Vdc |
Maximum Series Fuse Rating | 10A |
Power Tolerance | ±3% |
.
NMOT | 46℃±2℃ |
Temperature Co-efficient of Pmax | -0.398%/℃ |
Temperature Co-efficient of Voc | -0.340%/℃ |
Temperature Co-efficient of Isc | 0.0576%/℃ |
Poly Power | 165W~170W |
Cell Type | Poly 157*157mm |
Cell Arrangement | 36(4*9) |

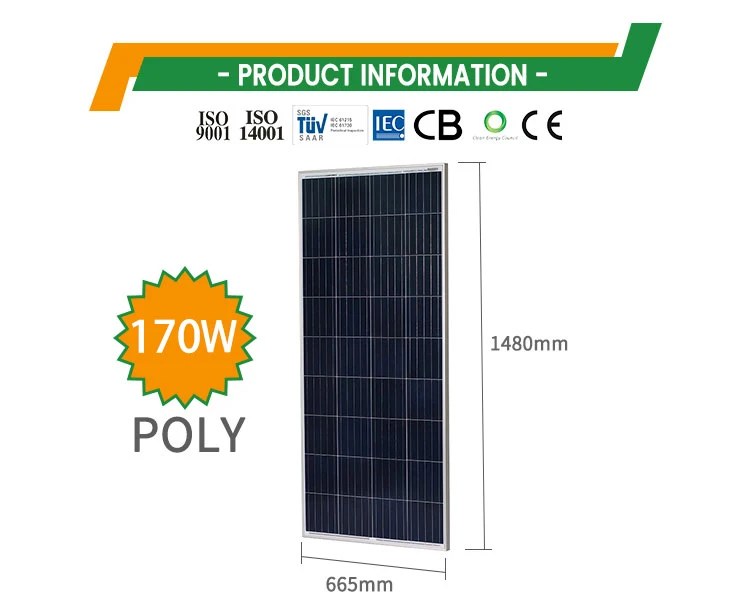

Dimensions | 665*1480*30mm |
Weight | 10.6kg |
Front Cover | 3.2mm tempered glass |

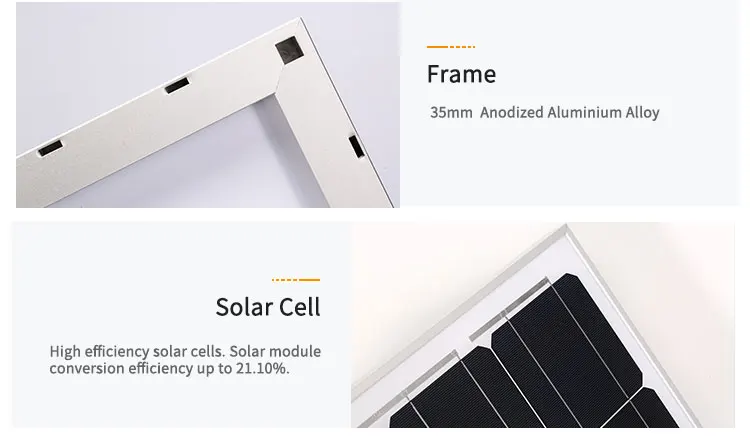

Frame Material | Anodized aluminium alloy |

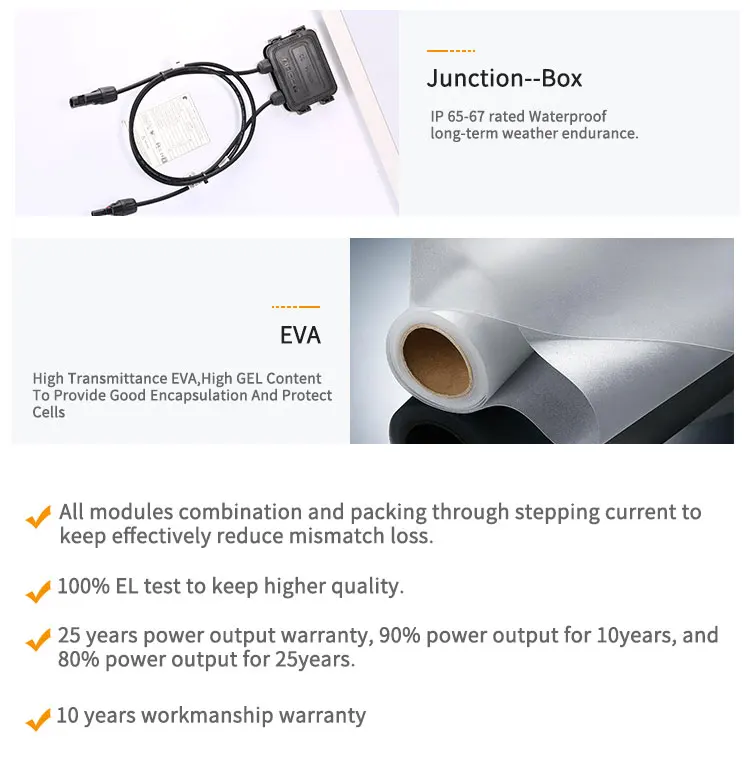

Junction Box | IP65 rated |
Output Cables | 4mm2,Length 700mm+MC4 |
Q1:Why choose us?
A1:Sunworth, implementing strict international standard quality management system ISO 9001:2015 and ISO14001:2015, has 12 years of manufacturing experience for solar products, which include solar panels and solar lighting
products, passing various industry important tests like TUV, CE, CQC, FCC, RHOS, ETL, etc. All products will be tested strictlybefore delivery. A reliable solar project must be equipped with reliable solar products. Sunworth high-quality solar products will help to extend the service life of the whole project, and reduce after-sale problems.
Q2:Do you provide after-sales service?
A2:More than 50 professional operation and maintenance engineers to solve problems and provide service for you at any time.
A2:More than 50 professional operation and maintenance engineers to solve problems and provide service for you at any time.

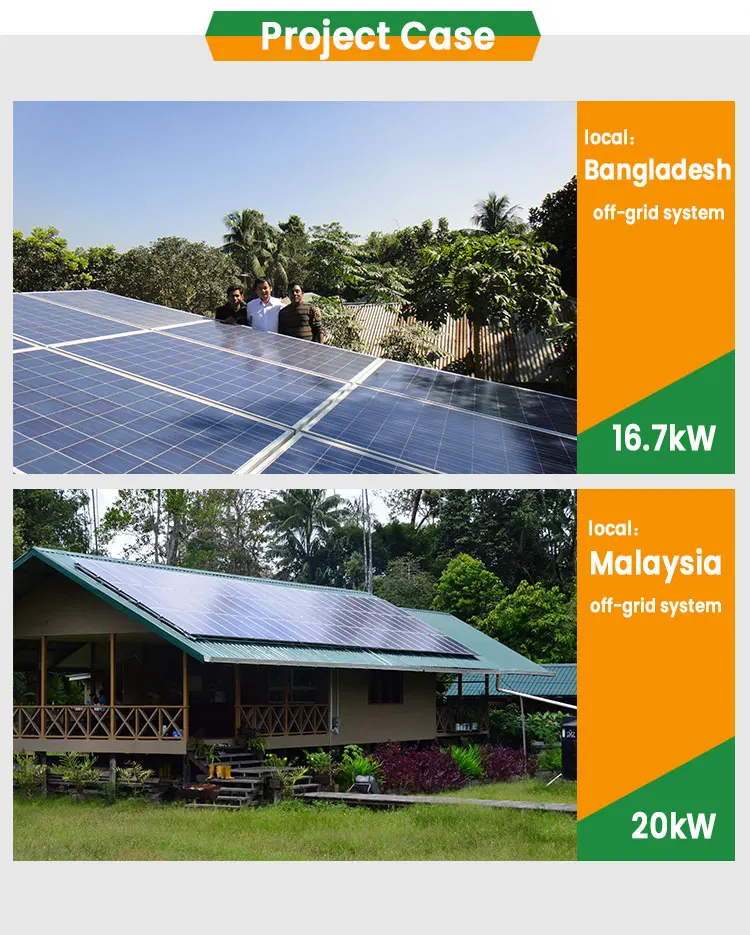

Q3:What solar solutions can you provide?
A3:Residential/Home solar system, Rooftop solar power station, Large-scale ground-mounted solar power station,Agriculture-complementary Solar Power Station
Q4:What is the lead time?
A4:It will take about 5-20 days forproduction depending on the quantity.
Q5:How long is the warranty of your products?
A5:5-year Warranty for Materials andProcessing 25-year Warranty for Extra Linear Power Output.
Q6:Can I have sample before formal order?
A6:Of course.
Q7:OEM isavailable?
