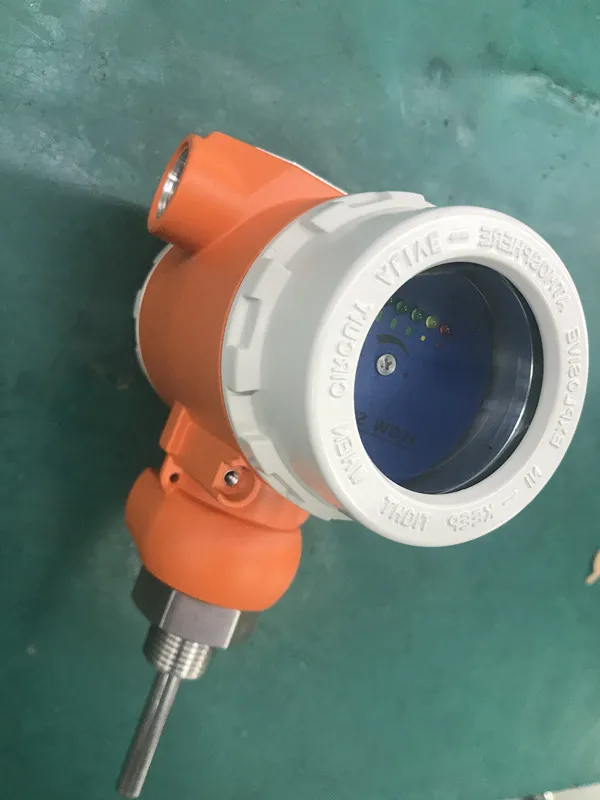

Explosion Proof Thermal Flow Sensor Switch For Air Water Gas And Resin
Explosion Proof Thermal Flow Sensor Switch For Air Water Gas And Resin
Explosion Proof Thermal Flow Sensor Switch For Air Water Gas And Resin
Explosion Proof Thermal Flow Sensor Switch For Air Water Gas And Resin
Explosion Proof Thermal Flow Sensor Switch For Air Water Gas And Resin
Explosion Proof Thermal Flow Sensor Switch For Air Water Gas And Resin
Explosion Proof Thermal Flow Sensor Switch For Air Water Gas And Resin

Explosion Proof Thermal Flow Sensor Switch For Air Water Gas And Resin

Share on:


Price:$155.00 - $165.00
Price in USD:Details

Quantity:


Product Overview

Description



Overview


Thermal flow switch
Thermal flow switch,based on the thermal principle, contains two resistors in a closed probe, one of which is heated as a detection resistor, and the other is not heated as a reference resistor. When the medium is flow, the heat on the heating resistor is taken away, the resistance value is changed, and the difference between the two resistances is used as the basis for judging the flow rate.The probe adopts anti-scaling coating, which can effectively prevent the adhesion of scale, rust and other dirt in the pipeline, with stronger anti-fouling ability and more stable work.




Specification



Main features

This series of thermal conductivity type flow switches can monitor the liquid flow in the pipeline in real time. One model is used
for a variety of pipe diameter requirements, provides switch output, and uses 6 LEDs to display the fluid flow rate status in real time,
which is widely used It is used in petrochemical, electric power, metallurgy, steel mills, food processing, water treatment, battery factories and other industries. Gas-liquid dual-purpose type, can be used
in pneumatic and hydraulic systems,
can be used for circulating water,
cutting fluid and lubricating oil cut-off monitoring, and pump idling protection.


THERMAL FLOW SWITCH SERIES
Range
1-150cm/s(water),3-200cm/s(oil),20-200(air)
Medium temperature change
4℃/s
Switch Type
PNP/NPN/RELAY
Response Time
1-10s,Typical value:2s
Power Supply
24VDC
Initialization Time
about 4s
Power
Max: 400mA(PNP/NPN)
Max:
1A48VAC/DC(Relay)
Electrical protrction
Reverse phase,short ciecuit, overload protection
No-load current
Max:80mA
Explosion-proof grade
Exd II CT6
Flow indicator
LED(6)
Production Grade
IP67
Setting method
Potentionmeter setting
Medium Temperature
-20~90℃
Repeat accuracy
1%
Housing Material
Explosion proof head
Voltage range
200bar
Proble Material
Stainless steel


Threaded interface
G12
G1/2 Interface thread
G14
G1/4 Interface thread
M
Conventional thread customization
H
External thread
Power supply
D
VDC 24V
W
VAC 220V
Output
P
PNP
N
NPN
G
Relay
R
Normally open + normally closed output(SPDT)
Prove length
K
Could customized(15mm-60mm)


Product Structure




Wiring




Installation




Company Profile












FAQ


Shockproof Packing
Plastic foam and plastic bag
Thread Protection
Thread Cap
Outer Packing
Carton
