Busbar Processing Machine punching dies, punch molds
US $110.00-$115.00
Самая экономичная CNC алюминиевая замкнутая 3 в 1 шинчатая штамповочная машина по индивидуальному заказу
- Category: Busbar Machine >>>
- Supplier: Jinan Deshang CNC Equipment Co. Ltd.
Share on (1600293790992):
Product Overview
Description
Product Description

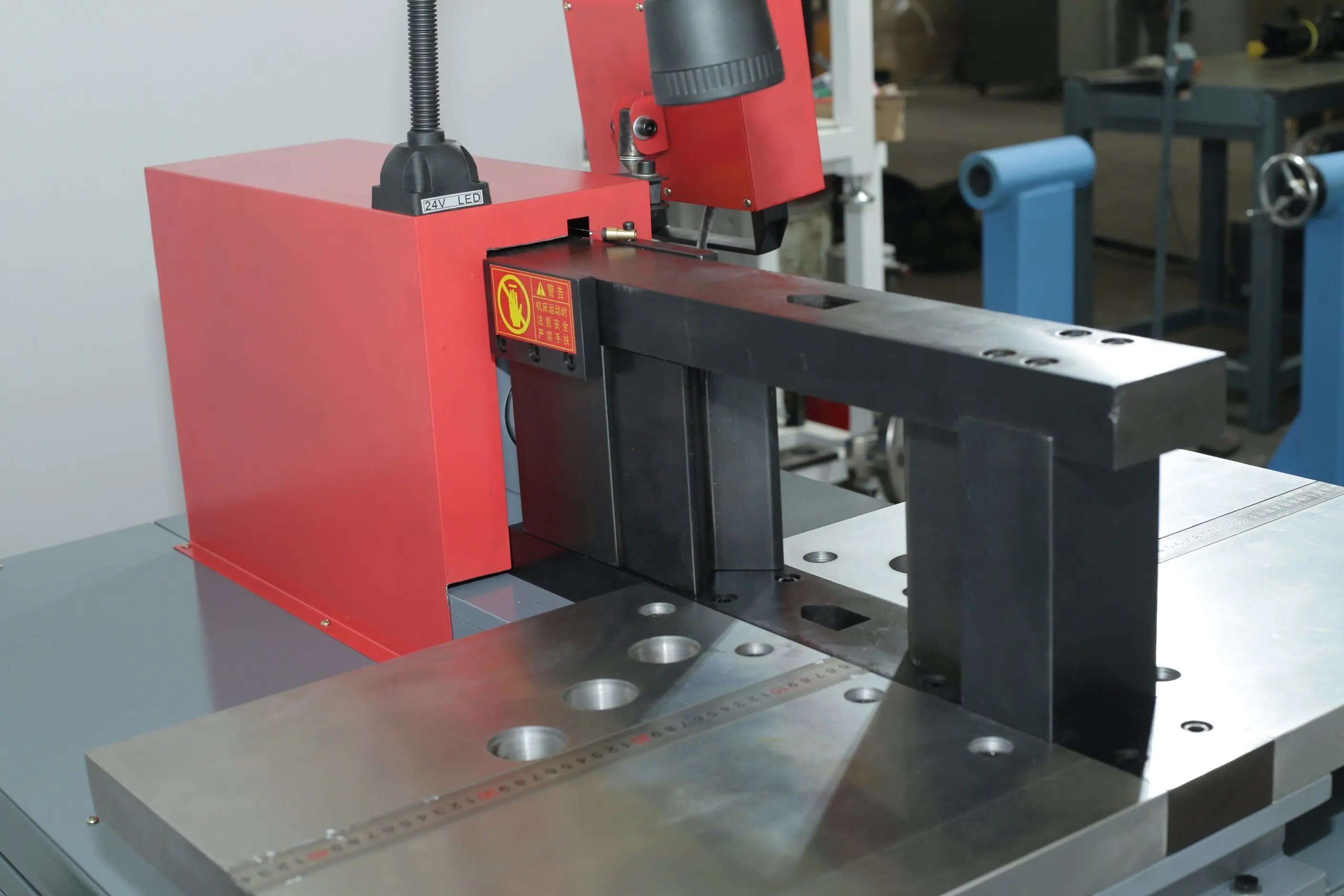

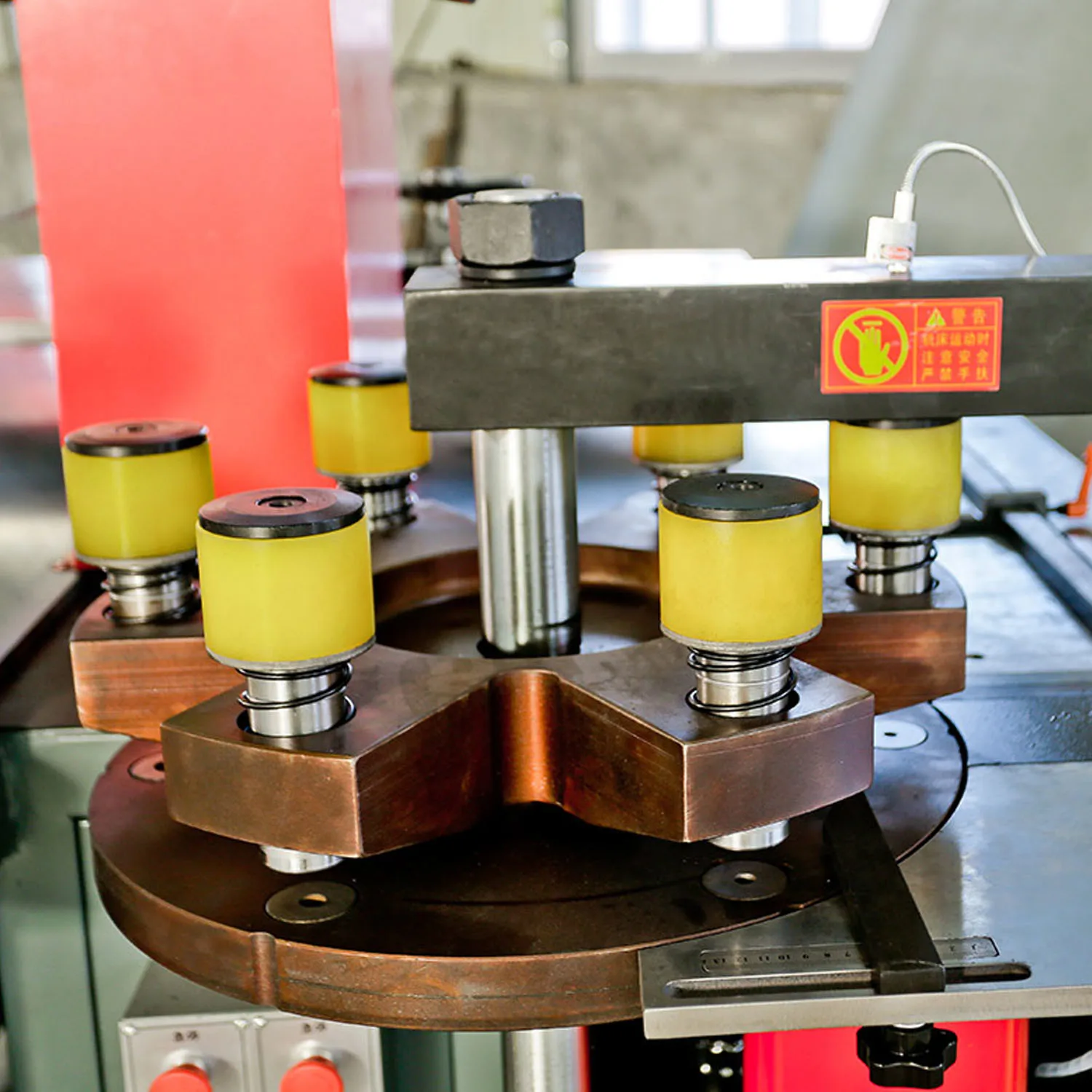

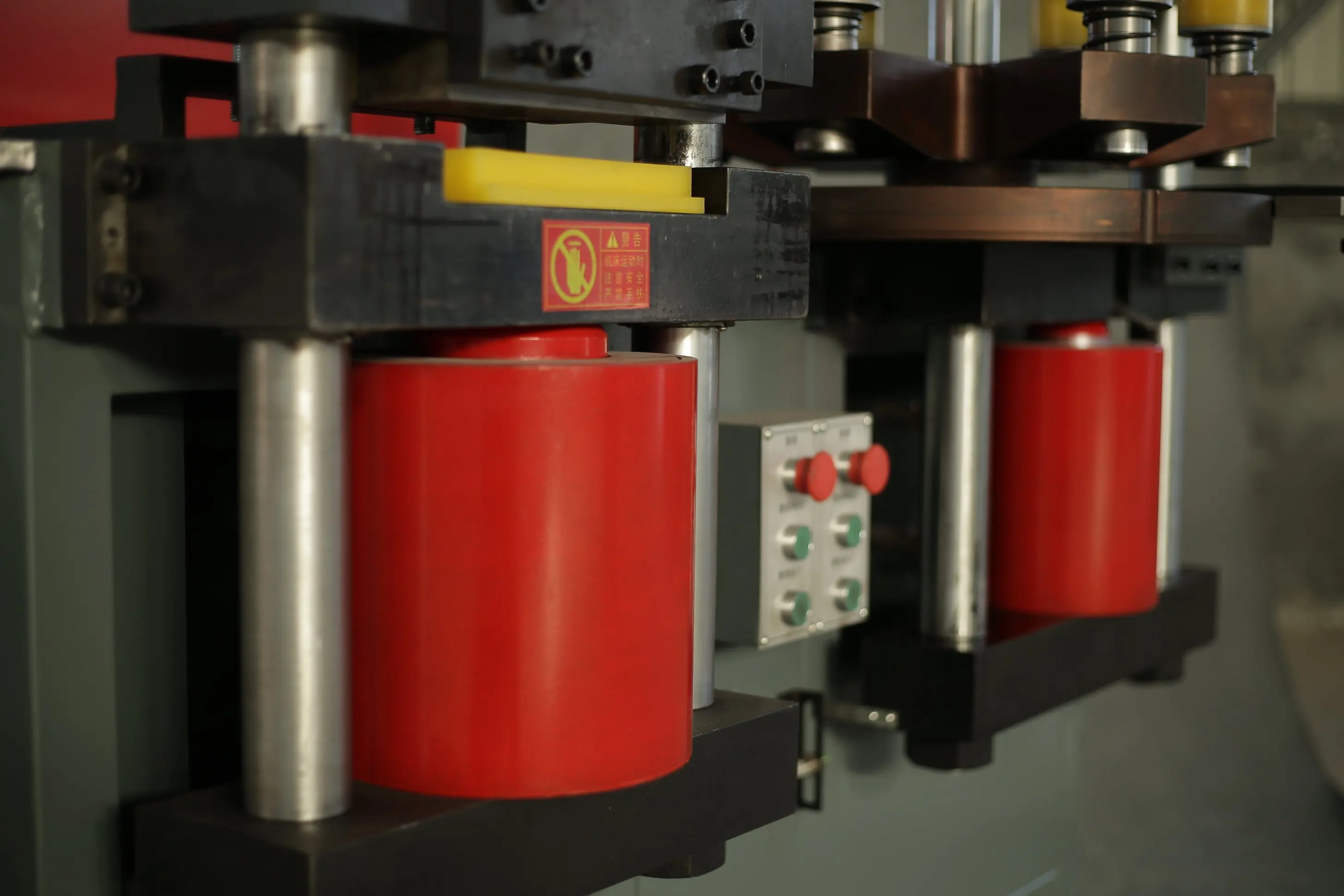

This machine is equipped with three processing stations of punching, cutting, and bending. It is controlled by PLC. The main function is to process copper and aluminum bus bars of different specifications. When working, you only need to select the corresponding processing station to cut and punch copper and aluminum bars conveniently and quickly (round hole, long round hole, chamfered R angle, chamfered right angle, chamfered 45 degree angle, square hole) , Horizontal bending, vertical bending, U-typed bending, embossing, twisting and other different processing.
Product Advantage
1.The S7-200 PLC produced by SIEMENS in Germany is matched with the Taiwan Touch Screen touch screen. Each parameter has a memory function, which can be adjusted to ensure that the angle of the workpiece after processing is more accurate. The system also sets
the parameter settings of customer-specific bending molds to meet the various needs of customers.
2.The whole machine adopts Schneider Electric, one of the world's top 500 companies, whether it is PC material or the wiring posts
inside, it uses the best materials to make the whole machine safer and more secure.
inside, it uses the best materials to make the whole machine safer and more secure.
3.Button and foot pedal two control methods, the operation is more convenient and quick. When the angle is bent, select manual
bending, lightly step on the foot switch or forward button to complete.
bending, lightly step on the foot switch or forward button to complete.
Specification
Voltage | 380V/220V/415V/50HZ/60HZ or Customed |
Dimension(L*W*H) | 2050*1600*1650 |
Punching Force | 800KN |
Max.Punching Thickness | 20MM |
Max. Punching Width | 300MM |
Punching Diameter Range | 4.3~36MM |
Bending Force | 800KN |
Max.Bending Thickness | 20MM |
Max.Bending Width | 300MM |
Cutting Force | 800KN |
Max.Cutting Thickness | 20MM |
Max. Cutting Width | 300MM |
Power | 3×5.5KW |
About CNC
We use simens PLC control which you can just enter the angle. The bending precision is ±1°and repeat bending precision ±0.5°.Three stations can be work at the same time. You also can only enter item's height ad width to produce the item you need.(as Z type blending)
Product Recommendation
No. | Item | Quantity |
1 | Punching Dies | 8 sets |
2 | Vertical Bending Dies | 2 sets |
3 | Horizontal Bending Dies | 2 sets |
4 | U Type Bending Die | 1 set |
5 | Oil Filler | 1 set |
6 | Inner Hexagon Spanner | 1 set |
7 | Hydraulic System Sealing Ring | 1 set |
8 | Foot Switches | 3 sets |
9 | Limit Switches | 2 pieces |
10 | Punching Location Needle | 1 piece |
11 | Magnetic Location Block | 1 piece |
12 | Fuse Core | 4 pieces |
