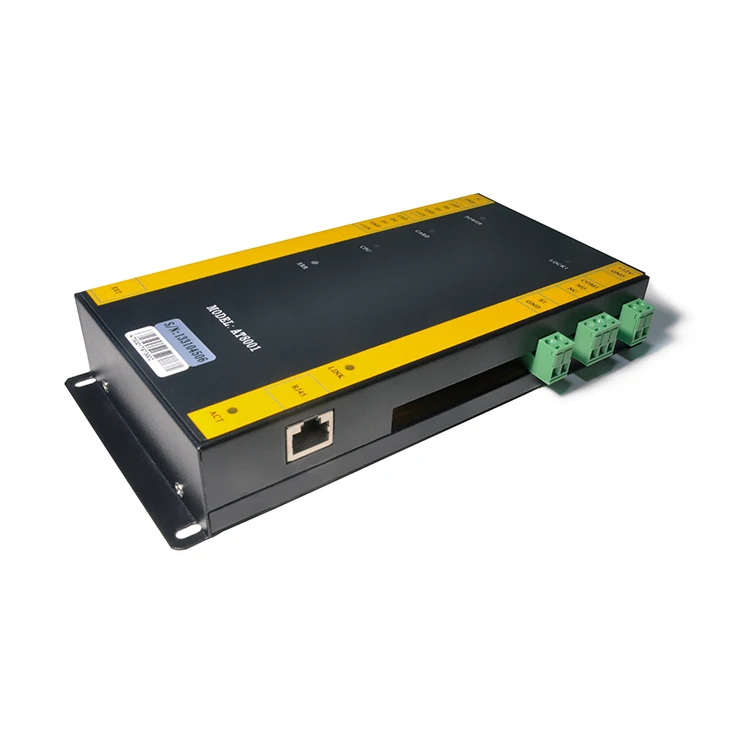

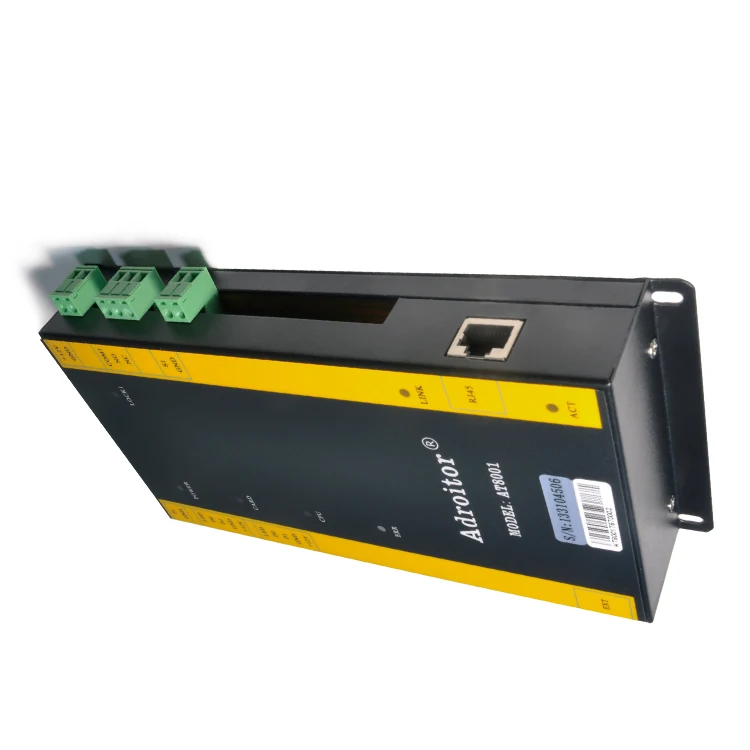

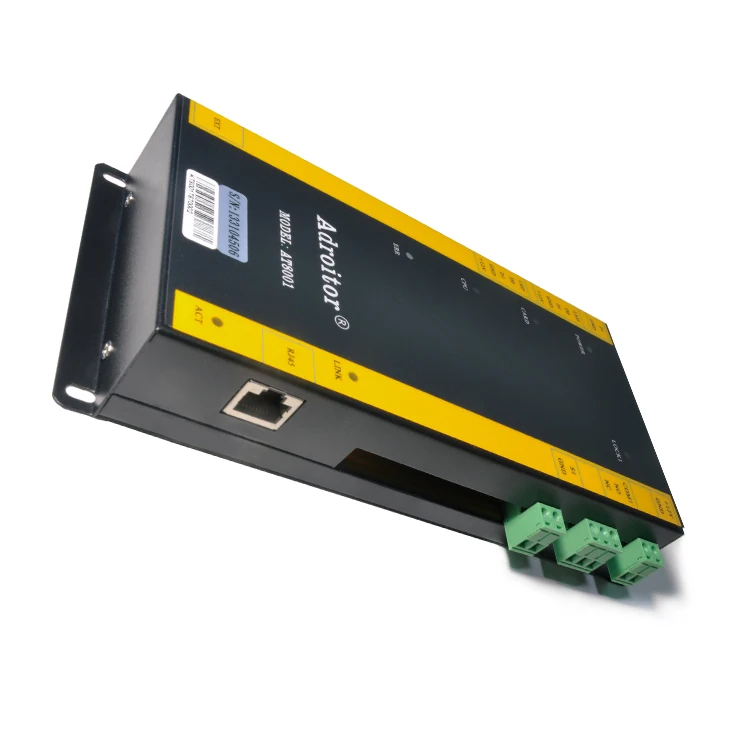

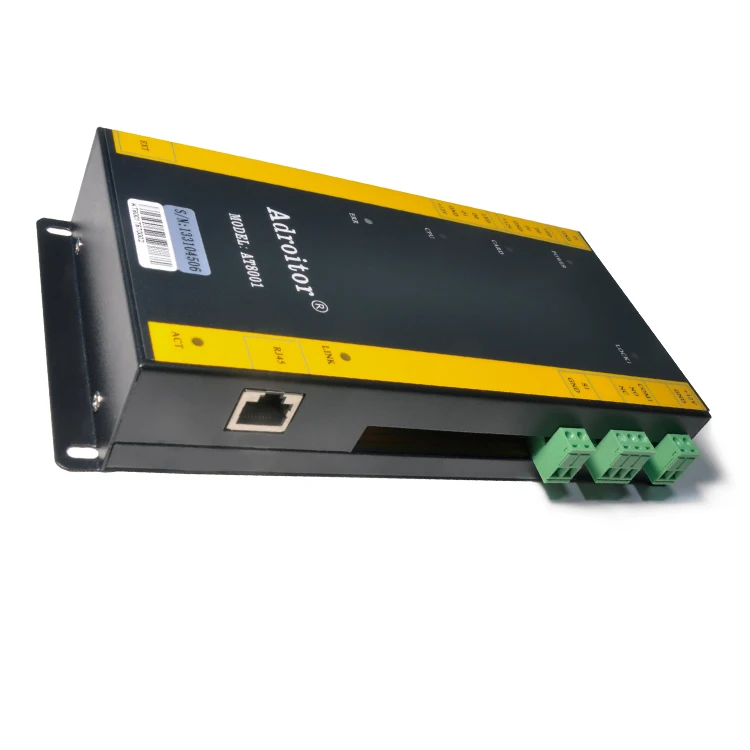

AT8001 TCP/IP Network Access Controller Mother Board
Overview
This TCP/IP network access controller with metal housing designed for one door in and out
management.Suit for government,enterprise,smart building,office,school etc.
Key Features

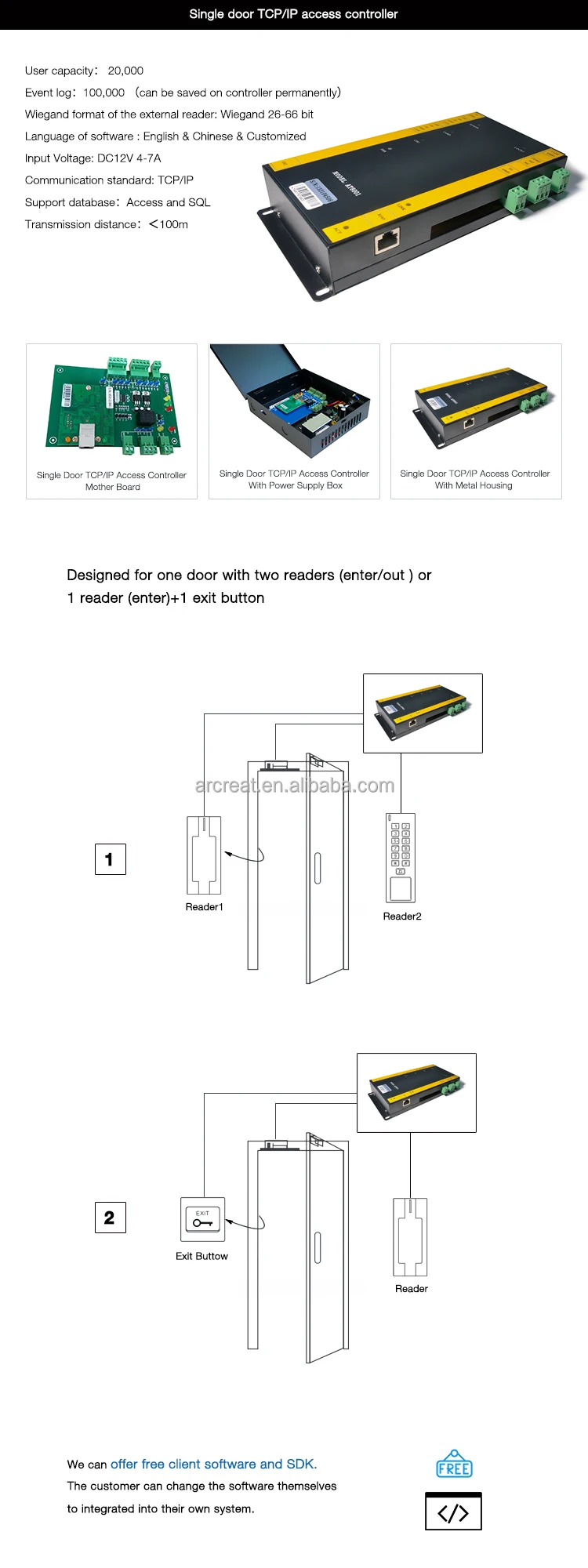

• Support one reader and one exit button or two readers

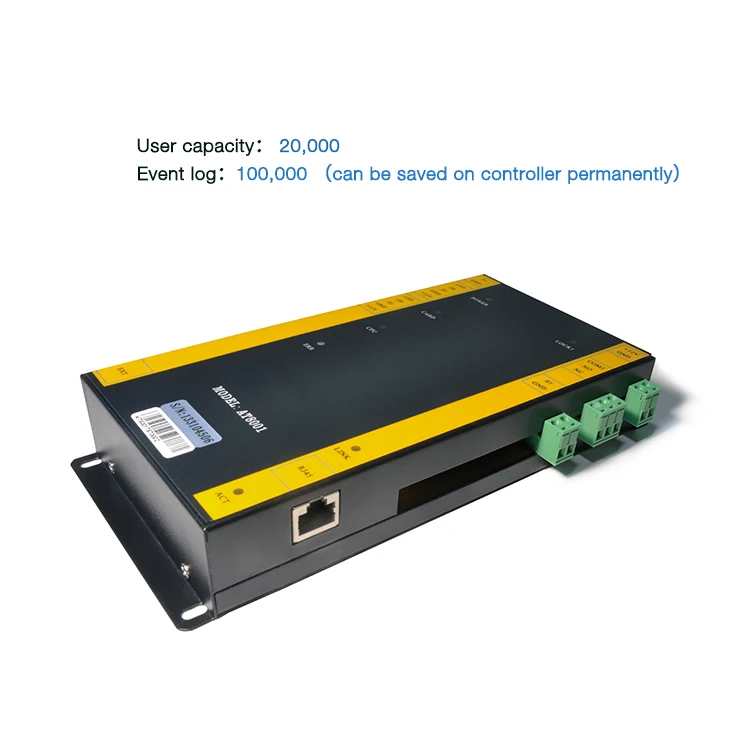

• Large user capacity: 20,000
• Event log : 100,000pcs ( can be saved on controller permanently )

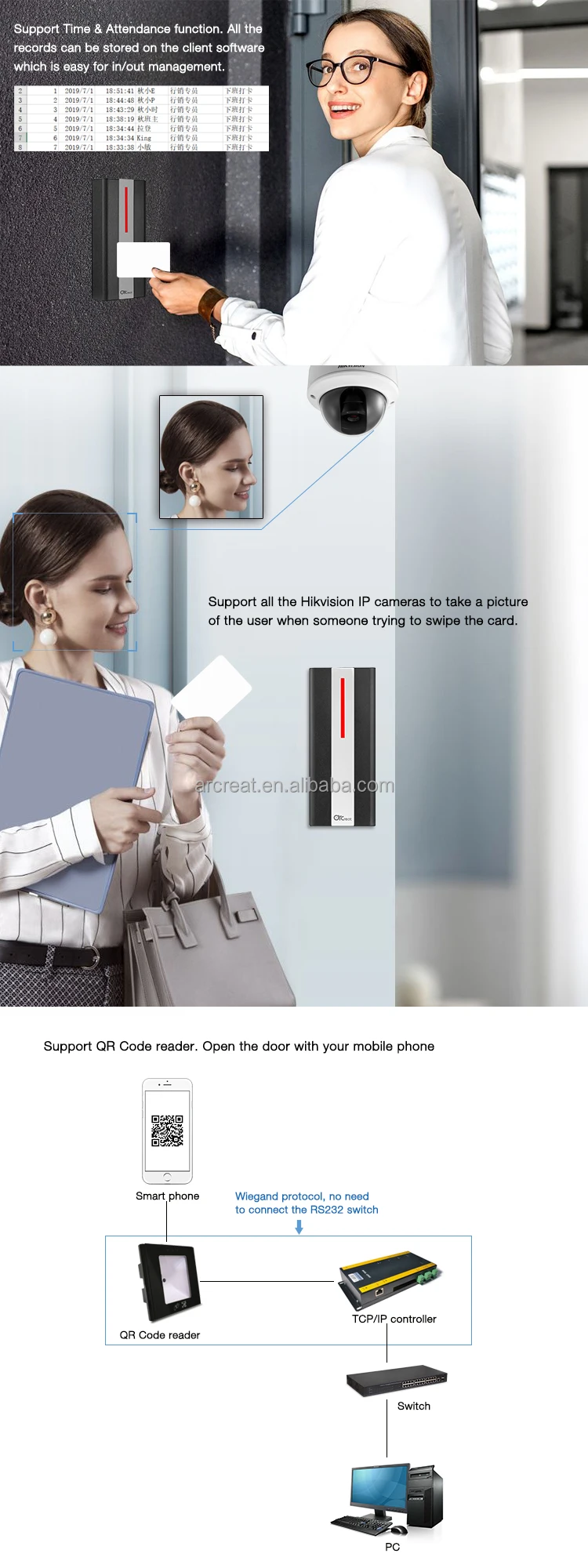

• Support time and attendance

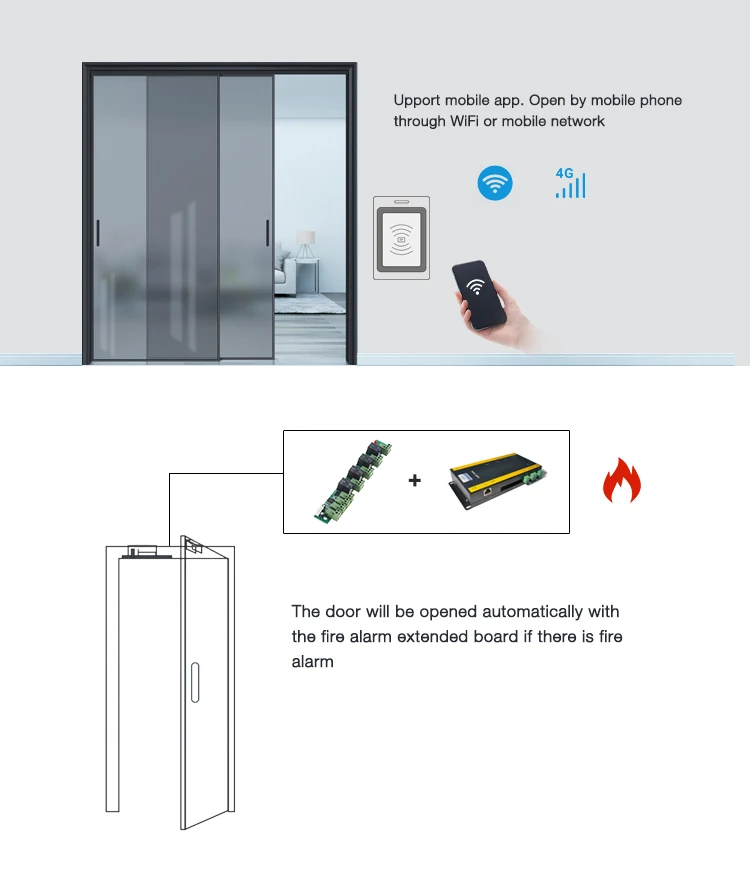

• Support mobile App: open by mobile through WiFi or mobile network
• Support QR reader and opening by QR Code
• Free software and SDK
Specification
| Input Voltage | DC12V/4-7A |
| Standby Current | ≤120mA |
| Wiegand | 26-66bit |
| Communication Standard | TCP/IP |
| Way of opening door | Card,card+Pin,multi-cards,first card etc |
| Transmission Distance | <100m |
| Support database | Access and SQL |
| Language of software | Chinese/Englishg/Customized |
| Operating Temperature | -40~60℃ |
| Operating Humidity | 10-90% |
| Dimension | 219×122×34mm |






Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-20 days for order less than 5000 pcs. Time is negotiable.
Q: 3. Do you have any MOQ limit?
A: No. 1pc is our MOQ.
Q: 4. How do you ship the goods and how long does it take arrive?
A: Sample order, we usually suggest the shipping by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. To bulk order air or sea shipping is suggested.
Q: 5. What is the warranty for the products?
A: Yes, we offer 3 year warranty for the products.
Q: 6. How is your after-selling service?
A: We have after-sales technical team, provide 24 hours online technical support.
Q: 7. Do you supply OEM service?
A: Yes, We support OEM like logo printing or box customization on quantity of hundreds.
