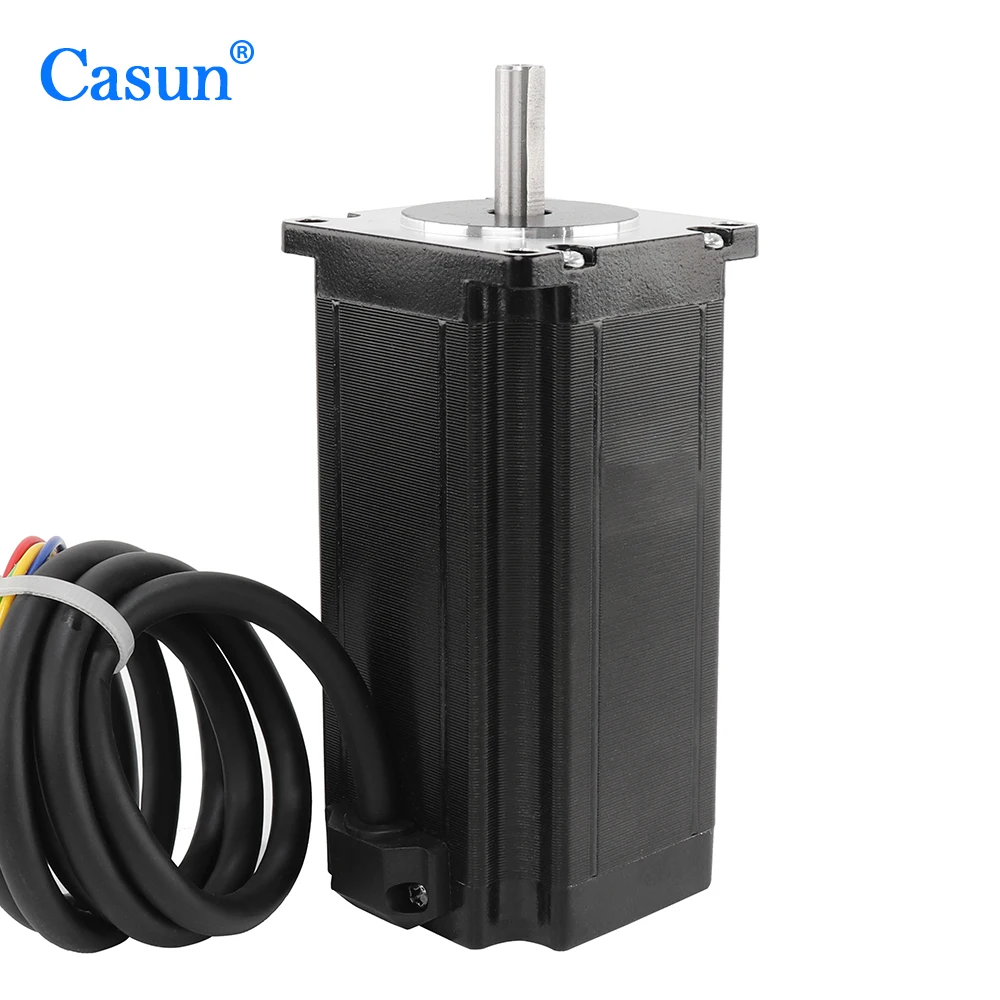

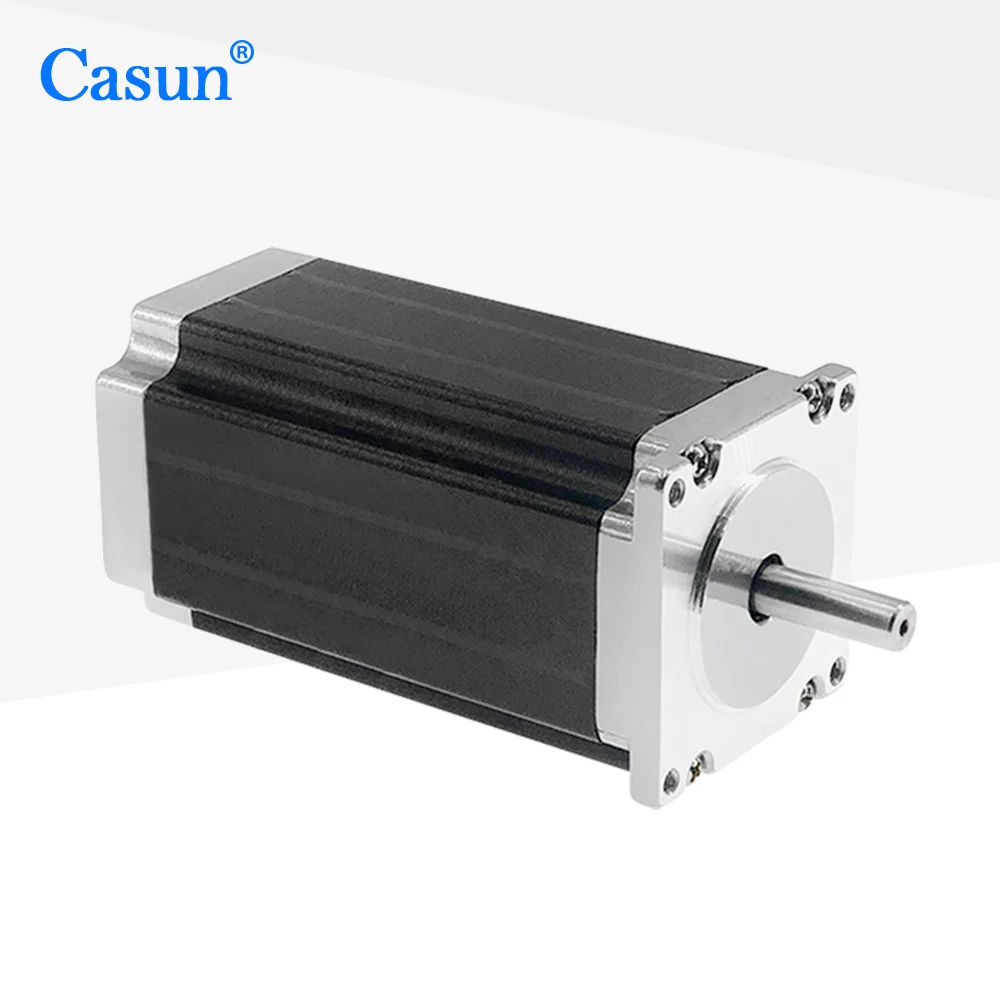

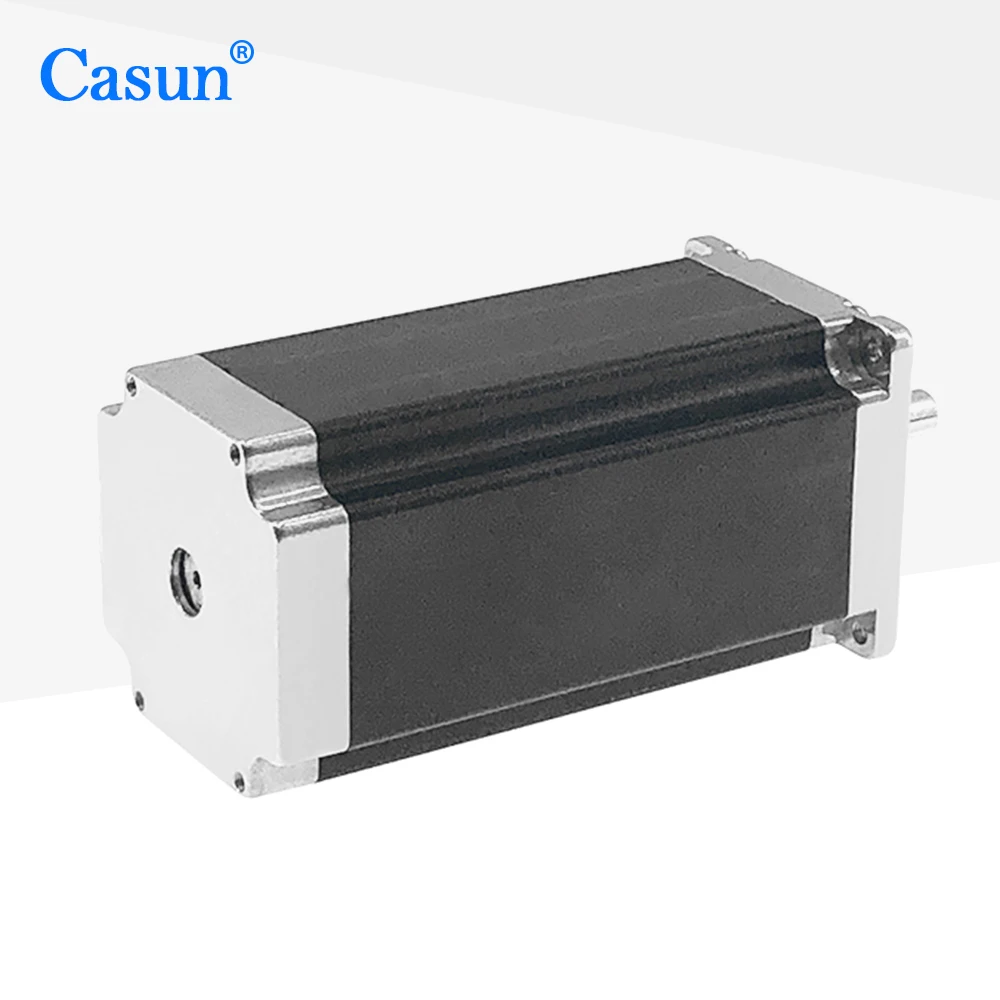

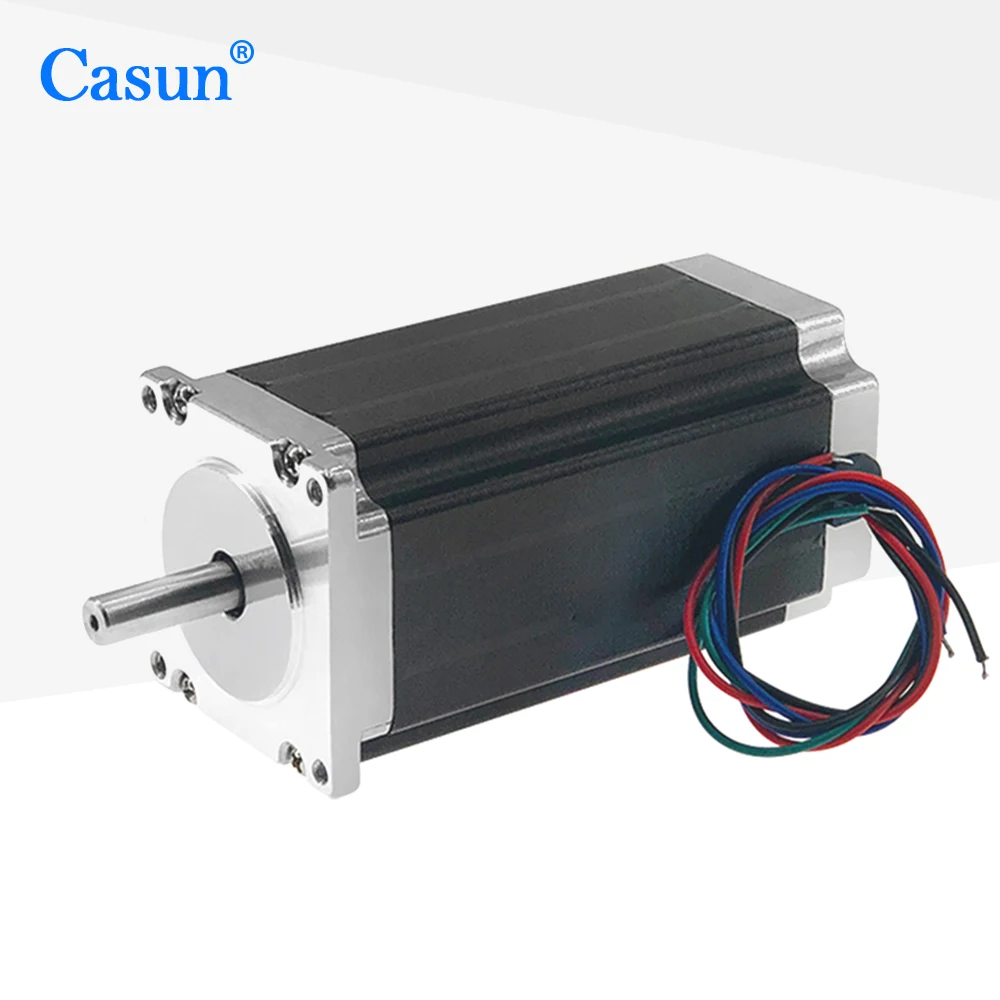

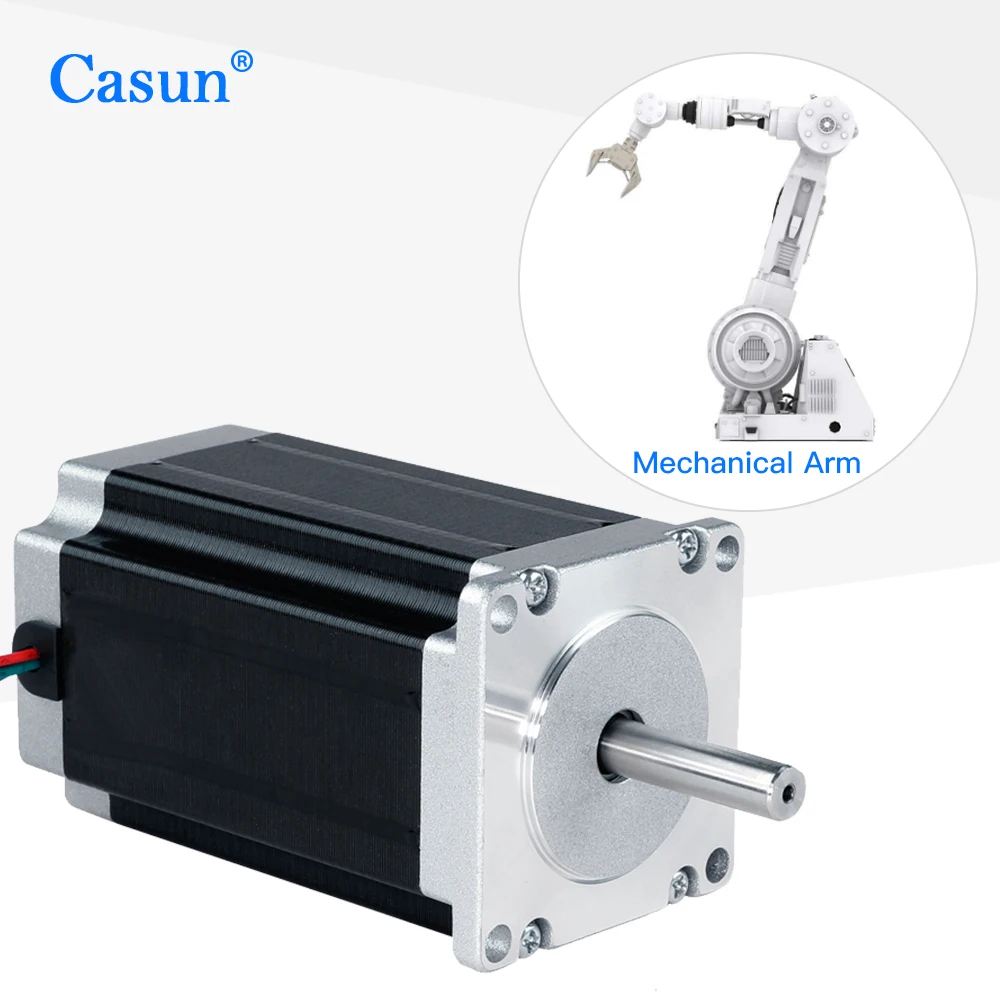

Casun 2 phase nema 23 100mm length DC hybrid stepper motor for machine with CE approved
- Category: >>>
- Supplier: Guangzhou Fude Electronic Technology Co. Ltd.
Share on (1600293976010):
Product Overview
Description
Product Description

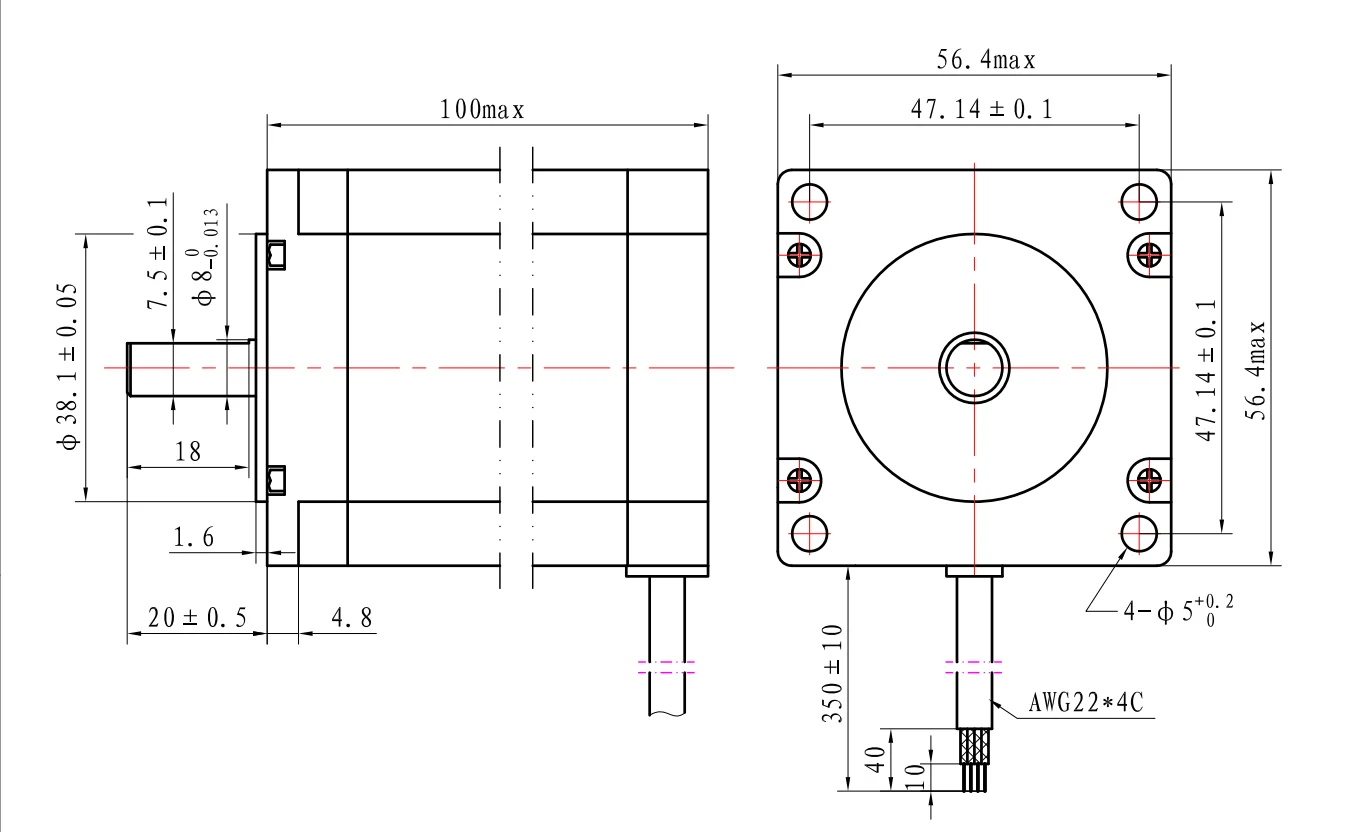

Hybrid Stepper Motor (57SHD4934-20BH) | ||||||
General Specification | Electrical Specification | |||||
Step Angle | 1.8 degree | Rated Voltage | 8.4 V | |||
Number of Phase | 2 | Rated Current | 3.0 A | |||
Insulation Resistane | 100MΩmin.(500V DC) | Resistance Per Phase | 2.8 Ω±10% | |||
Insulation Class | Class B | Inductance Per Phase | 11 mH±20% | |||
Rotor Inertia | 650 g.cm² | Holding Torque | 3000 mN.m | |||
Mass | 1.5 kg | Detent Torque | 100 mN.m | |||
Application
Company Profile
OUR CERTIFICAT
Exhibition
Packing & Delivery
Why Choose Us
1) Trade Assurance Supplier, Over 10 Years Manufacturing Experience.
Our core competencies are hybrid stepper motor, linear stepper motor, Closed loop stepper motor, Gear stepper motor and
Flatstepper motor.
2) Our value message is with us your money in safe your business in safe.
3) Quality is the soul of an enterprise.
4) CE,RoHs, ISO9001,TUV Rheinland certification report.
5) After sales service 24*7, professional technical team work.
6) OEM &ODM are welcomed, we have our own R & members team.
7) Confidentiality Agreement "Business Secret CONTRACT"
2) Our value message is with us your money in safe your business in safe.
3) Quality is the soul of an enterprise.
4) CE,RoHs, ISO9001,TUV Rheinland certification report.
5) After sales service 24*7, professional technical team work.
6) OEM &ODM are welcomed, we have our own R & members team.
7) Confidentiality Agreement "Business Secret CONTRACT"
FAQ
Q: How to choose a motor to match my machine
A: Please give us the key parameters of the motor. Here are some important specifications we need : holding torque, physical size (diameter ,length etc.), voltage, current etc. Feel free to contact us and give the information, we are very glad to help you if you are confused in selection.
A: Please give us the key parameters of the motor. Here are some important specifications we need : holding torque, physical size (diameter ,length etc.), voltage, current etc. Feel free to contact us and give the information, we are very glad to help you if you are confused in selection.
Q: If I need a special motor , can you manufacture
A: Certainly, you can. If you want to replace a motor in an existing application,please send us a drawing or sample and we can help you find a suitable replacement. Or, you can contact us and describe your application, our engineers will work together with you to find a solution tailor-made for you.
A: Certainly, you can. If you want to replace a motor in an existing application,please send us a drawing or sample and we can help you find a suitable replacement. Or, you can contact us and describe your application, our engineers will work together with you to find a solution tailor-made for you.
Q: Can I order samples first
A: We stock many of our standard models. If you would like to test a sample first, we are glad to send some your way. Of course we do not stock specialized motors. If you have special needs, please contact us
A: We stock many of our standard models. If you would like to test a sample first, we are glad to send some your way. Of course we do not stock specialized motors. If you have special needs, please contact us
