SMD P4 256x128mm LED Display Module P2.5 P3 P4 P5 P6 Indoor Video Wall LED Panel
- Category: >>>
- Supplier: Chipstar Led Co. Ltd.
Share on (1600294020937):
Product Overview
Description
Product Description
Our Advantages

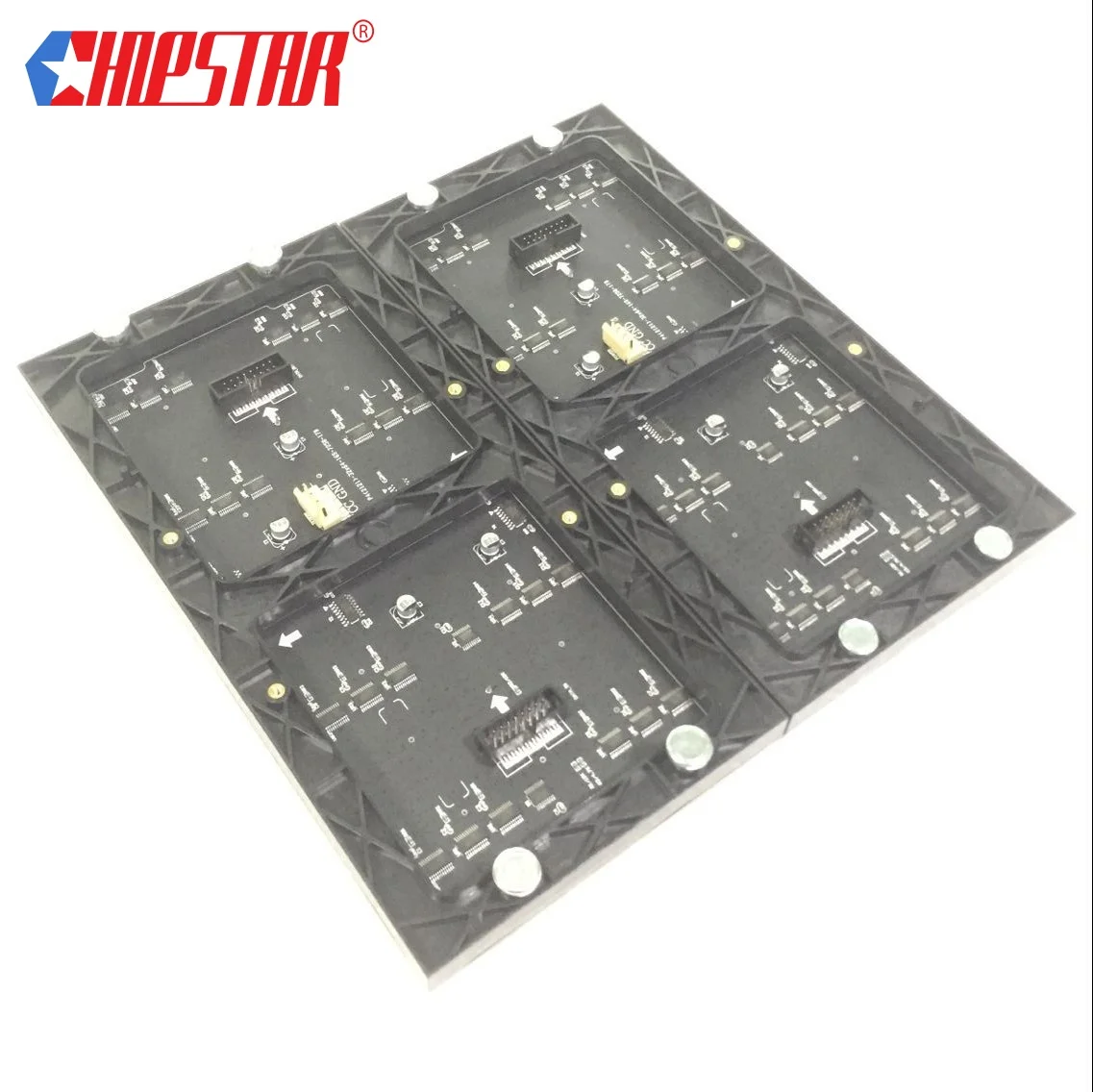

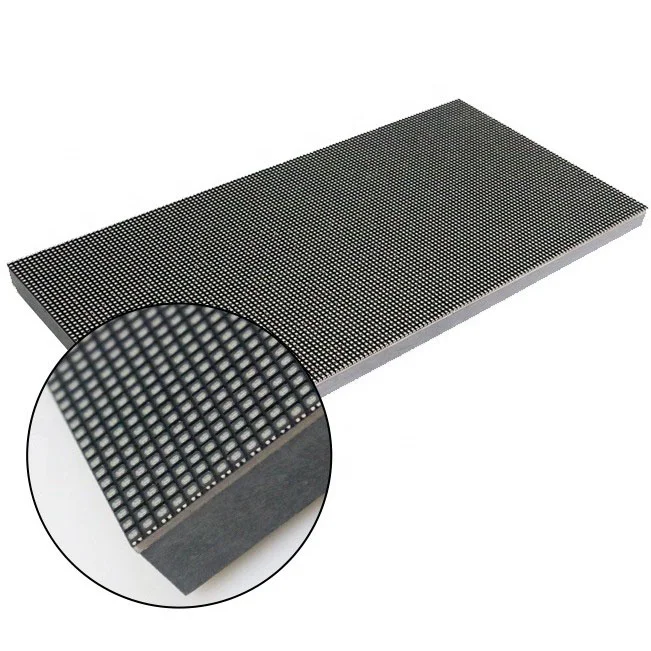

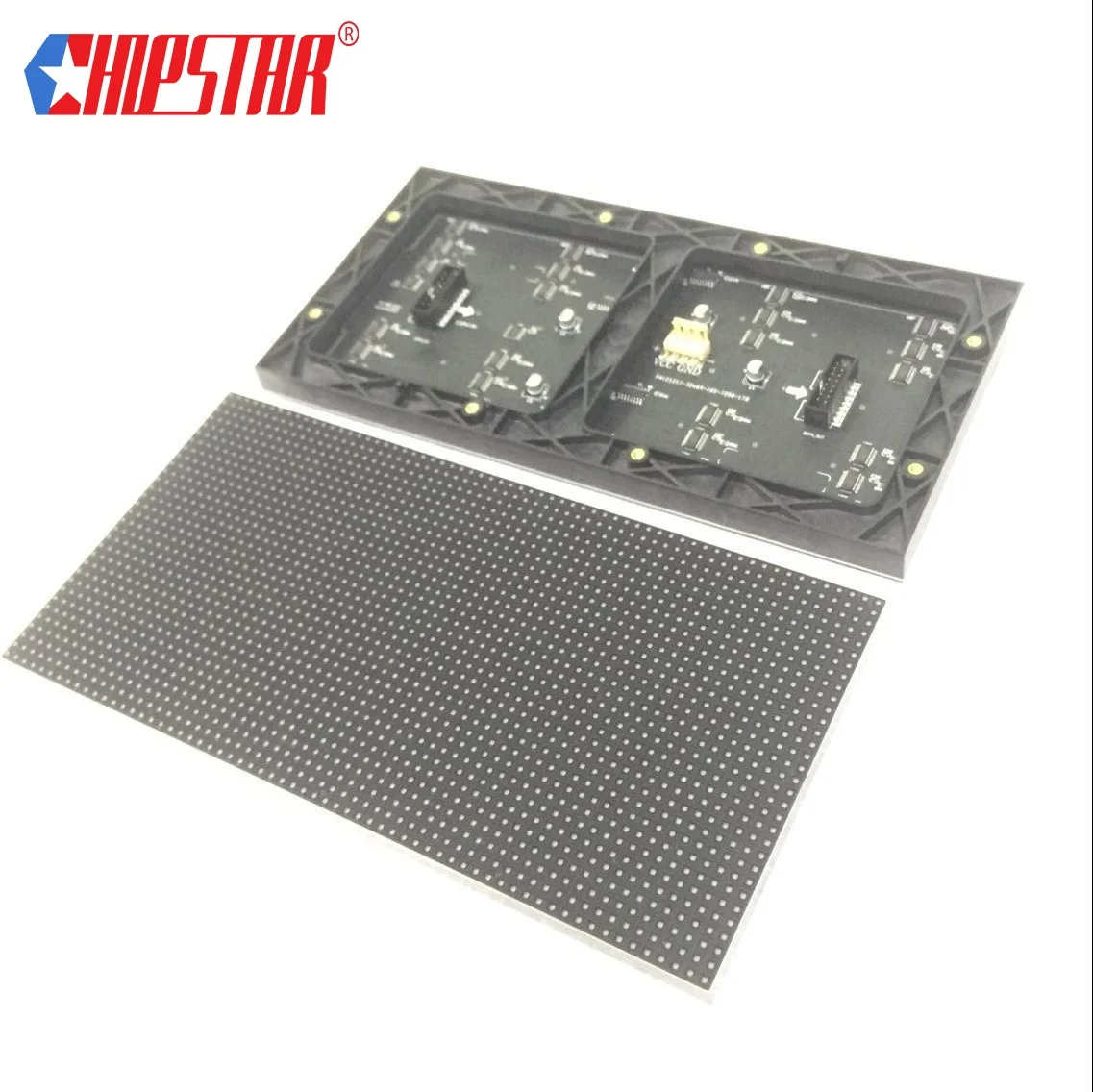

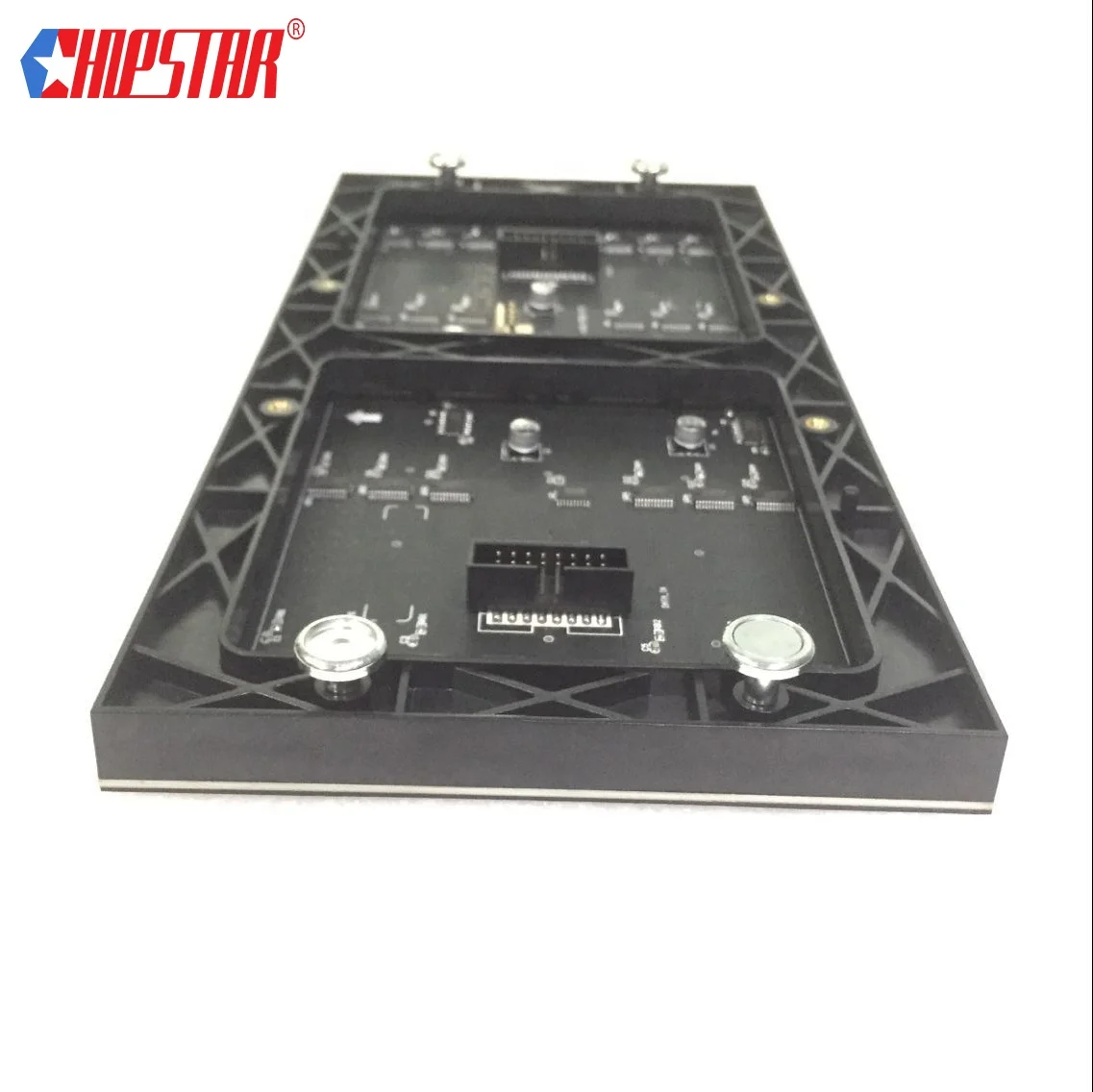

P4 LED Display Module

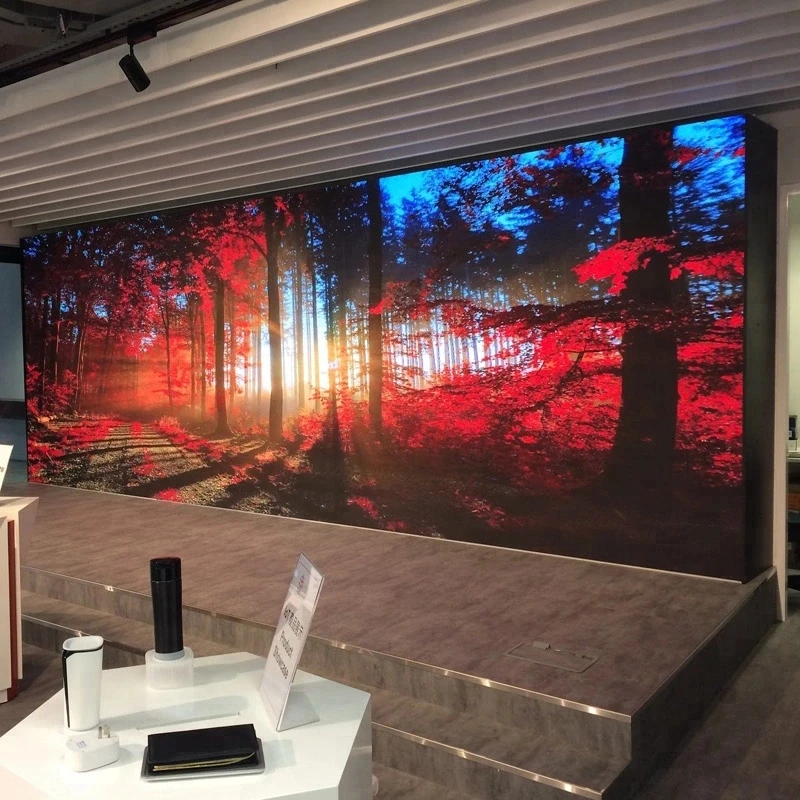

LED Display can be used for many purposes and at many places. It can be used for advertisement, banner display, demonstration,video displays, educational purposes and much more. You may use it at indoor areas like high-end meeting, malls, stages, stadium and at many more indoor places.

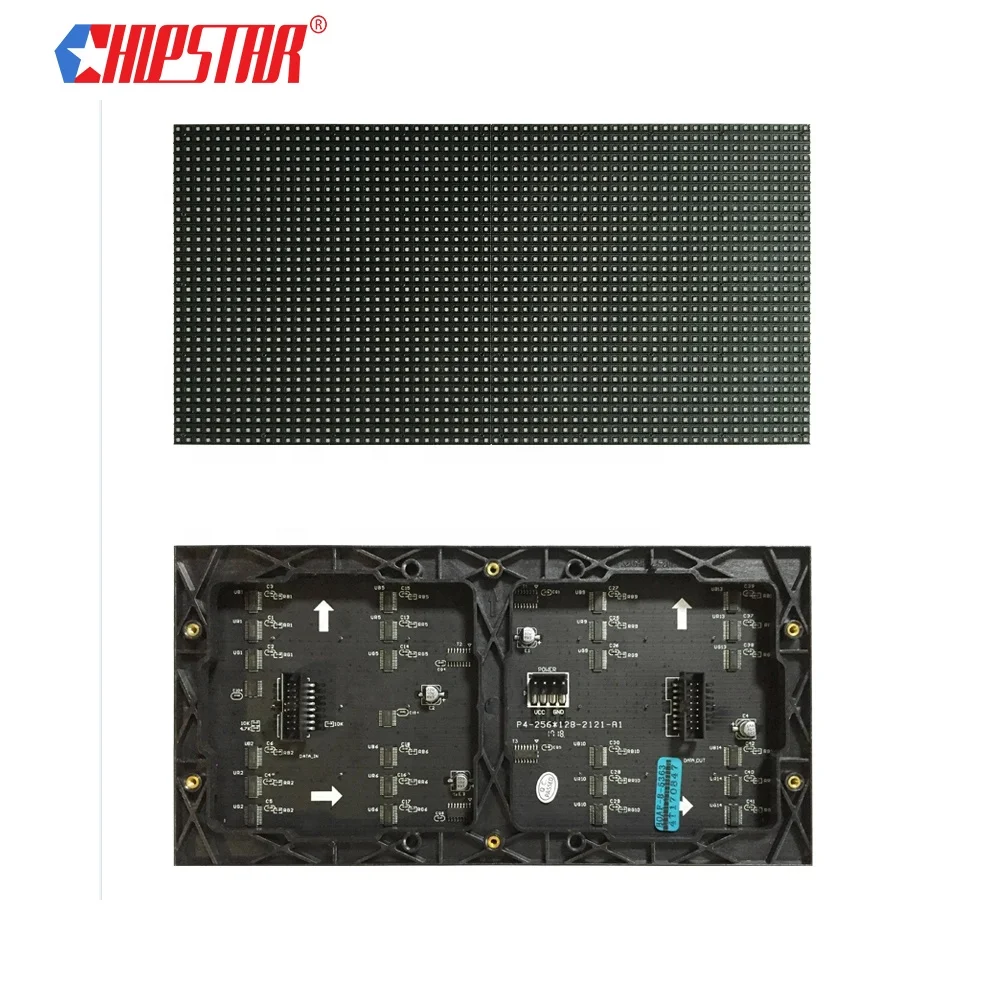

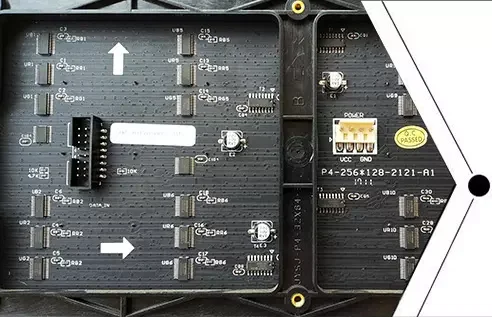

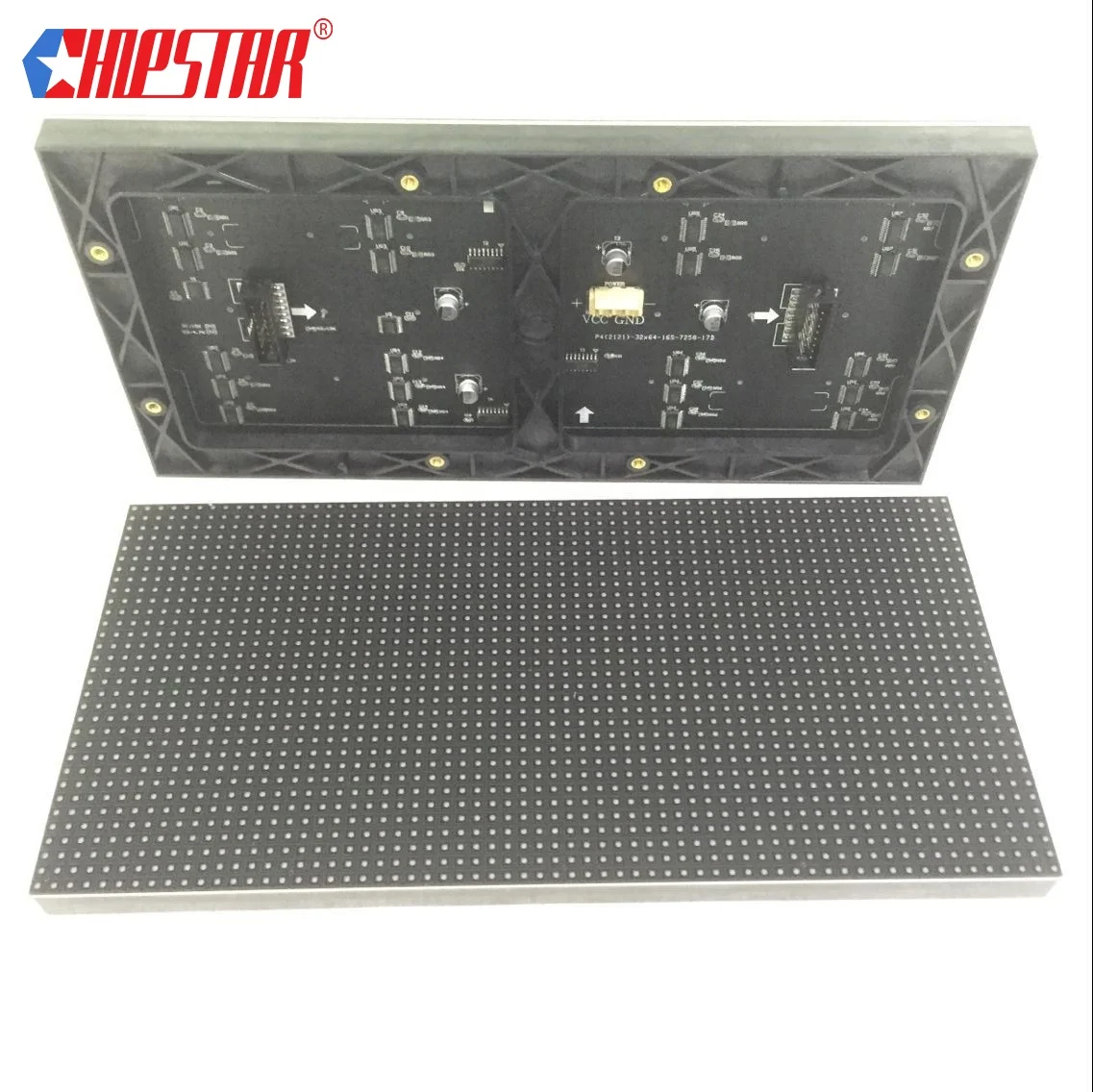

Module size :256*128 mm
Nice appearance and simple structures
Thin and Light Panel Design
Superior consistency coupled
Nice appearance and simple structures
Thin and Light Panel Design
Superior consistency coupled
High Stability Nationstar lamp
High efficient LED chip,low power consumption
Less heat dissipation make
Guarantees a reliable performance
Excellent color reproduction capability
High efficient LED chip,low power consumption
Less heat dissipation make
Guarantees a reliable performance
Excellent color reproduction capability
High refresh up to 2880Hz
Reliable dynamic images performance
Makes it a higher contrast ratio
Softer picture and better stereovision
Guarantees instant information delivery
Reliable dynamic images performance
Makes it a higher contrast ratio
Softer picture and better stereovision
Guarantees instant information delivery
High contrast can reach 16 bit
Brightness tolerance of less than ±2%
Great contrast image ratio
Softer picture and better stereovision
Reliable dynamic images performance
Brightness tolerance of less than ±2%
Great contrast image ratio
Softer picture and better stereovision
Reliable dynamic images performance
Specification
Module Number | PH3 | PH4 | PH5 | PH6 |
Pixel Pitch | 3mm | 4mm | 5mm | 6 mm |
Physical Density | 111111 pixels/m2 | 62500 pixels/m2 | 40000 pixels/m2 | 27777pixels/m2 |
Led Arrangement | SMD2121 | SMD2121 | SMD2121 | smd3258 |
Module Resolution | 64*64 pixels | 64*32 pixels | 64*32 pixels | 32*32 pixels |
Module Dimensions | 192*192mm | 256*128mm | 320*160 mm | 192*192mm |
Cabinet Resolution | 192*192 pixels | 128*128 pixels | 128*128 pixels | 96*96 pixels |
Cabinet Dimensions | 576*576 mm | 512*512 mm | 640*640 mm | 576*576 mm |
Cabinet Weight | 6.8kg | 5.8kg | 7.8kg | 6.8kg |
Brightness | 800its | 800 nits | 800 nits | 800 nits |
Max Power Consumption | 170w/panel | 176w/panel | 192w/panel | 170w/panel |
Ave Power Consumption | 57w/panel | 58w/panel | 64w/panel | 57w/panel |
Viewing Angle | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) | 160°(W) 160°(H) |
Operating Power source | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz | 110-240V AC 50-60Hz |
Operating Temperature | -20℃～+50℃ | -20℃～+50℃ | -20℃～+50℃ | -20℃～+50℃ |
Refresh Rate | 1920Hz | 1920Hz | 1920Hz | 1920Hz |
IP Rating | IP31 | IP31 | IP31 | IP31 |
Signal Input Source | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI | Composite, S-video, Component, HDMI, SDI, HD, VGA, DVI |
Verification | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE | ETL, FCC, CCC, RoHS,CE |

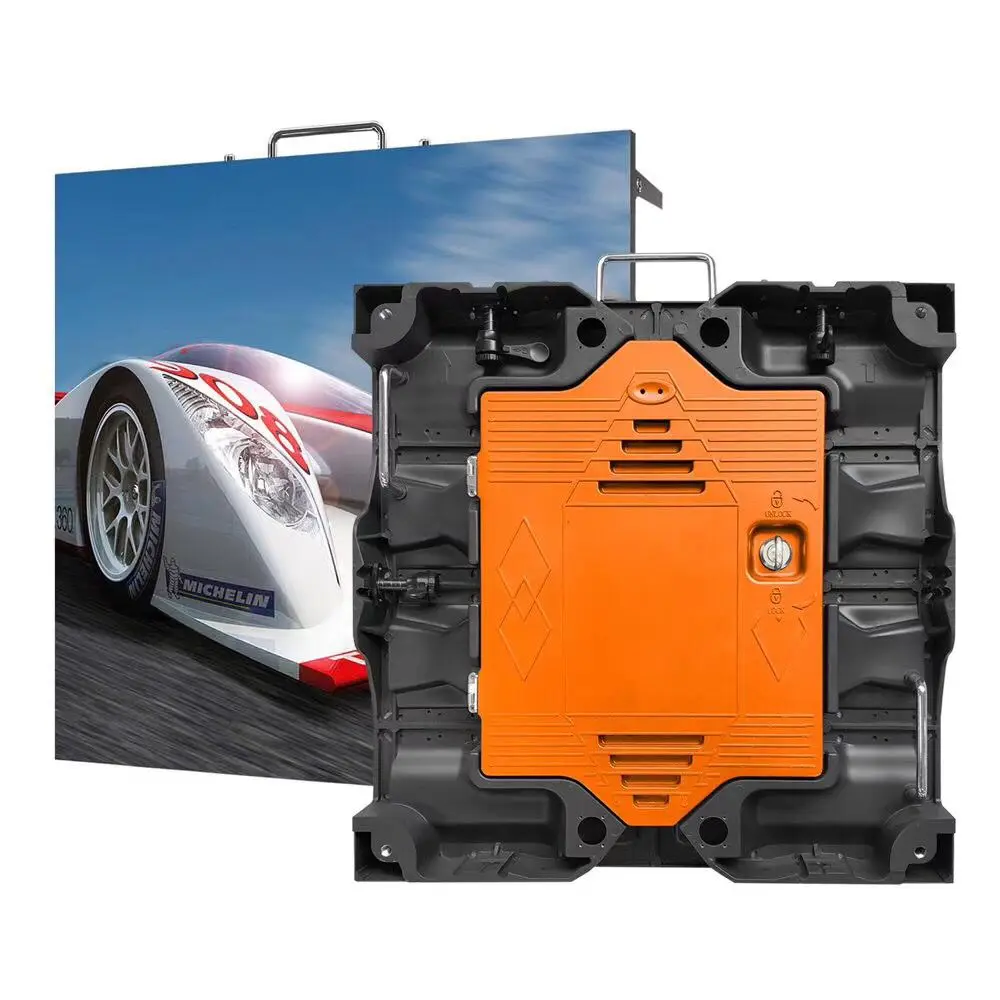

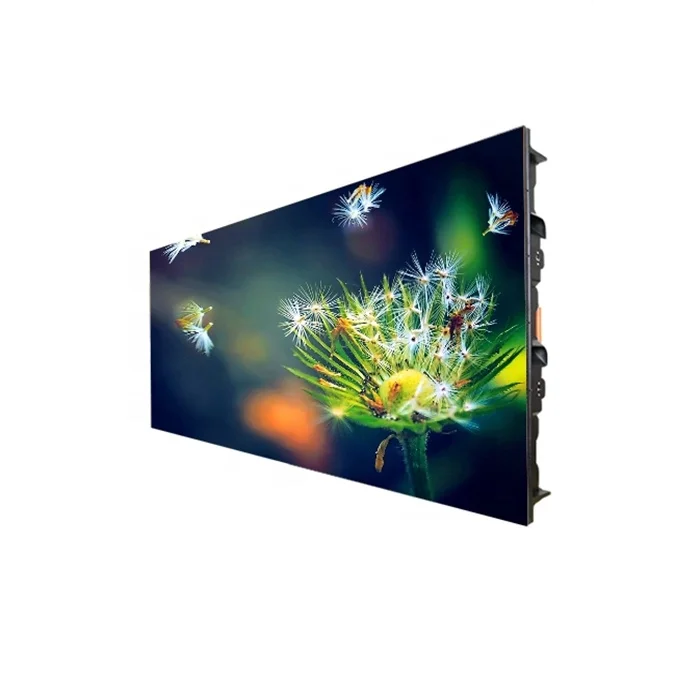

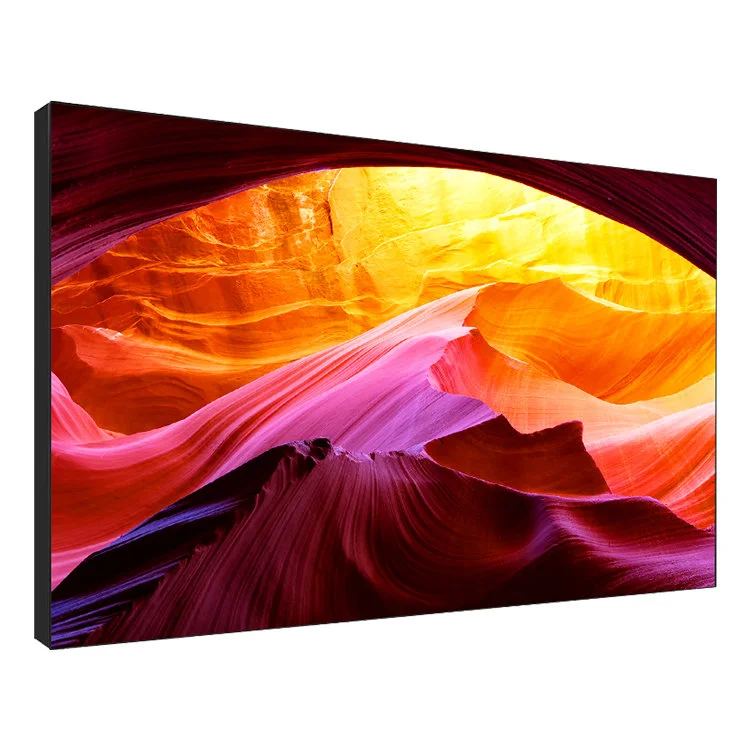

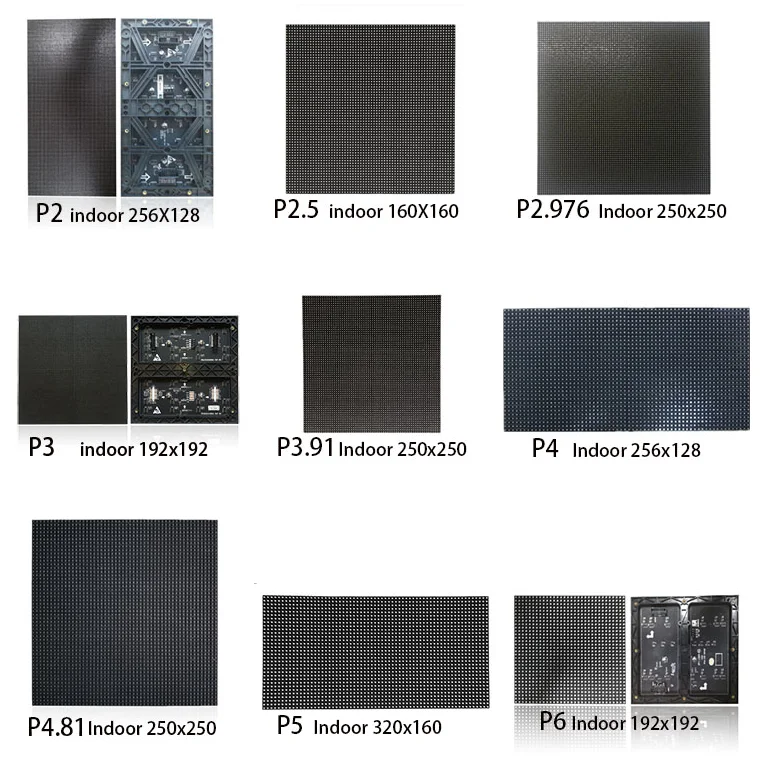

Hot -sale Products

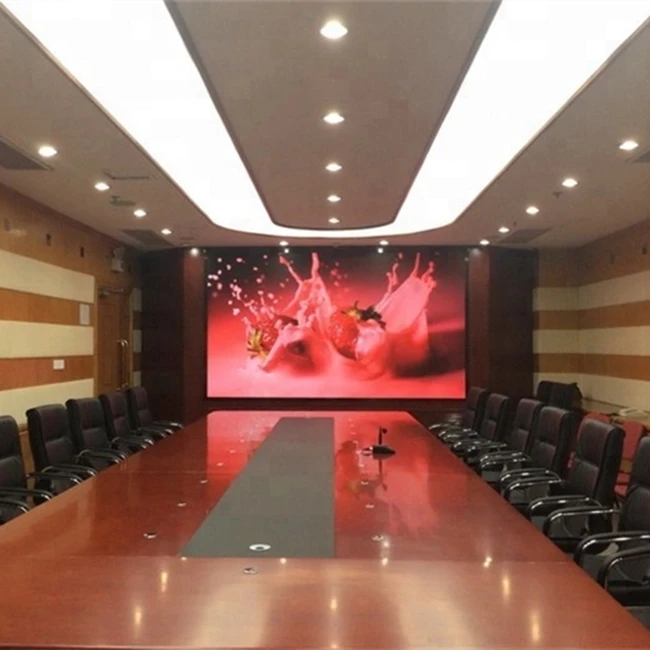

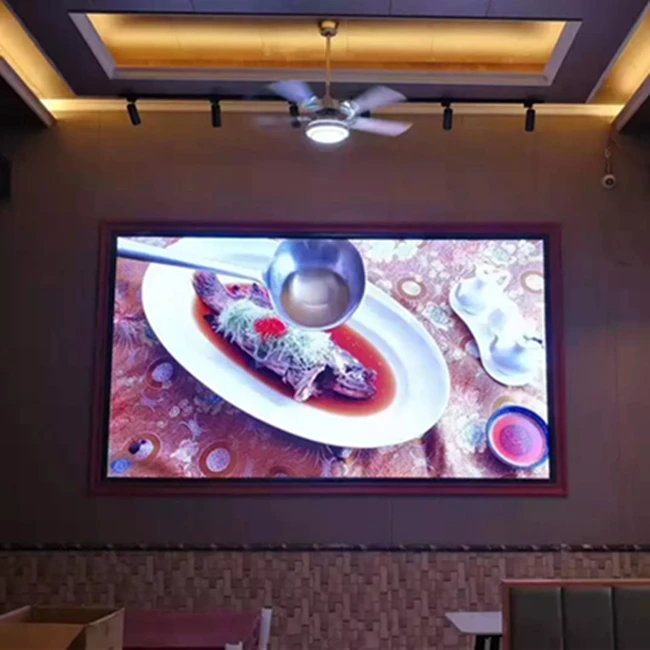

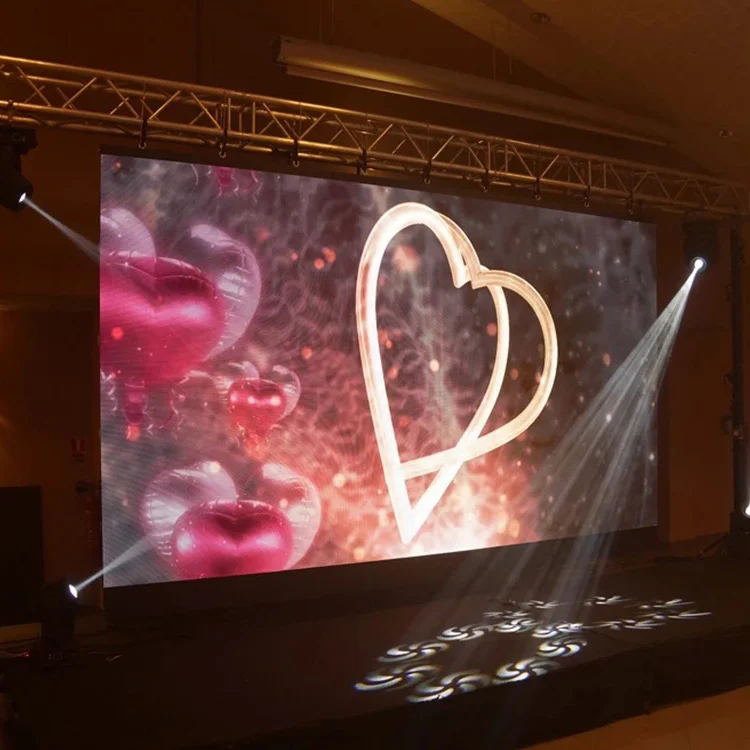

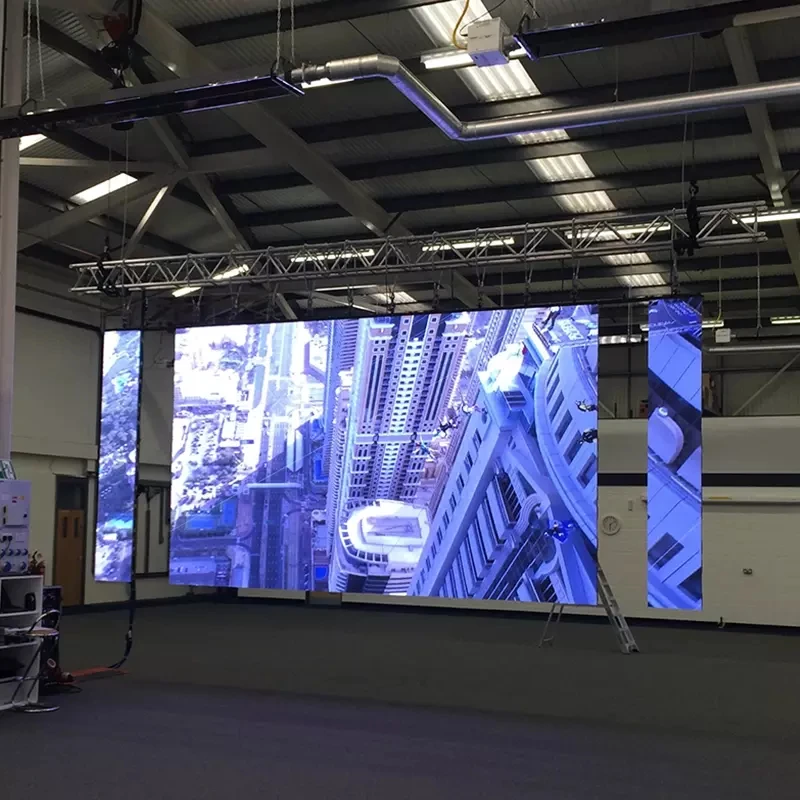

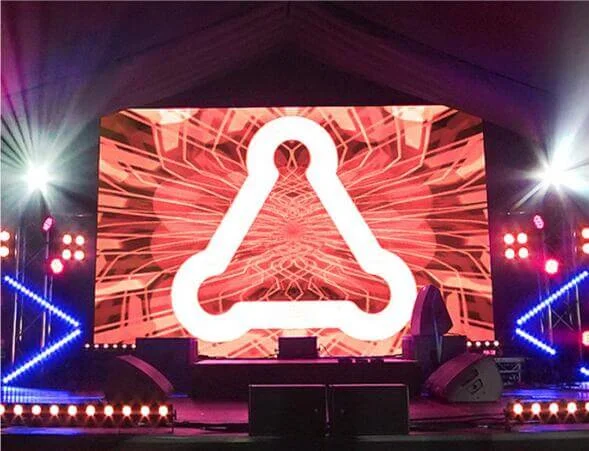

Project cases
Customer Praise
Packing & Delivery
Packaging and Shipment
According to the different packing patternsof different, we offer carton box, wooden case, flight case packing
Shipping Method:by Express (DHL/FEDEX/UPS etc) door to door
by ocean (cheap method) to sea port
by air to airport
Pls inform airport name and sea port name if you want we check the shipping cost for you!
Shipping Method:by Express (DHL/FEDEX/UPS etc) door to door
by ocean (cheap method) to sea port
by air to airport
Pls inform airport name and sea port name if you want we check the shipping cost for you!

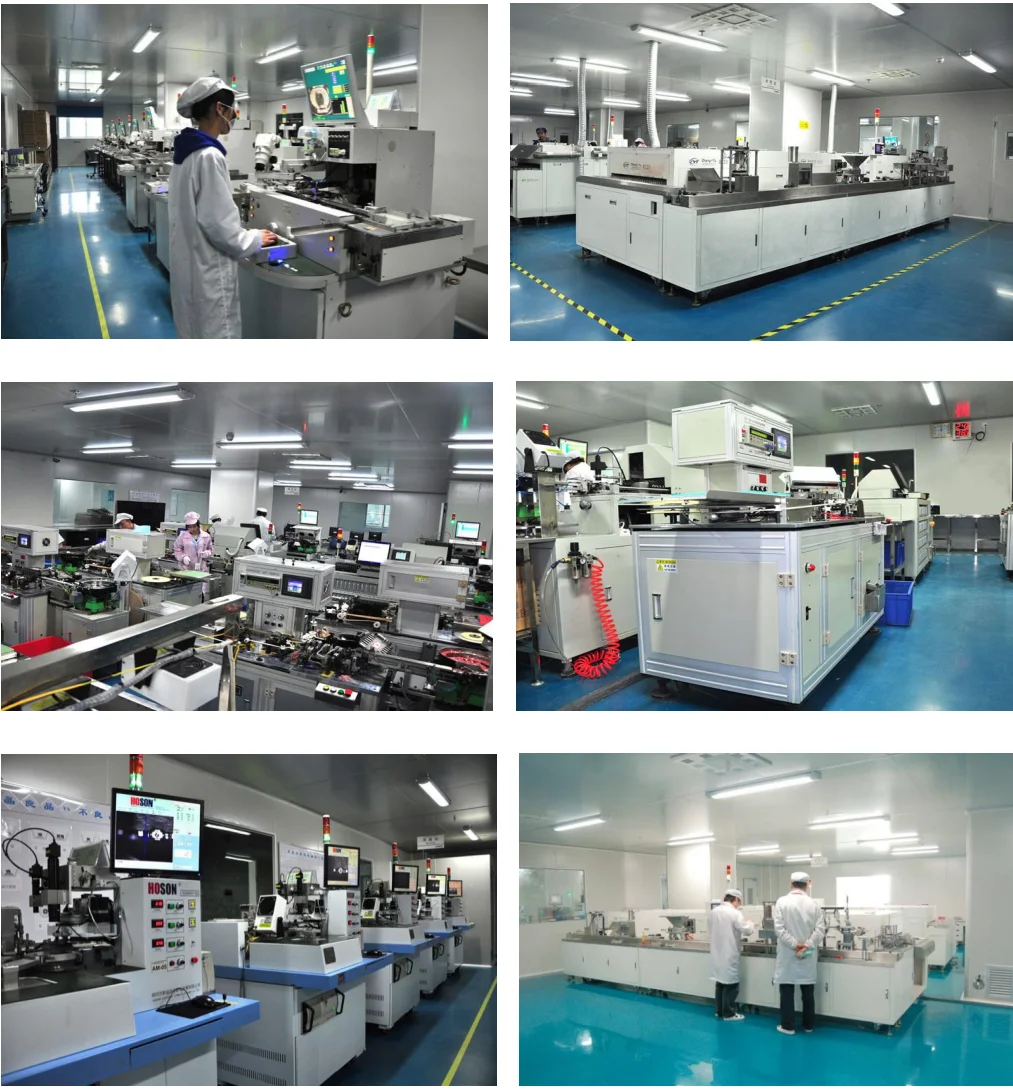

Company Profile

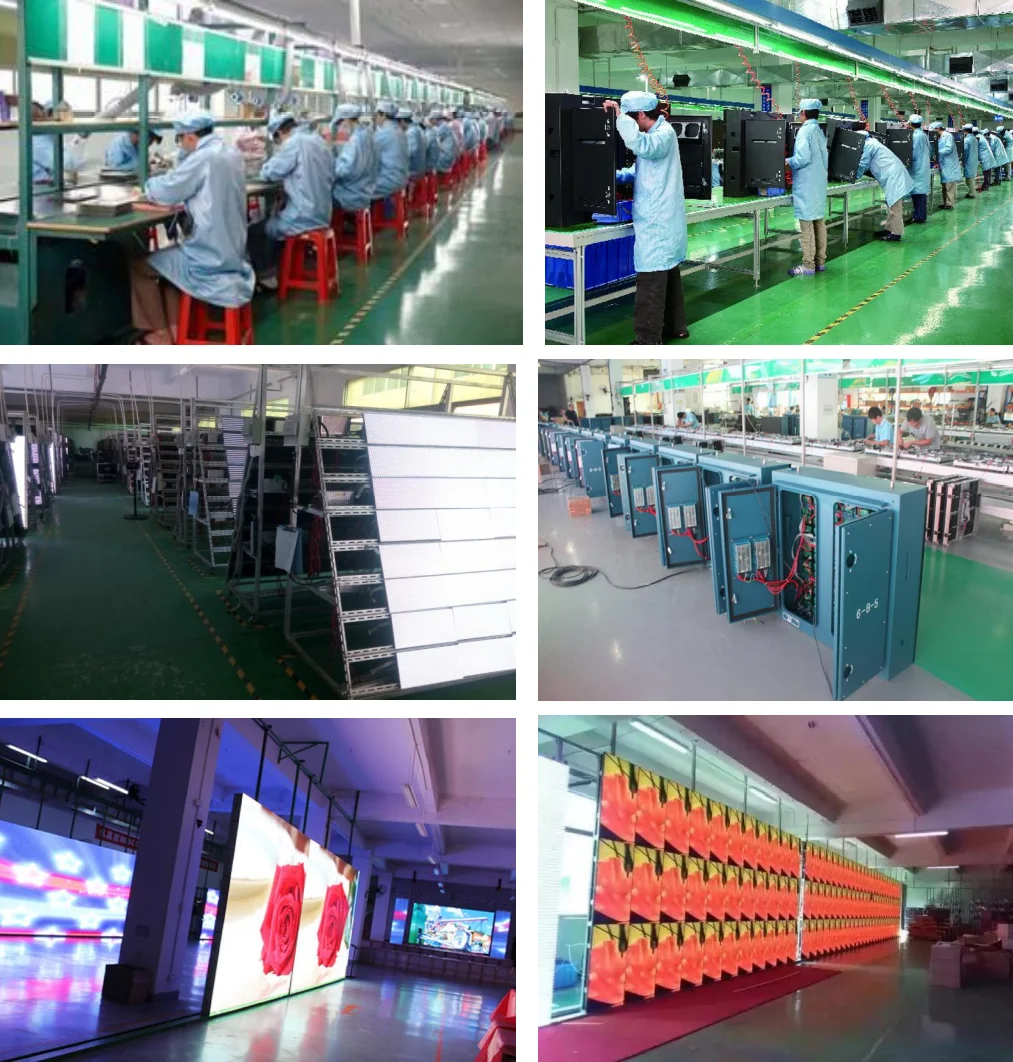

Chipstar LED Co., Ltd. specialized in manufacturing indoor and outdoor high-definition full-color LED display.
Our products has passed CE, ETL, FCC, CCC and RoHS ceritificate. Reliable quality, advanced technology, perfect technology, automation of form a complete set of production equipment, standard production line, perfect sales network and good pre-sales after sales service is to provide high quality products and continuous development of our roots.
Products are exported to North America, Europe and the Middle East region and other overseas markets, such as Sweden, UK, Italy, Germany, Romania, Serbia, Poland, Turkey, Spain, USA, Russia, Canada, Singapore, Japan, etc.
Our products has passed CE, ETL, FCC, CCC and RoHS ceritificate. Reliable quality, advanced technology, perfect technology, automation of form a complete set of production equipment, standard production line, perfect sales network and good pre-sales after sales service is to provide high quality products and continuous development of our roots.
Products are exported to North America, Europe and the Middle East region and other overseas markets, such as Sweden, UK, Italy, Germany, Romania, Serbia, Poland, Turkey, Spain, USA, Russia, Canada, Singapore, Japan, etc.
FAQ
Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,
free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about the warranty?
A:Two year warranty
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,
free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5:What about the warranty?
A:Two year warranty
