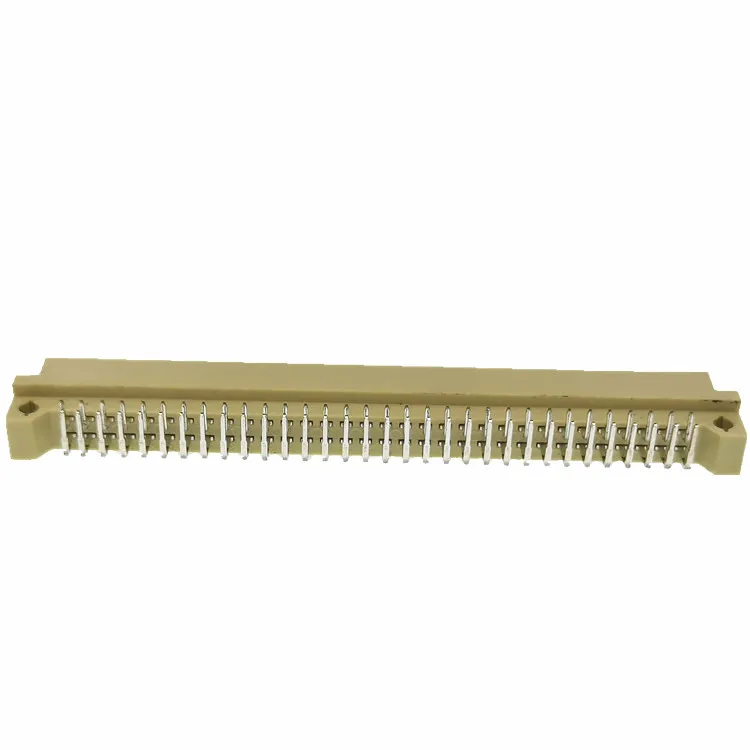

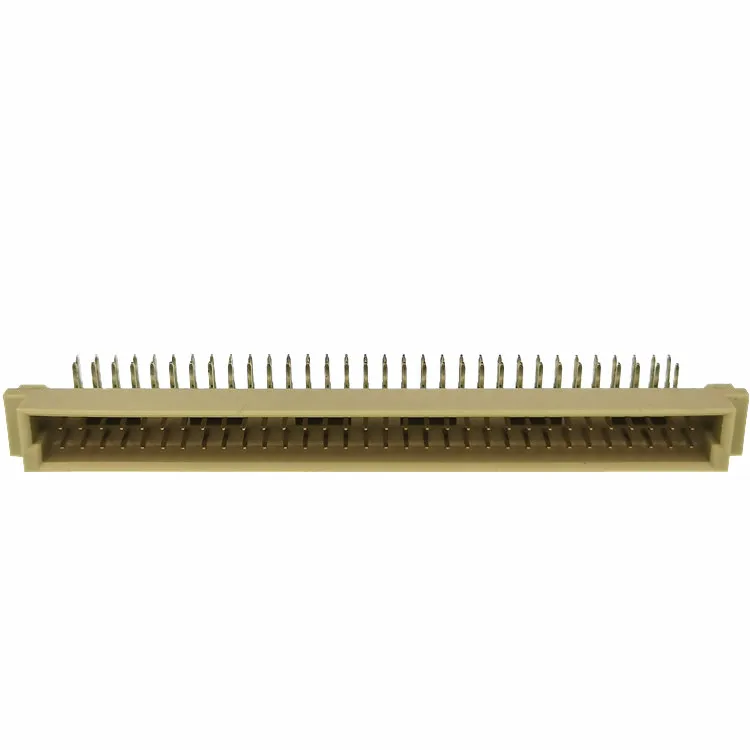

3 Rows 16p 32p 48p 64p 96p Din 41612 Connector 3*32pin 64pin 96pin Right Angle Pcb Male Eurocard Connector With 2.54mm Pitch
3 Rows 16p 32p 48p 64p 96p Din 41612 Connector 3*32pin 64pin 96pin Right Angle Pcb Male Eurocard Connector With 2.54mm Pitch
3 Rows 16p 32p 48p 64p 96p Din 41612 Connector 3*32pin 64pin 96pin Right Angle Pcb Male Eurocard Connector With 2.54mm Pitch
3 Rows 16p 32p 48p 64p 96p Din 41612 Connector 3*32pin 64pin 96pin Right Angle Pcb Male Eurocard Connector With 2.54mm Pitch

3 Rows 16p 32p 48p 64p 96p Din 41612 Connector 3*32pin 64pin 96pin Right Angle Pcb Male Eurocard Connector With 2.54mm Pitch

Share on (1600294037409):


Price:$0.04 - $0.10

Quantity:


Product Overview

Description









Din41612 connector
Specification
Features:
* conforming to DIN 41612 and IEC 603-2 specifications.
* Available up to 3 rows and 96 positions with Solder,Press-fit and pin-in Paste terminations.
* Commonly used to carry audio and video signals.
* High Quality with 30 days 100% Money back.

Main Application:
* Switching/Routing、Enterprise、Transmission
* Home Entertainment、White Goods、Phones
* Servers、Personal Computing、Peripheral Device
* Technology、Lighting、Process Control
* Transportation、Instrumentation、Vehicle Electronics、Energy Transmission/Distribution Control
Electrical Characteristics
Current Rating at 20ºC
1.5 Amp
Insulation Resistance
1000 MΩ min. at DC 500V
Contact Resistance
30mΩ max.at DC 500V
Dielectric Withstanding
1000V
Creepage and Clearance Distance
≥ 1.2mm
Mechanical characteristics
Mating Insertion Force per Contact
≤ 0.94N
Mating Extraction Force per Contact
≥ 0.15N
Contact Retention in Insulator
≥ 20N
Environmental and Processing
Operating Temperature
-55ºC to +125ºC
Material
Housing Material
PBT+30% Glass Fiber(UL94V-0)
Contact：Male-Brass
                  Female-Phosphor Bronze
Type
DIN 41612 B,C,Q,R,CD,RD TYPE
Company Advantages
* 17 years of experience in the connector industry
* Production capacity for each month: 300000000 pieces
* Quality and delivery guarantee
* Free sample
* Customization
* One-stop shopping for you


Related Product








Partners & Certificate






MSTCONN has passed ISO9001, ISO14001:2004 environmental management system, REACH, SGS, CQC.




Company Profile




About MSTCONN
Shenzhen MSTCONN electronics Co., Ltd is located in Shenzhen,Guangdong province.We are specialized in this professional field With 17 years of industry experience.Our factory has a standardized production base of 4,000 square meters, we have passed I S O 9 0 0 1 quality system and has become class A supplier of many well-known enterprises.

Main products include USB connectors, FFC cable, headphone Jack, FPC connector and pin header conector female header connector and etc.

MSTCONN offer an one-stop shopping for you ! Welcome to consult !

Our advantages
1. 17 years of experience in the connector industry
2. Production capacity for each month: 300000000 pieces
3. Quality and delivery guarantee
4. Free sample
5. Customization
6. one-stop shopping for you








Workshop
MSTCONN has 16 automatic assembly machines, 10 assembly lines, we have more than 200 employees.Our staff are trained on a regular basis.


Production equipment
MSTCONN can design and produce all kinds of plastic hardware molds. We have Grinding machine 12 units, 3 sets of spark machine, 1 Milling machine, High speed continuous hardware punch 8 sets, Arrow line pressing machine 3 sets, high quality assurance and technical support.




Product test equipment
MSTCONN has Reflow Oven, Digital display projector, Digital display tensile force tester, Vickers hardness tester, Salt spray tester, Artificial CCD etc. to inspection of product quality, reduce defect rate.


Warehouse
Keep the warehouse clean and tidy, and mark the incoming new products.

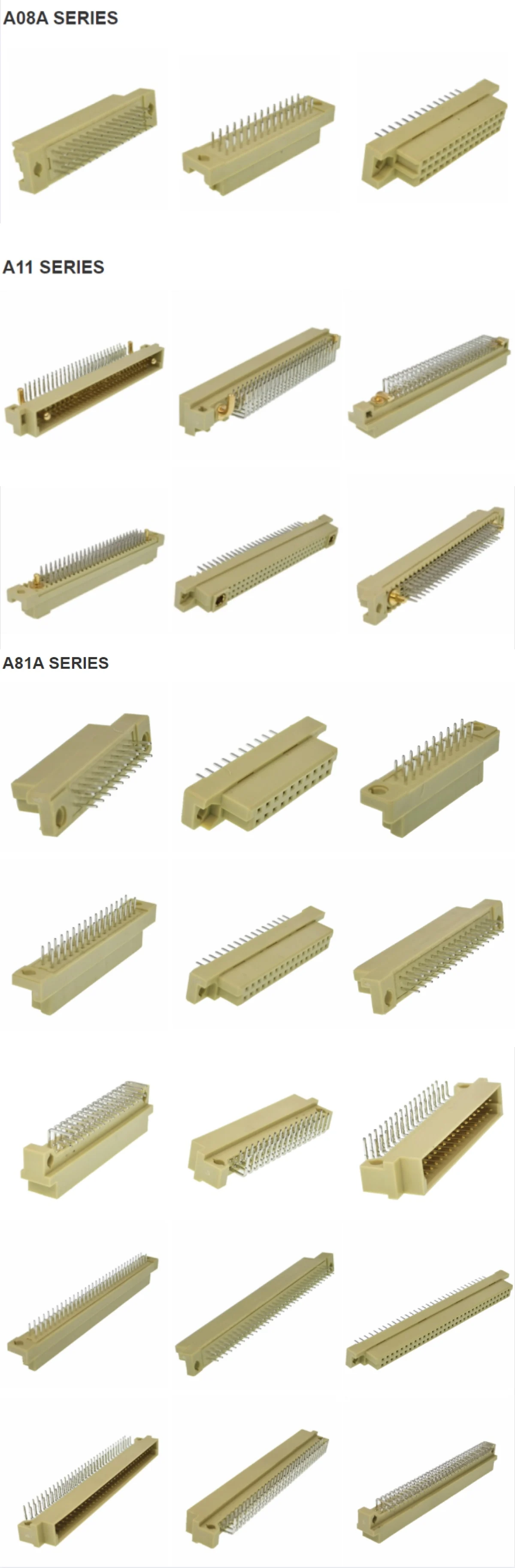

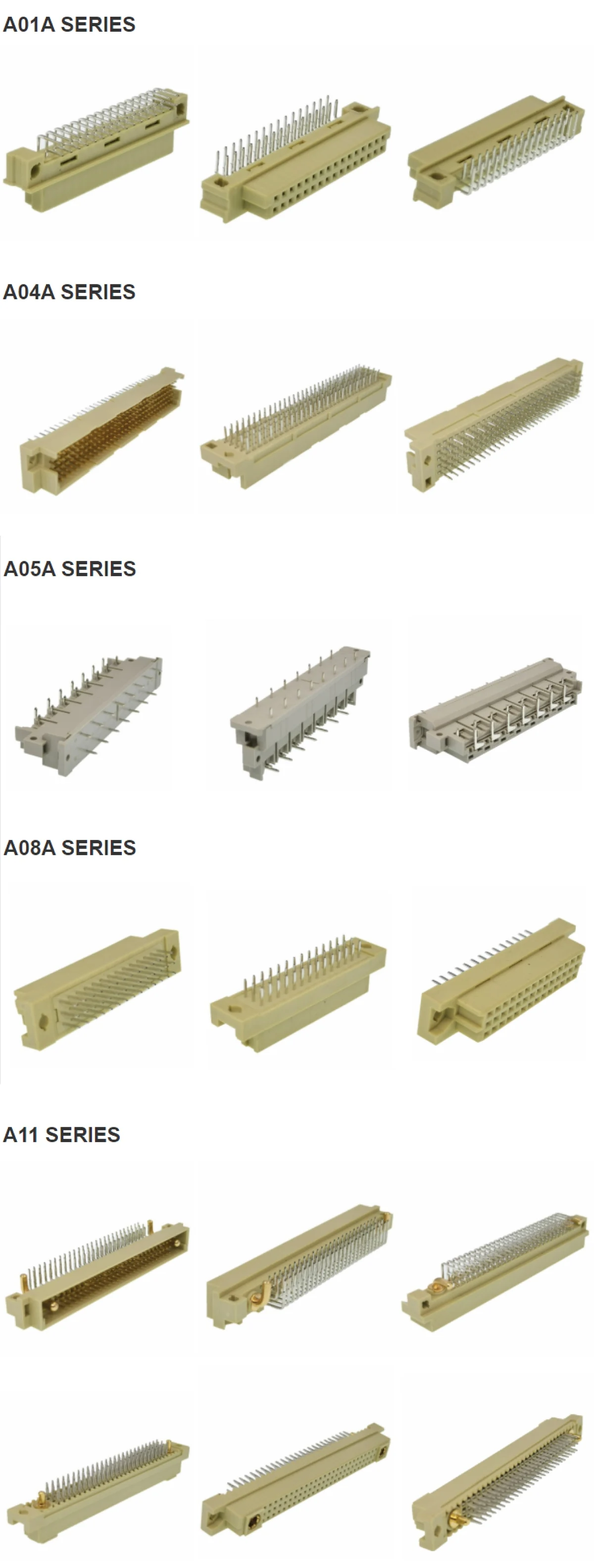

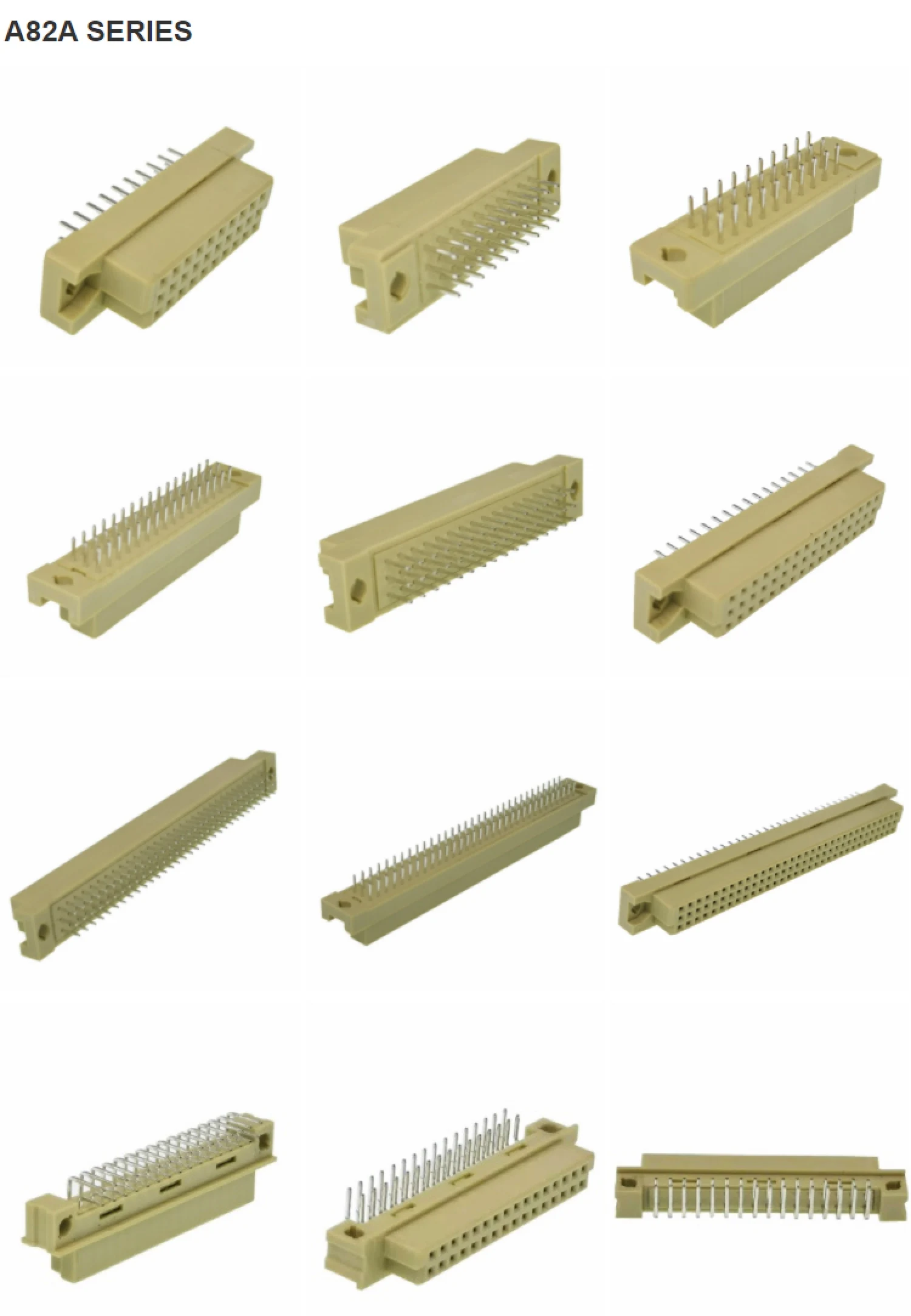

Our products




Packaging & Delivery & Payment


Tape reel
Title goes here.
Tube



Packing Guarantee

* All the cartons are comply with ROHS standards

* Support Express · Sea freight · Land freight · Air freight

* We will deliver the product safely and quickly to your hands




FAQ


1. Are you a factory or trading company ?
We are a connector factory, our factory has a standardized production base of 4,000 square meters in Shenzhen. welcome to visit our factory.

2. Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
Yes, we will send a catalogue as part of the shipment.

3. Can you make customized products and customized packing?
Yes, we made a lot of customized products for our customer before(mainly wire harness).About customized packing, There is no problem for we put your Logo or other information on the packing.

4. How about your quality control ?
All the products will be 100% checked before the shipment.

5. How long is your delivery time ?
Normally stock goods within 1-3 days, arranged producti within 7-15 days. It also depends on the order quantity.

6. How could I get a sample ?
Free sample with freight collect.

7. What is your after-sales service？
All our the customers can enjoy the after-sales service for“one year quality warranty, and lifetime technical support”.
