Hvac Exhaust Air Wall Vent Conditioning Aluminium Ventilation Supply Air Fresh Air Linear Bar Grille
- Category: >>>
- Supplier: Foshan,Shunde,Vcare,Import,And,Export,Co.,Ltd.
Share on:
Product Overview
Description

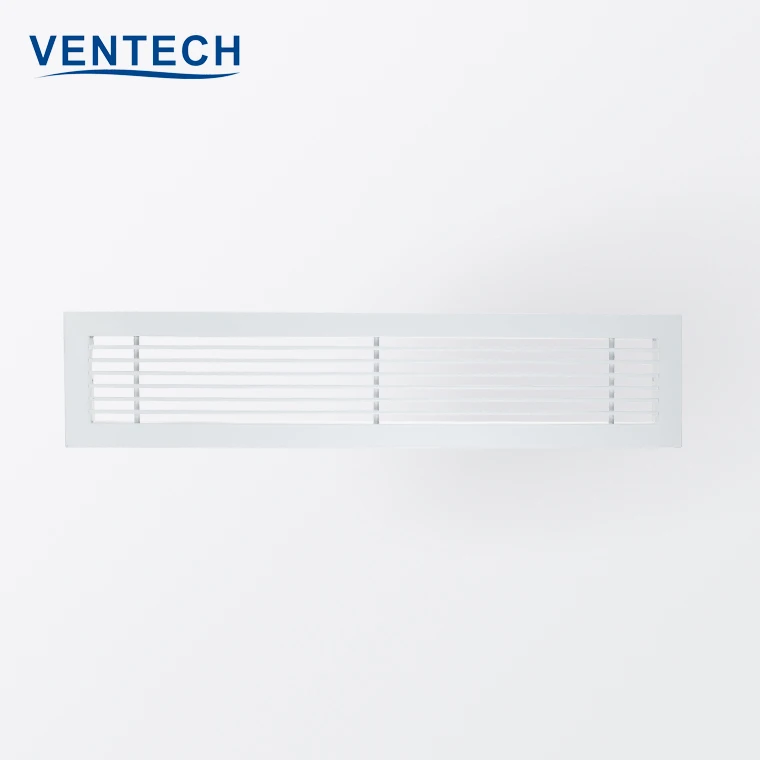

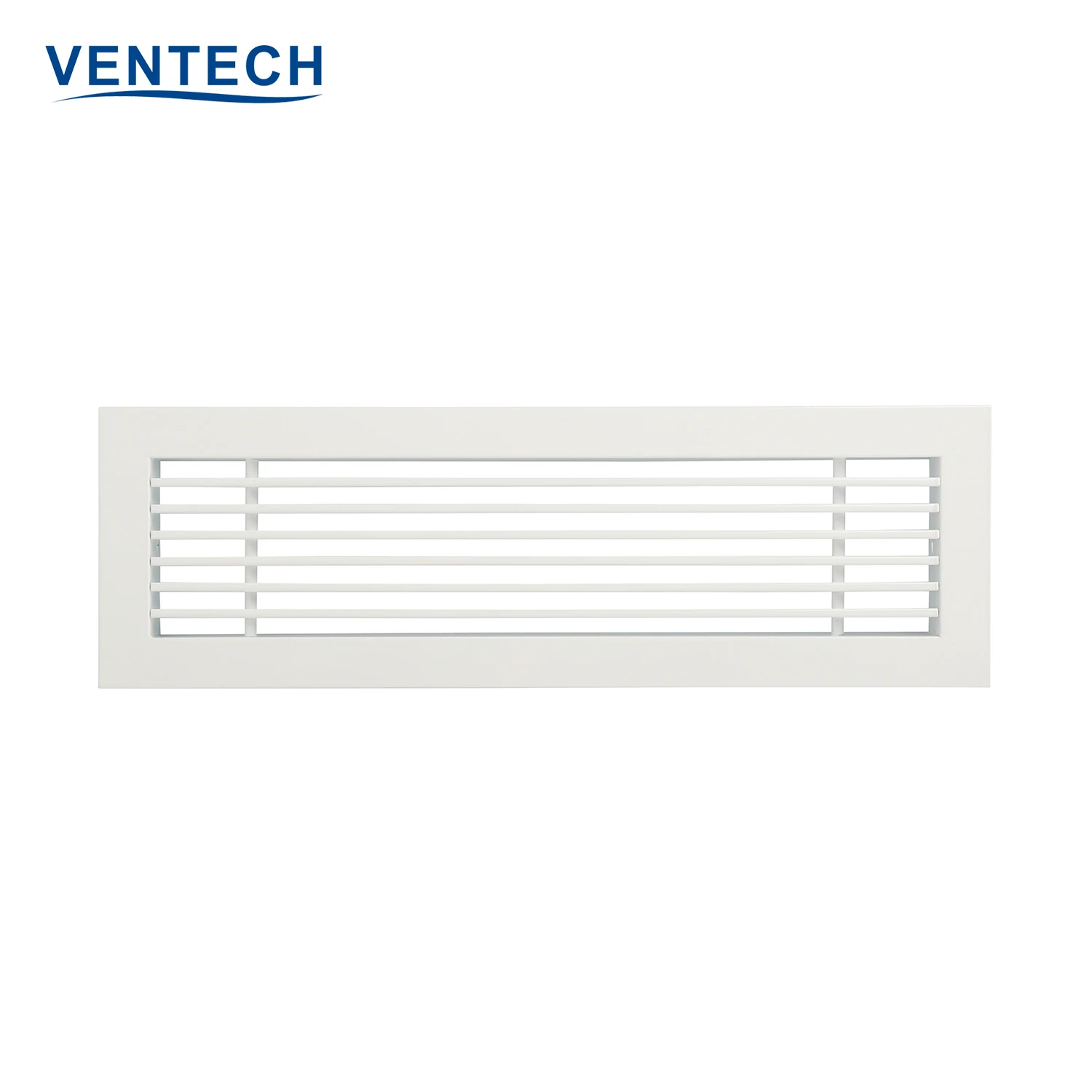

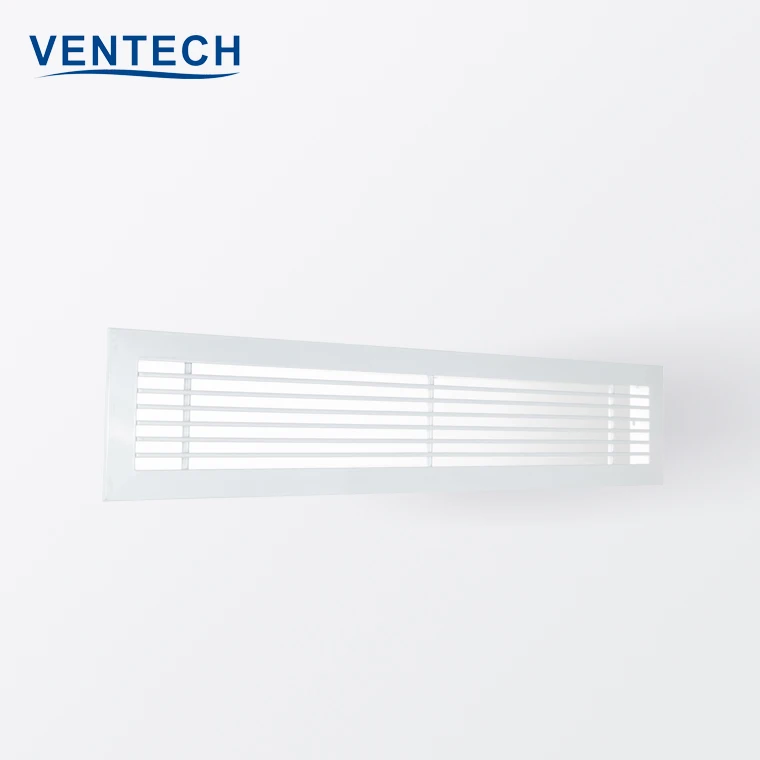

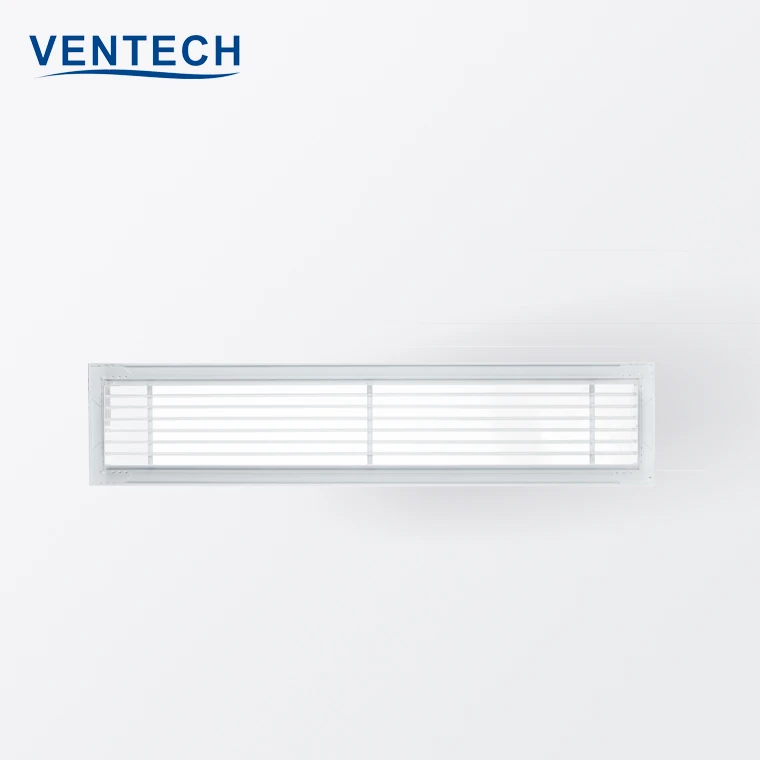

VENTECH Linear Bar Grille
Item name | Linear Bar Grille |
Application | Air Conditioning Ventilation System |
Color | RAL9010/RAL9016/Anordized |
Airflow | 80-800CMH |
Thickness | 1.0mm |
Material | Aluminum |
Function | Exhaust air/Return air |
Size | Customized Size |
Installation | Ceiling/Wall Mounted Installation |
Use | HVAC Duct System Installation |
Product Keywords | Linear Grille,Linear Bar Air Grille Clip,Air Conditioning Linear Diffusers |
Product description
Linear Bar Grille are specially designed to match with the modern interior design with outstanding performance. With fixed bars parallel to the long dimension, linear bar diffusers are a popular choice for continuous line use on a variety of application.
VENTECH’s Bar Grilles are mainly used for cooling, heating and ventilation purposes. The design enables the manipulation of airflow orientation and aids to achieve the desired flow profile.
Our Bar Grilles cater for various mounting methods and customized sizes to handle the required air flow, patterns, pressure drops and sound levels.
Linear Bar Grilles may be used for either supply, return, relief or exhaust systems and typically are suitable for installation in Shops, Showrooms, Hotels, Conference Rooms, Commercial Offices, Reception Areas, Sports Halls, Leisure Centers and all Residential Applications.
Product feature
(1)Sizes: Customized.
(2)Frame and face bars are of high quality extruded aluminum profiled construction with the advantages of corrosion resistance and rigidity.
(3)Horizontal face bars with 0°, 15°, 30°way throw.
(4)Hinged/ Removable cores are available as option.
(5)Quick and easy to fix, concealed fixing.
(2)Frame and face bars are of high quality extruded aluminum profiled construction with the advantages of corrosion resistance and rigidity.
(3)Horizontal face bars with 0°, 15°, 30°way throw.
(4)Hinged/ Removable cores are available as option.
(5)Quick and easy to fix, concealed fixing.
