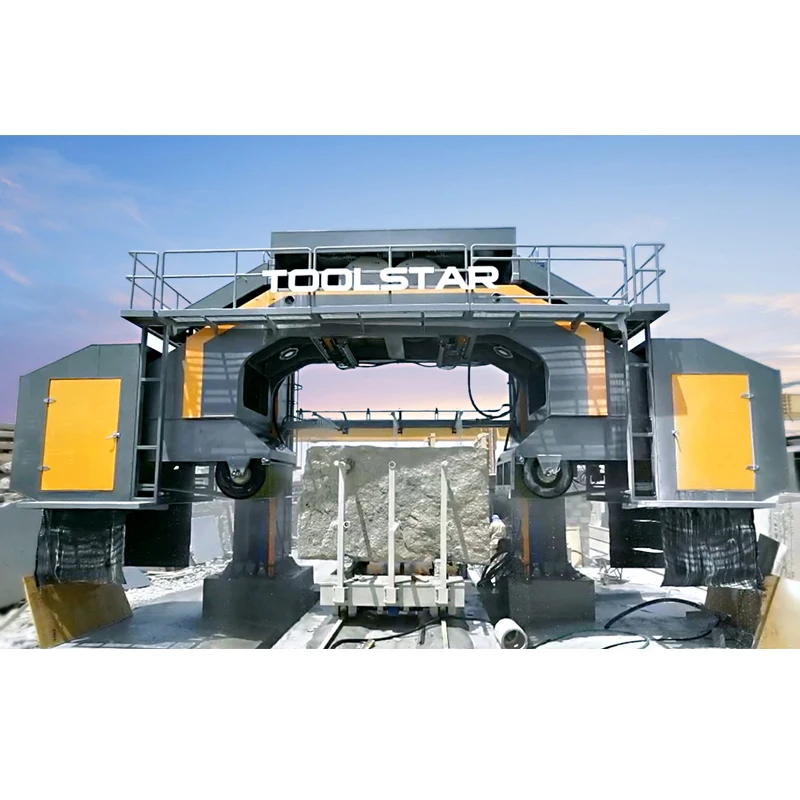

Toolstar Customized Multi Wire Saw Block Cutting Machine,Granite Cutting Multi wire Saw Machine
- Category: Building Material Shop Machines >>>
- Supplier: Changsha Toolstar Machinery Manufacturing Co. Ltd.
Share on (1600294185079):
Product Overview
Description
1. Adopt international brand of motor/inverter/electronics to maintain the stable workingand excellent performance;
2. Stainless steel covers with three coating and painting ensures the good protection from the rusts,especially in the water and dust working condition.
3. Ergonomical and user-friendly design makes it easy for operator to run the machine, especially for assembling the
wires and regular maintainence.
wires and regular maintainence.
φ7.3绳组锯机技术参数（Technical parameter） | ||||||||||
绳锯直径(Wire diameter)/mm | φ7.3 | |||||||||
挂绳槽间距(Slot pitch)/mm | 9.5 | |||||||||
切割板厚(Slab thickness)/mm | 5绳 wires | 20绳 wires | 40绳 wires | 56绳 wires | 72绳 wires | |||||
60~100 | 20.5/30/39.5/49/58.5/68/77.5/87/96.5 | |||||||||
主电机功率（Power）/kW | 5绳 wires | 20绳 wires | 40绳 wires | 56绳 wires | 72绳 wires | |||||
37Kw | 110Kw | 160Kw | 200Kw | 250Kw | ||||||
驱动轮直径（Driving wheel diameter）/mm | φ1200 | |||||||||
从动轮直径（Driven wheel diameter）/mm | φ1200 | |||||||||
升降行程（Lifting stroke）/mm | 2300 | |||||||||
水平行程（Horizontal stroke）/mm | 9500 | |||||||||
工作台尺寸（Size of trolley ）/m | 2.5*2 | |||||||||
张紧方式（Tensioning） | 独立液压张紧（Hydraulic tensioning） | |||||||||
张紧力（Tension force）/kgf | 220~260 | |||||||||
绳锯线速度（Wire speed） | 0~35m/s | |||||||||
绳锯长度（Wire length）/m | 21.52±0.02m | |||||||||
最大切割尺寸（长与高）Cutting area(W×H)/m | 3.6x2.1 | |||||||||
最大切割尺寸（厚度）Max. cutting width/mm | 5绳 wires | 20绳 wires | 40绳 wires | 56绳 wires | 72绳 wires | |||||
436 | 568.5 | 1138.5 | 1594.5 | 2050.5 | ||||||
主机外形尺寸长和高 (Dimension L×H)/mm | 11055x6149 | |||||||||
主机外形宽度尺寸 (Dimension W)/mm | 5绳 wires | 20绳 wires | 40绳 wires | 56绳 wires | 72绳 wires | |||||
3100 | 3906 | 4475 | 6826 | 7282 | ||||||
整机重量（Weight）/t | 5绳 wires | 20绳 wires | 40绳 wires | 56绳 wires | 72绳 wires | |||||
28 | 32 | 48 | 55 | 62 | ||||||

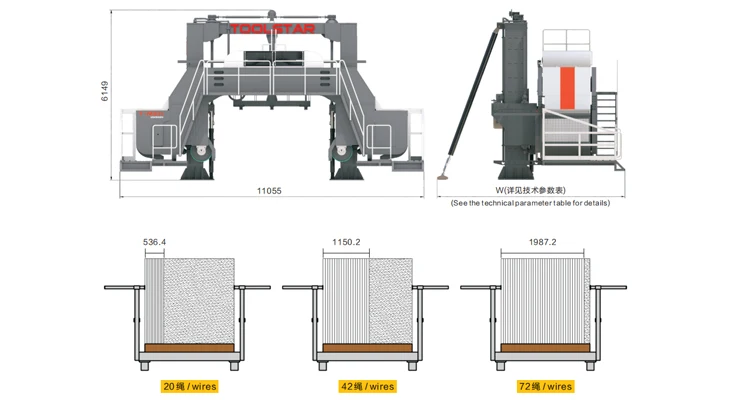

φ6.3绳组锯机技术参数（Technical parameter） | ||||||||||
绳锯直径(Wire diameter)/mm | φ6.3 | |||||||||
挂绳槽间距(Slot pitch)/mm | 9.3 | |||||||||
切割板厚(Slab thickness)/mm | 20.9 / 30.2 | |||||||||
主电机功率（Power）/kW | 20绳wires | 42绳 wires | 56绳 wires | 72绳 wires | 76绳 wires | |||||
90Kw | 132Kw | 200Kw | 220Kw | 250Kw | ||||||
驱动轮直径（Driving wheel diameter）/mm | φ1200 | |||||||||
从动轮直径（Driven wheel diameter）/mm | φ1200 | |||||||||
升降行程（Lifting stroke）/mm | 2300 | |||||||||
水平行程（Horizontal stroke）/mm | 9500 | |||||||||
工作台尺寸（Size of trolley ）/m | 2.5*2 | |||||||||
张紧方式（Tensioning） | 独立液压张紧（Hydraulic tensioning） | |||||||||
张紧力（Tension force）/kgf | 180~220 | |||||||||
绳锯线速度（Wire speed） | 0~35m/s | |||||||||
绳锯长度（Wire length）/m | 21.52±0.02m | |||||||||
最大切割尺寸（长与高）Cutting area(W×H)/m | 3.6×2.1 | |||||||||
最大切割尺寸（厚度）Max. cutting width/mm | 20绳 wires | 42绳 wires | 56绳 wires | 72绳 wires | 76绳 wires | |||||
536.4 | 1150.2 | 1540.8 | 1987.2 | 2098.8 | ||||||
主机外形尺寸长和高 (Dimension L×H)/mm | 11055×6149 | |||||||||
主机外形宽度尺寸 (Dimension W)/mm | 20绳 wires | 42绳 wires | 56绳 wires | 72绳 wires | 76绳 wires | |||||
3892 | 6400 | 6792 | 7248 | 7360 | ||||||
整机重量（Weight）/t | 20绳 wires | 42绳 wires | 56绳 wires | 72绳 wires | 76绳 wires | |||||
30 | 48.5 | 54 | 60 | 62 | ||||||

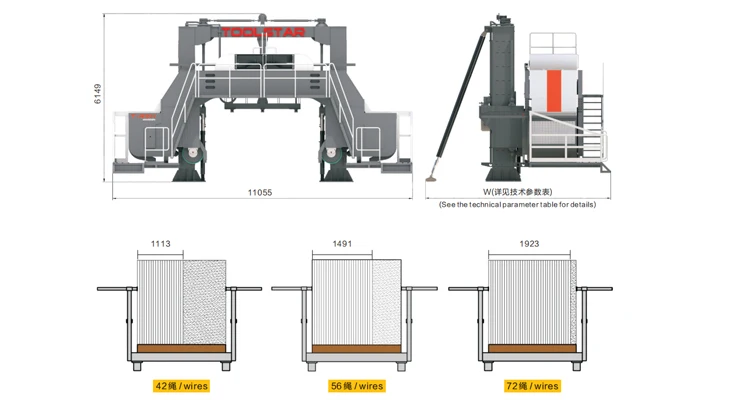

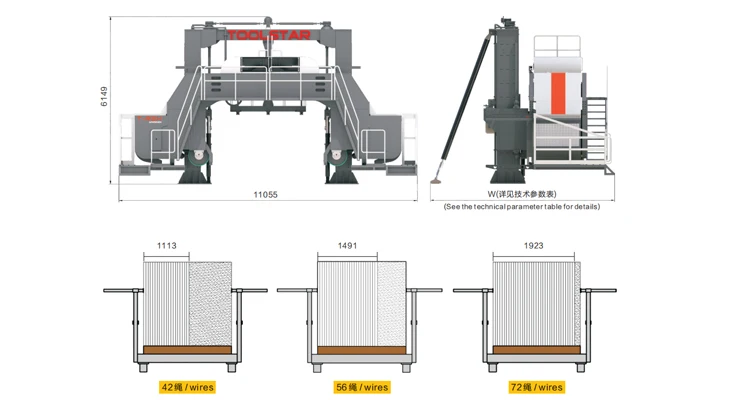

φ5.3绳组锯机技术参数（Technical parameter） | ||||||||||
绳锯直径(Wire diameter)/mm | φ5.3 | |||||||||
挂绳槽间距(Slot pitch)/mm | 9.0 | 8.9 | 8.8 | 8.7 | ||||||
切割板厚(Slab thickness)/mm | 21 | 20.7 | 20.4 | 20.1 | ||||||
30 | 29.6 | 29.2 | 28.8 | |||||||
主电机功率（Power）/Kw | 42绳 wires | 56绳 wires | 64绳 wires | 72绳 wires | 80绳 wires | |||||
132Kw | 200Kw | 200Kw | 220Kw | 250Kw | ||||||
驱动轮直径（Driving wheel diameter）/mm | φ1200 | |||||||||
从动轮直径（Driven wheel diameter）/mm | φ1200 | |||||||||
升降行程（Lifting stroke）/mm | 2300 | |||||||||
水平行程（Horizontal stroke）/mm | 9500 | |||||||||
工作台尺寸（Size of trolley ）/m | 2.5*2 | |||||||||
张紧方式（Tensioning） | 独立液压张紧（Hydraulic tensioning） | |||||||||
张紧力（Tension force）/kgf | 160~200 | |||||||||
绳锯线速度（Wire speed） | 0~35m/s | |||||||||
绳锯长度（Wire length）/m | 21.52±0.02m | |||||||||
最大切割尺寸（长与高）Cutting area(W×H)/m | 3.6×2.1 | |||||||||
最大切割尺寸（厚度）Max. cutting width/mm | 42绳 wires | 56绳 wires | 64绳 wires | 72绳 wires | 80绳 wires | |||||
1113 | 1491 | 1707 | 1923 | 2139 | ||||||
外形尺寸（Dimension）(L×W×H)/mm | 11055×6149×12000 | |||||||||
整机重量（Weight）/t | 42绳 wires | 56绳 wires | 64绳 wires | 72绳 wires | 80绳 wires | |||||
47 | 53 | 57 | 61 | 65 | ||||||
φ4.3绳组锯机技术参数（Technical parameter） | ||||||||||
绳锯直径(Wire diameter)/mm | φ4.3 | |||||||||
挂绳槽间距(Slot pitch)/mm | 8.6 | 8.5 | 8.4 | |||||||
切割板厚(Slab thickness)/mm | 20.8 | 20.5 | 20.2 | |||||||
29.4 | 29 | 28.6 | ||||||||
主电机功率（Power）/Kw | 42绳 wires | 56绳 wires | 64绳 wires | 72绳 wires | 80绳 wires | |||||
132Kw | 160Kw | 200Kw | 220Kw | 250Kw | ||||||
驱动轮直径（Driving wheel diameter）/mm | φ1200 | |||||||||
从动轮直径（Driven wheel diameter）/mm | φ1200 | |||||||||
升降行程（Lifting stroke）/mm | 2300 | |||||||||
水平行程（Horizontal stroke）/mm | 9500 | |||||||||
工作台尺寸（Size of trolley ）/m | 2.5*2 | |||||||||
张紧方式（Tensioning） | 独立液压张紧（Hydraulic tensioning） | |||||||||
张紧力（Tension force）/kgf | 160~200 | |||||||||
绳锯线速度（Wire speed） | 0~35m/s | |||||||||
绳锯长度（Wire length）/m | 21.52±0.02m | |||||||||
最大切割尺寸（长与高）Cutting area(W×H)/m | 3.6×2.1 | |||||||||
最大切割尺寸（厚度）Max. cutting width/mm | 42绳 wires | 56绳 wires | 64绳 wires | 72绳 wires | 80绳 wires | |||||
1050.5 | 1407.5 | 1611.5 | 1815.5 | 2019.5 | ||||||
外形尺寸（Dimension）(L×W×H)/mm | 11055×6149×12000 | |||||||||
整机重量（Weight）/t | 42绳 wires | 56绳 wires | 64绳 wires | 72绳 wires | 80绳 wires | |||||
45 | 50 | 53 | 56 | 59 | ||||||
Q: Can the design be customized ?
A: Yes, we can offer the design based on the customers' requirements,to match different block sizes and different slab thicknesss;
Q: How can you offer the after-sales service to the buyers?
A: We have an experienced after-sales service team with more than 20 technicians ready for the buyers in 24hours to give them the reasonable suggestions and travel on site if necessary.

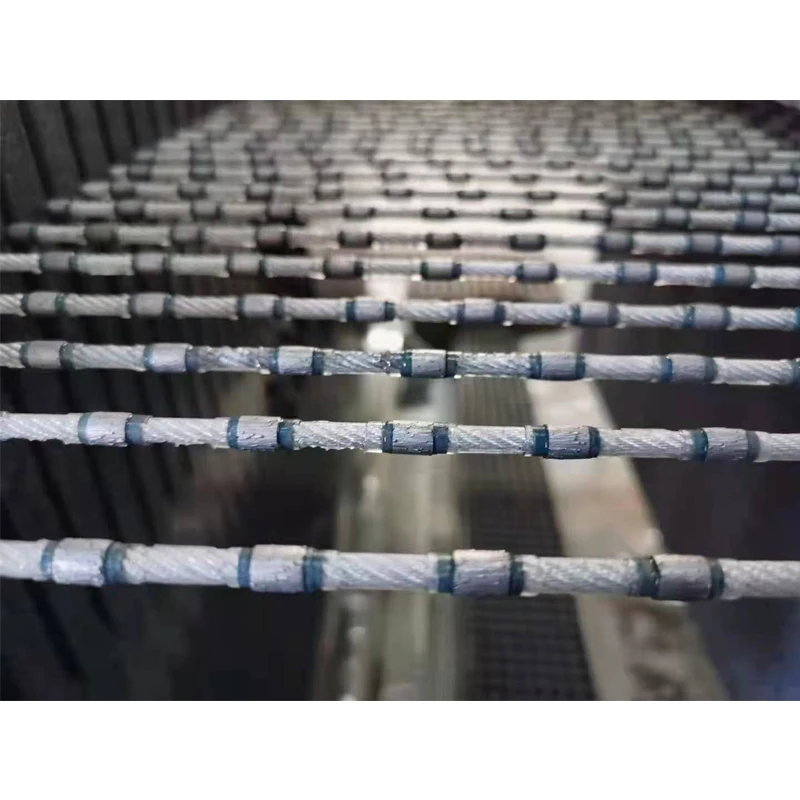

Q: What kind of wire saws you can supply for the multi wire machines?
A: We have 4.3mm/5.3mm/6.3mm/7.3mm wire saws for your options depends on your stone hardness and requirements.
Q: How is the leadtime?
A: Normally 90-120 days depending on the production plan.
