Alloyed steel replaceable carbon brush motor screwdriver for directly AC 220V
- Category: Power Screw Drivers >>>
- Supplier: Tousei Anlinx Co. Ltd.
Share on (1600294228076):
Product Overview
Description

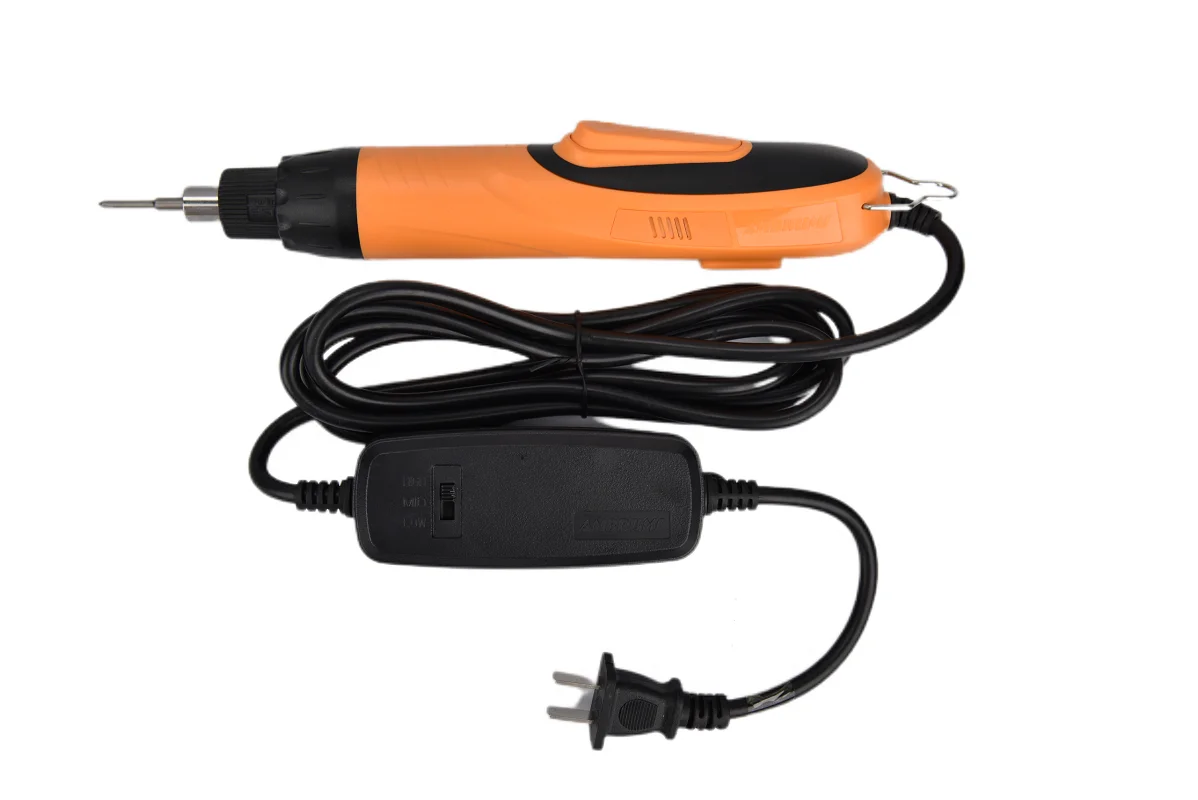

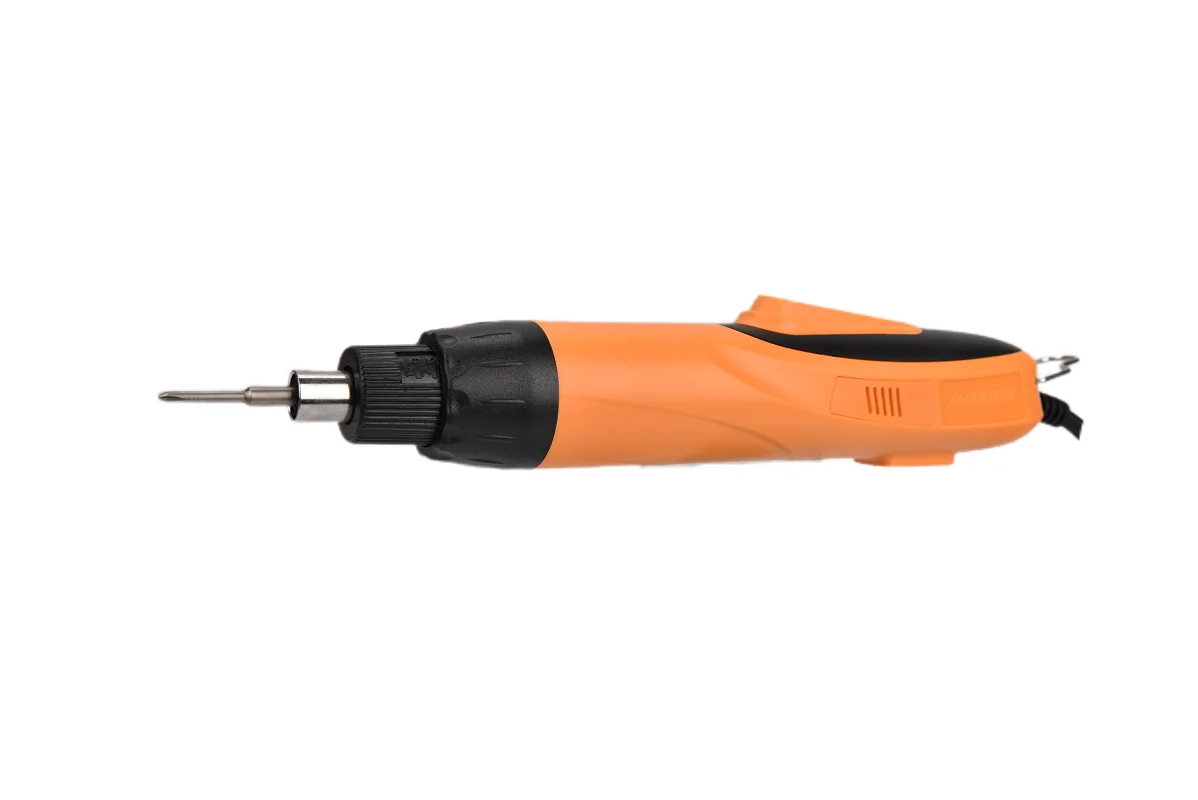

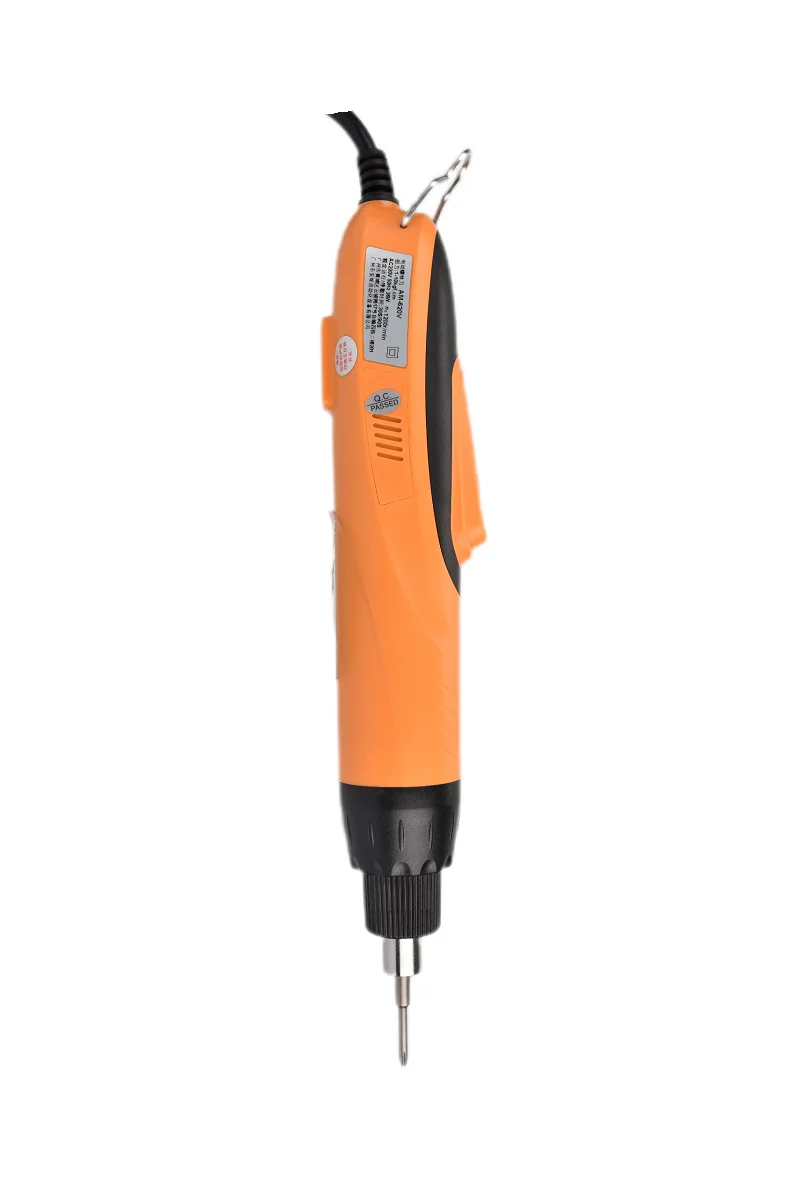

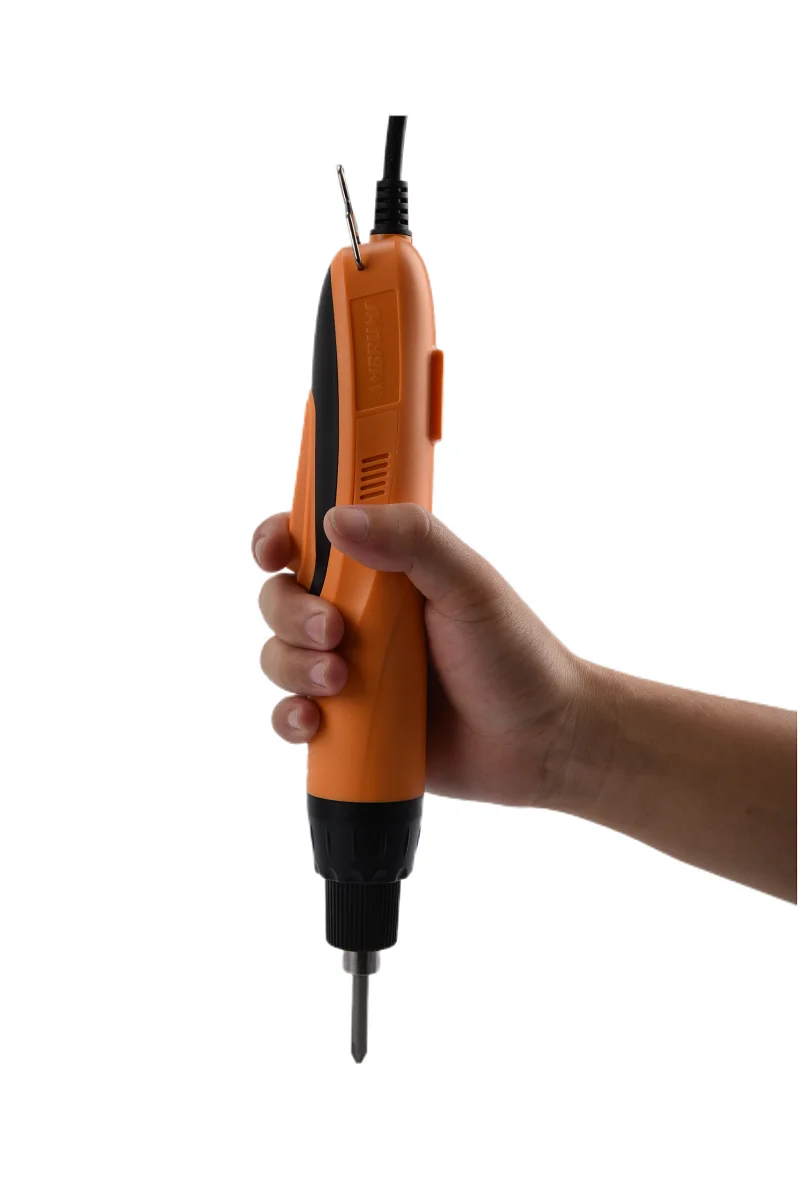

Alloyed steel replaceable carbon brush motor screwdriver for directly AC 220V
AM-825AE
Features
Streamlined case design with two tones matching color to brighten the overall visual effect;
Engineering plastic-made case ;
Alloyed steel transmission system;
Low noise low loss stable operation and high parameter motor to get higher performance;
A tensile cotton thread is placed inside the power cord to prevent wire breaking;

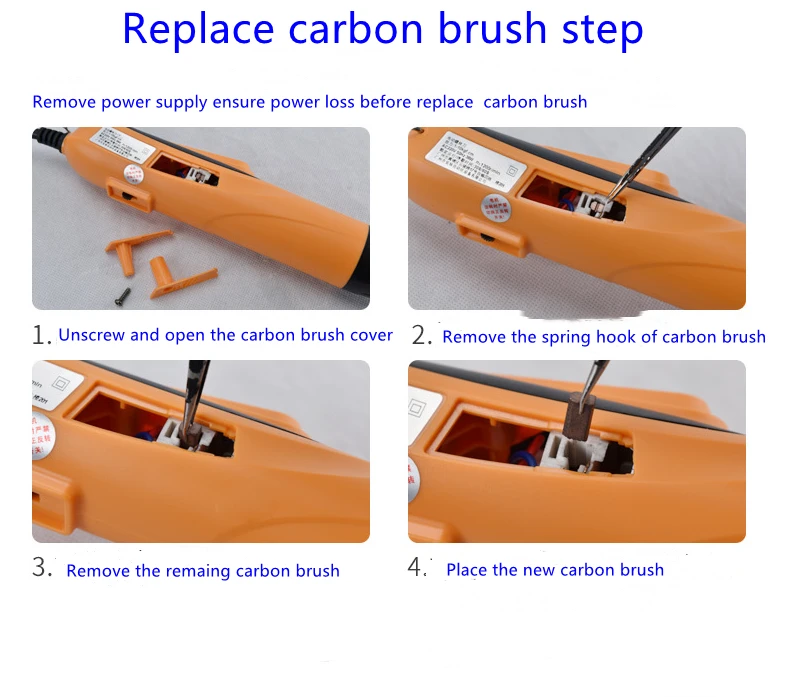

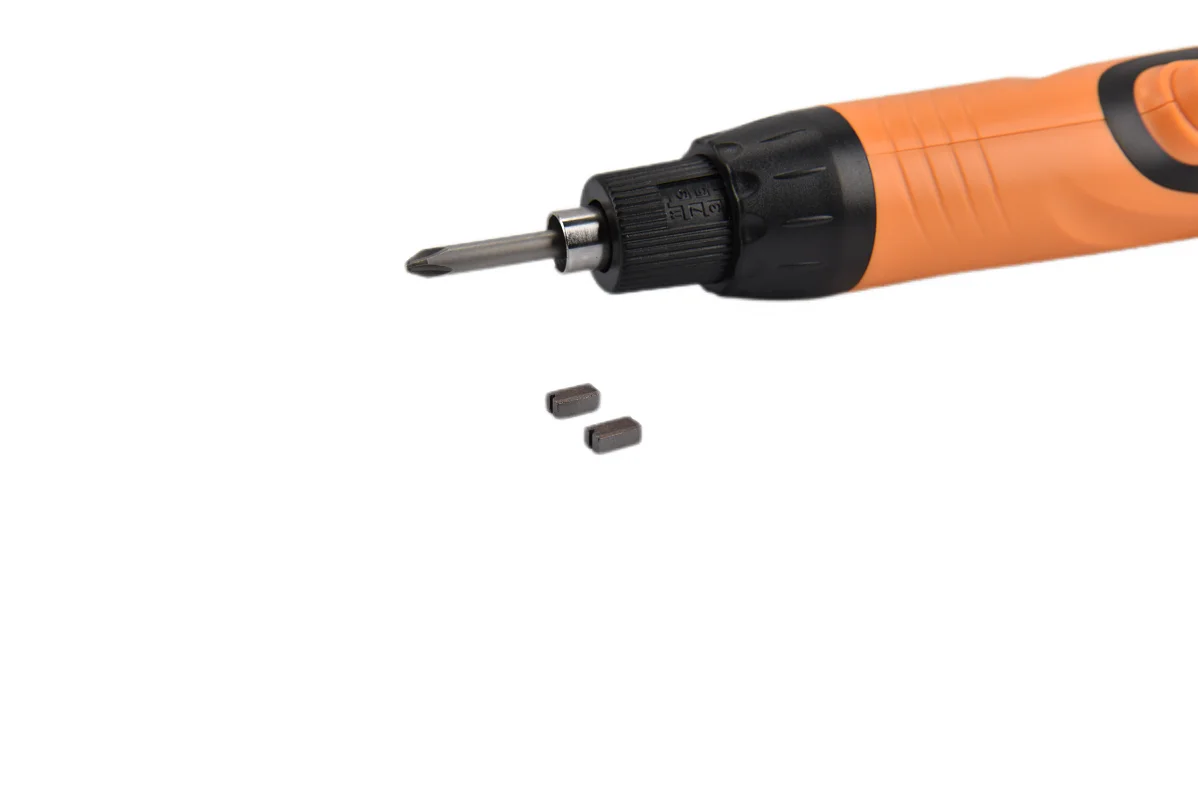

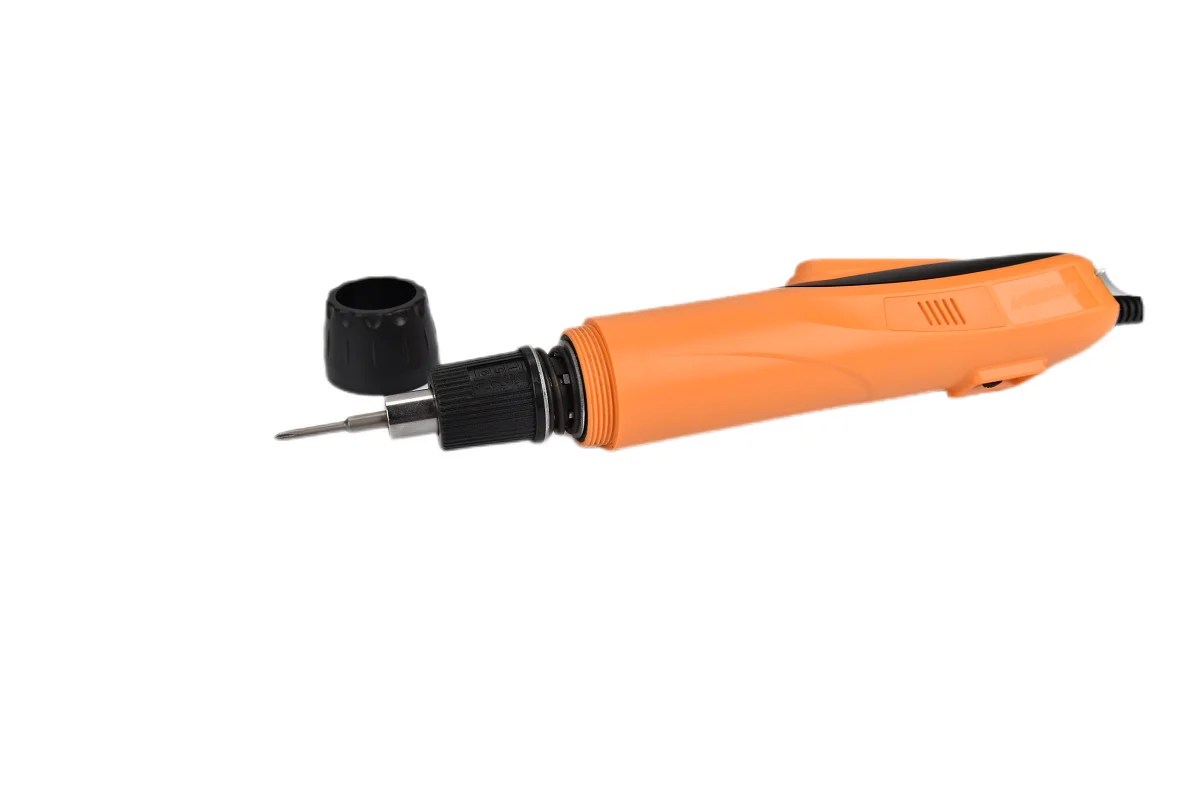

The patented motor brush replacement structure design makes the brush replacement job easier and enhance the life of motor
Technical parameter
Model | AM-620AE | AM-820AE | AM-825AE |
Power Plug | 3P | ||
Input voltage(v) | AC 20V | ||
Rated power(w) | 36 | ||
No-load Speed (RPM) | 850 | ||
Torque(kgf/cm) | 2~13 | 6~25 | 6~25 |
Torsion accuracy | ±5% | ||
Screw bit(mm) | D4 | ||
Screw size(mm) | 1.6~5 | 1.6~6 | 1.6~6
|
Full-automatic | NO | ||
Start-stop method | Button | ||
N.W. (KG) | 0.53 | ||

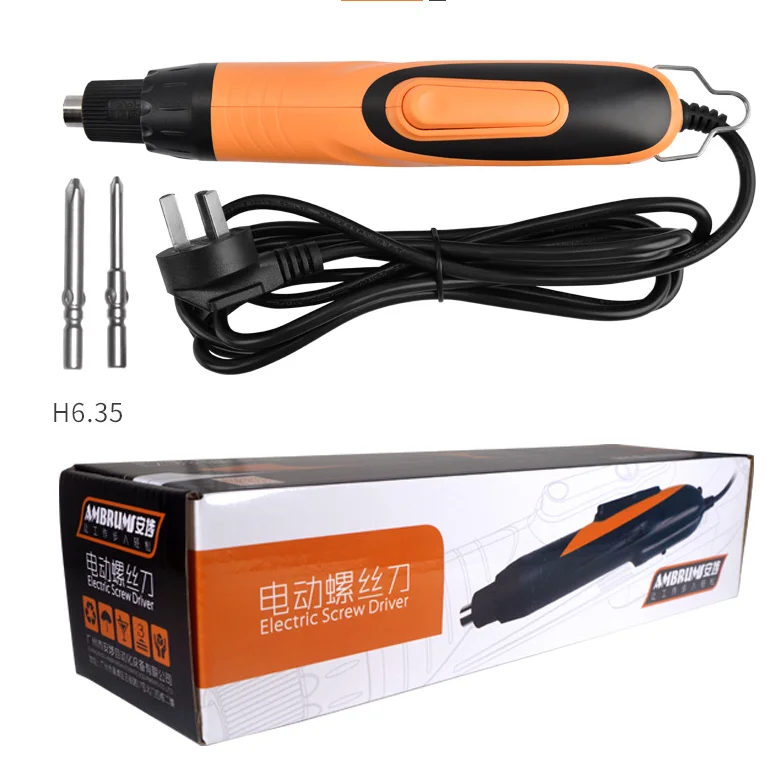

Standard accessories | |||
Bits D5X60X2# | 1 | ||
Bits D5X60 D3X20X1# |
1
| ||
Optional Accessories | |||
Balancer AM-SC30 | yes | ||
Screw feeder | yes | ||
