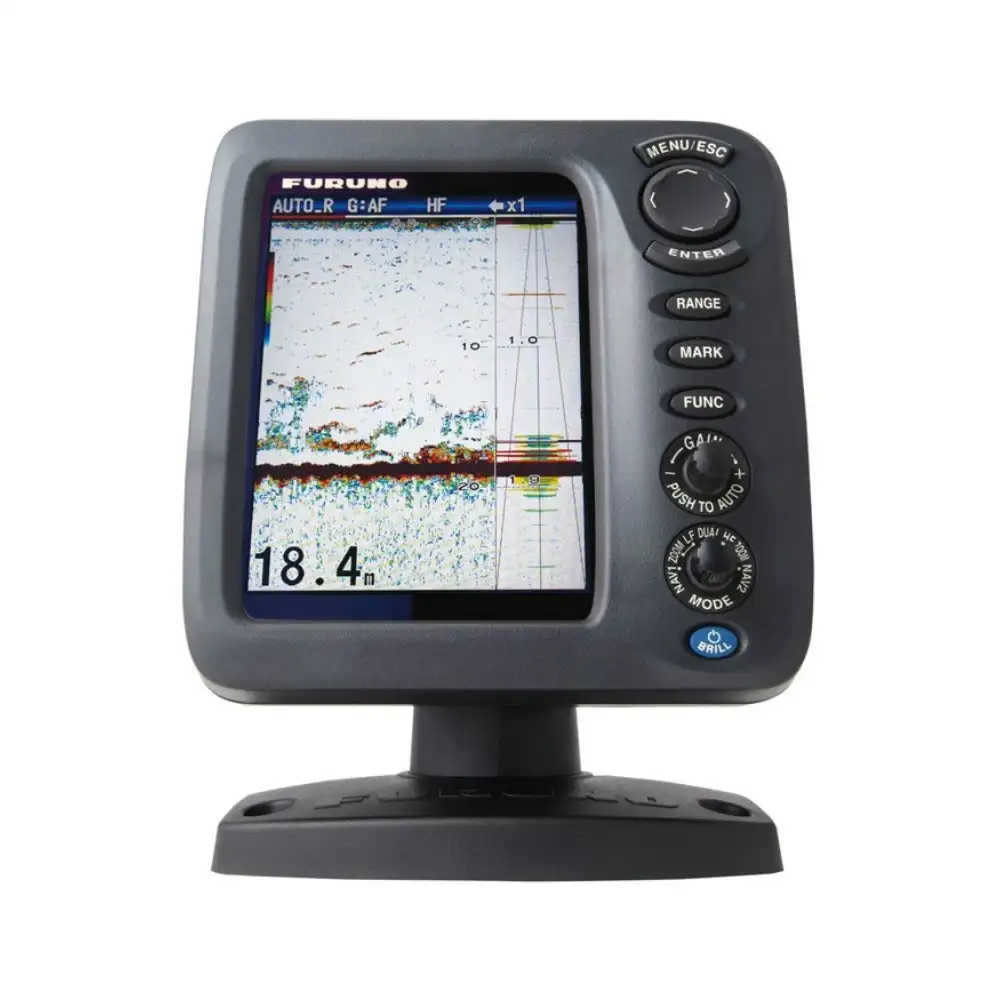

Furuno FCV 10.4 FCV628 FishFinder
- Category: >>>
- Supplier: Discovery Future Co. Ltd.
Share on (1600294355288):
Product Overview
Description
Specifications
DISPLAY
- Display unit
- 5.7 TFT color LCD
- Pixel number
- VGA 480 x 640
FISH FINDER
- Frequency
- 50 and 200 kHz
- Transducer
- 600 W
- Range Scale
- 2-1200 m
- Pulselength & PRR
- 0.04-3 ms, Max 3,000 pulse/min
- Display Mode
- Single frequency (50 or 200 kHz), Dual frequency, Zoom, Nav data, A-scope, Marker zoom, Bottom zoom, Bottom-lock, Bottom Discrimination, ACCU-FISH™, RezBoost™
- ACCU-FISH™
- Bottom Discrimination
OTHERS
- Waterproofing
- IP56
- Power Supply
- 12-24 VDC, 11-0.5 A
- Size
- 207 (H) x 170 (W) x 132 (D)
- Weight
- Bracket Mount: 1.3 kg
Flush Mount: 0.9 kg
Equipment List
Standard
- DISPLAY UNIT FCV-627-E1 UNIT
- CABLE ASSEMBLY1 PC
- INSTALLATION MATERIALS AND STANDARD SPARE PARTS1 SET
Option
- TRANSDUCER 525STID-MSD (USA)600 W, 8 M
- TRANSDUCER 525TID-PW (USA)600 W, 8 M
- TRANSDUCER EXTENSION CABLEMJ-A10SPF/SRMD-100
- SPEED/TEMPERATURE SENSOR
ST-02MSB (USA)10 M - SPEED/TEMPERATURE SENSOR
ST-02PSB (USA)10 M - TEMPERATURE SENSOR
T-02MSB10 M - TEMPERATURE SENSOR
T-02MTB10 M - TEMPERATURE SENSOR
T-03MTB10 m
