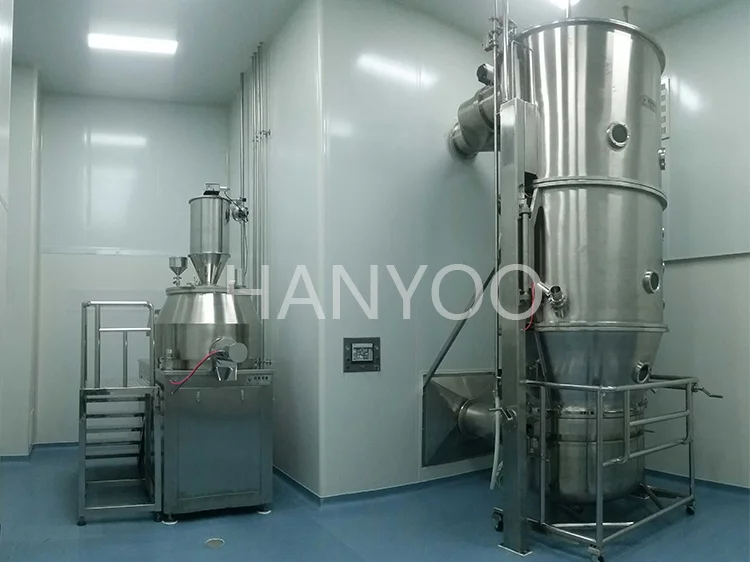

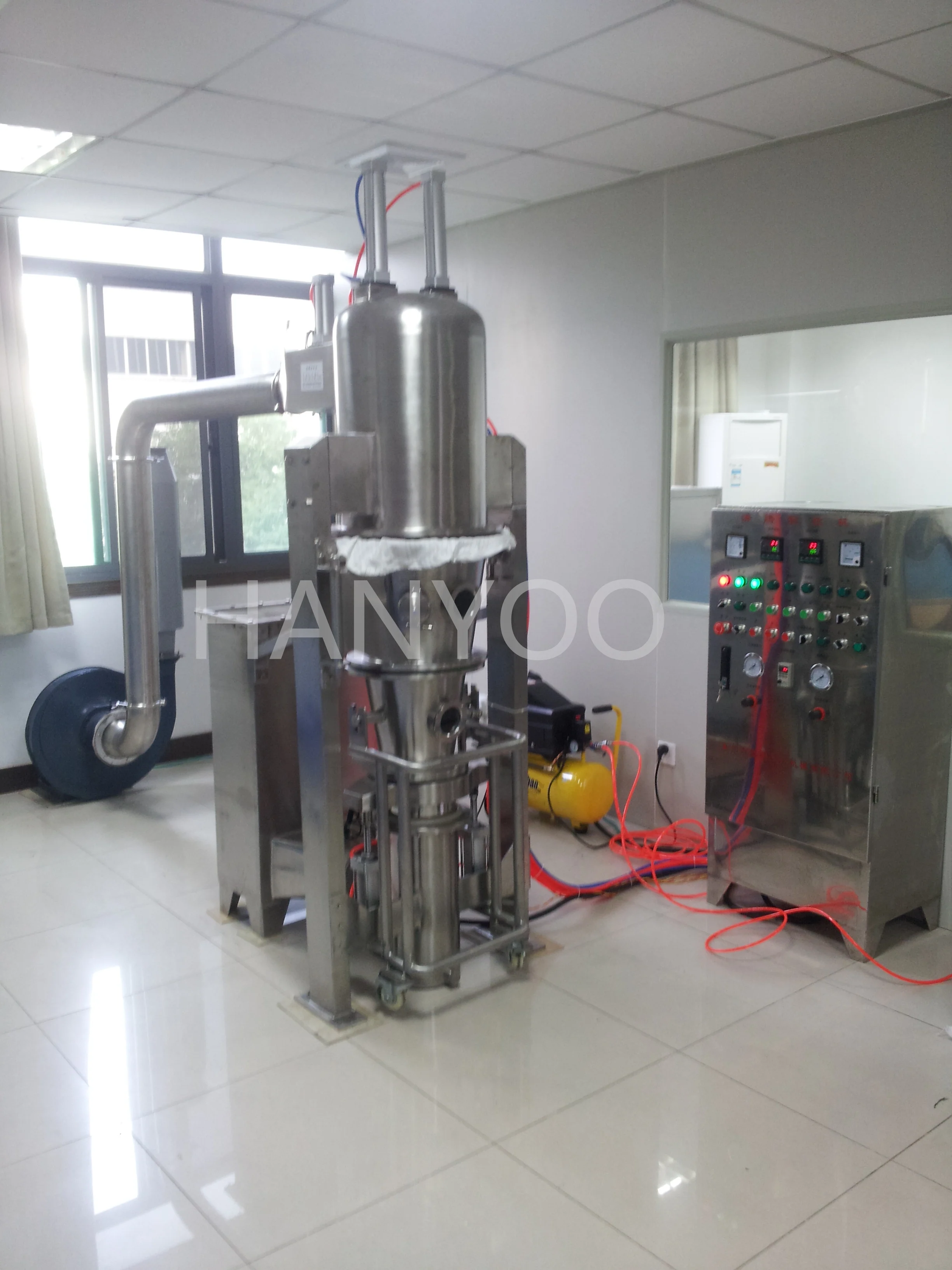

GHL Series One Step Fluid Bed Granulator High Speed Rapid wet Mixing Fluidized Fluid Bed Dryer Rranulator Machine
- Category: >>>
- Supplier: Jiangsu Hanyoo Pharmatech Co. Ltd.
Share on (1600294467494):
Product Overview
Description
Products Description

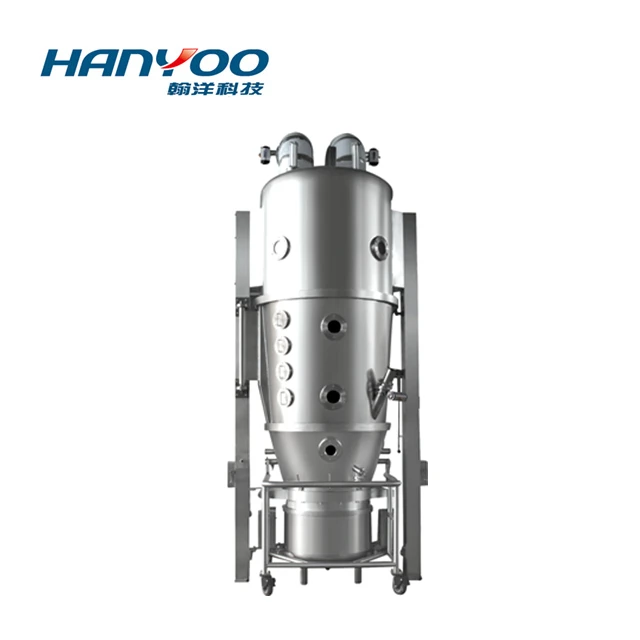

Fluid Bed Granulator (One-step Granulating)
The machine is one of the process equipment commonly used in the production of solid preparations in the pharmaceutical industry. It has various functions such as mixing, granulating and drying. It is also widely used in such industries as medicine, chemical industry and food etc.
The machine is composed of main machine, air handing system, heating system, slurry handing system and control system.
WORKING PRINCIPLE

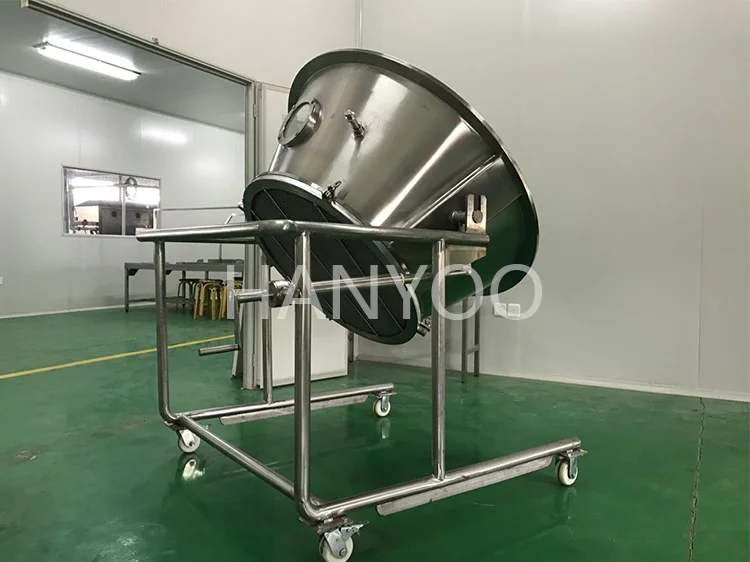

The machine is composed of main machine, air handling system, heating system, slurry handling system and control system. When it works, the materials are fed into the silo of the fluid bed granulator, and after the programs and parameters are set according to the process requirements, the machine starts to work. After filtered by the air handling system and heated by the heating system, the air enters the main machine. After going through the slurry handling system, the slurry is sent to the spray gun and sprayed to the materials inside the cavity, and then is bonded with powder to form granules. After the operation is completed according to the set programs and parameters, the silo is pushed out and connected with the lifting material transferring machine for lifting discharging or the vacuum feeder is used to pump the materials to a high position for granule sizing by the granule sizing machine, so as to effectively control dust pollution and cross contamination.
The machine is composed of main machine, air handling system, heating system, slurry handling system and control system. When it works, the materials are fed into the silo of the fluid bed granulator, and after the programs and parameters are set according to the process requirements, the machine starts to work. After filtered by the air handling system and heated by the heating system, the air enters the main machine. After going through the slurry handling system, the slurry is sent to the spray gun and sprayed to the materials inside the cavity, and then is bonded with powder to form granules. After the operation is completed according to the set programs and parameters, the silo is pushed out and connected with the lifting material transferring machine for lifting discharging or the vacuum feeder is used to pump the materials to a high position for granule sizing by the granule sizing machine, so as to effectively control dust pollution and cross contamination.
Technical Parameter
Model | FL-5 | FL-10 | FL-20 | FL-30 | FL-60 | FL-120 | FL-200 | FL-300 | ||||||||
Raw material vessel volume (L) | 27 | 35 | 73 | 112 | 220 | 566 | 739 | 976 | ||||||||
Production (kg/h) | 5 | 15 | 20 | 30 | 60 | 120 | 200 | 300 | ||||||||
Steam | Pressure (Mpa) | 0.4-0.6 | ||||||||||||||
Consumption (kg/h) | 45 | 80 | 116 | 116 | 240 | 380 | 420 | 520 | ||||||||
Compressed Air | Pressure (Mpa) | 0.4-0.7 | ||||||||||||||
Consumption (kg/h) | 0.3 | 0.6 | 0.9 | 0.9 | 0.9 | 0.9 | 1.5 | 1.5 | ||||||||
Fan Power(KW) | 7.5 | 7.5 | 11 | 11 | 18.5 | 22 | 30 | 37 | ||||||||
Overall Size(mm) | W | 1200 | 1480 | 1660 | 1890 | 2090 | 2290 | |||||||||
H | 3760 | 4000 | 4420 | 4540 | 5100 | 5180 | ||||||||||
H1 | 3270 | 3600 | 3690 | 4230 | 4315 | 4420 | ||||||||||
Dia | 800 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | |||||||||
Product Details
Company Profile
Jiangsu Hanyoo Pharmatech Co., Ltd. is a high technology enterprise which has strong research, production, sales and service team.We are specialized in providing the first class packaging solution and packaging equipment for food, medicine, cosmetics,electronics industrials. We have more than 16 years R & D experience in the automation equipment researching and production.
Our factory is located in No.380 Sanqiaogeng Road, Yangjiang Town, Gaochun District, Nanjing city, which occupied more than 12,000 square meters with modern workshop. We also has sales office in Nanjing South Railway Station, which is very convenient for customer visiting.
The company main products are capsule filling machines, tablet press machine, blister packaging machines, cartoning machines,granulator, coating machine, blending machine etc, We have a number of inventions patented technology, with leading R & D team,with a variety of high-precision processing equipment and quality testing team to provide product quality assurance. We also have a pre-sale consulting, packaging solution consulting, and worker training service, which strive to provide star service.
The company passed SGS and ISO9001:2016 certification, the products passed through the EU CE certification. We also have import and export right.
Now, with the efforts of all staff in Hanyoo, our products sold to more than 30 provinces in China and exported to over than 100 countries in the world such as, the United States, Canada, Russia, Britain, Germany, Spain, Malaysia, Indonesia, Thailand, India,Brazil and other dozens of countries and regions, and we won good reputation and credibility.
Since over 16 years development, company has been adhering to the "no best, only better", relying on the superb technology,sincere credit, careful service, to make the bright future with our clients. With the goal of "Creat International Brand, Creat Century Enterprise !
Now, with the efforts of all staff in Hanyoo, our products sold to more than 30 provinces in China and exported to over than 100 countries in the world such as, the United States, Canada, Russia, Britain, Germany, Spain, Malaysia, Indonesia, Thailand, India,Brazil and other dozens of countries and regions, and we won good reputation and credibility.
Since over 16 years development, company has been adhering to the "no best, only better", relying on the superb technology,sincere credit, careful service, to make the bright future with our clients. With the goal of "Creat International Brand, Creat Century Enterprise !
