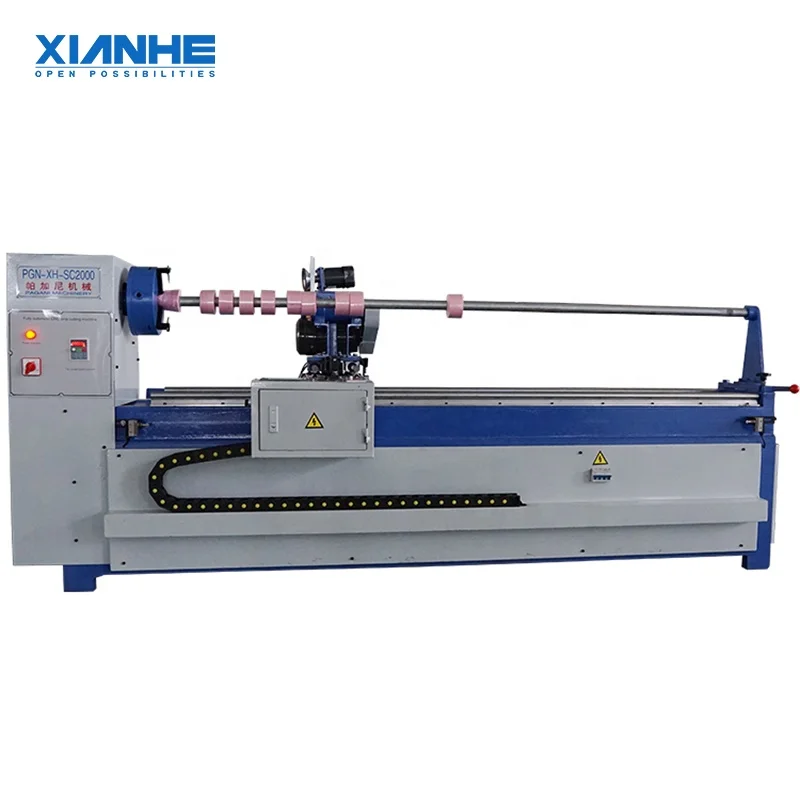

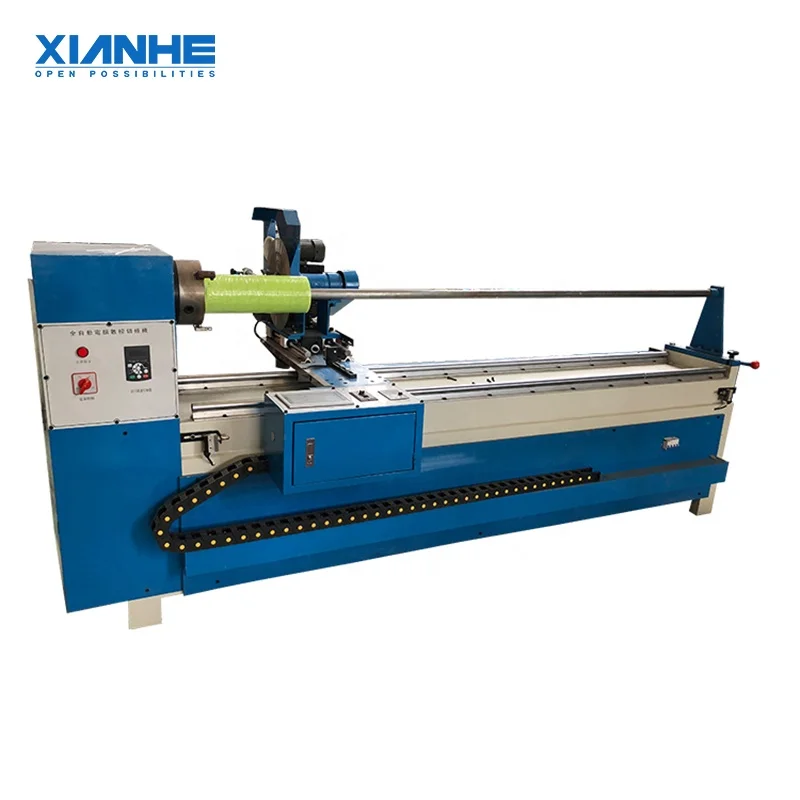

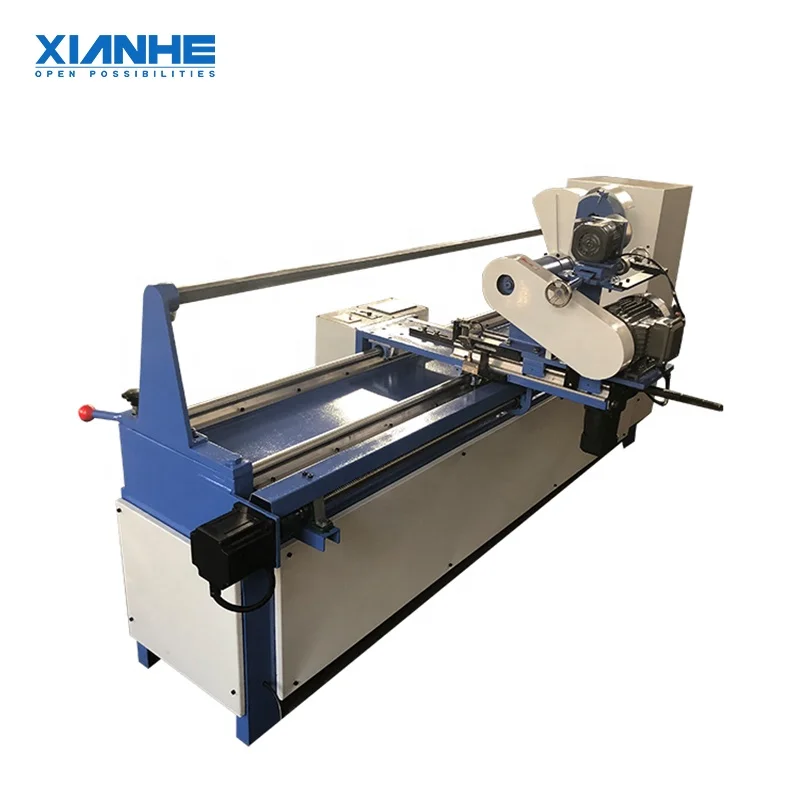

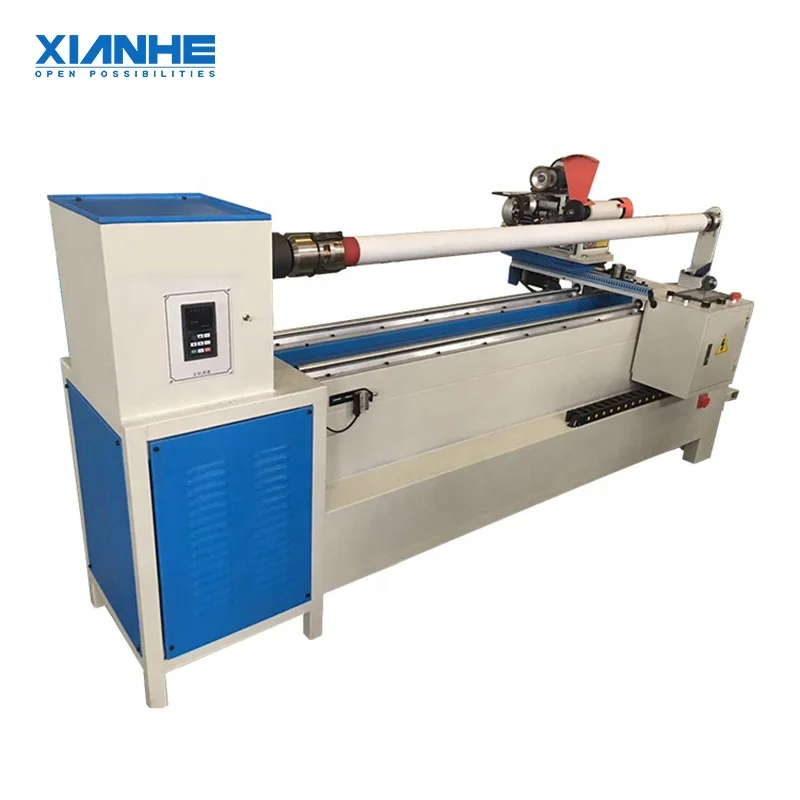

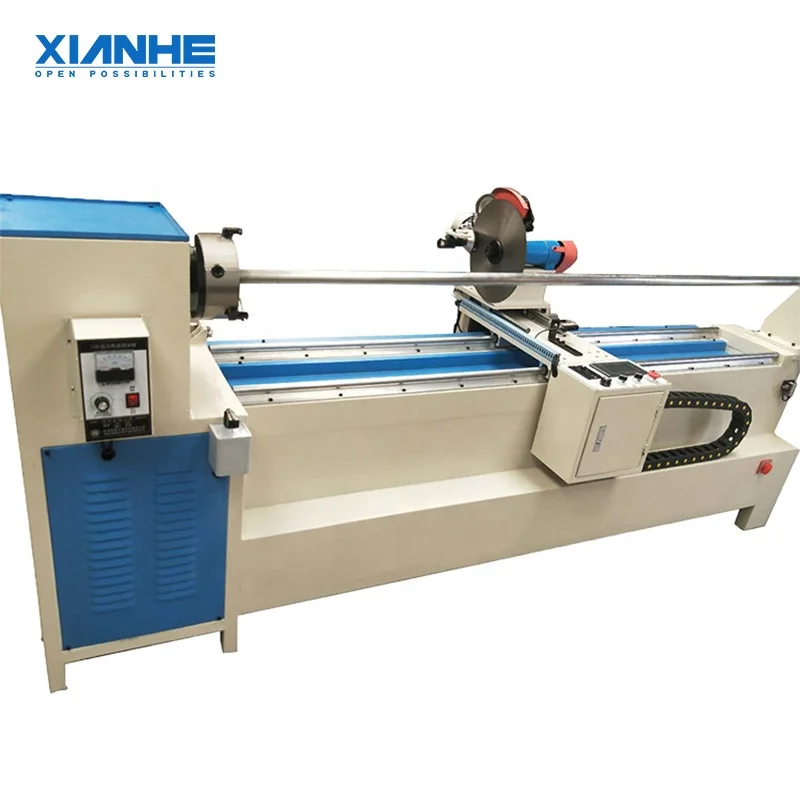

Auto fabric roll slitting machine high speed slitting and rewinding machine
- Category: Cloth Cutting Machines >>>
- Supplier: Jiangsu Xianhe Machinery Manufacturing Co. Ltd.
Share on (1600294497384):
Product Overview
Description
Product Description
| The features and advantage |
1.Spindle power use stepless variable speed system, which can be used for high and low adjusting speed and positive &negative switching control to achieve best cutting quality
2.Adopting high precision stepping system to control cutting width, Cooperating with precision ball screw and slide rail in Taiwan to reach to high precision cutting.
3.Using horizontal pushing for cutting cloth
4.Interface uses Chinese and English LCD display ,we can directly input the cutting width quantity setting and action setting.
| Techinical Parameters |
Material width (mm) | Material roll (mm) | Inner diameter (mm) | Diameter (mm) | Power (kw) | Voltage (V/Hz) | Dimension (L*W*H)mm | |
XH-002 | 1000 | 400 | 80 | 75 | 3.25 | 380/50 | 2060*1200*1600 |
XH-002 | 1700 | 300 | 38 | 36.5 | 3.25 | 380/50 | 2760*1200*1350 |
XH-002 | 1900 | 360 | 70 | 55 | 4.5 | 380/50 | 2960*1300*1520 |
XH-002 | 2200 | 600 | 80 | 70 | 4.8 | 380/50 | 3260*1350*1650 |
XH-002 | 2400 | 320 | 38 | 36.5 | 4 | 380/50 | 3260*1250*1400 |
XH-002 | 2600 | 400 | 51 | 48 | 4.25 | 380/50 | 3480*1450*1520 |
XH-002 | 2800 | 500 | 80 | 70 | 5.5 | 380/50 | 3700*1500*1610 |
| Usage of slitting machine |
Suitable for all kinds of width cutting of fabrics, non-woven cloth, linings, interlinings, foam, leather, reflective materials, paper, plastic, acetic acid cloth, reinforcing tape, conductive cloth and so on. Widely used in garment, shoes and hats, bags, clothing accessories factory, swimwear factory, tent factory, umbrella factory, reflective materials factory, home textile products and other industries.
