Onekin green precast wall panel is a new type precast non-flammable material made of magnesium oxide, which is a natural fireproof material. When compared with other similar materials, Onekin precast wall panel offers a number of benefits as below list shows:
More information you can visit our google website you know us:www.wallpanel-supplier.com
Brand
Onekin
fireproof
Up to 4 hours
Thermal conductivity
0.17w/m.k
Lightweight
36kg/m2
Soundproof
Can reach up to 51dB
Eco - friendly
No asbestos, no formaldehyde
Fast installation
40m2/day/worker
Cost saving
10%~13%
Energy saving
Up to 80%
Certificates
TUV, ASTM, CE etc
Water absorption
22%

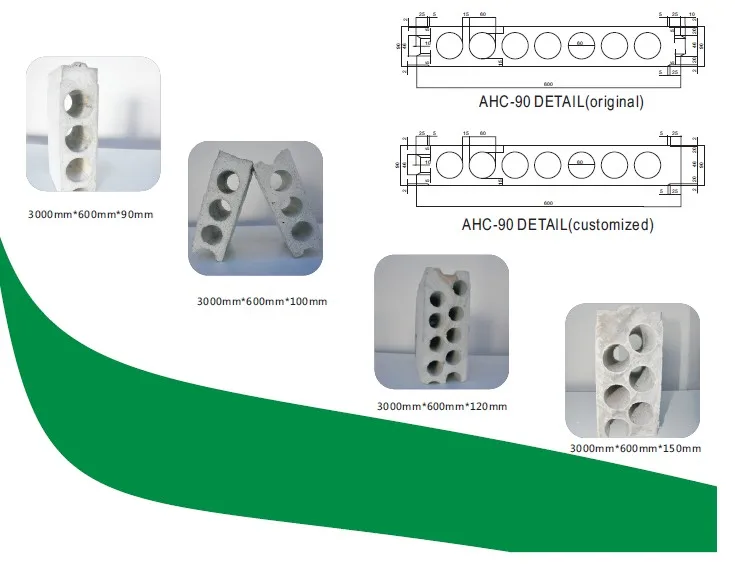

Standard size
2800*600/2900*600
Thickness:
90mm/100mm/120mm/150mm/200mm

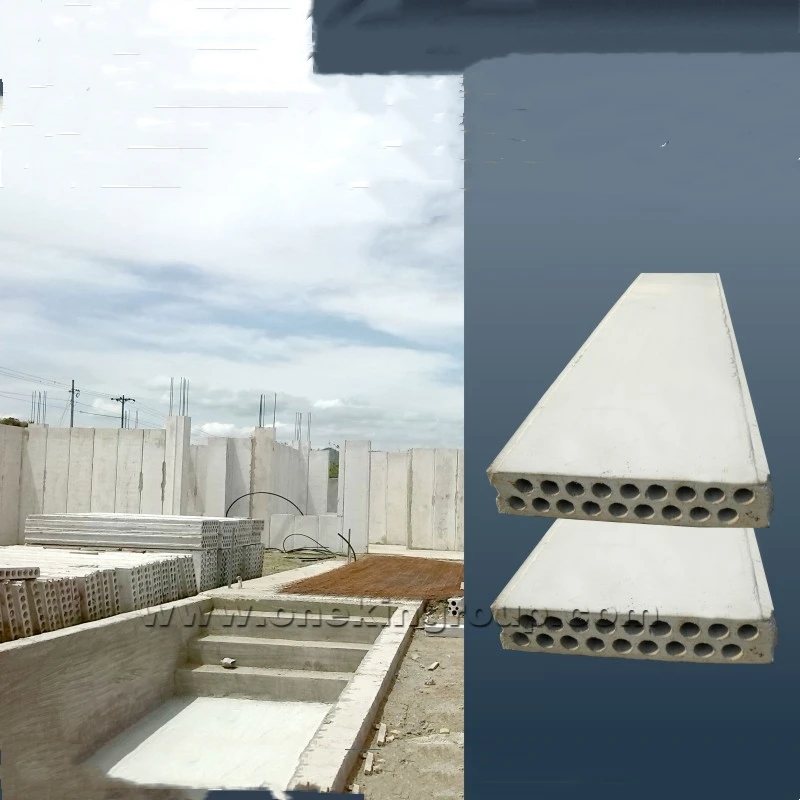

Detail images of Onekin precast wall panel:
Raw materials of Onekin precast wall panel:
Onekin wall panel use magnesium oxide, magnesium chloride, planter fiber, fly ash as raw materials. The highly purified magnesium oxide is used as the main fireproof material,fly ash and plant fiber as filling materials, the high quality MgC12 as the main cementing material to solidify other materials. All the raw materials of our panel as you can see are green and inorganic materials, that is the reason why Onekin wall panels also called GREEN PANEL.
Application&Project

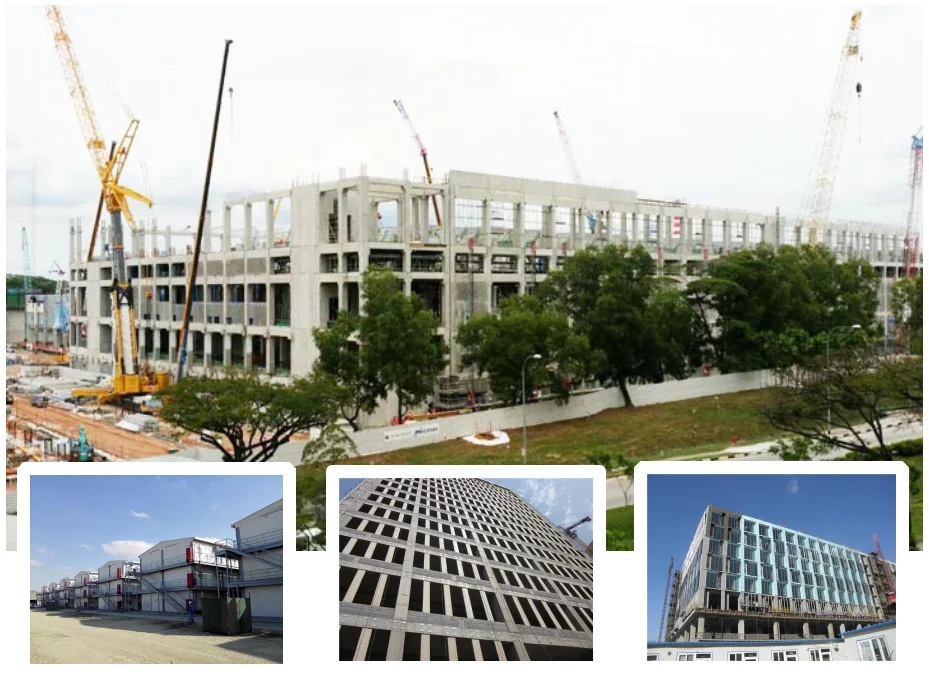

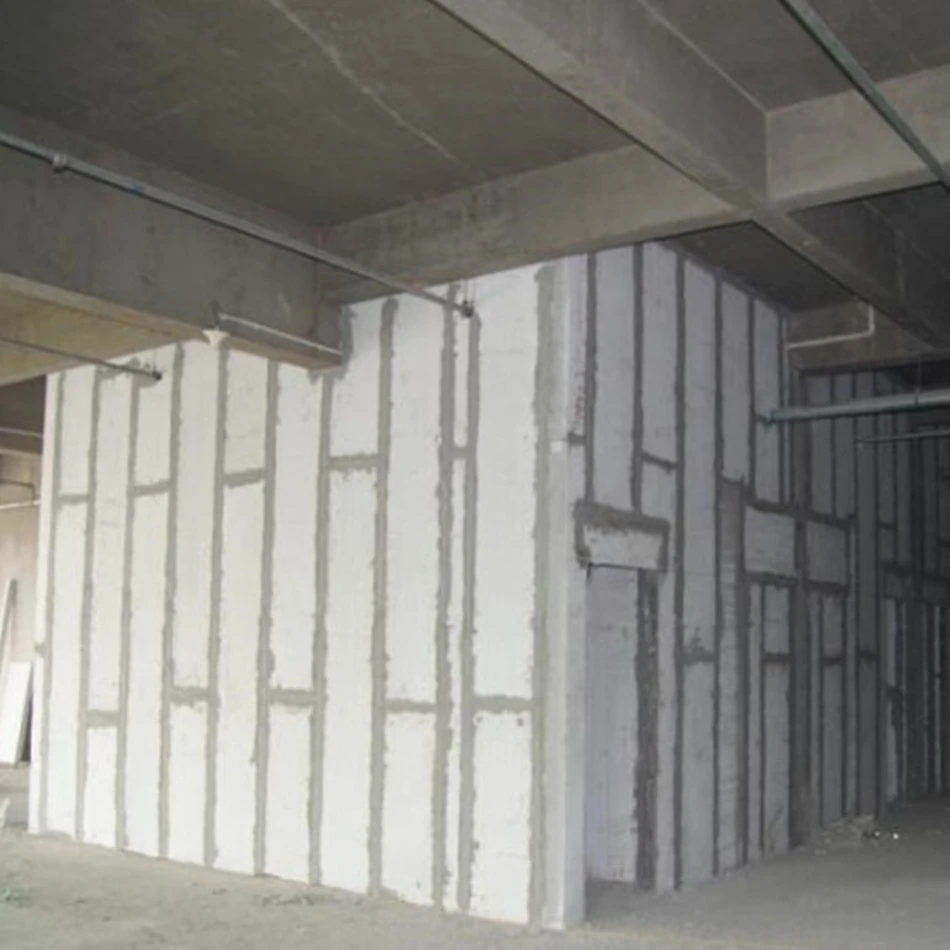

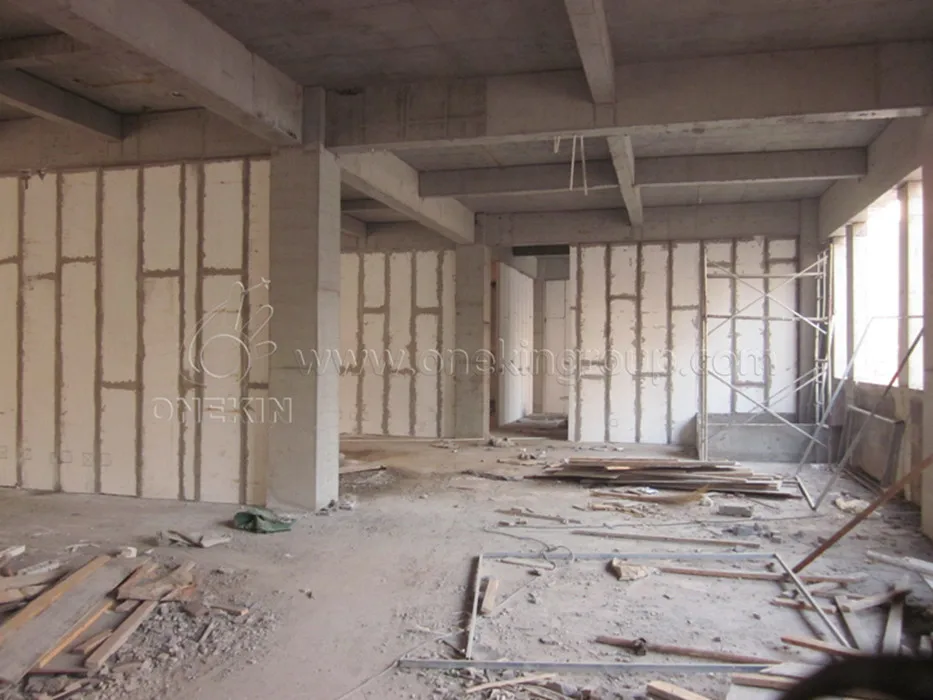

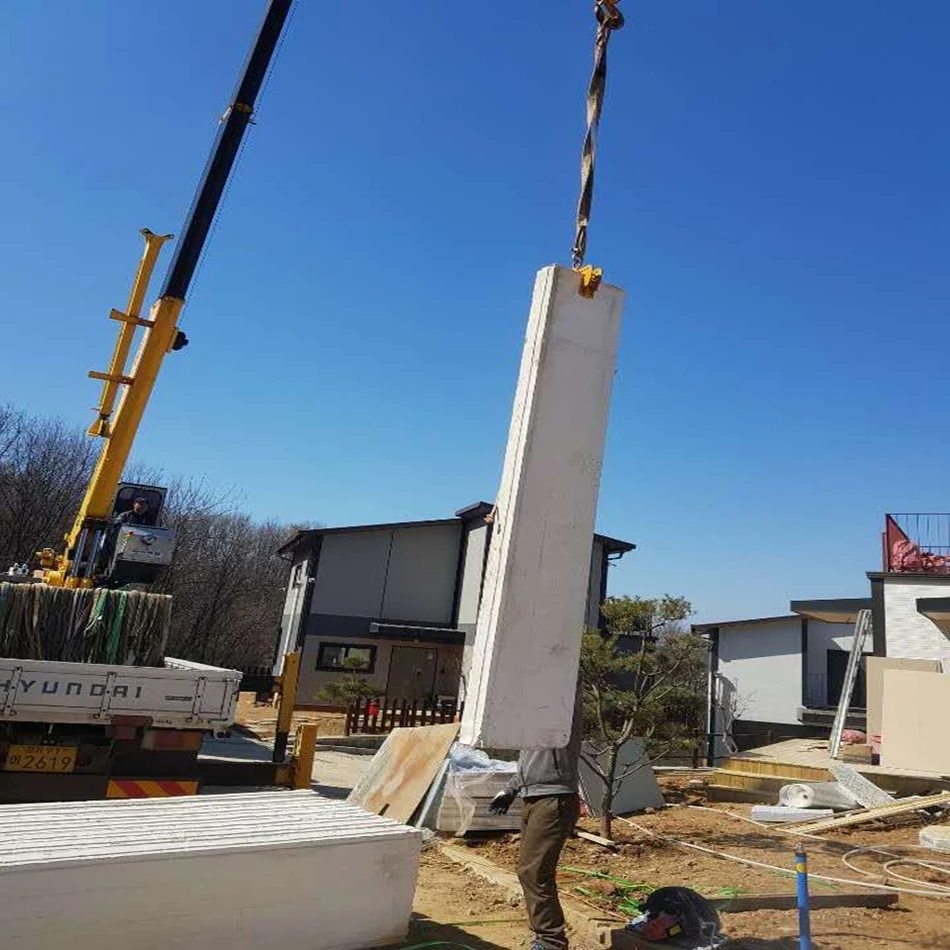

Project feedback & Application of Onekin precast wall panel:
Onekin green precast wall panel is widely used in many projects instead of traditional building materials like bricks, hollow block, gypsum board, cement panel etc. Below shows the project feedback from our customer.
For different structure:
1. Concrete structure
2. Timber/wood structure
3. Steel structure

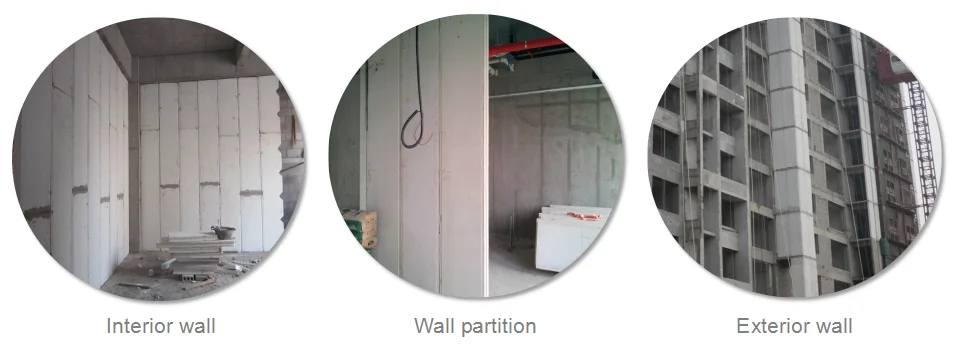

For wall system:
1. Interior wall panel
2. Exterior wall panel
3. Wall partition panel
For different story:
1. High rise
2. Middle rise
3. Low rise
Advantages
Fireproof
Onekin green precast wall panel is a non-combustible building material. The fire endurance of Onekin green wall panels can reach 4 hours in accordance with Chinese National Standard.
Lightweight & high strength
Onekin green precast panel is lighter than any other traditional panels, such as cement block, concrete block, cement panel etc.
Faster installation
Onekin green precast panel with tongue and groove design enables 3-5 times faster installation compared with that of cement panel, or bricks. It can be easily saw, cut, drilled and taped. One skilled worker can install about 40m2 per day.
Lower cost
As Onekin green precast panel is lightweight and fast installation, it can reduce the cost on the labor, foundation, structure and transport. It’s fast installation make it can significantly shorten the construction period and project cost. According to our data, using Onekin green panel can reduce up to 30% total cost.
Thermal insulation
Thermal conductivity for Onekin green precast wall panel is 0.17w/mk,while cement panel is 0.66w/mk. According to a Korean customer test, for the house built by green panel, electricity consumption is about 2 kWh per day, while for cement panel house, it is about 10 kWh per day, which means our green wall panel can save up to 80% energy.
Environmental friendly & Waterproof
Onekin green panel used 100% green raw materials do not contain harmful factor to human body, it’s without asbestos and non-radioactive, and does not contain formaldehyde, free of heavy metals and other harmful substances. It don’t release poisonous gas under the high temperature of 1000 degrees. Meantime, Onekin green panel can make any waterproof surface, 22% water absorption rate allow it to used in wet environment
Certificates
Onekin is a professional mgo products supplier with 13 years’ experience, we are expert manufacturer of fireproof wall panel, waterproof wall panel, lightweight wall panels, wall partition panels and ceiling panels, we can provide certificates including ASTM, TUV, CE etc.
Company Information
Factory:
Our factory covers an area of about 18000 square meters, including panel producing department, foaming agent production department, equipment maintain department and other 3000 square meters for offices and laboratory.
Company:
Onekin always follows the principle of “Customers First, Employees second, Shareholders last.” It is a fast growing company, supplying high quality of products with full ranges of after sale services. It consists of different professional teams including: 1. Technology research center to ensure the formulation and product’s innovation. 2. Strict Quality control team to ensure high quality. 3. Engineering team with architectural design and installation to ensure the smooth project development. 4.Professional international sales team to ensure effective communication and transaction. 5. Full ranges of after sales service system to solve problems quickly.
Onekin green precast wall panel has been used in many projects around the world, and we have many customers visiting our office and factory. If you are interested with our precast wall panel, welcome to visit our company.
Q&A
wall panel
1. what is mgo wall panel
mgo wall panel is made magnesium oxide wall panel,which is a non-combustible material. Similar products with AAC, EPS and concrete wall panel.More details,please check attached catalog.
2. what the specific
length: 2400-3500mm, width:600mm, thickness: 75/90/100/120/150/200mm. Customized size available
3. how to install onekin wall panel
this is our wall panel installation video.
4. what is the weight of wall panel and one contaner loading
Onekin wall panel is a lightweight, the weight of 100mm thickness is 45kg/m2, loading for 40HQ is 352 pcs.
5. i want to use it for floor
onekin wall panel is non-bearing, not siggest to use for floor. for 2 floor house, if use Onekin wall panel as floor, at leat need 100mm wall panel + 8mm reinforced-concrete structure.
6. Can you produce 7m length
May i know what aew you going to use the wall panel for? 7m is too longth, currently and max length we can do is 3.5m, you can use splicing installation, by connect two panels. 7m panel is too long and too heavy, not easy for installation and transportation.
7. Does your panel heat insulaion?
Our panel has lower thernal conductivity 0.1739w/mk, can make the room warm in winter and cool in summer. But our panel is not insulate panel for cold room use.
8. Does it waterproof?
yes, onekin wall panel is water resistant. This is our soak testing video. We have some projects in high humidity area and near the sea. please check attached pics. Does your project in rainy area? if so, we'd like to suggest you to use waterroof coating, which can better protect the wall panel.
