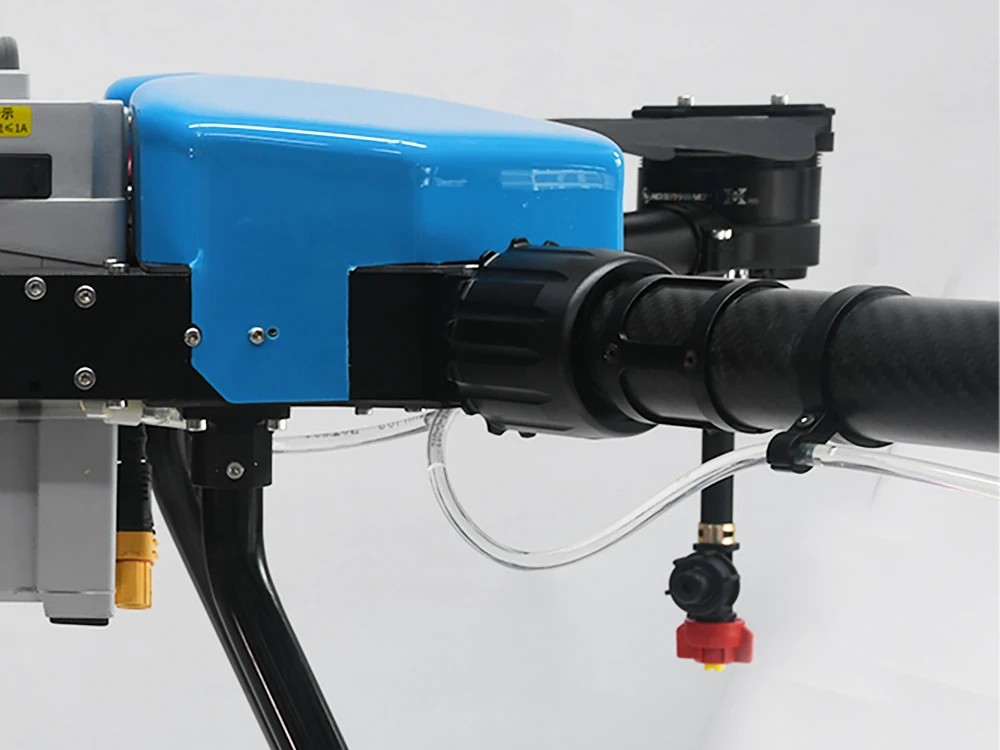

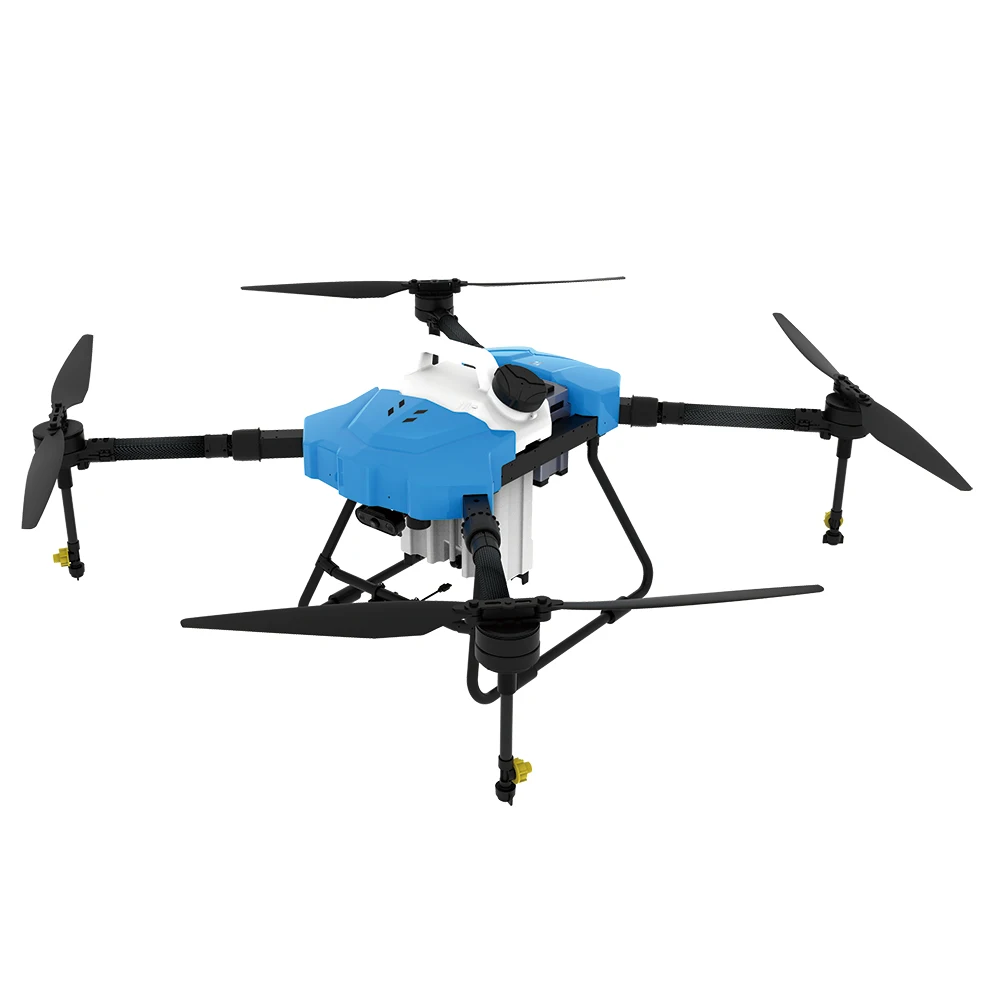

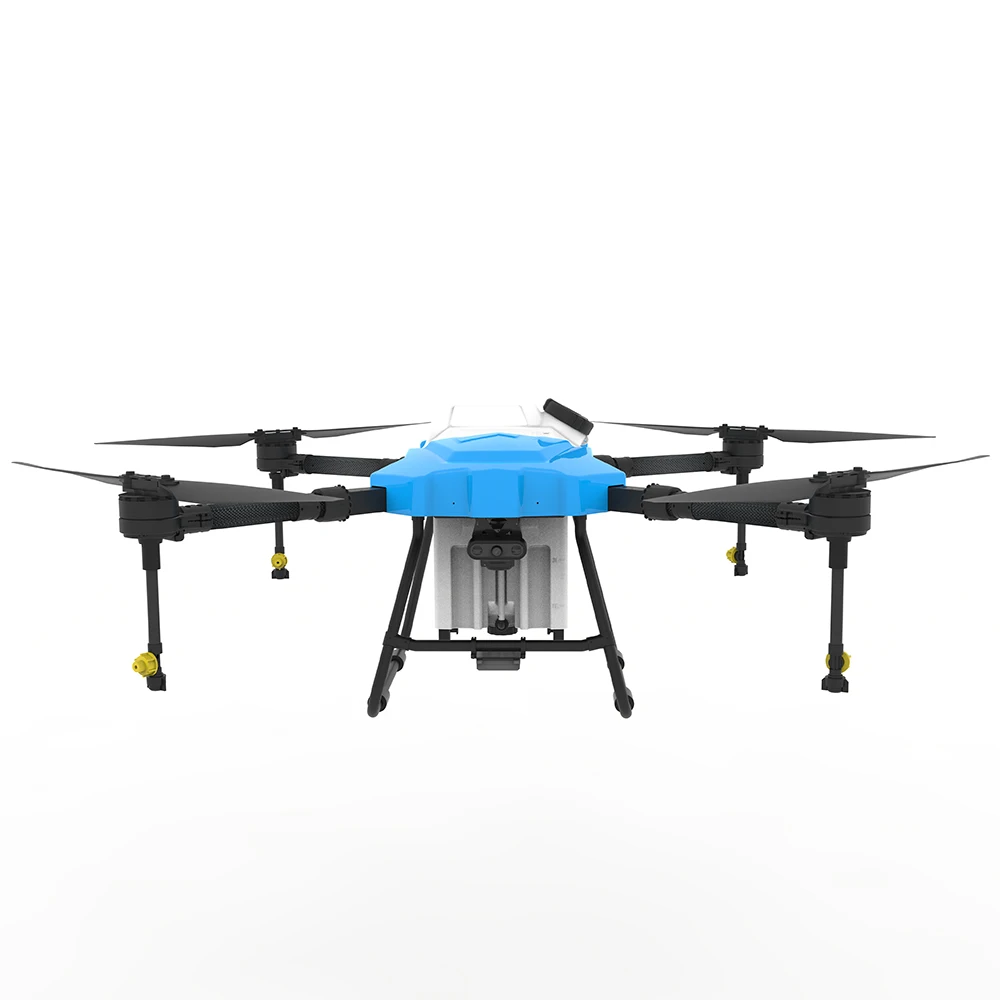

10L agricutlrual sprayer drone with camera crop protection UVA agiriculture drone aircraft agri drone
- Category: Drone Sprayer >>>
- Supplier: Yuanmu (shenzhen) Holding Group Co. Ltd.
Share on (1600294536058):
Product Overview
Description
Product Description
Wheelbase | 1460mm |
Work load | Rated 10 liters, full load: 11 liters |
battery capacity | 14S (10000mAh 58.8V) |
Maximum power | 3200 W |
Hovering power consumption | 3000 W（Takeoff weight 25 kg） |
Maximum working flight speed | 7 m/s |
Maximum Flying Speed | 10m/s |
Maximum tolerable wind speed | 8 m/s |
Maximum Flying Altitude | 2000 m |
Recommended working environment temperature | 0°C - 40°C |
Angle of View (FOV) | Horizontal: 98°, Vertical: 78° |
Resolution | 1280×960 30fps |

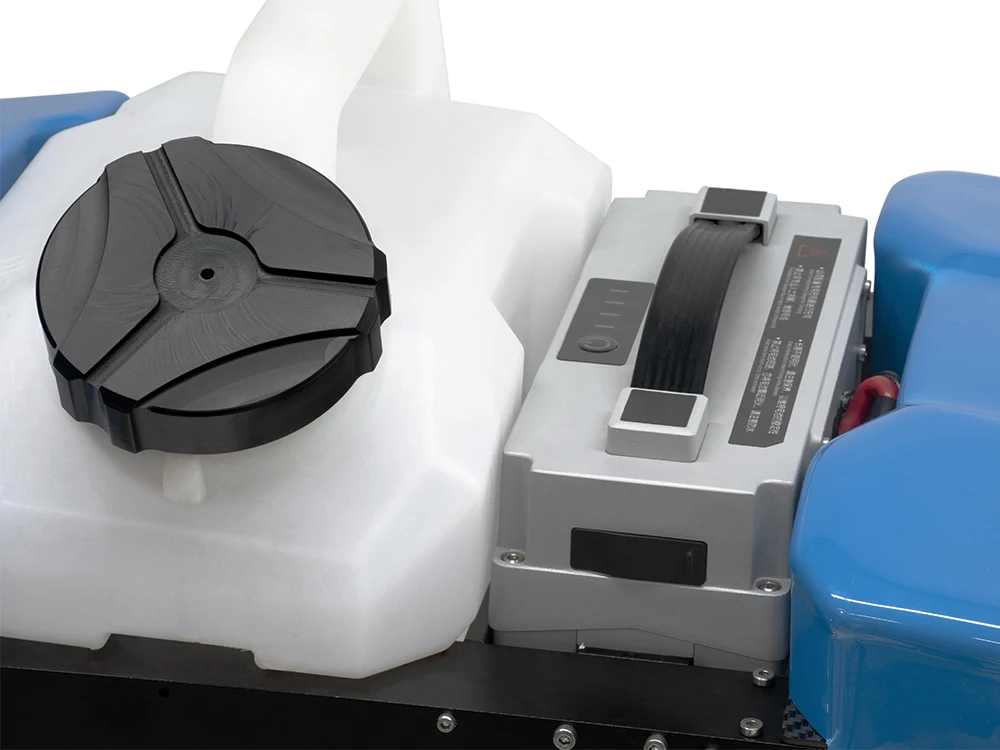

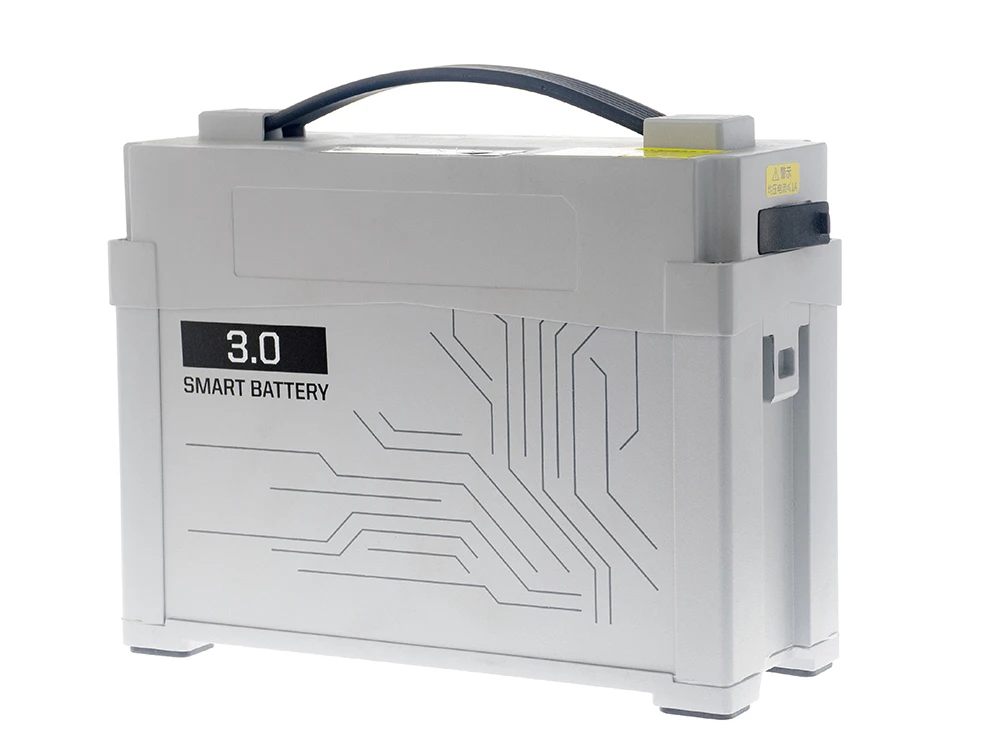

Type | RW 10A |
Volume | 10000mAh-58.8V |
Weight | 5.2KG |
Discharge rate | 3C |
Protection level | IP56 |

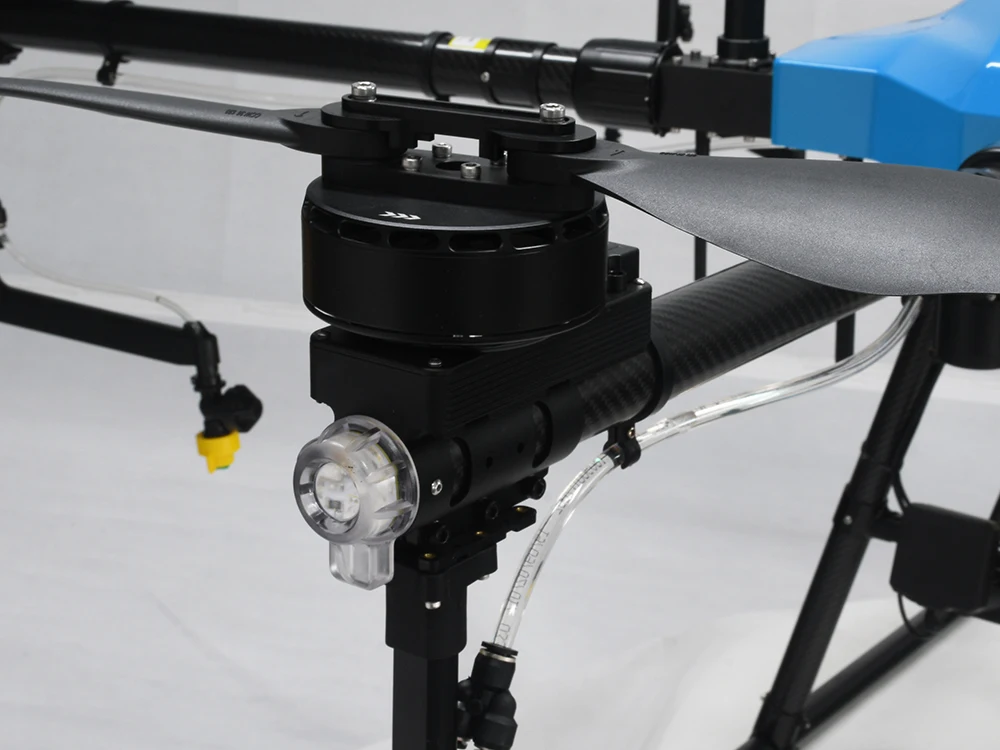

KV value | 120 rpm/V |
Pitch | 30×11 in |
material | Carbon plastic |
weight | 100 g |
Maximum working current (continuous) | 45A |
Maximum working voltage | 58.8 V（14S Li Po） |
model | T10 |

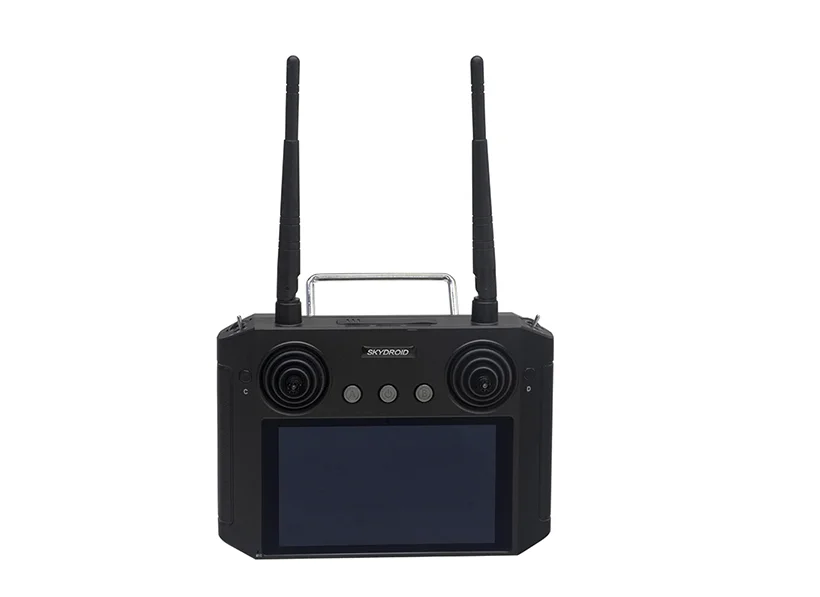

Remote control distance | SRRC/ MIC/ KCC/ CE: 1.3 km（Unobstructed） |
Charging current range | 15A-40A |
Product performance description

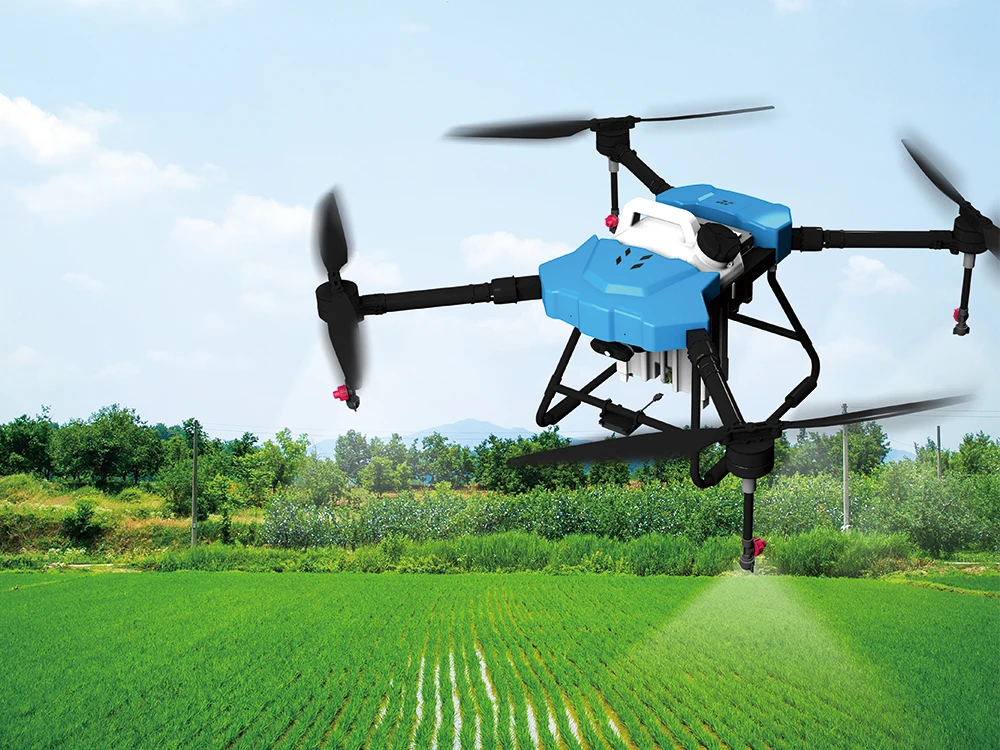

Drone Applications
YUANMU drones have been widely using for crop protection, mosquito control, and public disinfection.
Plantations: rice, corn, sugar cane, soybean, flower, coffee, vegetables, fruit trees.
Chemical use: liquid pesticide, herbicide, foliar fertilizer, fungicide, insecticides, etc.
Sprayer Drone adopts low volume technology, the pesticide droplet diameter is only 50~200um, has better atomization and penetration effect, save 90% water and 20% pesticides use.
High Efficiency: One drone can cover 50~70 hectares field per day.
Compared with plane, tractor and hand-held sprayers, drone sprayer is more efficient, reduce water & pesticides use, has less drift, keeps people away from heat-stroke and chemical poisoning.
Plantations: rice, corn, sugar cane, soybean, flower, coffee, vegetables, fruit trees.
Chemical use: liquid pesticide, herbicide, foliar fertilizer, fungicide, insecticides, etc.
Sprayer Drone adopts low volume technology, the pesticide droplet diameter is only 50~200um, has better atomization and penetration effect, save 90% water and 20% pesticides use.
High Efficiency: One drone can cover 50~70 hectares field per day.
Compared with plane, tractor and hand-held sprayers, drone sprayer is more efficient, reduce water & pesticides use, has less drift, keeps people away from heat-stroke and chemical poisoning.

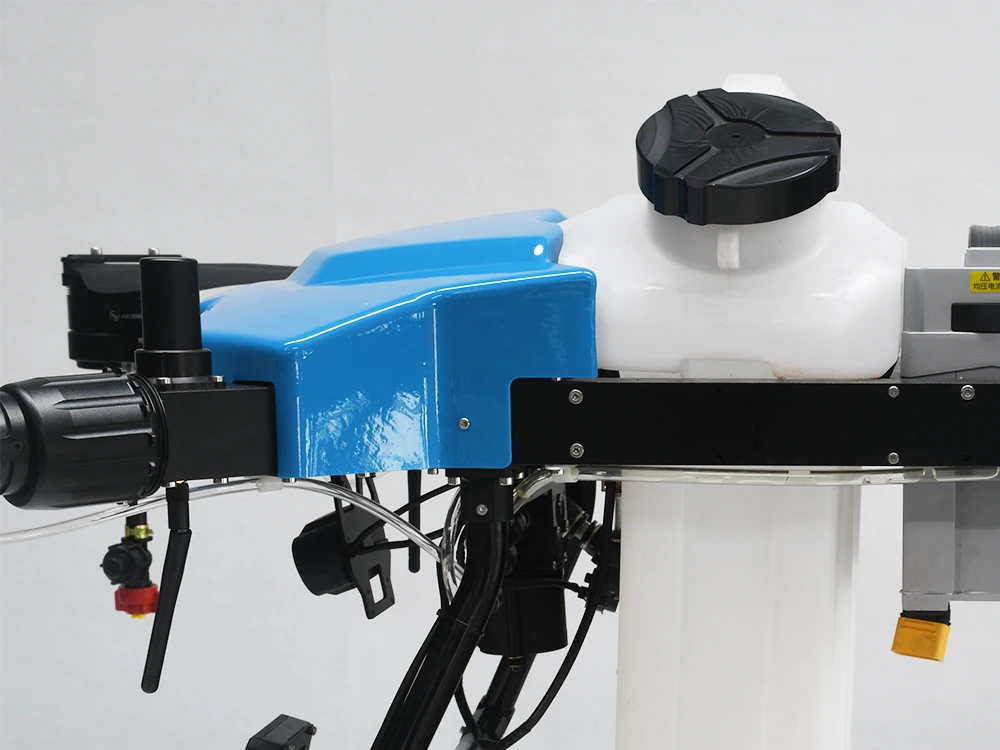

Details Images

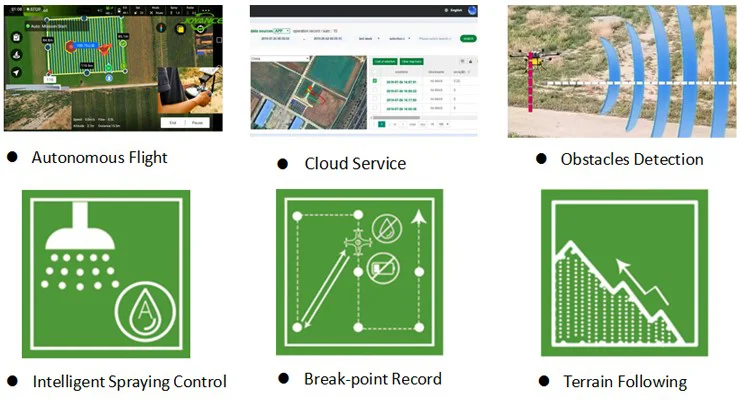

1. Autonomous Flight: Mark waypoints on Google map, program flight routes in the App, the drone will fly automatically according to the routes. The flight routes can be saved in the account for next time use.
2. Cloud Service: the spraying datas can be uploaded to cloud service platform with internet connection, and the administrator can monitor all the drones registered in this system in real time.
3. Obstacles Detection: the Millimeter wave radar on the front of drone can detect if there are any obstacles in front and stop drone flying forward to avoid any possible crash.
4. Intelligent Spraying: the spray flow can be automatically adjusted by chemical volume per hectare and fly speed.
5. Break-point Record: When the chemical runs out the drone will record break-point and continue spraying after refill.
6. Terrain Following: the Millimeter wave radar can detect the distance between drone and ground/crop surface and automatically adjust flight height to keep constant distance between drone and crops surface to get even spraying.
2. Cloud Service: the spraying datas can be uploaded to cloud service platform with internet connection, and the administrator can monitor all the drones registered in this system in real time.
3. Obstacles Detection: the Millimeter wave radar on the front of drone can detect if there are any obstacles in front and stop drone flying forward to avoid any possible crash.
4. Intelligent Spraying: the spray flow can be automatically adjusted by chemical volume per hectare and fly speed.
5. Break-point Record: When the chemical runs out the drone will record break-point and continue spraying after refill.
6. Terrain Following: the Millimeter wave radar can detect the distance between drone and ground/crop surface and automatically adjust flight height to keep constant distance between drone and crops surface to get even spraying.
Packing&Shipping

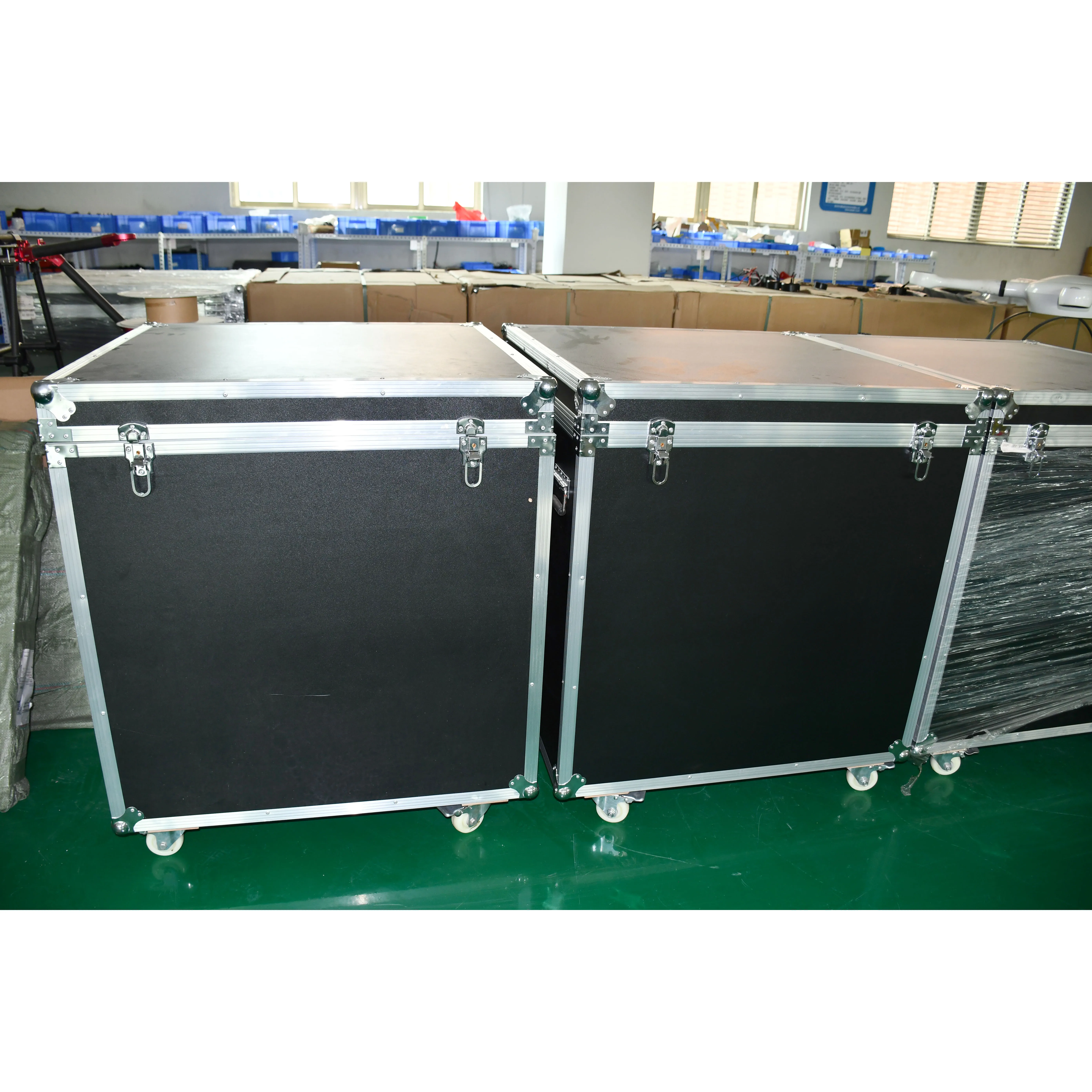

Packing:1. Drone and all the accessories are packed together in one aluminum transportation box, strong and safe.
2. Each drone will be 100% tested and record video before delivery.
Delivery:
1. Delivery time: 3-7 days for small order, 10-20 days for bulk orders.
2. Shipping Ways: by sea, by air, by express, by railway.
2. Each drone will be 100% tested and record video before delivery.
Delivery:
1. Delivery time: 3-7 days for small order, 10-20 days for bulk orders.
2. Shipping Ways: by sea, by air, by express, by railway.
Company Introduction
Yuanmu (Shenzhen) Holding Rong is a wholly-owned subsidiary of Yuanmu Group. Relying on the resources advantages of Yuanmu Group's international and innovative large platform,since its establishment in 2019, the company has integrated global high-quality resources to systematically build a global agricultural ecological platform with plant protection drones as the core for enterprises/individuals. At the same time, Yuanmu Shenzhen is actively exploring the innovative applications of drone technology and unmanned vehicle equipment in the fields of intelligent cruise management, digital land surveying and mapping systems, and fire and police integration solutions, and is committed to providing customers with comprehensive system integration solutions.

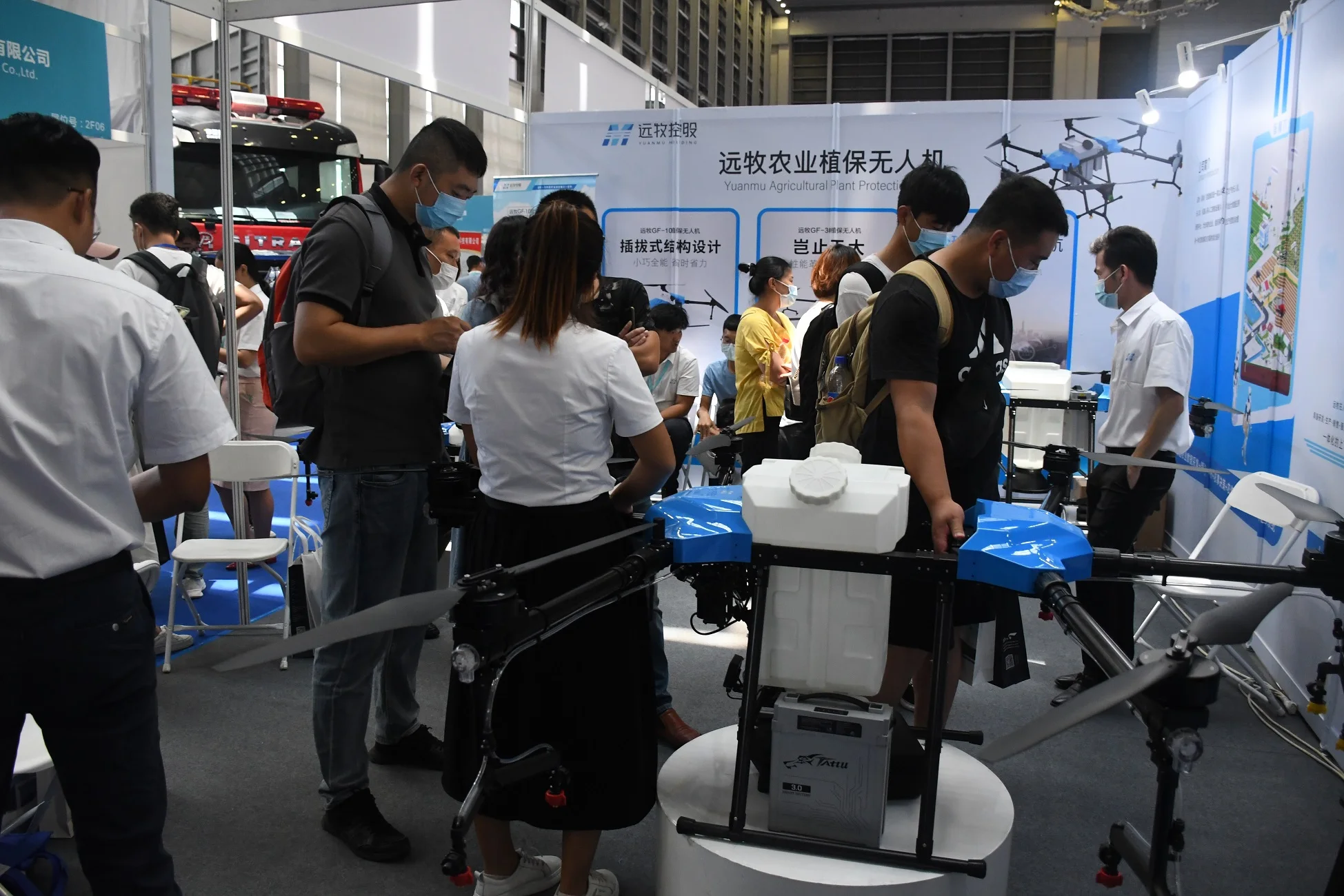

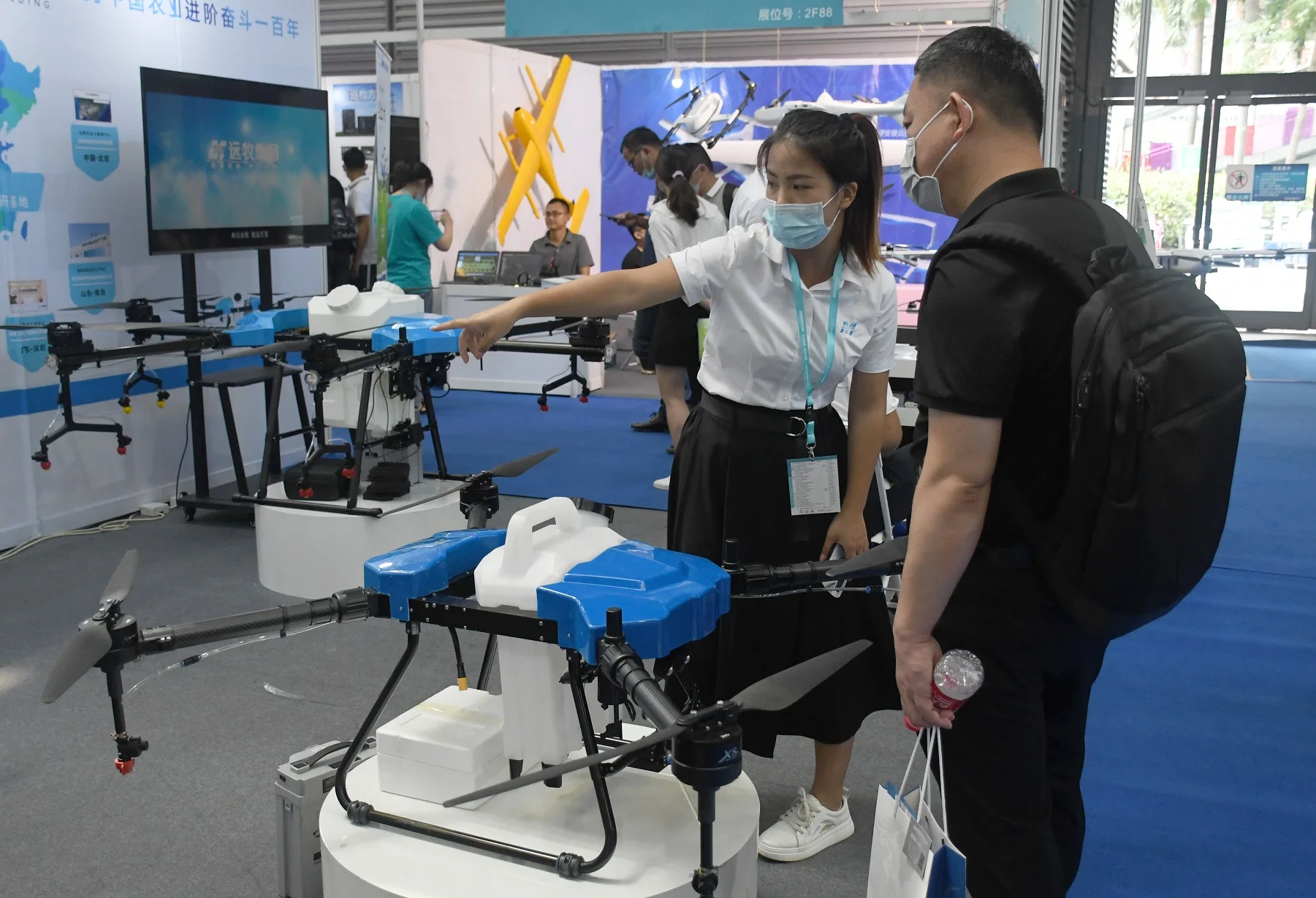

EXHIBITION PHOTOS
Our Services & Strength
we provide 3 days free training online or at site in China, 3 years warranty for drone frame, 1 year warranty for main spare
parts, 3 months for wearing spare parts.
parts, 3 months for wearing spare parts.
FAQ
Q1: Are you Factory or Trading Company?
A1: We are manufacturer with 8 years experience. Our drones have been sold to 50 countries.
Q2: Does your drones can be customized?
A2: We accept OEM for more than 40 drones.
Q3: What is the MOQ (minimum order quantity) of your agricultural drones? How long is the delivery time?
A3: The MOQ is 1 unit. Delivery time is 3-7 days for 1 unit, 10-20 days for bulk orders.
Q4: What is the payment methods?
A4: Wire transfer or credit card. 50% deposit, balance 50% before delivery.
Q5: What is the shipping methods of your sprayer drones?
A5: We can ship drones by sea, by air, by express and by railway.
Q6: Do you provide training and guarantee for the drones?
A6: Yes, we provide 3 days free training online or at site in China, 3 years warranty for drone frame, 1 year warranty for main spare parts, 3 months for wearing spare parts.
Q2: Does your drones can be customized?
A2: We accept OEM for more than 40 drones.
Q3: What is the MOQ (minimum order quantity) of your agricultural drones? How long is the delivery time?
A3: The MOQ is 1 unit. Delivery time is 3-7 days for 1 unit, 10-20 days for bulk orders.
Q4: What is the payment methods?
A4: Wire transfer or credit card. 50% deposit, balance 50% before delivery.
Q5: What is the shipping methods of your sprayer drones?
A5: We can ship drones by sea, by air, by express and by railway.
Q6: Do you provide training and guarantee for the drones?
A6: Yes, we provide 3 days free training online or at site in China, 3 years warranty for drone frame, 1 year warranty for main spare parts, 3 months for wearing spare parts.
