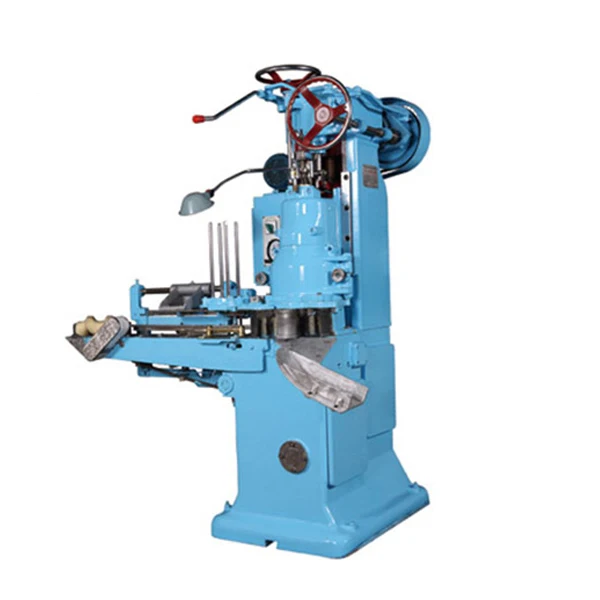

Automatic High Speed Vacuum Tuna Fish Tomato Sauce Ketchup Tin Can Sealing Machine
Automatic High Speed Vacuum Tuna Fish Tomato Sauce Ketchup Tin Can Sealing Machine
Automatic High Speed Vacuum Tuna Fish Tomato Sauce Ketchup Tin Can Sealing Machine
Automatic High Speed Vacuum Tuna Fish Tomato Sauce Ketchup Tin Can Sealing Machine
Automatic High Speed Vacuum Tuna Fish Tomato Sauce Ketchup Tin Can Sealing Machine
Automatic High Speed Vacuum Tuna Fish Tomato Sauce Ketchup Tin Can Sealing Machine
Automatic High Speed Vacuum Tuna Fish Tomato Sauce Ketchup Tin Can Sealing Machine

Automatic High Speed Vacuum Tuna Fish Tomato Sauce Ketchup Tin Can Sealing Machine

Share on (1600294649953):


Price:$7,699.00

Quantity:


Product Overview

Description



Product Overview




Application


Vacuum Tin Can Seaming Machine
Apply for:
* various size of round can seaming, with or without vacuum function, a necessary part to make up a canning line.
* various kinds of canned products, such as canned meat, canned vegetables, fruit, canned sauce or paste.




Advantages




Specification


Can Diameter:
52-108mm
Can Height:
46-135mm
Seaming Speed:
App. 42 cans/minute
Rotating Speed of The Seaming Head:
756 RPM
Rotating Speed of Bearing Shift:
1400 RPM
Compressed Air :
Not Applicable
Power Supply :
380V,50/60HZ 1.5 kw
Vacuum Pump:
Include
Vacuum Buffering Tank:
Include
Dimension :
1210×1460×1900mm
Weight :
Approximate 1350kg




Related Products


Standard Feature
Seam only
Optional Feature
Fill & Seam; Integrated
Driving Method
Electrical & Pneumatic
Size Range (mm)
52.5-130
Speed (cans/minute)
Automatic: 30-60
Remarks
Mainly apply for power, granule products;
Easier for can size changing over


Standard Feature
Vacuum, gas flush and seam
Optional Feature
Seam only;
Vacuum & seam
Driving Method
Electrical & Pneumatic
Size Range (mm)
Diameter: 70-127;
Height: 80-190
Speed (cans/minute)
Automatic:6-7
Manual: 5-6
Remarks
Able to change diameter by change the turntable and other accessary;
Vacuum value: 0.085Mpa;
Residual oxygen content: <=5%

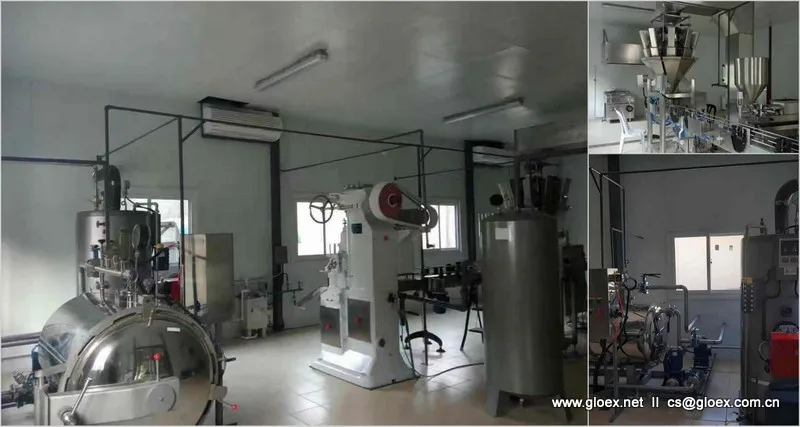

Customer Project




Project Code:
CSE071
Project Location:
The Philippines
Product:
Beef cubes + bone cubes + thick sauce (2.5*5cm)
Packing size:
A) 1705 g : Diameter 155mm,Height 114mm (planned product)
B) 380 g: (200g meat, about 5-6 pieces, 180g sauce)
Diameter 75mm,Height 101mm (first stage product) or Diameter 70mm,Height 80mm
Packaging Type:
Tin can
