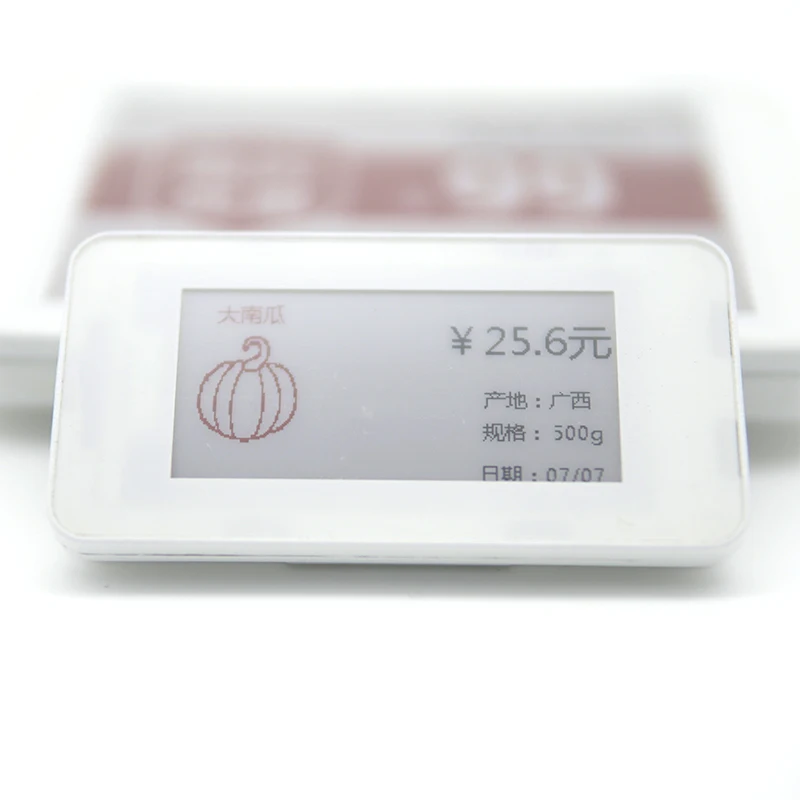

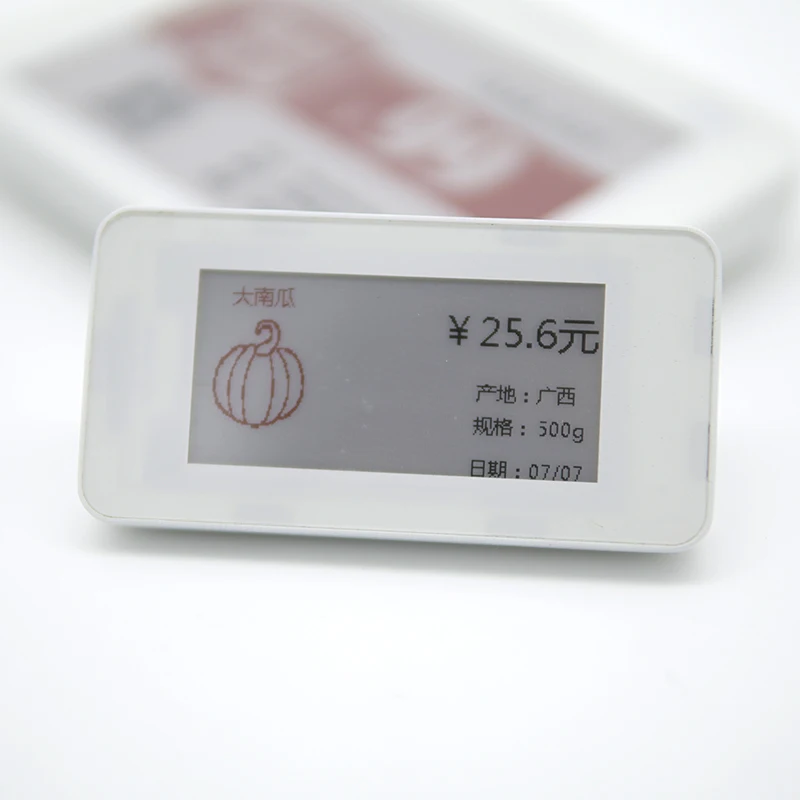

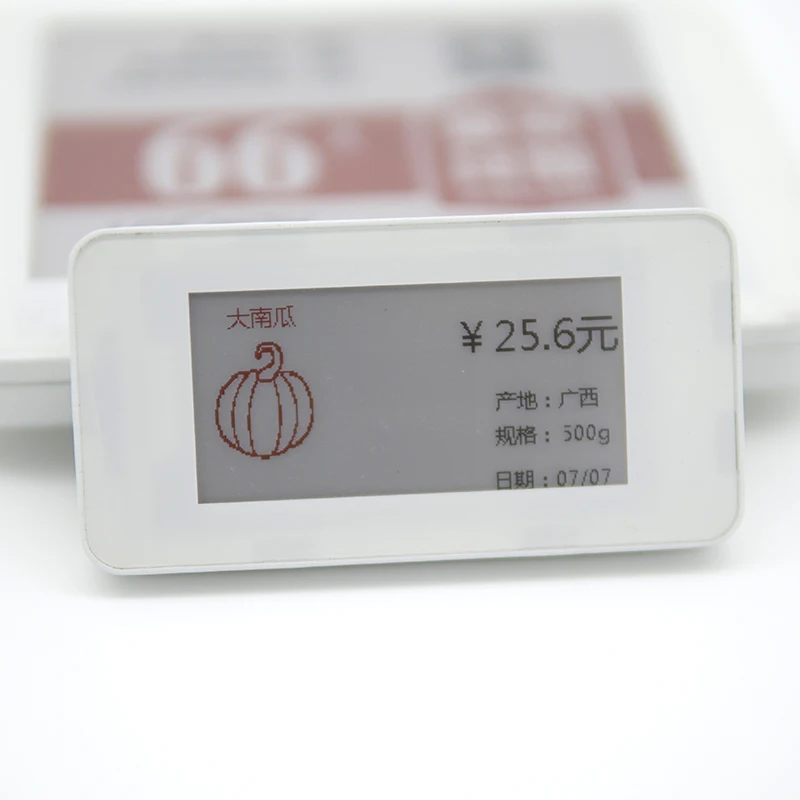

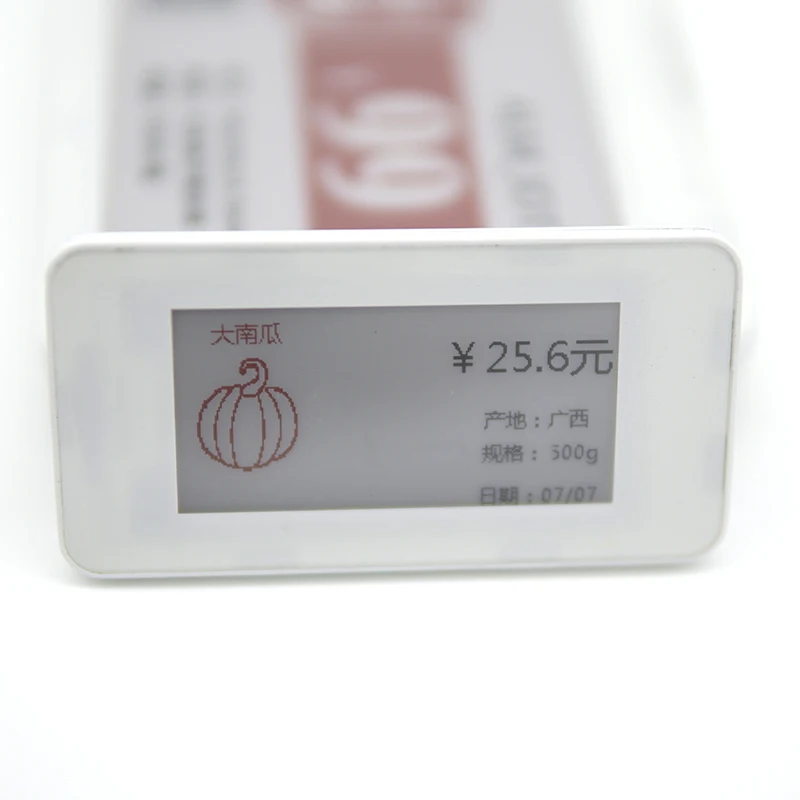

2.4GHz esl 7.5inch electronic shelf labels Price Tag electronic shelf label nfc ble esl
2.4GHz esl 7.5inch electronic shelf labels Price Tag electronic shelf label nfc ble esl
2.4GHz esl 7.5inch electronic shelf labels Price Tag electronic shelf label nfc ble esl
2.4GHz esl 7.5inch electronic shelf labels Price Tag electronic shelf label nfc ble esl
2.4GHz esl 7.5inch electronic shelf labels Price Tag electronic shelf label nfc ble esl
2.4GHz esl 7.5inch electronic shelf labels Price Tag electronic shelf label nfc ble esl
2.4GHz esl 7.5inch electronic shelf labels Price Tag electronic shelf label nfc ble esl

2.4GHz esl 7.5inch electronic shelf labels Price Tag electronic shelf label nfc ble esl

Share on (1600294683441):


Price:$10.50

Quantity:


Product Overview

Description



Application

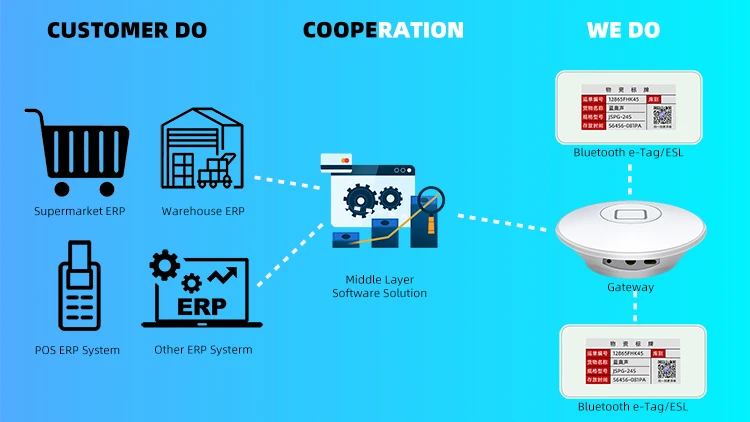

We offer Bluetooth Devices and Middle Layer Software Solution to IoT-EI solution provider.
Hardware/Device: IoT Gateway, Electronic Shift Lable and other IoT devices.
Middle Layer Software Solution: API, Development Tool, Edge Computing, Algorithm, etc...
And we have accumulated abundant experience in IoT systerm docking. Your development lead time will be reduced!





intelligence retail electronic price tag for warehouse suppermarket indoor base statio

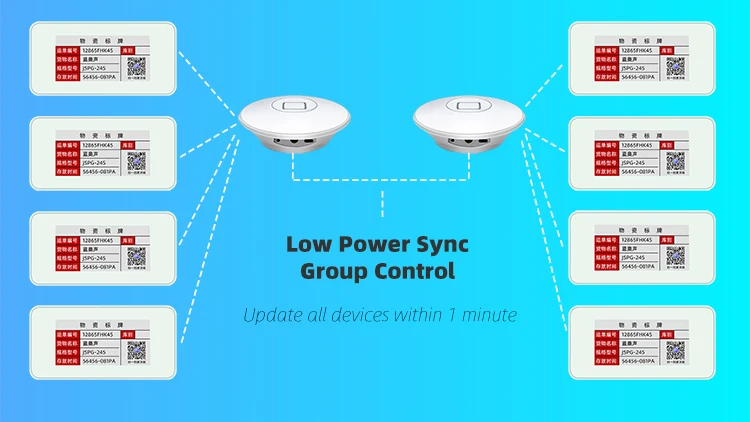

IoT BLE Network
We have strong advantages at group control of Bluetooth devices. With our Low Power Sync Group Control technology, all devices can be synchronized at same time.





Product Parameters
intelligence retail electronic price tag for warehouse suppermarket indoor base station



Product Specification
SKU
Size
Resolving Power
Battery Capacity
Battery Model
BLE Chip
JT-P213R
2.13 inch
212×104
220mAh
CR2032 button battery
Nordic 52 series
Button Battery
JT-P29R
2.9 inch
296×128
220mAh


CR2032 button battery

Nordic 52 series
Button Battery
JT-P42R
4.2 inch
400×300
2400mAh


CR2032 button battery

Nordic 52 series
Button Batteries
JT-P758R
7.58 inch
640×384
3600mAh


CR2032 button battery

Nordic 52 series
Button Batteries


Bluetooth Parameter
Temperature Range
-35 ~ +80°
Physical Interfaces
GPIOs/I2C/SPI; UART; PWM/12bit-ADC
Application Input/Output
General
Wireless Connection
Wireless/Bluetooth
IoT Networking
On-site control modes
Single link (P2P), Group Triggering(P2MP)
On-site Triggering response
Response to APP console, BLE Beacons on Scene/Events
Networking mode
MP2MP mesh, cooperative proxy networking
Max Qty of Single Group
64 ~ 128 TBD
Nordic N52 series
Core specification
V5.1/5.0, V4.x compatible
Frequency range
2.4G ~ 2.48G (2401MHz~2479MHz)
Supported data rates
2 Mbps, 1 Mbps, 500 kbps, and 125 kbps
BLE roles/modes
Beacon scan/broadcast, connection/GATT@Host/device
Tx power
+6dBm with additional PA
Rx sensitivity
-95dBm
Wireless range
50m~100 meters @ free space, by modes typically
