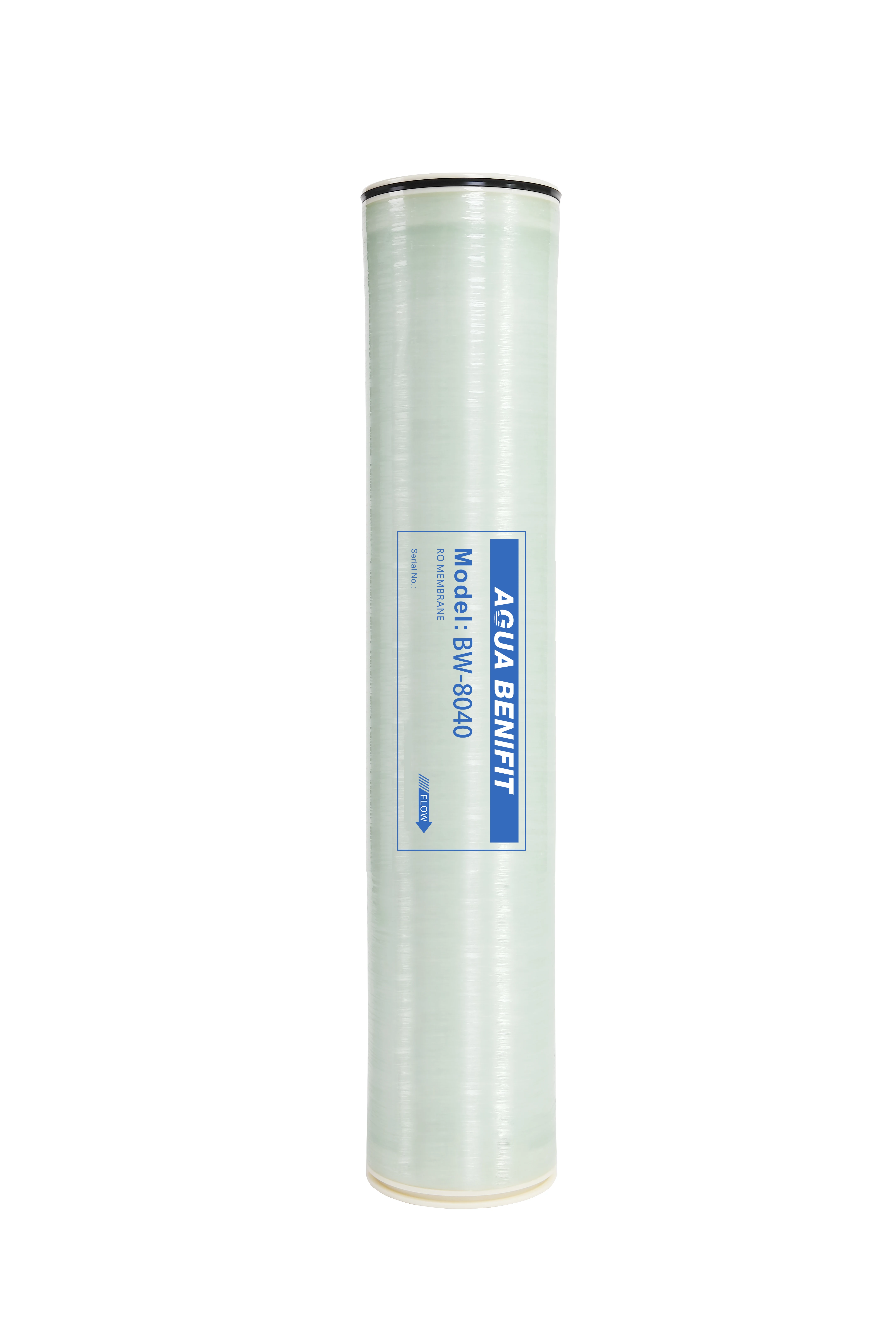

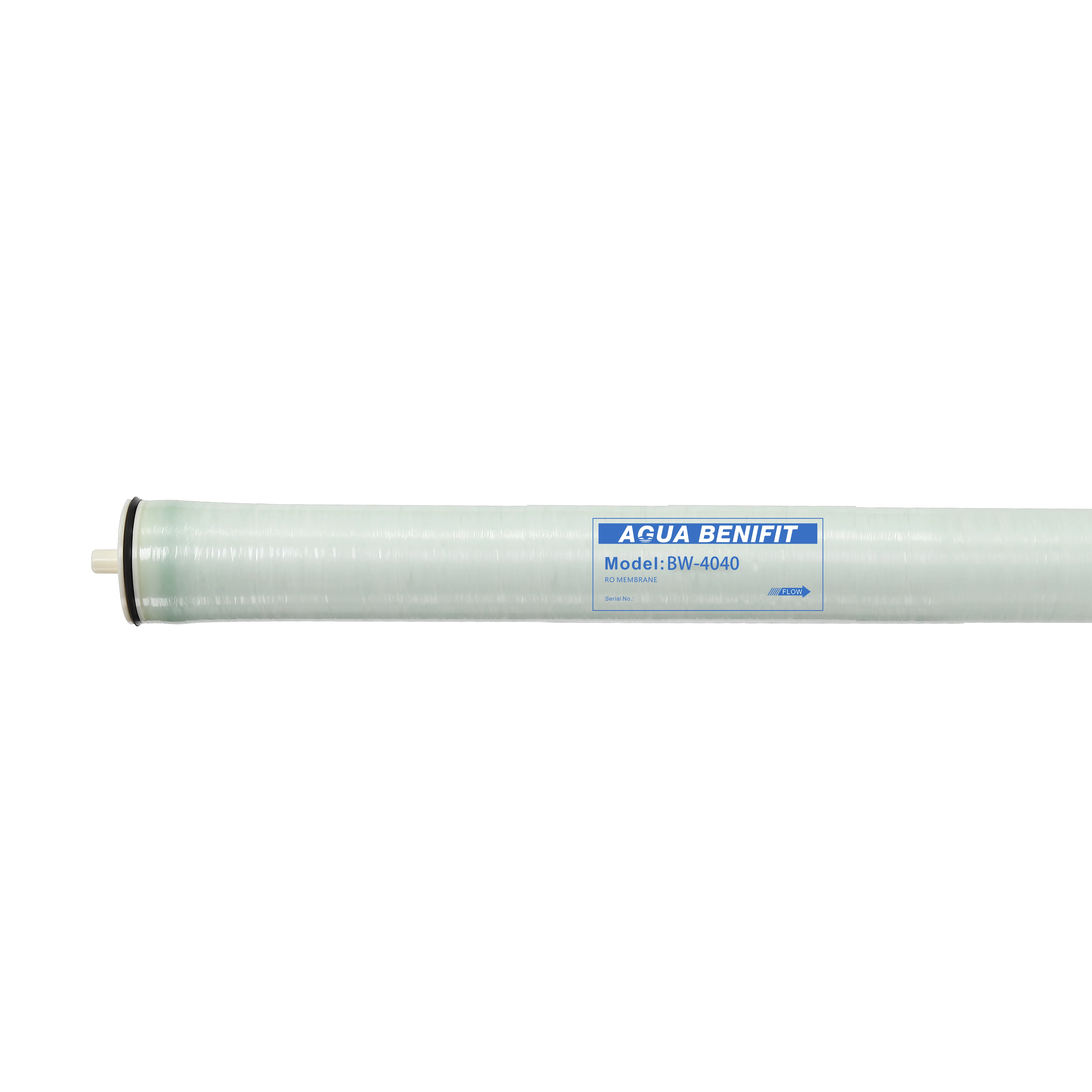

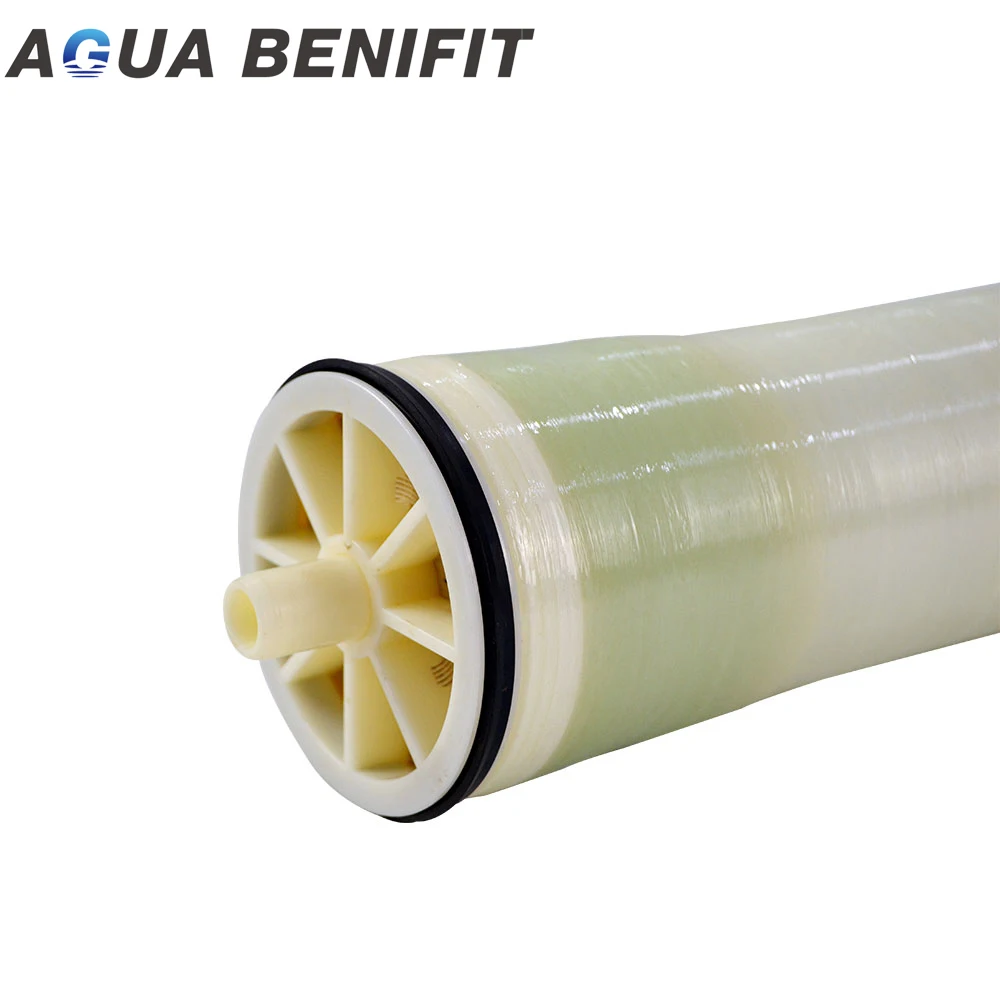

High Desalination and High Water Flow Reverse Osmosis Industrial Ro Membrane BW 8040 4040
- Category: >>>
- Supplier: Ningbo Shengyuan Electric Co. Ltd.
Share on (1600294816568):
Product Overview
Description
Product Overview
FEATURES AT A GLANCE
AGBW model has a very high desalination rate of sodium chloride, the product is suitable for high salt concentration water sources
with high chemical crosslinking and chemical cleaning resistance.
AGLP model is a reverse osmosis membrane specially developed for the removal of inorganic salts and organic small molecules,
characterized by low operating pressure and high desalination rate, and is suitable for desalination treatment of lower salinity
raw water.
characterized by low operating pressure and high desalination rate, and is suitable for desalination treatment of lower salinity
raw water.

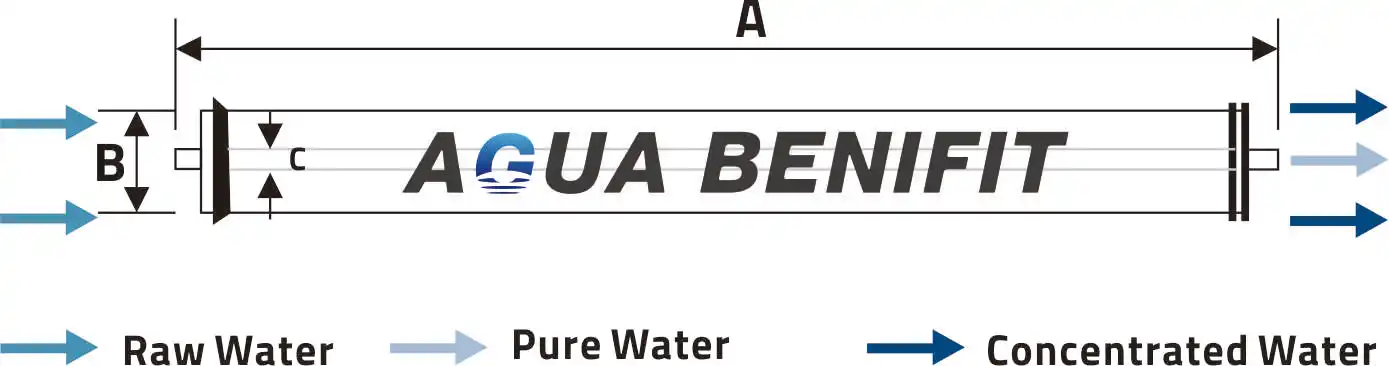

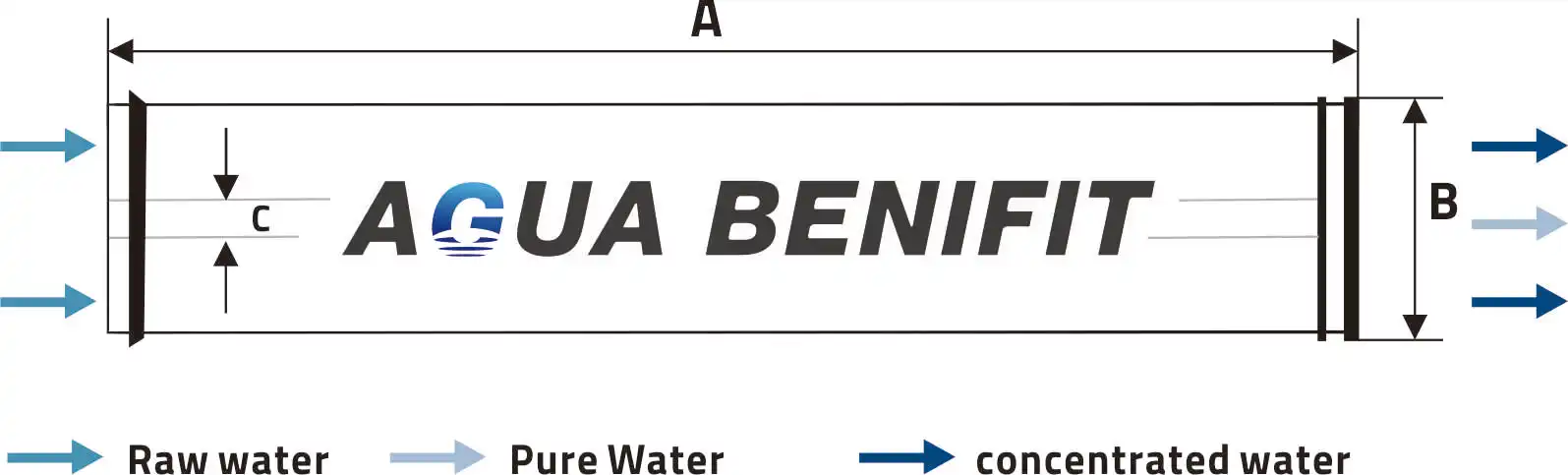

Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | A, mm (inch) | B, mm (inch) | C, mm (inch) | D, mm (inch) |
BW/LP-8040 | 1016 (40) | 201 (7.9) | 29 (1.125) | --- |
BW/LP-4040 | 1016 (40) | 96 (3.8) | 19 (0.75) | 27 (1.05) |
Specifications | BW-8040 | BW-4040 | LP-8040 | LP-4040 | |||
Material | Aromatic polyamide | ||||||
Structure | Spiral-wound | ||||||
Effective Membrane Area（m²） | 37 | 7.6 | 37 | 7.6 | |||
Thickness of the inlet grid（mil） | 34 | ||||||
Standard Test Solution | 2000mg/L NaCl | 1500mg/L NaCl | |||||
Operating Pressure | 1.55Mpa | 1.55Mpa | 1.05Mpa | 1.55Mpa | |||
Test Temperature | 25℃ | ||||||
Recovery（%） | 15% | ||||||
pH | 6.5~7 | ||||||
Permeate Flow Rate（m3/d）/GPD | 38/10000 | 7.6/2000 | 40/10500 | 8/2100 | |||
Rejection（%） | 99.5 | 99.0 | |||||
Max. Operating pressure | 4.1Mpa (600Psi) | ||||||
Max. feed flow (GPM) | 75 | 16 | 75 | 16 | |||
Feed Temperature | 5~45℃ | ||||||
Feed pH | 3~11 | ||||||
Cleaning pH | 2~12 | ||||||
Max. feed turbidity | 1.0 | ||||||
Max. feed SDI15 | 5 | ||||||
Residual Chlorine | < 0.1 mg/L | ||||||
Max. Pressure Drop each Element | 15 psi | ||||||
Installation Instructions

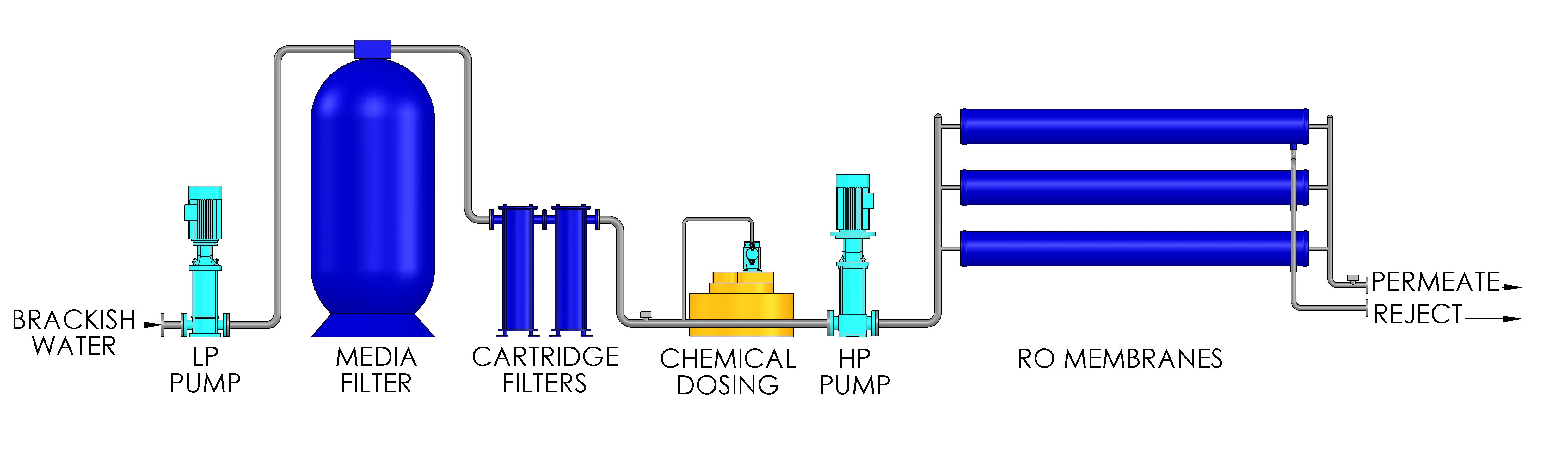

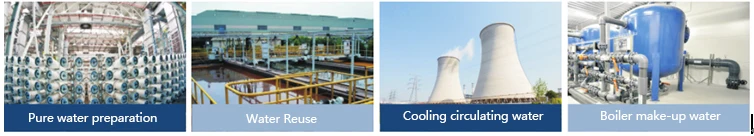

Application
Successful Project
FAQ
Q: How to buy your products?
A: we need some essential information include sewage sources, sewage quality ( COD, BOD,SS),Required Filtered water quality, designed technological process, site engineering conditions (contact us for details),then we will design the suitable solutions for you and prepare to give you best price.
Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balanced against the copy of B/L.
Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.
Q: Can the package be customized by our own logo ?
A: Yes, the package can be customized your logo, but the MOQ will be higher for which we can discuss as per the specific orders.
Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also provide guide to your workers how to use it and how to maintain it.
Q:What's the certification do you have?
A: We have ISO9001, OHSAS18001, ISO14001 Certifications.
Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balanced against the copy of B/L.
Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.
Q: Can the package be customized by our own logo ?
A: Yes, the package can be customized your logo, but the MOQ will be higher for which we can discuss as per the specific orders.
Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also provide guide to your workers how to use it and how to maintain it.
Q:What's the certification do you have?
A: We have ISO9001, OHSAS18001, ISO14001 Certifications.
