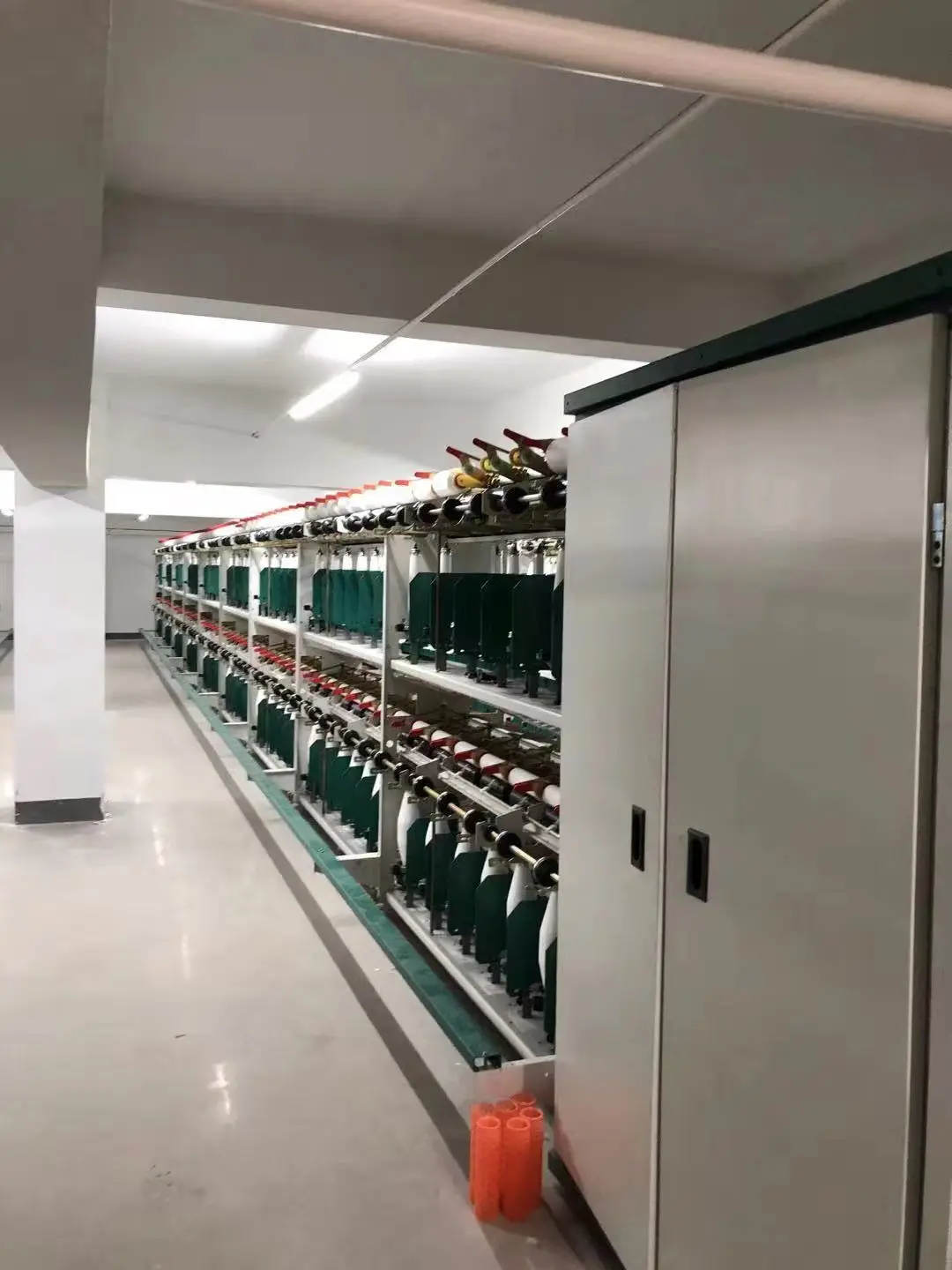

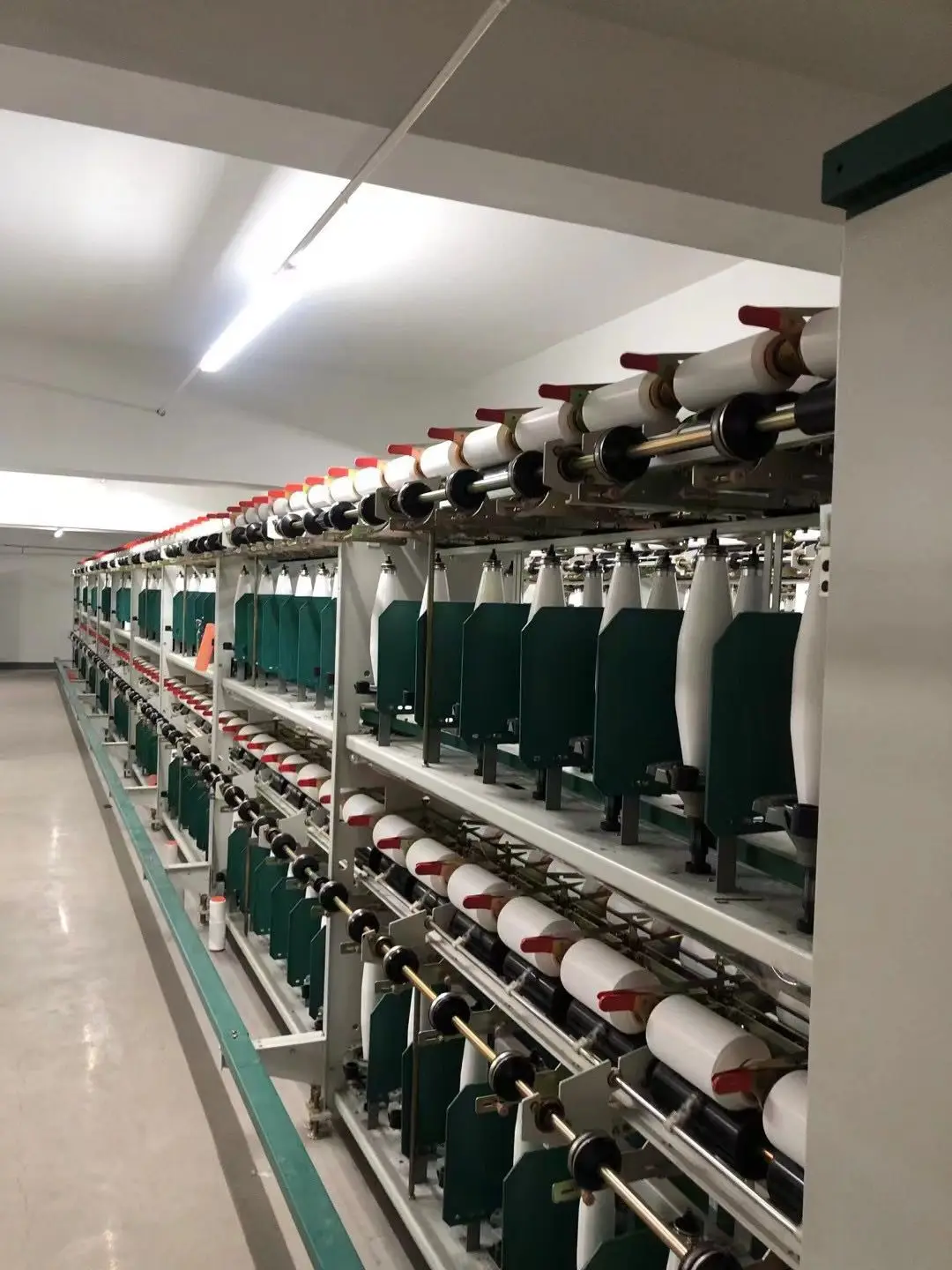

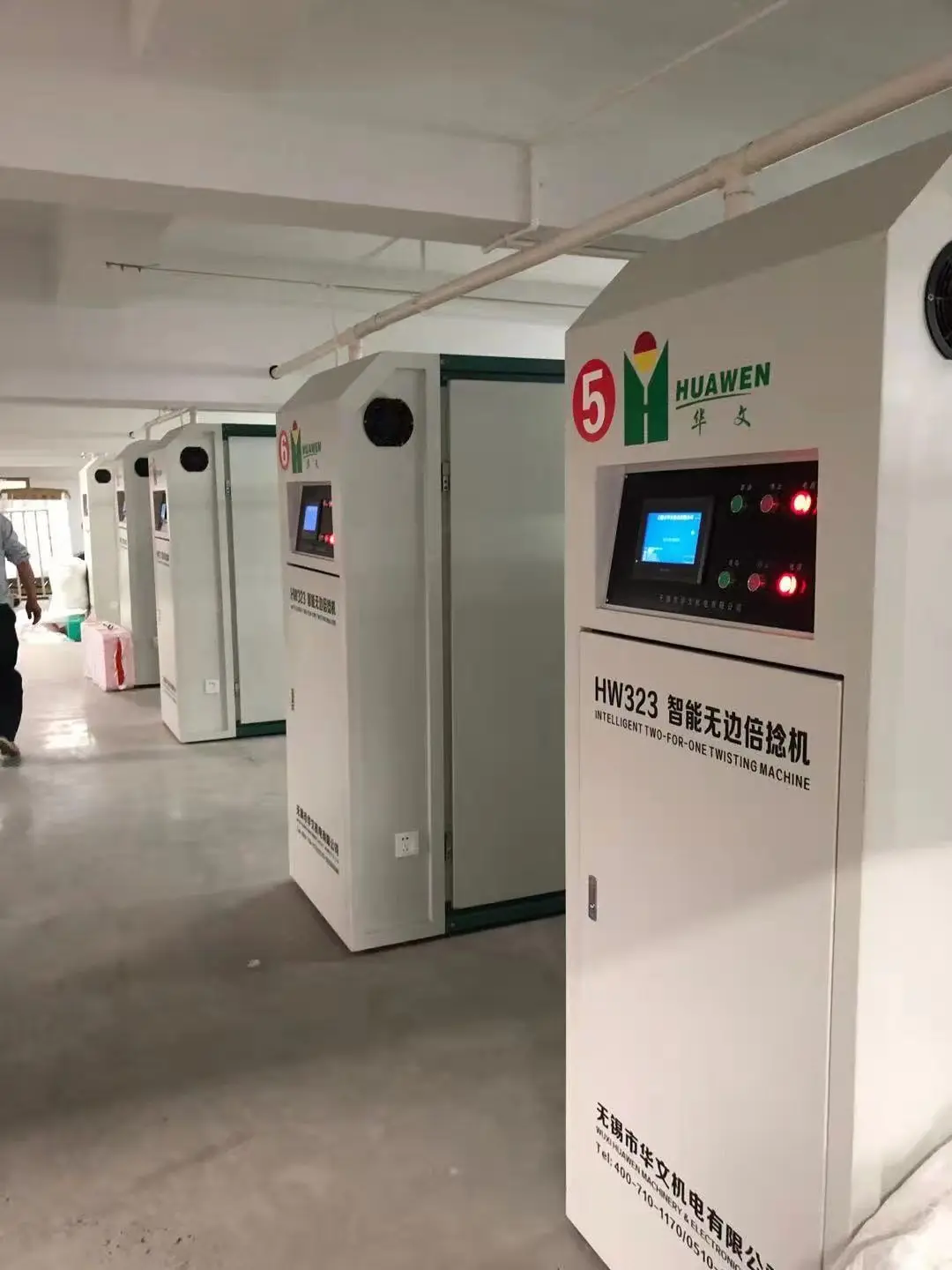

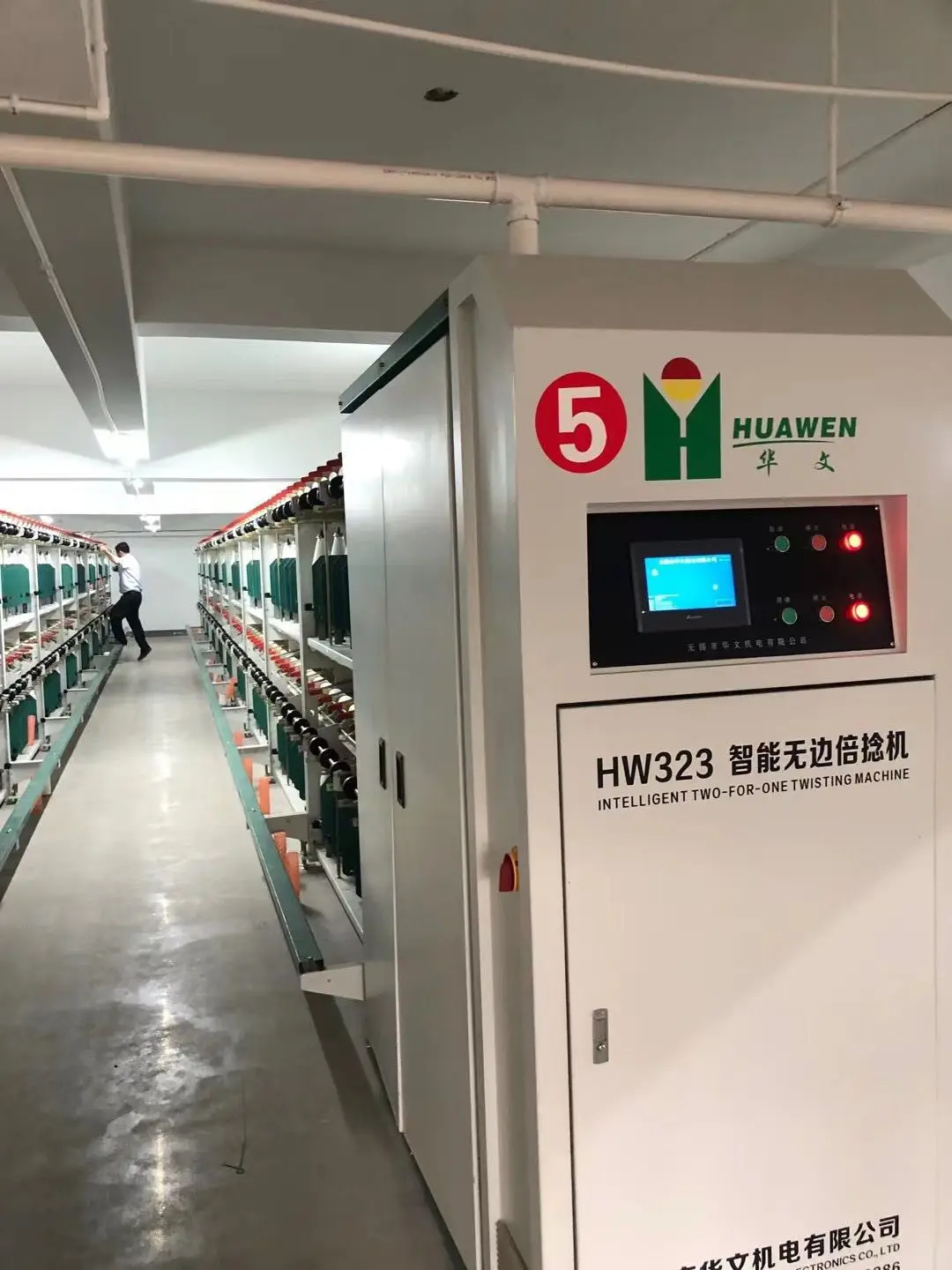

Two for one twisting machine for filament yarn / yarn twisting machine HW323
1. Application: The machine is suitable for flangeless bobbin or net bobbin twisting for preceding process for chemical fiber yarns, polyester yarn, such as DTY, POY, HOY, FDY, ITY yarns etc.
2. Technical specifications:
1 | Machine form | Two Sides, Two Layers |
2 | Number of spindle | 252 Spindles (28 spindles / section, total 9 sections) |
3 | Model of spindle | φ96 Conical Spindle |
4 | Spindle speed | 2000-10000r/min, inverter adjustable |
5 | Spindle distance | 260mm |
6 | Twist direction | S or Z |
7 | Twist range | 80 ~ 3200T/M |
8 | Application | 45D-500D chemical fiber yarns |
9 | Unwinding bobbin specifications | φ110 × φ37(ID) xφ42(0D) × L290~380mm (Will make as customer’s sample tube) |

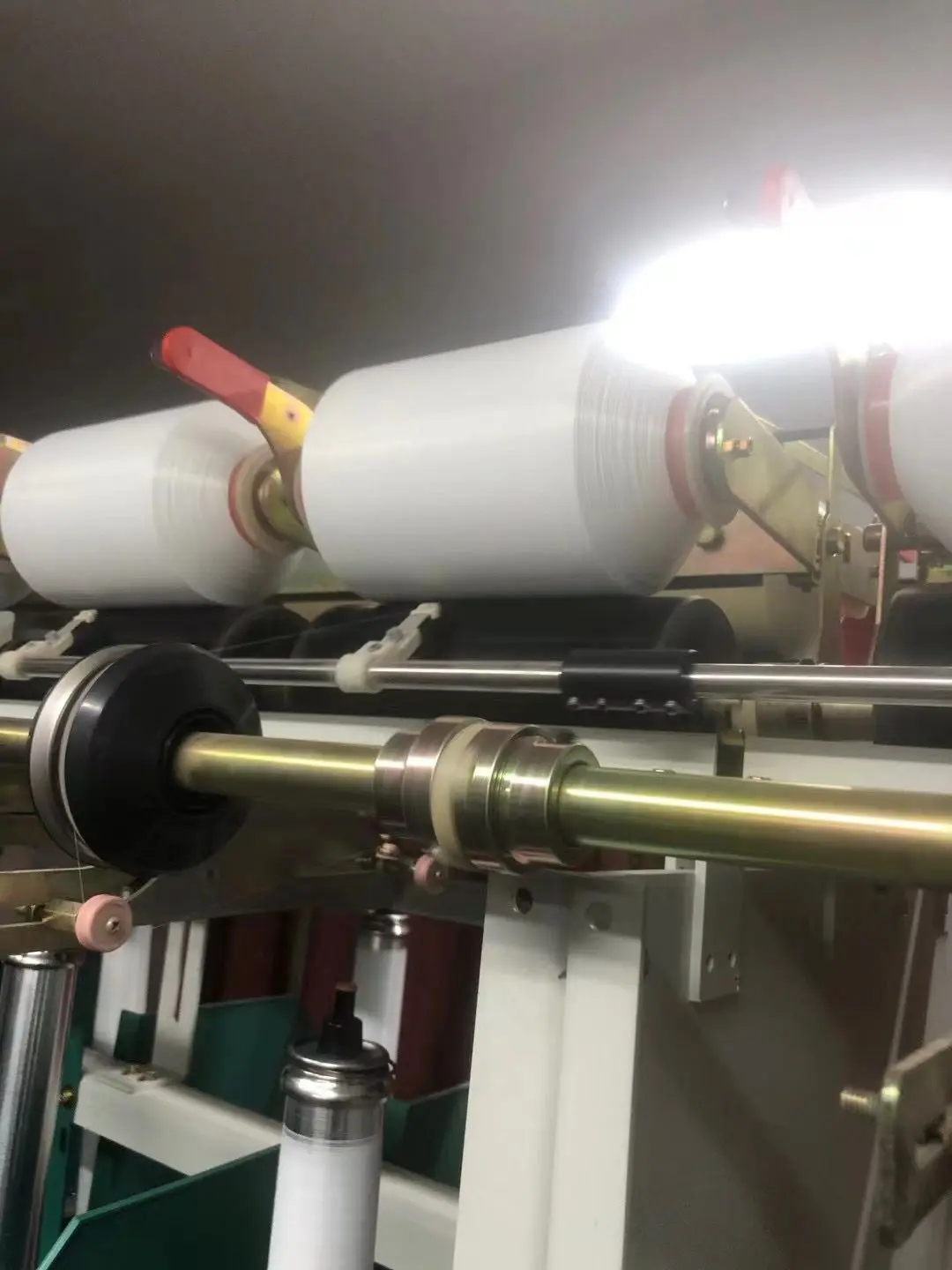

10 | Winding bobbin specifications | Φ56 (ID) x φ60 x L230mm (Will make as customer’s sample tube) |
11 | Winding Capacity | Normally 1.0-3.0kg (max can be 3.0kg for raw yarn) |
12 | Winding traverse | 220mm |
13 | Winding method | Flangeless bobbin cross winding as cylindrical bobbin or customize as conical or tri-conical bobbin |
14 | Angle of winding bobbin | 3º43’, 4º20’, 5º57’ conical bobbin or cylindrical bobbin |
15 | Winding angle | 10°-24° |
16 | Start mode | Inverter starting |
17 | Forming method | Electronics forming type |
18 | Control system | Inovance brand |
19 | Tension device | Elastic tensioner and cushion tensioner are put in use together. |
20 | Overall dimensions | 18470×1190×2000mm (L x W x H) |
21 | Packing | Our standard is nude cargo with a layer of waterproof plastic bag, separated whole machine into sections and put abreast into container for shipping. |
FAQ
FAQ:
Are you the manufacturer or the trading company?
We are the experienced manufacturer of textile machines, especially for the two-for-one twisting machines, doubling winder machines, yarn covering machines and etc. We have got the self-support imports and exports right.
What is your advantage compared with other textile manufacturers?
We are expert at making yarn machines for almost 20 years and we have a professional technical team who can provide special customer requirements. Our machines have been exported to a lot of countries such as Vietnam, South Korea, Uzbekistan, the Philippines, Tunisia, Morocco, Indonesia,Turkey, Egypt and so on.
What kind of service can you offer?
Design with your requirements by professional team.
ISO 9001:2008 certificates and letters patent.
Engineers go overseas for training.
How to check my order at last?
We warmly welcome you to visit our company in Wuxi, which is close to Shanghai, for checking your machines. If you don’t come here, we can also take photos and videos for your confirmation.
Customer Visiting
Customer Visiting:
Certifications
Certifications:
Packaging & Shipping
Packaging & Shipping:
We mostly use the nude cargo with waterproof plastic bags. We will separate the whole machine into sections after adjustment, and then put each section one by one into the container.
