RS485 Bulk Ultrasonic Water Meter

Category: Water Meters >>>
Supplier: Shanghai,Panda,Machinery,(group),Co.,Ltd.

Price:$230.00 - $750.00

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

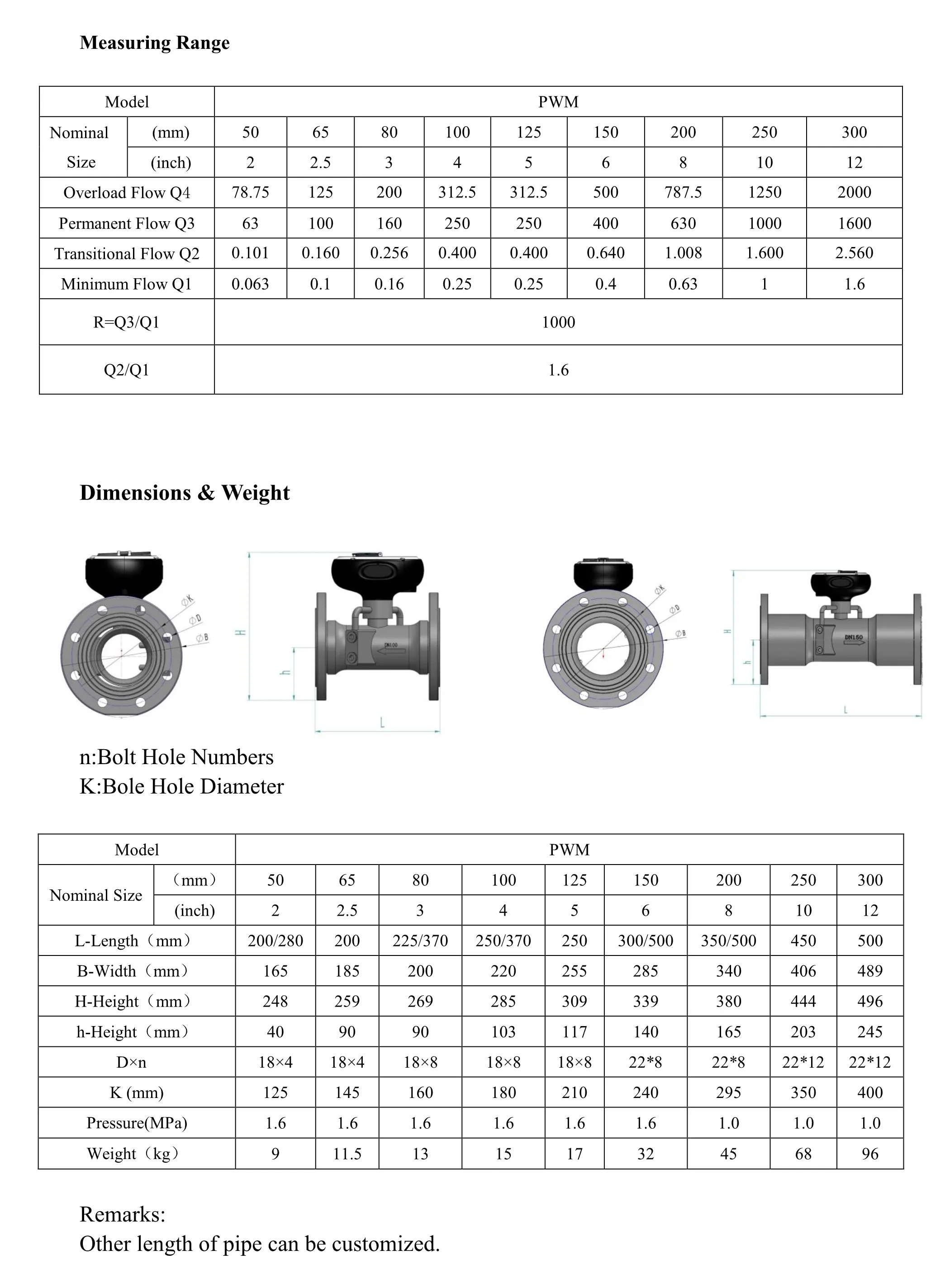

Specification

Max.Working Pressure	1.6Mpa
Temperature Class	T30、T50、T70、T90（default T30）
Accuracy Class	ISO 4064, Accuracy Class 2
Body Material	Stainless SS304（opt. SS316 or SS316L)
Battery Life	2D size Li-battery ,up to 15 years (consumption ≤0.5mW)
Protection Class	IP68
Environmental Temp.	-40 ~ 70℃，≤100%RH
Pressure Loss	ΔP10、ΔP16（based on different dynamic flow）
Climatic And Mechanical Environment	Class O
Electromagnetic Class	E2
Communication Output	RS485 (baud rate adjustable) Pulse（default 2ml/pulse, changeable） Opt. NB-IOT, GPRS
Display	9 digit LCD display volume, flow rate, pressure, error alarm, flow direction, low battery power alarm, output
RS485	Baud rate 2400bps,4800bps,9600bps,19200bps(default 9600bps,Modbus-RTU)
Connection	Clip or Flange
Flow Profile Sensitivity Class	U3/D0 or U0/D0
Measuring Frequency	No less than 1 second/time
Data Logger	Store the latest 10 years’ data including Day, Month and Year The data can be permanently saved even after the loss of power.
Frequency	1-4 times/second

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

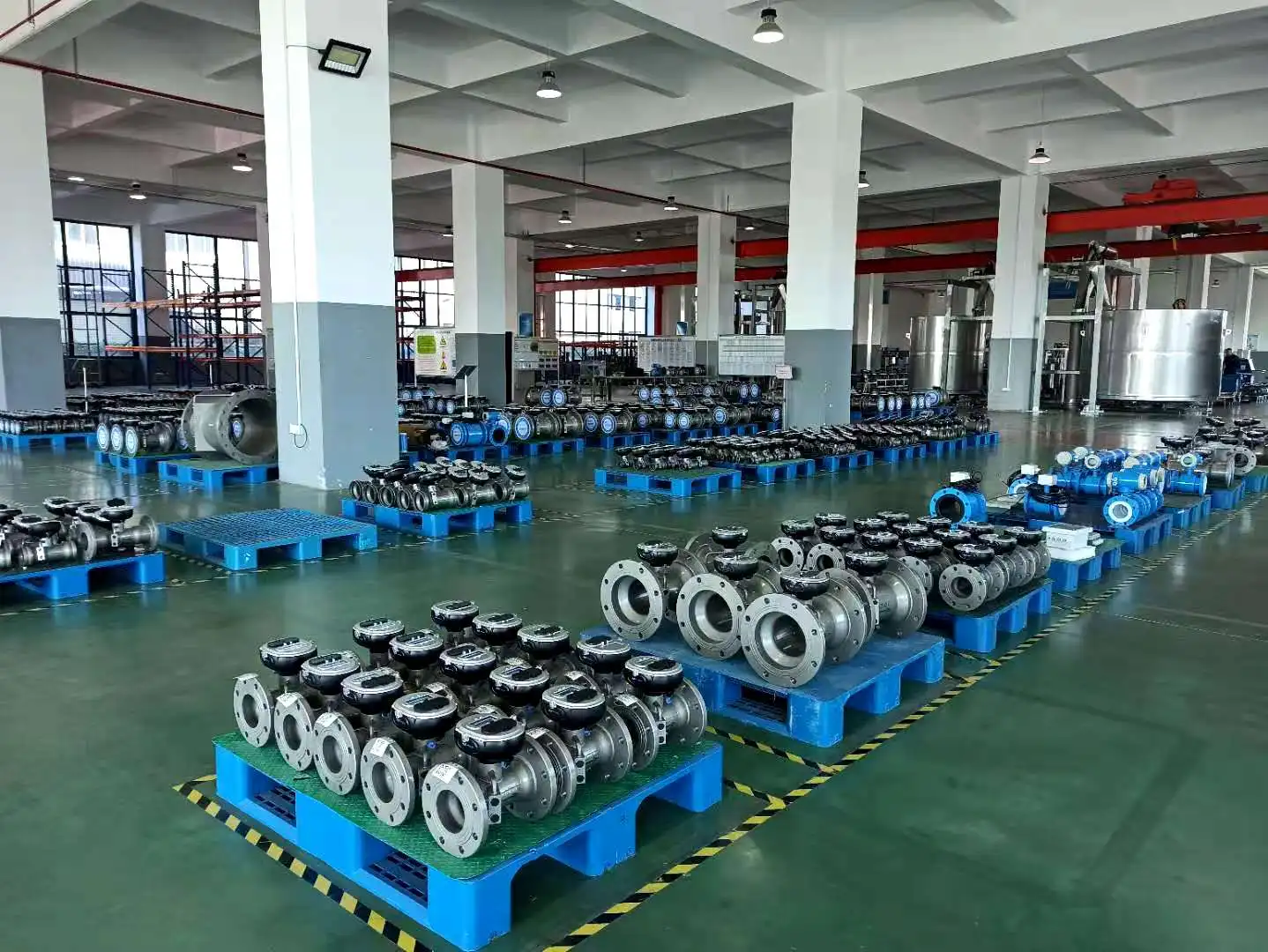

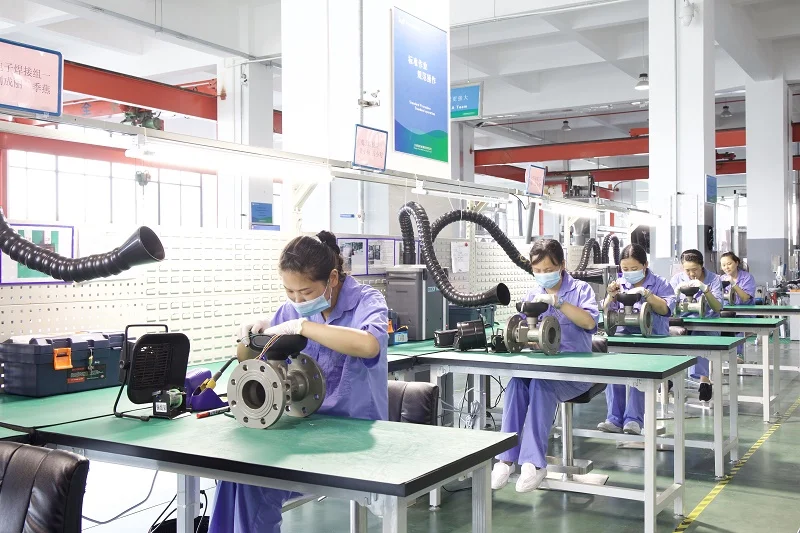

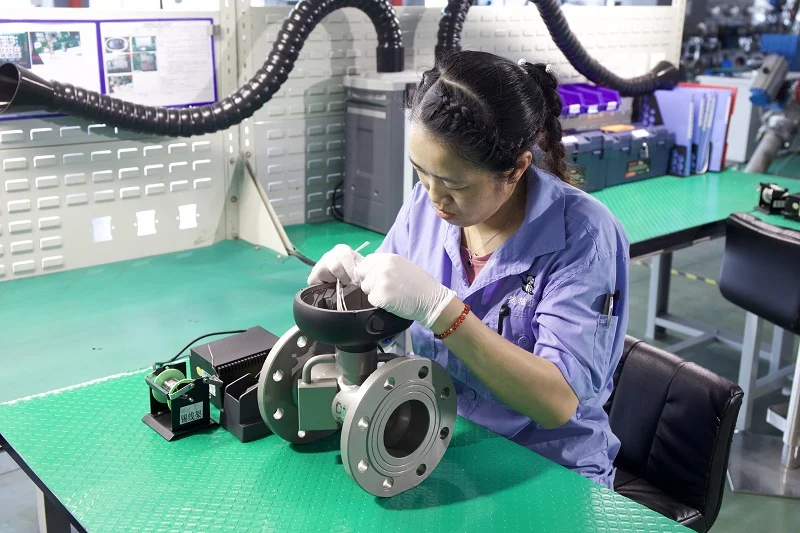

Company Profile

Shanghai Panda Machinery(Group) Co.,Ltd is a high-tech enterprise in Shanghai,No.1 market shares of building pumps in China. President Xuecong, Chi founded the company in 2000. Through 20 years development, We have been a leading group including from researching, manufacturing pumps, complete equipments,water meters, flow meters to intelligent management platform which is consist of raw water monitoring, water supply control, DMA, pipe GIS, Secondary water supply and Billing. We have been providing advanced smart watering solutions for thousands of water supply companies. Also we take proud of that our high-tech products are servicing water supply and drainage, municipal infrastructure, HAVC, chemicals, electrics, mining, thermal energy efficiency monitoring fields etc.
