Fangpower Fashion design engine 400cc shaft drive CVT 2 seater side by side farm utv with EPA CE for sale
- Category: >>>
- Supplier: Shandong Shengwo New Energy Vehicle Co. Ltd.
Share on (1600295203377):
Product Overview
Description
Product Description
Product specification
ENGINE | FX400 Farm UTV | SUSPENSION/BRAKES | |||
Engine type | 4-stoke,Single-Cylinder, Water- cooled,Four value, balance axis | Suspension Front | Adjustable Double A-arm optional | ||
Displacement | 400cc | Suspension Rear | Fangpower 4-link®bar Rear Suspension | ||
Horse Power | 18kw(6500rpm) 25HP | Brakes Front | 220MM Front Dual Hydraulic Disk | ||
Max Torque | 25N.m/5000Rpm | Brakes Rear | 220MM Rear Dual Hydraulic Disk | ||
Value Configuration | SOHC | Steering | Rock and pinion steering | ||
Compression ratio | 10.3:1 | ||||
FUEL SYSTEM | TIRES | ||||
Fuel Delivery System | Fuel Pump Carburetor+Vacuum Diaphragm PZ 30 Carburetor | Front Tread | 1250mm(49.2 in) | ||
Choke System | Automatic | Rear Tread | 1150mm(45.2in) | ||
Fuel Capacity | 9.5L(2.1 Gallon) | Front & Rear tire size | 25x8-12 / 25x10-12 | ||
DRIVETRAIN | Front& Rear rim size(Alloy) | 12x6/12x8 | |||
Drivenline Type | 2x4 | MISC | |||
Final Drive | Shaft-drive | Loading information | 4 units/20″; 16units/40HQ | ||
Transmission | Constantly Variable Transmission | Top speed | 75km/h | ||
Gear Selection | F-N-R | Dry weight | 500kgs | ||
ELECTRICAL SYSTEM | Gross weight | 560kgs | |||

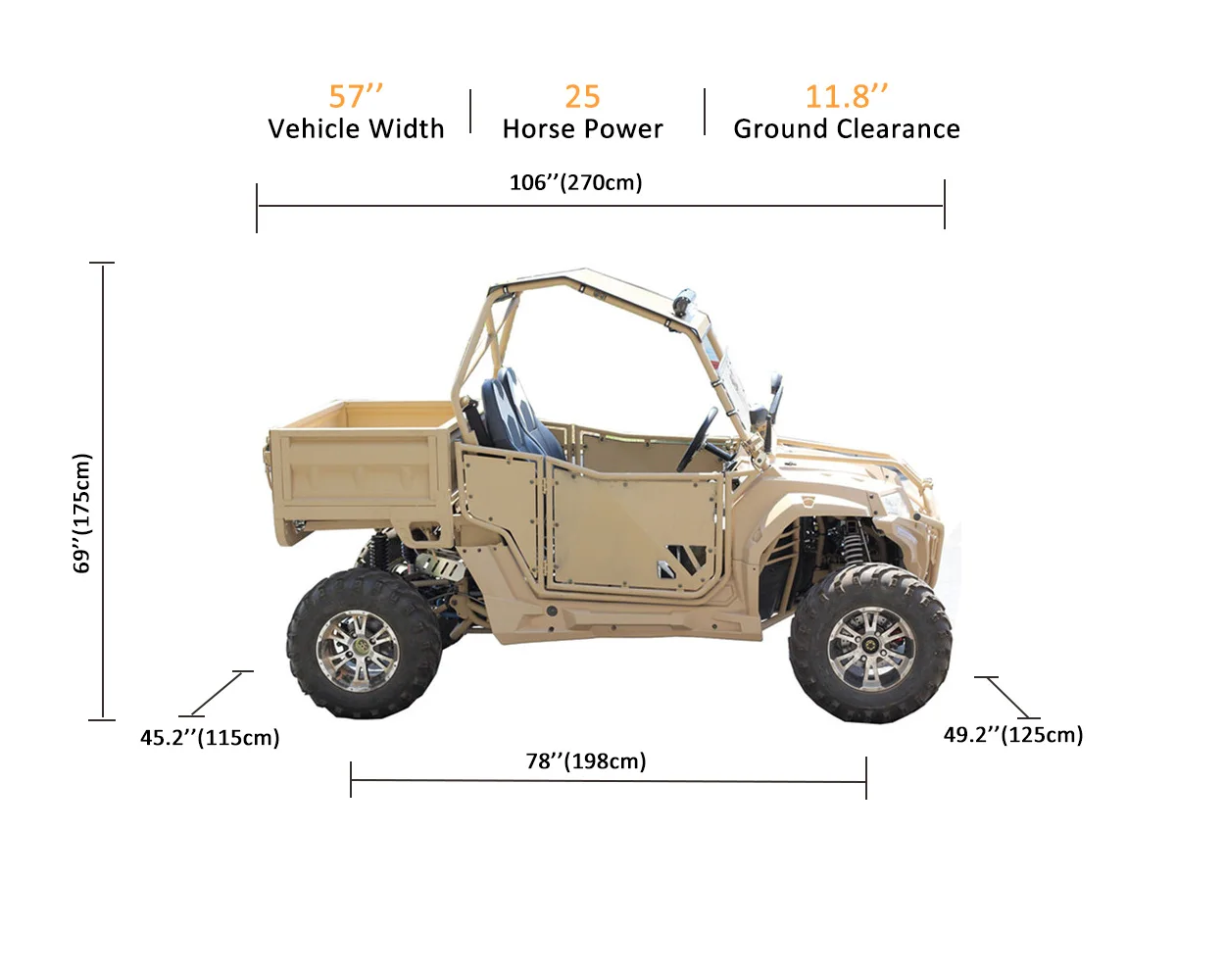

Speed/Fuel meter | LED meter | Wheel Base | 1980mm (78in) | ||
Battery | 12 AH 12V | Vehicle dimension(L×W×H) | 2700x1450x1750mm(106x57x69in) | ||
Forward Lights | Headlights-High&Low Beam LED LIGHT | Packing size | 2290x1410x1260mm | ||
Rear Lights | Brake Lights& Left/Right Signal Lights | Ground clearance | 300mm(11.8in) | ||
Starting system | Electric start | Safety | Driver & Passenger Seat belts/ Driver and Passenger safety steel door. | ||
Ignition system | D.C.D.I | ||||
Product details video
Details Images

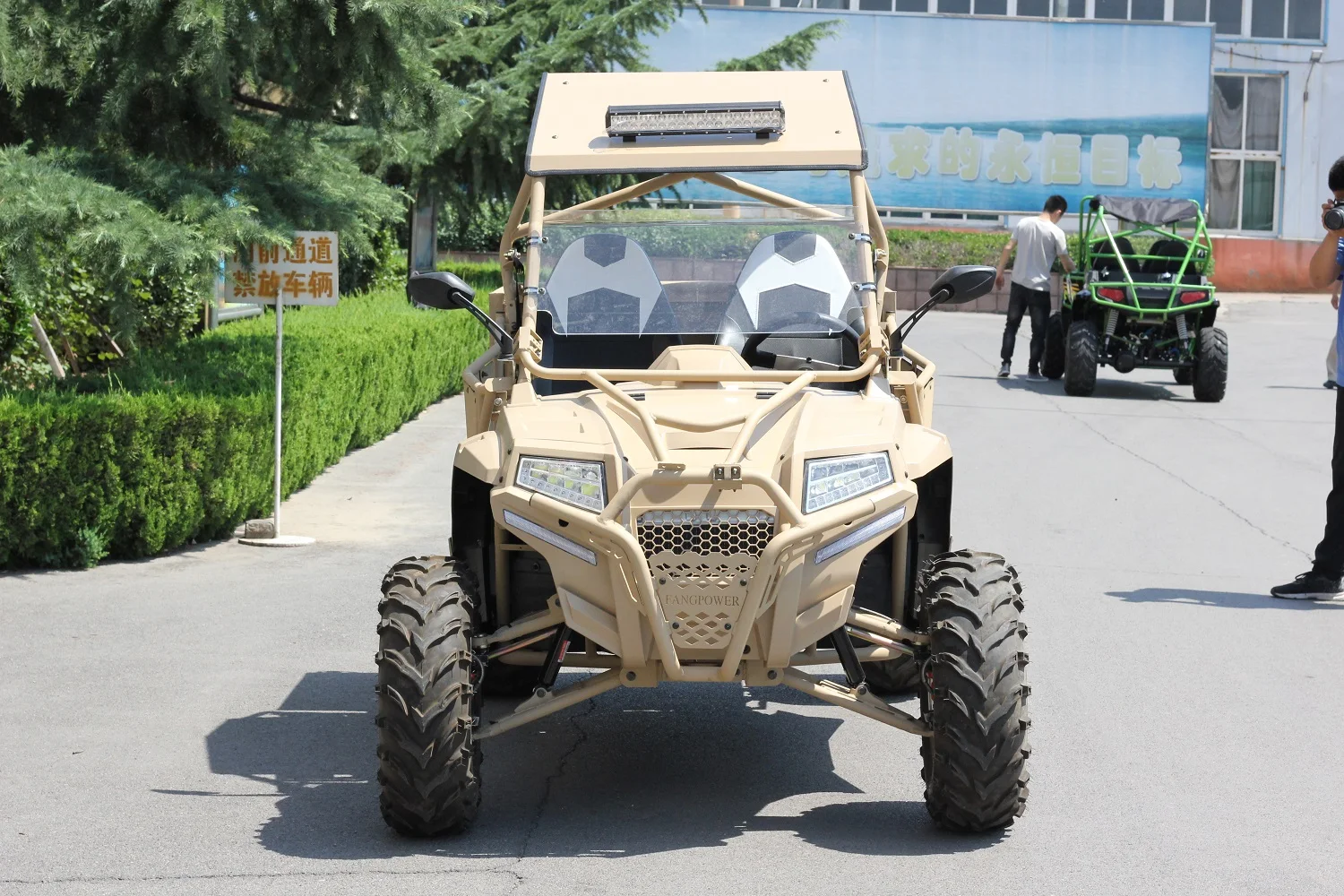

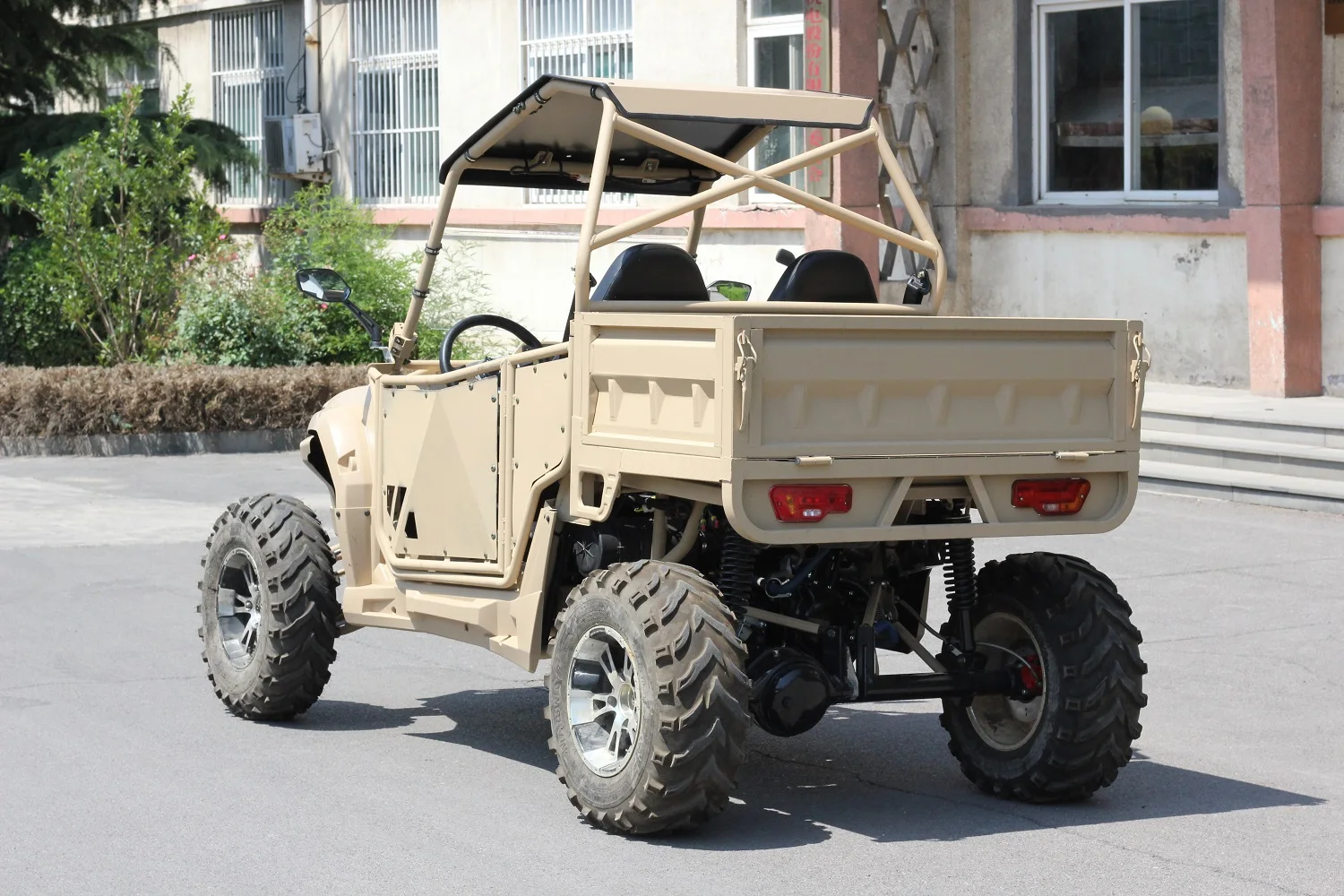

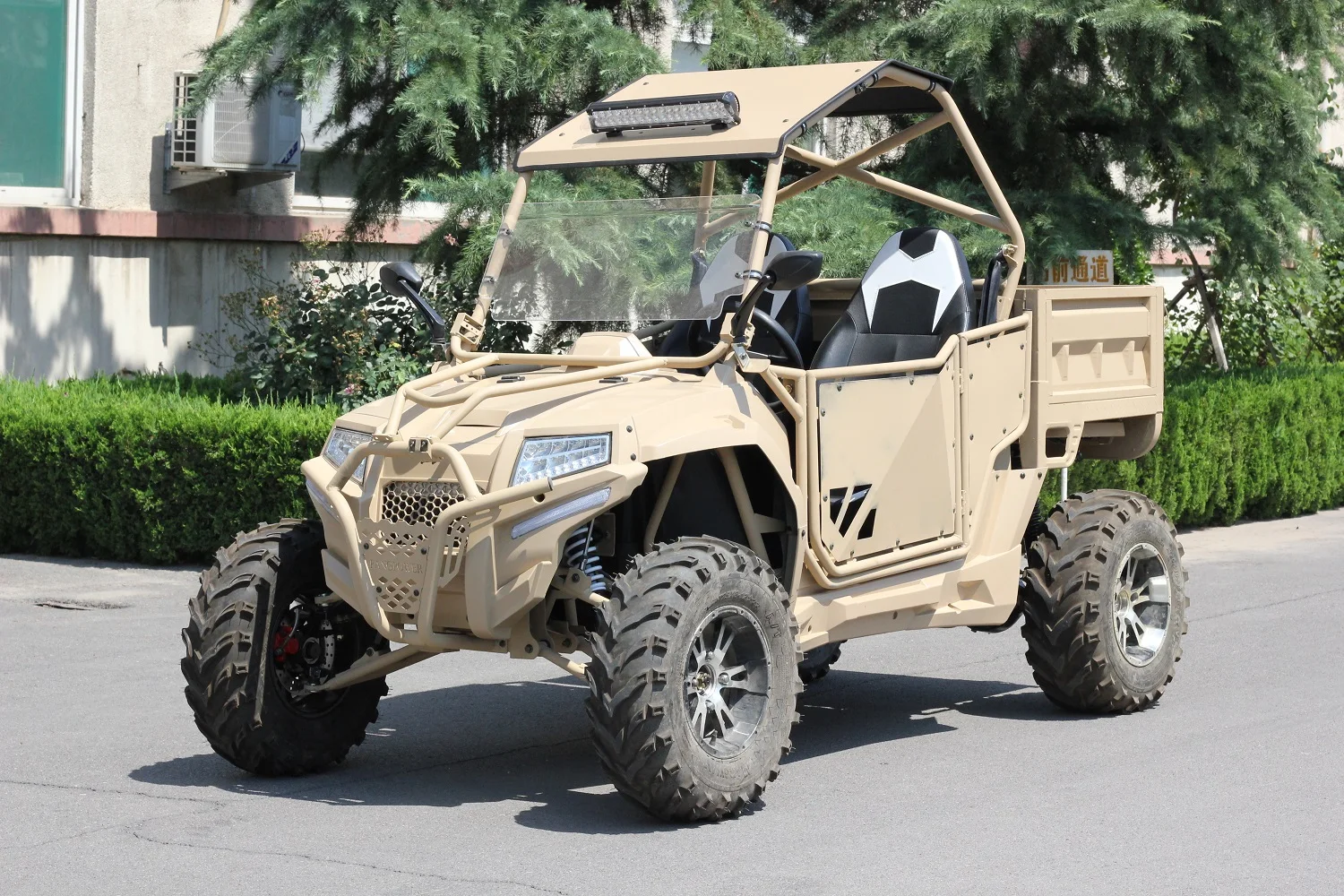

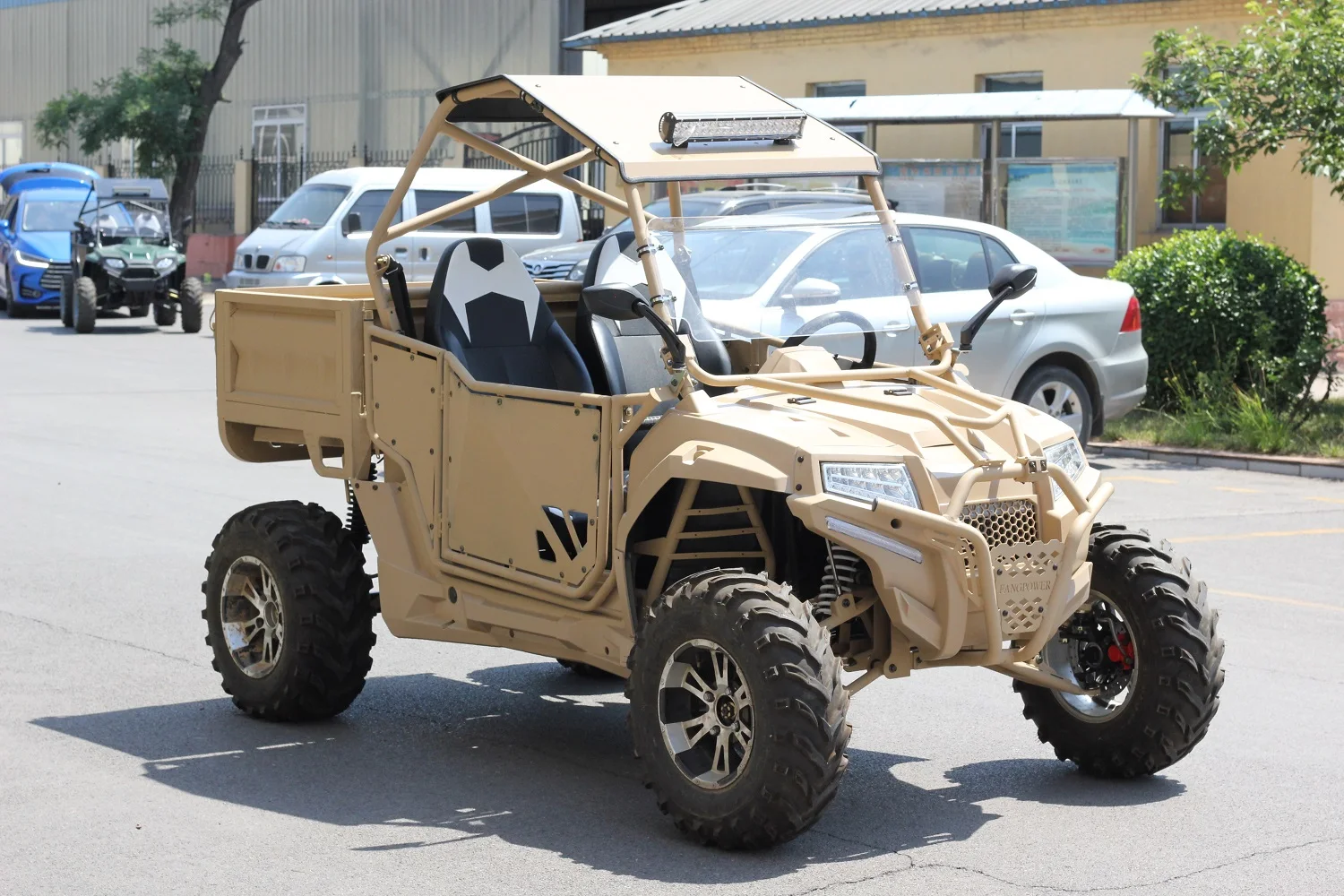

Details I

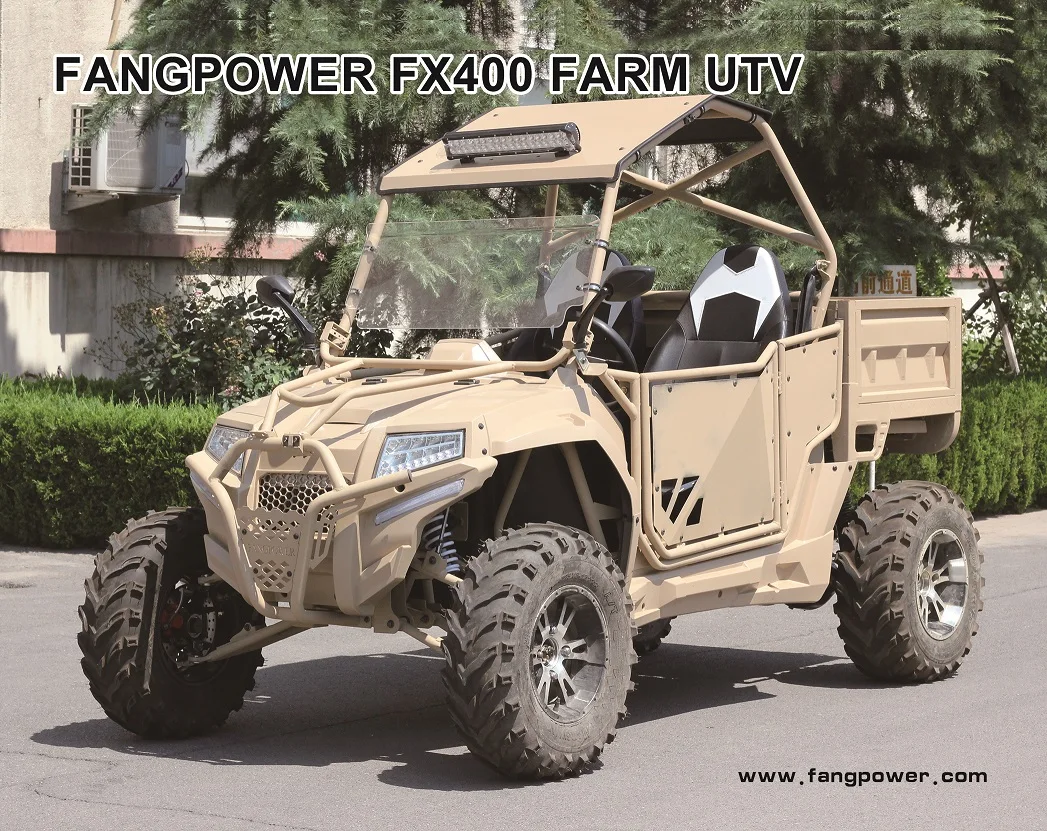

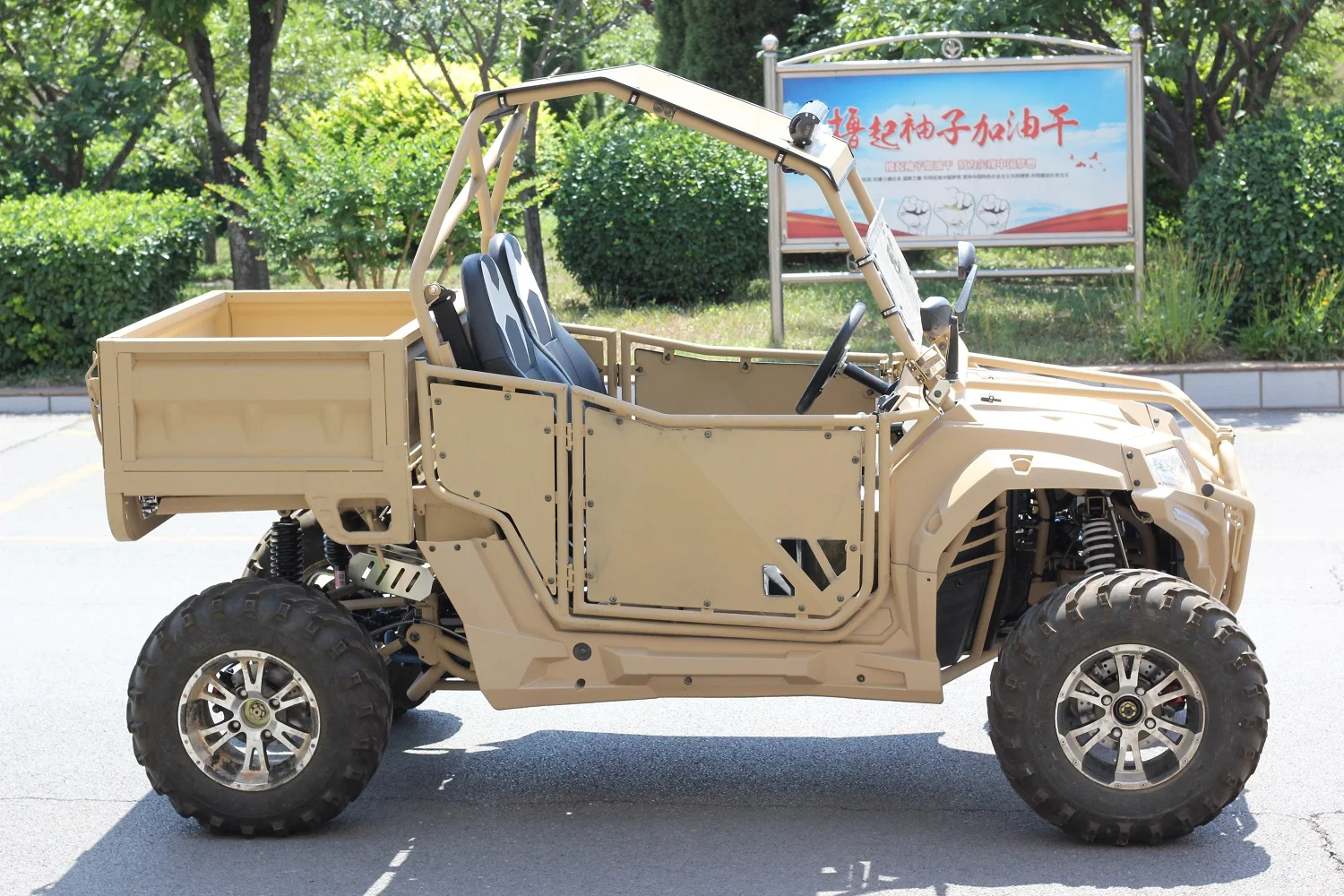

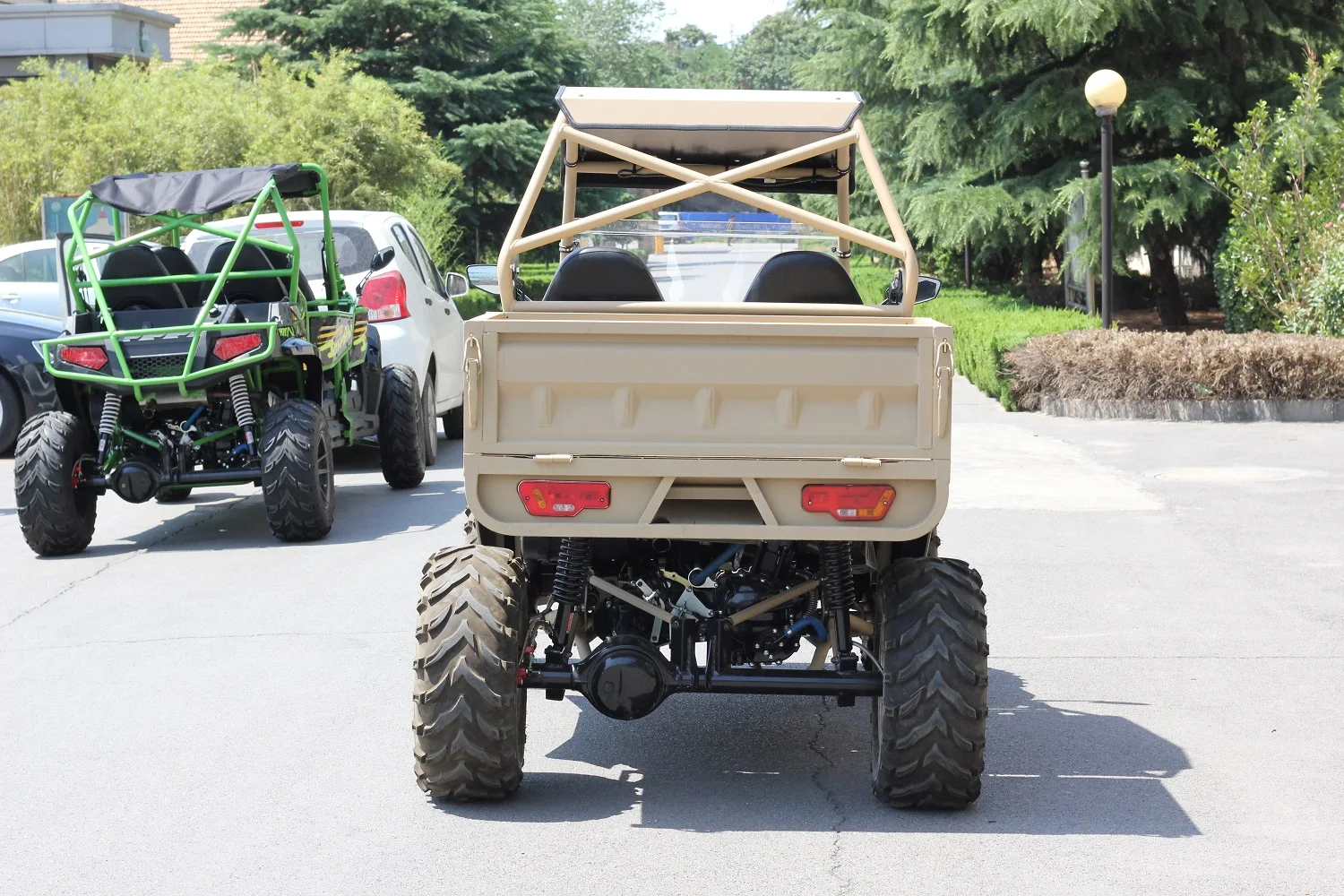

Details II
Packing & Delivery

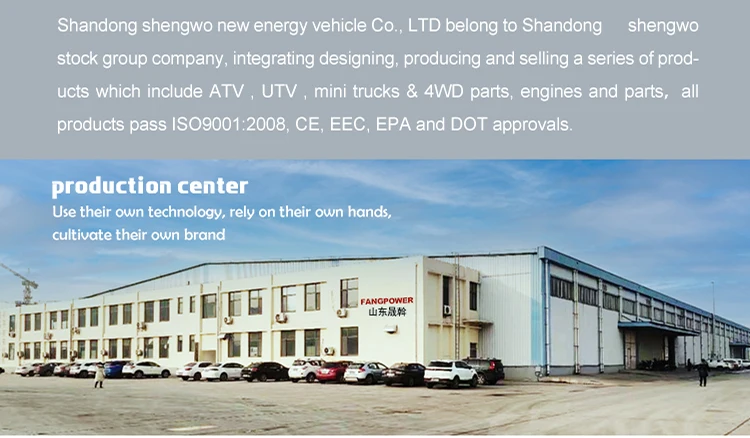

Company Profile

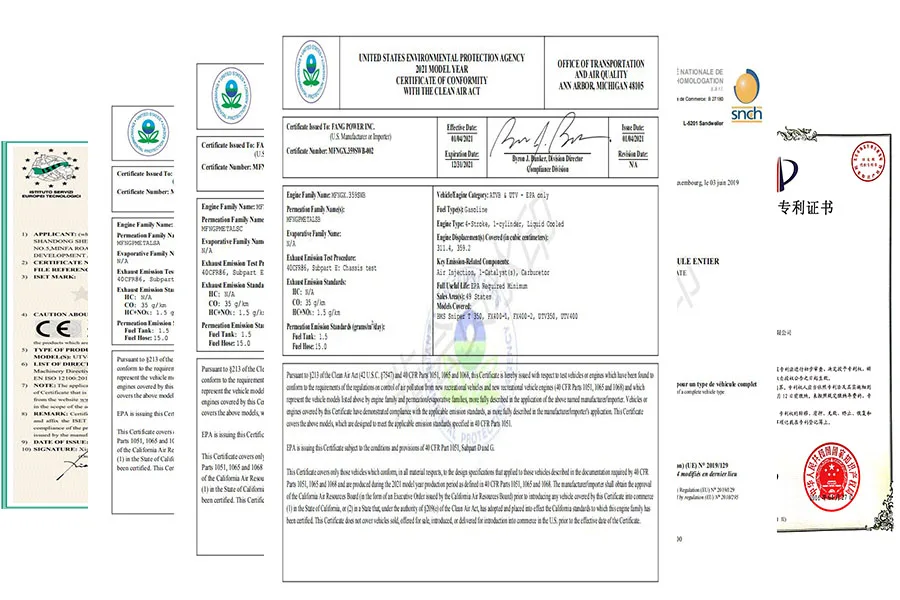

Certifications

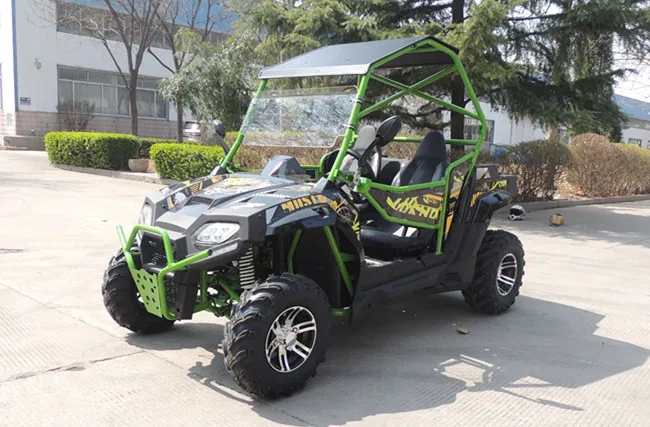

Customer Photos
Recommend Products
FX400U
FX250 Dictator
FX400 XL-4 Predator
FAQ
Q1. What is your terms of payment?
A: T/T ,30% as deposit, and 70% T/T before delivery.
Q2. How about your delivery time?
A: Generally, it will take 30 days after receipt of payment. Some specific delivery time depends on the models and the quantity of your order.
Q3: Can I mix different models in one container?
A: Yes, different models can be mixed in one container.
Q4: How does your factory do regarding quality control?
A: Every product will be fully assembled and carefully tested before it's packed for shipment.
Q5:Can I order spare parts?
A:We have all the parts list available for our models.
A: T/T ,30% as deposit, and 70% T/T before delivery.
Q2. How about your delivery time?
A: Generally, it will take 30 days after receipt of payment. Some specific delivery time depends on the models and the quantity of your order.
Q3: Can I mix different models in one container?
A: Yes, different models can be mixed in one container.
Q4: How does your factory do regarding quality control?
A: Every product will be fully assembled and carefully tested before it's packed for shipment.
Q5:Can I order spare parts?
A:We have all the parts list available for our models.
