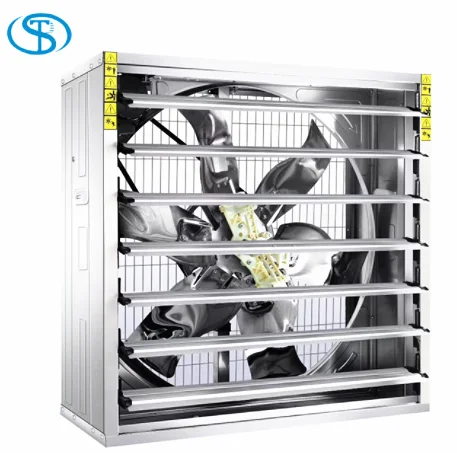

Alibaba gold supplier Cheap price and High quality exhausted Fan Poultry push pull Fan Industrial Exhaust Fan
- Category: >>>
- Supplier: Qingzhou Boost Temperature Control Equipment Co. Ltd.
Share on (1600295206079):
Product Overview
Description

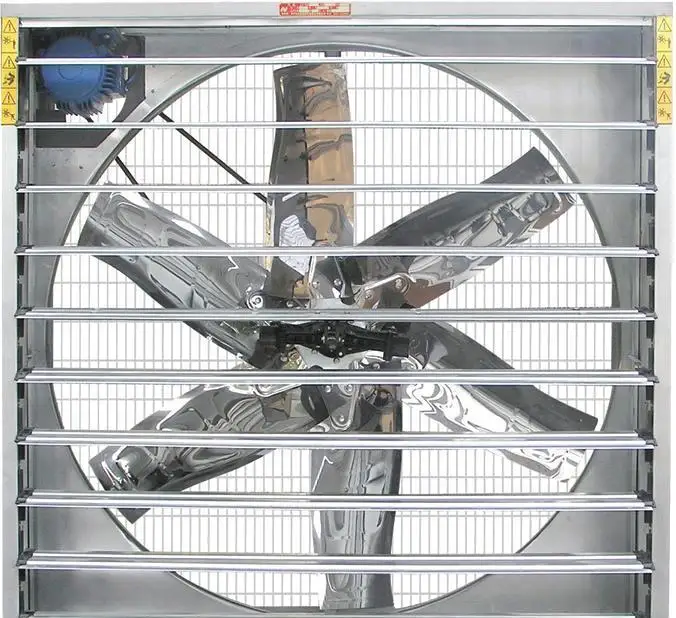

Cheap price and High quality exhausted Fan
BOOST Exhaust fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal husbandry,
poultry house, livestock breeding, greenhouse, factory workshop, textile etc.
poultry house, livestock breeding, greenhouse, factory workshop, textile etc.
Model | Drive | Blades Diameter(mm) | Blades Rotational Speed(rpm) | Motor Rotational Speed (rpm) | Air flow m³/hr | Input power (W) | Noise(db) |
BST300 | Drive | 200 | 1400 | 1400 | 1000 | 120 | ＜70 |
BST400 | Drive | 300 | 1400 | 1400 | 2000 | 180 | ＜70 |
BST480 | Diect | 380 | 1400 | 1400 | 3000 | 180 | ＜70 |
BST600 | Direct | 500 (20inch) | 1400 | 1400 | 5700 | 370 | ＜70 |
BST800 | Belt | 710 (28inch) | 660 | 1400 | 18000 | 370 | ＜65 |
BST900 | Belt | 750 (30inch) | 630 | 1400 | 22000 | 370 | ＜65 |
BST1000 | Belt | 900 (36inch) | 610 | 1400 | 25000 | 750 | ＜65 |
BST1100 | Belt | 1000 (40inch) | 600 | 1400 | 32500 | 750 | ＜65 |
BST1220 | Belt | 1100 (44inch) | 460 | 1400 | 38000 | 750 | ＜64 |
BST1380 | Belt | 1270 (50inch) | 458 | 1400 | 44000 | 1100 | ＜64 |
BST1530 | Belt | 1400 (56inch) | 325 | 1400 | 55800 | 1500 | ＜64 |

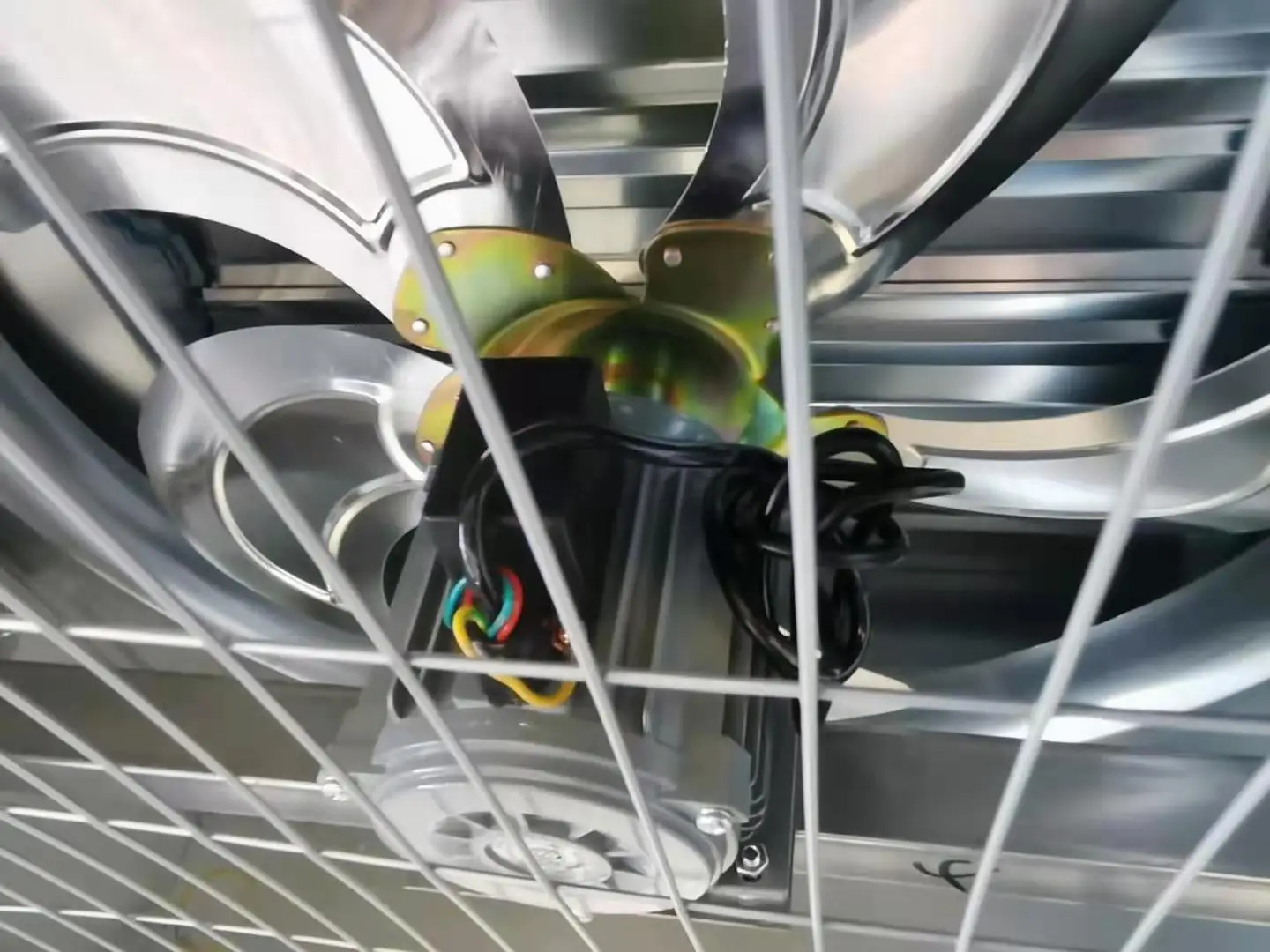

MOTOR
Cheap price and High quality exhausted Fan
Brand: Chinese motor and Siemens motor Certificate: CCC Protection class: IP55 grade
Insulation class: F grade
Volt and frequency:Customized Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.
Insulation class: F grade
Volt and frequency:Customized Production:With phase failure protective device to ensure motor working well
Advantage:
Pure copper wire,High-efficiency,Energy-saving.
Italligent Dynamic-Fan balance Tester
Cheap price and High quality exhausted Fan
Fan blades are adjusted by Intalligent dynamic-balance tester, the weight tolerance of each blade is controlled within 1g.
Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability..
Advantage:
Ensure the fan smooth running,lower vibration,less noise,increase stability..

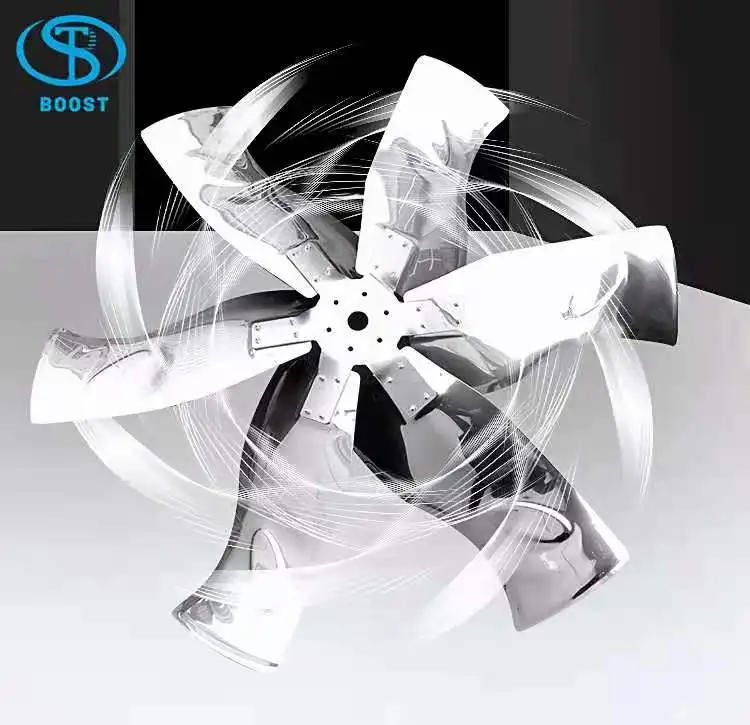

Fan blade which punching formed
Cheap price and High quality exhausted Fan
Blade is special designed for the biggest efficiency which made of Krupp stainless steel by punch forming.Large air volume,no
deformation,no broken ,no dust, attractive and durable.Thickness 1.2mm,surface finish BA grade .Stainless steel,galvanized and
aluminum for option.
deformation,no broken ,no dust, attractive and durable.Thickness 1.2mm,surface finish BA grade .Stainless steel,galvanized and
aluminum for option.

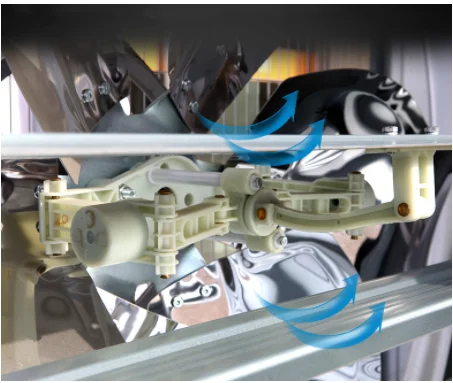

Opening system-Centrifugal System
Cheap price and High quality exhausted Fan
Centrifugal system open the shutter at complete 90 degree to ensure the lowest air resistance and biggest air volume.When close ,the sealing can efficiently bloce light wind ino the poultry farm house .At the first one adopt high quality nylon PA66 to ensure the long service life.The fasteners of centrifugal system all are copper rivets,wear-resisting and no rust,flexible,guide rod is made of 304 stainless steel ,ensure the high strength,no rust,and reduce friction.
Belt
Cheap price and High quality exhausted Fan
We have Chinese belt and Japanese Mitsuboshi brand belt for customer choice. Long service life and no repair
Modified B type belt,so that service life increase 3times than Type A
Modified B type belt,so that service life increase 3times than Type A

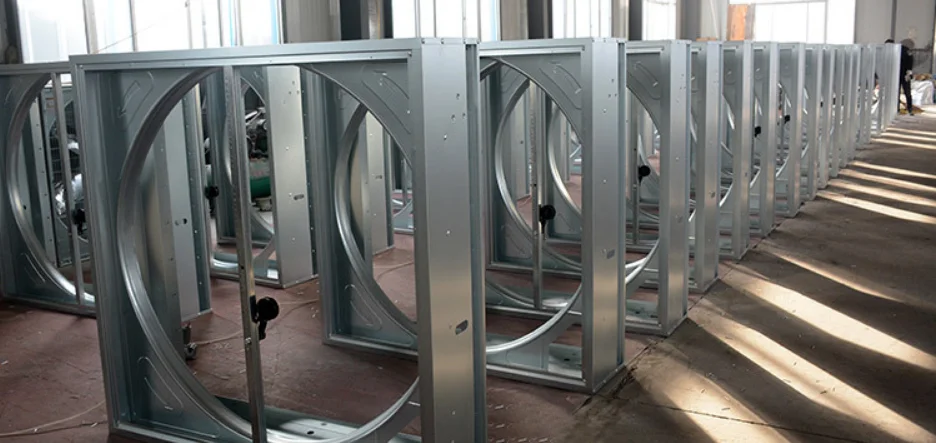

Frame: Thicken galvanized sheet
Cheap price and High quality exhausted Fan
We has advanced production technology with automatic equipment. professional production line, NC-based professionalequipment.Auto
punching and bending. Highly-accurated. Materials is made by 275g coating weight galvanized sheet.
Advantage:
High strength,Strong corrosion resistance
punching and bending. Highly-accurated. Materials is made by 275g coating weight galvanized sheet.
Advantage:
High strength,Strong corrosion resistance
Handle design
Cheap price and High quality exhausted Fan
More humanized
More humanized
designEasy to move
Not to be broken
Not to be broken

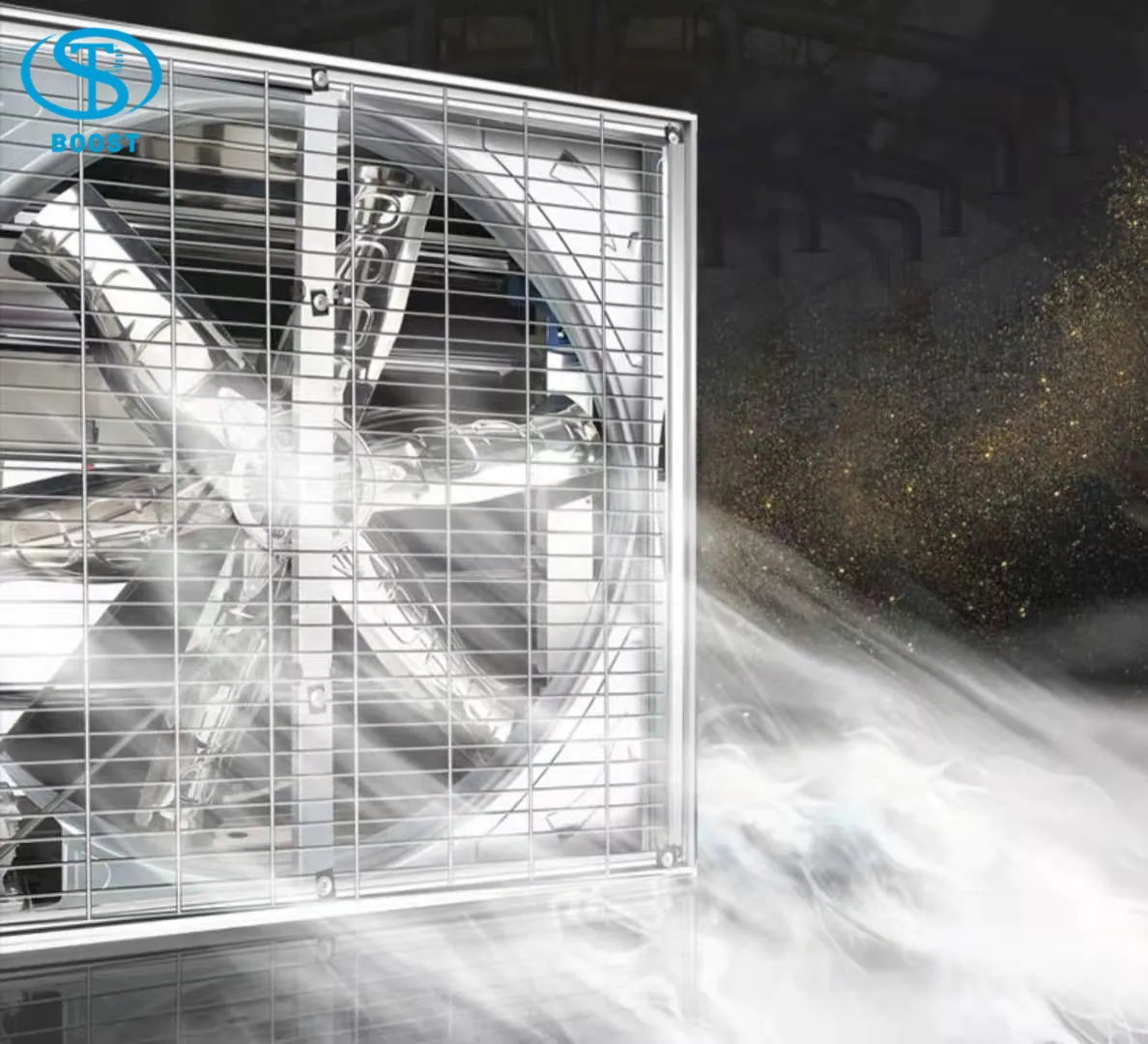

Fan safe net
Cheap price and High quality exhausted Fan
Industrial Factory Greenhouse Ventilation Exhaust Fan price
Fan protection mesh guard is made by hot-dip galvanized wire with electrostafic plastic spraying.It's no easy to get
rusty.Attractive and durable.
Fan protection mesh guard is made by hot-dip galvanized wire with electrostafic plastic spraying.It's no easy to get
rusty.Attractive and durable.
Details Images
How To Install
Remarks
Cheap price and High quality exhausted Fan
1. Adjust the horizontal and vertical , keeping the fan blade running smoothly2. After fixing the fan, the remaining gap need to
be sealed
3. The Expansion screws and Self tapping screw can be used to fix .
be sealed
3. The Expansion screws and Self tapping screw can be used to fix .

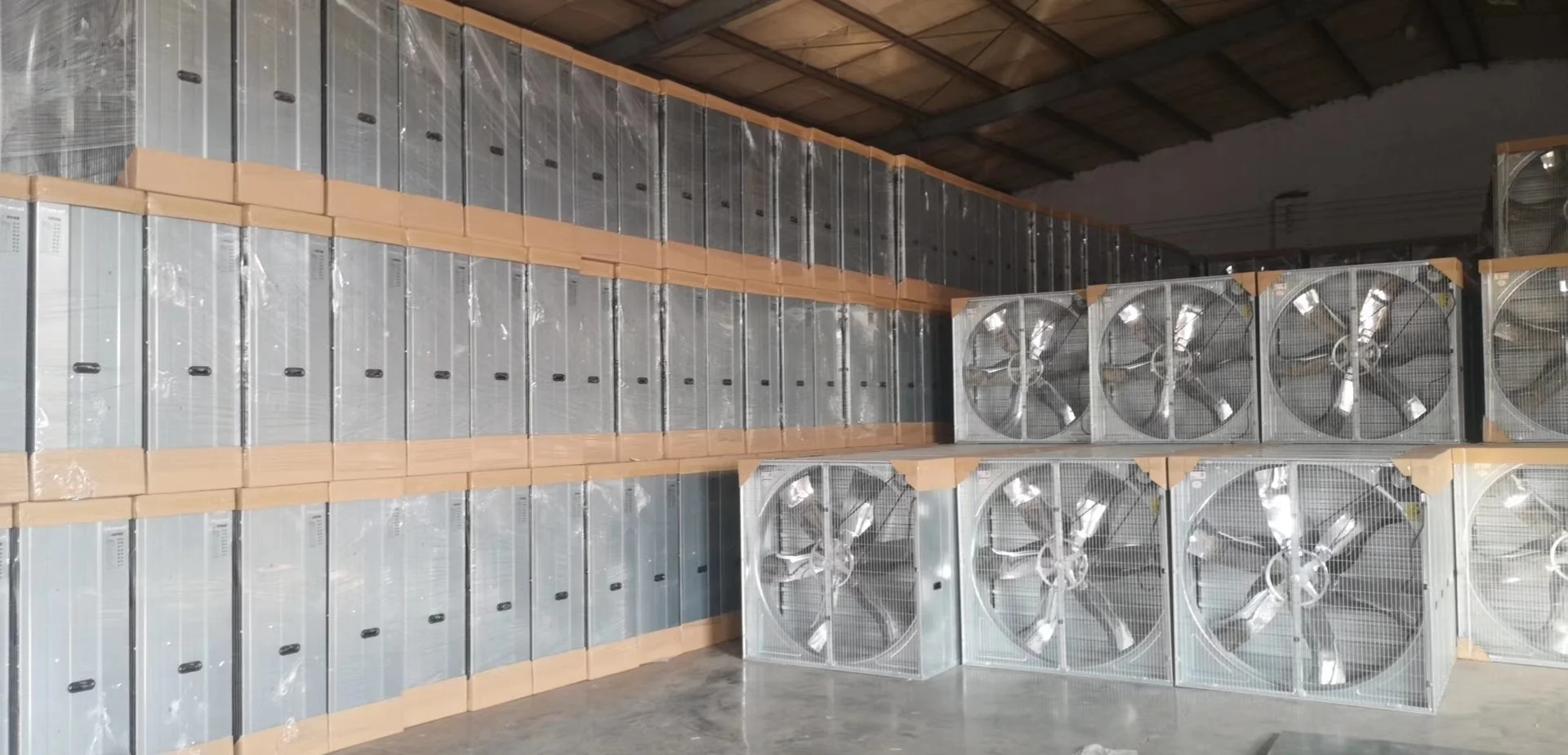

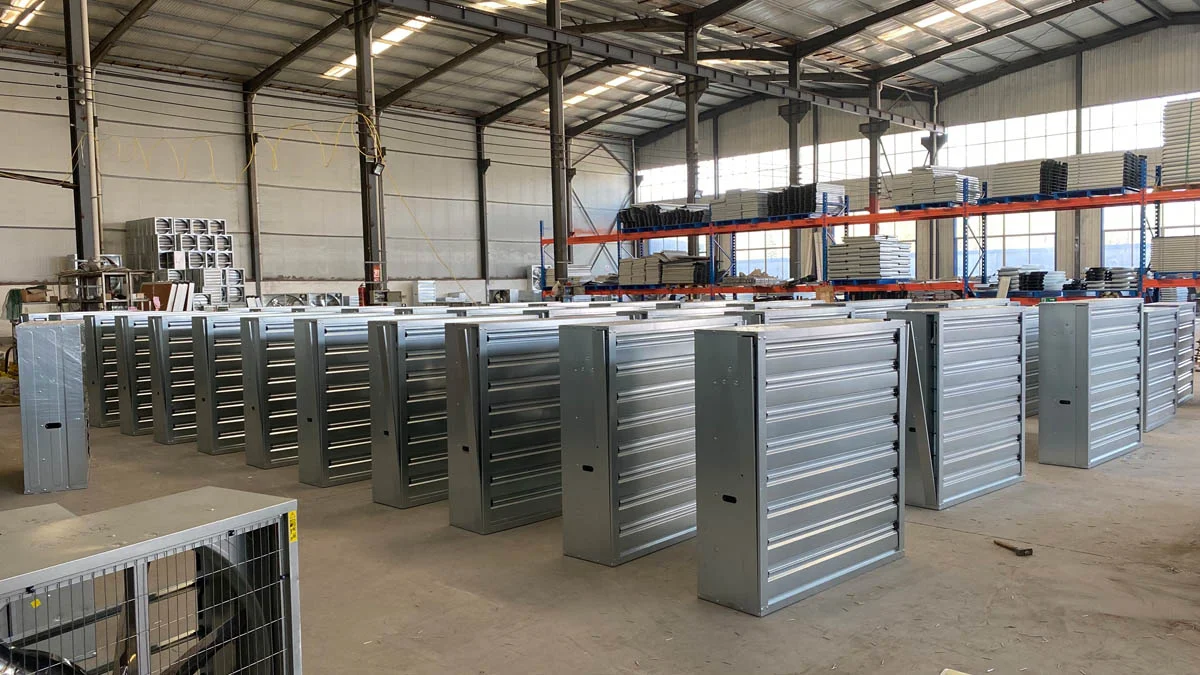

Factory&Workshop
WHY CHOOSE BOOSE?

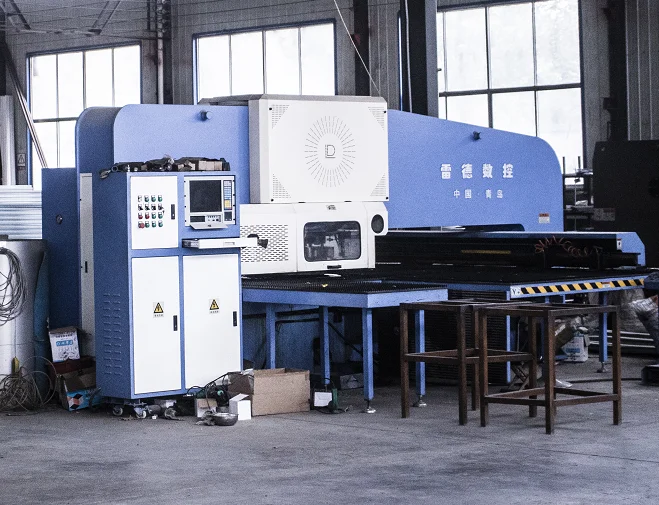

BOOST factory is equipped with the most advanced CNC production lines and laser cutting machines, top quality level in the
industry, in order to reduce the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective
globally.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries
around the world.
industry, in order to reduce the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective
globally.
We have strong design and research capabilities and experienced production workers. Our products are exported to many countries
around the world.
Packing&Shipping
After Sales Service
Pre-Sales Sevice
* Inquiry and consulting support.
* Sample testing support.
* Visit our Factory.
* Sample testing support.
* Visit our Factory.
