Product Overview
Description
Plastic test slideshare tester +block +verification +total +standard +shore d rockwell hardness testing machine made in China
Application Fields:
Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.
Specifications:

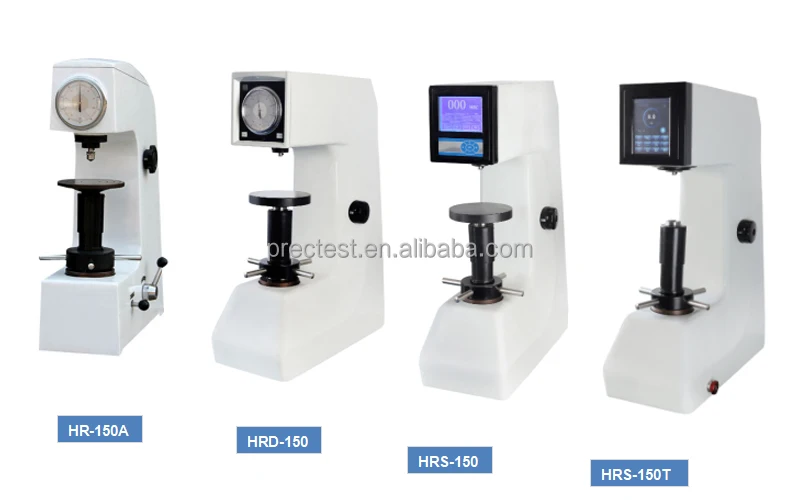

Model | HR-150A | HRD-150 | HRS-150T | |
Function | Manual | Electric | ||
Indication Of Hardness Value | Dail Display | Digital Display | Touch Screen | |
Data output | / | Built-in printer, RS232 | ||
Preliminary Test Force | 98 N.07N | |||
Total Test Force | 588.4N, 980.7N, 1471N (60, 100, 150kgf) | |||
Test Range | (20-88)HRA; (20-100)HRB; (20-70)HRC. | |||
Ball indenter | 1.588mm | |||
Max. Test Height | 170mm | 200mm | 210mm | |
| Max. Test Height | 400mm for the HR-150B/HRD-150B/HRS-150B/HRS-150BT
| |||
The Distance Between Pressure Head Center And The Wall | 135mm | 130mm | 165mm | |
The Distance Between Pressure Head Center And The Wall | 165mm for the for the HR-150B/HRD-150B/HRS-150B/HRS-150BT | |||
Hardness Resolution | 0.5HR | 0.1HR | ||
Dimensions(mm) | 466*238*630 | 510*230*730 | 220*510*694 | 220*510*694 |
Weight | 70 KG | 75kg | 90kg | 90kg |
Power supply | / | AC 220V, 50Hz | ||
