Waste Hdpe Ldpe Lldpe Film Pp Woven Bags Plastic Washing Recycling Machine Plant Line
- Category: Recycle Washing Line >>>
- Supplier: Zhangjiagang Kooen Machinery Co. Ltd.
Share on (1600295335482):
Product Overview
Description
Product Description
Estimated Plant Parameters：
Model | CAPACITY(KG/H) | POWER CONSUMPTION(KW) | WATER CONSUMPTION(TON/H) | MANPOWER | HUMIDITY CONTENT |
MPE-300 | 300kg/hour | 125kw | 3ton/h | 2-3 | ≤2% |
MPE-500 | 500kg/hour | 260kw | 4-5ton/h | 3 | ≤2% |
MPE-1000 | 1000kg/hour | 350kw | 6ton/h | 4 | ≤2% |
MPE-2000 | 1500-2000kg/hour | 480kw | 7-8ton/h | 4-5 | ≤2% |

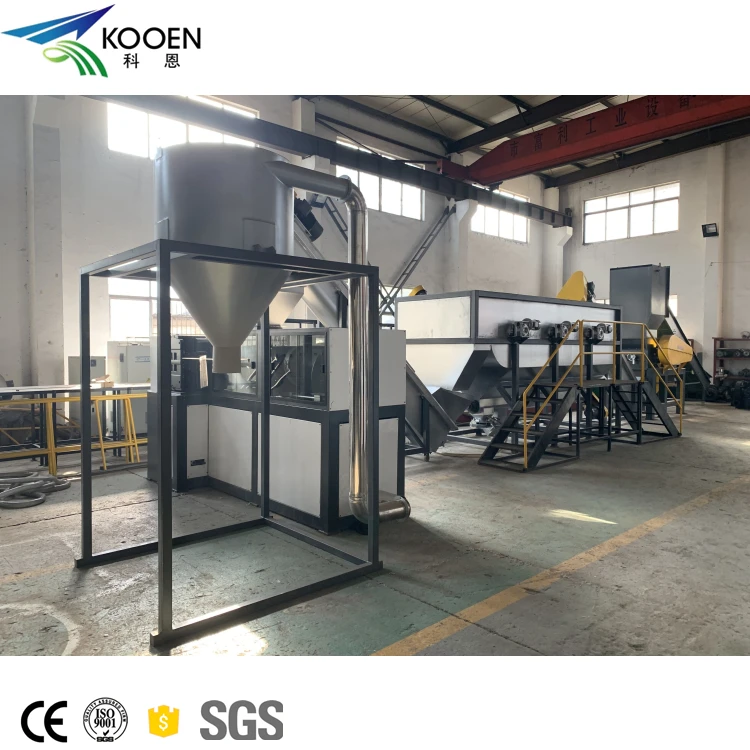

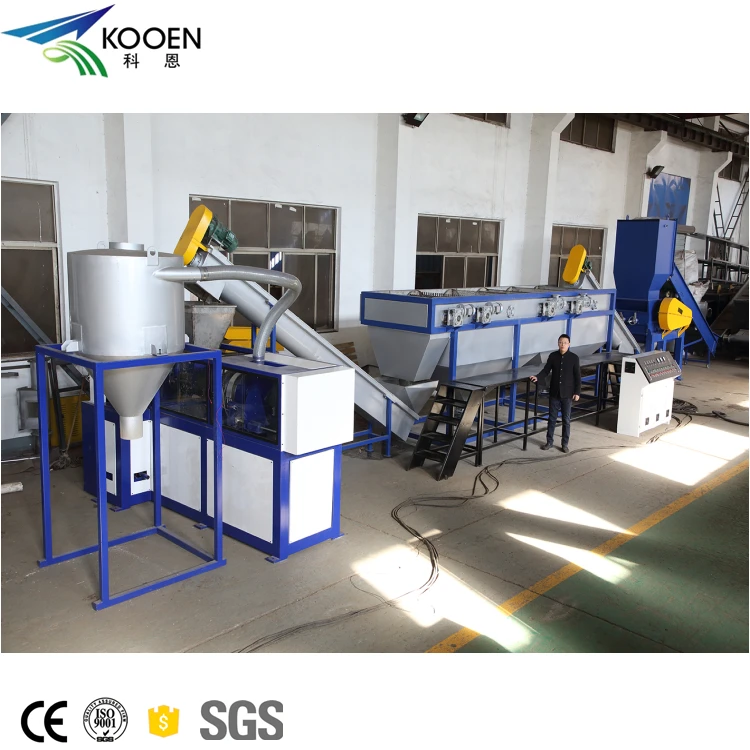

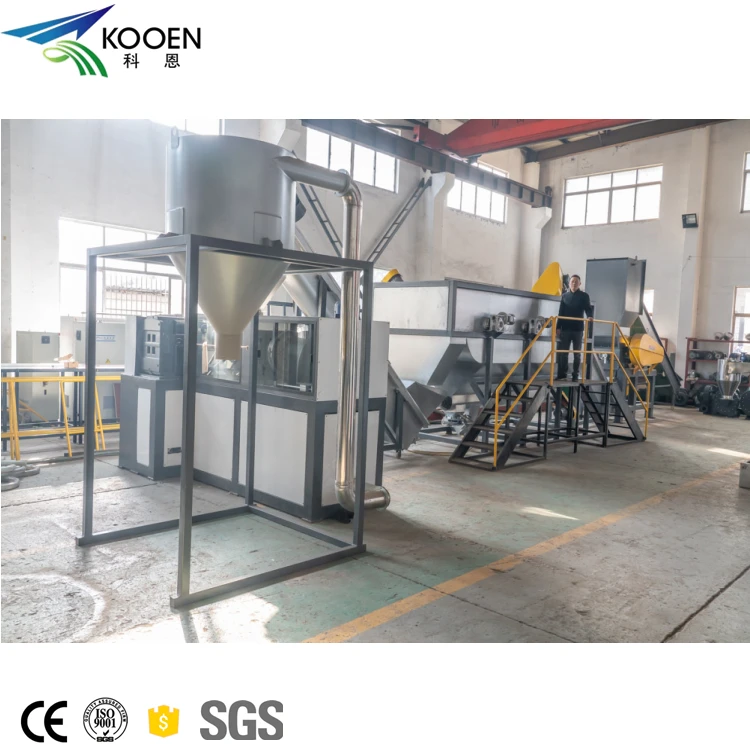

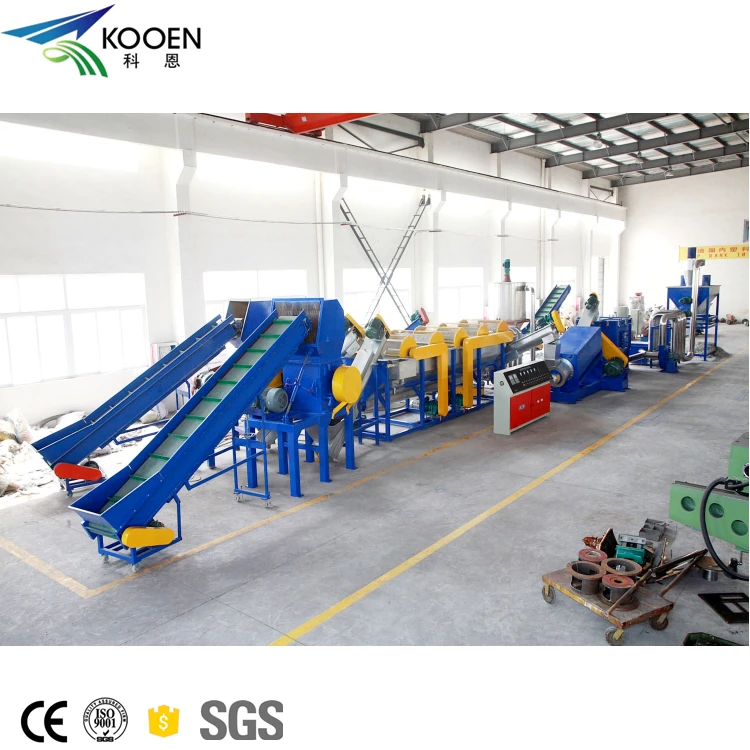

Working Flow:
Belt conveyor * 2 → Crusher * 2 → Screw friction washer* 2 → Floating washer →Screw friction washer →Floating washer →Screw conveyor → High speed friction machine → Screw conveyor → Two direction horizontal separating screw → Squeezer machine* 2 →Storage hopper → Control cabinet
Belt conveyor * 2 → Crusher * 2 → Screw friction washer* 2 → Floating washer →Screw friction washer →Floating washer →Screw conveyor → High speed friction machine → Screw conveyor → Two direction horizontal separating screw → Squeezer machine* 2 →Storage hopper → Control cabinet

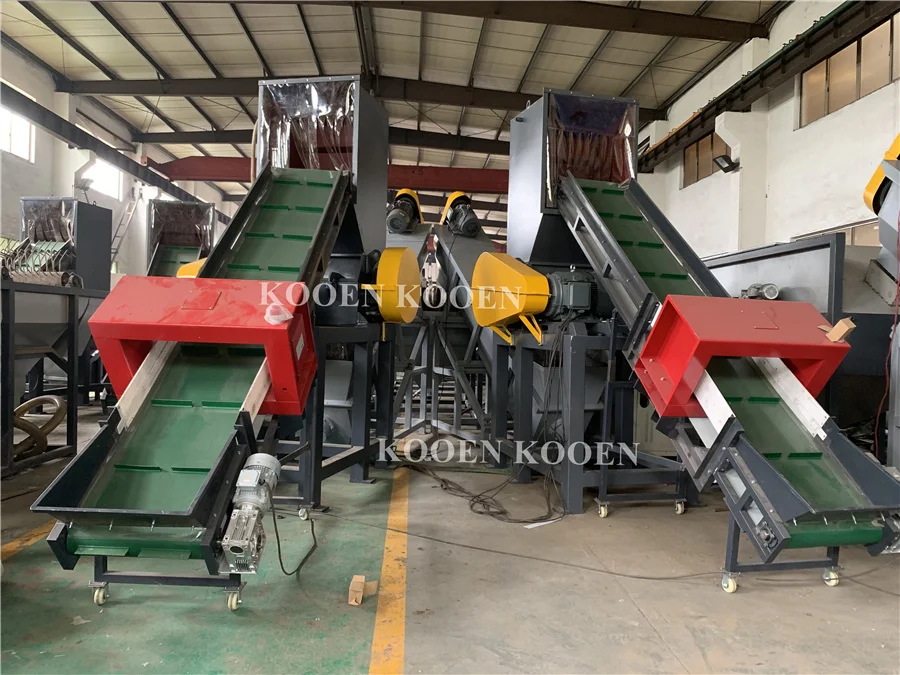

Belt conveyor
Control method: frequency control

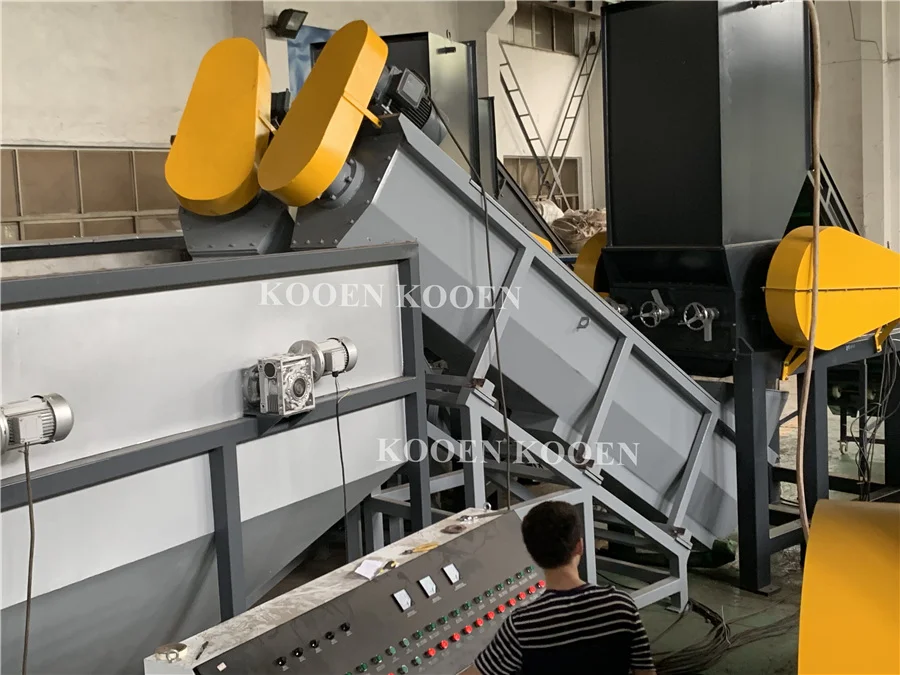

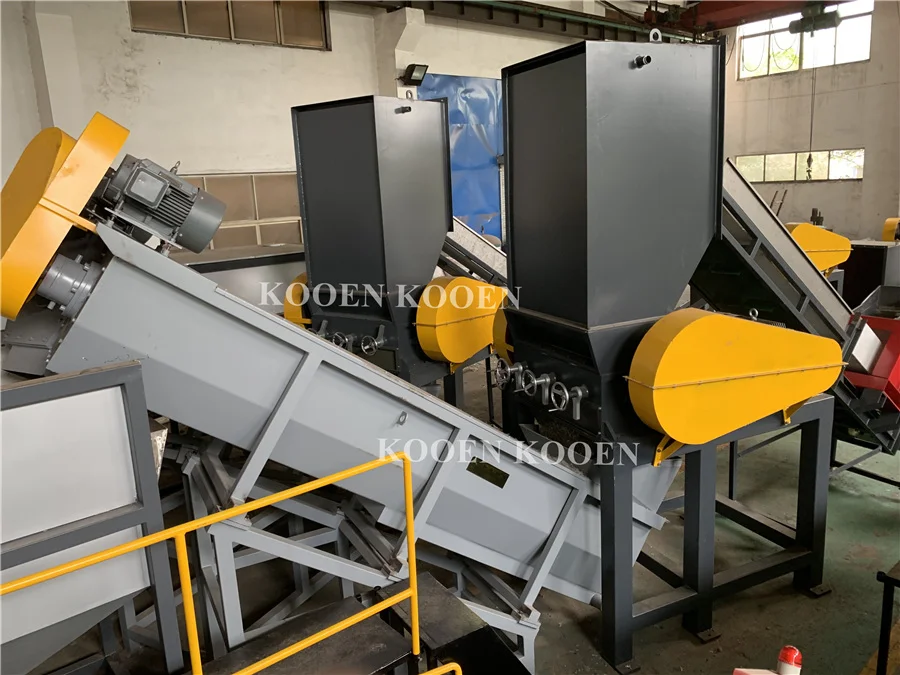

Crusher *2
Motor power: 37/55/90kw
Fix knives quantity: 4 pc
Moving knives quantity: 10 pc
Knife material: SKD-11(from Japan)
crushing with water
Fix knives quantity: 4 pc
Moving knives quantity: 10 pc
Knife material: SKD-11(from Japan)
crushing with water
Screw friction washer *2
Motor power: 22kw
Rotation speed: 900rpm
Diameter: 650mm
Main shaft through dynamic balance treatment
Rotation speed: 900rpm
Diameter: 650mm
Main shaft through dynamic balance treatment

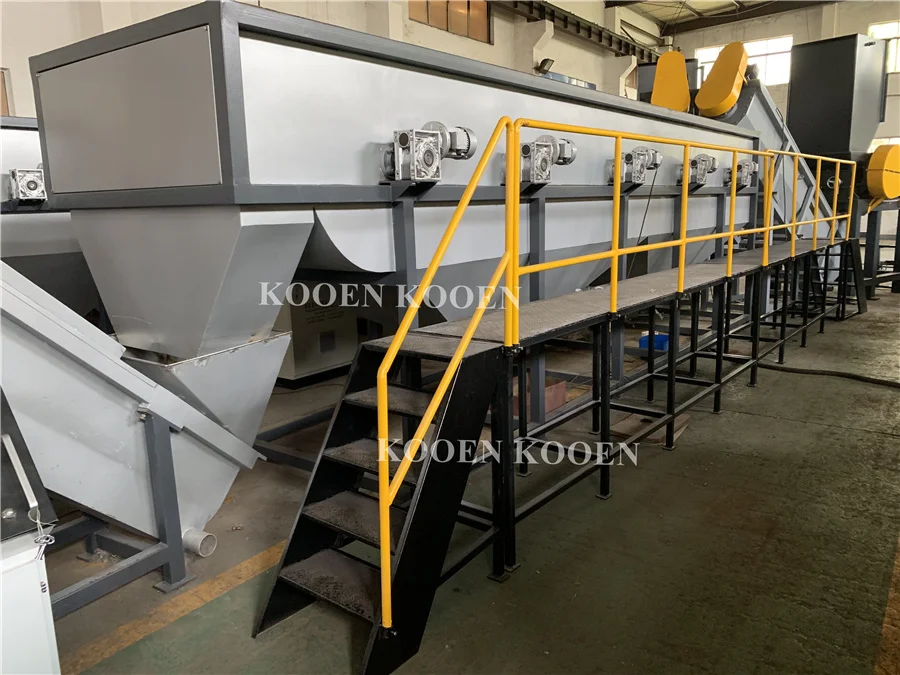

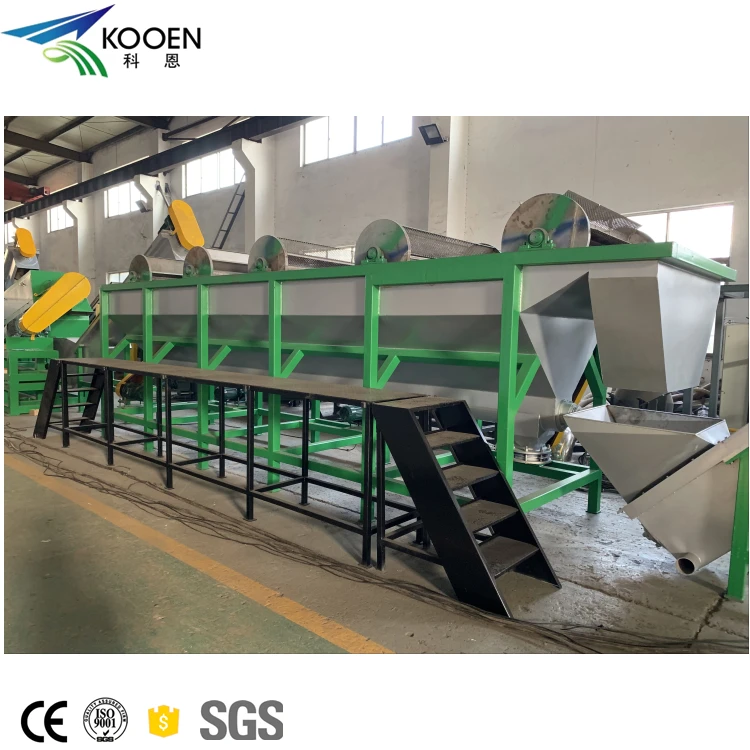

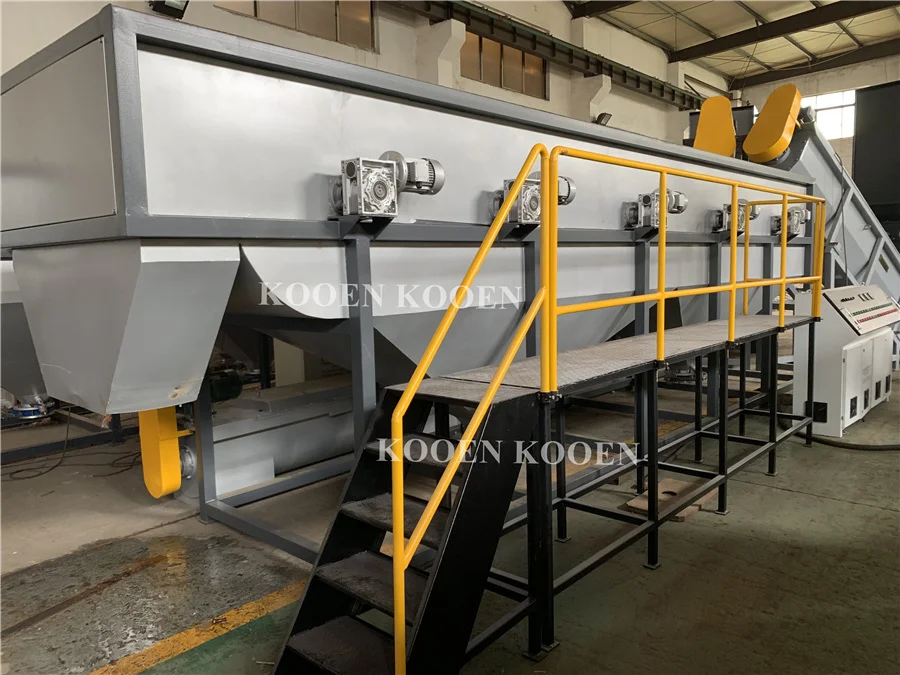

Floating washer
Dimension(L*W): 6000*1800mm
Made of SUS304 stainless steel
Made of SUS304 stainless steel
Screw friction washer
Motor power: 22kw
Rotation speed: 900rpm
Diameter: 650mm
Main shaft through dynamic balance treatment
Made of SUS304 stainless steel
Rotation speed: 900rpm
Diameter: 650mm
Main shaft through dynamic balance treatment
Made of SUS304 stainless steel
Floating washer
Dimension(L*W): 6000*1800mm
Made of SUS304 stainless steel
Made of SUS304 stainless steel

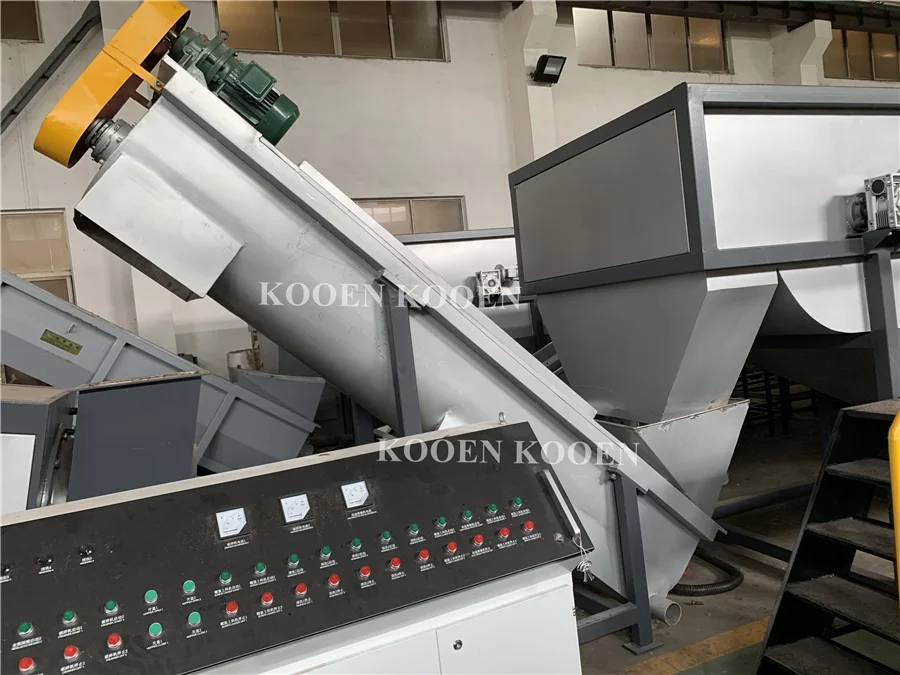

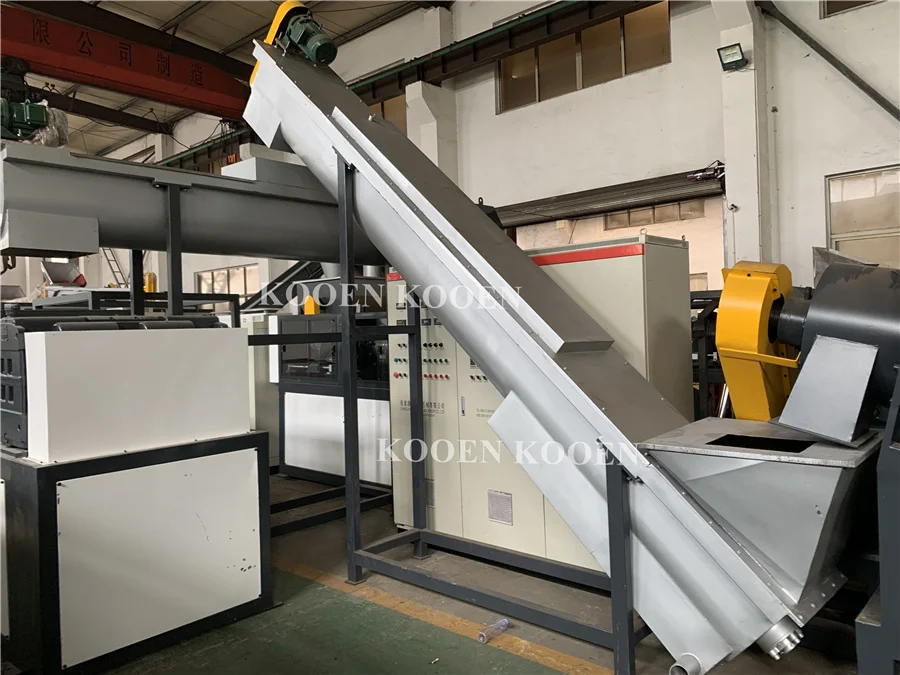

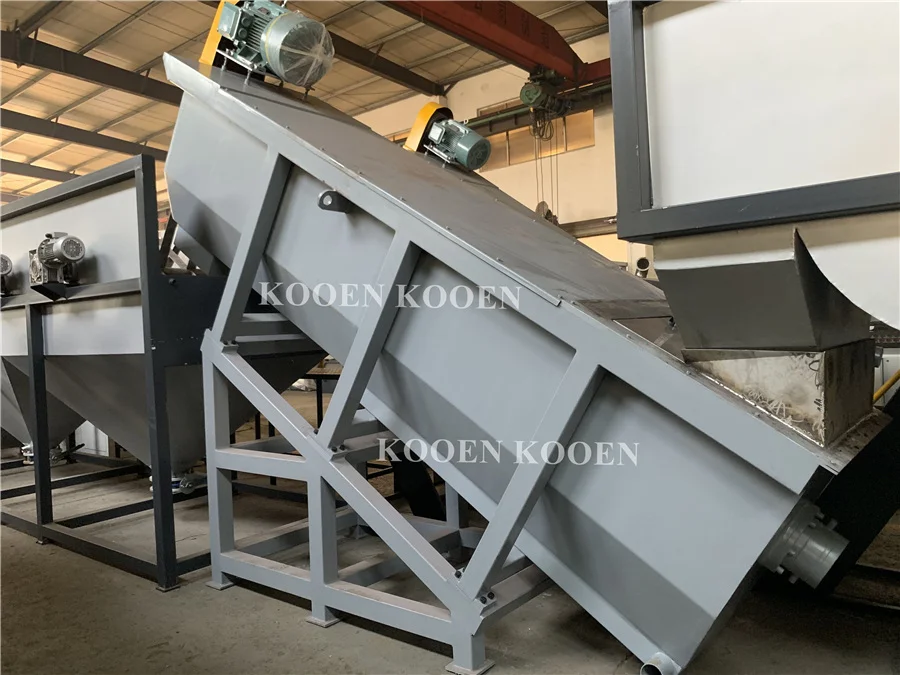

Screw loader
Motor power: 5kw
Diameter: 500mm
Made of SUS304 stainless steel
Diameter: 500mm
Made of SUS304 stainless steel

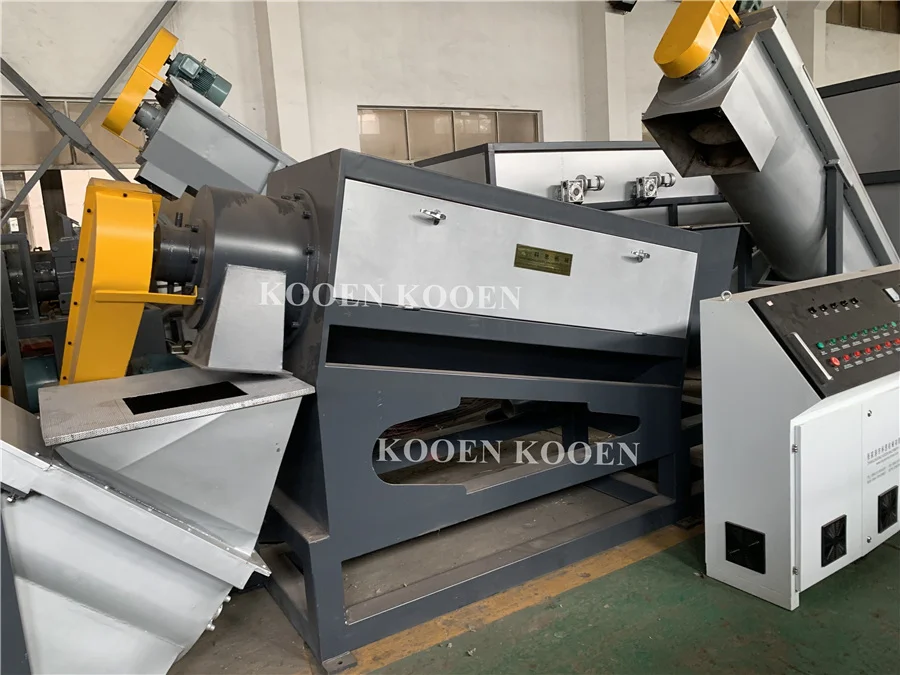

High speed friction washer
Motor power: 22/37/45KW
Rotation speed: 1200rpm
Main shaft through dynamic balance treatment
Rotation speed: 1200rpm
Main shaft through dynamic balance treatment
Screw loader
Motor power: 5kw
Diameter: 500mm
Made of SUS304 stainless steel
Diameter: 500mm
Made of SUS304 stainless steel
Two direction screw conveyor
Motor power: 5.5 kw
Diameter: 500mm
Made of SUS304 stainless steel
Diameter: 500mm
Made of SUS304 stainless steel

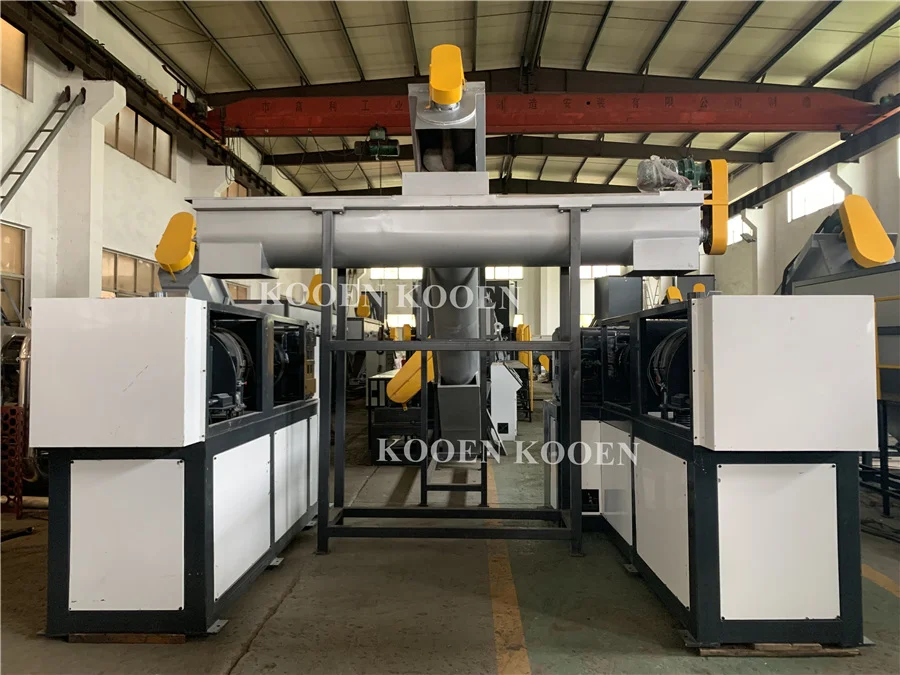

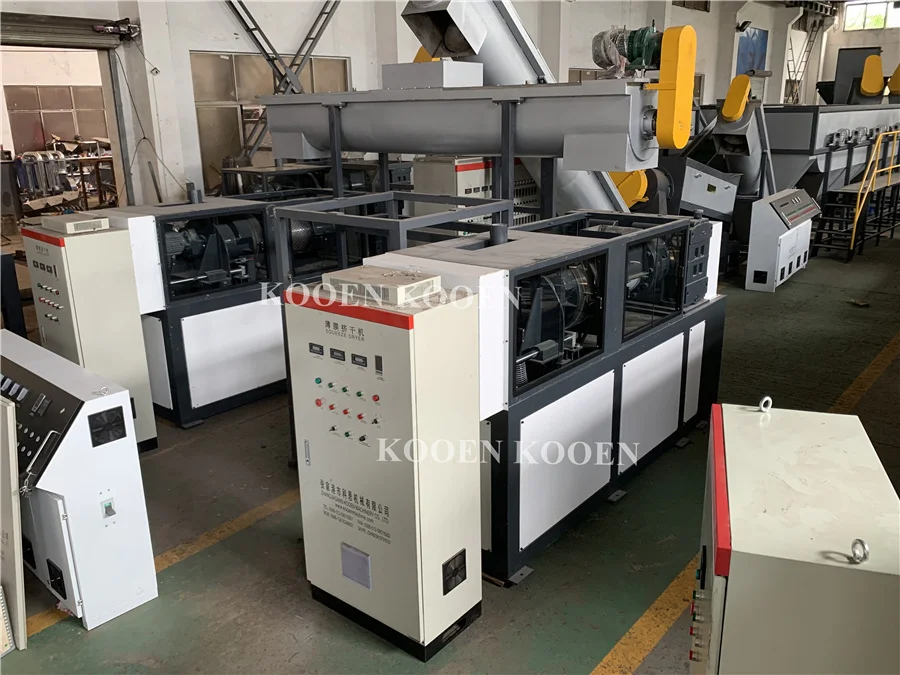

Squeezer machine
Motor power: 75/90/132KW
Screw diameter: 250/300/350mm
Screw/barrel materials: 38CrMoAl Nitrified, CNC treatment
Cutting motor power: 5.5kw
Fan blower power: 7.5kw
Screw diameter: 250/300/350mm
Screw/barrel materials: 38CrMoAl Nitrified, CNC treatment
Cutting motor power: 5.5kw
Fan blower power: 7.5kw

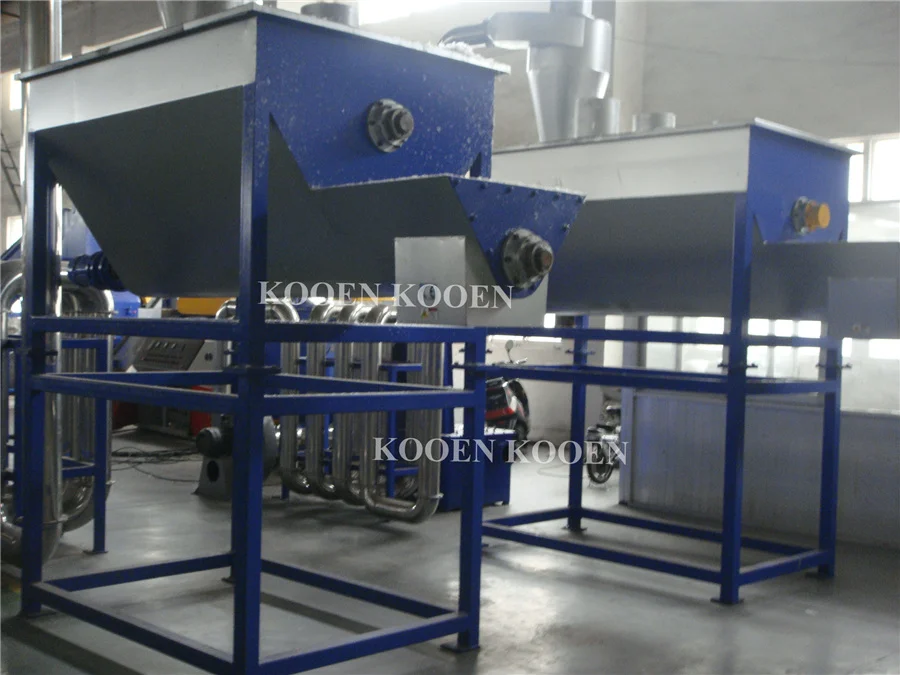

Storage hopper
Volume: 3.5m3, made of stainless steel

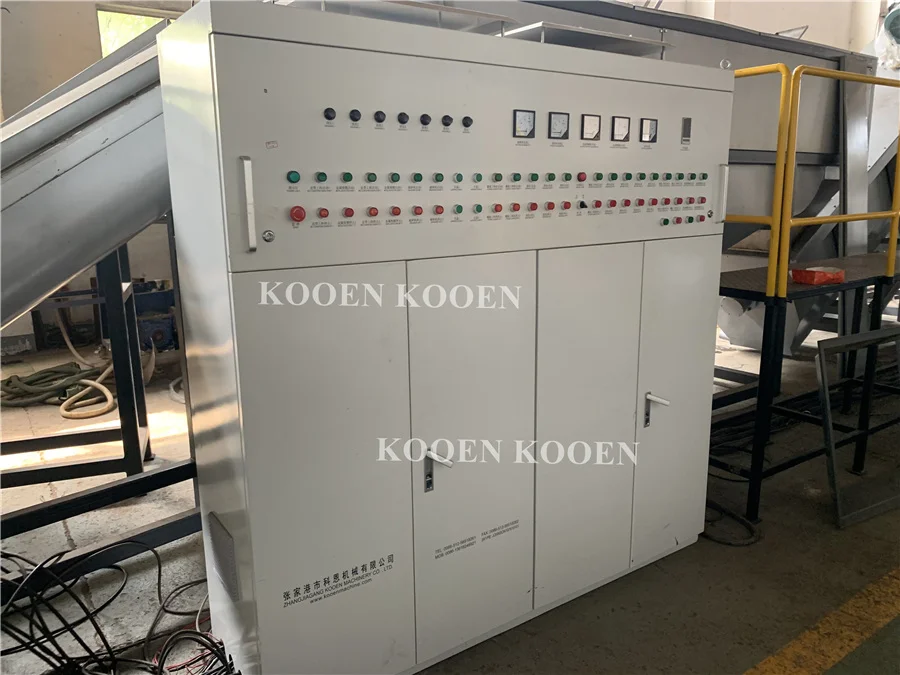

Control cabinet
World famous brand
Advantages:
1. Final products has good quality. When process PP PE film bags, final products humidity below 2-4%.
2. The machine with high efficiency, working stable, large capacity etc.
3. Parts which contact material use SUS304, thickness more than 3mm, ensure long service life time.
4. World famous brand components applied on the production line
5. The whole production line with CE certification, ISO9001 certification .
1. Final products has good quality. When process PP PE film bags, final products humidity below 2-4%.
2. The machine with high efficiency, working stable, large capacity etc.
3. Parts which contact material use SUS304, thickness more than 3mm, ensure long service life time.
4. World famous brand components applied on the production line
5. The whole production line with CE certification, ISO9001 certification .
