Компактный солнечный водонагреватель без давления
- Category: >>>
- Supplier: Zhejiang Handa New Energy Co. Ltd.
Share on (1600295367682):
Product Overview
Description
Details Images
we can customize products according to your requirement！
model | Vacuum tube | liter | people | Support Angle |
HSL-8 | 58*1800*8pcs | 80 | 1-2 | 25-45 |
HSL-10 | 58*1800*10pcs | 100 | 2-3 | 25-45 |
HSL-12 | 58*1800*12pcs | 120 | 2-3 | 25-45 |
HSL-15 | 58*1800*15pcs | 150 | 3-4 | 25-45 |
HSL-18 | 58*1800*18pcs | 180 | 3-4 | 25-45 |
HSL-20 | 58*1800*20pcs | 200 | 4-5 | 25-45 |
HSL-24 | 58*1800*24pcs | 240 | 5-6 | 25-45 |
HSL-30 | 58*1800*30pcs | 300 | 6-7 | 25-45 |
HSL-36 | 58*1800*36pcs | 360 | 7-8 | 25-45 |
Type：SP(Integrated Low Pressure System)
Inner Tank Material：Food grade SUS304 2B or SUS316L
Inner Tank Diameter：Φ360mm;Φ370mm;Φ380mm;Φ420mm
Inner Tank Thickness：0.31mm;0.38mm;0.4mm
Outer Tank Material：SUS304;SUS316
Outer Tank Diameter：Φ460mm;Φ470mm;Φ480mm;Φ520mm
Inner Tank Thickness;0.4mm 0.45mm 0.5mm
Tube Number:8/10/12/15/18/20/24/30/32/36/40
Frames (Stand Parts):Galvanized plate, Stainless steel or Aluminum alloy
Insulation Thickness:50mm,55mm,60mm
Outer Tank Material：SUS304;SUS316
Outer Tank Diameter：Φ460mm;Φ470mm;Φ480mm;Φ520mm
Inner Tank Thickness;0.4mm 0.45mm 0.5mm
Tube Number:8/10/12/15/18/20/24/30/32/36/40
Frames (Stand Parts):Galvanized plate, Stainless steel or Aluminum alloy
Insulation Thickness:50mm,55mm,60mm

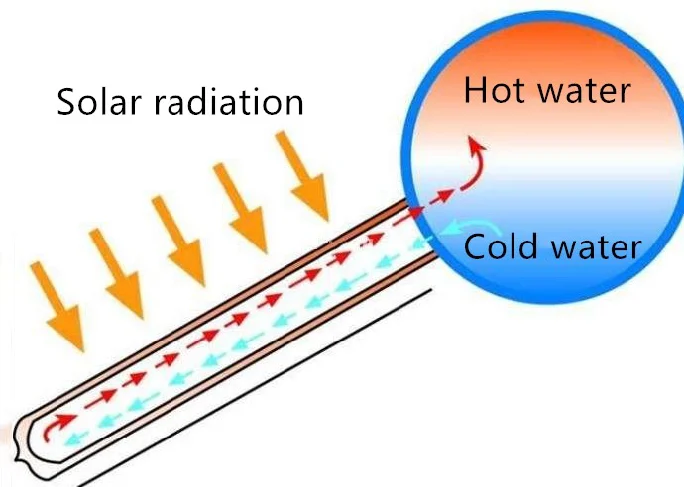

Working Principle
how to work
The vacuum tube absorbs solar energy and converts it into heat energy. The water in the tank flows into the vacuum tube to heat
the water, and the density of cold water is greater than that of hot water. The cold hand absorbs the heat energy to form hot
water
the water, and the density of cold water is greater than that of hot water. The cold hand absorbs the heat energy to form hot
water
Products Description
Product packaging
Company Profile
Zhejiang Handa new energy Co., Ltd is the leading solar water heater and solar thermal equipment manufacturer in China, provide high-quality solar water heaters, production lines and related accessories. Our company has a number of highly qualified technical persons, internationally advanced testing equipment and the first-class production equipment and technology and operates a perfect after-sales service system. our products are exported to overseas countries and regions such as Mexico, USA, Turkey, Australia, Germany, UK, France, Portugal, Hungary, Romania, Malta, Syria, New Zealand, Sweden, South Africa, Spain, UAE, Viet Nam, etc.over 50 countries, and have found favor in the eyes of customers. We also provide design-system or customized products which is suitable for customers local market.
If you are interested in our products, please do not hesitate to contact us with more information. We are looking forward to cooperating with you!
If you are interested in our products, please do not hesitate to contact us with more information. We are looking forward to cooperating with you!
Why Choose Us
1.Zhejiang Handa new energy Co., Ltd Have top engineers and technicians in the industry can providing invaluable product design experience. We make solar manufacturing equipment for solar production line raw materials if needed.
2.Competitive price
3.Focus on High Quality, reliable manufacturing products
4.We have many stable and cooperative foreign companies, understand foreign markets and characteristics
5.We listen to our customers, and constantly work to provide better and better products and services that we are suited to local climates and market.
6.We provide design-system or customized products which is suitable for customers local market.
7.Commitment to fair labor practices, career advancement and open communication throughout the company
2.Competitive price
3.Focus on High Quality, reliable manufacturing products
4.We have many stable and cooperative foreign companies, understand foreign markets and characteristics
5.We listen to our customers, and constantly work to provide better and better products and services that we are suited to local climates and market.
6.We provide design-system or customized products which is suitable for customers local market.
7.Commitment to fair labor practices, career advancement and open communication throughout the company
