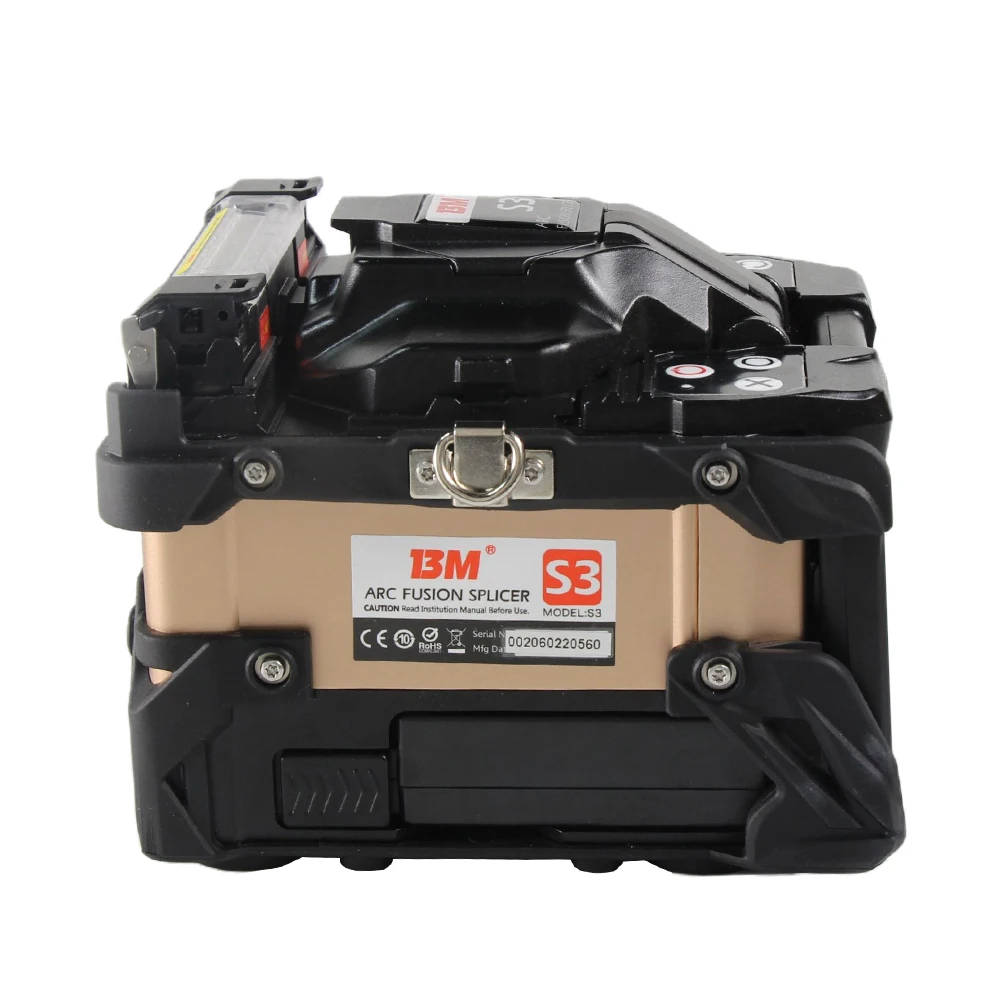

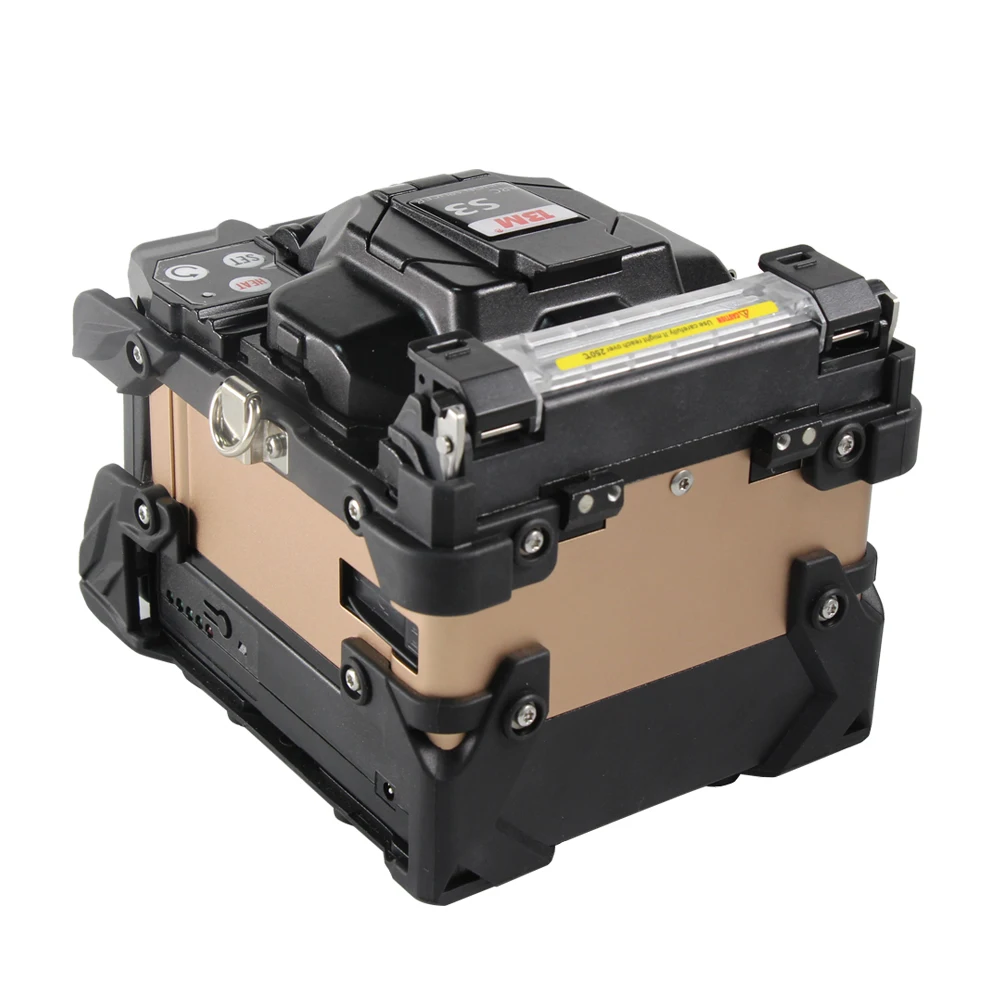

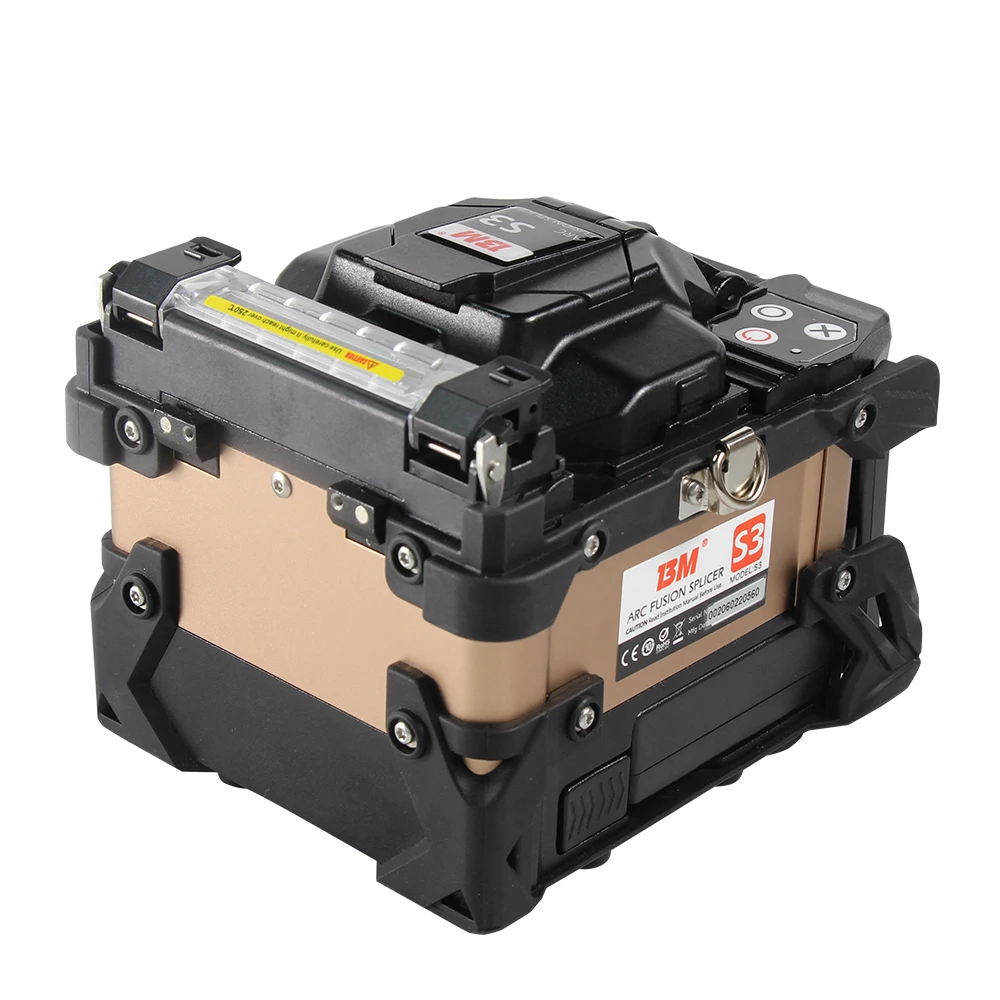

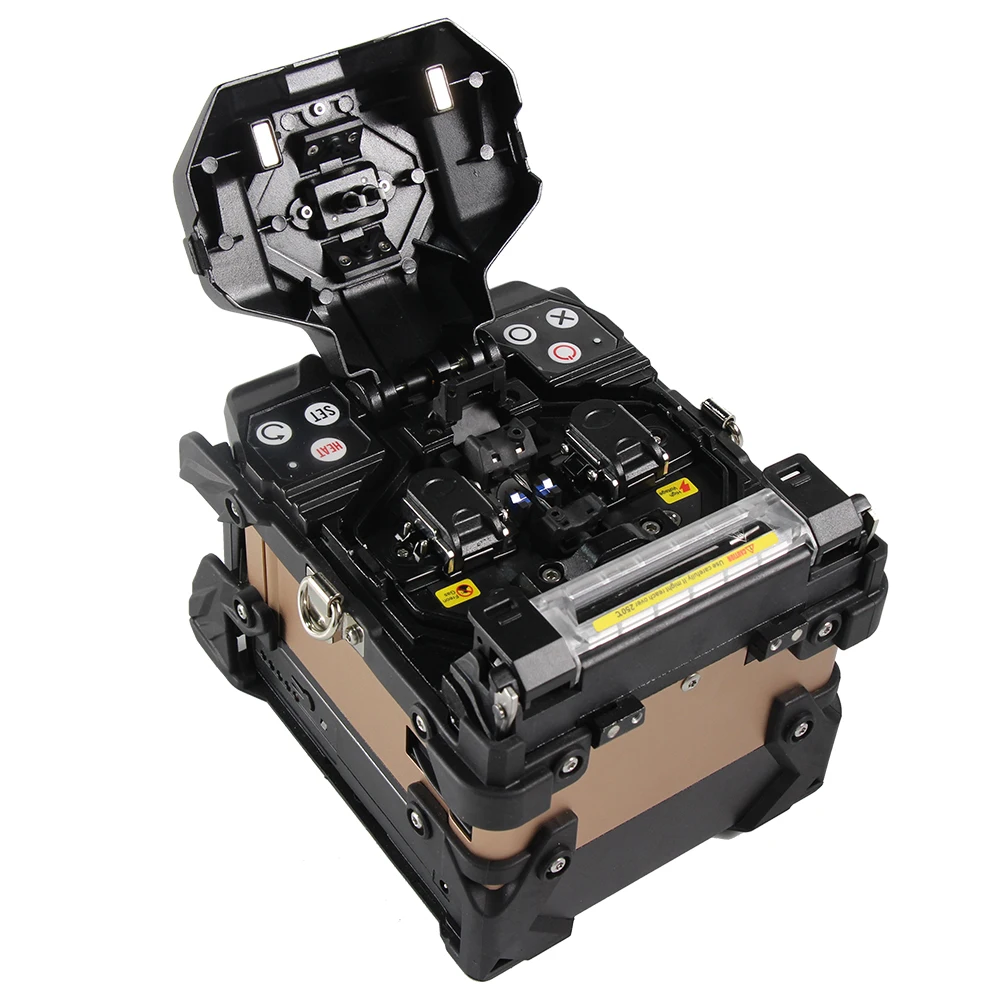

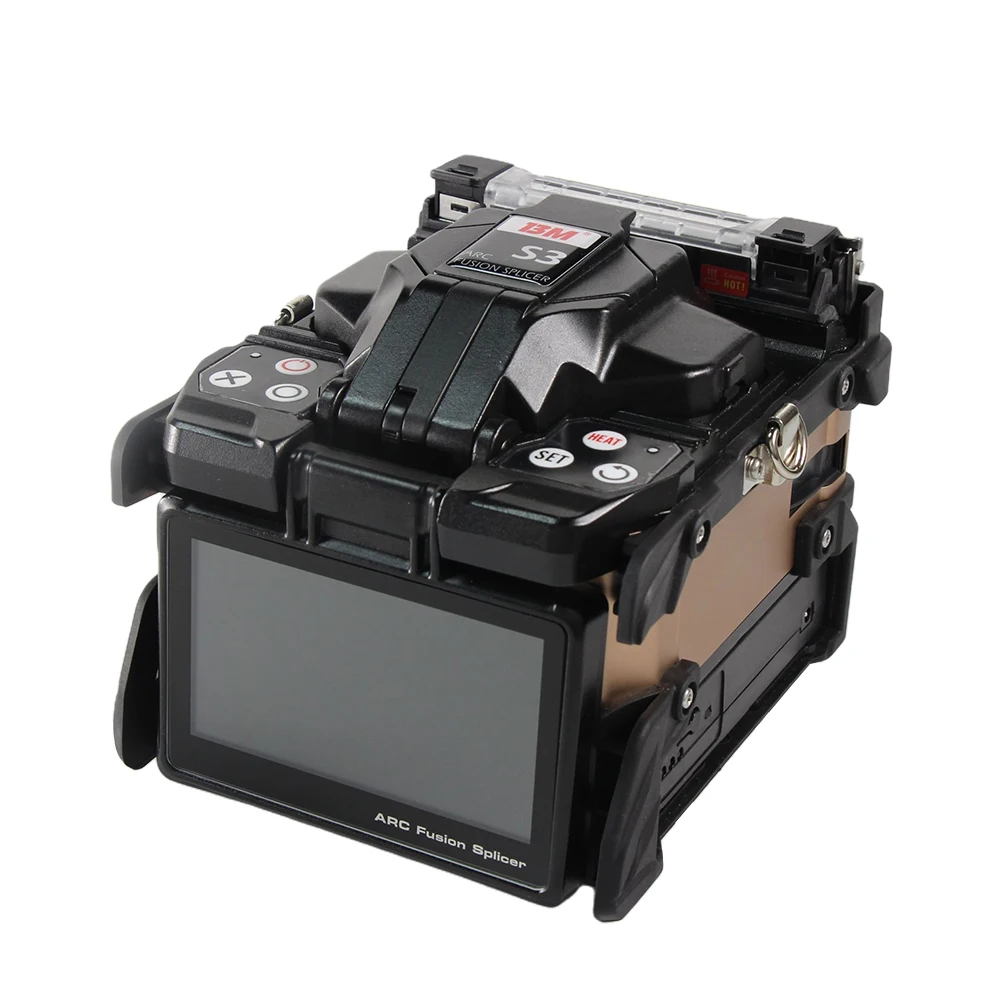

Brand New Multi Language Fiber ARC Splicing Machine S3 Splicer
- Category: >>>
- Supplier: Yiwu Haohui Trading Co. Ltd.
Share on (1600295634643):
Product Overview
Description

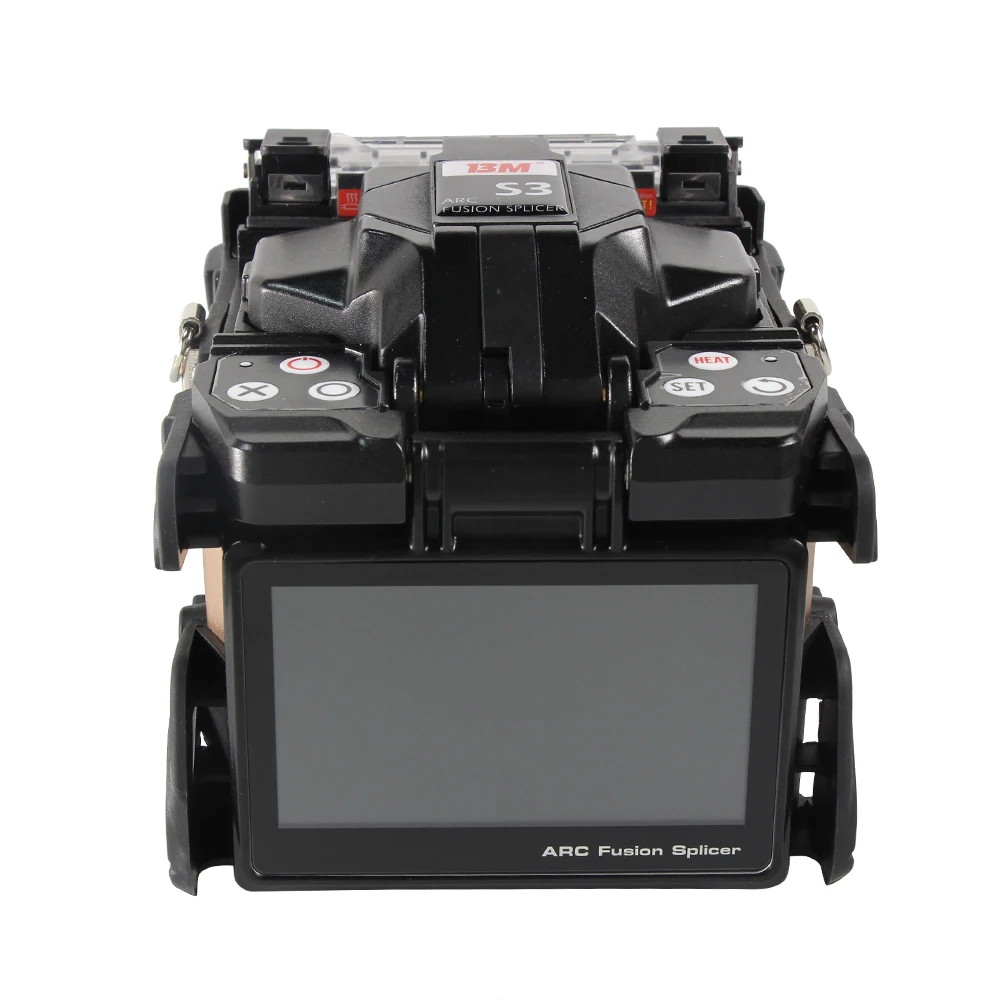

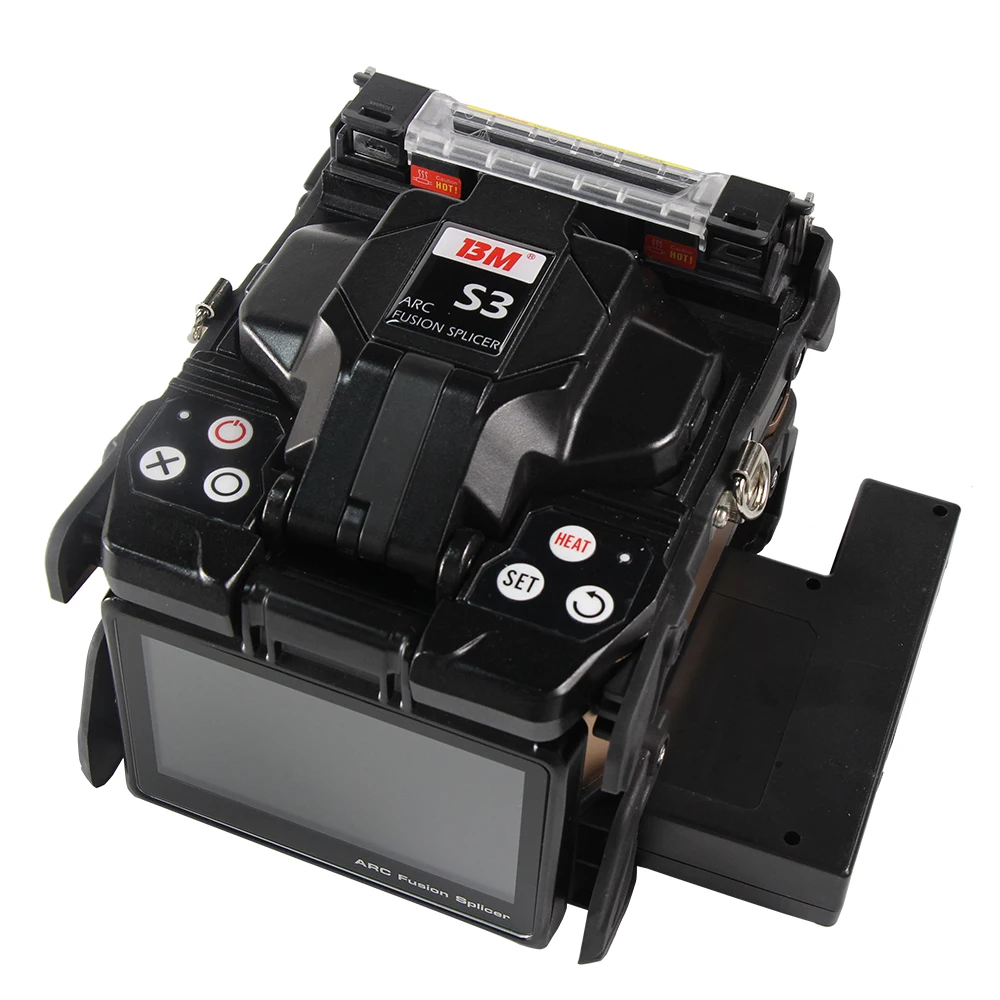

Brand New Multi Language Fiber ARC Fusion Splicing Machine S3 Fusion Splicer
Specification
Specification
Model | S3 |
Dimension | 130W* 160L 140H (including rubber bumper) |
Weight | 2215G (with battery)/ 1835G (without battery) |
Number of Fiber | Single |
Applicable Fibers | SM(UTU-T G.652& G.657)/MM(TU-T G.651)/DS(ITU-T G.653)/NZDS(ITU-T G.655) |
Compatible Fiber/Cable | 0.25- 3.0mm/Indoor Cable |
Cleaved Length | Diameter:0.125- 1 mm/Cleave Length: 8-16mm |
Cladding Diameter | 80- 150um |
Splicing Mode | Pre-set 41 splicing modes, max 100 modes |
Heating Mode | Pre-set 5 heating Modes(20/30/40/50/60mm),max 100 modes |
Typical Splice Loss | SM: 0.02dB/ MM: 0.01dB/ DS 0.04dB/ NZDS: 0.04 dB/ G.657: 0.02dB (ITU-T Standard) |
Return Loss | ≥60dB |
Lighting | 3 White LEDs |
Splicing Time | Quick mode: 6s |
Estimated Splice Loss | Available |
Heating Sleeve Length | 20- 60 mm |
Heating Time | Quick heating time: 13s, typical heating time: 30s |
Results Storage | 20000 latest records & 200 images |
Tension Test | 1.96-2.25N |
Operating Condition | Operating Altitude: 0-5000m above sea level, 0-95% relative humidity, -10-50℃, Max Wind 15m/s |
Storage Condition | 0-95% relative humidity, -40-80℃ |
Display | 90°bi-directional view, 5.0"Color High Resolution Display |
Fiber View & Magnification | X, Y, XY, X/Y: 500X Magnification |
Power Supply | AC Input 100-240V, DC Input 12-15V |
No. of Splice/Heating with Battery | 5200mah Battery Capacity, Typical 250 times(Splice Heat) |
Operating Methods | Button/Touch Screen |
Automatic Calibration | Automatic arc calibration by air pressure and temperature |
Electrode Life | 5000 arcs |
Terminal | MiniUSB2.0 |
