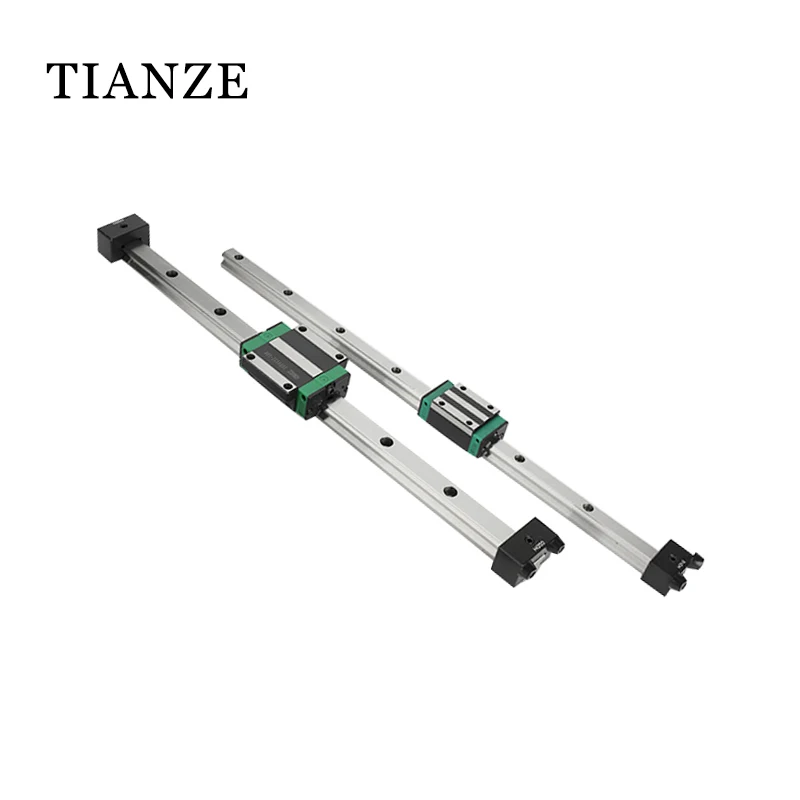

MGN12 400MM Ballscrew Linear Guide Rail Slid CNC Ball Screw Linear Guide
- Category: >>>
- Supplier: Lishui Tianze Precision Technology Co. Ltd.
Share on (1600295647664):
Product Overview
Description
Product Description

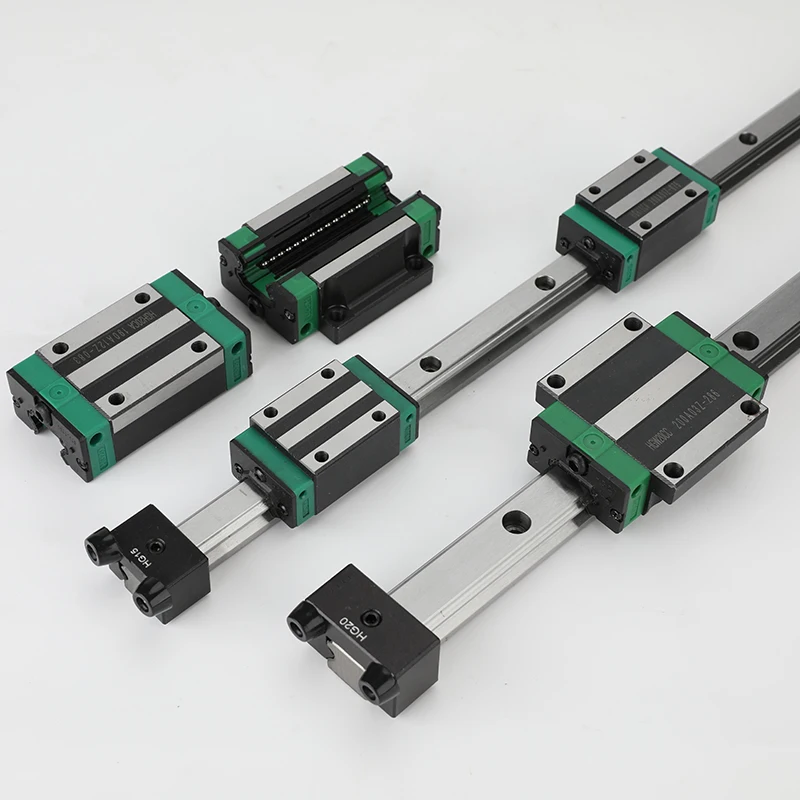

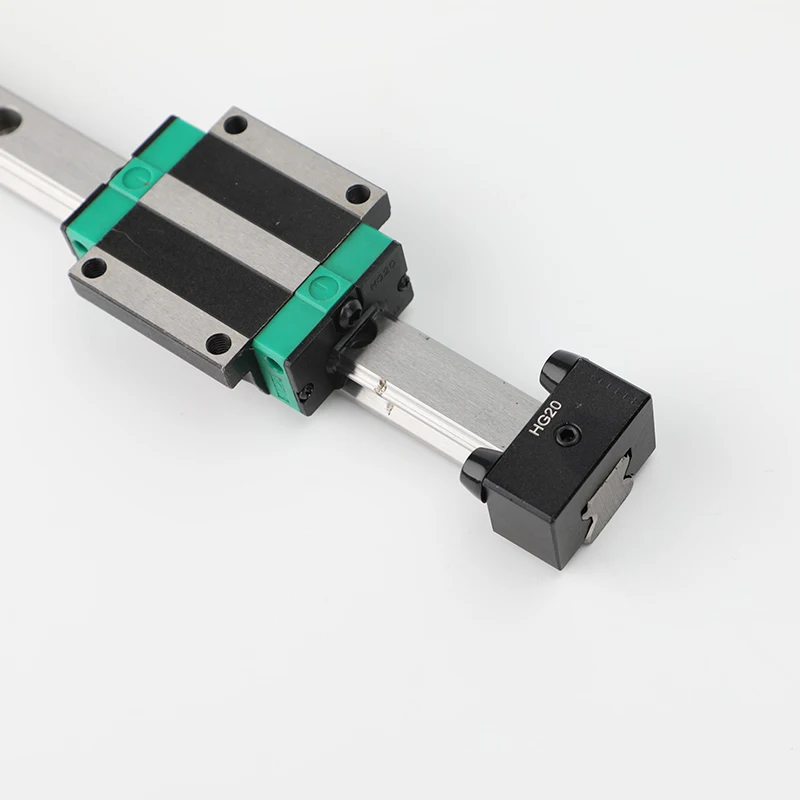

HGW20CA linear guide Description
—HIWIN offers two types of linear guideway which are flange and square types. Because of the low assembly height and larger mounting surface, the flange type is suitable for heavy moment load application.
—HIWIN linear slide rail is a kind of rolling guide, it is composed of steel ball between slide block and the slide rail for the
infinite scroll circulation, make the load platform can easily along the slide rail with high precision linear motion, the
coefficient of friction can be reduced to 1/50 of the traditional sliding guide, make it can easily reach mu m class location
accuracy.Between slide block and the slide rail making yuan at the end of the design, make the linear slide rail can be under the direction of the up and down or so and so on various load at the same time, the recycling of patent system and streamlined structure design makes HIWIN linear slide rail with more smooth and low noise.
.—HG series guideways can be classified into non-interchangeable and interchangeable types. The sizes are identical. The only difference between the two types is that the interchangeable type of blocks and rails can be freely exchanged, and their accuracy can reach up to p class. The model number of HG series contains the size, type, accuracy class, preload class, etc.
—HIWIN offers two types of linear guideway which are flange and square types. Because of the low assembly height and larger mounting surface, the flange type is suitable for heavy moment load application.
—HIWIN linear slide rail is a kind of rolling guide, it is composed of steel ball between slide block and the slide rail for the
infinite scroll circulation, make the load platform can easily along the slide rail with high precision linear motion, the
coefficient of friction can be reduced to 1/50 of the traditional sliding guide, make it can easily reach mu m class location
accuracy.Between slide block and the slide rail making yuan at the end of the design, make the linear slide rail can be under the direction of the up and down or so and so on various load at the same time, the recycling of patent system and streamlined structure design makes HIWIN linear slide rail with more smooth and low noise.
.—HG series guideways can be classified into non-interchangeable and interchangeable types. The sizes are identical. The only difference between the two types is that the interchangeable type of blocks and rails can be freely exchanged, and their accuracy can reach up to p class. The model number of HG series contains the size, type, accuracy class, preload class, etc.
Product Name | Linear Guide Rail |
Material | Bearing Steel / Gcr15 / Chrome Bearing |
Length | 100mm - 4000mm / Customized Length |
Service | OEM Customized Service Provided |
Application | CNC machines, medical and food machinery, fitness machinery, packaging machinery, printing machinery, and other machinery supporting equipment. |
Feature | 1. Interchangeability 2. Self-aligning Capability 3. High Rigidity in All Four Directions 4. High Speed and High Load |
HGW20CA linear guide Features of HG Series
(1) Self-aligning capability
By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation..
(2) Interchangeability
Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.
(3) High rigidity in all four directions
Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial and lateral
directions. furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.
(1) Self-aligning capability
By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation..
(2) Interchangeability
Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.
(3) High rigidity in all four directions
Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial and lateral
directions. furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.

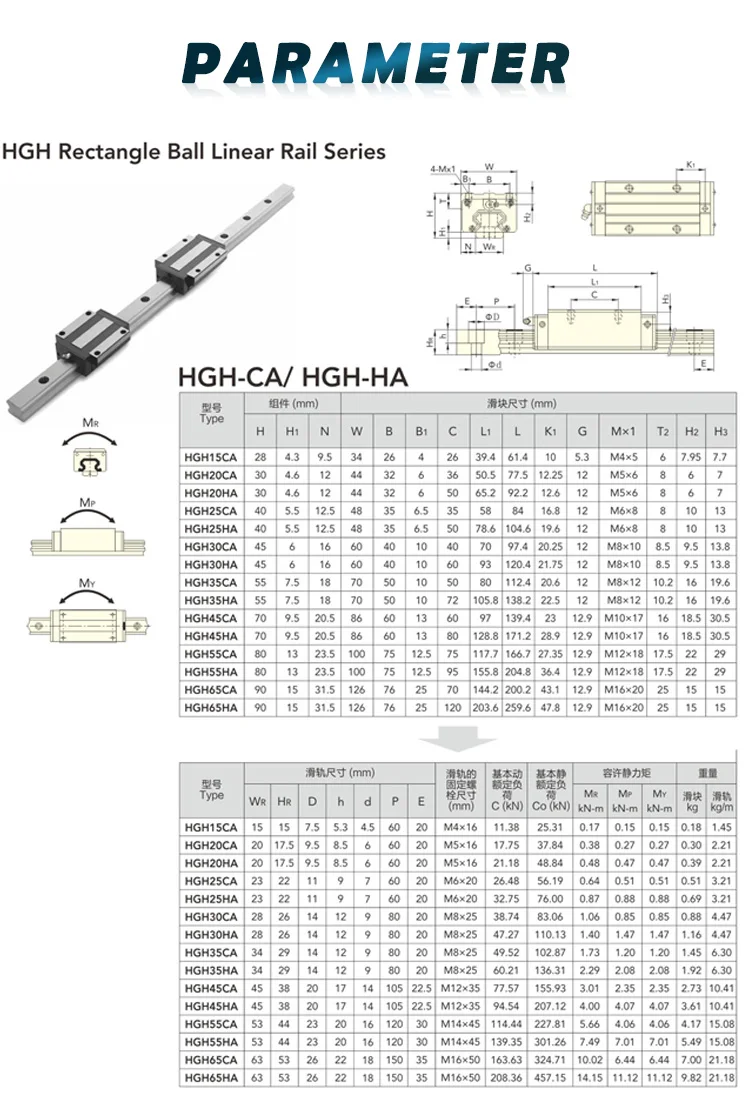

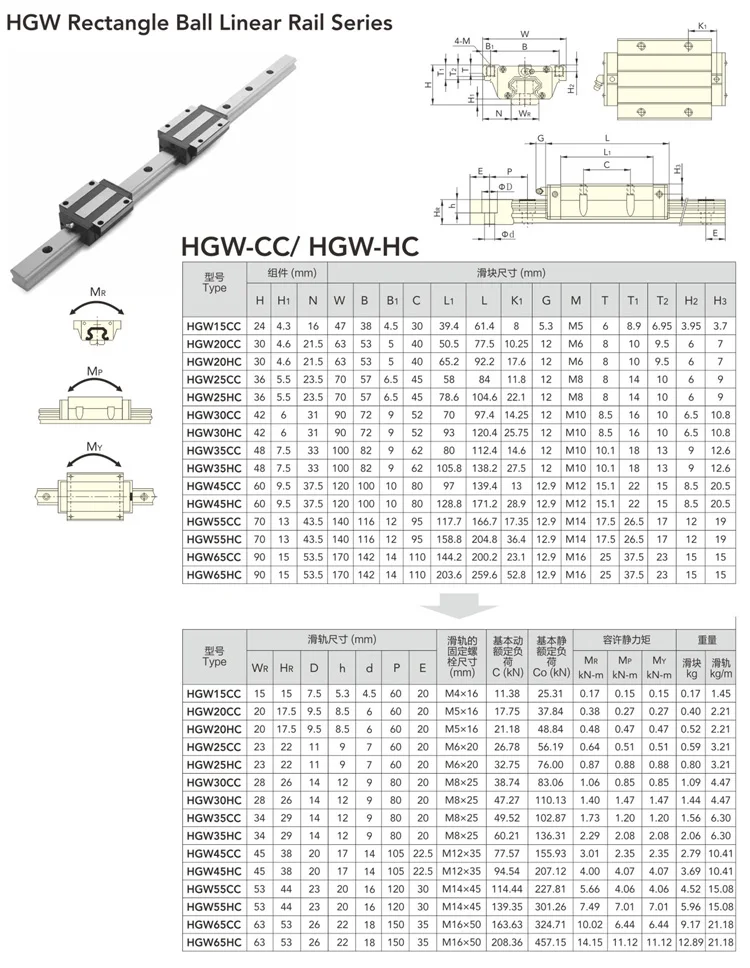

Specification Table
Recommend Products
Packing & Delivery
Company Profile
Lishui Tianze Precision Technology Co., Ltd., located in Lishui Economic Development Zone, Zhejiang Province, is a professional production and processing enterprise engaged in linear bearing, linear optical axis, linear guide rail, cylindrical linear guide rail, ball screw and other products. The company has a strong workforce from technology, production to sales and service,and has a complete and scientific quality management system.
Lishui Tianze Precision Technology Co., Ltd. always provides customers with high-quality products and efficient services with superb skills and sincere service. Over the years, integrity, strength and product quality have been recognized by the industry. We respond efficiently and timely according to market changes and customer needs, so as to better serve customers. Here, we welcome friends from all walks of life to visit Lishui Tianze Precision Technology Co., Ltd.
