Портативное кухонное оборудование для ресторана, высококачественное пищевое оборудование, использованные отходы, съедобная очистка, фильтр для приготовления пищи и масла для фритюрницы
- Category: >>>
- Supplier: Shanghai Lujie Filtration Technology Co. Ltd.
Share on (1600295656997):
Product Overview
Description
Products Description
Oil Slick Recovery Machine
Pure Physical Separation Without Consumables
Using The Difference Between The Buoyancy Of The Internal And External Liquid Level, The Suction Port Always Fluctuates Up And Down With The Change Of The Liquid Level, Which Can Be Effectively Absorbed.
Compared With The Traditional Steel Strip Oil-water Separator, Passive Oil Slick Recovery Machine, Static Oil Slick Collector, Etc., The Oil Slick Recovery Machine Has Floatability, And The Floating Ball Oil Receiving Device Can Float 100 To 3500mm With The Change Of Water Layer. The Pipeline Is Not Easy To Rigid Intercept And Filter Impurities To Avoid Material Blocking The Pipeline. Combined With Vacuum Dynamic Suction Device, The Oil Slick Of Oily Wastewater Is Directly Collected To The Storage Tank.
Product Details

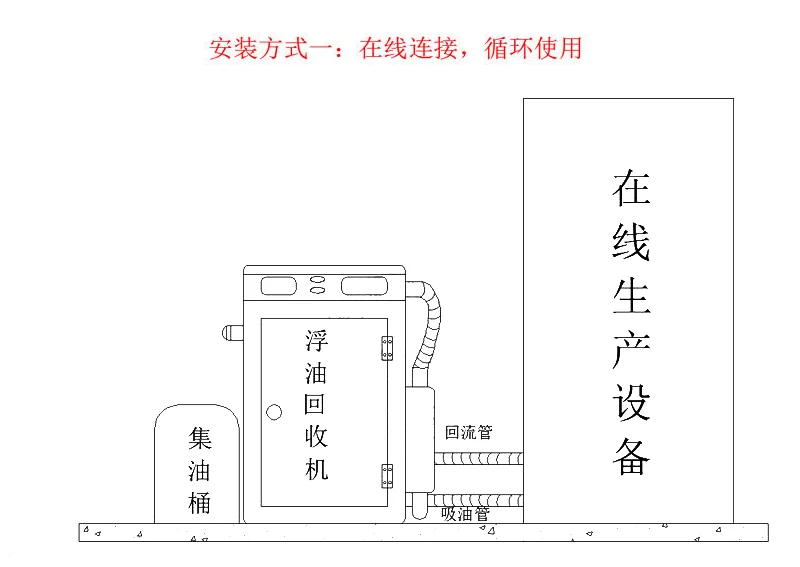

Installation Mode ①
Connect Online Production Equipment, Online Connection, Recycle.

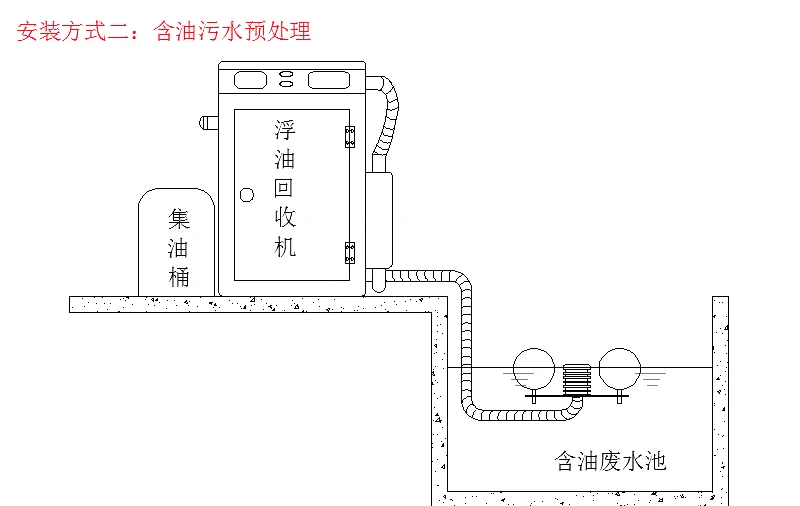

Installation Mode ②
Oily Wastewater Tank Pretreatment
Product Name | Oil Slick Recovery Machine | |||||||
Model | FB-50L | FB-100L | FB-500L | FB-1000L | ||||
Flow | 50L/H | 100L/H | 500L/H | 1000L/H | ||||
Suction | 2M | 2M | 5M | 5M | ||||
Power | 25W | 25W | 180W | 500W | ||||
Voltage | 220V | |||||||
Allow Particles | 3mm | 3mm | 3mm | 3mm | ||||
Host Size | 360*335*440MM | 360*335*440MM | 420*350*630MM | 470*650*970MM | ||||
Oil Suction Device Size | 370*120*225MM | 370*120*225MM | 370*370*225MM | 370*370*225MM | ||||
Estimated Weight | 15KG | 20KG | 70KG | 120KG | ||||
Model | FB-1350L | FB-1800L | FB-2500L | FB-3500L | ||||
Flow | 1350L/H | 1800L/H | 2500L/H | 3500L/H | ||||
Suction | 5M | 5M | 5M | 5M | ||||
Power | 550W | 750W | 1500W | 2200W | ||||
Voltage | 380V | |||||||
Allow Particles | 3mm | 3mm | 3mm | 3mm | ||||
Host Size | 520*765*970MM | 650*765*1000MM | 900*950*1000MM | 1100*1200*1000MM | ||||
Oil Suction Device Size | 370*370*225MM | 370*370*225MM | 370*370*225MM | 370*370*225MM | ||||
Estimated Weight | 120KG | 200KG | 200KG | 250KG | ||||
Temperature | 0-70℃ | |||||||
Ph Value | 3-11 | |||||||
Absorption Viscosity | ＜1200cst | |||||||
Product Paramenters

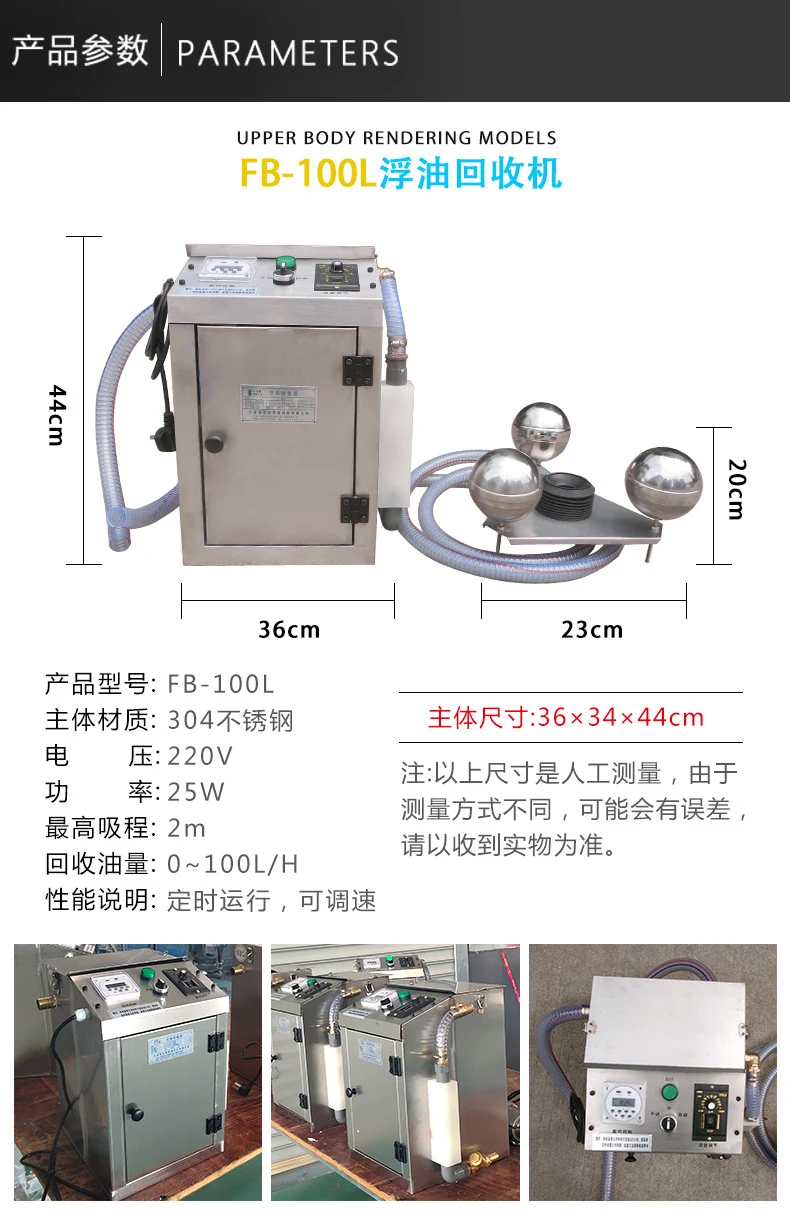

FB-100l

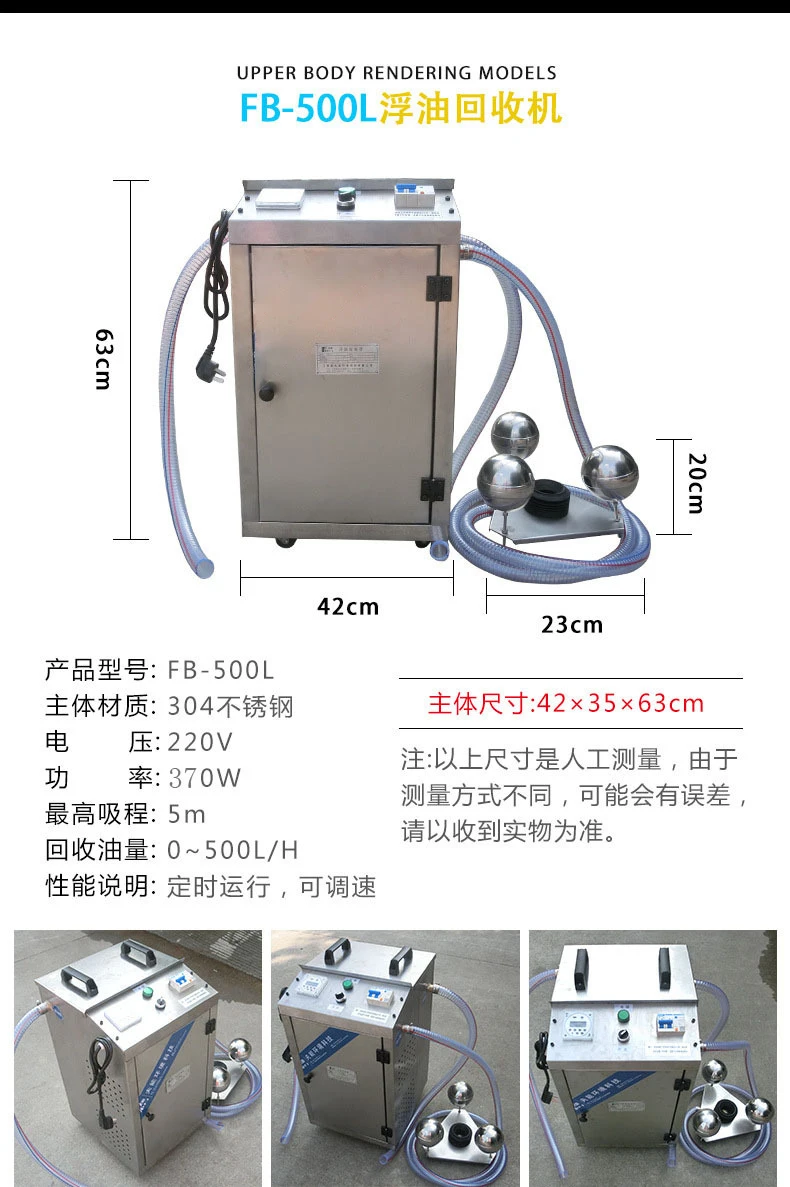

FB-500l

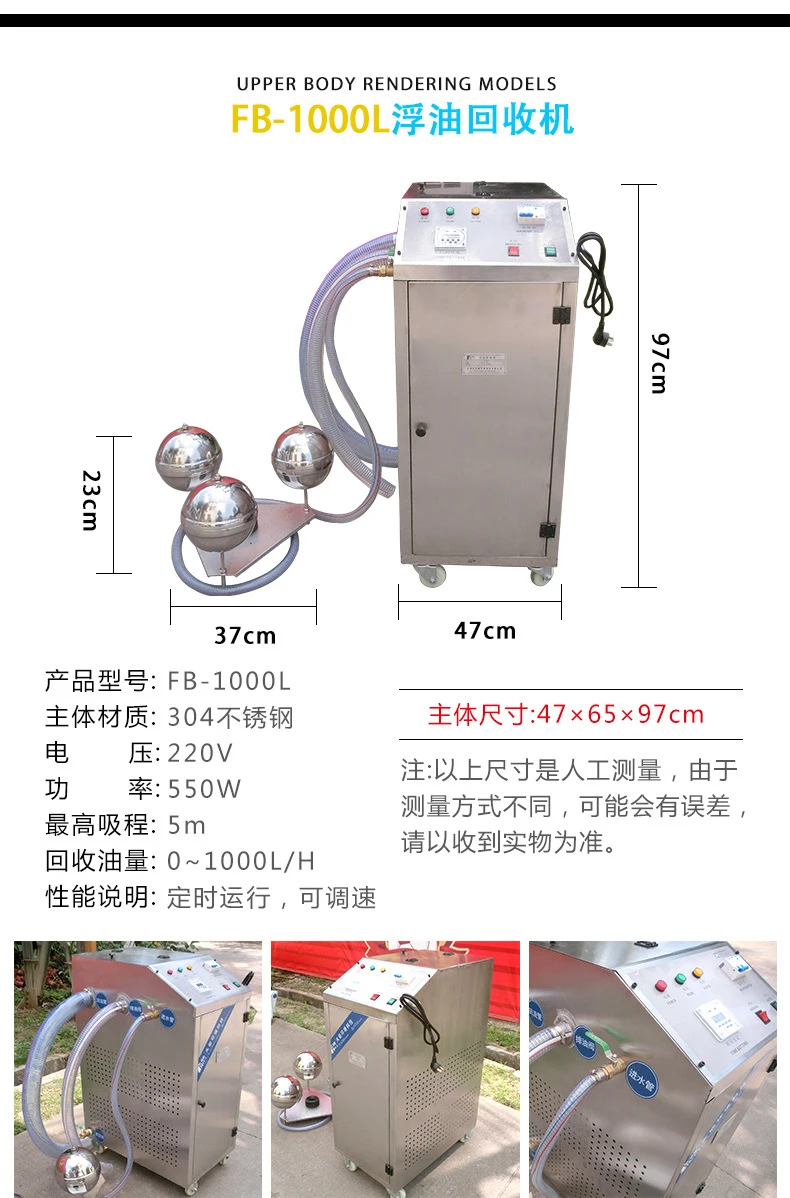

FB-1000l

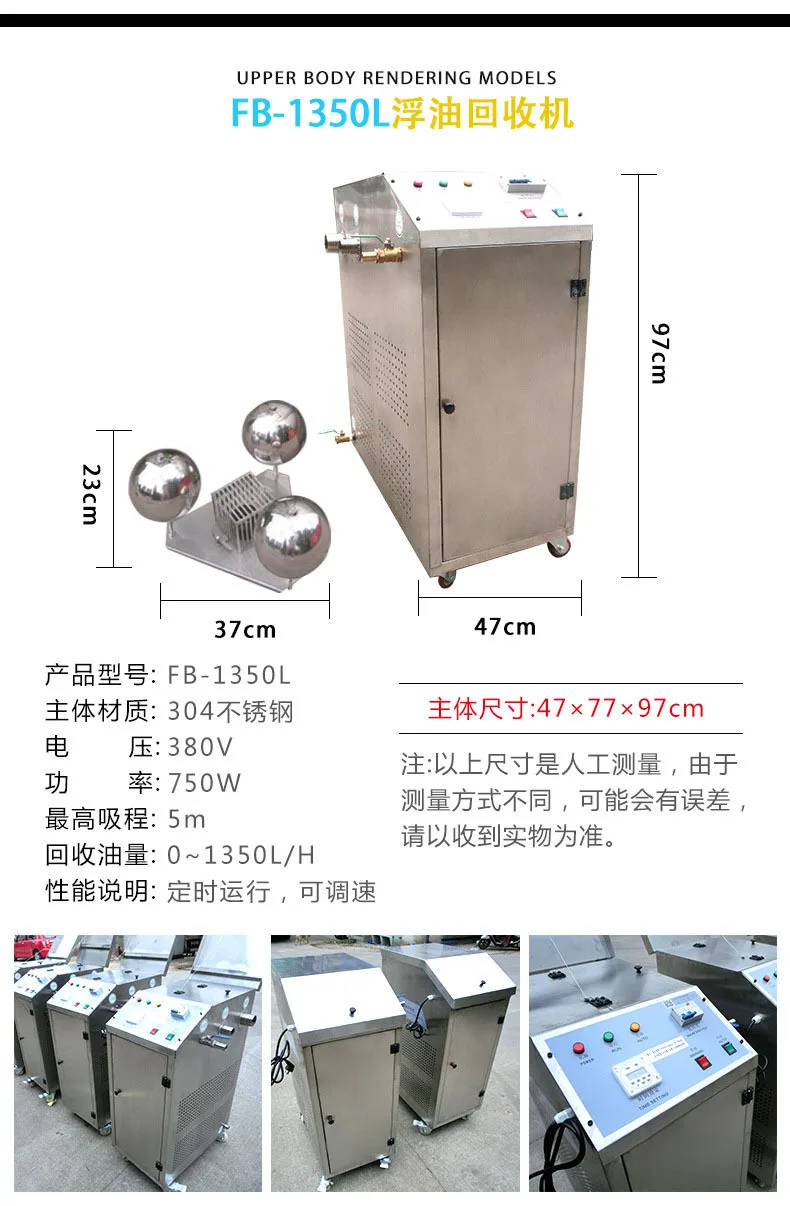

FB-1350l
FB-1800l

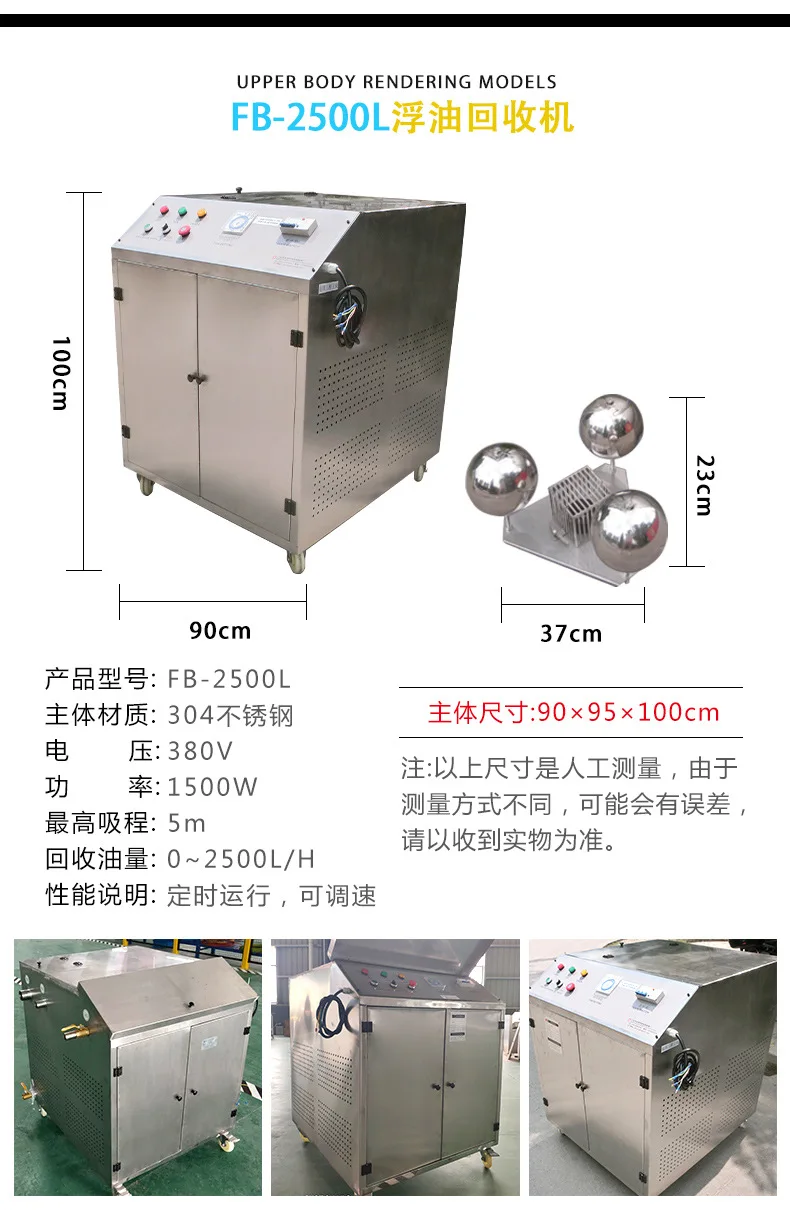

FB-2500l

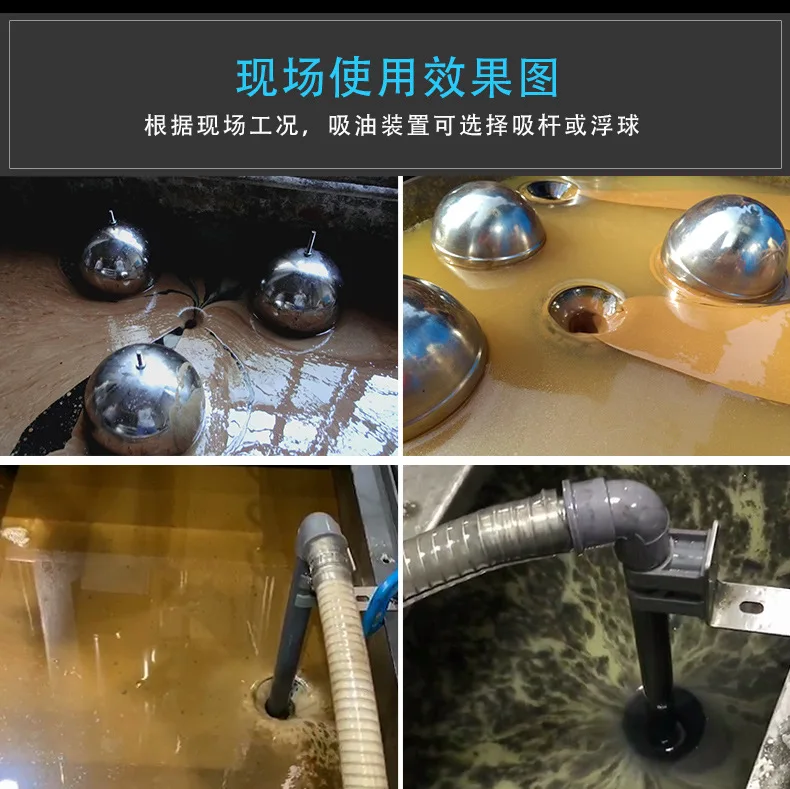

Effect Drawing Of Field Use
