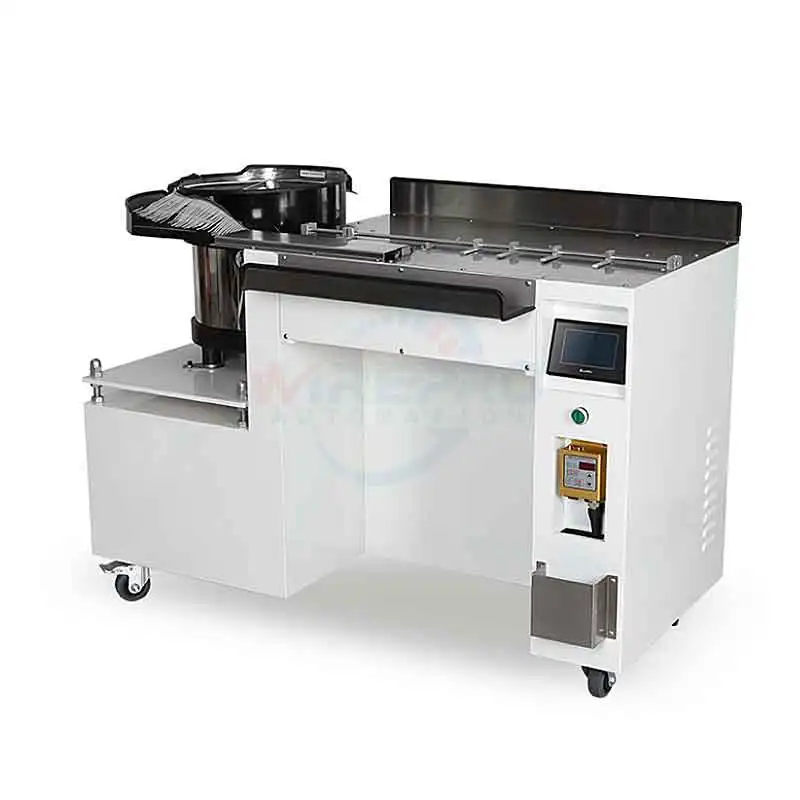

HB C10 desk type cable roll tie tying nylon cable tie adjustable self locked ties wire harness bundling machine
- Category: >>>
- Supplier: Wirepro Automation Technology Co. Ltd.
Share on (1600295963933):
Product Overview
Description
WIREPRO Automation Focus on Machines & Solutions for Wire Processing & Harness Assembly, welcome you to check more equipment on our website. If you need any support, welcome contact us anytime ^_^ |
Product Description

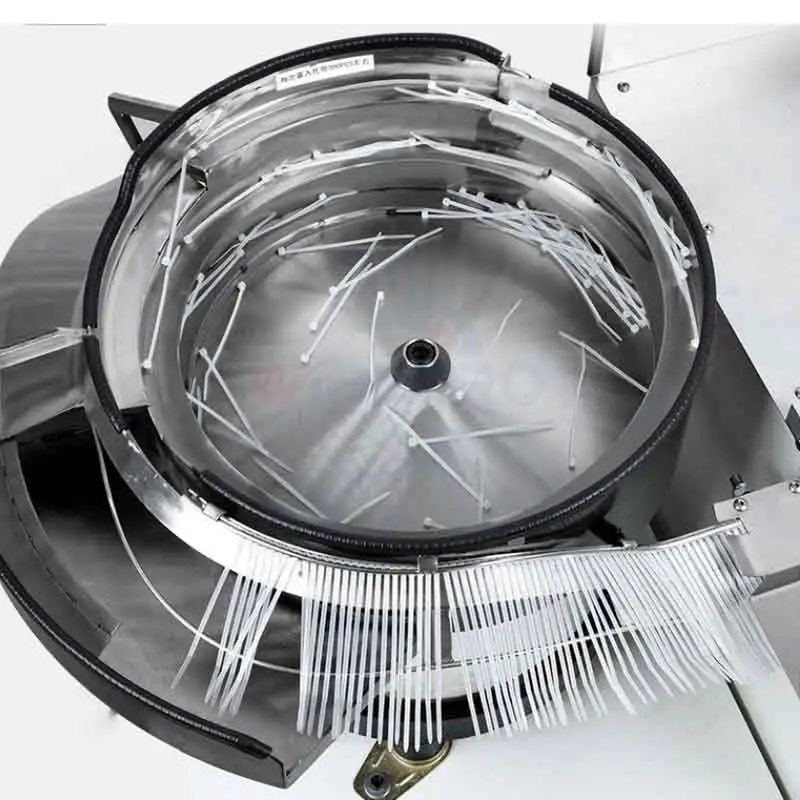

The automatic cable bundling machine adopts nylon cable tie to bind wire harness, the vibration plate can continuously feed cable ties to work position, the operator only needs to put the wire harness to correct position and then press down the footswitch, all other work can be done automatically.
Feature:
1. Automatic PLC touch screen control circuit, easy operation, clear and intuitive, good stability.
2. Bulk of nylon cable ties automatic feeding, eliminating the tedious process of manual discharge.
3. Cable ties automatic wear locking and cut, saving time and effort, 1500 - 2000pcs / hour, at least four times more efficiency.
4. Wide adaptation, can tie various linear or circular shape products(diameter greater than 30 MM), the perimeter of tying parts can be adapted from 3-50mm.
5. Digitally adjustable elastic Cable ties through touching the screen, touch digital screen to adjust the end of cable ties left.
Technical Data
| Model | HB-C10 |
| Cable tie length | 80/100/120/150 mm (can be customized) |
| Cable tie width | 3 - 5 mm |
| Tying Diameter | 2 - 30 mm |
| Tail length | 0 - 3mm |
| Production speed | about 2000pcs/hour based on operation speed |
| Power Supply | 110/220VAC,50/60Hz |
| Power | 700W |
| Dimensions | 650 * 650 * 720 mm |
| Weight | 130kgs |

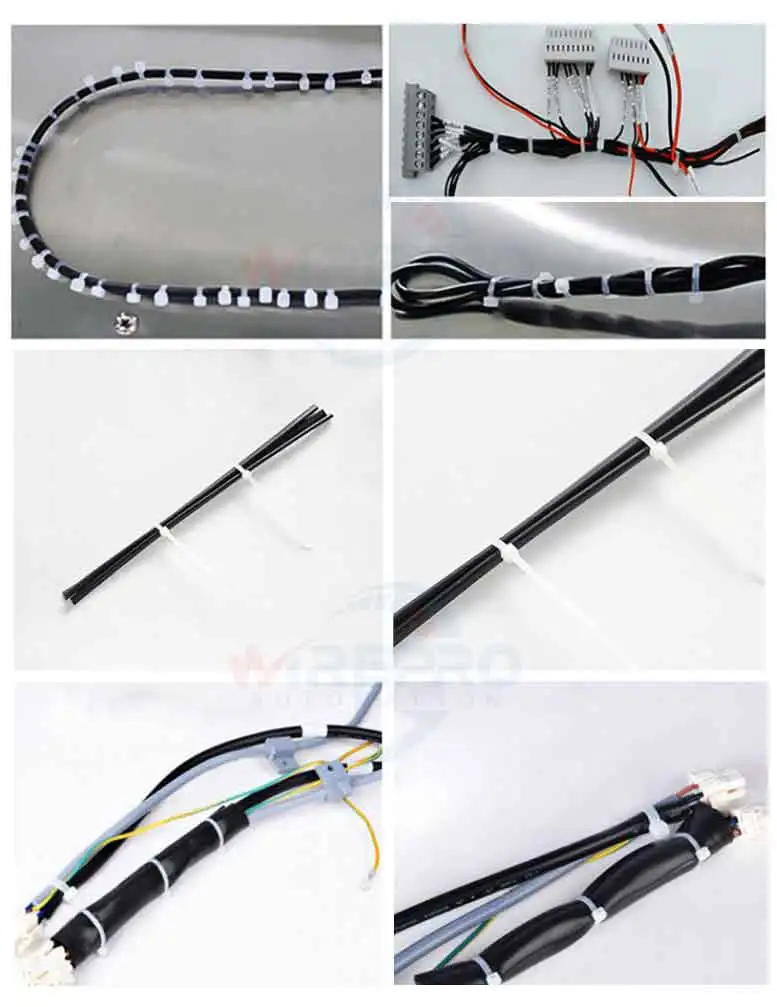

Application
Widely used in electronics factories, wiring harness, cables, electronics, toys, gifts, food, and other industries bundled TVs, computers and other internal electrical connections, lighting fixtures, motors, electronic toys, and other products in fixed circuits, mechanical equipment oil pipelines fixed, ship cables fixed.
And it's good to bundle with other objects, and can also be used for strapping items such as wire, air-conditioning capillaries, toys, daily necessities, agriculture, gardening, and handicrafts.
It completely solves the low cable ties productivity, employment difficult problem.

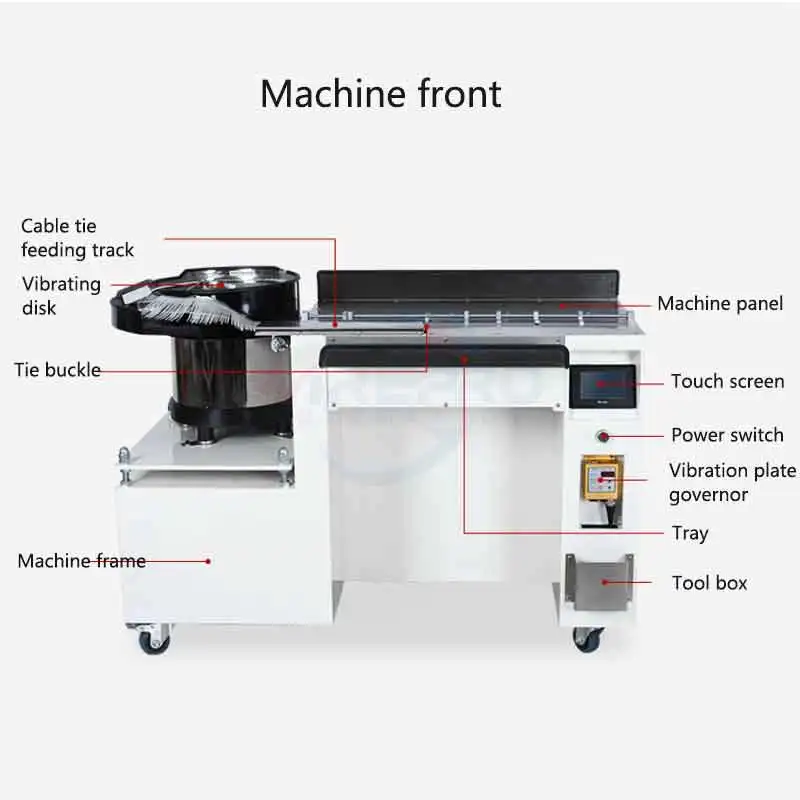

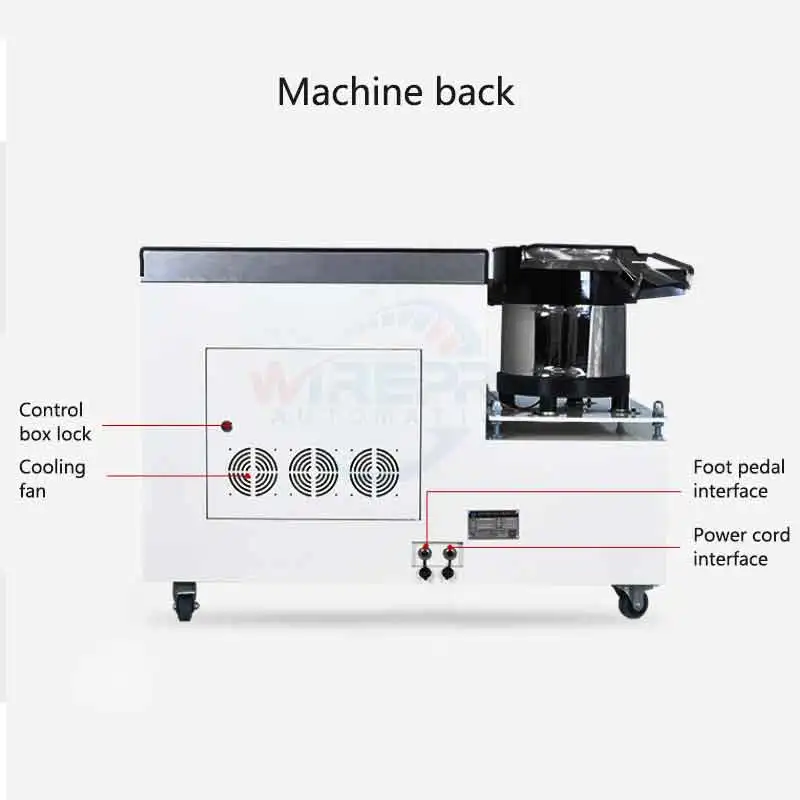

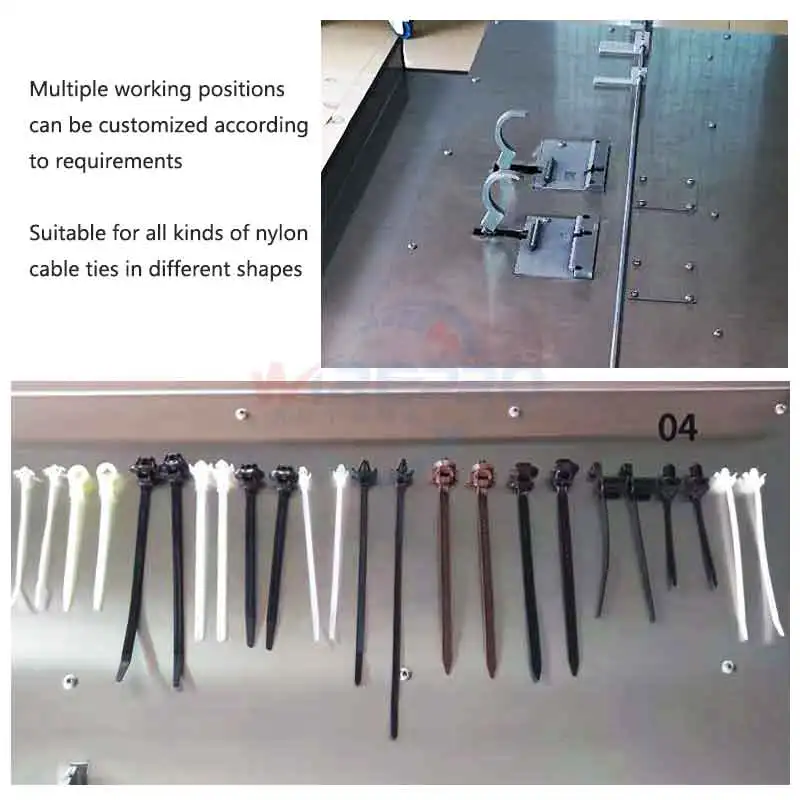

More machine pictures

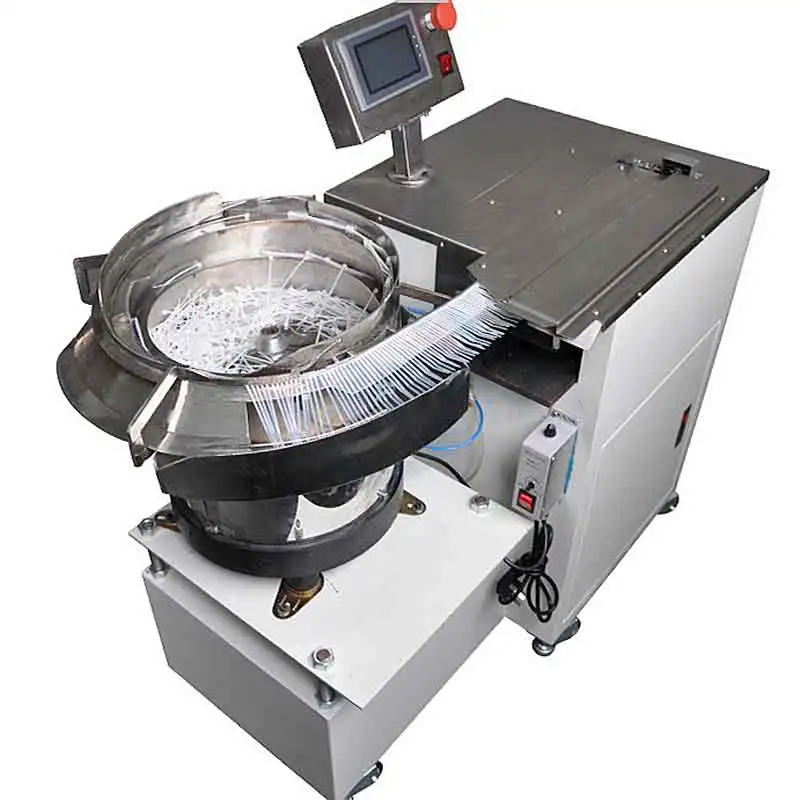

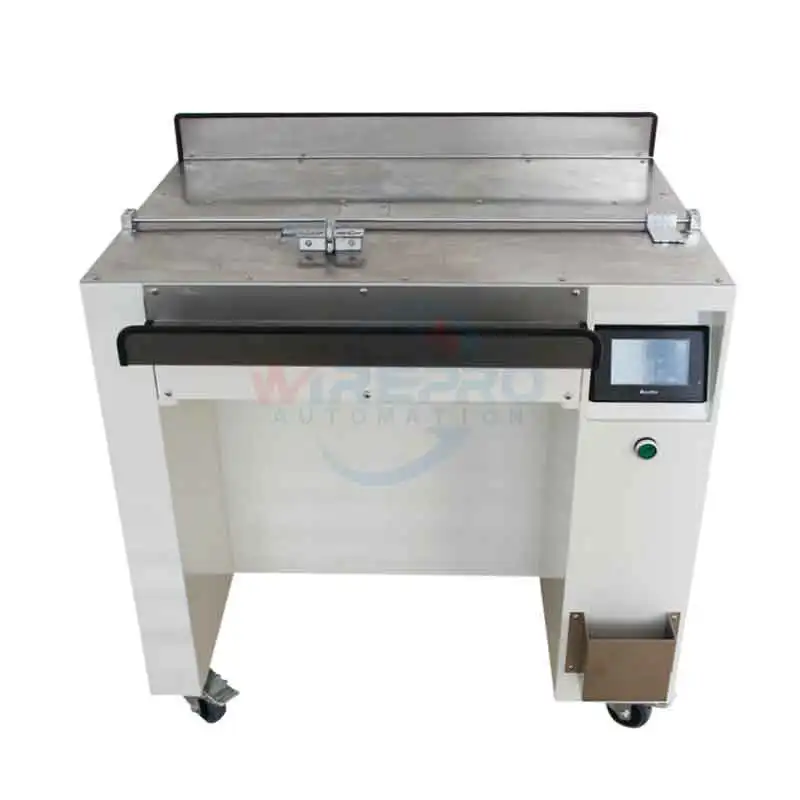

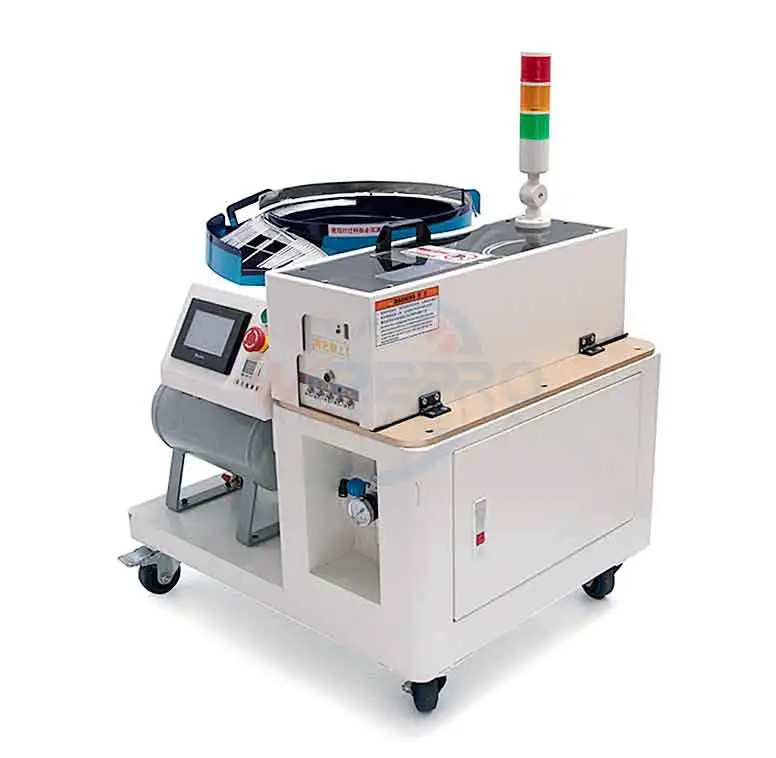

Other similar cable tie tying machine
Related Products
Wire winding machine HB-W25
|
Wire tying machine HB-T40
|
wire winding and bundling machine HB-D40
|
Desktype wire metering cutting winding bundling machine HB-M01 |  Desktype wire metering cutting winding machine HB-M02
|
Floor standing wire metering cutting winding machine HB-M01 |
Packaging & Shipping
Samll size machines: Standard carton
Medium size machines: Thickened cartons and wooden pallets
Big size machine: Plywood wooden cases
Company Information
FAQ
| 1. What are the optional accessories and wearing parts? Optional accessories: Wire spool pre feeder, Wire collector, wire coiler or wire stacker. Wearing parts: Generally blade and belt. For More info, please contact WIREPRO. |
| 2. Operation panel and user manual language? English and Chinese are optional. |
3. How long is the lead time? Ready time: Generally the standard machine will be ready in 2-3 workdays, the customized machine please check with us again when placing an order.
Packaging: The machine is packed in a carton or wooden box according to the size. Sufficient cushioning material will protect the machine intact during long-distance transportation.
Transportation: Support shipping via air, sea, and railway many transportation modes. |
4. How do we install and operate the machine?
Small Machine: The user can install and adjust the machine according to the Manual and video of how to install and set the machine. If you have any questions, please contact our technical support (Email: support at wireproauto.com) to provide online, video, and other support. If customers really need we can make exceptions on-site service (expense will be borne by customers).
Large full automatic machine: We will arrange engineers on-site installation, testing, and adjustment of equipment. Please check with us about the details.
We also welcome you to come to our factory for more training. |
| 5. What after-sales service is provided? WIREPRO has an experienced technical support team to be responsible for troubleshooting for customers via phone calls, emails, videos, etc. If you need spare parts, DHL generally could deliver them in about 3-5 days. |
