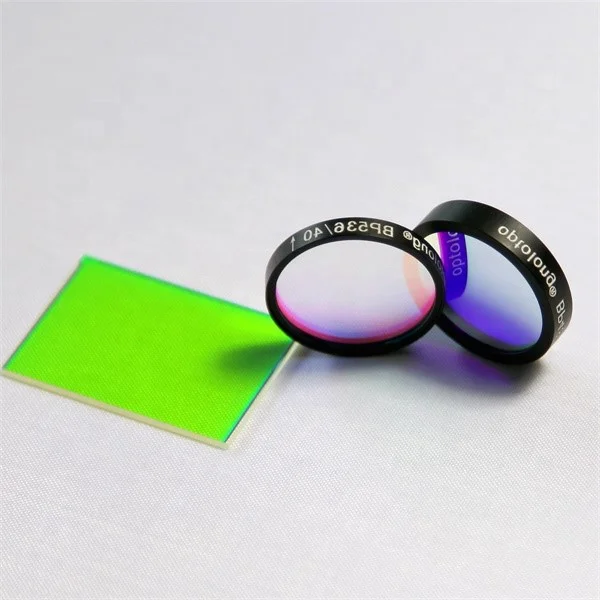

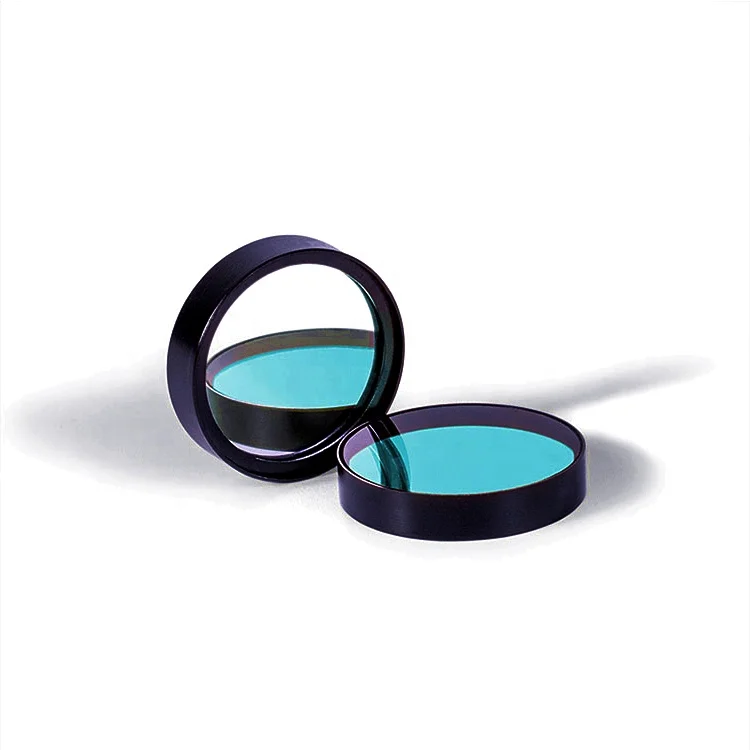

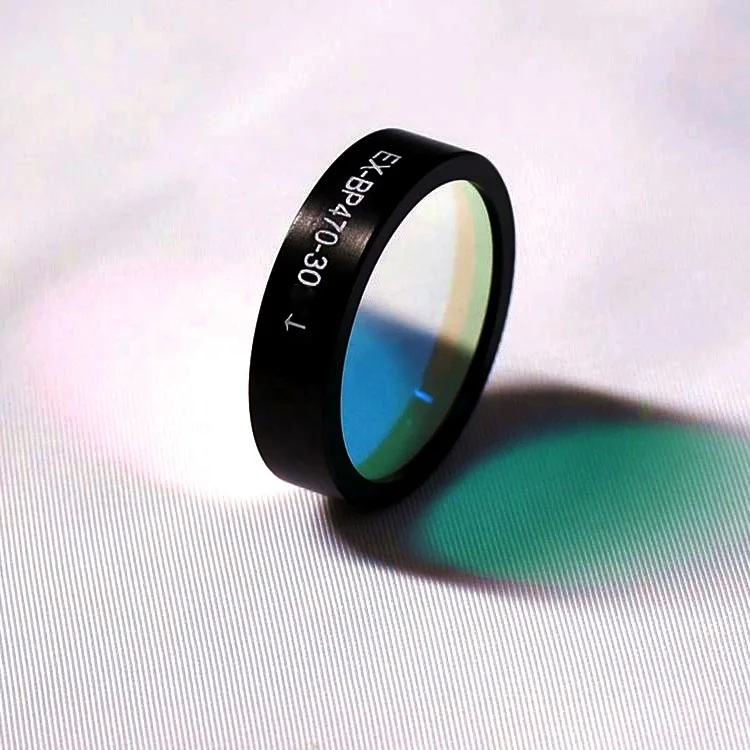

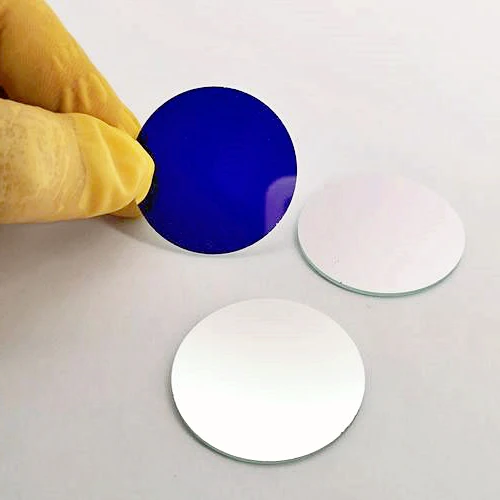

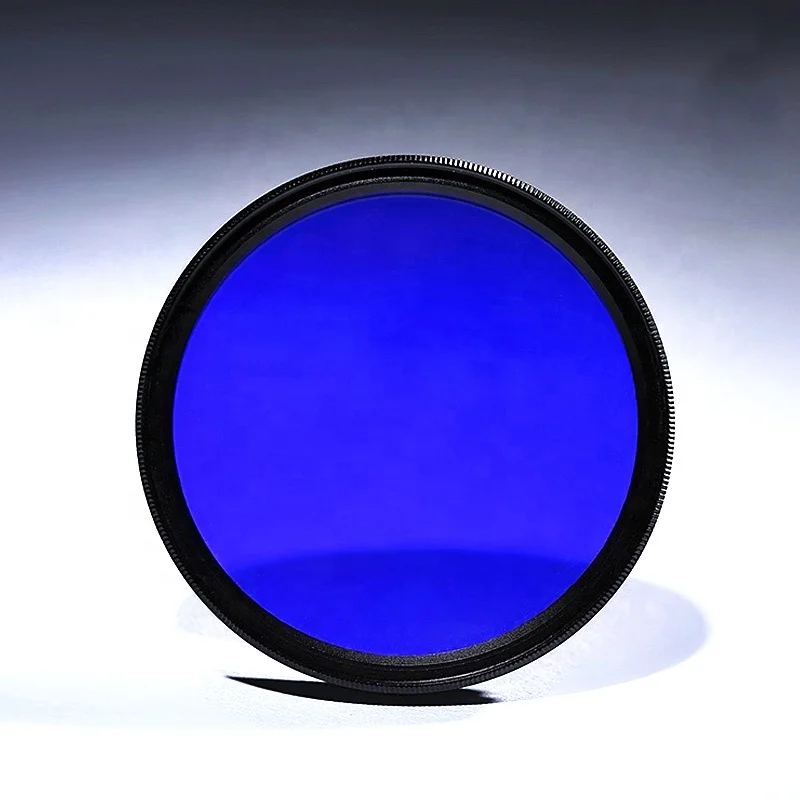

Optical bandpass filter fluorescence excitation filters fluorescence analysis filter BP470
- Category: Optical Filters >>>
- Supplier: Shenzhen Kaitao Optical Technology Co. Ltd.
Share on (1600296010345):
Product Overview
Description

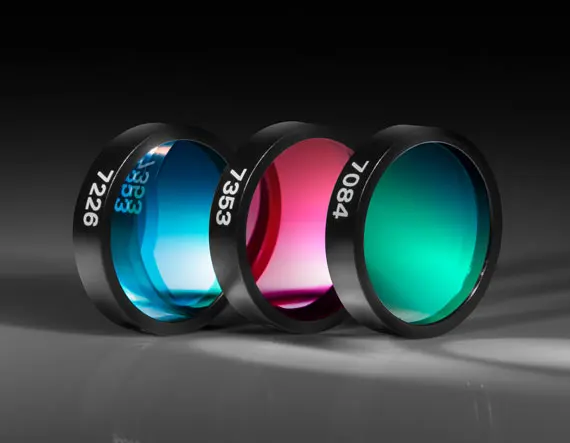

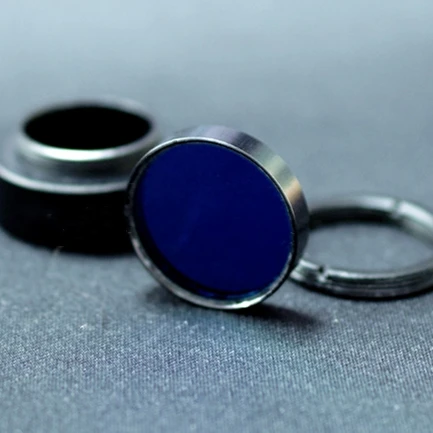

Fluorescence filters
Fluorescence analysis filter is a medical filter suitable for high-resolution biomedical fluorescence detection and analysis application systems. The main technical feature is that the high-transmittance filter obtains a beam of monochromatic light. When the monochromatic light is taken in After the detected liquid, it passes through the light model of the tested liquid and is converted into an electrical model by the photoelectric sensor. The photoelectric signal is appropriately converted and preprocessed into the reference standard curve we need. At present, it is mainly used in medical instruments such as PCR analyzers, fluorescence testers, flow cytometers, virus characteristic fluorescence analysis, blood cell analyzers, and automatic biochemical analyzers at home and abroad.

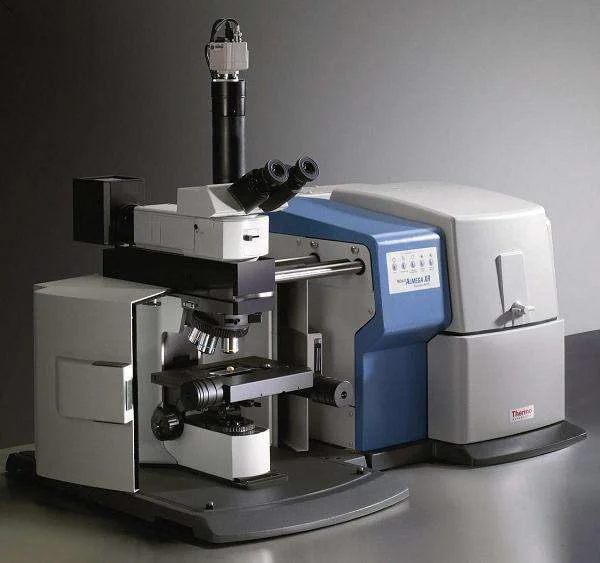

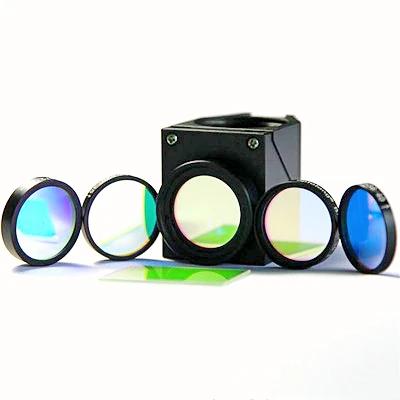

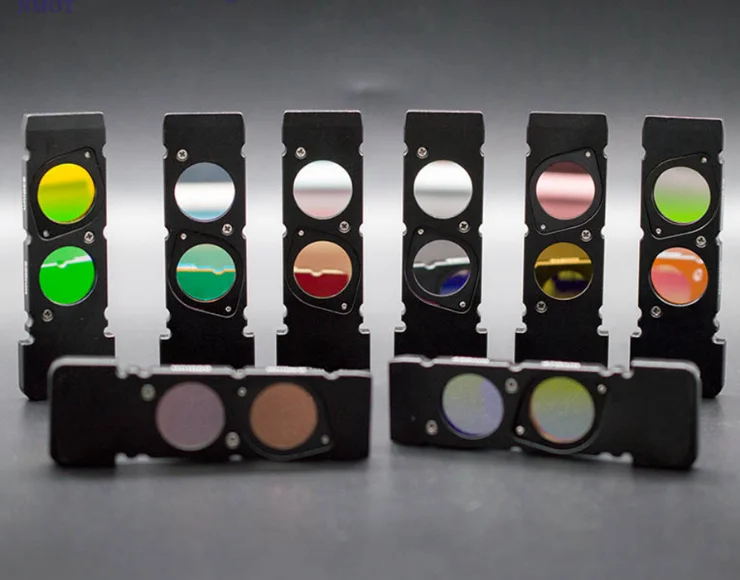

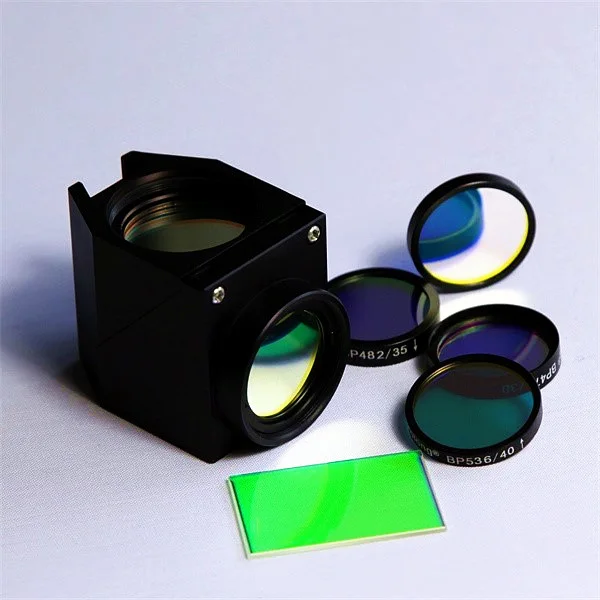

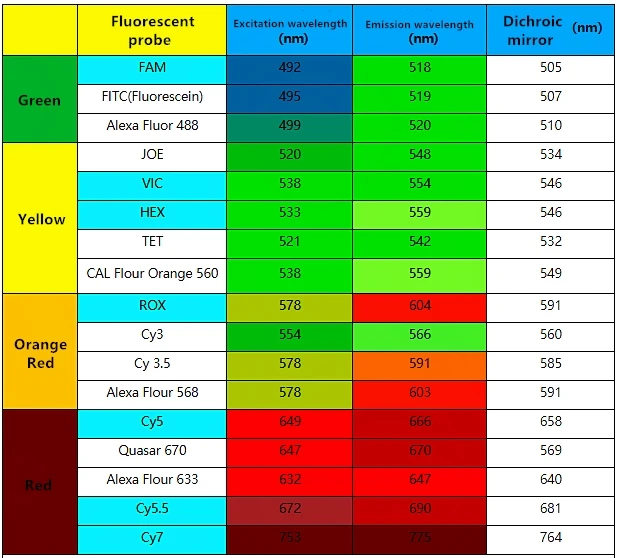

Fluorescence filter set is mainly used in fluorescence microscope, divided into 6 bands and 12 sets of PCR filters. The main bands covered are: 340nm, 380nm, 405nm, 414nm, 450nm, 480nm, 492nm,505nm,510m, ,520nm,535nm,546nm , 550nm 578nm, 589nm, 600nm, 610nm, 620nm, 630 nm, 650nm, 670 nm, 700 nm, 750nm, 766nm, 800nm, etc. Shenzhen Kaitao Optoelectronics (KAITAO) specializes in the production of biological application filters, laser application filters and smart device application filters. It has excellent optical performance, stable film firmness, high transmittance, deep cut-off, high precision, clear image, etc. Welcome to customize PCR filters of different wavelengths

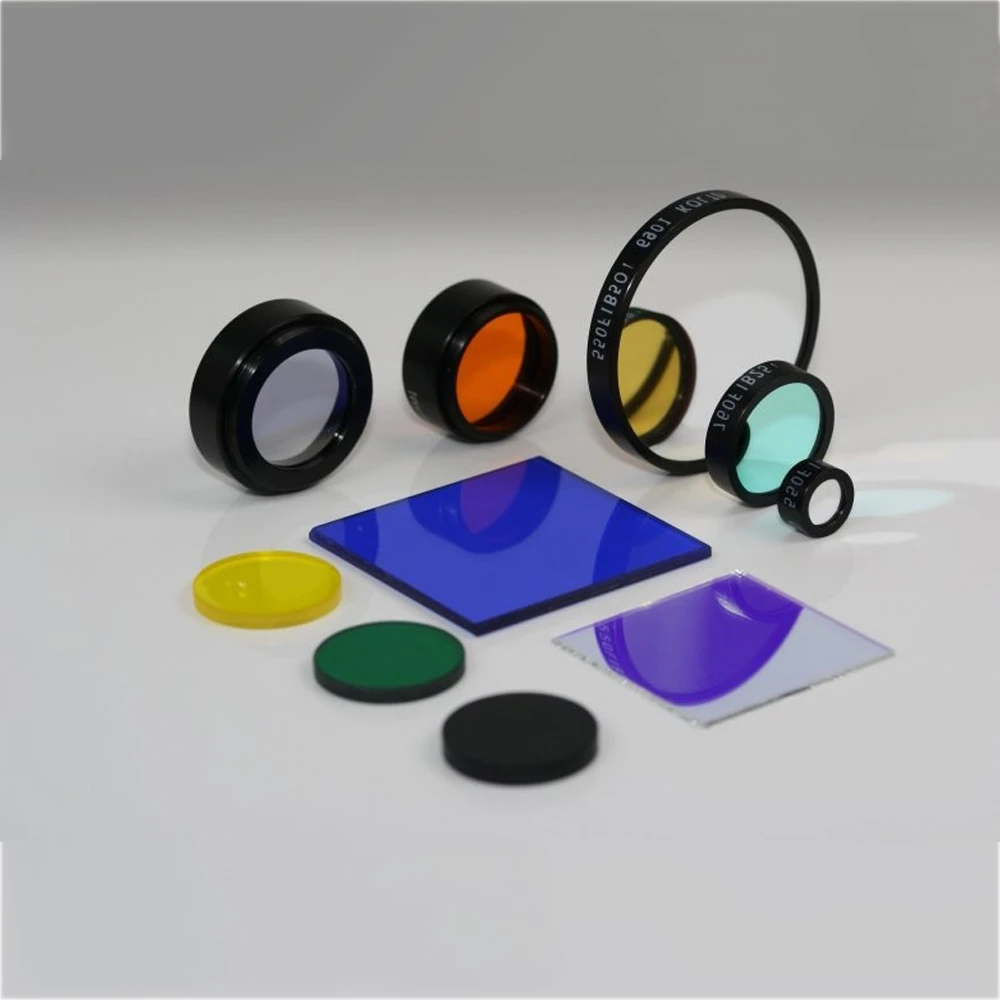

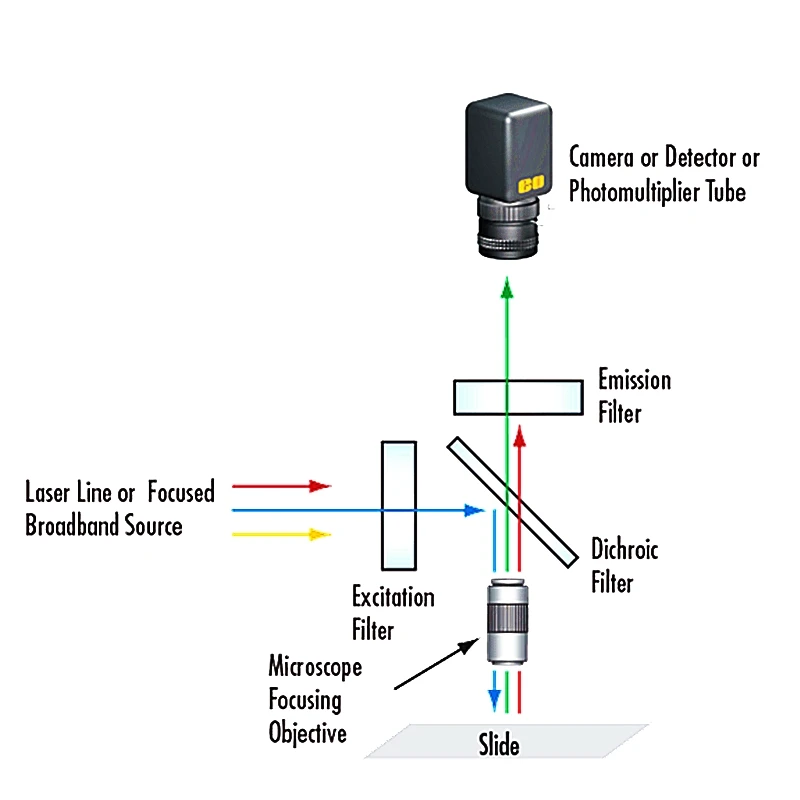

KaiTao Optics offers a wide variety of Bandpass Filters in a range of bandwidth options for ultraviolet (UV), visible (VIS), or infrared (IR) applications. Laser Line filters typically have narrow bandwidths of 8– 15 nm for demanding laser applications. Fluorescence Filters, which have been designed to maximize the energy of the excitation and emission bands, typically have broad bandwidths of 20 – 70nm. KaiTao Optics’ 15 nm filters are ideal for chemical, environmental, or elemental analysis. Hard coated filters offer maximum performance with exceptional durability. Traditionally coated evaporated filters are cost-sensitive alternatives. Bandpass Filters are angular sensitive, so care should be taken when mounting or integrating into an optical system.
Product name : Bandpass filters | Transmittance ：＞92% （customized） |
Size ：2 - 200mm （Square / round / customized） | Blocking Band ：200 - 1200nm |
Thickness ：0.21 - 5.0mm / customized | Optical Density OD (Average): OD2 - OD6 |
Material : K9/BK7/B270/quartz/Float glass | Coating : Hard Coated |
Model | CWL | FWHM | Transmittance | Blocking | ||||
UV | ||||||||
BP355 | 355±2nm | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
BP360 | 360±2nm | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
BP365 | 365±2nm | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
VIS | ||||||||
BP400-495 | 400--495±2nm/customized | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
BP500-595 | 500--595±2nm/customized | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
BP600-695 | 600--695±2nm/customized | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
NIR | 420±2nm | 10nm/20nm / 35nm /40nm /50nm/customized | ＞60%/70%/80%/90% | 200 - 1200nm | ||||
BP700-795 | 700--795±2nm/customized | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
BP800-895 | 800--895±2nm/customized | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
BP900-995 | 900--995±2nm/customized | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
BP10--95 | 1000--1095±2nm/customized | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
BP20--95 | 1100--1195±2nm/customized | 10nm--50nm/customized | ＞55%-95%/customized | 200 - 1200nm | ||||
Workshop environment
New membrane system design, IAD Hard Coating, Cleanroom-furification roduction environment, High precision test equipment testing.
Inspection
Advanced testing equipment and methods are important guarantee for the production of high-precision products.
Advanced processing equipment and complete production system are ensure that we can effectively control every aspect of the
product process to ensure product quality, and reduce losses and reduce costs!
product process to ensure product quality, and reduce losses and reduce costs!
Packing Details : carton packaging
Delivery Details : 3-15 days after ordering
Delivery Details : 3-15 days after ordering
High quality
Passed the ISO9001:2015 quality system authentication and ISO14001:2015 quality system authentication.
Can be customized according to customer needs to provide the best quality optical filter lens, high quality, long life
Can be customized according to customer needs to provide the best quality optical filter lens, high quality, long life
Can be customized according to customer needs to provide the best quality optical filter lens, high quality, long life
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Where is your factory located ?
A:1st Floor, Building A,No. 18, Zone B, Dashuitian Industry Zone, Guanlan, Longhua District Shenzhen Guangdong China
Q: What's the material of your products ?
A: K9/ BK7 / B270 / Float glass / Quartz /Optical Glass
Q: If i place an order now ,how long would it be before i got delivery ?
Depending on the number of orders, the normal time of 3-15 days, the specific time can contact us directly
Q. How do you package the product?
A: Generally speaking, we put the goods in a neutral white box and a brown carton. Can be packaged according to your needs, you need to contact us in advance
