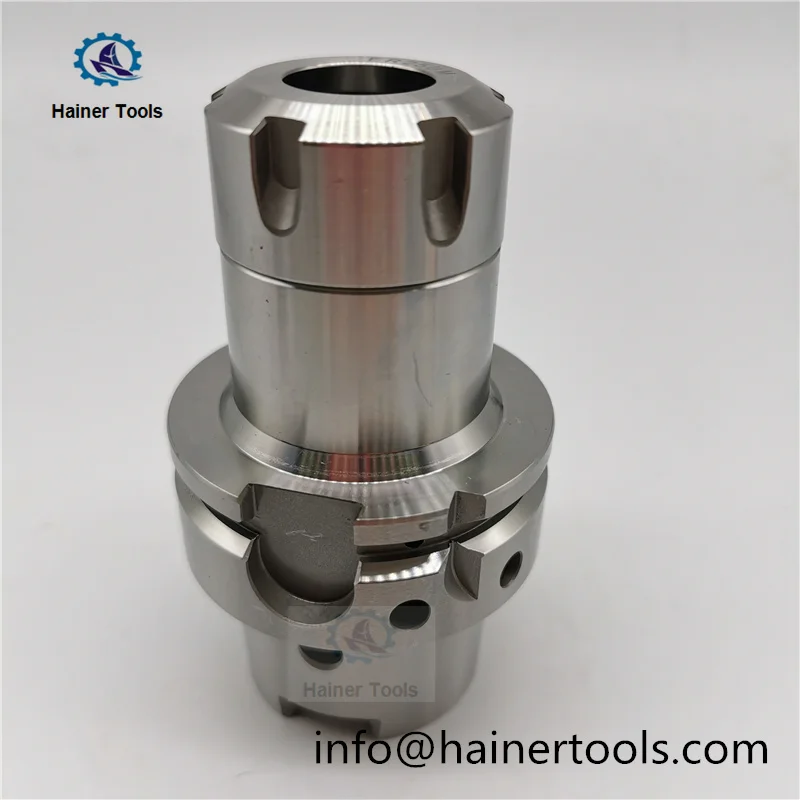

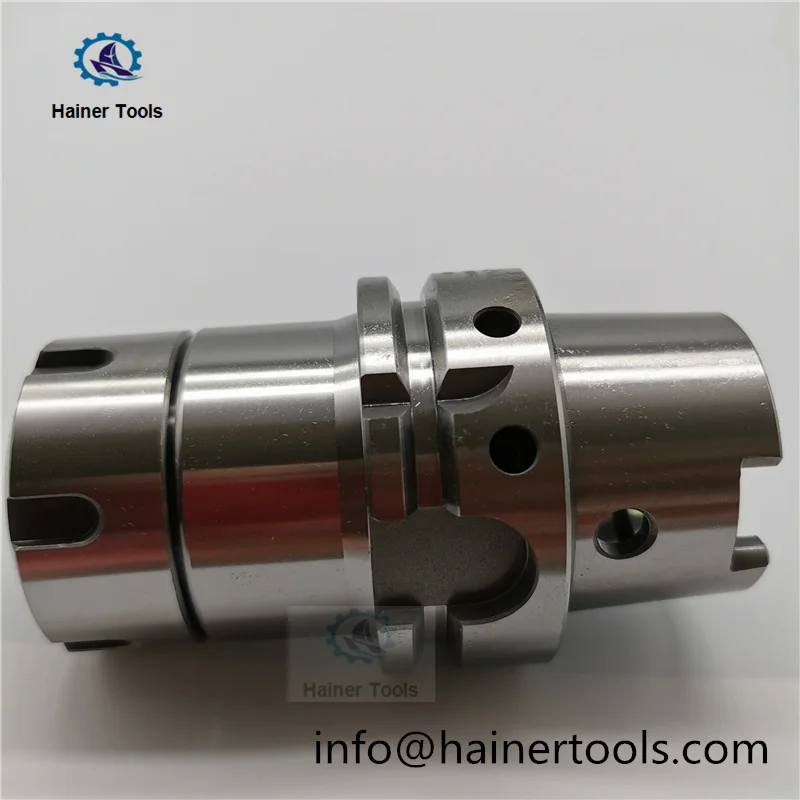

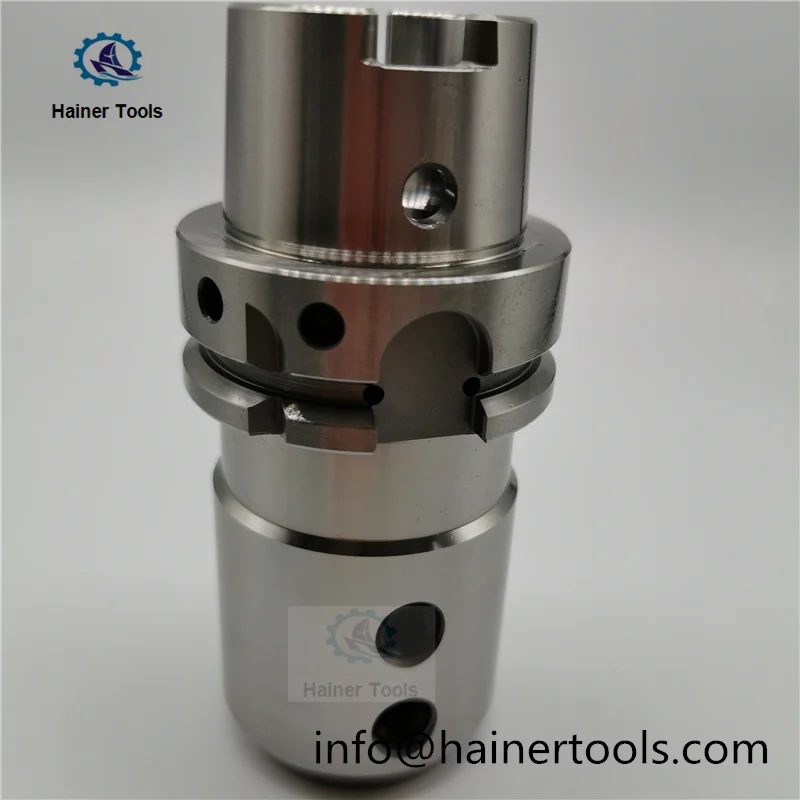

High Speed precision CNC HSK63A HSK63F tool holders HSK40E toolholders HSK50E toolholders Type ER Collet Chuck HSK ToolHolders

Product Overview

Description

High Speed precision CNC HSK63A HSK63F tool holders HSK40E toolholders HSK50E toolholders Type ER Collet Chuck HSK ToolHolders



Size	D	L1	Capacity
HSK32A-ER16-80	28	80	1-10
HSK32A-ER25-80	42	80	2-16
HSK32A-ER32-50	50	50	3-20
HSK40A-ER16-80	28	80	1-10
HSK40A-ER25-80	42	80	2-16
HSK40A-ER32-80	50	80	3-20
HSK50A-ER16-80	28	80	1-10
HSK50A-ER20-80	34	80	1-13
HSK50A-ER25-80	42	80	2-16
HSK50A-ER32-100	50	100	3-20
HSK63A-ER16-75	28	75	1-10
HSK63A-ER20-75	34	75	1-13
HSK63A-ER25-75	42	75	2-16
HSK63A-ER32-75	50	75	3-20
HSK63A-ER40-90	63	90	4-26
HSK63A-ER16-100	28	100	1-10
HSK63A-ER20-100	34	100	1-13
HSK63A-ER25-100	42	100	2-16
HSK63A-ER32-100	50	100	3-20
HSK63A-ER40-120	63	120	4-26
HSK63A-ER16-160	28	160	1-10
HSK63A-ER25-160	42	160	1-13
HSK32A-ER32-160	50	160	2-16
HSK63A-ER40-160	63	160	3-20

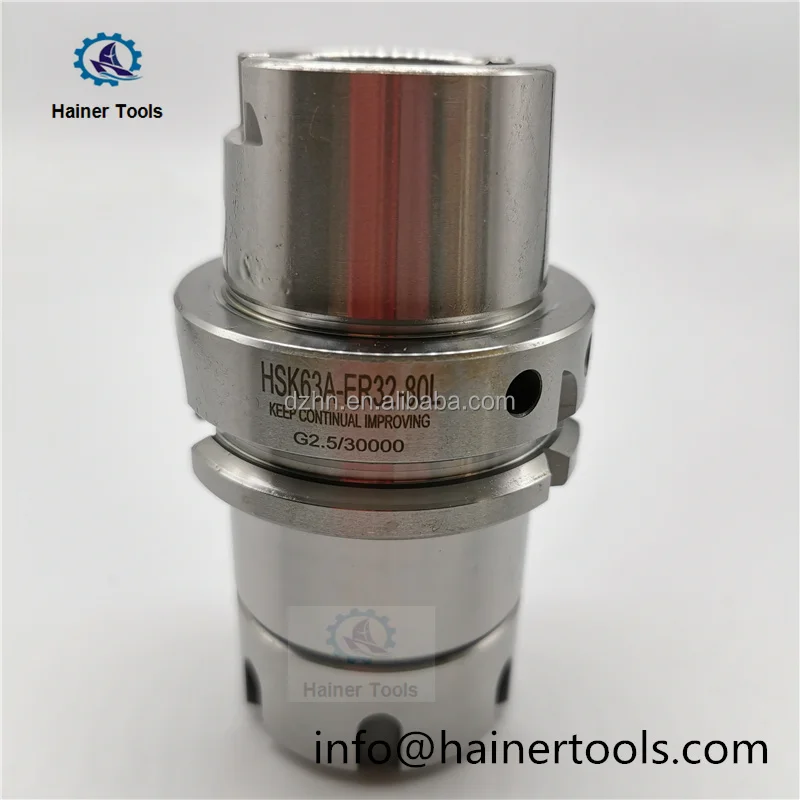

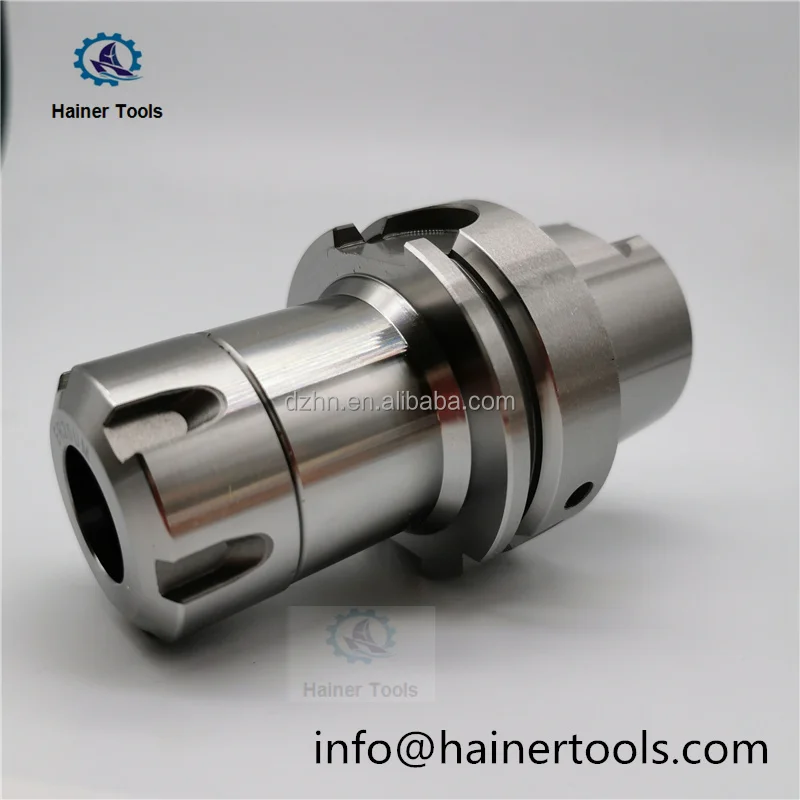

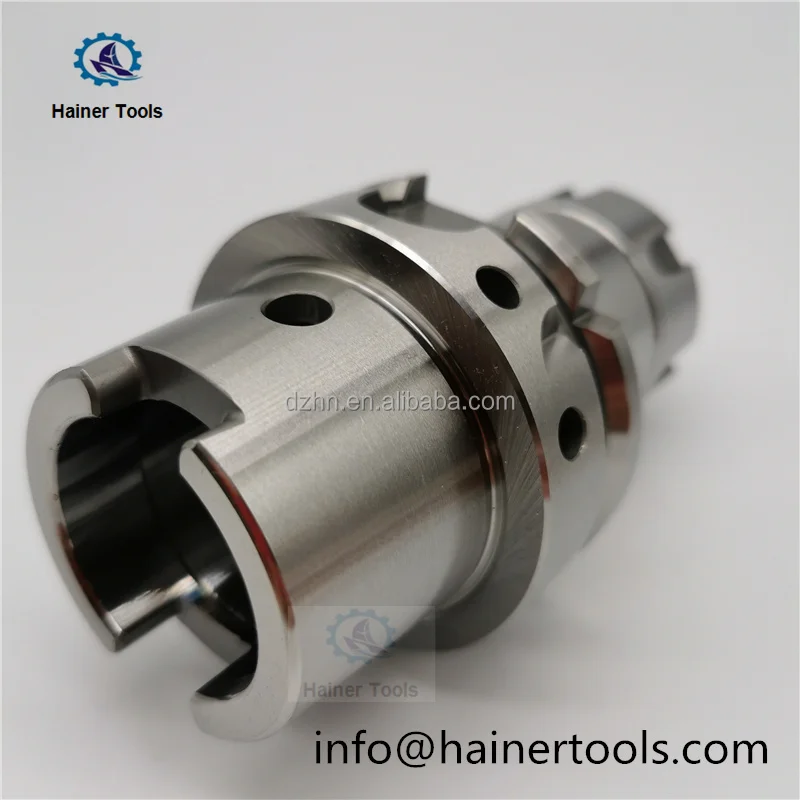

· HSK63A ER Collet Chucks

· ER25 (0.5-16mm Clamping Capacity)

· Standard Type 15,000RPM G6.3

· The most flexible tool holding system

· Low cost solution to a wide range of applications

1. Material :40Cr /20CrMnTi cnc tool holder
2.Hardness:HRC58-62
3.Form :AD AD/B
4.Accurracy: 0.005mm/8000rpm
5.Accurracy balanced: to G6.3/12000RPM or G2.5/20000











CNC Machine Tool Accessories

1.Collets: ER Collets,SK collets,TAP Collets,Steel Sealed Collets.EOC collets
2.Milling chuck set,Wooden chuck,Chuck
3.Tool holders,Collet chuck,Machine vises
4.Vice,Wrench,Lathe chuck,Nut,boring head
5.live center
6.VDI tool holders
7.Measuring tools
8.Parallel block
9.End mills
10.Turning tool holders
11.Insert,CNC milling cutters,Edge finder
12.Clamping kit,HSK tool holders,Milling arbors,Milling chuck
13.End mill holder,Adapters
14.Punch former,Quick change tool holder,Drill chuck
15.Tapping chuck,Dividing head,Zero-Setter,Rotary table
16.Precision CNC Tools,Lathe tools,Machine tools.











1 Are you factory or Trade Company?
We are Industry and trade integration.

2 Could you supply samples?
Yes, we can supply.

3 Where do you export?
The whole world.

4 Could you produce non-standard products?
Yes, we can. Please supply samples or drawing.

5. What are the shipping ways?
By international express, by air, by sea are all ok.

6. Do you have minimum order quantity?
Conventional Products don’t have. The minimum order quantity of non-standard products is 50pcs.

7. What’s your payment way?
T/T, Pay pal, Western Union and so on.





Advantage we have

A.Experienced slate products supplier

B.professional design team and sales department for your service

C.Alibaba golden supplier for 8 years.

D.7/24 service for you,all the question will be dealed within 24 hours
