Product Overview

Description









Application
It is primarily used for chip branches, undersized log, wood cutting debries, and shrub to prepare raw material for paper mill,MDF board factory, biomass power plant, organic fertilizer factory, and slao for landscaping job and tree care job.




Specification


Model
HXBC1600
Dimension
5.2 x 1.8 x 3.35 m
Weight
3.2 t
Input size
960 x 512 mm
Feed roller quantity
2 (Up Feed Roller+ Down Chain Feed Conveyor)

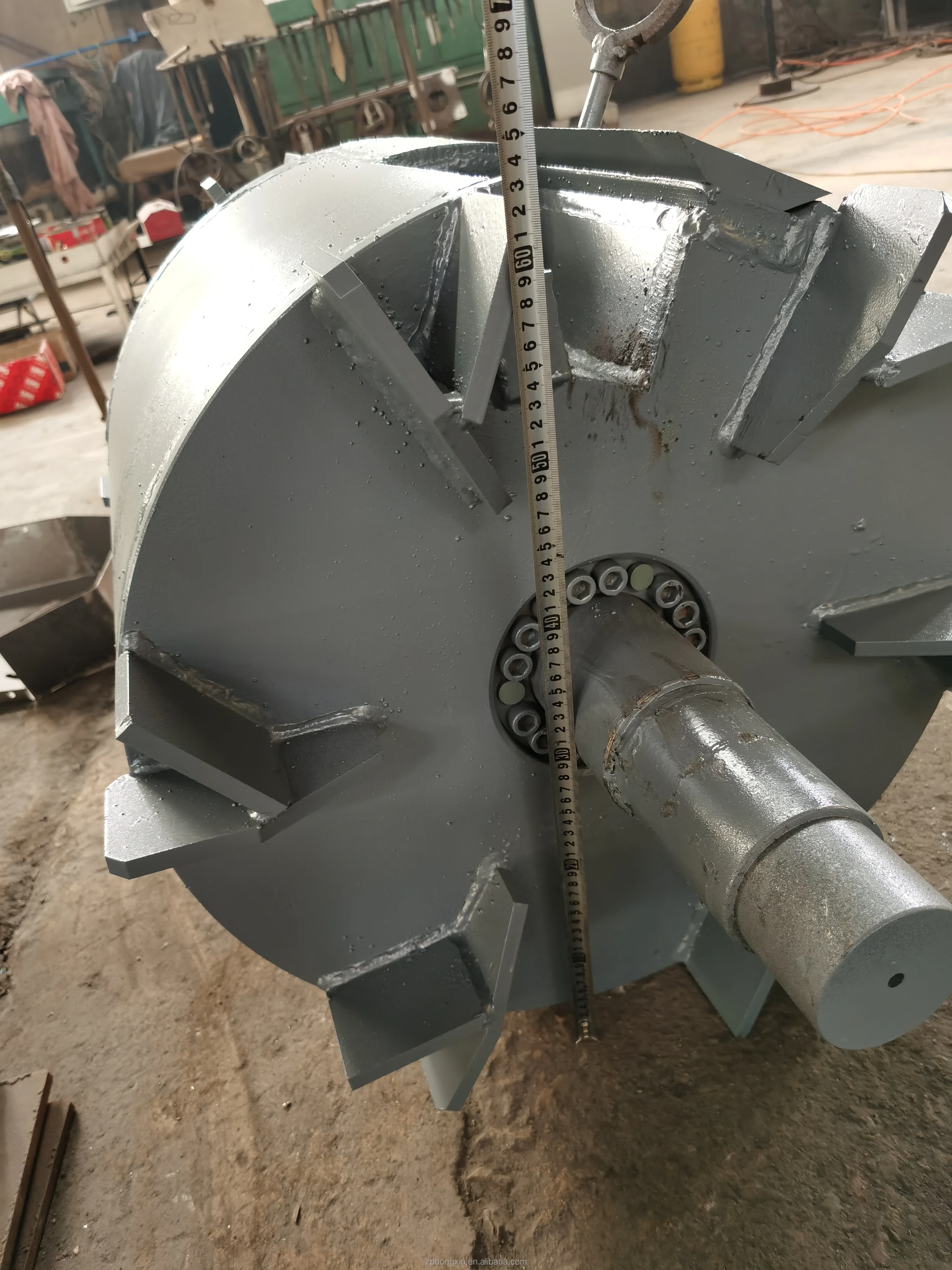

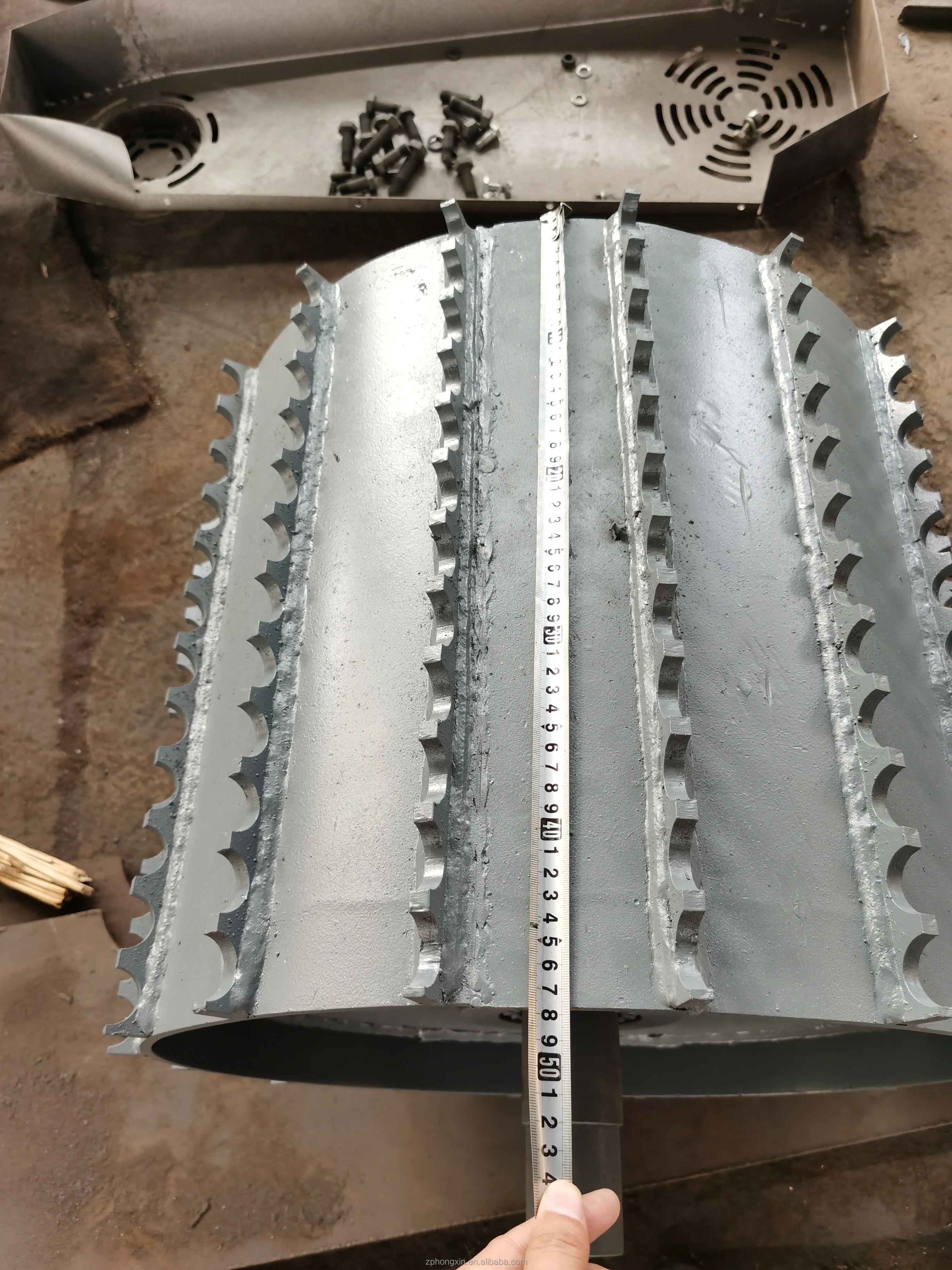

Rotor size
Φ 655 x 500 mm
Feed roller size
Φ 600 x 480 mm
Blade size
270 x 110 x 18mm
Blade type
2 Cutting Edge
Blade quantity
4 Cutting + 1 Stationary
Chain feed conveyor length
1790mm
Driving power
Commins Turbocharged Engine 160HP
Sound-attenuating cabinet
Sound-attenuating Cabinet
Max wood diameter
400mm
Feed speed
0-36 m/min
Torque of feed system
548 N.m
Feed gears
Feed-Stop-Reverse
Main transmission mode
Industrial clutch of American brand WPT, and belt transmission.
Feed method
Auto feed by hydraulic motor with adjusting valve
Discharge height
3.2 m
Rotation speed
2050 rpm
Working mode
Stationary, Movable by towing
Brake mode
Air-operated
Start mode
Electric
Voltage
24 V
Tire
750-16
Fuel tank capacity
50 L
Hydraulic oil tank capacity
72 L
Lubricating system
24V grease auto lubricating system,
Lubricating the related parts at regular time.
Display
Engine rotation speed, Water temperature, Engine oil pressure, Electric quantity, Fuel volume, Hydraulic oil volume, Working
hours.
Safety device
Rotor security lock, Emergency stop handrail, Emergency stop switch, Rear indicator light.
Container loading
1 x 20’GP

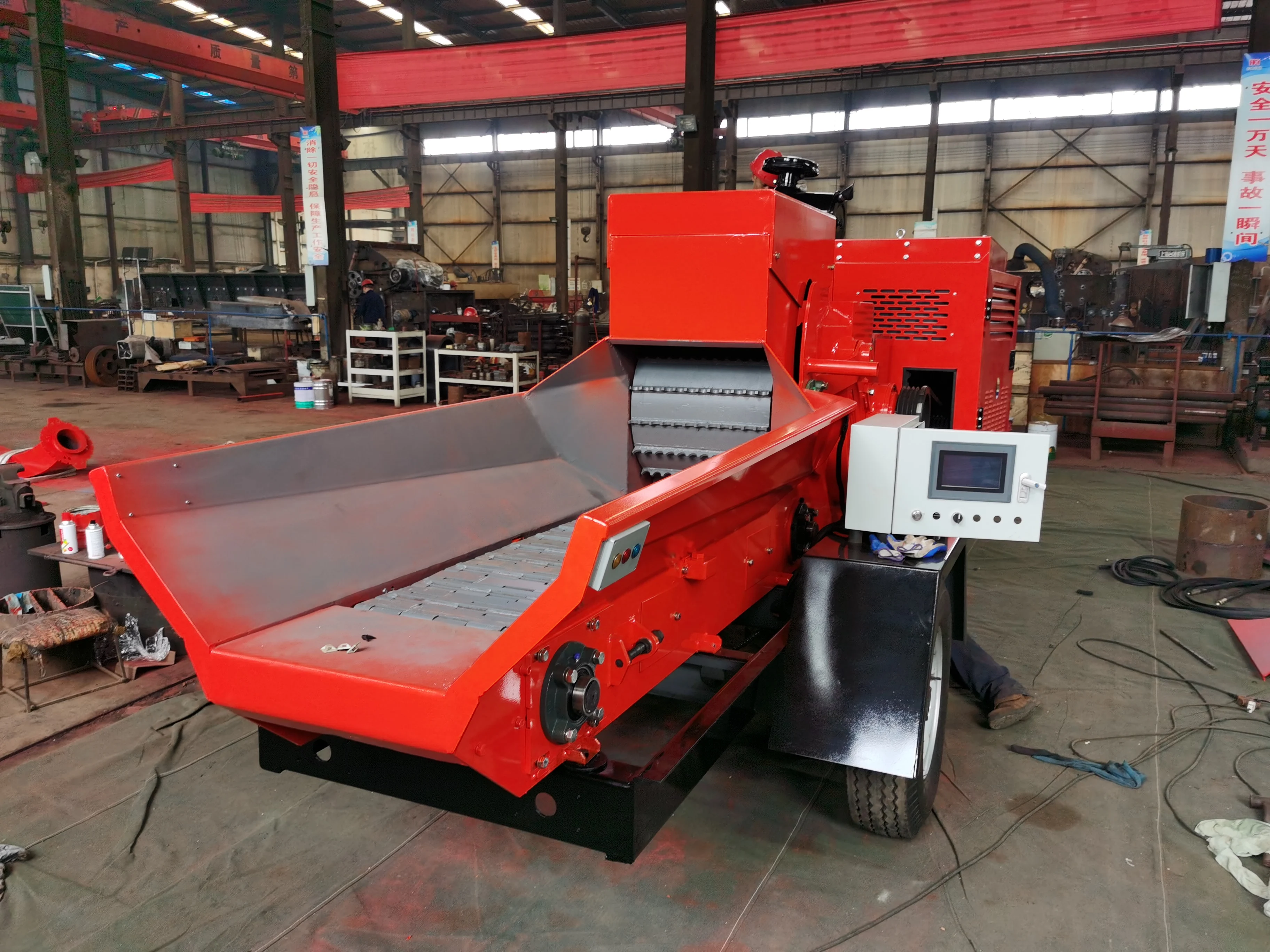

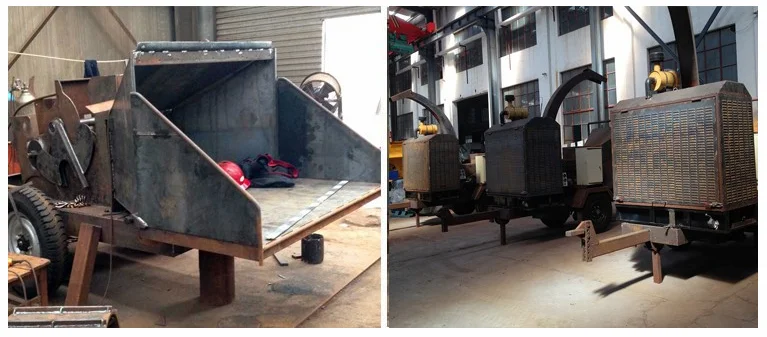

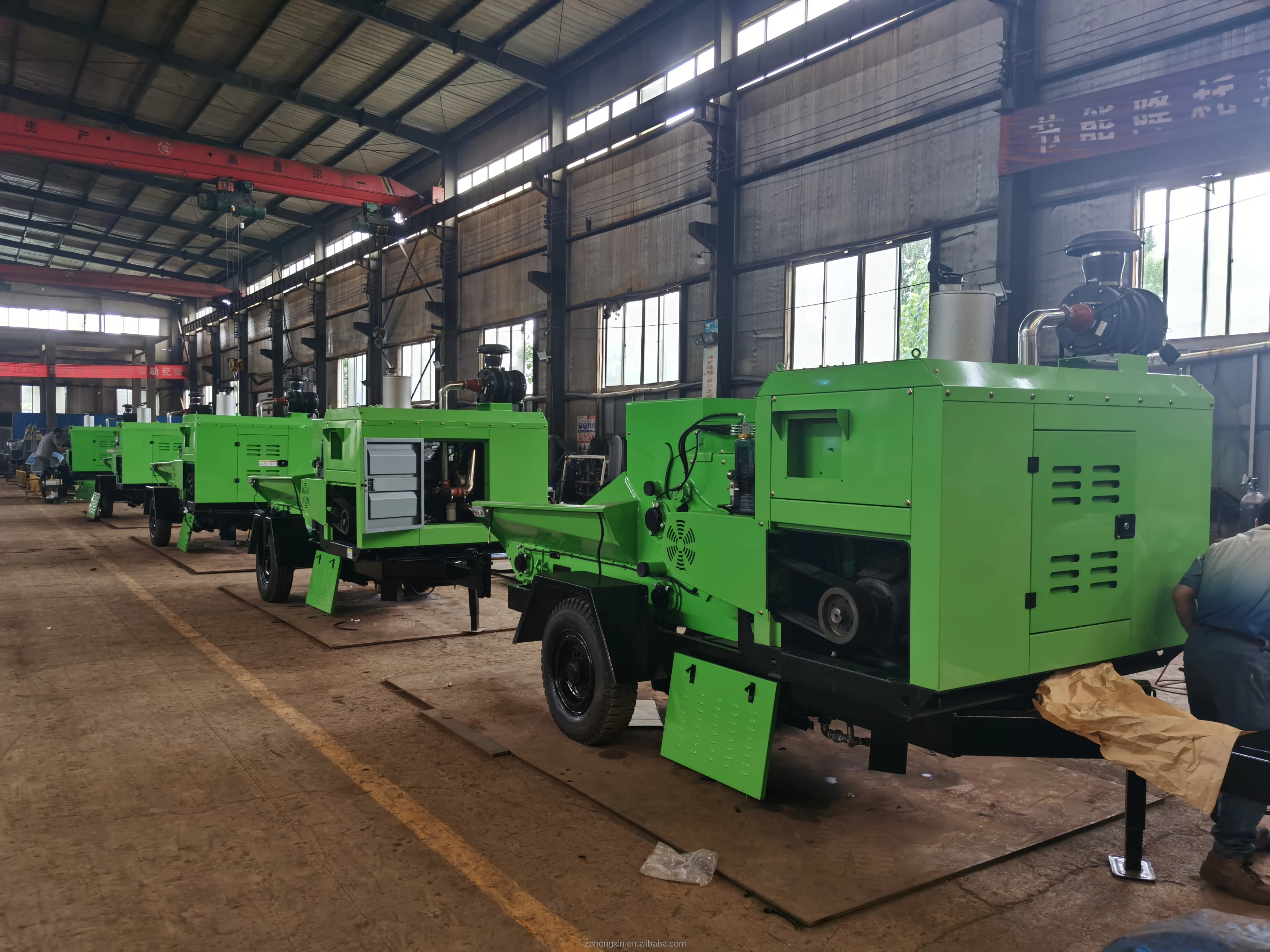

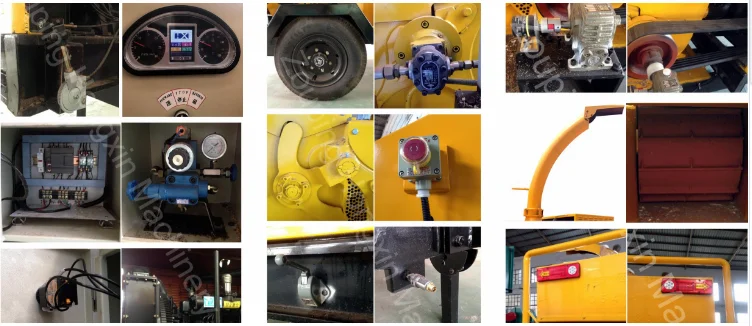

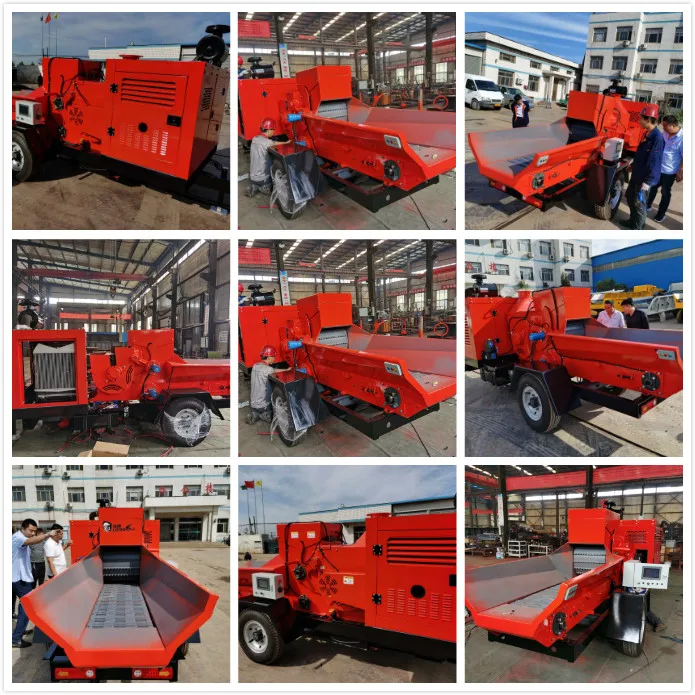

Detailed images

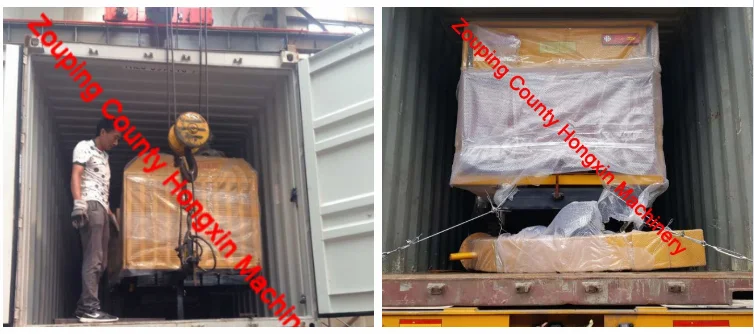

Packing & Delivery

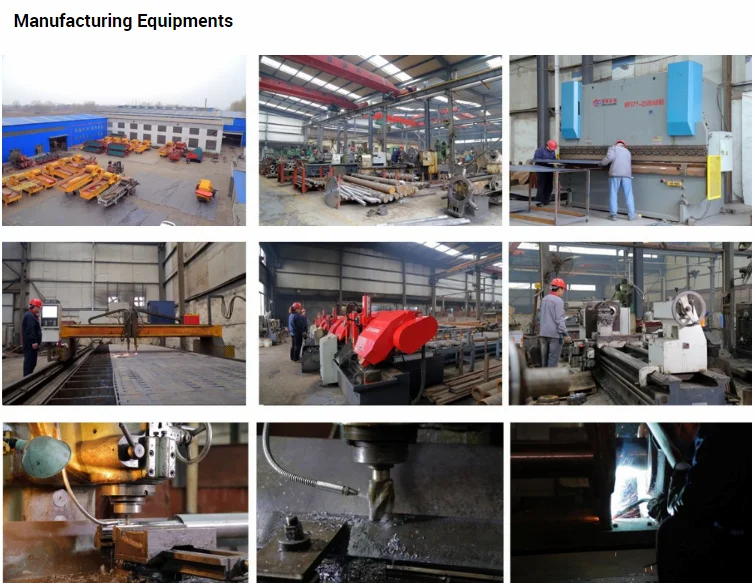

About Us
