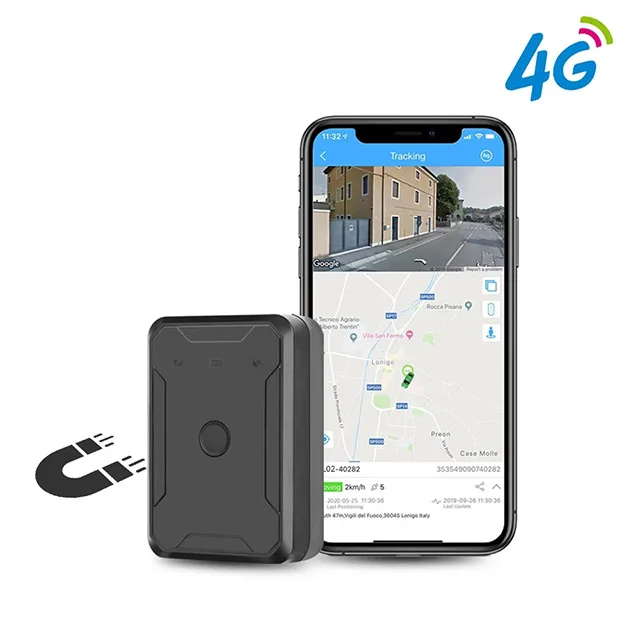

JM LL02 4G wireless free installation vehicle jm LL02 gps tracker with voice recording for car sharing rental company
- Category: >>>
- Supplier: Shenzhen Innosio Technology Co. Ltd.
Share on (1600296092525):
Product Overview
Description
JM-LL02 4G wireless free installation vehicle jm ll02 gps tracker with voice recording for car sharing rental company
Model:JM-LL02

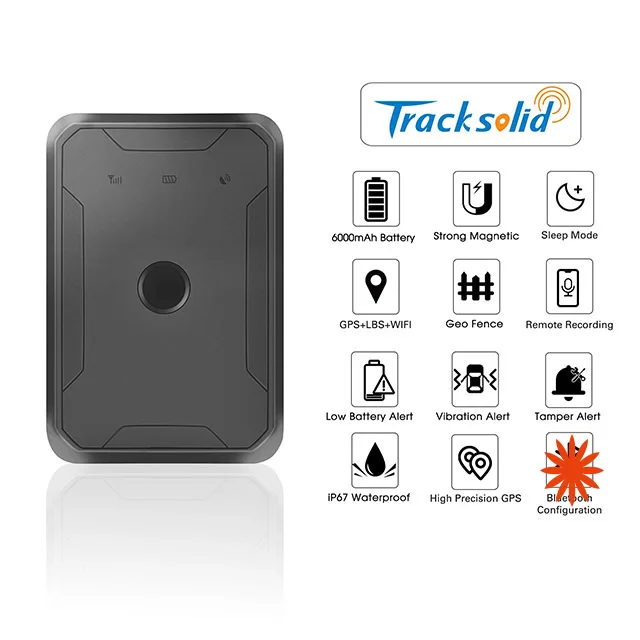

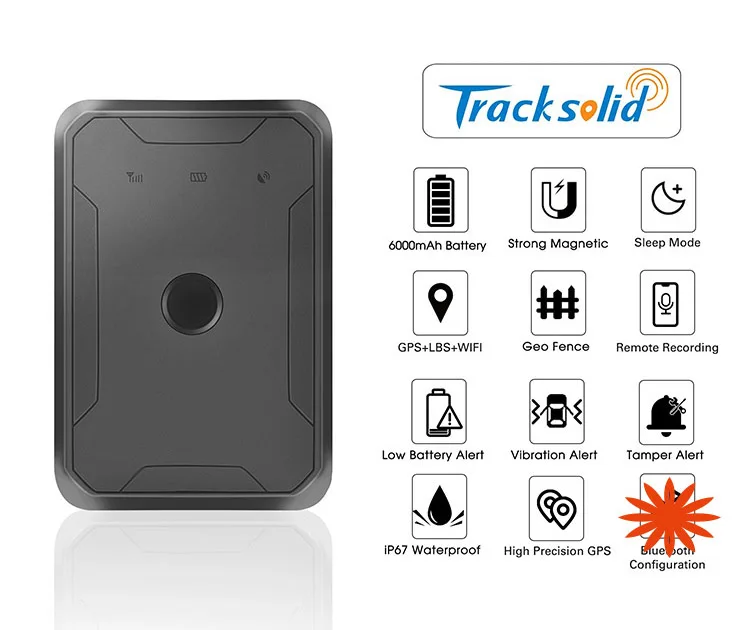

Feature:
Network:LTE + WCDMA or LTE + GSM
6000mAh Battery Powered
Tamper Alert
Strong Magnet Mount
IP67 Dust & Water Resistance
2 Years Standby Time
Technicial Parameter:
| GNSS | |
| Positioning system | GPS+WiFi+LBS |
| Frequency | L1 |
| Positioning accuracy | <10 meters |
| Track sensitivity | -165dBm |
| Acquisition sensitivity | -148dBm |
| TTFF (open sky) | Avg. hot start ≤1sec |
| Avg. cold start ≤40sec | |
| Cellular | |
| Communication network | LTE + WCDMA / LTE + GSM |
| Frequency | JM-LL02A: |
| LTE Cat1: B2/B4/B5/B12/B13 | |
| WCDMA: B2/B4/B5 | |
| JM-LL02E: | |
| LTE Cat 1: B1/B3/B5/B7/B8/B20/B28 | |
| GSM: 850/900/1800/1900 | |
| Power | |
| Battery | 6,000mAh/3.7V industrial-grade Li-Polymer battery |
| Working modes | Mode 0: Standby mode |
| Mode 1: Tracking mode | |
| Mode 2: Power-saving mode | |
| Standby time | Up to 2 years in power-saving mode |
| Interface | |
| LED indication | GNSS (Blue), Cellular (Green), Power (Red) |
| SIM | Nano-SIM |
| Data storage | 32+32Mb |
| Tamper proof | Light sensor |

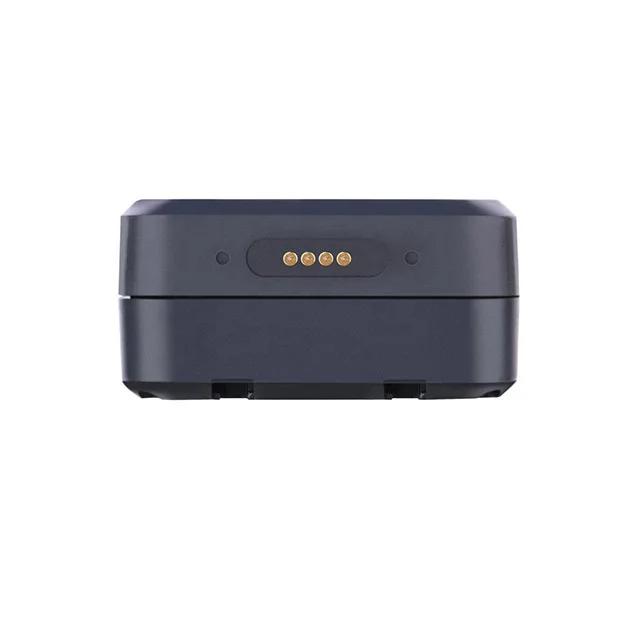

| Magnetic charging port | Used for charging and debugging |
| Physical specification | |
| Dimensions | 85.0 x 58.0 x 29.0mm |
| Weight | 158g |
| Operating environment | |
| Operating temperature | –20℃ to +70℃ |
| Operating humidity | 5%~95%, non-condensing |
| IP rating | IP67 |
| Feature | |
| Voice monitoring range | ≤3 meters |
| Sensors | Accelerometer, Light sensor |
| Scenarios | Low battery alert, Tamper alert, Vibration alert, Over-speed alert, Geo-fence |
| Specialties | On/off button disabling, Voice recording |
