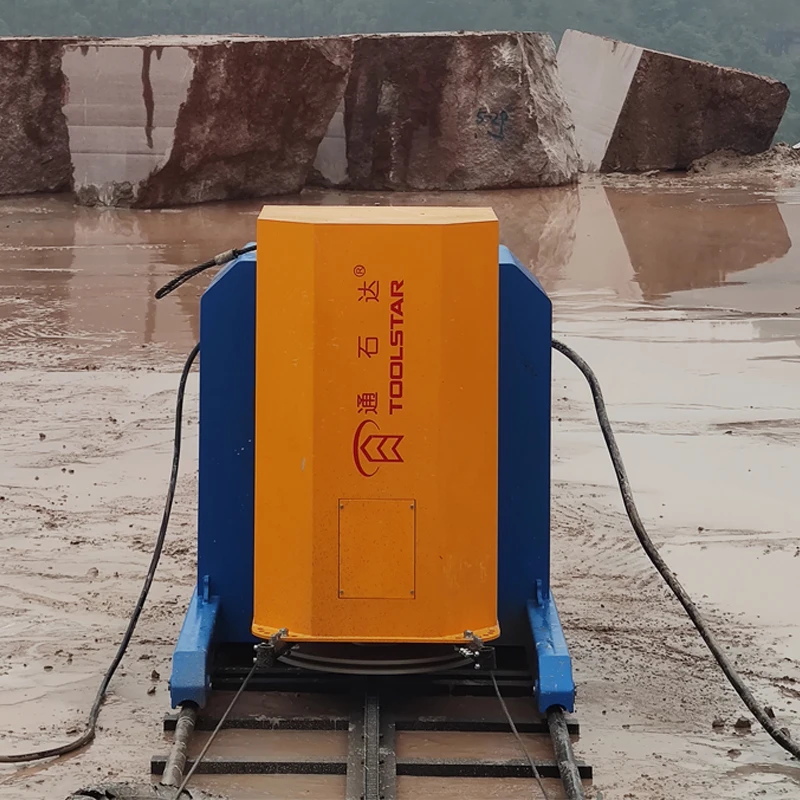

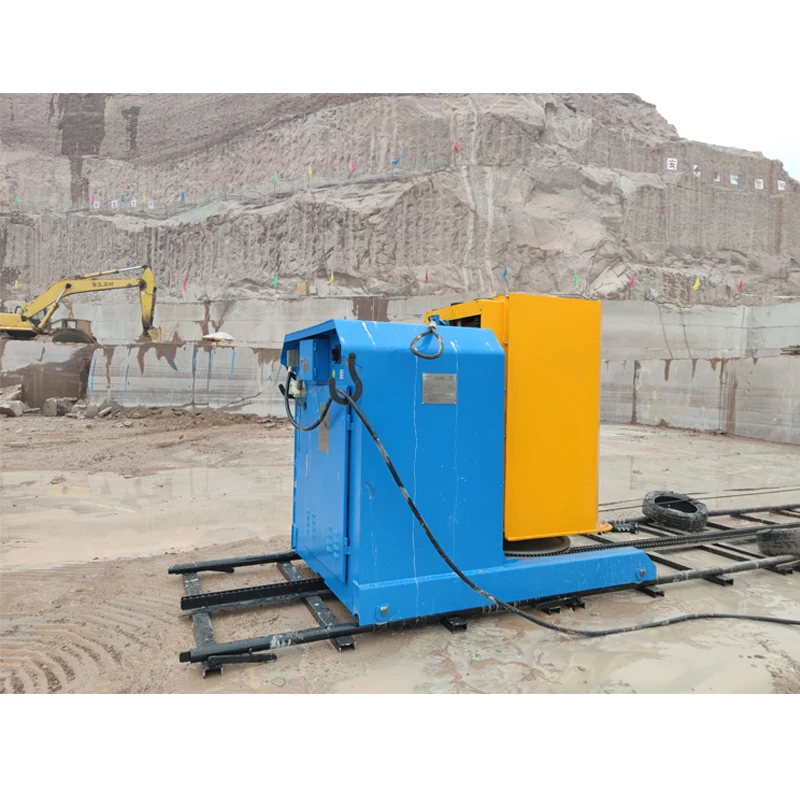

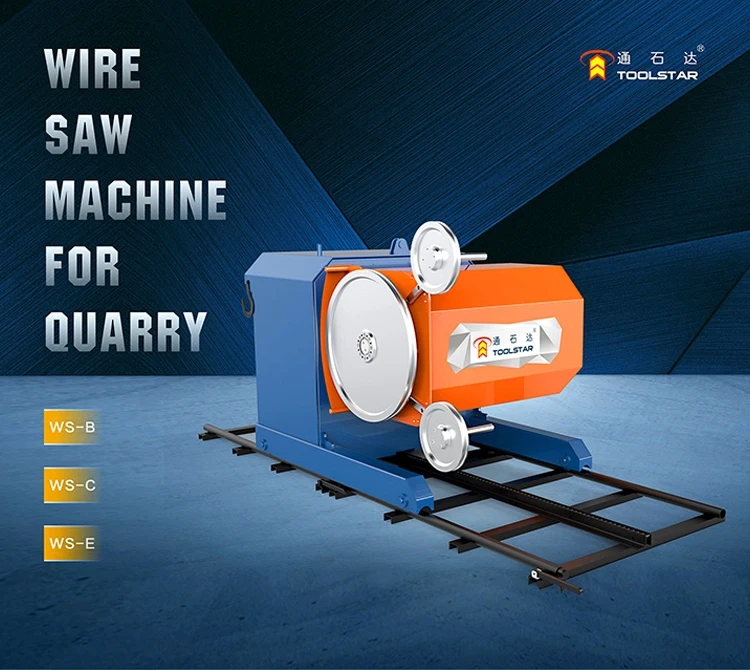

Diamond Wire Saw Machine for Granite Marble Quarry,High Quality Granite Mine Quarry Tools 75KW Mono Wire Cutting Machine
- Category: Stone Machines >>>
- Supplier: Changsha Toolstar Machinery Manufacturing Co. Ltd.
Share on (1600296112876):
Product Overview
Description
1. Adopt new design of gearbox reducing the down time and facilitating,maintenance which ensures the lifetime is longer than counterpart.
2. Diverse configuration with intelligent, automatic and remote features to work under frozen/hot temperature or high altitude area.

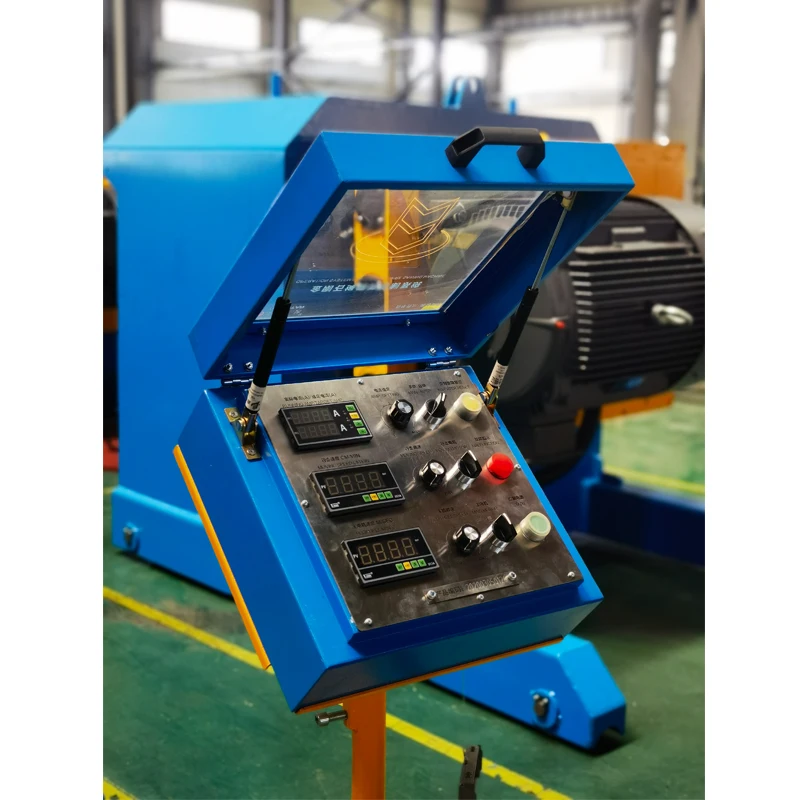

3. Ergonomical and user-friendly design make it easy for operator to run the machine. Remote and cable control are both available for your choice.
WS-B技术参数 / WS-B TECHNICAL PARAMETER | ||||||||
型号 | WS37B(H) | WS45B(H) | WS55B(H) | WS75B(H) | ||||
主电机功率Main motor（KW） | 37 | 45 | 55 | 75 | ||||
飞轮直径 Flywheel diameter（mm） | 大理石Marbleφ800 | 大理石Marbleφ900 | ||||||
花岗岩Graniteφ600 | 花岗岩Graniteφ800 | |||||||
导向轮直径Guide wheel diameter（mm） | 2xφ380 | |||||||
绳锯线速度Wire speed（m/s） | 0~40 | |||||||
行走电机功率Walking motor power（KW） | 0.75 | |||||||
行走速度Walking speed（cm/min） | 106 | |||||||
左右调整量Motor adjustmentrange（mm） | 430 | 460 | 520 | |||||
切割间距Cutting spacing（mm） | 1830 | 1930 | 1980 | 2300 | ||||
旋转角度（°）Rotation angle | 360°电动 electric | |||||||
外形尺寸（mm）Size | 2180x1360x1410 | 2030x1480x1580 | 2030x1500x1850 | |||||
绳锯最大长度（m） Max. wire length | 60 | 80 | 100 | 120 | ||||
整机重量（t）Net weight | 2.15 | 2.25 | 2.9 | 3.4 | ||||
WS-C技术参数 / WS-C TECHNICAL PARAMETER | ||||||||||
型号Model | WS37C | WS45C | WS55C(H) | WS75C(H) | WS110C(H) | |||||
主电机功率（KW）Main motor | 37 | 45 | 55 | 75 | 110 | |||||
飞轮直径（mm） Flywheel diameter | 大理石 Marble φ800 | 大理石 Marble φ900 | ||||||||
导向轮直径（mm） Guide wheel diameter | 2xφ380 | |||||||||
绳锯线速度（m/s）Wire speed | 0~40 | |||||||||
行走电机功率（KW） Walking motor power | 0.75 | 1.1 | ||||||||
行走速度（cm/min） Walking speed | 52 | 35 | ||||||||
左右调整量（mm） Motor adjustmentrange | 430 | 460 | 520 | 600 | ||||||
切割间距（mm）Cutting spacing | 1800 | 1930 | 1980 | 2300 | 2220 | |||||
旋转角度（°）Rotation angle | 360°电动 electric | 1930 | 1980 | 2300 | 2220 | |||||
外形尺寸（mm）Size | 2180x1360x1410 | 2030x1480x1580 | 2030x1500x1850 | 2462x1668x1775 | ||||||
绳锯最大长度（m） Max. wire length | 60 | 80 | 100 | 120 | 150 | |||||
整机重量（t）Net weight | 2.15 | 2.25 | 2.9 | 3.4 | 4 | |||||
WS-E技术参数 / WS-E TECHNICAL PARAMETER | ||||||||
型号Model | WS15E | WS22E | WS30E | WS37E | ||||
主电机功率（KW）Main motor | 15 | 22 | 30 | 37 | ||||
飞轮直径（mm） Flywheel diameter | φ600 | φ500 | 大理石 Marble φ900 | |||||
花岗岩 Graniteφ800 | ||||||||
导向轮直径（mm） Guide wheel diameter | 2xφ380 | 2xφ380 | ||||||
绳锯线速度（m/s）Wire speed | 0~30 | 0~38 | 0~40 | |||||
行走电机功率（KW） Walking motor power | 0.37 | 0.75 | ||||||
行走速度（cm/min） Walking speed | 106 | |||||||
左右调整量（mm） Motor adjustmentrange | 54 | 108 | ||||||
切割间距（mm）Cutting spacing | 1087 | 1246 | ||||||
旋转角度（°）Rotation angle | 360°电动 electric | |||||||
外形尺寸（mm）Size | 1788x1146x1076 | 2144x1325x1280 | ||||||
绳锯最大长度（m） Max. wire length | 20 | 30 | 50 | 60 | ||||
整机重量（t）Net weight | 1 | 1.1 | 1.5 | 1.6 | ||||
Q:what is the MOQ？
A:1 Set
Q:when will you ship the machine？
A:Normally 25-35days after deposit received.If urgent,it can be further negotiated
Q:Which models of your mining machines？
A:According to the main motor power, our 15KW/22KW/30KW/37KW/45KW/55KW/75KW/110KW mining machines.
CHANGSHA TOOLSTAR MACHINERY MANUFACTURING CO.,LTD, founded in 2008, is a Hi-Tech enterprise being dedicated in research and development of diamond wire saw machines and other stone processing equipment.
Until now,TOOLSTAR has set up branches in Brazil,Chile, U.S, Spain, Russia, South Africa, India. TOOLSTAR’s product line covers multi-wire saw machine, profiling machine,squaringmachine, quarrying machine, drilling machine and other stone processing equipment, which are widely used in quarrying,stone processing, mechanical manufacturing and infrastructure industries.
The machines have been exported to U.S., Spain, Italy, Brazil, Poland, Saudi Arabia, Cambodia, etc.Since beginning,
TOOLSTAR has been constantly focusing on technical innovation and application of quarrying, as well as R&D of diamond wire saw machine and other stone processing equipment. So far TOOLSTAR has obtained 24 national patents including 3 invention patents. The article of The Research,Development and Industrialization of Diamond Wire Saw Machine’ was appraised as the Third Advance Prize of Changsha Science and Technology. The independently researched multi-wire saw machine MWS40 was defined as a leading product in China after national technology assessment, and awarded as the first major technology equipment in 2014 in Hunan Province.
Meanwhile, it was listed in the menu of Changsha Self-innovative and Energy-saving Products. The new multi-wire saw machine MWS72A is the largest and most technically difficult slab cutting machine in China. TOOLSTAR has become a name brand all over the world based on its advanced technology and stable quality of diamond wire saw machines.
Meanwhile, it was listed in the menu of Changsha Self-innovative and Energy-saving Products. The new multi-wire saw machine MWS72A is the largest and most technically difficult slab cutting machine in China. TOOLSTAR has become a name brand all over the world based on its advanced technology and stable quality of diamond wire saw machines.
