10000m laser rangefinder distance meter measurement sensor module rs232 interface
- Category: >>>
- Supplier: Chongqing Diaoran Photoelectric S&T Co. Ltd.
Share on (1600296149010):
Product Overview
Description

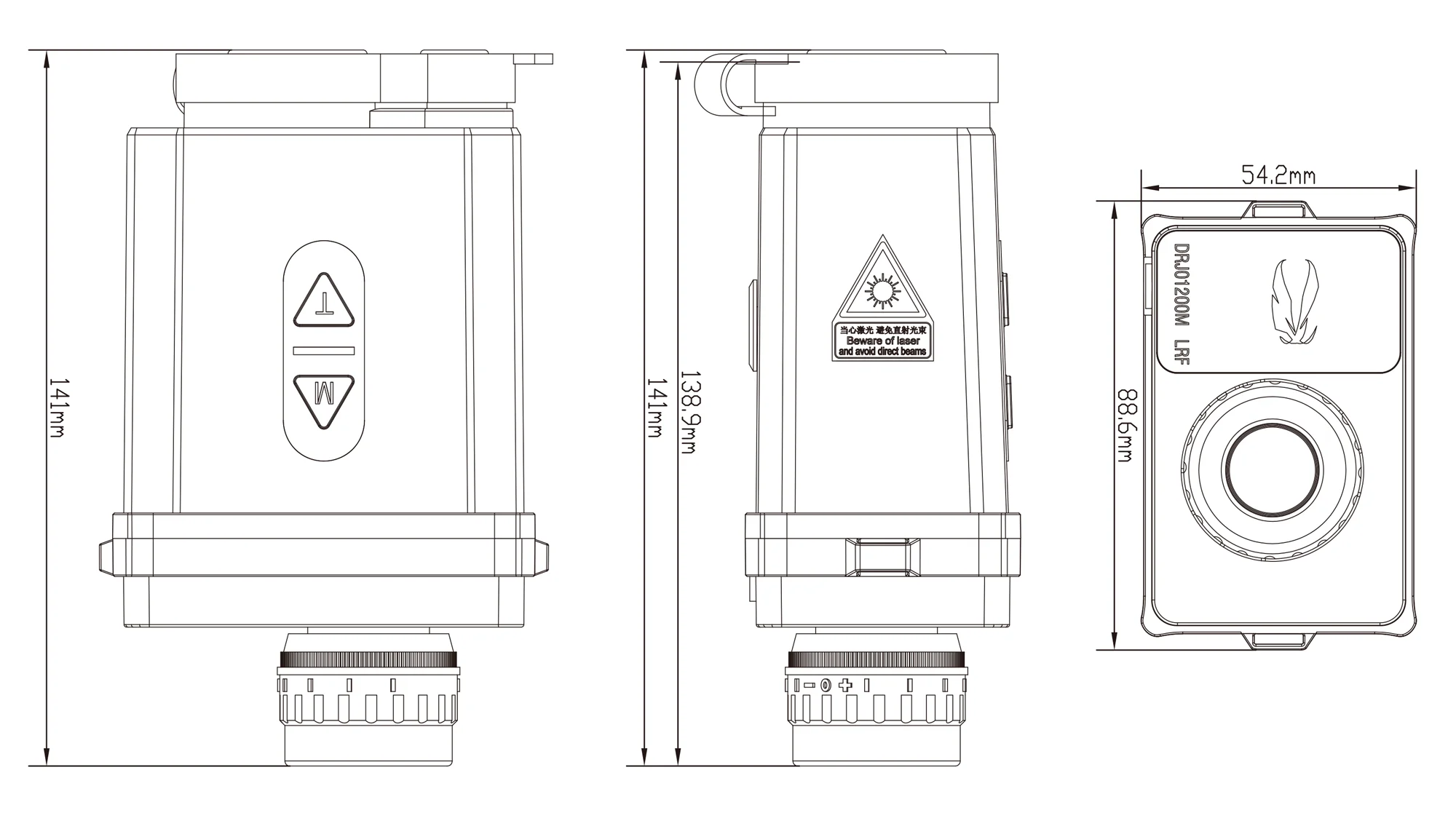

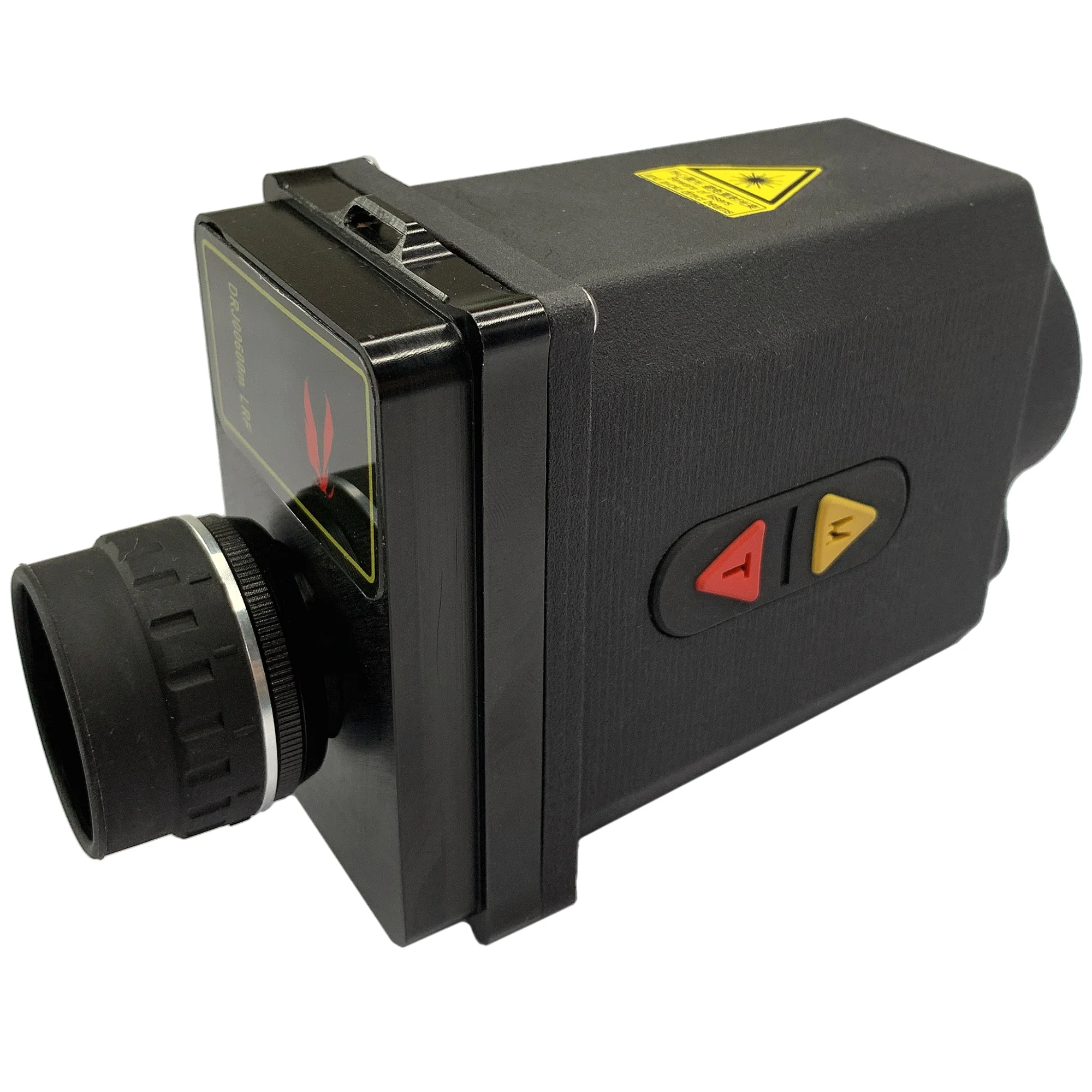

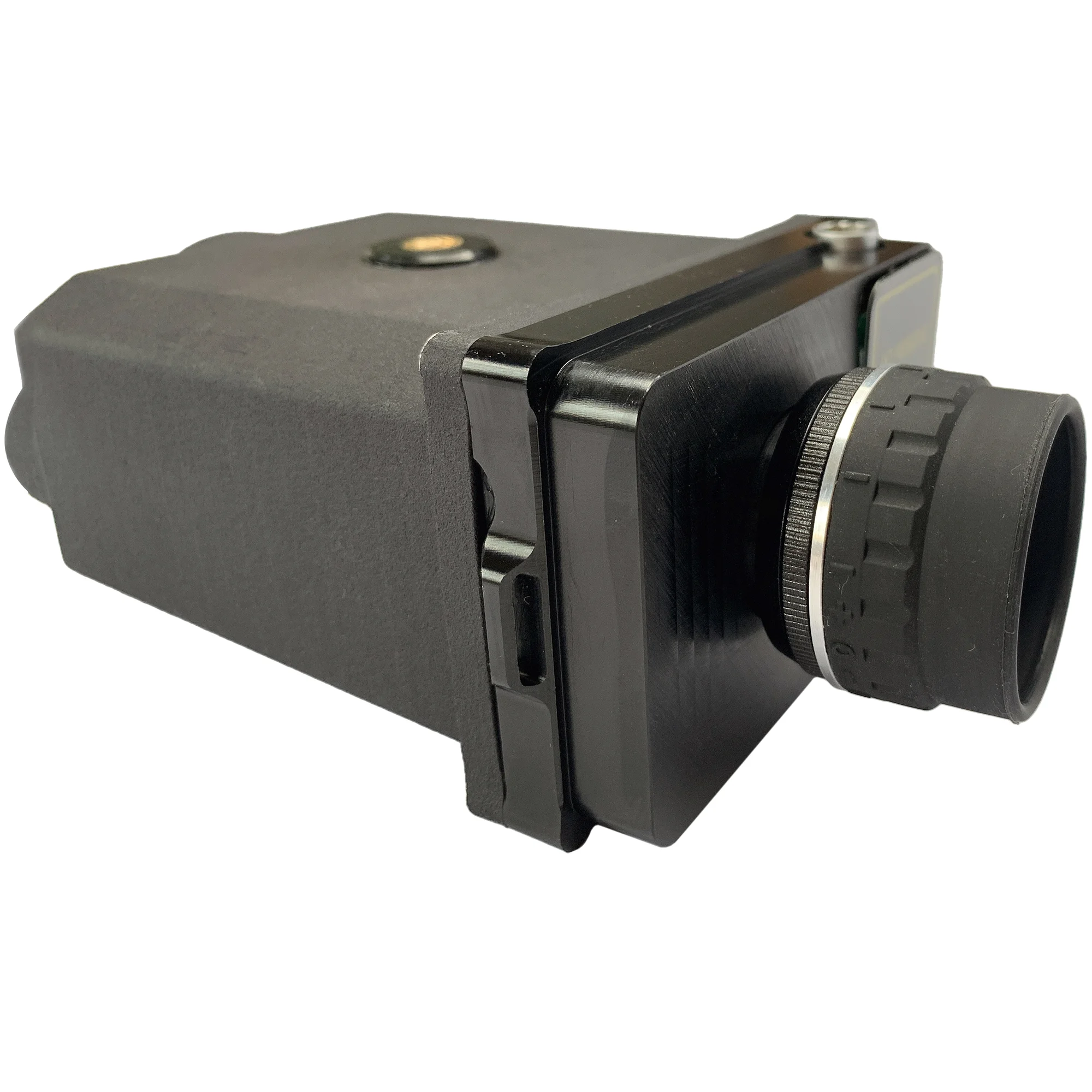

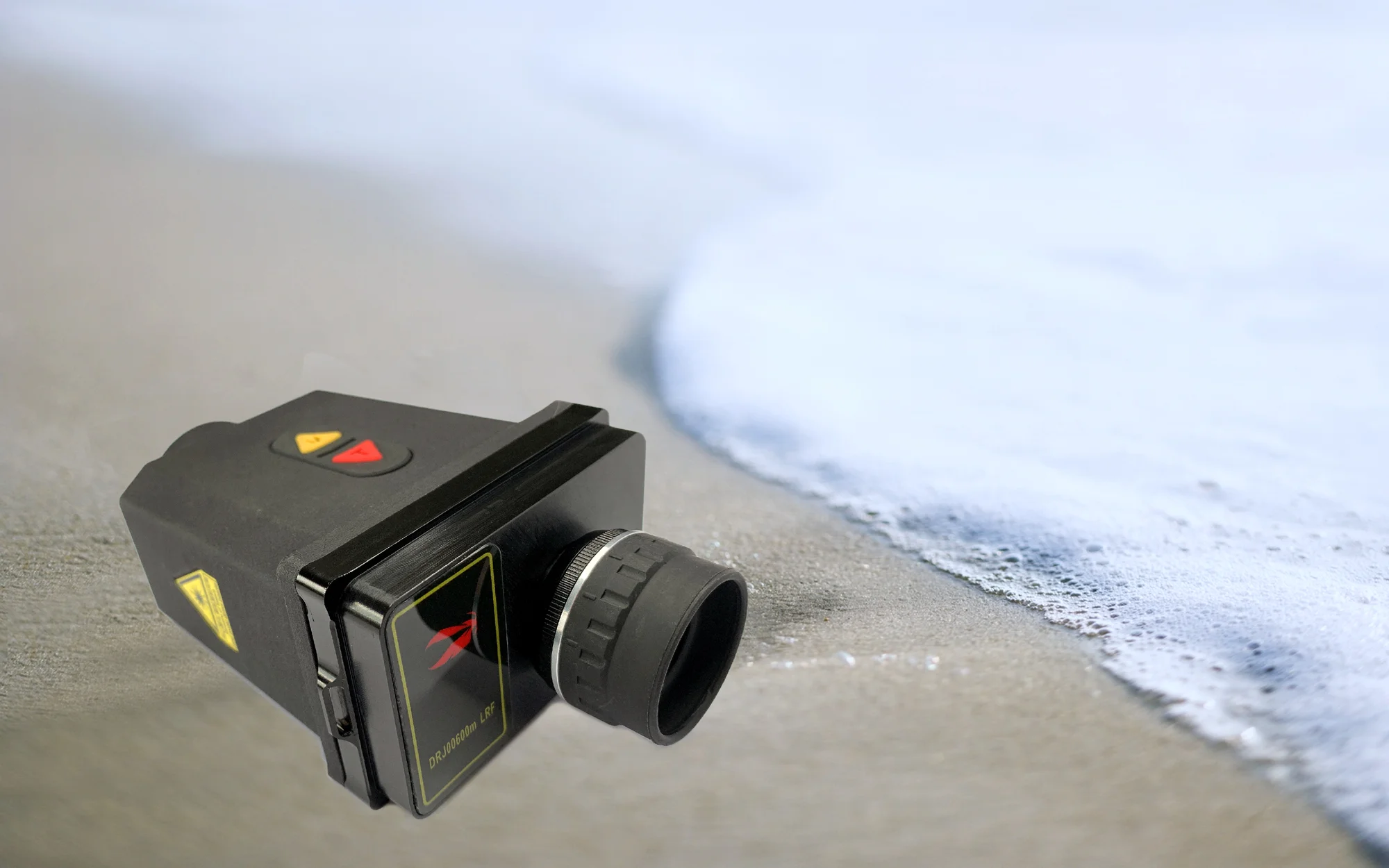

Products Appearance
Products Appearance
| Front | Back |
 |  |
Product Specification
Products Specification
| Technical Index | Details: |
| Light source | ND: YAG |
| Wavelength | 1064nm |
| Output energy | ≥ 5mj |
| Working life | ≥ 20000 times |
| Ranging Distance | 30 - 10000m |
| Ranging Accuracy | ±1m |
| Ranging Gating | 20~4000m (step length 10m) |
| Accurate Rate | 98.00% |
| Repeat Frequency | 1/10(6times/min) |
| Measured Data | Average Value of Measured Data. |
| Data Transmission | Output interface: RS232 serial port, 115200, 8, N,1 |
| Working life | Accumulated laser working life |
| Receiving aperture | Φ31mm |
| Field of view | 6.5° |
| Magnification | 7X |
| Working Temperature | -40℃~+50℃ |
| Adapt to environment | Dustproof, waterproof, and shockproof. |
| Dimensions | 54.2mm*88.6mm*141.3mm |
| Weight | 430g |
| Power Supply | DC12V |
Products Description
Products Description
Module Design

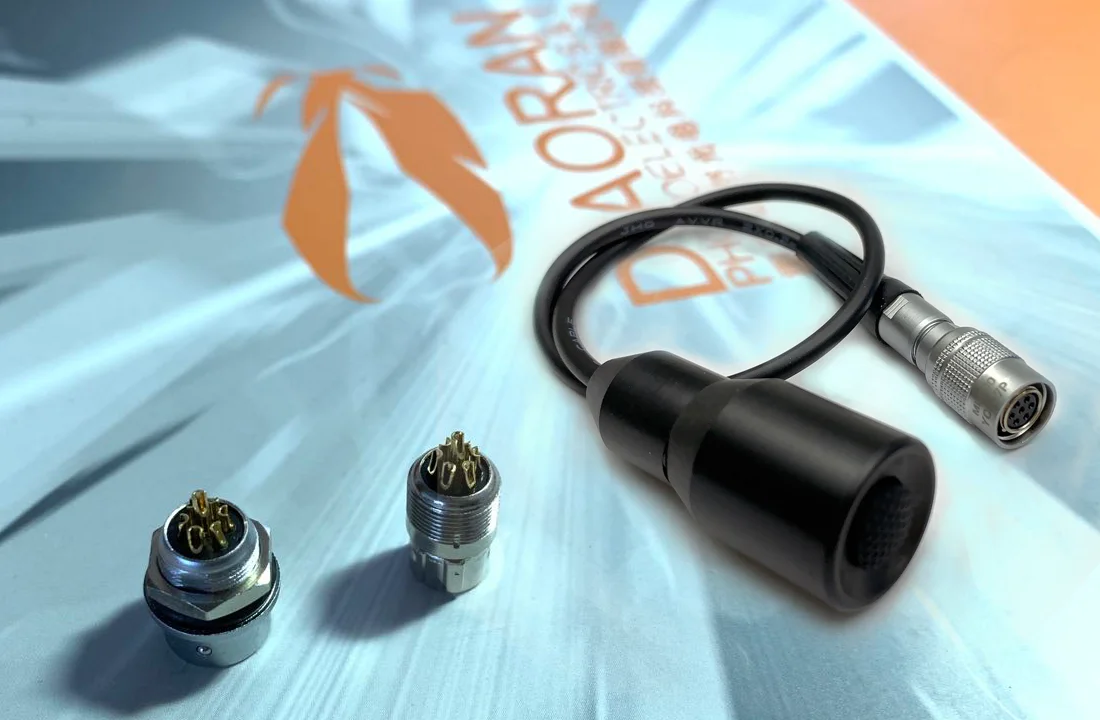

External Trigger Cable
 | Pin No. & Function 1: Signal Ground 2: +VDD 3: Trigger 4: TXD 5: RXD 6: Charging Port |
Products Application
Products Application
