PP PE PVC pulverizer/Plastic pulverizing machine/plastic grinder

Product Overview

Description



PP PE PVC pulverizer/Plastic pulverizing machine/plastic grinder



pulverizer machine cost

pulverizer machine for powder

plastic scrap grinding machine

LLDPE pulverizer machine

grinding pulverizer machine

PVC scrap pulverizer



Application

Adopted material is HDPE LDPE LLDPE PVC PE PET pellet or flakes that the size is not surpass the 12mm ,soft PVC ,HARD pvc and so on.

Final powder mesh size in genneral is between 20~80 mesh.

The powder mesh size is adjustbale.



Features:
1. Compare with same type pulverizer, the capacity of this mode is more higher
2. Equipped with dust collection device to reduce dust pollution.
3. Close blower for discharge can reduce labor intensity of worker
4. the cover of main machine can be opened for maintain
5.the cooling of machine have wind cooling and water cooling, it can cool the machine body very good.



Components:

1. Grinding room
2. Main motor
3. Wind-sending pipeline
4. Hopper
5. Shanking feeder
6. Rotundity vibrating sieve
7. Cyclone windbutterfly valve
8. Cyclone seperator
9. Blower
10. Electrical control cabinet
11. Dust catcher.



Model	MF400	MF500	MF600	MF800
Diameter of milling blade	400MM	500MM	600MM	800MM
Power	30KW	45KW	55KW	75KW
Blade material	SKD-11 OR D53	SKD-11 OR D53	SKD-11 OR D53	SKD-11 OR D53
Capacity	150KG/H	250KG/H	350KG/H	450KG/H

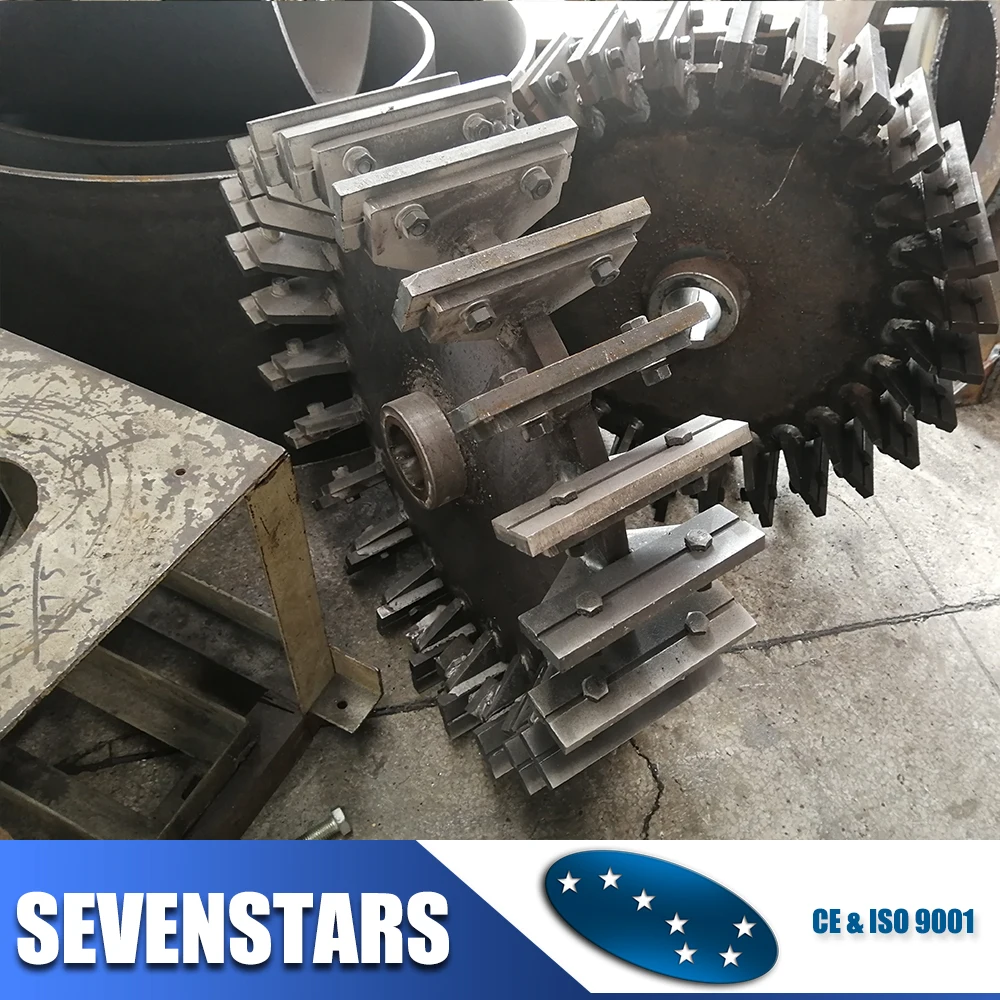

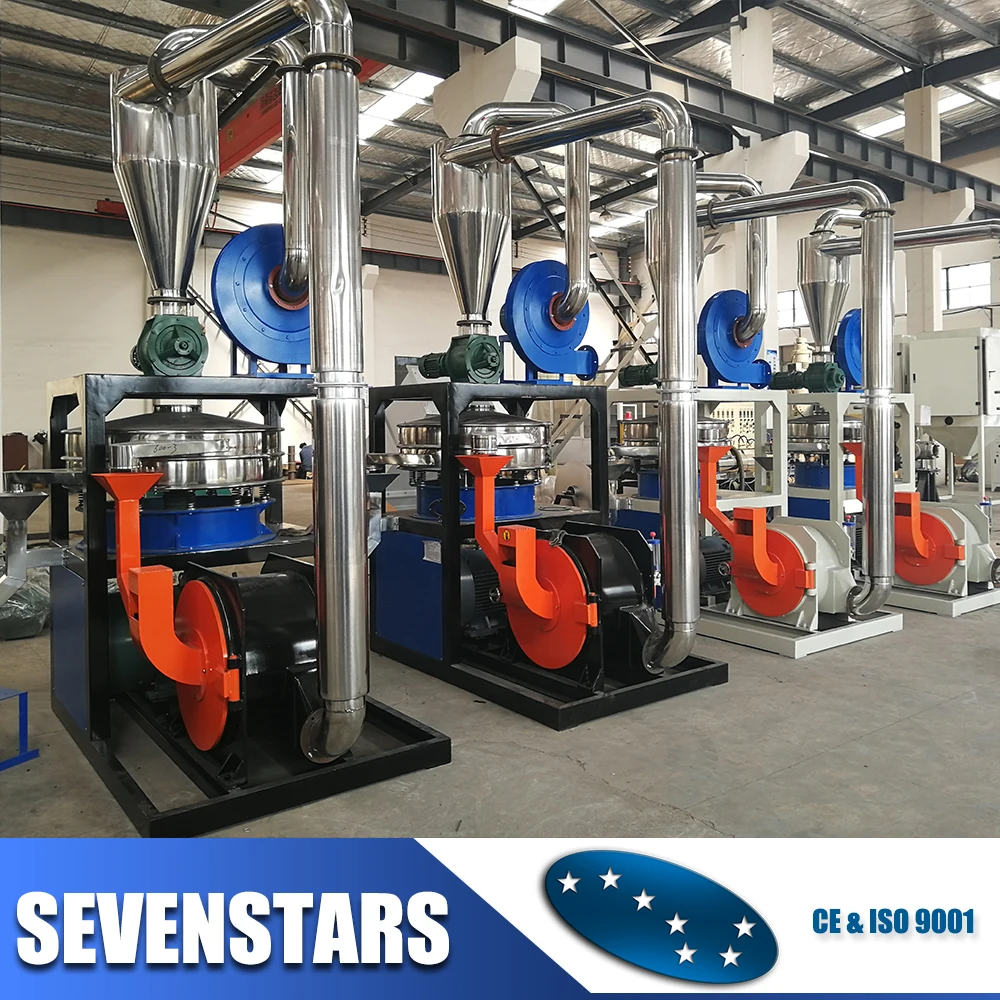

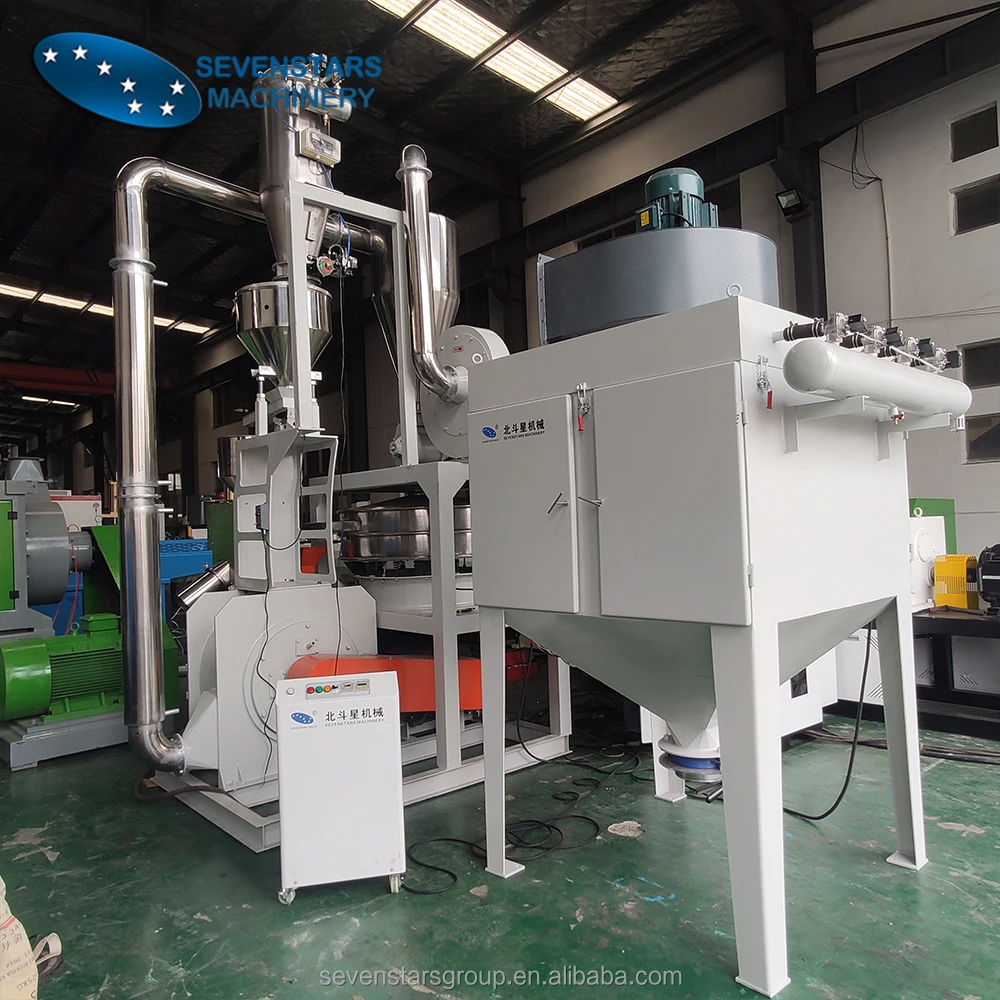

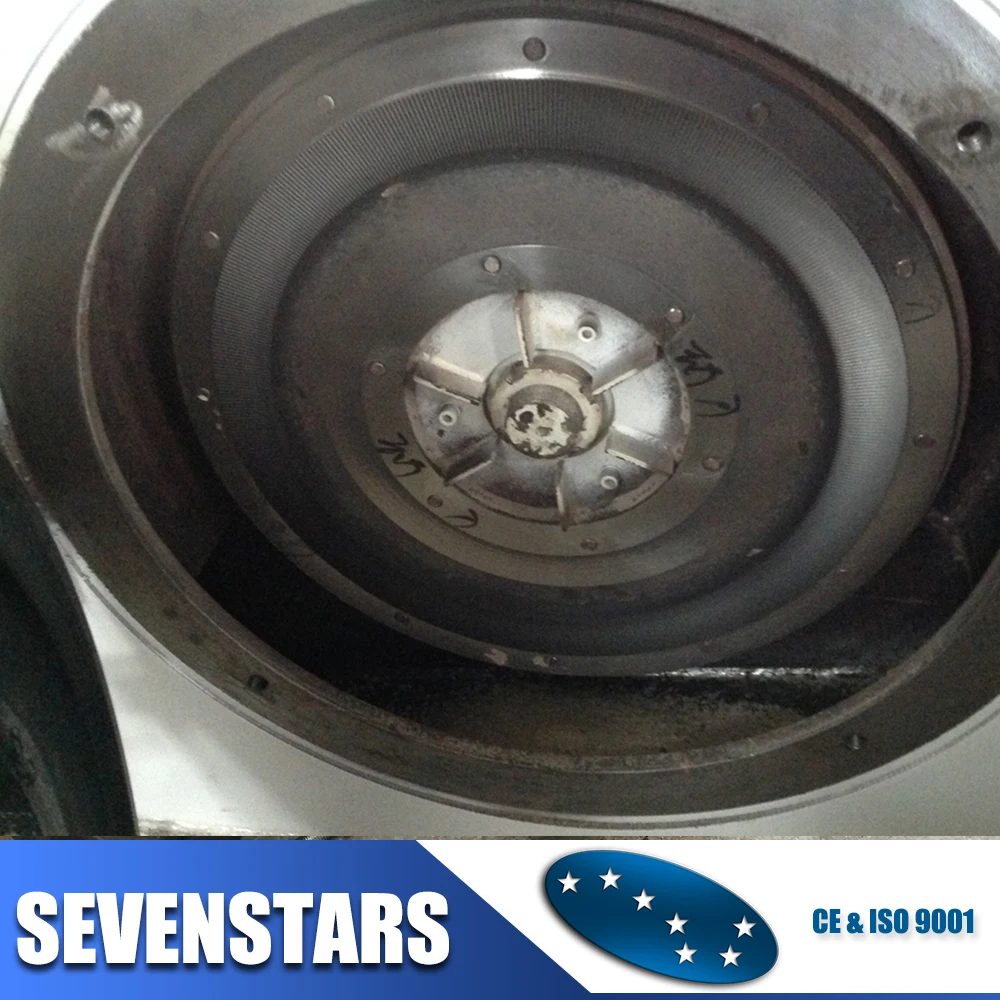

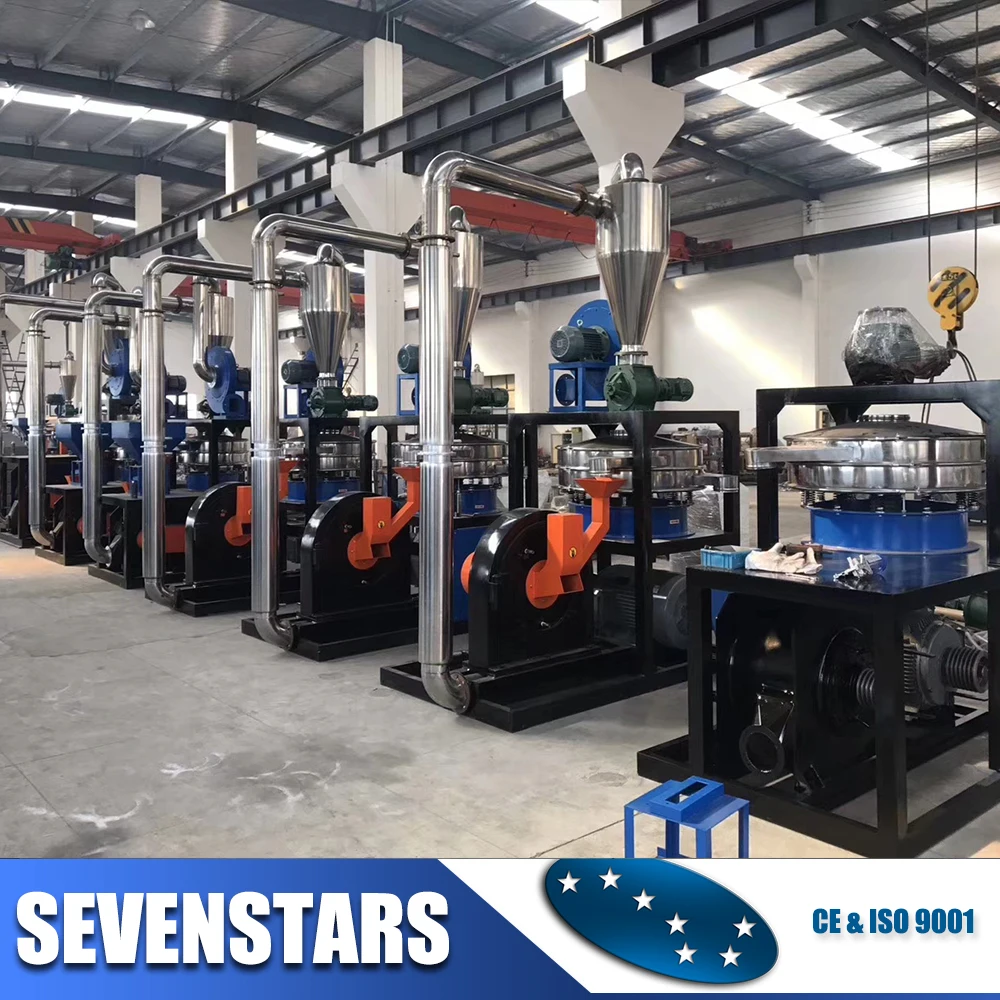

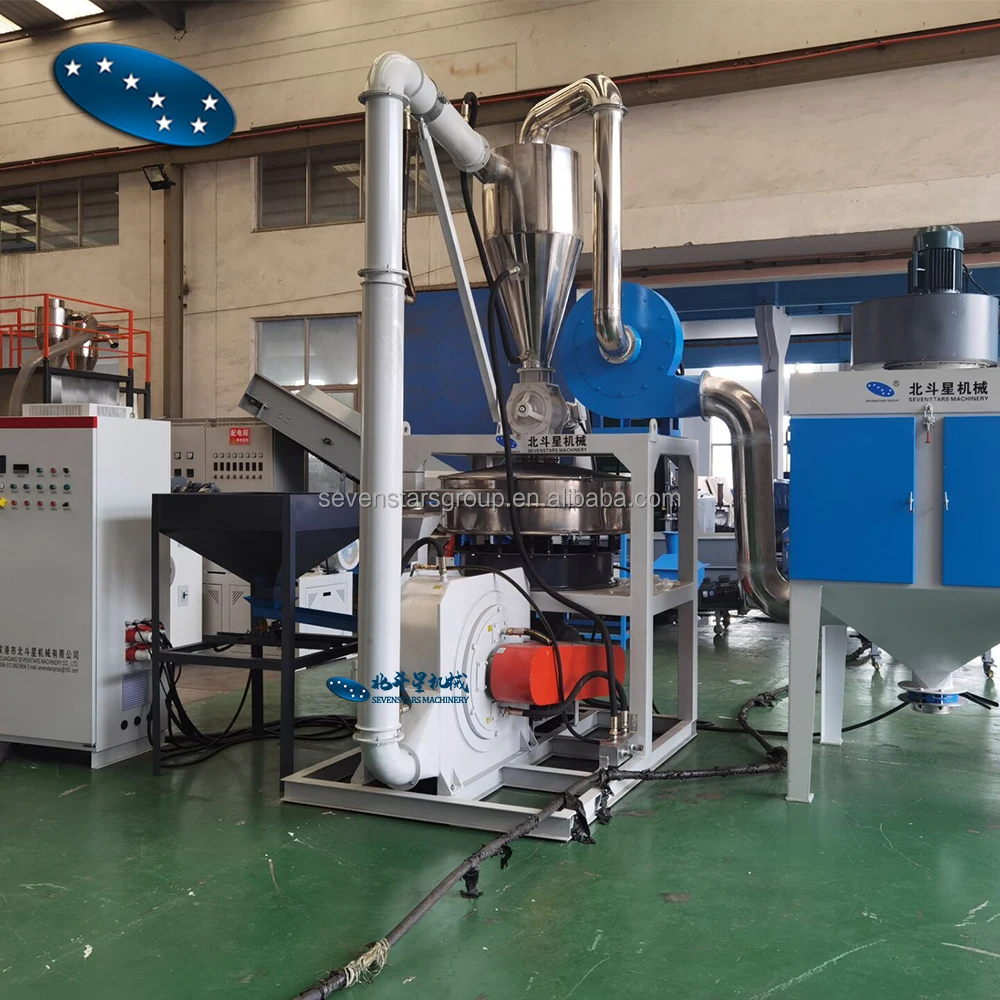

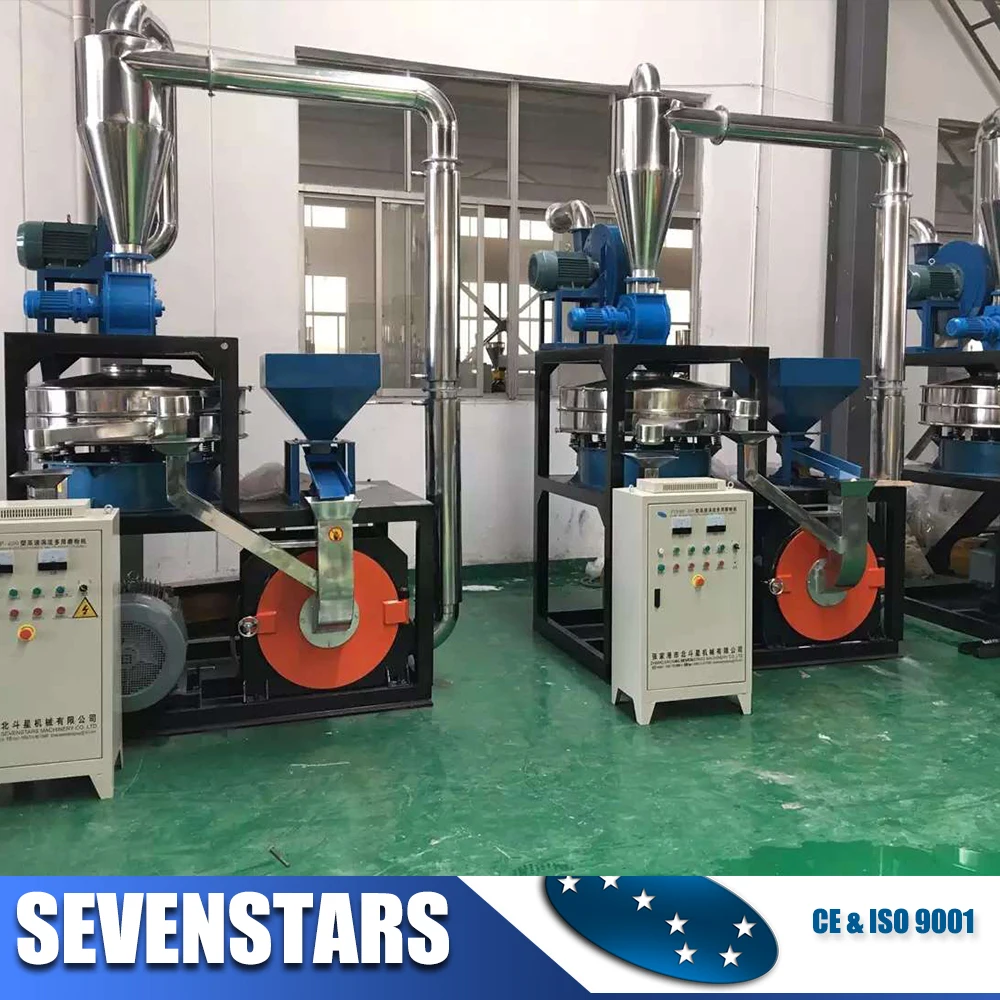

More machine pictures as below:
