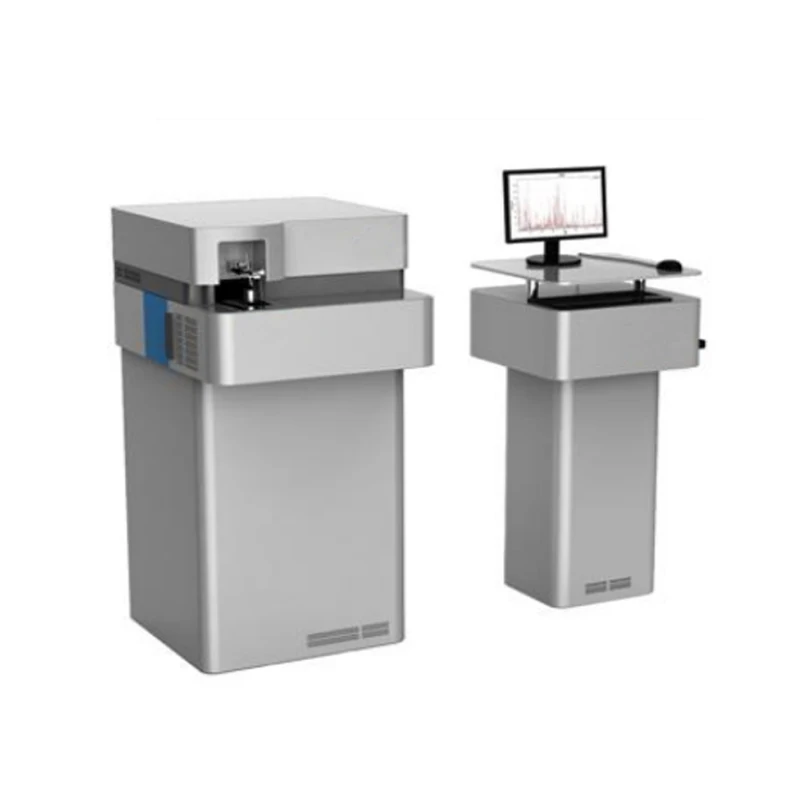

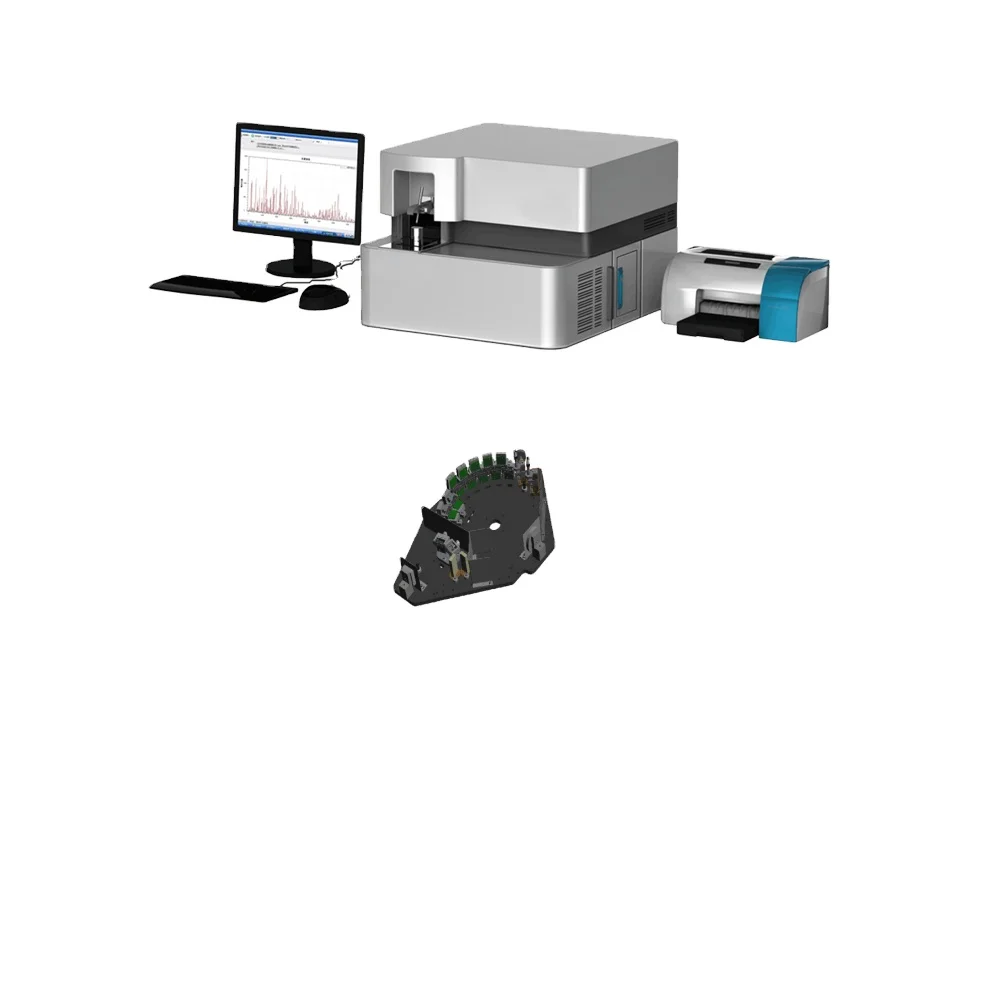

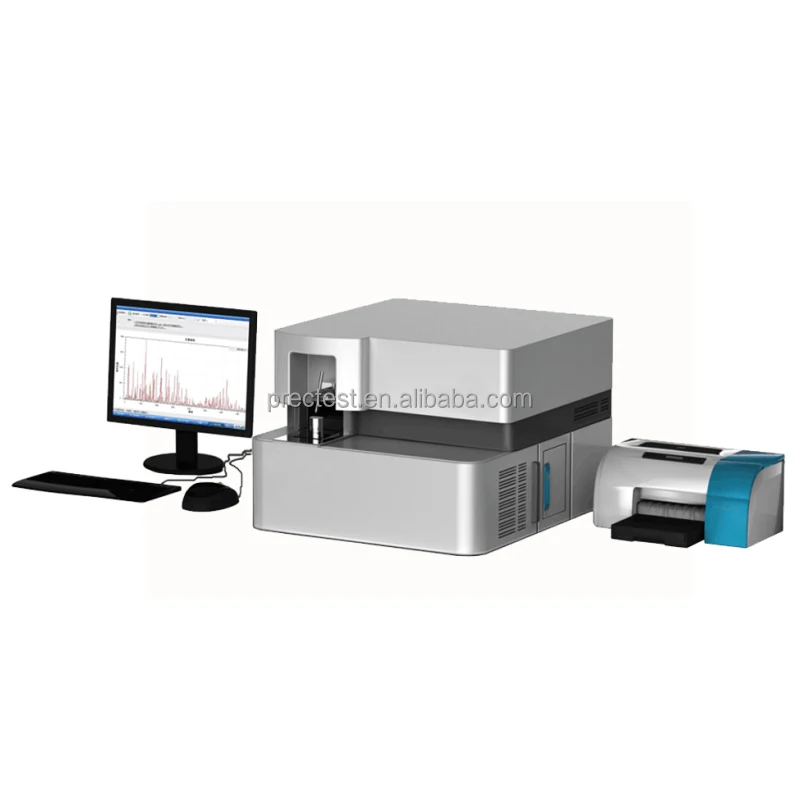

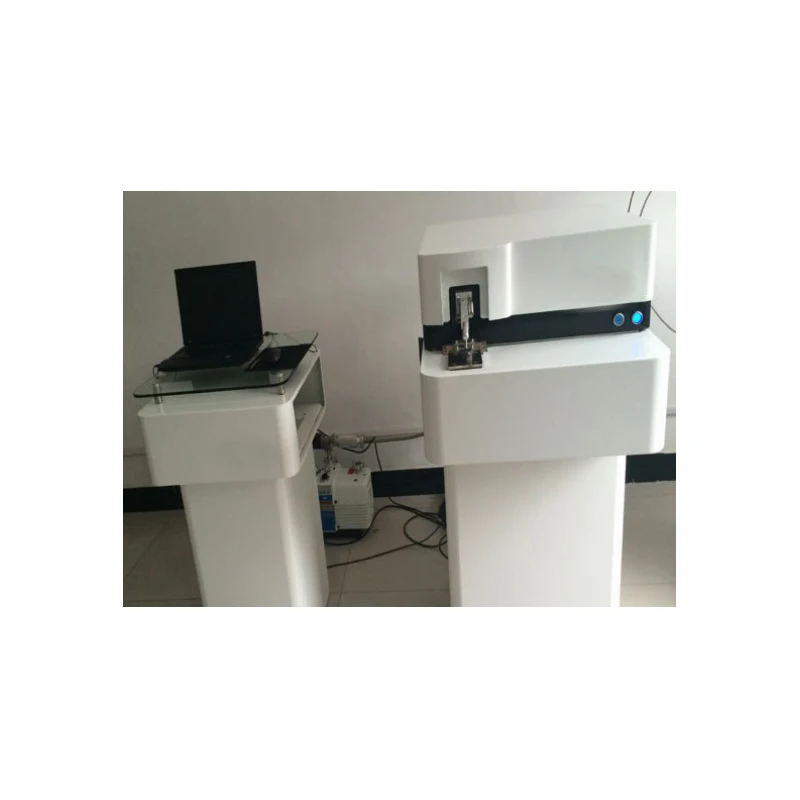

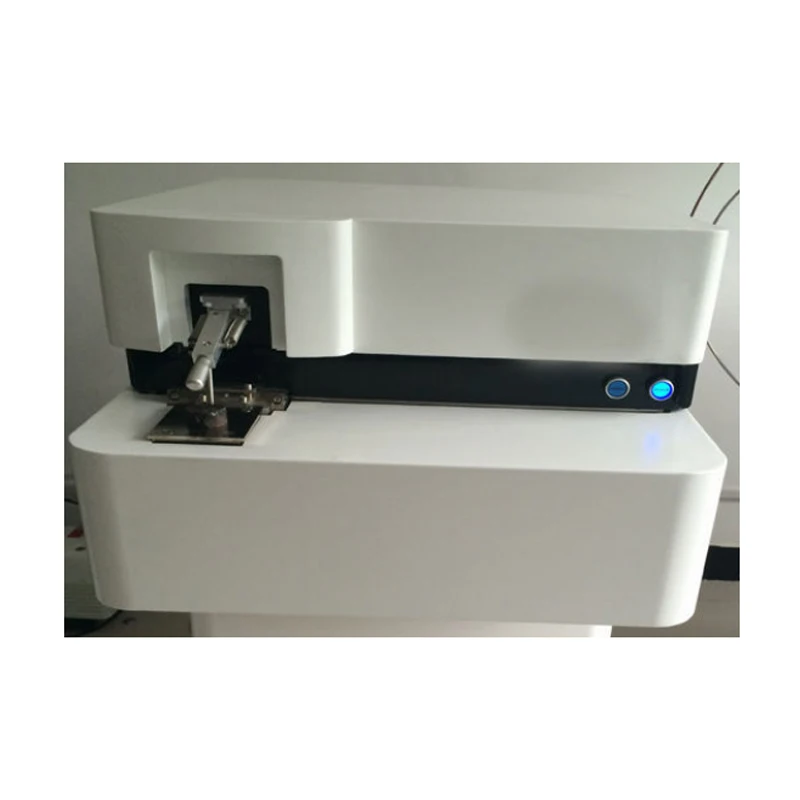

advanced technology spectrometer precious metal analyzer
1. The elements can be tested including trace amounts of carbon (C), phosphorus (P), sulfur (S) element, suitable for a variety of metal substrates, such as: iron, aluminum, copper, nickel, chromium-based, titanium-based, magnesium-based, zinc-based, tin-based and lead-based. Full Spectrum technology elemental analysis covering the entire range of channel elements, also can choose the element according to customer's requirements.
2. Fast analysis speed, it can finish measured all elemental of all channels. Analysis for different materials, by setting the pre-burning time and marking the instrument to achieve the best results in the shortest time analysis.
optical system | |
optical configuation | structure the full spectrum of vacuum type optical system |
Light room temperature | Automatic control constant temperature:35℃±0.5℃ |
wavelength coverage | 160-800nm |
Grating focal length | 350 mm |
Grating groove | 3600 l/mm |
Level 1 spectral dispersion rate | 1.2 nm/mm |
detector | Many high performance linear array CCD |
The average resolution | 10pm/pixel |
SparkStand | |
Air | Strong argon type |
Strong argon type | Stimulated for 3 to 5 l/min, when the standby: no need to standby traffic |
electrode | Tungsten material injection electrode technology |
purge | Click the purge function |
compensation | The thermal deformation compensation design |
analytical gap | Sample analysis clearance:4mm |
excitation light source | |
Type | HEPS Digital solid-state lighting |
frequency | 100-1000Hz |
discharge current | 1-80A |
speciale vaardigheid | Discharge parameters optimization design |
pre-burning | High-energy precombustion technology |
