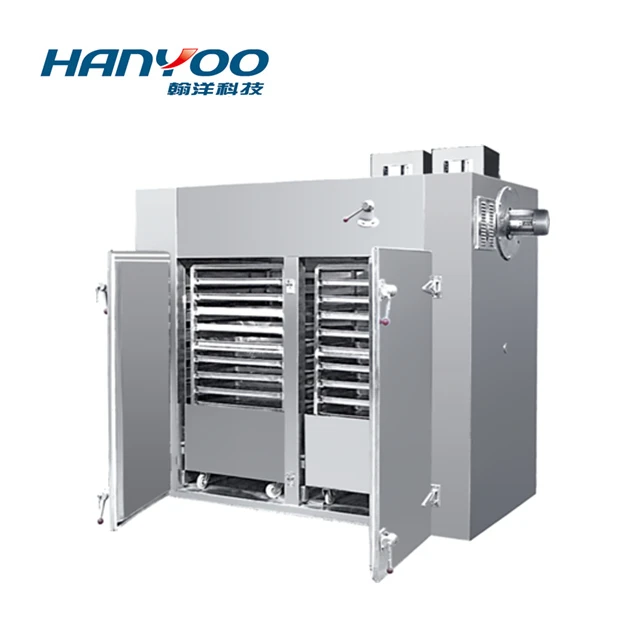

Heat Source Hot Air Circulation Drying Oven Fruit Drying Machine/Tray Dryer Fruit Drying Oven
- Category: >>>
- Supplier: Jiangsu Hanyoo Pharmatech Co. Ltd.
Share on (1600296284362):
Product Overview
Description
Products Description
Main purpose
The machine is widely used for heated drying or dehumidifying of materials in such industries as medicine, food and chemical
industry.
Its working principle is that it uses steam or electric heater to heat the air, and then the heated air carries out circulated drying of materials. The temperature difference between any places in the oven is low and the drying is even. During the drying process, fresh air is supplied and wet and hot air is discharged continuously, so proper temperature is maintained inside the
oven, making the drying process always under the best status.
industry.
Its working principle is that it uses steam or electric heater to heat the air, and then the heated air carries out circulated drying of materials. The temperature difference between any places in the oven is low and the drying is even. During the drying process, fresh air is supplied and wet and hot air is discharged continuously, so proper temperature is maintained inside the
oven, making the drying process always under the best status.
Machine Features
1.Most air stays inside the oven, so the heat efficiency is high and energy is saved.
2.In order to reinforce ventilation, the adjustable air distributor can be allocated inside the oven. The raw materials can be
evenly dried. The heat source can be steam, hot water or electric far infrared.
3.lt has such features as low noise, stable running, automatic temperature control and convenient installation and maintenance.
4.With a wide application range, it is suitable for various raw materials. It is an ideal dryer.
2.In order to reinforce ventilation, the adjustable air distributor can be allocated inside the oven. The raw materials can be
evenly dried. The heat source can be steam, hot water or electric far infrared.
3.lt has such features as low noise, stable running, automatic temperature control and convenient installation and maintenance.
4.With a wide application range, it is suitable for various raw materials. It is an ideal dryer.
Technical Parameter
Model | RXH-12 | RXH-24 | RXH-48 | RXH-96 | RXH-144 | RXH-192 |
Drying volume each time(kg) | 25 | 50 | 100 | 200 | 320 | 440 |
Electric heating power (kw) | 9 | 9 | 15 | 30 | 45 | 60 |
Fan power (kw) | 0.45 | 0.45 | 0.45 | 0.9 | 1.35 | 1.8 |
Fan volume(m3/h) | 4510 | 4510 | 4510 | 9020 | 13530 | 18040 |
Steam consumption (kg/h) | 15 | 15 | 20 | 40 | 60 | 80 |
Temperature difference inside the oven(ºC) | ±2 | ±2 | ±2 | ±2 | ±2 | ±2 |
Plate quantity | 12 | 24 | 48 | 96 | 144 | 192 |
Machine size(mm) | 1500*1000*1900 | 1380*1200*2000 | 2260*1200*2000 | 2260*2200*2000 | 2260*3200*2000 | 1280*2200*2270 |
Net weight(kg) | 700 | 820 | 1580 | 1800 | 2100 | 2800 |
Product Details
Final Product Samples
Company Profile
Jiangsu Hanyoo Pharmatech Co., Ltd. is a high technology enterprise which has strong research, production, sales and service team.We are specialized in providing the first class packaging solution and packaging equipment for food, medicine, cosmetics,electronics industrials. We have more than 16 years R & D experience in the automation equipment researching and production.
The company main products are capsule filling machines, tablet press machine, blister packaging machines, cartoning machines,granulator, coating machine, blending machine etc, We have a number of inventions patented technology, with leading R & D team,with a variety of high-precision processing equipment and quality testing team to provide product quality assurance. We also have a pre-sale consulting, packaging solution consulting, and worker training service, which strive to provide star service.
The company passed SGS and ISO9001:2016 certification, the products passed through the EU CE certification. We also have import and export right.
Now, with the efforts of all staff in Hanyoo, our products sold to more than 30 provinces in China and exported to over than 100 countries in the world such as, the United States, Canada, Russia, Britain, Germany, Spain, Malaysia, Indonesia, Thailand, India,Brazil and other dozens of countries and regions, and we won good reputation and credibility.
Since over 16 years development, company has been adhering to the "no best, only better", relying on the superb technology,sincere credit, careful service, to make the bright future with our clients. With the goal of "Creat International Brand, Creat Century Enterprise !
Now, with the efforts of all staff in Hanyoo, our products sold to more than 30 provinces in China and exported to over than 100 countries in the world such as, the United States, Canada, Russia, Britain, Germany, Spain, Malaysia, Indonesia, Thailand, India,Brazil and other dozens of countries and regions, and we won good reputation and credibility.
Since over 16 years development, company has been adhering to the "no best, only better", relying on the superb technology,sincere credit, careful service, to make the bright future with our clients. With the goal of "Creat International Brand, Creat Century Enterprise !
Why Choose Us
