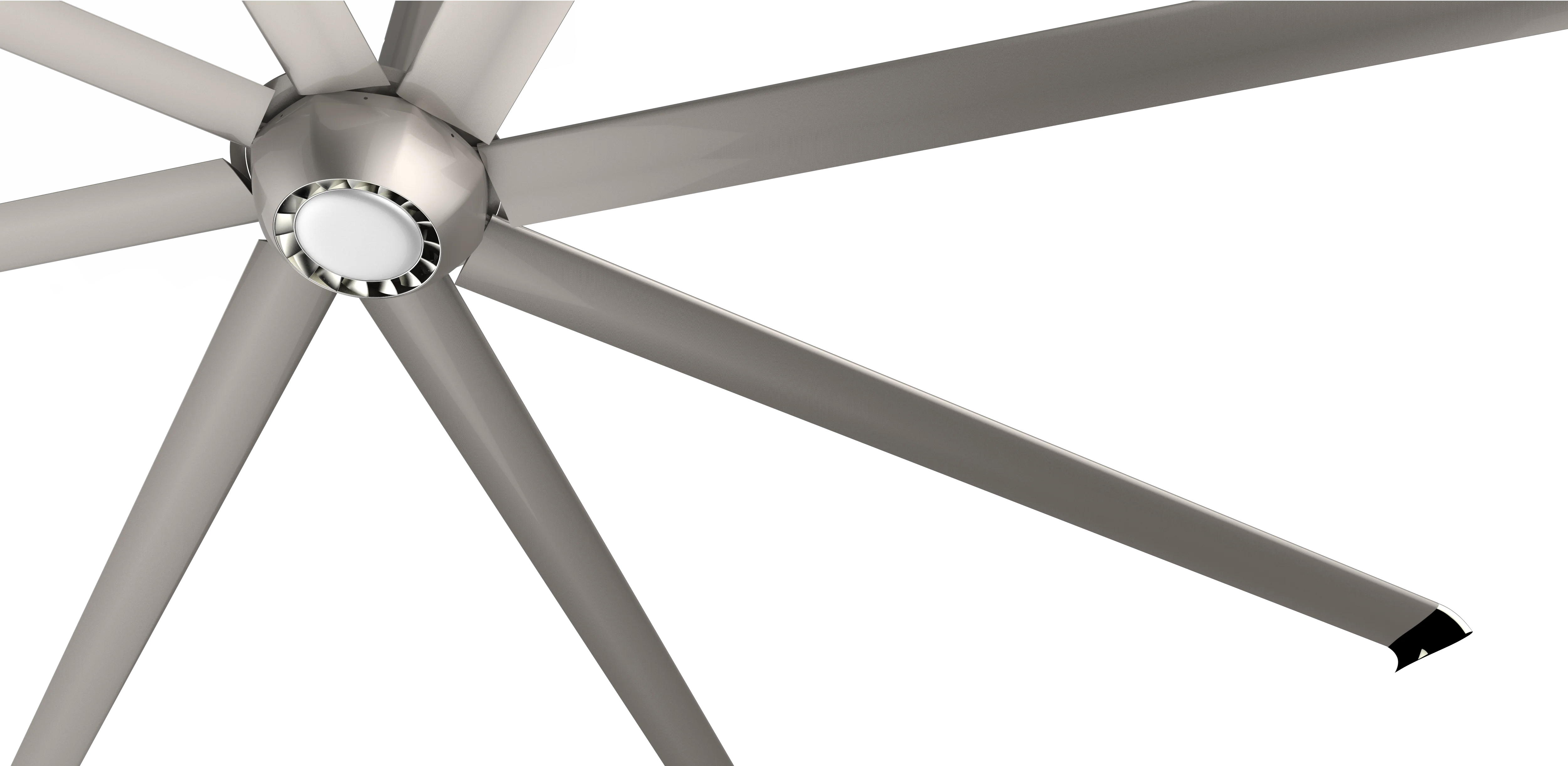

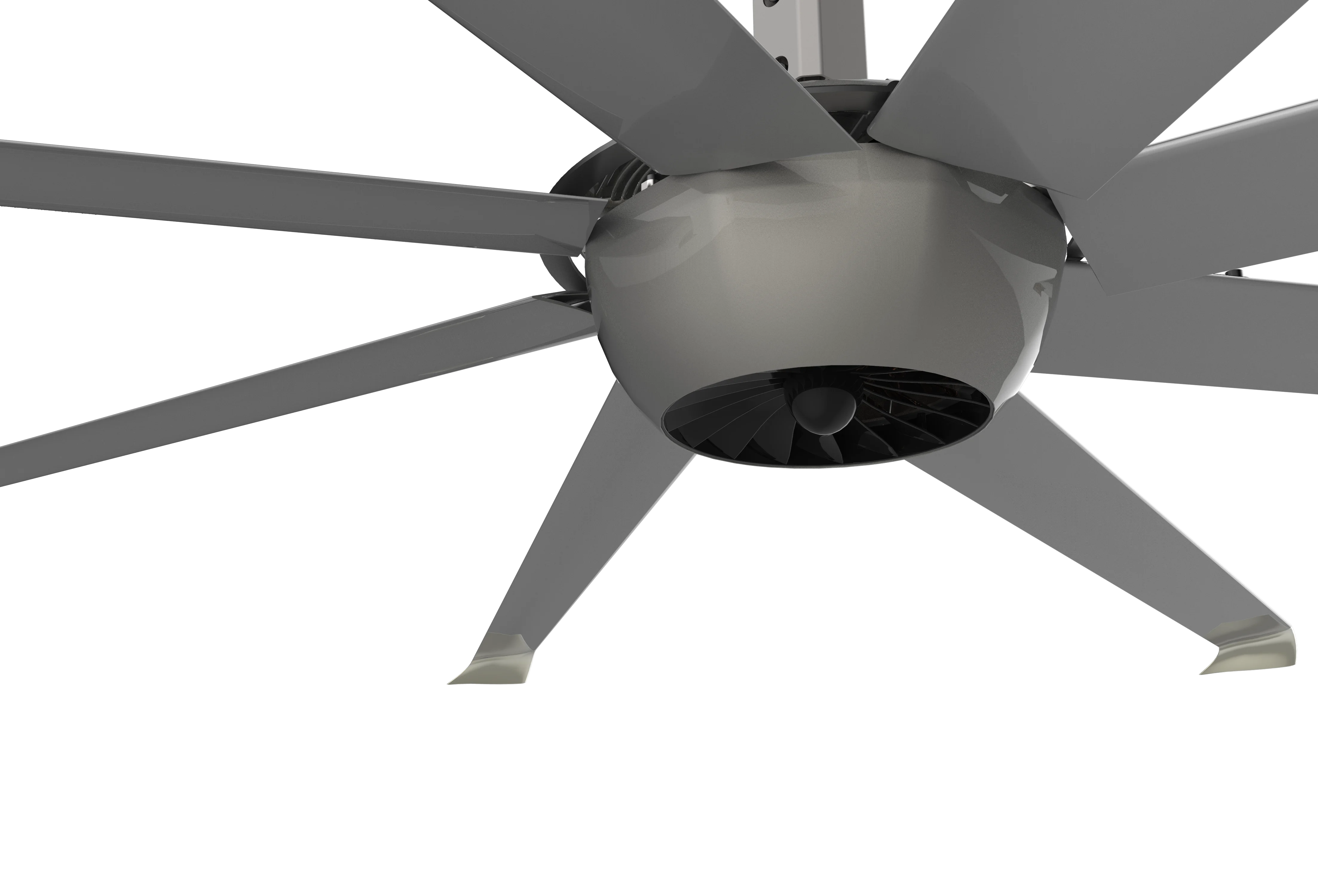

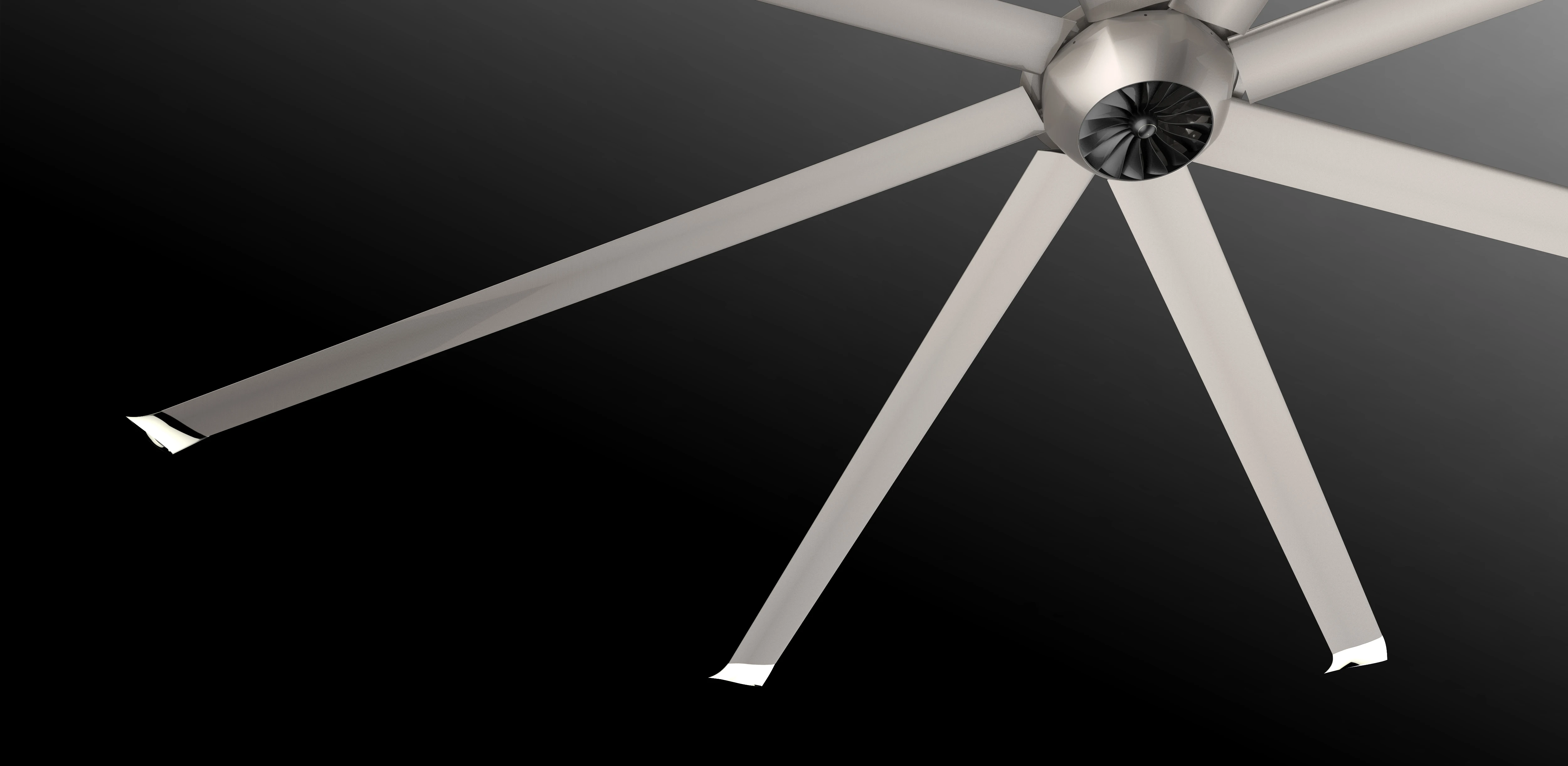

4.2 meters large cooling fans gym hvls ceiling fan
This series is Generation III newly designed fan based on PMSM(Permanent Magnet Synchronous Motor) .
With a large diameter up to 4.2m, the fan is manuactured by intergrating a series of comprehenisve advanced technology, sush as aerodynamics, transmission mechanics, PWM control technology, mechanics of machinery, stimulating technique, conmmunication control, industrial design, and adopting international precision processing machines.
Ultimately, the fan can accerlerate space air circulation, cool people efficiently, then improve the comfort of the environment.
Notes:
1. Weight: the weight doesn't contain control box, top connection parts etc. 2. Size: the above-mentioned product size is standard, other sizes can be customized. 3. Noise: sound level measured in a distance of 1m from the motor, electromagnetic noise is less than 40DB. 4. Packing: export standard crates. 5. Area cover: effective area with average wind speed at 0.5m/s above, actually measured in open area.
Certifications
Key Components

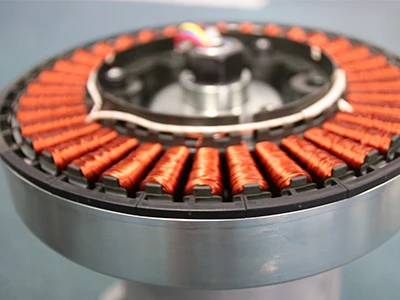

Latest Motor System---PMSM
1. High speed and torque ratio. 2. Dynamic performance, high efficiency. More than 15% energy saving. 3. Long service time, lower noise and wide speed range. 4. CCC, CE, UL certificates

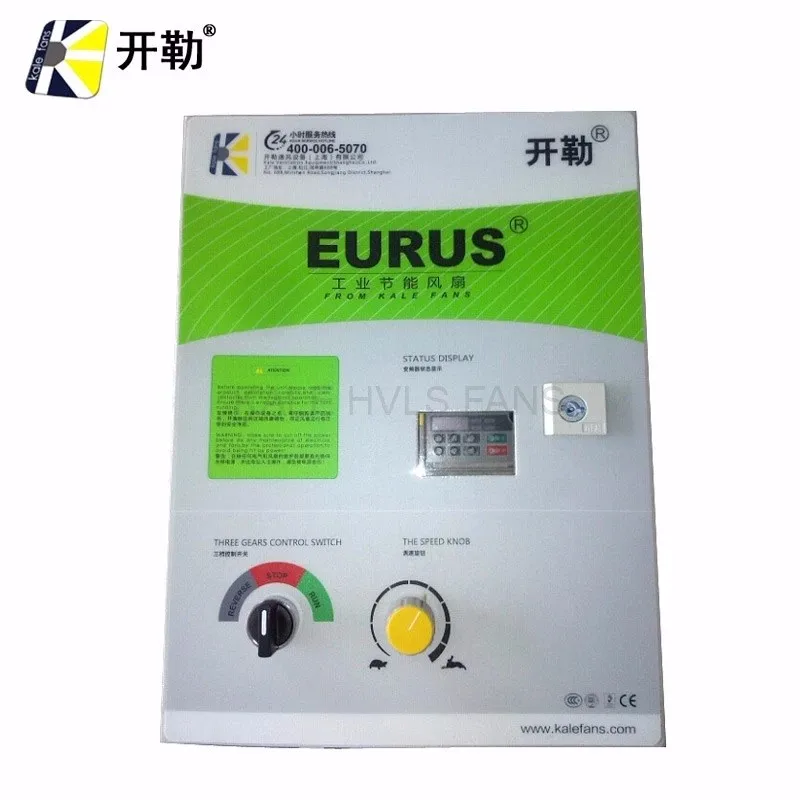

Control Sytem (VFD Controller)
1. Schneider electrical sets, with safety protection module inside which will interrupt the output automatically in case of some accidents. 2. Germany Rittal control cabinet, passed EMC by SGS and CCC certificates, meanwhile, passed anti-creeping tests which shields electromagnetic interference effectively. Protection level is IP55, passing UL, EMC, LVD, ROHS certificates. 3. Japanese Yaskawa VFD.
Driving Hub
Imported aluminum material and formed through 1500T hot forging+CNC lathe processing+CNC precious machincing technology. Processed by CNC, the precision error of chassis is within 100μm, making sure the precise dynamic balance.

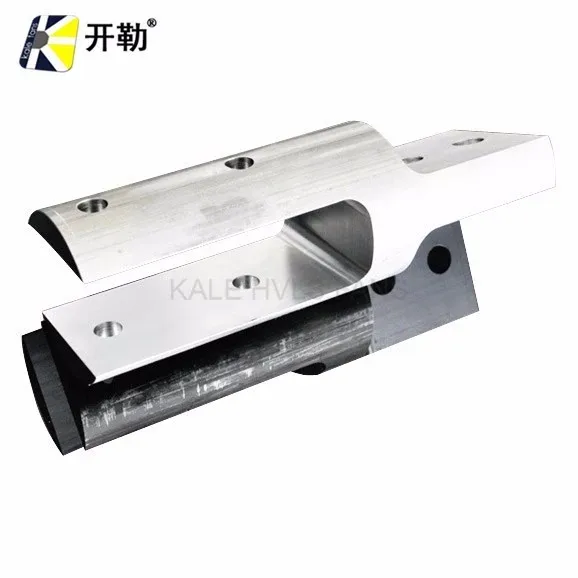

Jacketed Connector
Grade 7050 hard aluminum material which is handled with heat to guarantee strength and toughness.It stood millions fatigue tests to avoid the problems of fan blade dropping due to long-time running.

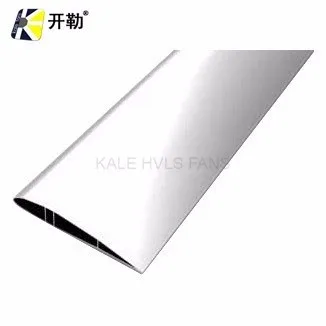

Patented Kale Airfoil Blades™ Fan Blade
High strength aircraft grade magnalium, fluorocarbon paiting on surface, aerodynamic fan blade design. Patented Fan blade design: 3 sets reinforcing rib supports system inside, enhance the strength of fan blades and avoid sagging of fan tail and fatigue loss of connecting components.
Installation team
Packing & Delivery
Packaging
Pack
wooden box
Weight
seperated with motor and fans

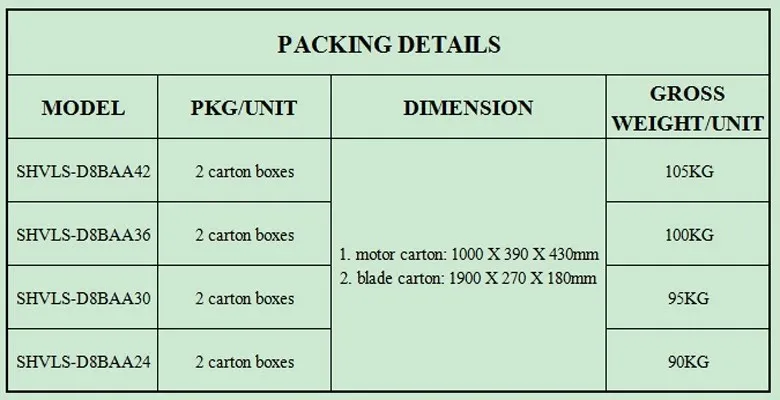

Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Application show
Farm
Warehouse venlilation
Factory workshop
Famous Customers:
We have served more than 100 of the Fortune 500 companies in the whole world.
Our Services
1. Every details we can concern: place order, manufacture, delivery, you just accept them. 2. 3-year warranty for each fan to guarantee. 3. Can customize as your reqiurements. 4. Free maintenance for the fan. 5. 24-hour per day service.
FAQ
Q: Are you manufature or trading company? A: We are a factory in Shanghai, China. Focusing on large ceiling fans.
Q Where does your fan use in? A: Ths fan is widely used in factory, logistics & warehouse, supermarket, halls etc.
Q: Is it powered electrcity? A: Yes, it's power supply is electricity, but only 1.5KW or less, very energy-saving.
Q: What is the price? A: That depends. We will offer you the best price according to the qty and the model.
Q: How long is the delivery time? A: Normally 3-5 working days.
Q: How long is the warranty? A: We offer 3-year warranty to guarantee the quality. Most importantly, its service life is 12-15 years.
