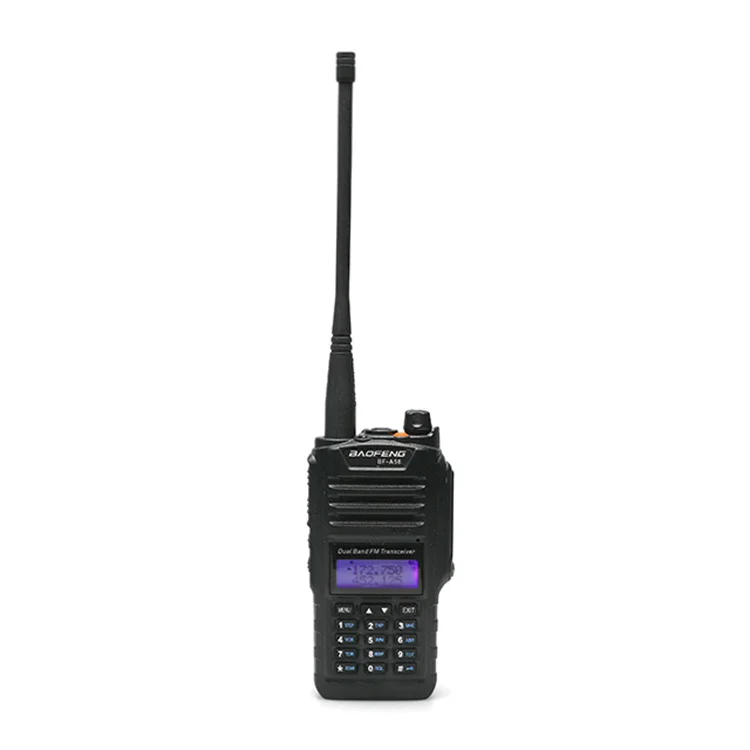

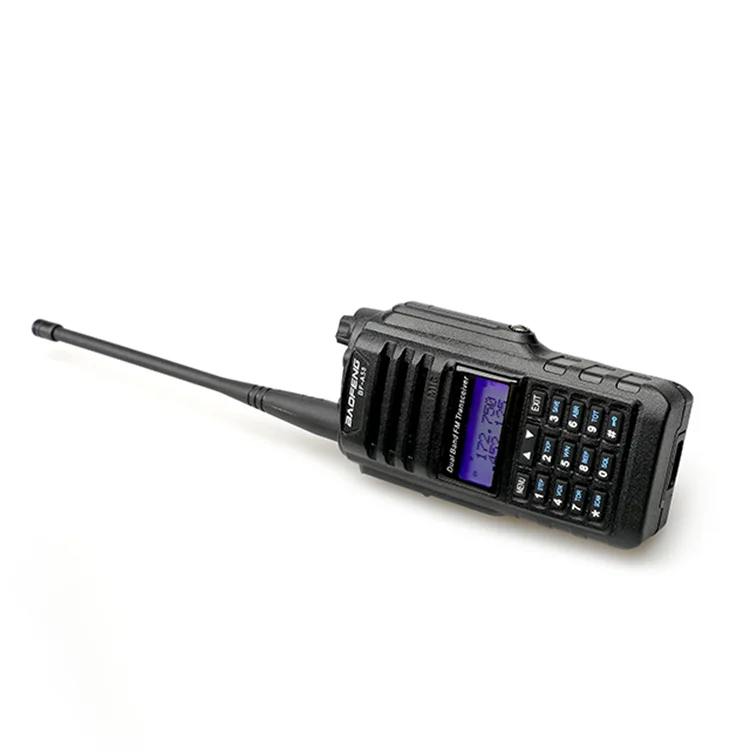

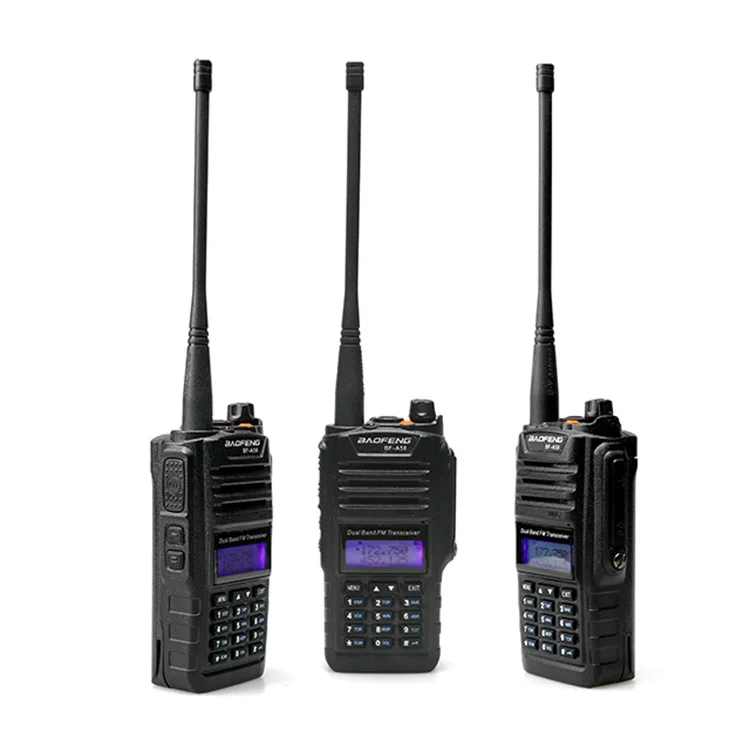

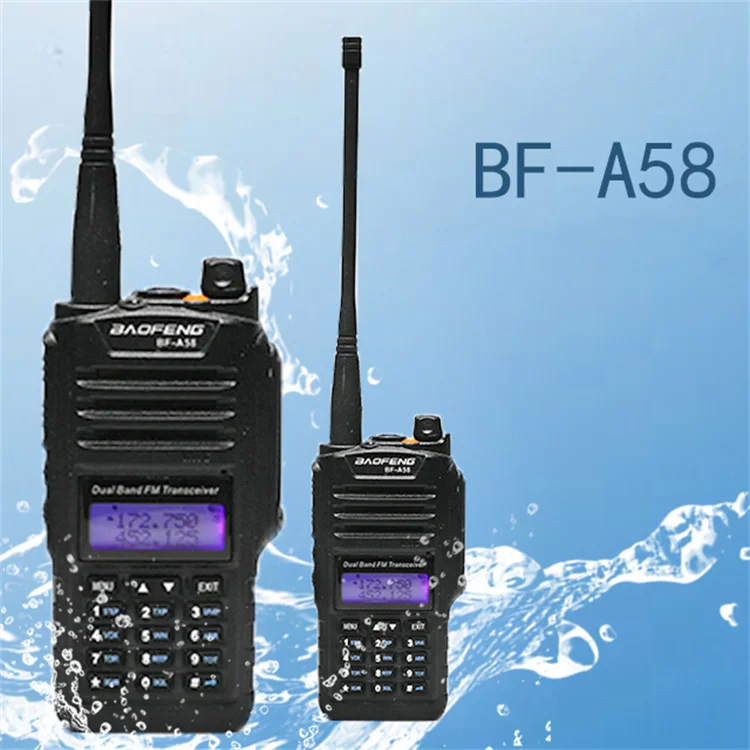

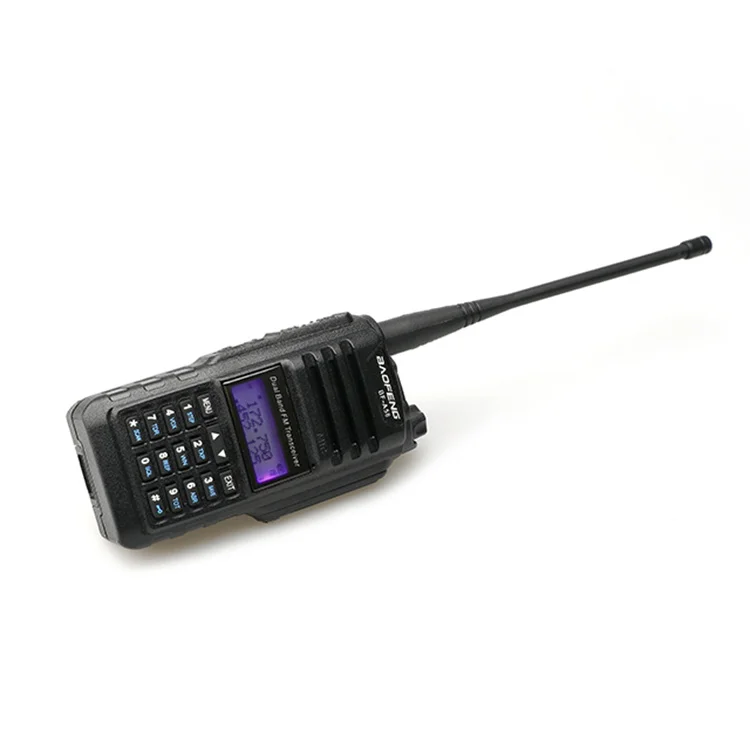

Baofeng 5w Uhf Vhf Radio Two Way Wireless Walkie Talkie Outdoor Waterproof Handheld Vhf Uhf 136 174mhz ,400 520mhz BAOFENG A58
- Category: Walkie Talkie >>>
- Supplier: S&C(XIAMEN)TECHNOLOGY . LTD
Share on (1600296337766):
Product Overview
Description
Products Description
Features:
1) IP57 waterproof and dustproof (Not diving) 2) Relay Forwarding Confirmed (1750 HZ)
3) Dual Band, Dual Display and Dual Standby 4) High &Low Power Switchover
5) Battery Saving
6) VOX Function
7) Wide/Narrow Band Selection
8) Auto-Back Light
9) Dual Band Standby
10) Time-out Timer (TOT)
11) 50 CTCSS and 104 DCS Codes
12) Voice Prompt
13) ANI Code
14) PC or Manual Program
15) DTMF Code
16) PTT-ID
17) ATUO Keypad Lock
18) Busy Channel Lock Function
19) Low Battery Warning
20) Emergency Alarm
21) Priory Scanning Function
22) U/V Cross Band Dual Watch
1) IP57 waterproof and dustproof (Not diving) 2) Relay Forwarding Confirmed (1750 HZ)
3) Dual Band, Dual Display and Dual Standby 4) High &Low Power Switchover
5) Battery Saving
6) VOX Function
7) Wide/Narrow Band Selection
8) Auto-Back Light
9) Dual Band Standby
10) Time-out Timer (TOT)
11) 50 CTCSS and 104 DCS Codes
12) Voice Prompt
13) ANI Code
14) PC or Manual Program
15) DTMF Code
16) PTT-ID
17) ATUO Keypad Lock
18) Busy Channel Lock Function
19) Low Battery Warning
20) Emergency Alarm
21) Priory Scanning Function
22) U/V Cross Band Dual Watch
Specification | ||
General | ||
Frequency Range | VHF:136-174MHz UHF400-520MHz | |
Channel Capacity | 16 | |
Channel Spacing | 25KHz/12.5KHz | |
Antenna Impedance | 50Ω | |
Microphone Impedance | 600Ω | |
Operating Voltage | 7.4V DC±15% | |
Frequency Stability | ±2.5ppm | |
Battery | 2400mAh(Polymer Li-ion) | |
Compatible With American Military Standard(Mil-STD-810C/D/E) | ||
Transmitter(EIA-RS 316B STANDARD) | ||
RF Power Output | 5W | |
Modulation Type | FM | |
Modulation Sensitivity | <15µV | |
Modulation Distortion | ≤3% | |
Max Freq Deviation | <5KHz | |
Occupied Bandwidth | ≤16KHz | |
Modulation Feature | ±3dB | |
Spurious Radiation | ≤7.5μW | |
Adjacent Channel Power | ≤-65dB | |
Receiver | ||
Sensitivity(12db SINAD) | ≤0.15μ(12dB S/N) | |
Squelch Sensitivity | ≤0.1μV | |
Audio Power output | 1W/16Ω | |
Audio Respond | -6 | |
Operation Bandwidth | >5KHz | |
Co-channel Rejection | ≥-8dB | |
Blocking | ≥85dB | |
Adjacent Channel Selectivity | ≥65dB | |
Standby Current | 60mA,15mA | |
Spurious Rejection | ≥60dB | |
Intermodulation Resistance | ≥60dB | |
