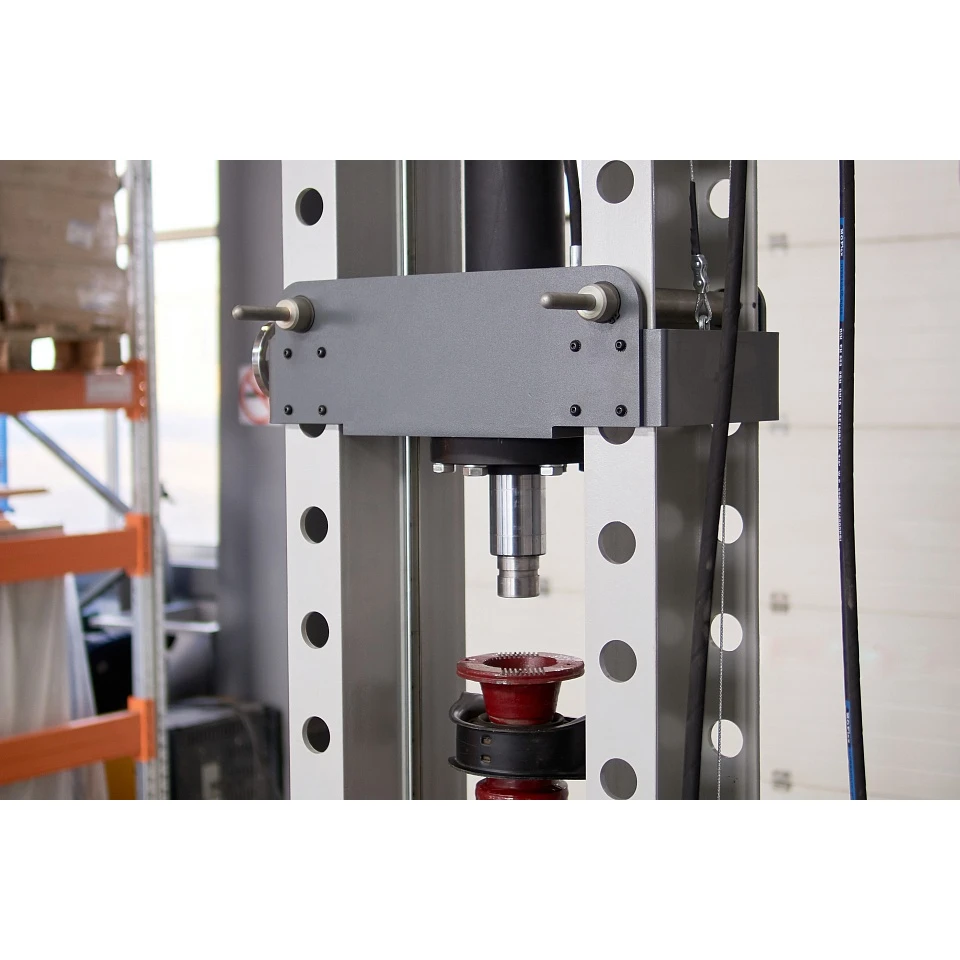

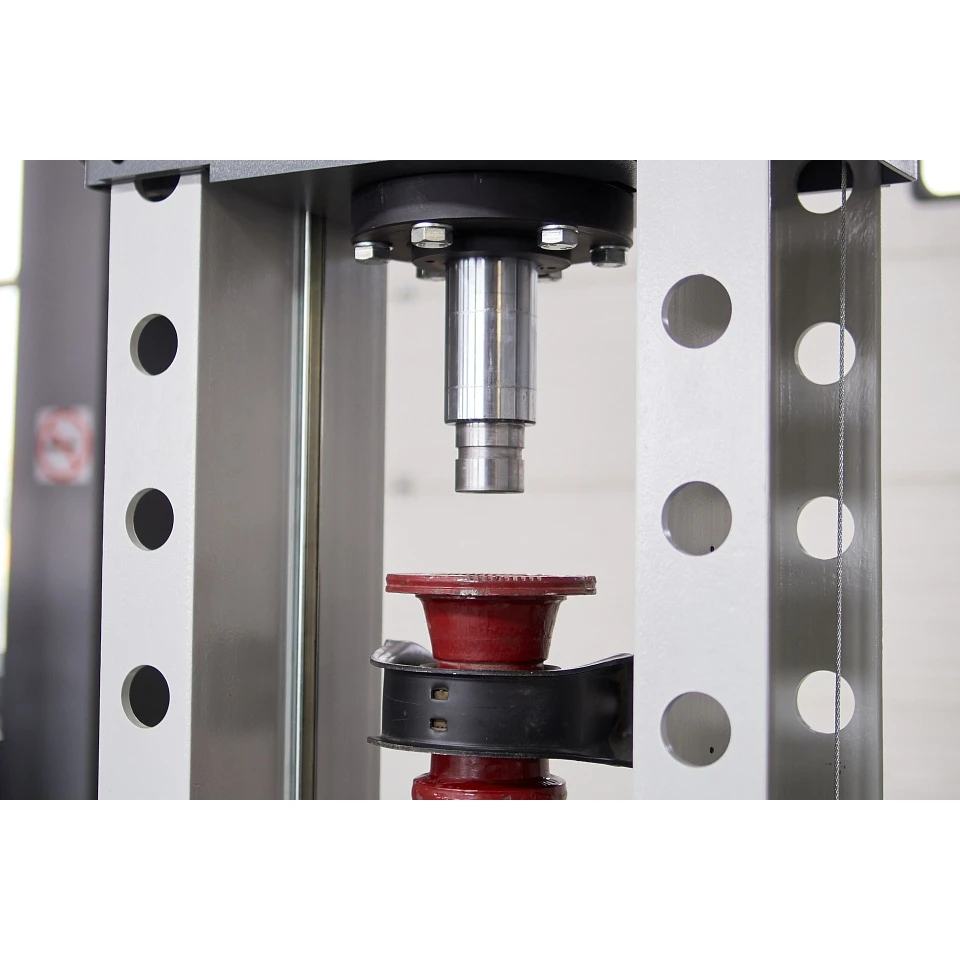

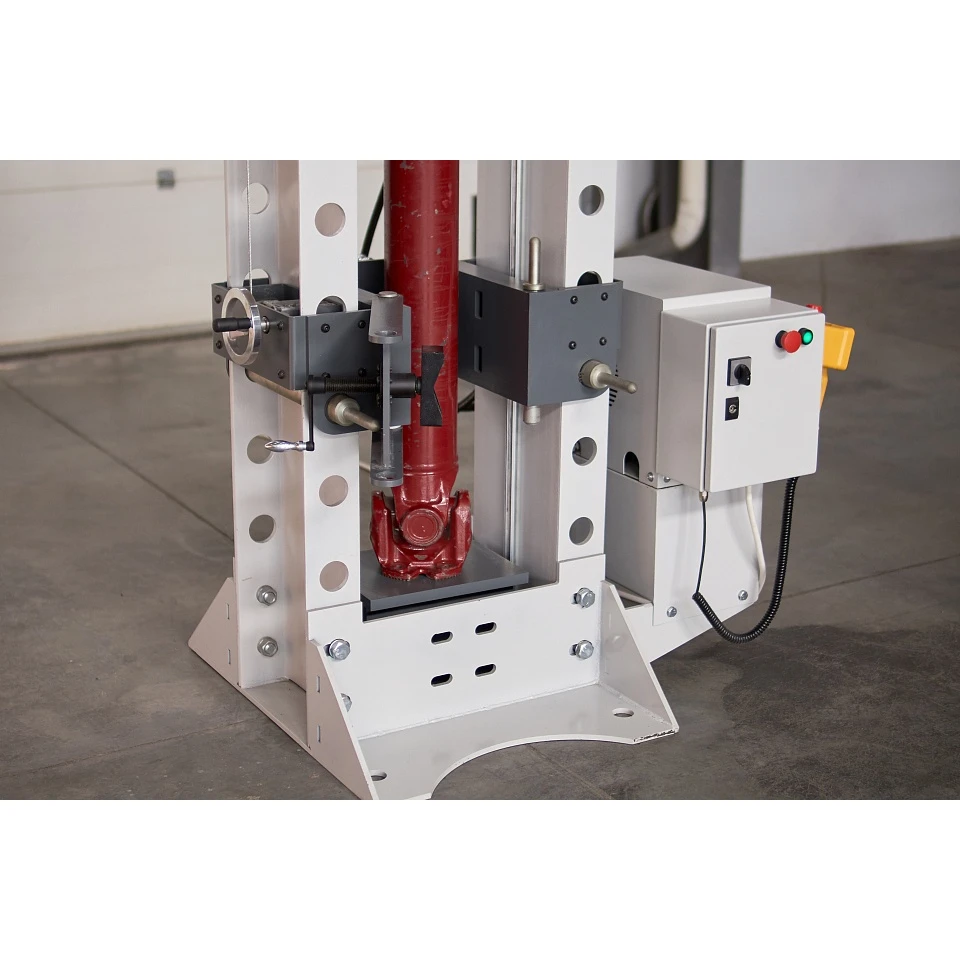

Press for assembly of cardan shafts and replacement of intermediate bearings GOLIATH

Product Overview

Description

• Electronic proportional control with force feedback.
• Convenient impact-resistant welding control pendant, protected from dust and water according to class IP54.
• The positions of the hydraulic cylinder and the crossbar are adjusted in height by means of winches.

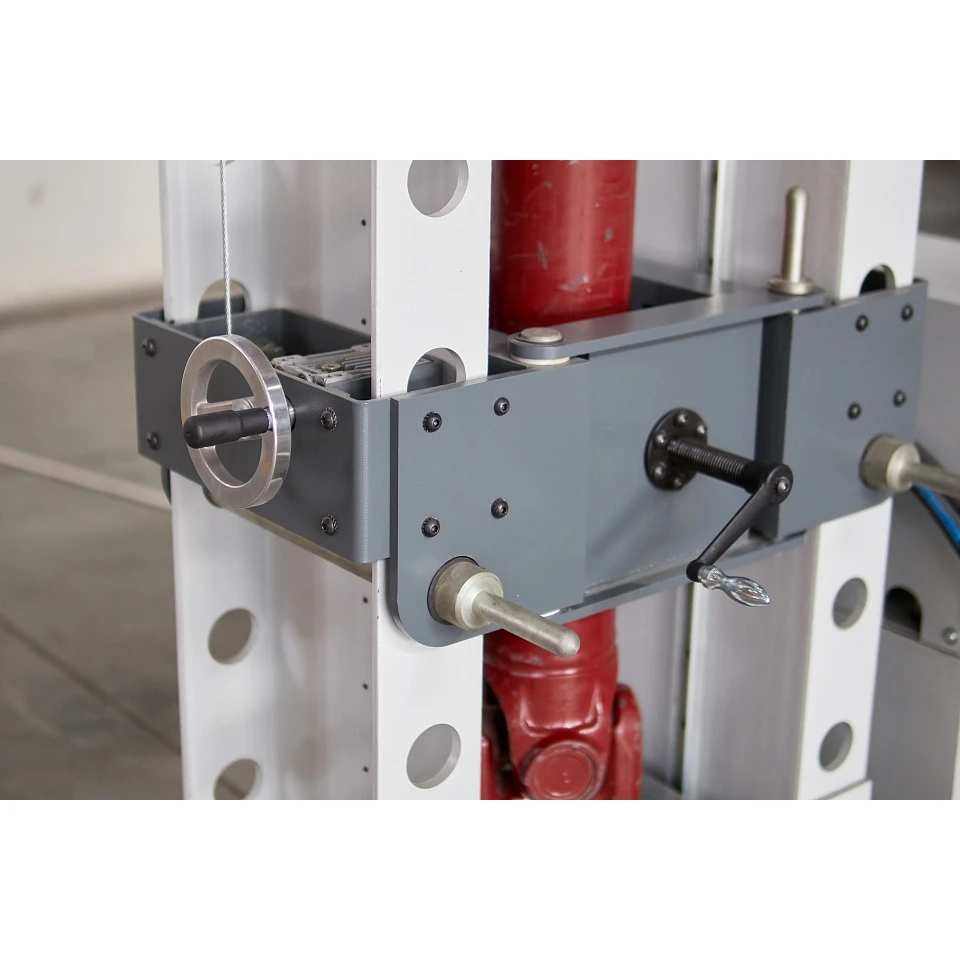

• An original system for clamping the driveshaft tube for reliable retaining.
• All hydraulic components are of Italian manufacture.
• 12 months warranty for the press and all its components.



Press Type

Vertical hydraulic press with proportional electronic control

Part Maximal Diameter

180 mm

Power Supply

3 phases, 380 V, 50 Hz, 16 A, protective grounding is mandatory

Electric Drive

Asynchronous, 1480 rpm, 2.5 kW

Cardan Tube Clamp

Double-sided, manual screw clamp

Working Cylinder Maximum Force

30 t (300 kN)

Working Cylinder Maximal Stroke

300 mm

Part Maximal Length

2100 mm

Movement Of The Upper and Lower Crossbars

Manual, with gear winches

Driveshaft Tube Clamp

Double-sided, helical

Protection Against Dust And Water

IP54

Hydraulic Tank Volume

18 L

Weight Of The Press (With Hydraulic Station)

670 kg

User Interface

Wired pendant with display

Press Dimensions (L * W * H)

1070* 800* 2860

Warranty Period

12 months
