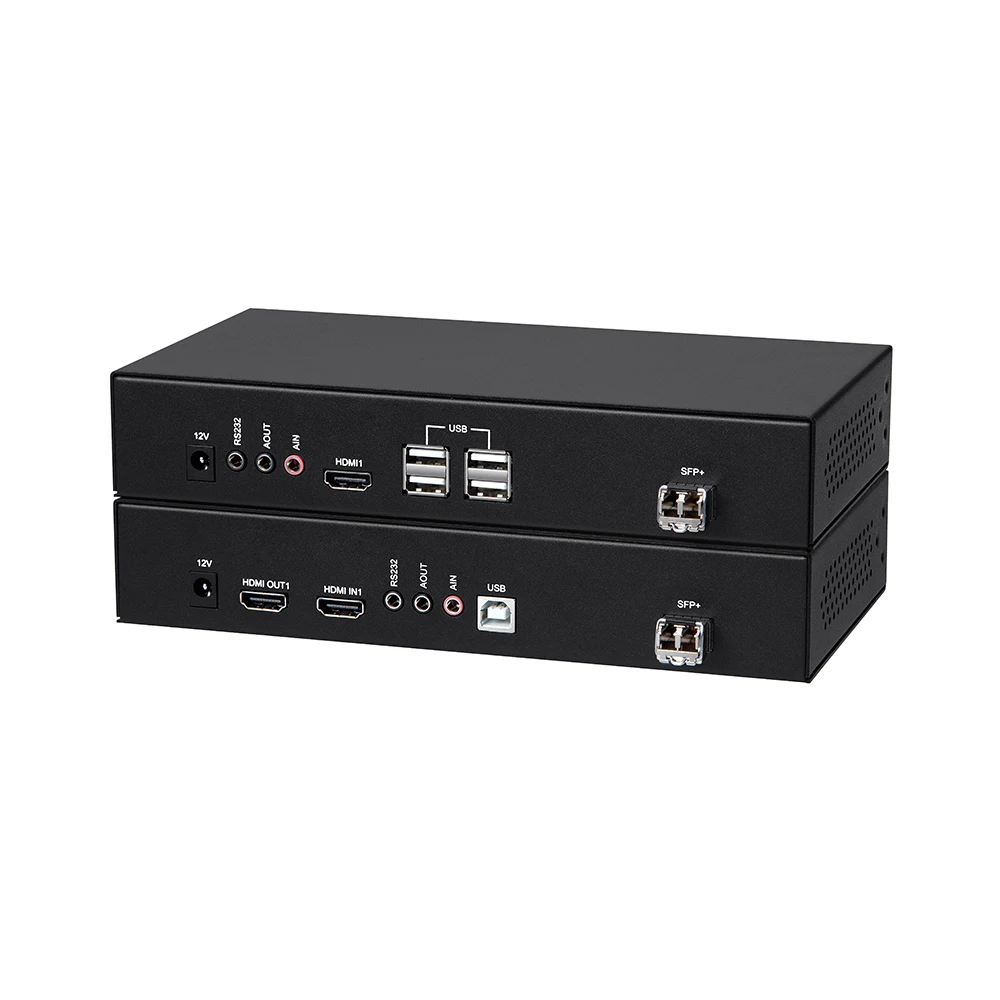

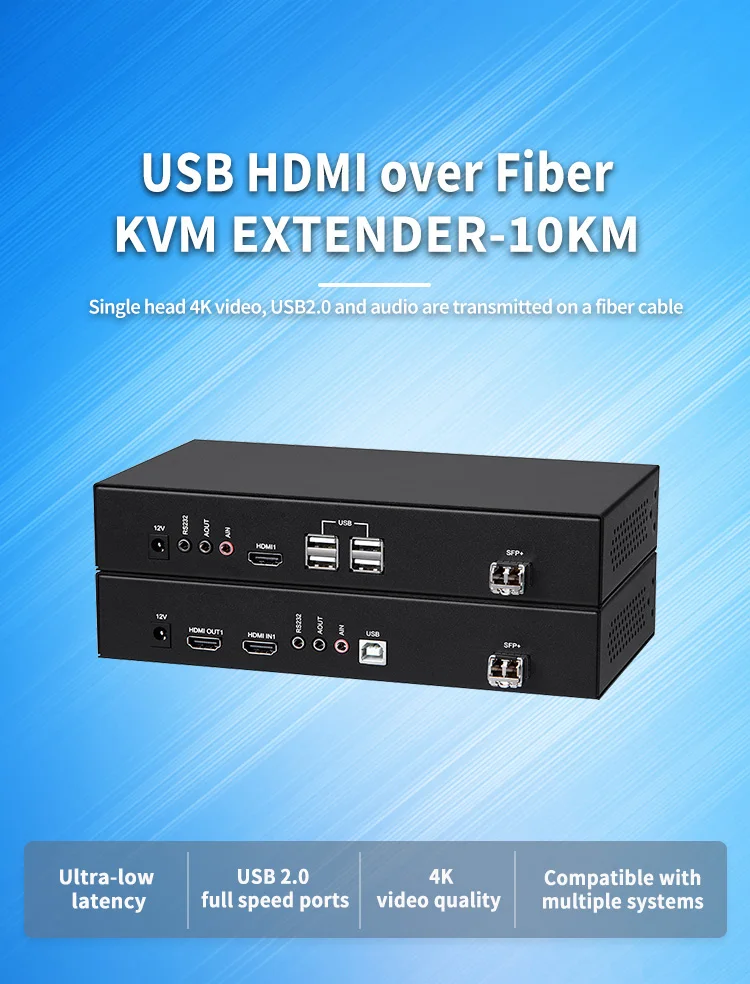

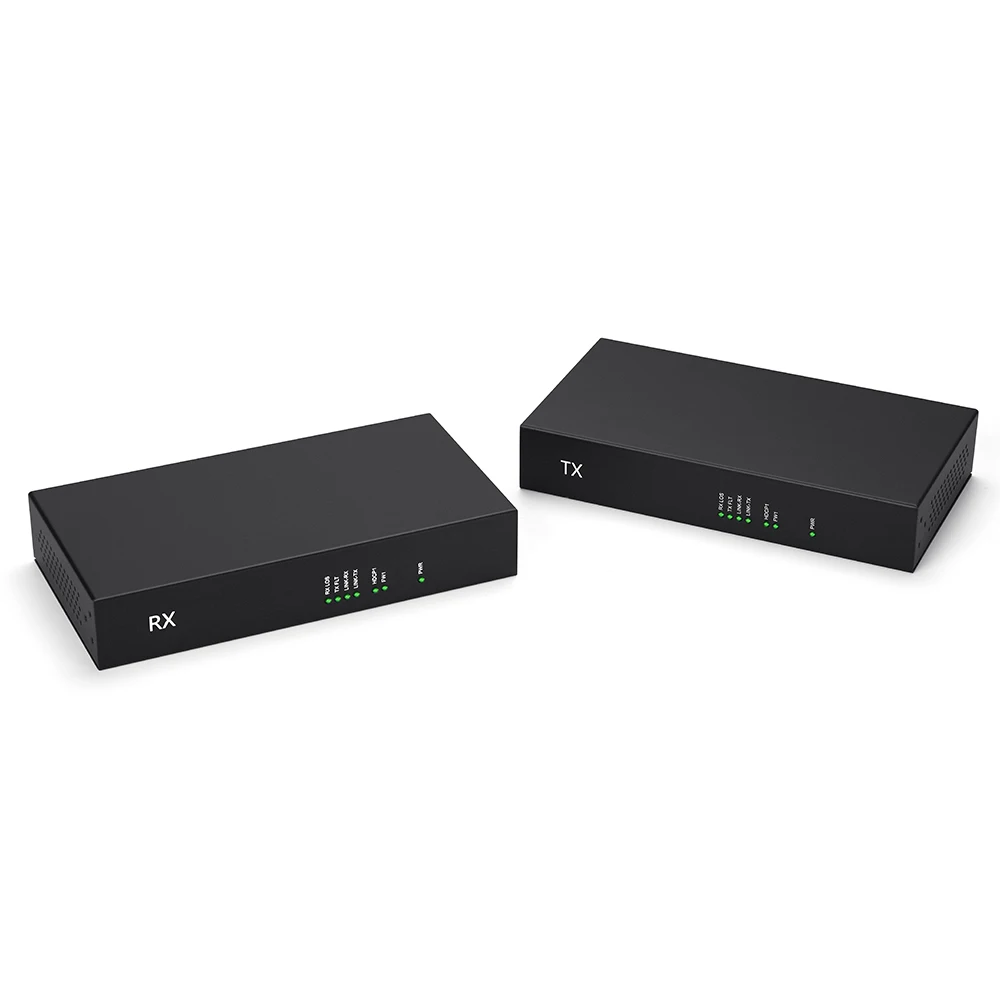

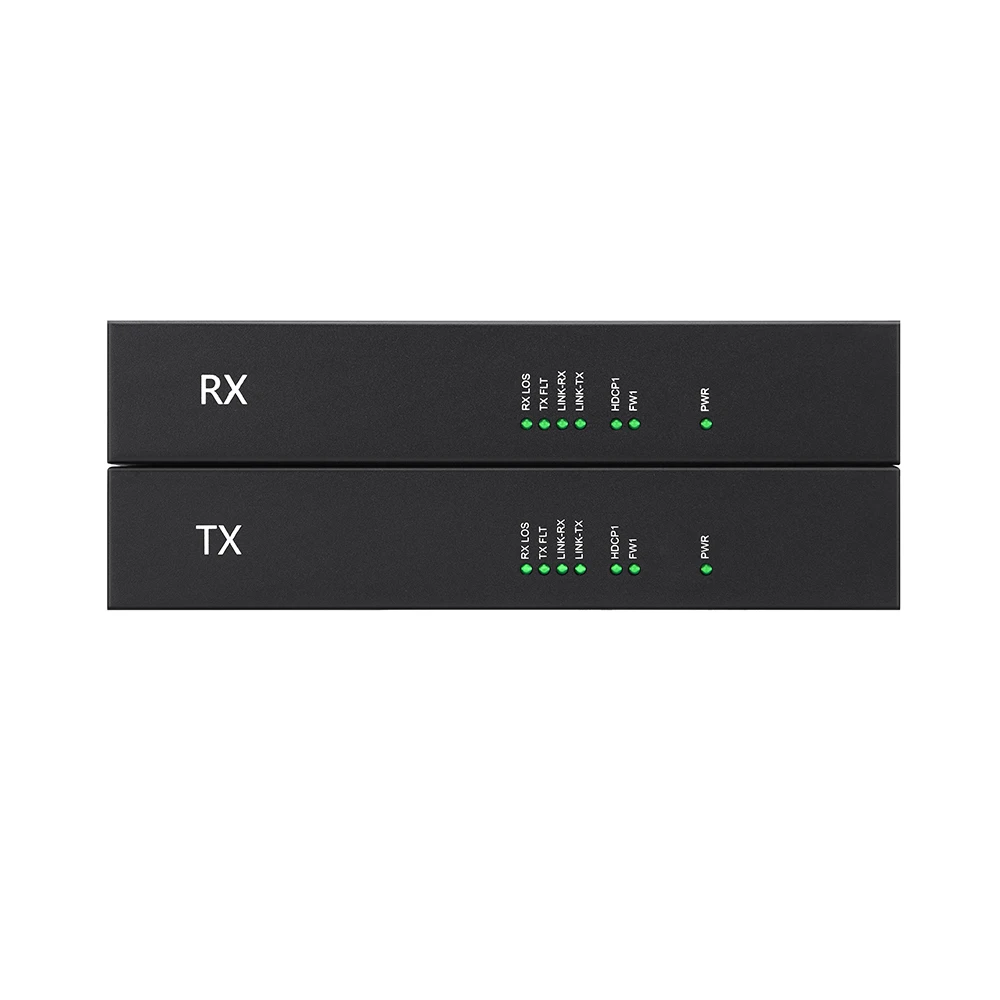

Fiber Optic 4K USB HDMI KVM Extender

Share on (1600296464261):


Price:$558.00 - $670.00

Quantity:


Product Overview

Description



Product Description


Features:

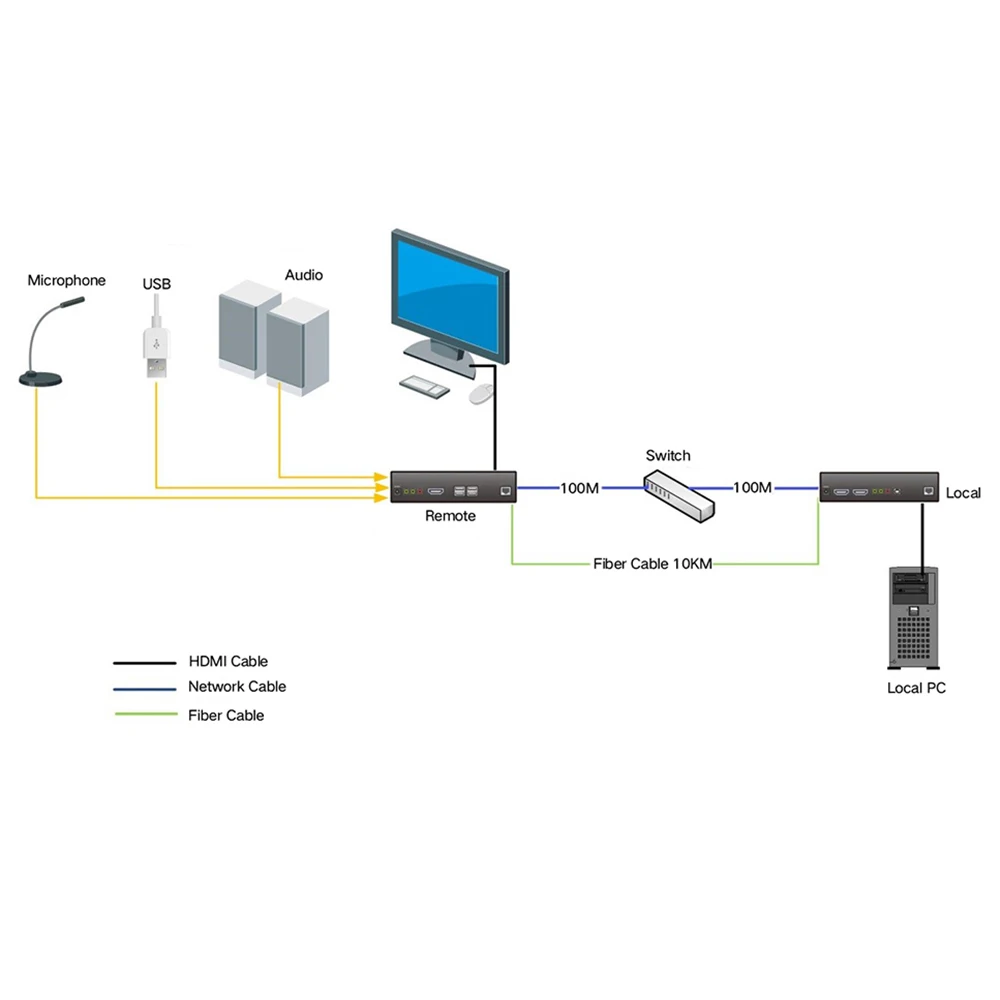

  • Uses one fiber optic cable to connect the transmitter and receiver units

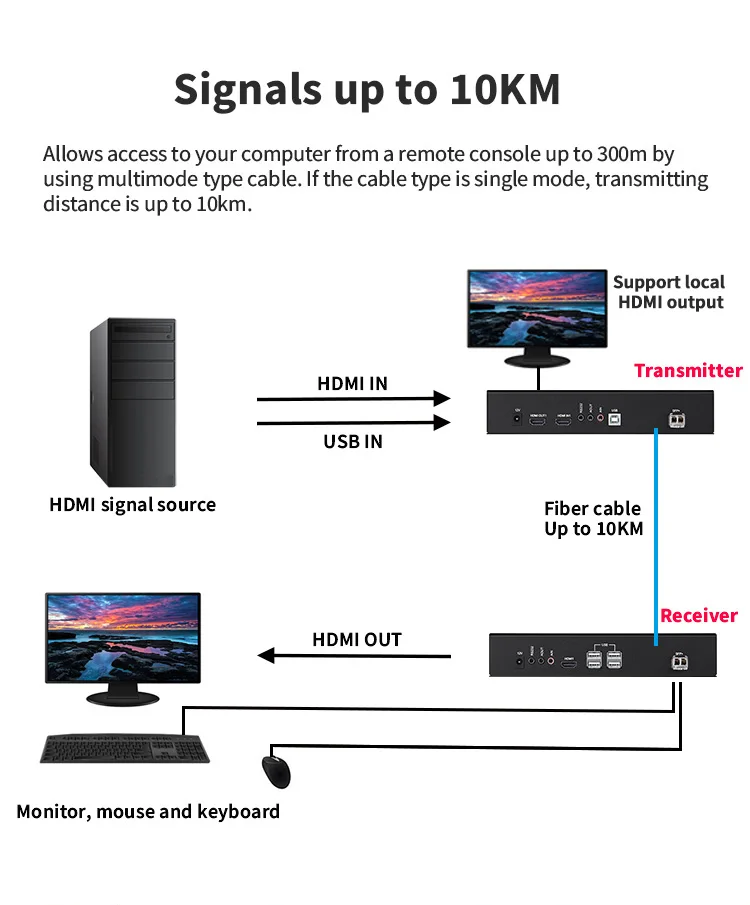

  • Allows access to your computer from a remote console up to 300m by using multimode type cable, if the cable type is single mode, transmitting distance is up to 10km.

  • Superior HDMI video quality of up to 3840 x 2160 @60Hz.

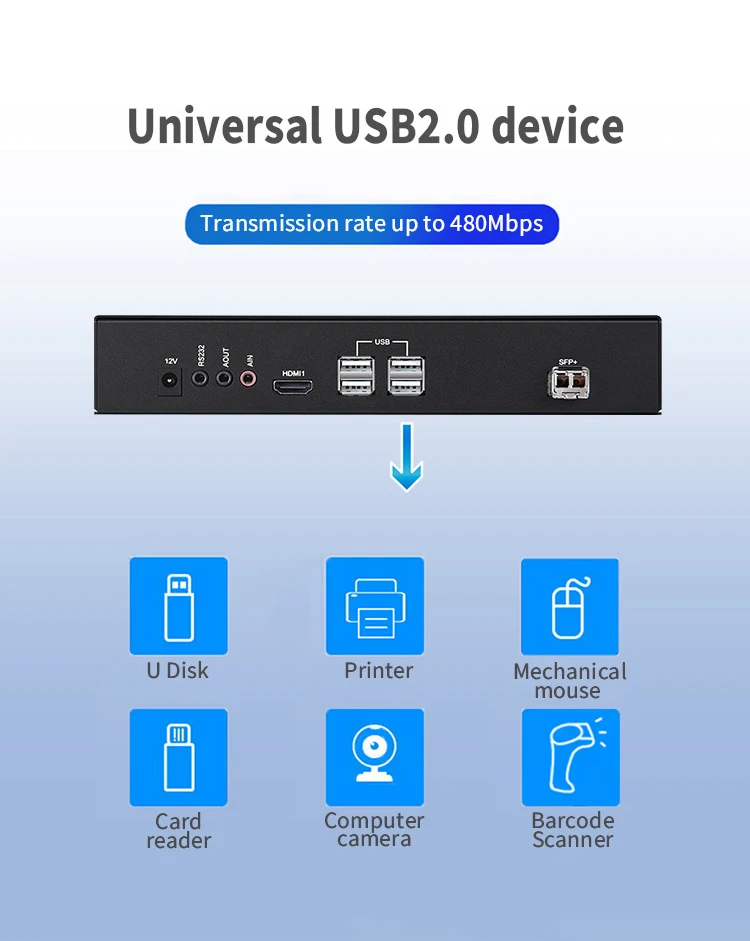

  • Transparent USB 2.0 Supports a wide range of USB devices including keyboards, mice, mass storage devices and printers. It provides 4 USB ports on the Receiver and 1 USB on the Transmitter.

  • Support individual 2-channel stereo audio, 1 LINEIN + 1 LINEOUT.

  • RS232 serial port support connection to a serial terminal.

  • Support local HDMI output

  • Easy to install - no software required - connecting cables to the devices is all it takes

  • Plug and play





Specifications:













































































Part Number



KFH101SH



KFH101SC









Connectors



HDMI input



1



N/A



HDMI output



1



1



Fiber optic port



1



1



USB Type B



1



N/A



USB Type A



N/A



4



Resolution



4K @ 60Hz



Connecting cable



Fiber optic cable



Working Temperature



0 ~ 70



Storage Temperature



-20 ~ 85



Humidity



0 ~ 80 %



Material



Metal



Weight



625 g



Power



9V-12VDC, 12W



Dimension



198 x 116 x 33mm



Package Dimension



560 x 280 x 130mm






 KFH101S-_01.jpgKFH101S-_02.jpgKFH101S-_03.jpgKFH101S-_04.jpgKFH101S-_05.jpgKFH101S-_06.jpg





Company Profile

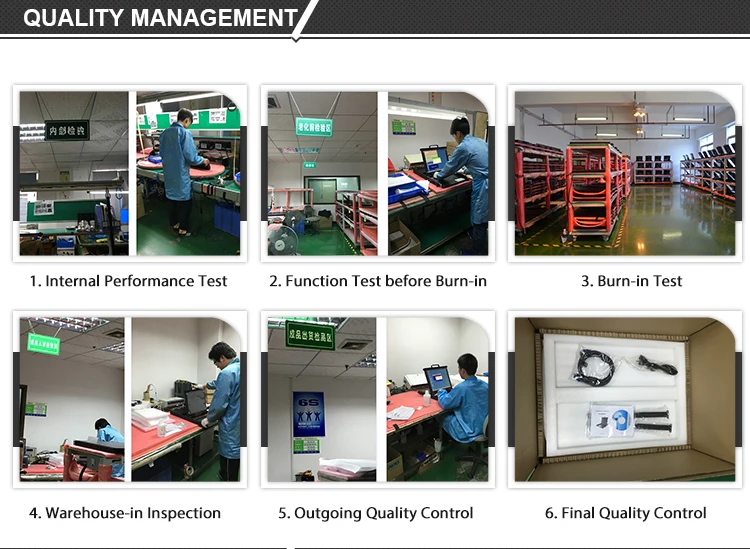

Quality Management
