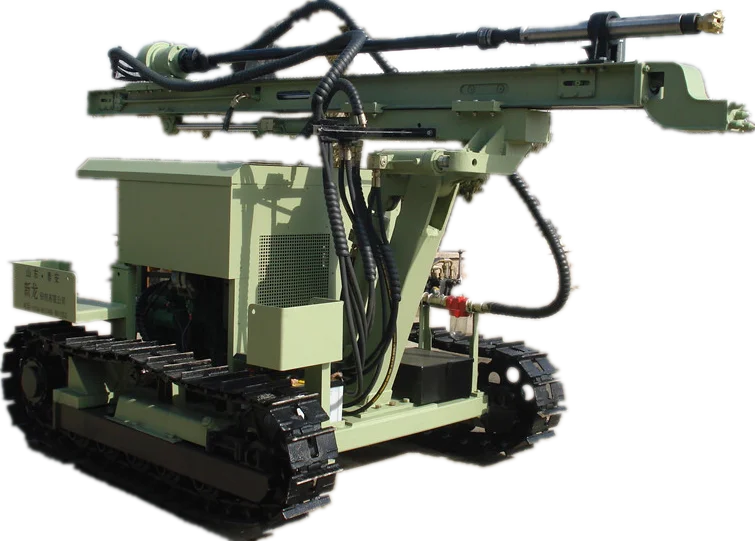

D100YA2 2 Mining Crawler Rock Stone Quarry Iron Ore Drilling Rig Wagons for Blasting Holes
- Category: >>>
- Supplier: Taian Longye Import And Export Trade Co. Ltd.
Share on (1600296464741):
Product Overview
Description

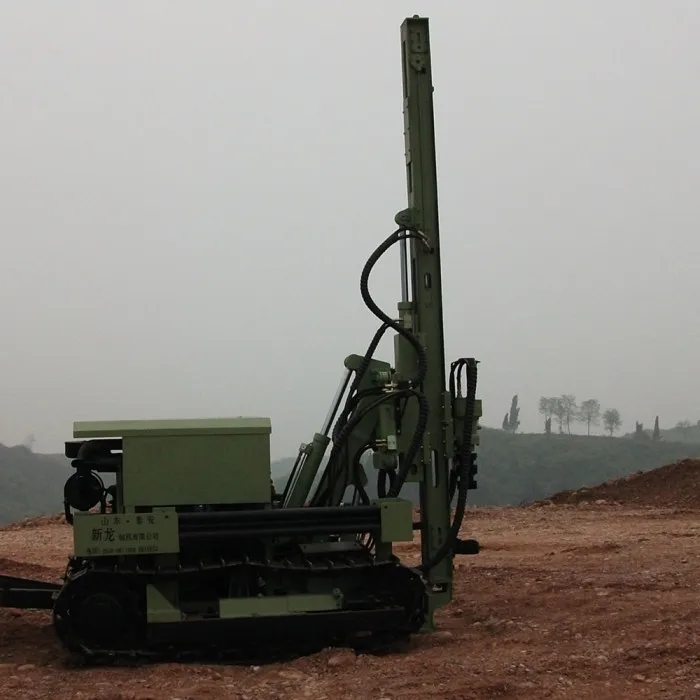

Portable dth mining electric drilling rig machine for rock drill
Portable dth mining electric drilling rig machine for rock drill, adopt new hydraulic rotary motor, increase the rotation gearbox with high speed, large ttorque, and low failure rate. Low air consumption of the rig, the shift hole becomes convenient,use air filter and oil filter, reduce engine wear, thereby increasing the life of the diesel engine.Portable dth mining electric drilling rig machine for rock drill structure is compact, the minimum radius of gyration is 2.8m, while advancing the skid compensation function.When drilling, the skid support on the ground, and have good drilling stability.

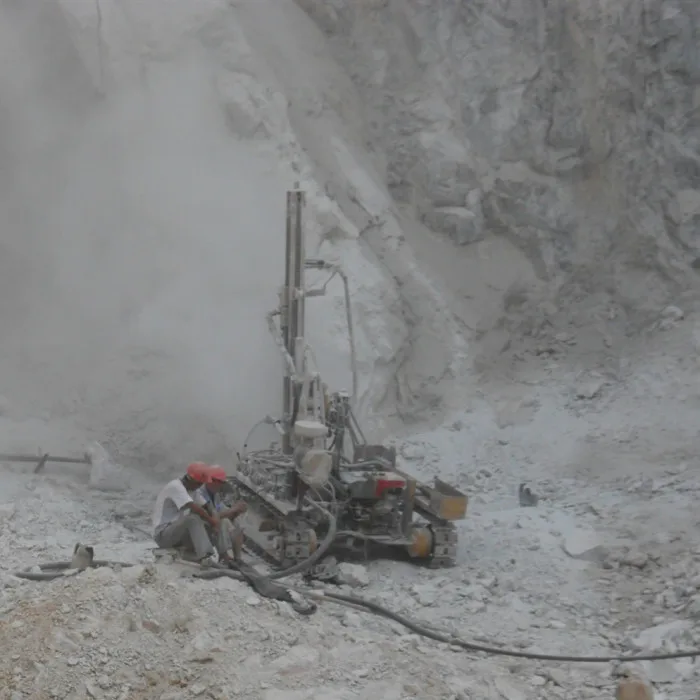

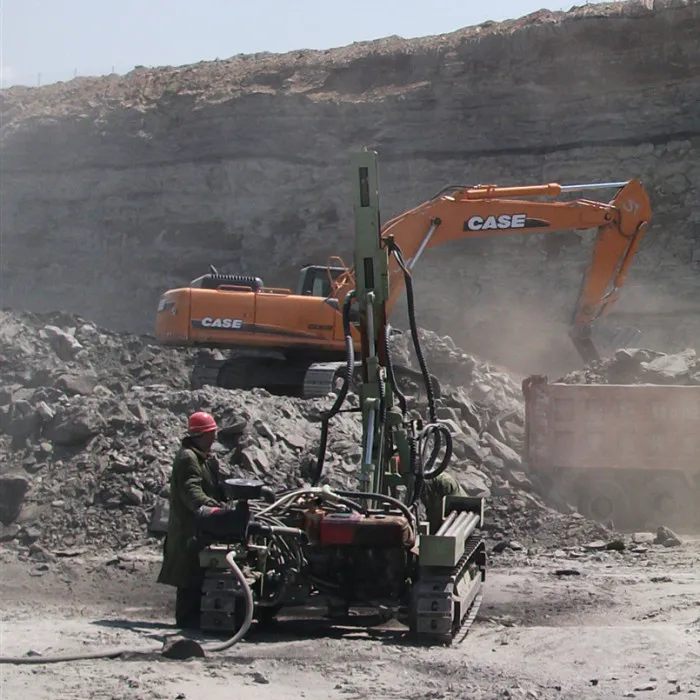

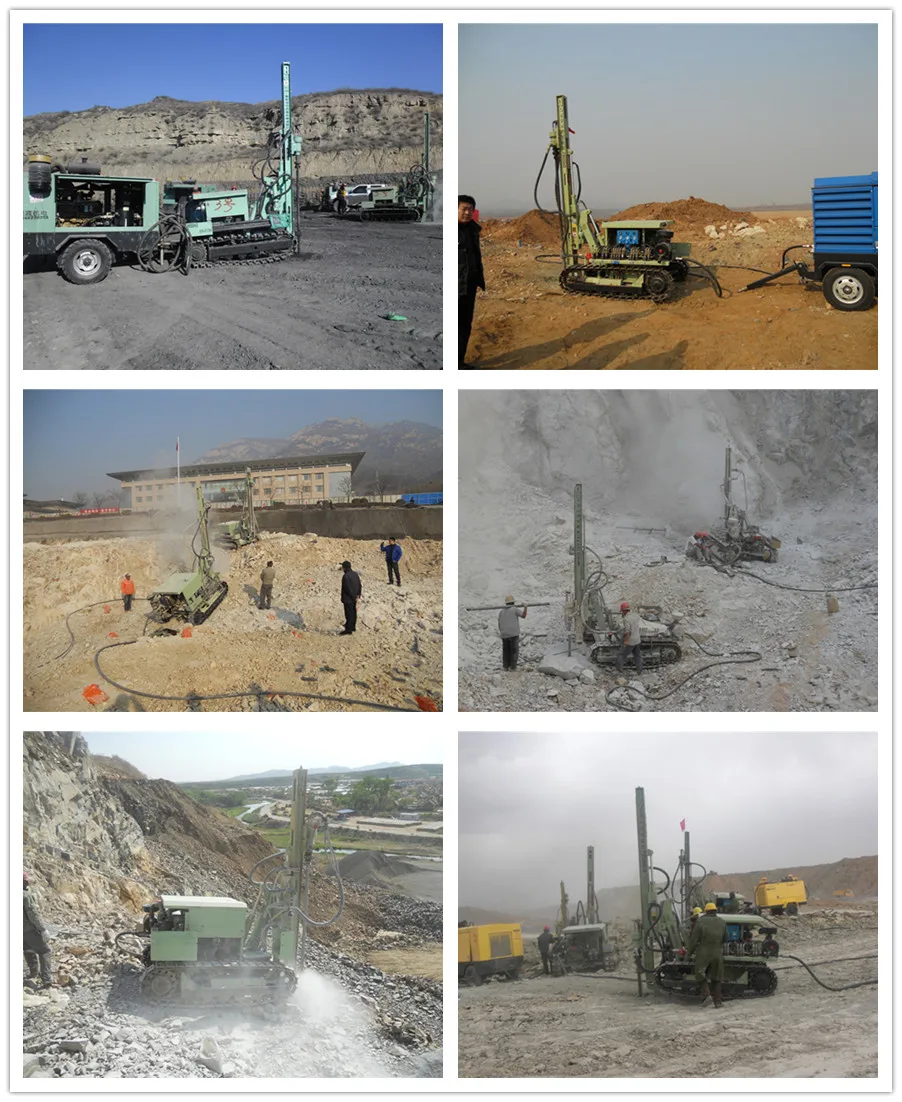

Portable dth mining electric drilling rig machine for rock drill is mainly suitable for open mining, water conservancy, power plants, road building and other rock blasting holes drilling.
Technical parameters
Bore diameter(mm) | 90--130 |
Bore depth(m) | 30 |
Walk speed(km/h) | 2 |
Once promotion (m) | 2 |
Grade ability(°) | 30 |
Air pressure(MPa ) | 0.7-1.4 |
Chassis ground clearance(mm) | 260 |
Air consumption(m³/min) | 7-15 |
Skid pitch(°) | up and down total 100 |
Host Power(kw) | 33 |
Sliding tilt swing(.) | Left 35, Right 10 |
For rock(F) | 6-20 |
Skid compensation(mm) | 900 |
Dimension (L * W * H)mm | 4300x2130x2160 |
Weight(T) | 2.9 |

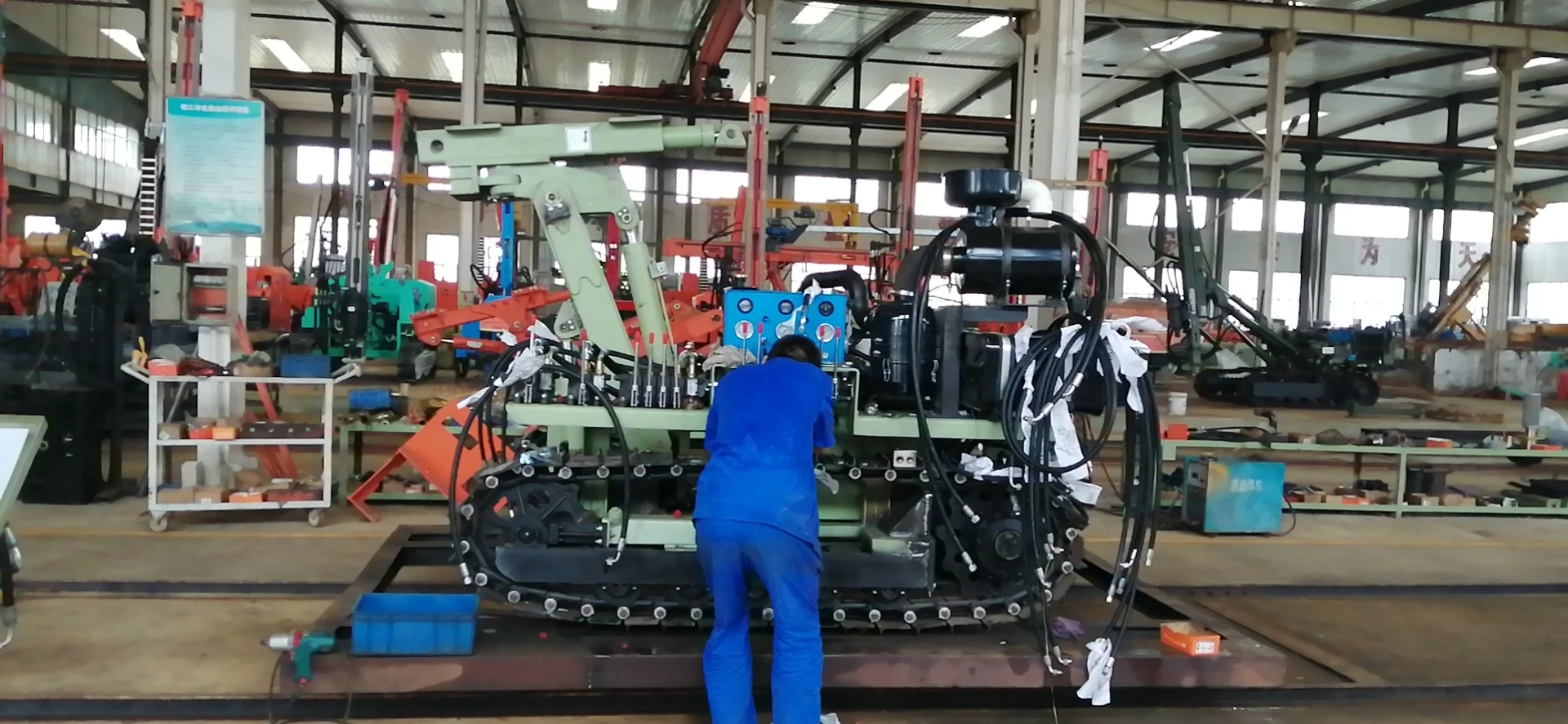

Taian Longye Import And Export Trade Co.,Ltd. is a manufacturer,specialized in the production of blasting drilling rig,solar pile driver,water well drilling rig and accessories such as portable screw air compressor,drill pipe,drill hammer,drill bit,etc.Our company is a backbone enterprise in the industry. Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise. Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents. Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment. On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India and some other countries in Europe.
Contact: Tao
Whatsapp(Wechat):+8615069857794
E: zhangtao(at)longyejixie.com
