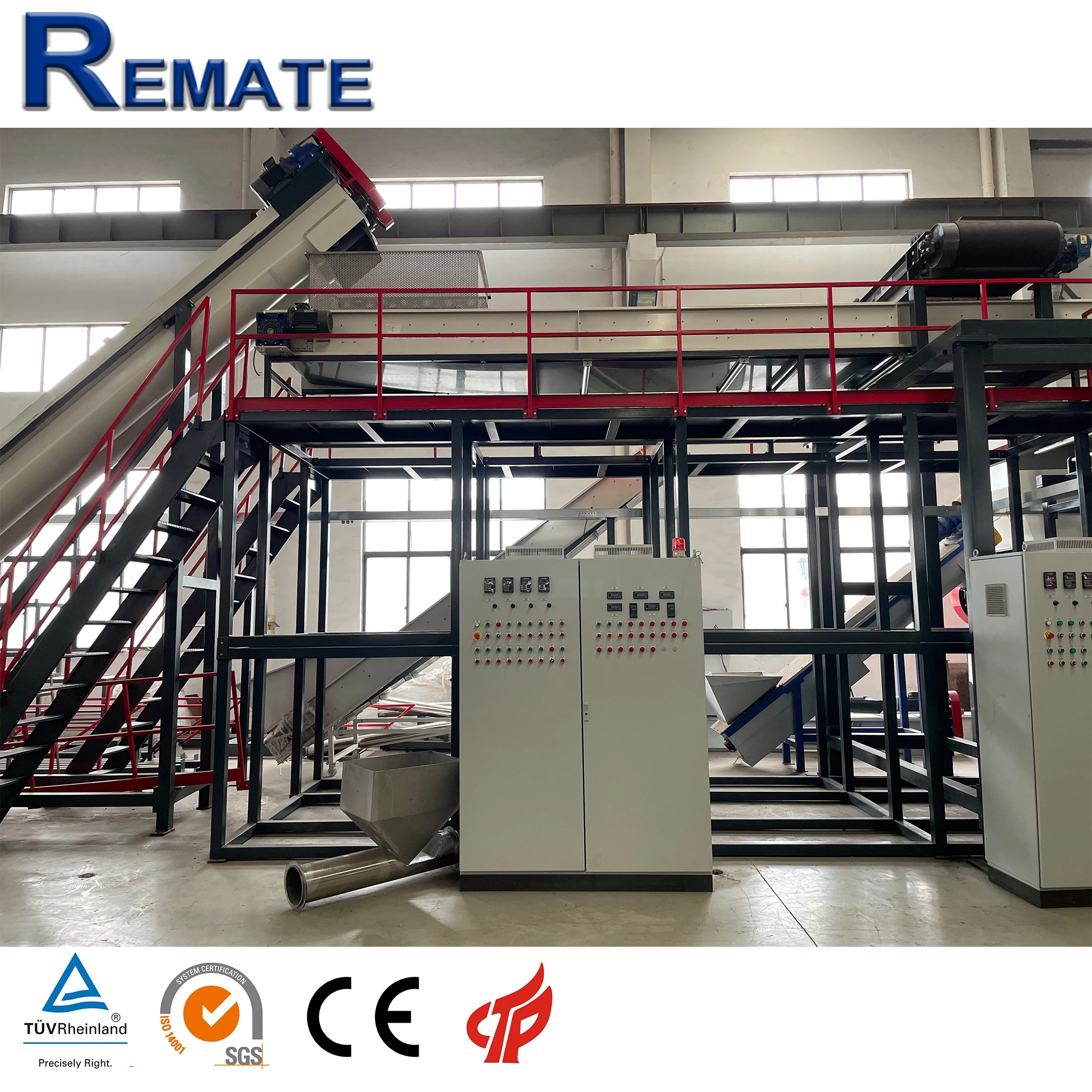

2000kg waste plastic PET bottles recycling washing line and crushing machine bottle crusher from remate
- Category: >>>
- Supplier: Suzhou Remate Machinery Co. Ltd.
Share on (1600296472141):
Product Overview
Description
Product Overview

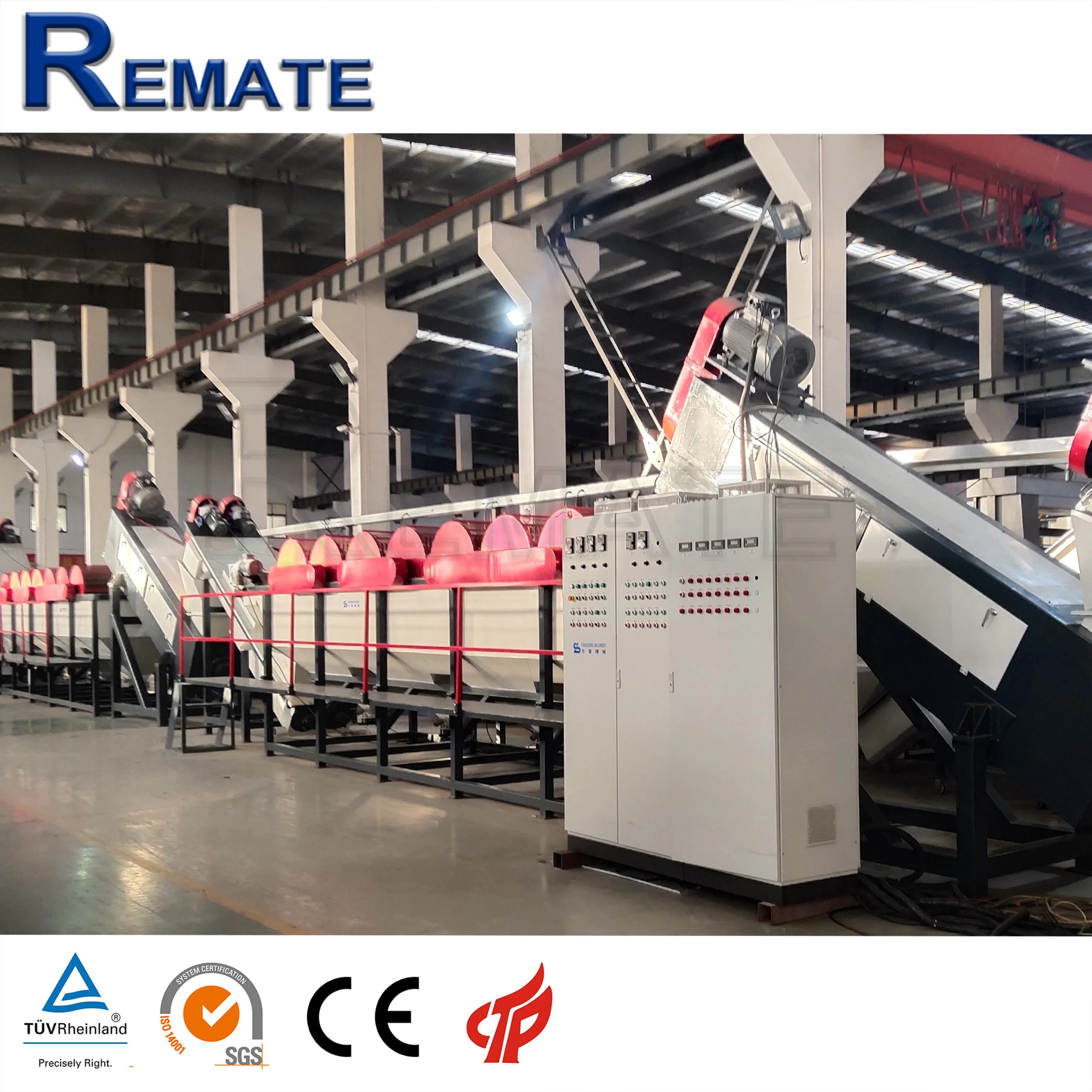

Good price Plastic recycling machine waste PET bottles recycle washing line
1.Output: the output of PET bottle washing line ranges from 300kg / h to 3000kg / h, and can be customized according to the special requirements of customers;
2.The pre crushing and pre washing system can effectively remove most of the impurities such as
sediment, protect the follow-up equipment, and greatly improve the service life of the fine crushing and cleaning system;
3.Technical treatment: unique national patent technology of processing bottle piece label;
sediment, protect the follow-up equipment, and greatly improve the service life of the fine crushing and cleaning system;
3.Technical treatment: unique national patent technology of processing bottle piece label;
Detail specification

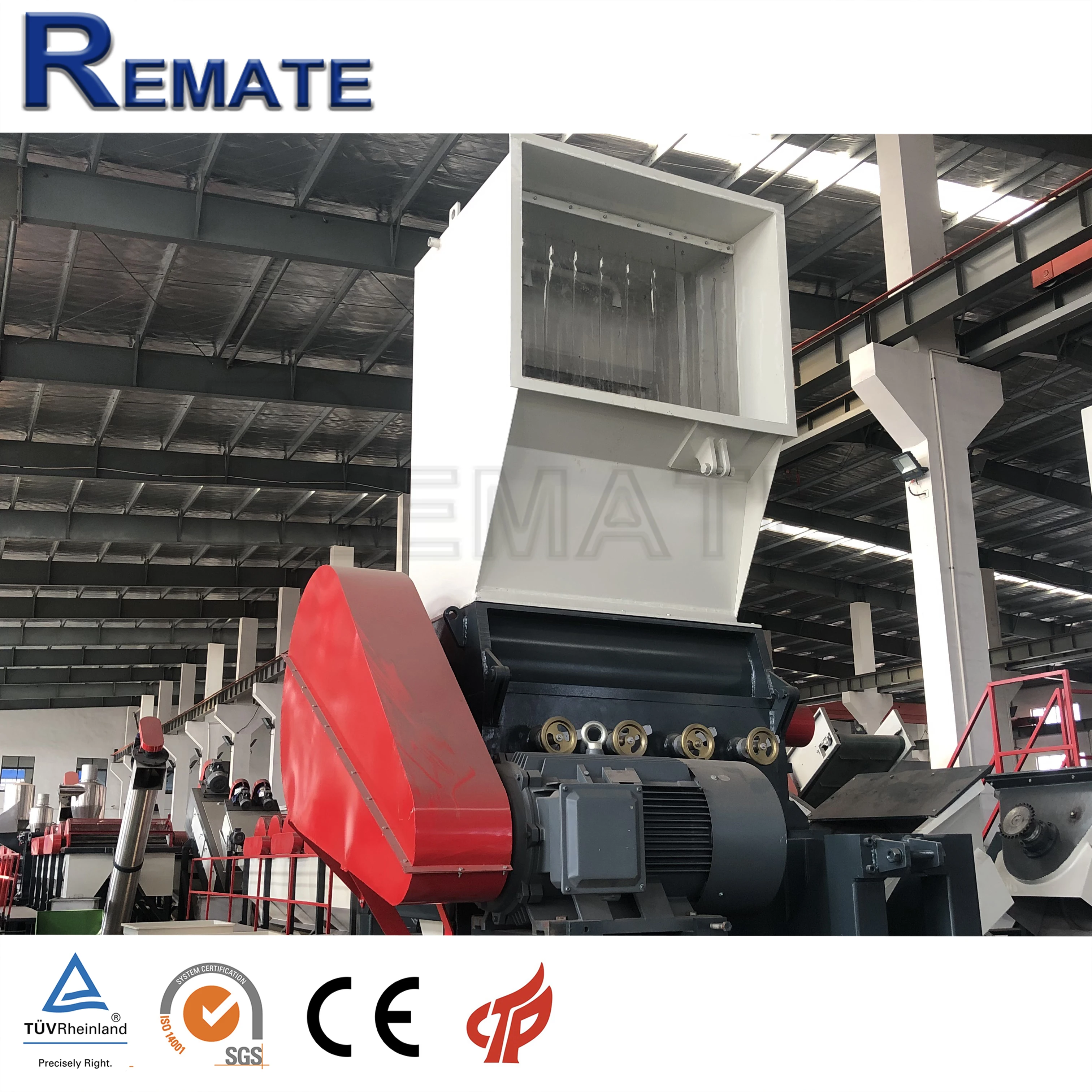

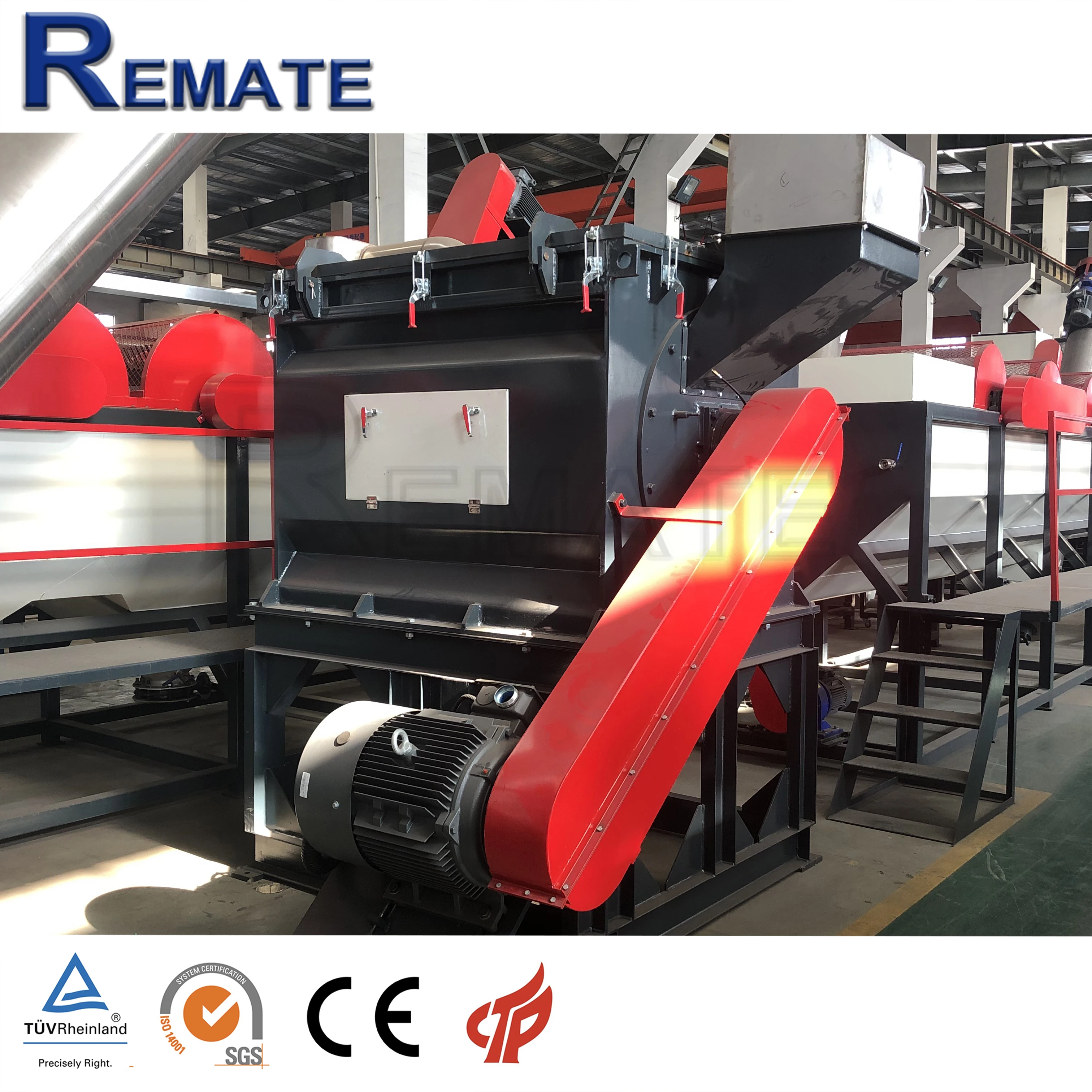

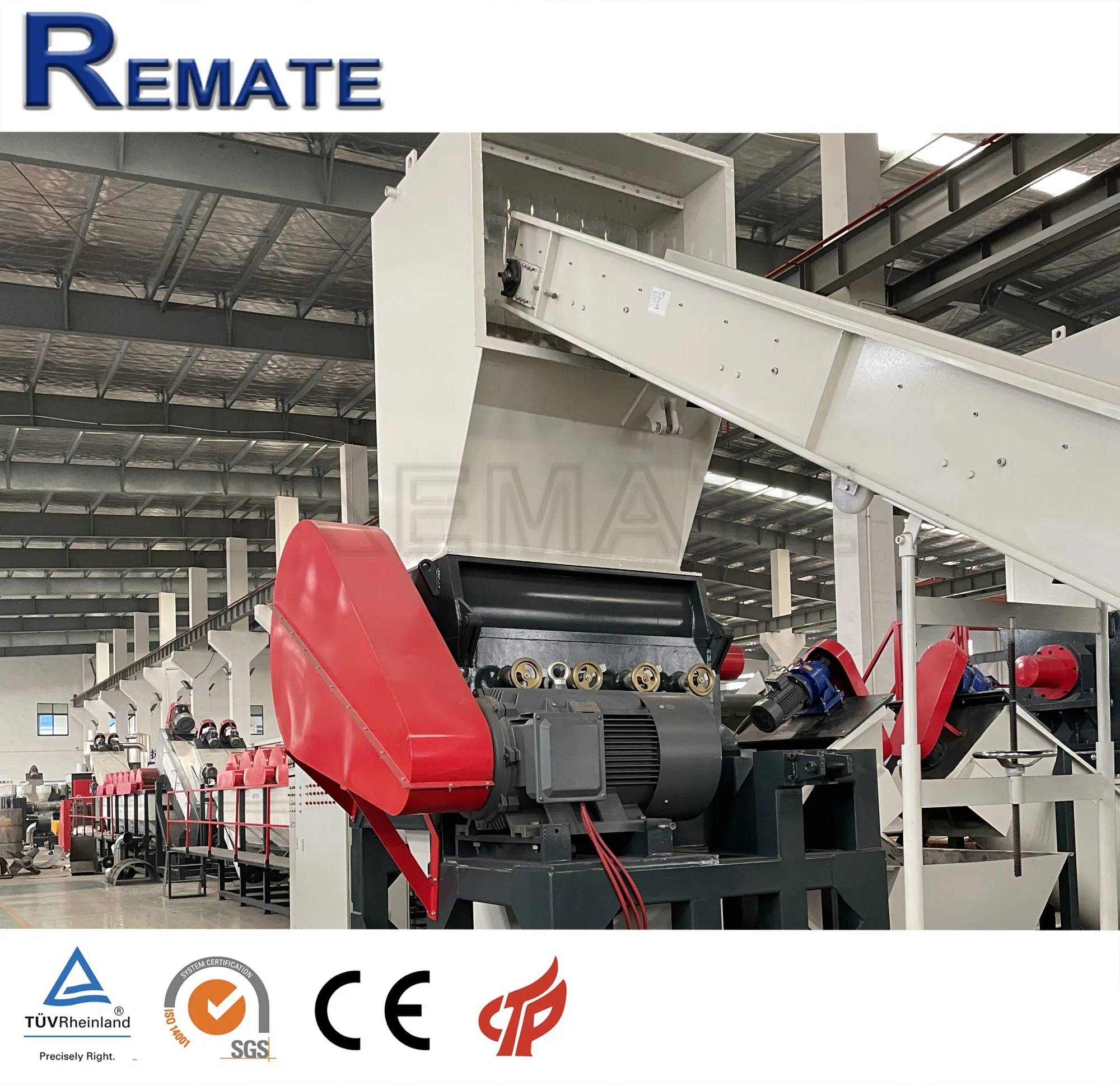

Crusher
●rotor with balance treatment for stability and low noise
●rotor with heat treatment for long lifespan
●wet crushing with water, which can cool the blades and wash the plastic in advance
●can also choose shredder before the crusher
●special rotor structure design for different plastics like bottles or film
●blades made of special material, with high hardness
●easy operation to change blades or screen mesh
●high capacity with stability
●rotor with heat treatment for long lifespan
●wet crushing with water, which can cool the blades and wash the plastic in advance
●can also choose shredder before the crusher
●special rotor structure design for different plastics like bottles or film
●blades made of special material, with high hardness
●easy operation to change blades or screen mesh
●high capacity with stability

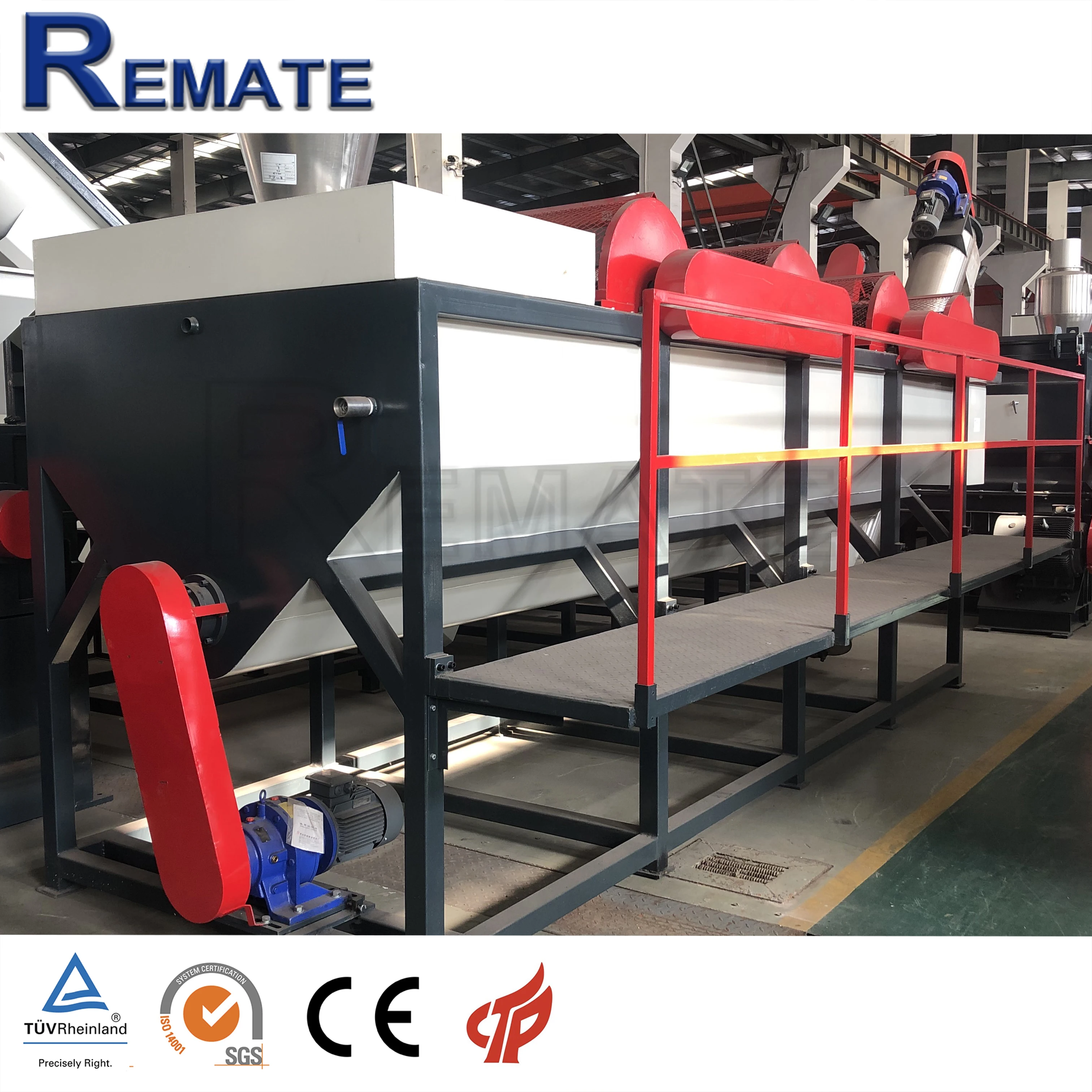

Floating washer
●rinse the pieces of flakes or scraps in water
●can use hot type washer to add chemical for washing
●upper roller be inverter controlled
●all tank made of SUS304 or even 316L if needed
●bottom screw can process sludge
●can use hot type washer to add chemical for washing
●upper roller be inverter controlled
●all tank made of SUS304 or even 316L if needed
●bottom screw can process sludge
PET bottle label flakes remover
●On the basis of ensuring the output, remove more than 98% of the label particle fragments in the bottle flakes
●unique national patent technology of processing bottle piece label
●unique national patent technology of processing bottle piece label
Friction Washing
●Friction to clean the materials mechanically
●rotor made of strong&thick material, surface treatment with alloy
●rotor with balance treatment for stability
●rotor with heating and dynamic balance treatment for long lifespan
●The bearing is externally connected with water cooling sleeve, which can effectively cool the bearing.
●rotor with balance treatment for stability
●rotor with heating and dynamic balance treatment for long lifespan
●The bearing is externally connected with water cooling sleeve, which can effectively cool the bearing.
Dewatering Machine
●Drying materials by centrifugal force
●rotor made of strong&thick material, surface treatment with alloy
●rotor with balance treatment for stability
●rotor with heat treatment for long lifespan
●The bearing is externally connected with water cooling sleeve, which can effectively cool the bearing.
●rotor with balance treatment for stability
●rotor with heat treatment for long lifespan
●The bearing is externally connected with water cooling sleeve, which can effectively cool the bearing.

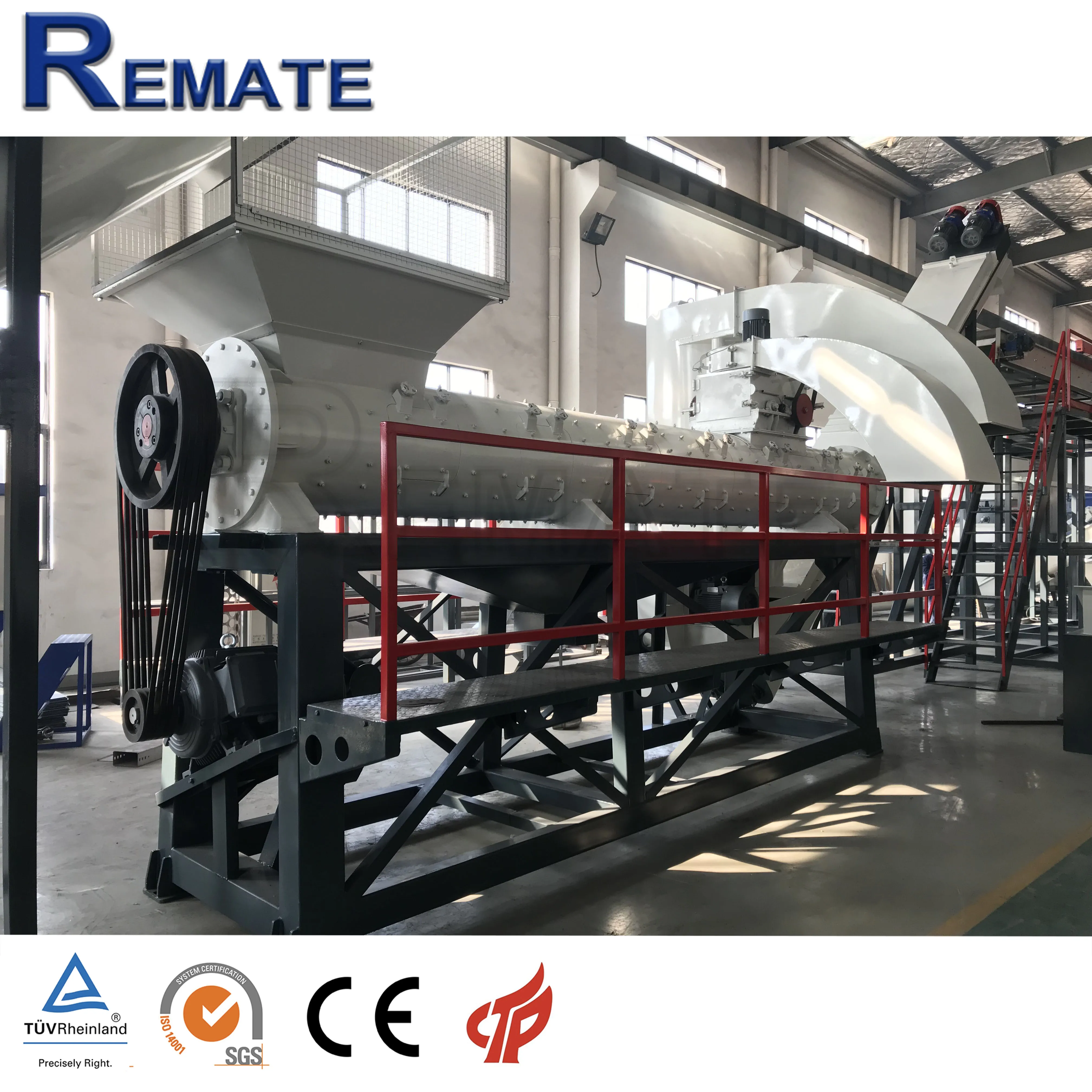

Squeezer& Squeezing granulation machine
●The design adopts imported alloy steel blades for long wear resistance time. The claw-shaped tool is welded with copper powder,the welding area is large, firm welding and blade the tool can be adjusted and replaced.
●Better paper stripping effect ,no damage to the bottle body, no color change. The mineral water bottle after paper stripping is transparent, with less scratches and low loss.
●Mechanical internal angle, spacing, radian through scientific design, fine processing, stripping paper cleanliness of 95%;
●Mechanical internal angle, spacing, radian through scientific design, fine processing, stripping paper cleanliness of 95%;

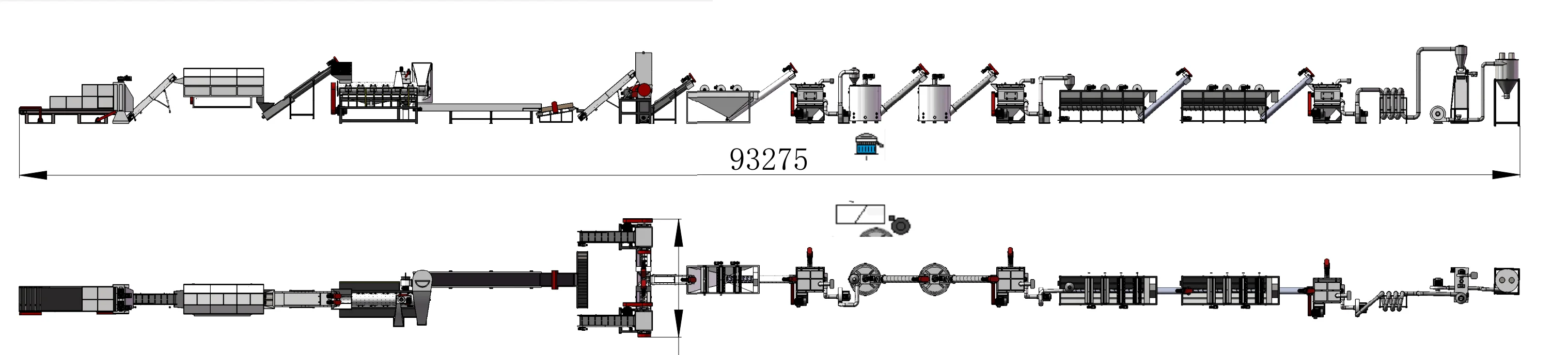

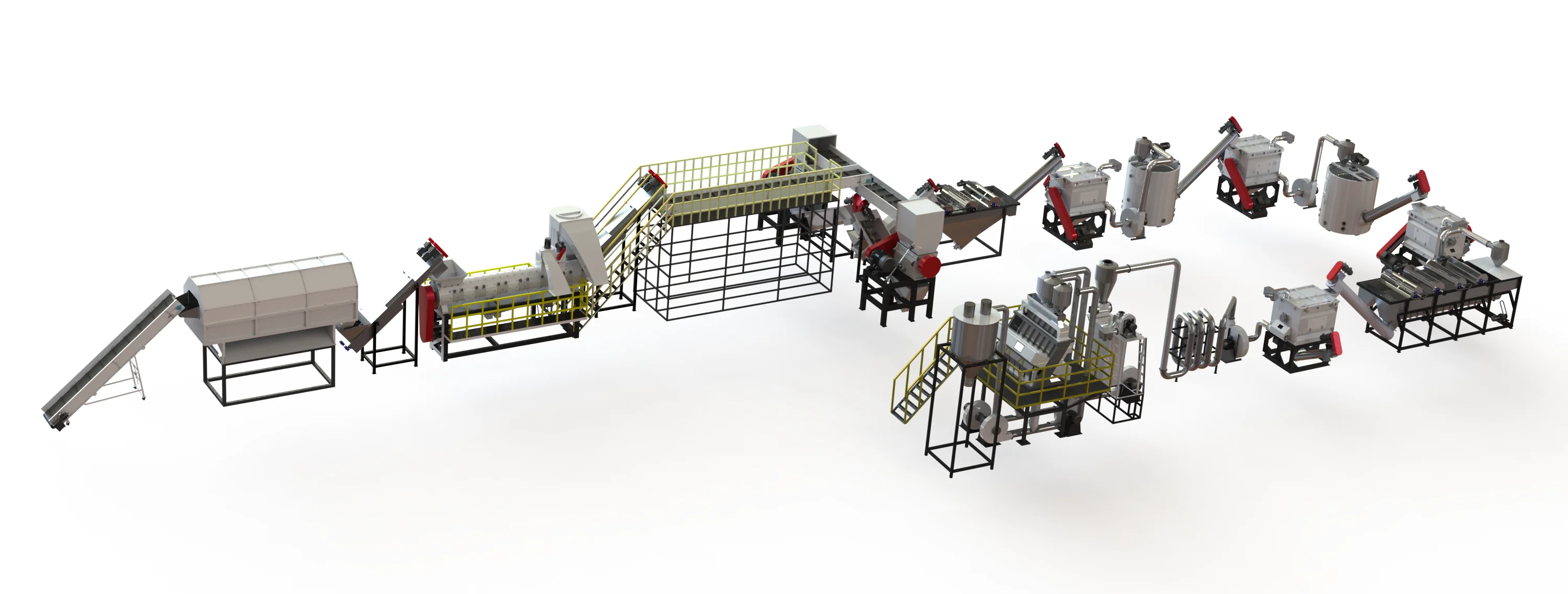

Technology Parameter
Name | Motor power (kw) | Dimension (mm) | Water consumption (T/H) | Stainless steel standard (mm) | Electric standard |
Belt conveyer | 2.2 | 3500*900*3000 | - | - | According to customers standard |
Label Scraping Machine | 11 | 2600*1200*1800 | 0.6-1.0 | 3-5 | |
Manual separating Machine | 2.2 | 6000*800*1200 | - | - | |
Metal detectory | 0.4 | 2200*1200*1500 | - | 3-5 | |
Belt conveyer | 2.2 | 3500*900*3000 | - | - | |
Crusher | 37 | 2200*2200*3000 | 0.6-1.0 | - | |
Screw conveyer | 3 | 2800*800*2600 | - | 3-5 | |
High speed friction washer | 30 | 3200*1400*2000 | 1-2 | 3-5 | |
screw conveyer | 3 | 2800*800*2600 | - | 3-5 | |
floating washer | 3*2 | 5200*1700*2200 | 0.5-1.5 | 3-5 | |
screw conveyer | 3 | 2800*800*2600 | - | 3-5 | |
Steam Washer | 7.5 | 1800*1800*2700 | 0.5-1.5 | 3-5 | |
Screw Conveyer | 3 | 2800*800*2600 | - | 3-5 | |
Floating washer | 3*2 | 5200*1700*2200 | 0.5-1.5 | 3-5 | |
Screw conveyer | 3 | 2800*800*2600 | - | 3-5 | |
dewatering machine | 5.5 | 800*2200*2200 | - | 5 | |

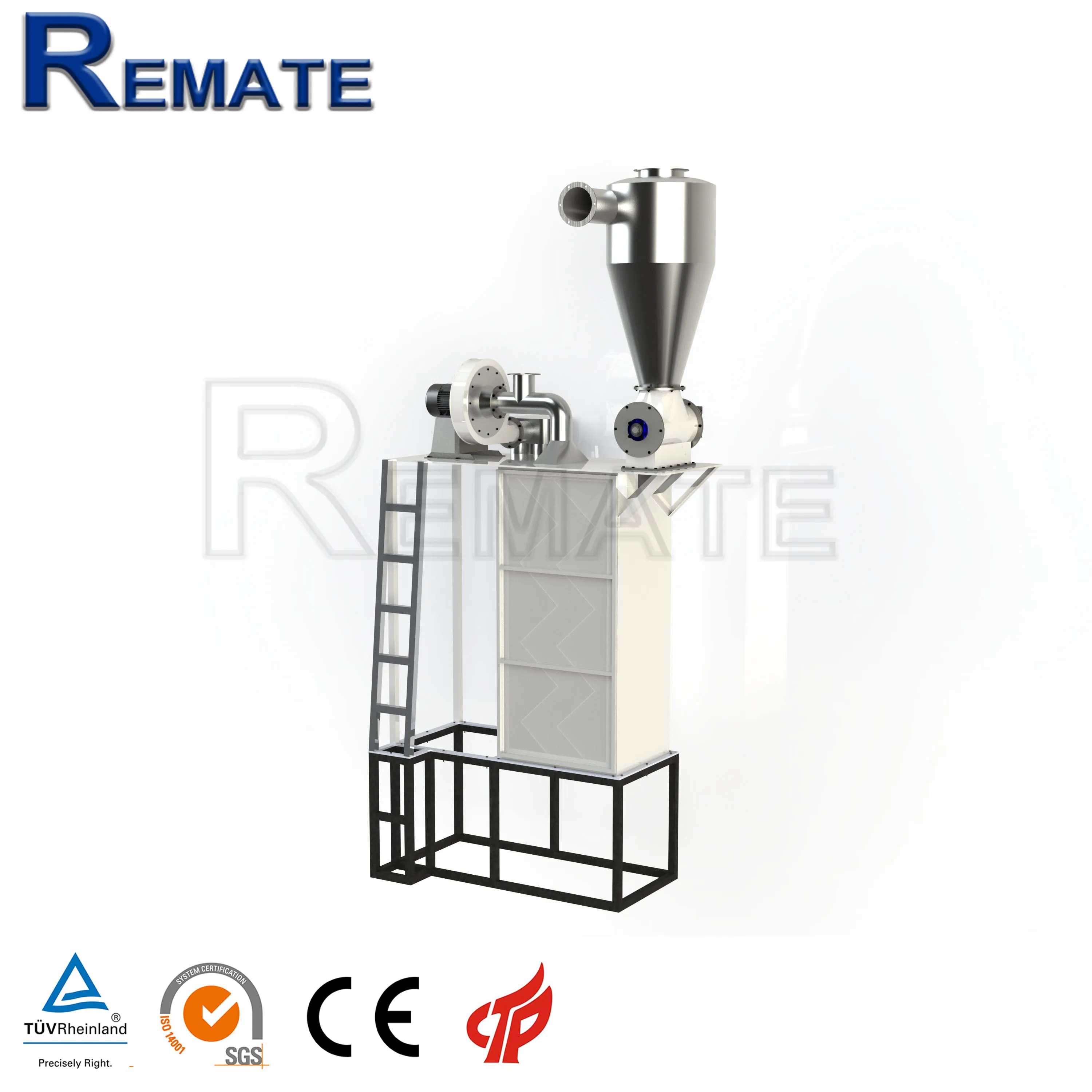

drying system | 11 | 3500*2200*2200 | - | 3-5 | |
Label separater | 4 | 800*1100*3800 | - | - | |
storage hopper | - | 1500*1500*3800 | - | - | |
electric elements | - | 2000*450*1780 |
Main Parameters
Successful Project
Our Company
FAQ
1.Your company is a transactional company or an industrial manufacture factory?
We are an industrial manufacture factory which locates in Zhangjiagang city.
2.All of your products are made by your self or compacted via purchasing the others?
We have independent technical team who focus on making machines, all the products are made by our technical team.
3.What is the ability of your factory?
About 80 lines per year.
4.Do you have any other services about your products?
We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
5.How do you make the quotation for clients?
The price depends on quality and performance but the clients should be satisfied first.
We are an industrial manufacture factory which locates in Zhangjiagang city.
2.All of your products are made by your self or compacted via purchasing the others?
We have independent technical team who focus on making machines, all the products are made by our technical team.
3.What is the ability of your factory?
About 80 lines per year.
4.Do you have any other services about your products?
We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
5.How do you make the quotation for clients?
The price depends on quality and performance but the clients should be satisfied first.
